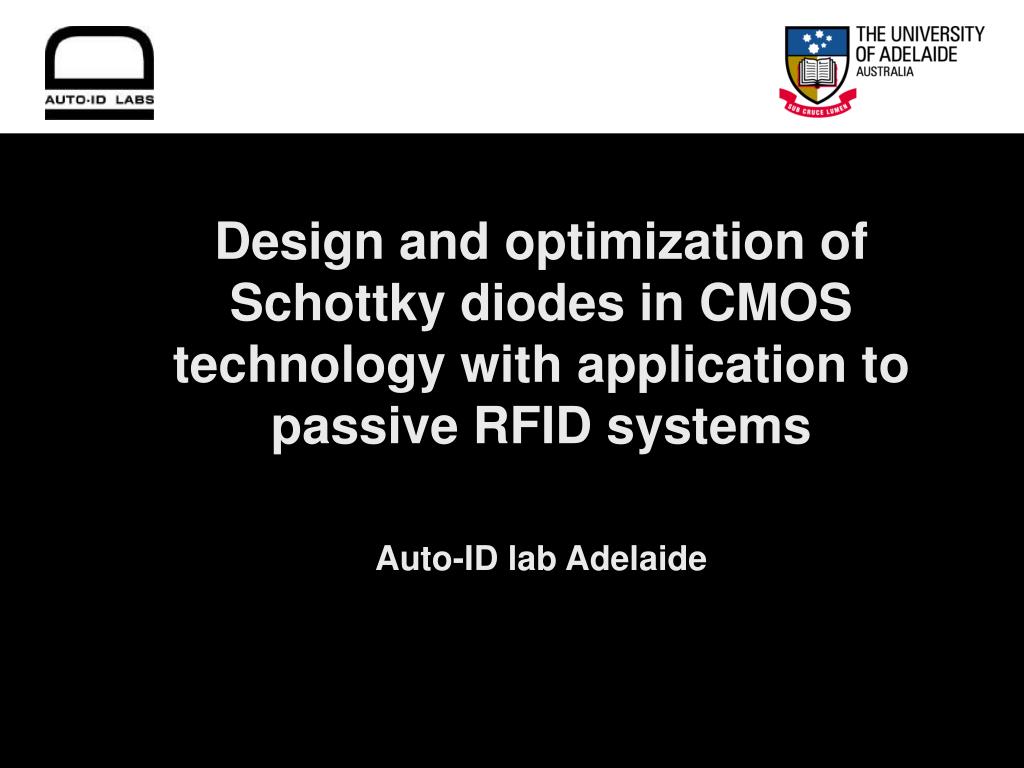

  1. Design and optimization of Schottky diodes in CMOS technology with application to passive RFID systems Auto-ID lab Adelaide

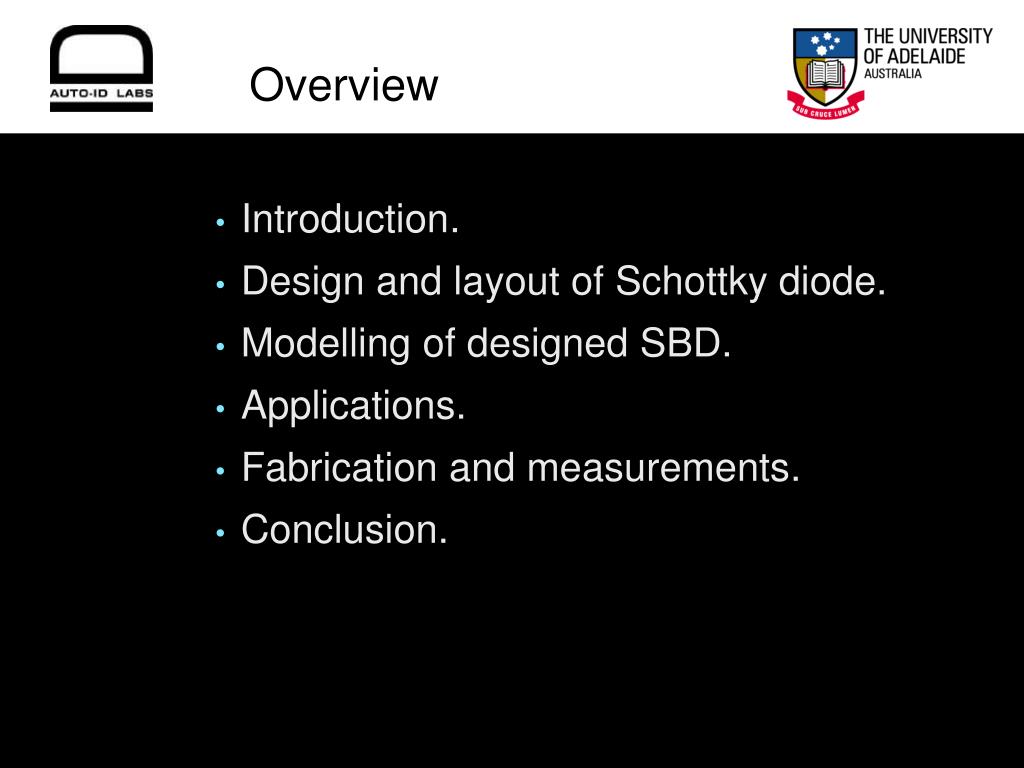

  2. Overview • Introduction. • Design and layout of Schottky diode. • Modelling of designed SBD. • Applications. • Fabrication and measurements. • Conclusion.

  3. The General RFID Idea The black spot Normally a very weak reply is obtained

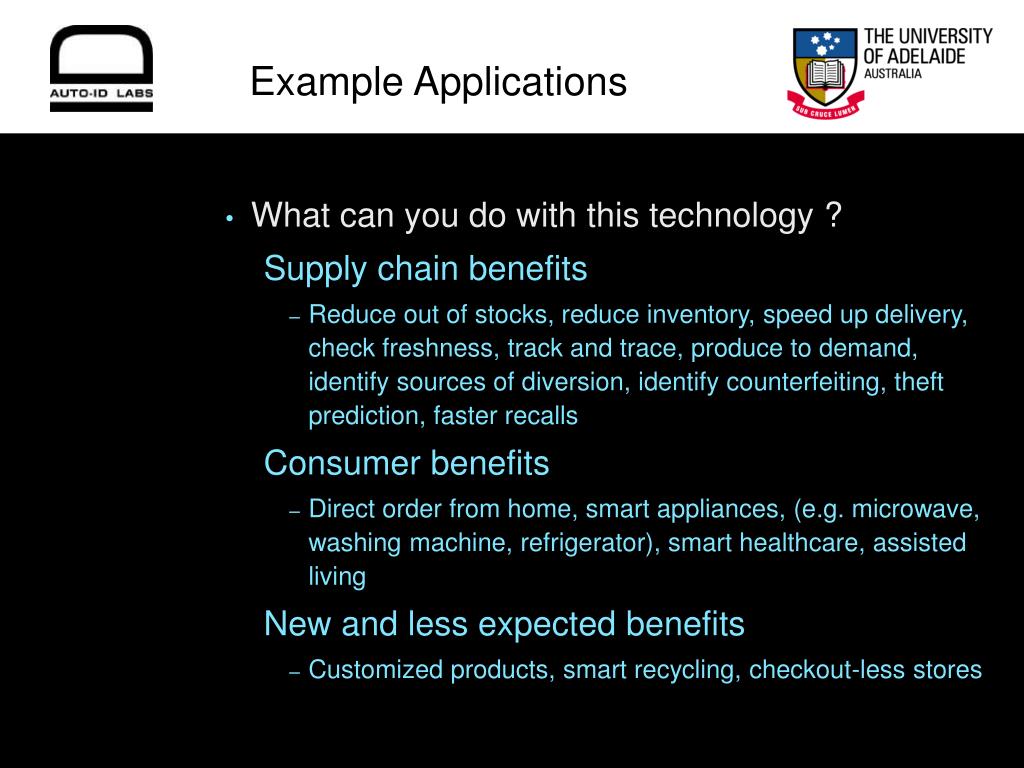

  4. Example Applications • What can you do with this technology ? • Supply chain benefits • Reduce out of stocks, reduce inventory, speed up delivery, check freshness, track and trace, produce to demand, identify sources of diversion, identify counterfeiting, theft prediction, faster recalls • Consumer benefits • Direct order from home, smart appliances, (e.g. microwave, washing machine, refrigerator), smart healthcare, assisted living • New and less expected benefits • Customized products, smart recycling, checkout-less stores

  5. Passive RFID • RFID tag chip in standard CMOS technology. • Low size. • Low cost. • Integration with existing logics and other modules. • Supply sufficient operating power • Metal directly deposited on N-Well. • Titanium-Silicon/Tungsten-Silicon contact • Functional but needs more improvements. • Fabricated through MOSIS

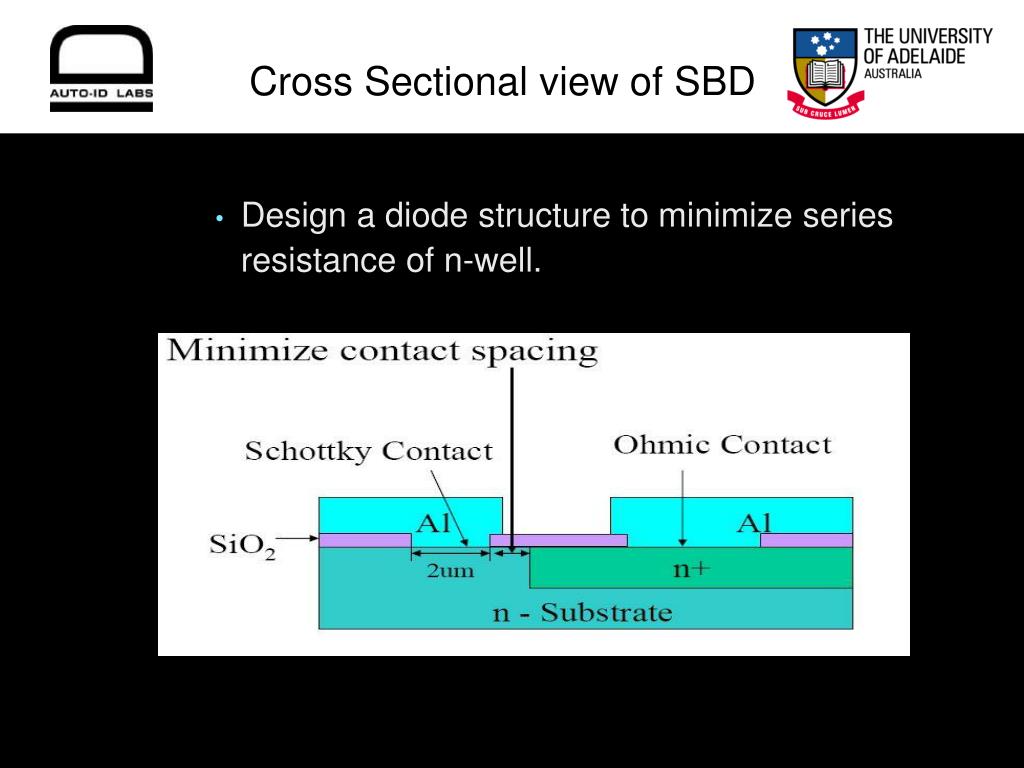

  6. Cross Sectional view of SBD • Design a diode structure to minimize series resistance of n-well.

  7. Cross Sectional view of SBD

  8. Equivalent circuit

  9. Multi-finger Schottky contact • Reducing the series resistance • Increasing the perimeter • Decrease junction capacitance

  10. Prototyped SBD sizes

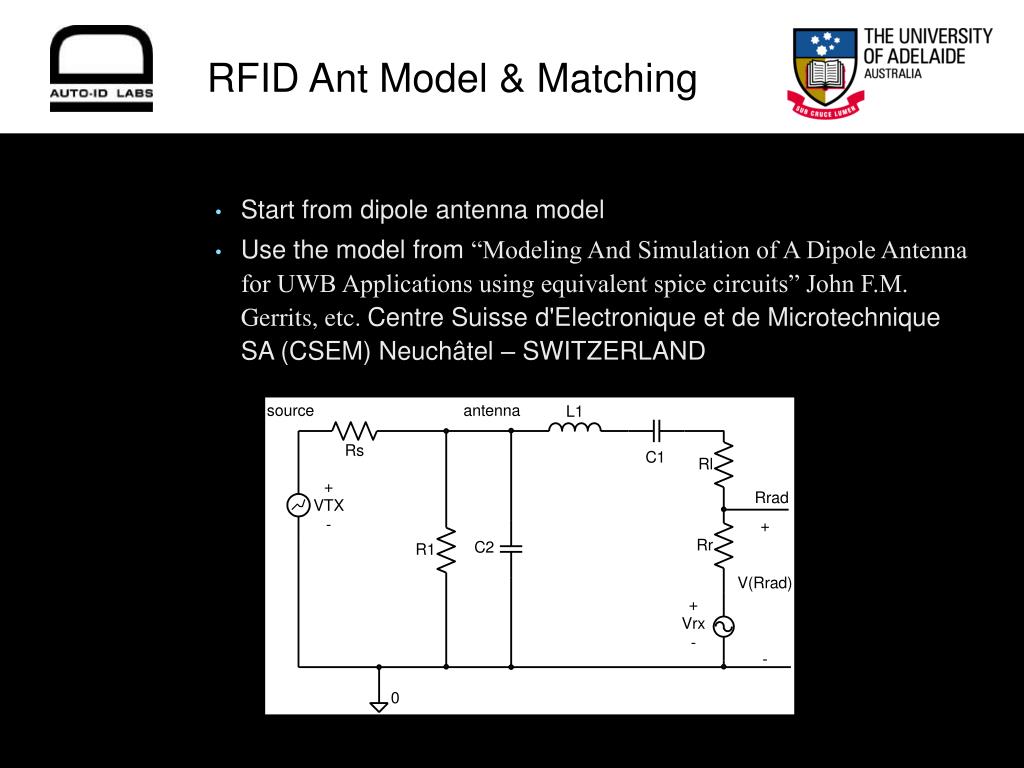

  11. RFID Ant Model & Matching • Start from dipole antenna model • Use the model from “Modeling And Simulation of A Dipole Antenna for UWB Applications using equivalent spice circuits” John F.M. Gerrits, etc. Centre Suisse d'Electronique et de Microtechnique SA (CSEM) Neuchâtel – SWITZERLAND

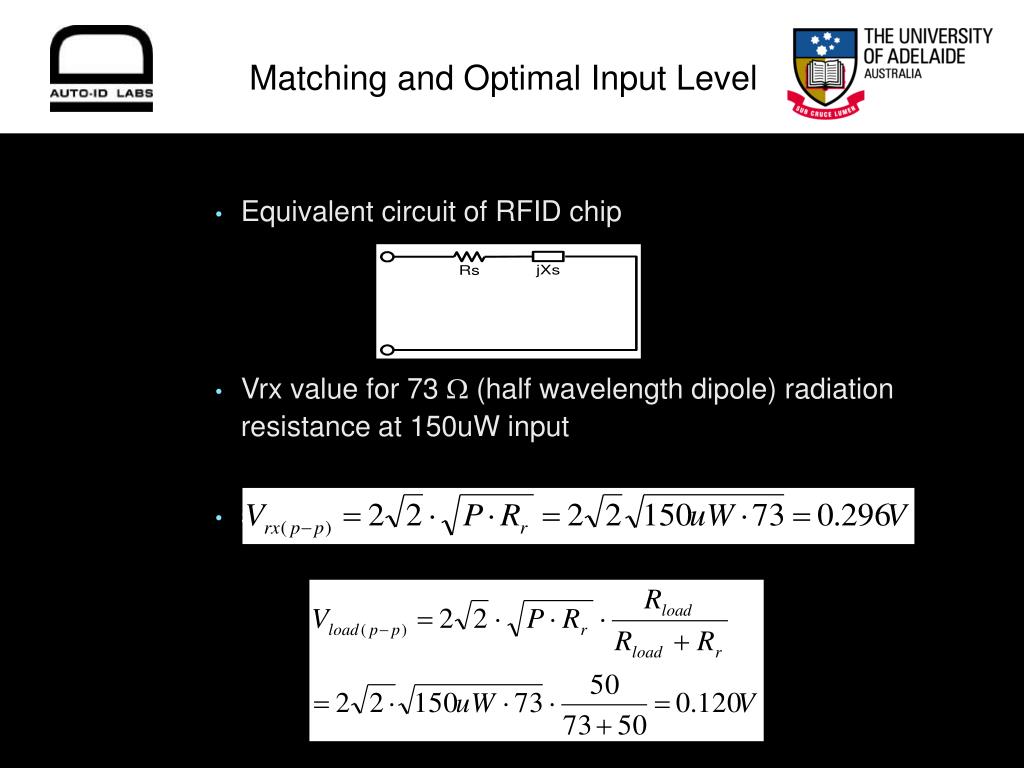

  12. Matching and Optimal Input Level • Equivalent circuit of RFID chip • Vrx value for 73  (half wavelength dipole) radiation resistance at 150uW input • 50  resistor voltage swing

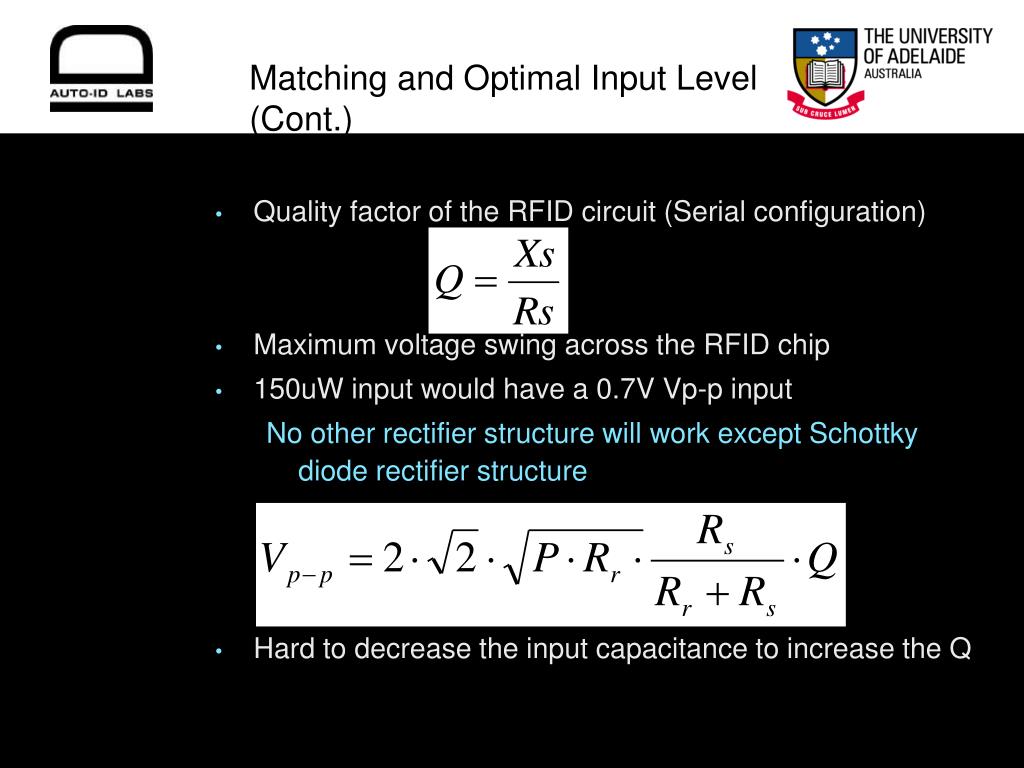

  13. Matching and Optimal Input Level (Cont.) • Quality factor of the RFID circuit (Serial configuration) • Maximum voltage swing across the RFID chip • 150uW input would have a 0.7V Vp-p input • No other rectifier structure will work except Schottky diode rectifier structure • Hard to decrease the input capacitance to increase the Q

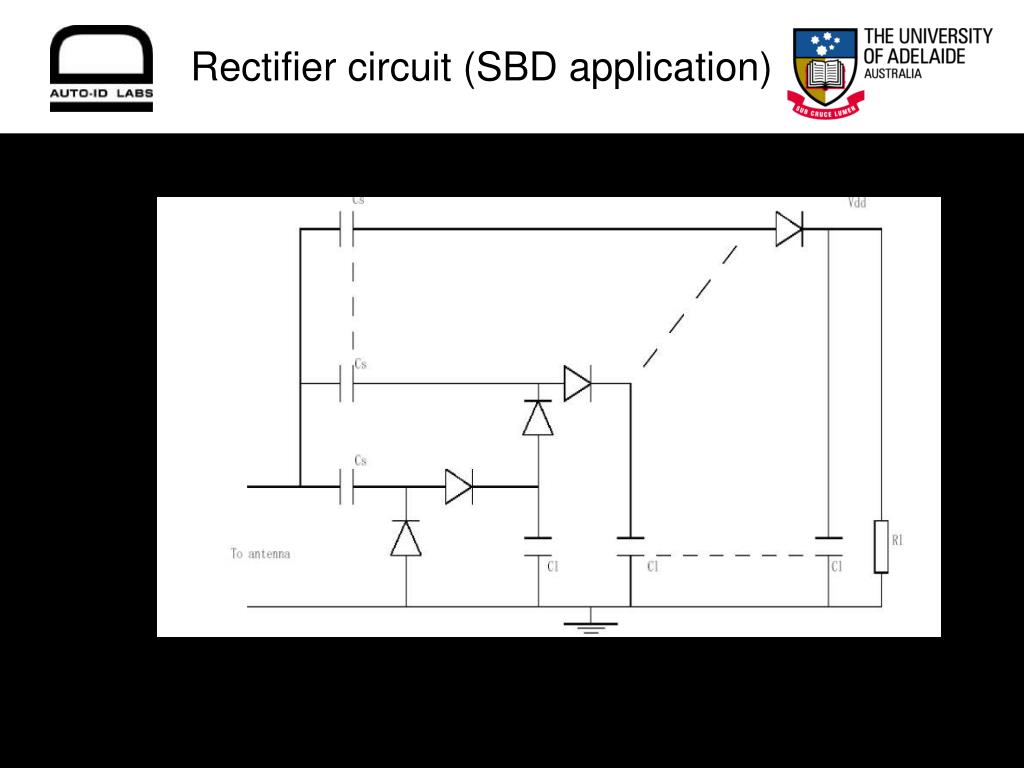

  14. Rectifier circuit (SBD application)

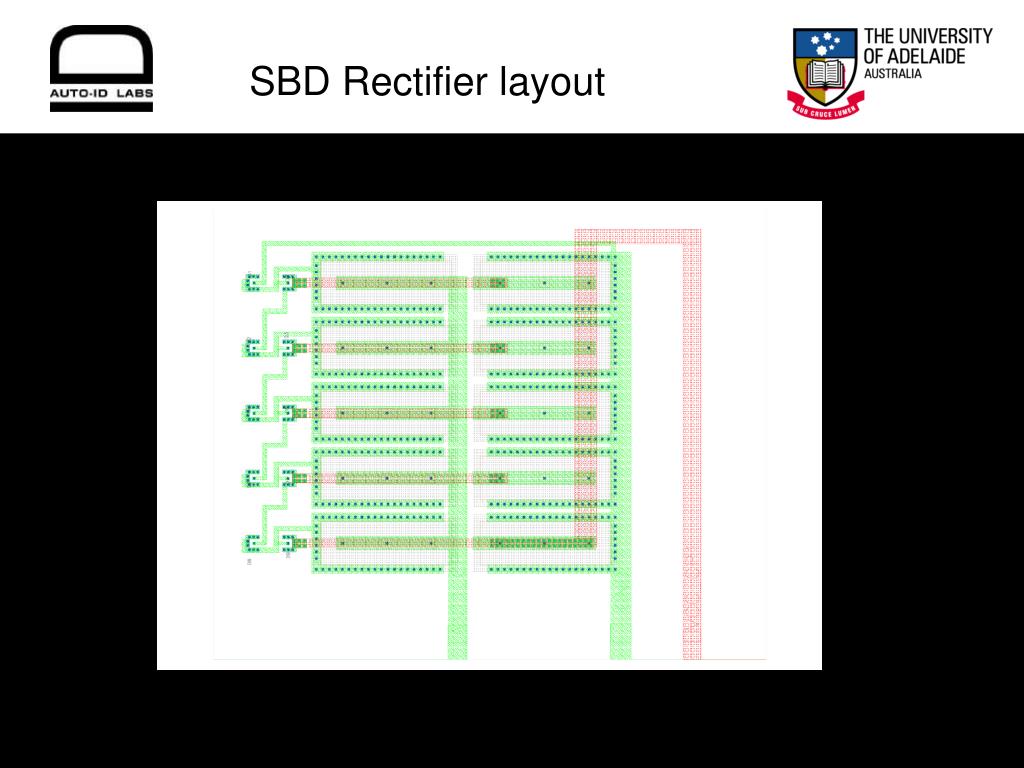

  15. SBD Rectifier layout

  16. Measurement Plan • Discrete SBD test • GSD probing pads for de-embedding • S parameters • DC parameters • SBD rectifier test • Input impedance • Matching circuit/board • Antenna • Reader/Signal generator and PA+Antenna; Optimised tag

  17. Discrete SBD Test

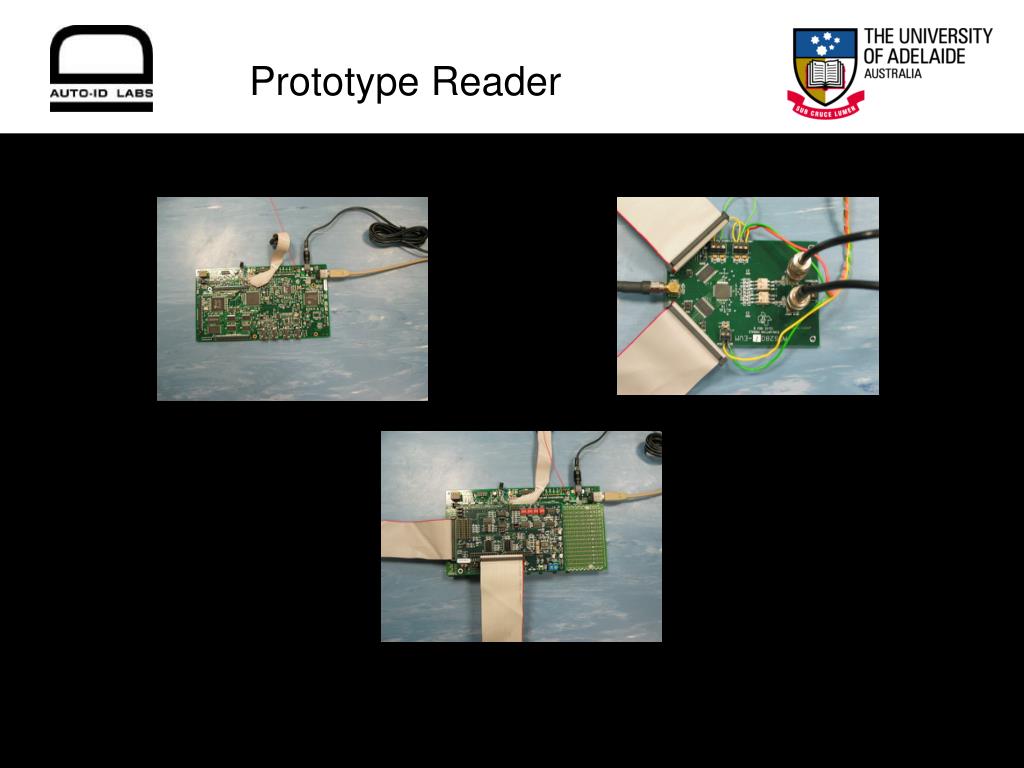

  18. Prototype Reader

  19. Future Work • Test and extract the model parameters • Validating the SBD model • Improve the quality factor of the SBD • Increase reverse direction breakdown voltage by guard ring (fabricated version dose not have) • Improve efficiency by reducing parasitic capacitance • Better impedance matching capabilities

  20. Q&A • Thank You
