Presentation Transcript
slide2

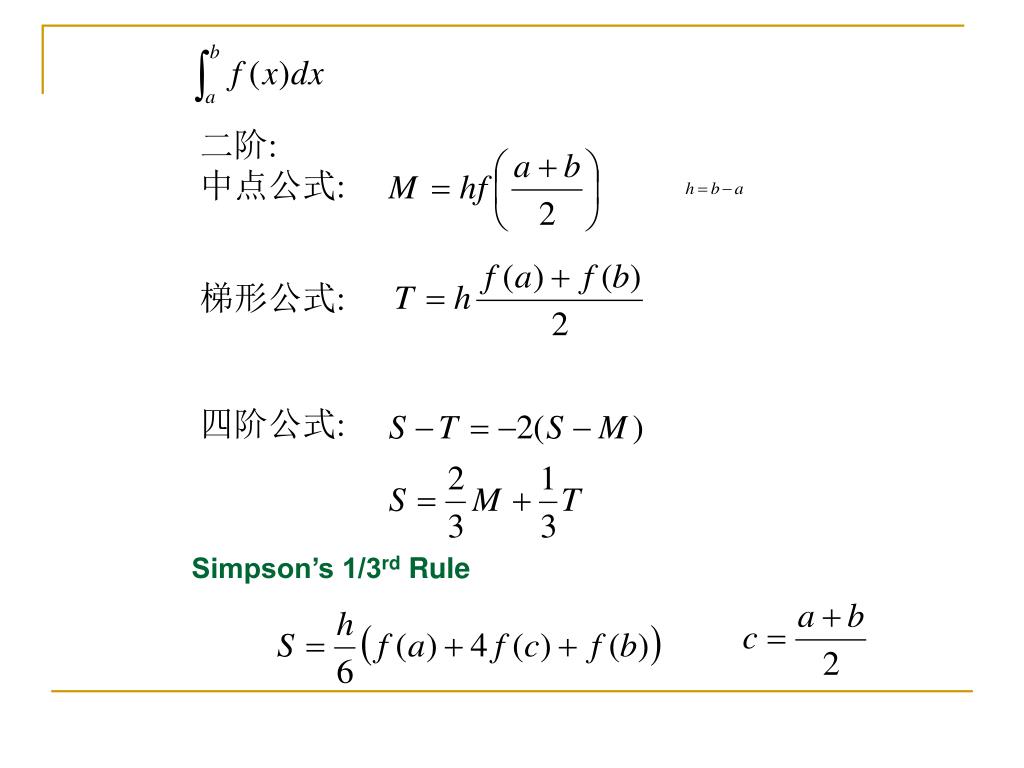

二阶:

中点公式:

梯形公式:

四阶公式:

Simpson’s 1/3rd Rule

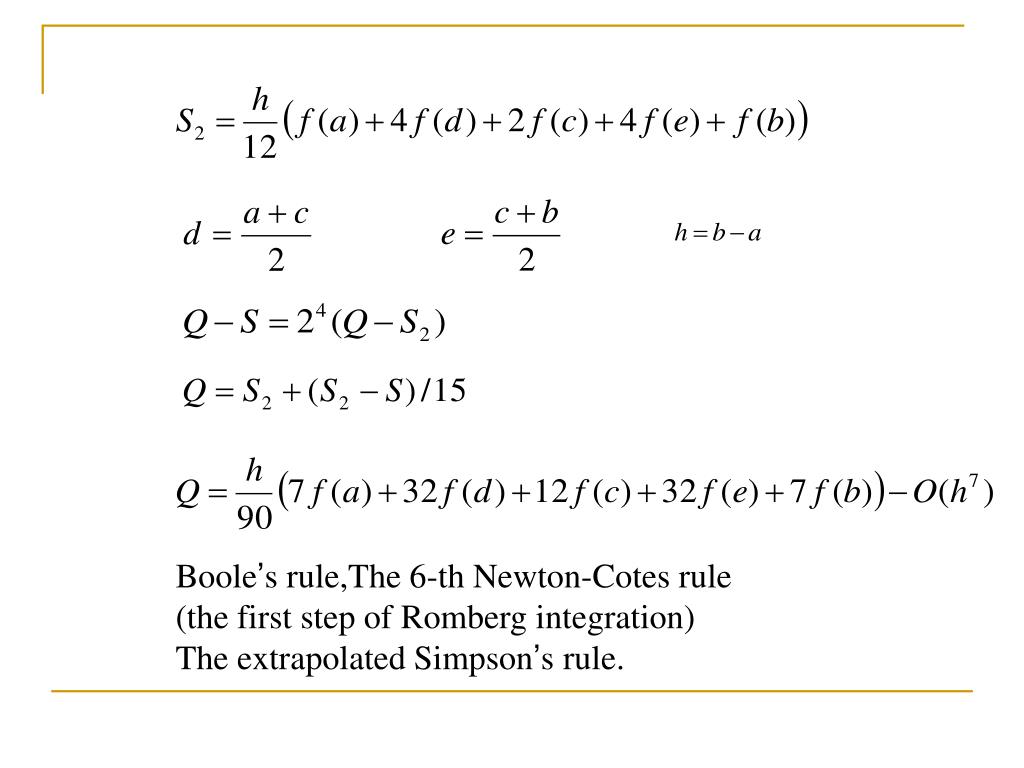

slide4

Boole’s rule,The 6-th Newton-Cotes rule

(the first step of Romberg integration)

The extrapolated Simpson’s rule.

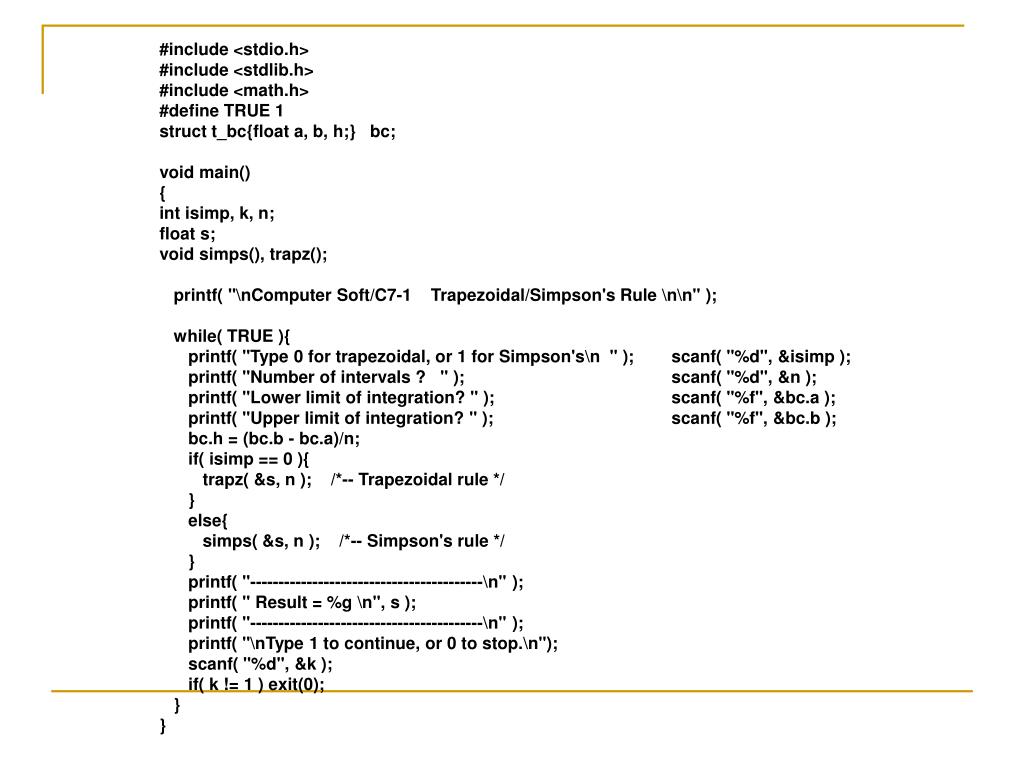

slide5

#include <stdio.h>

#include <stdlib.h>

#include <math.h>

#define TRUE 1

struct t_bc{float a, b, h;} bc;

void main()

{

int isimp, k, n;

float s;

void simps(), trapz();

printf( "\nComputer Soft/C7-1 Trapezoidal/Simpson's Rule \n\n" );

while( TRUE ){

printf( "Type 0 for trapezoidal, or 1 for Simpson's\n " ); scanf( "%d", &isimp );

printf( "Number of intervals ? " ); scanf( "%d", &n );

printf( "Lower limit of integration? " ); scanf( "%f", &bc.a );

printf( "Upper limit of integration? " ); scanf( "%f", &bc.b );

bc.h = (bc.b - bc.a)/n;

if( isimp == 0 ){

trapz( &s, n ); /*-- Trapezoidal rule */

}

else{

simps( &s, n ); /*-- Simpson's rule */

}

printf( "-----------------------------------------\n" );

printf( " Result = %g \n", s );

printf( "-----------------------------------------\n" );

printf( "\nType 1 to continue, or 0 to stop.\n");

scanf( "%d", &k );

if( k != 1 ) exit(0);

}

}

slide6

void simps(ss, n) /* Simpson's rule*/

float *ss;

int n;

{

int i, ls;

float sum, s, w, x;

double func();

s = 0; sum = 0;

if( n/2*2 == n ) ls = 0;

else {

ls = 3;

for( i = 0; i <= 3; i++ ) { /* Simpson's 3/8 rule if n is odd */

x = bc.a + bc.h*i; w = 3;

if( i == 0 || i == 3 ) w = 1;

sum = sum + w*func( x );

}

sum = sum*bc.h*3/8L;

if( n == 3 ) return;

}

for( i = 0; i <= (n - ls); i++ ){ /* Simpson's 1/3 rule */

x = bc.a + bc.h*(i + ls); w = 2;

if( (int)( i/2 )*2 + 1 == i ) w = 4;

if( i == 0 || i == n - ls ) w = 1;

s = s + w*func( x );

}

*ss = sum + s*bc.h/3;

return;

}

void trapz(ss, n) /* Trapezoidal rule */

float *ss;

int n;

{

int i;

float sum, w, x;

double func();

sum = 0;

for( i = 0; i <= n; i++ ){

x = bc.a + i*bc.h;

w = 2;

if( i == 0 || i == n ) w = 1;

sum = sum + w*func( x );

}

*ss = sum*bc.h/2;

return;

}

double func(x)

float x;

{

float func_v;

func_v = pow(1 + pow(x/2, 2), 2)*3.14159;

return( func_v );

}

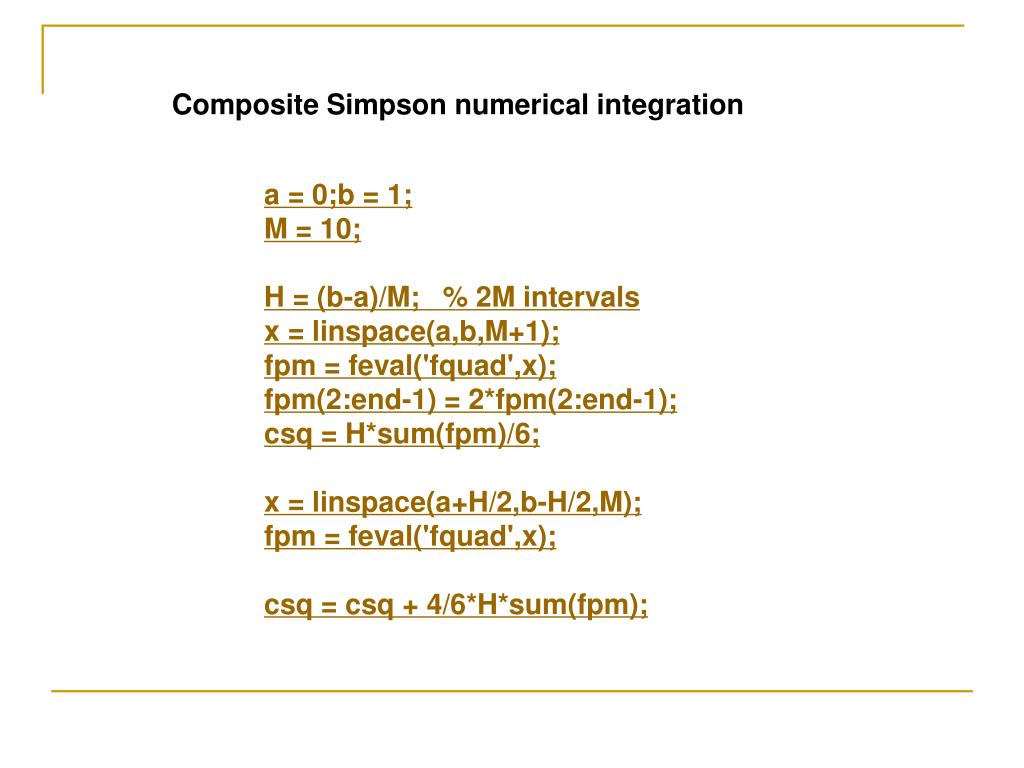

slide7

Composite Simpson numerical integration

a = 0;b = 1;

M = 10;

H = (b-a)/M; % 2M intervals

x = linspace(a,b,M+1);

fpm = feval('fquad',x);

fpm(2:end-1) = 2*fpm(2:end-1);

csq = H*sum(fpm)/6;

x = linspace(a+H/2,b-H/2,M);

fpm = feval('fquad',x);

csq = csq + 4/6*H*sum(fpm);

slide8

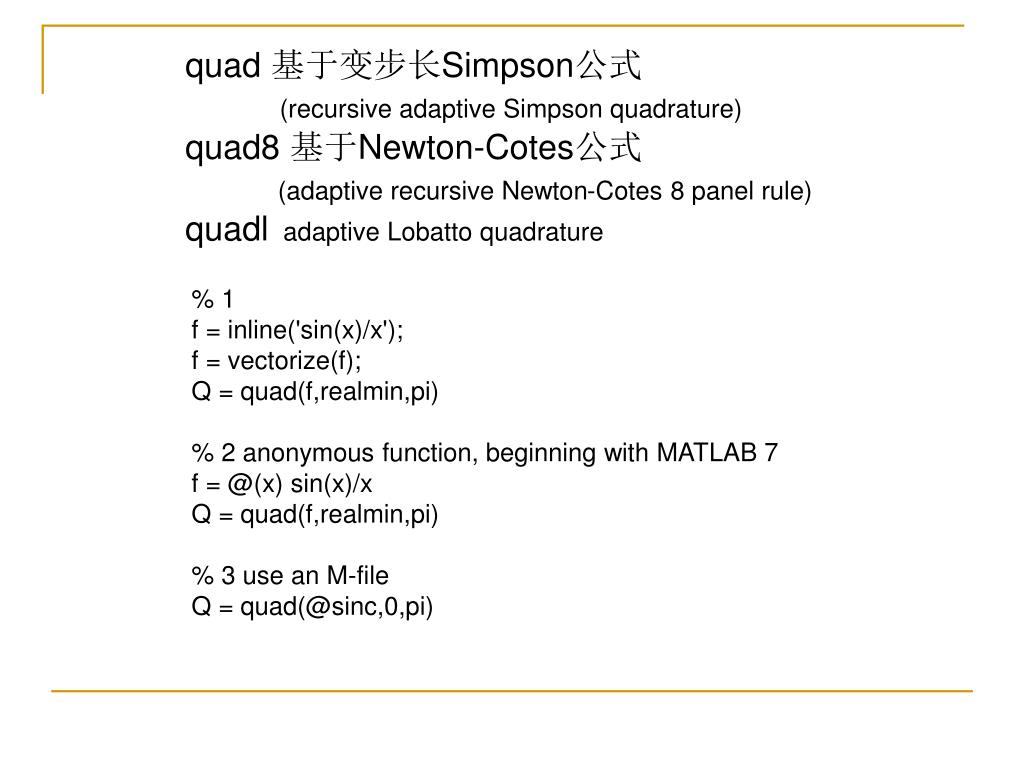

quad 基于变步长Simpson公式

(recursive adaptive Simpson quadrature)

quad8 基于Newton-Cotes公式

(adaptive recursive Newton-Cotes 8 panel rule)

quadl adaptive Lobatto quadrature

% 1

f = inline('sin(x)/x');

f = vectorize(f);

Q = quad(f,realmin,pi)

% 2 anonymous function, beginning with MATLAB 7

f = @(x) sin(x)/x

Q = quad(f,realmin,pi)

% 3 use an M-file

Q = quad(@sinc,0,pi)

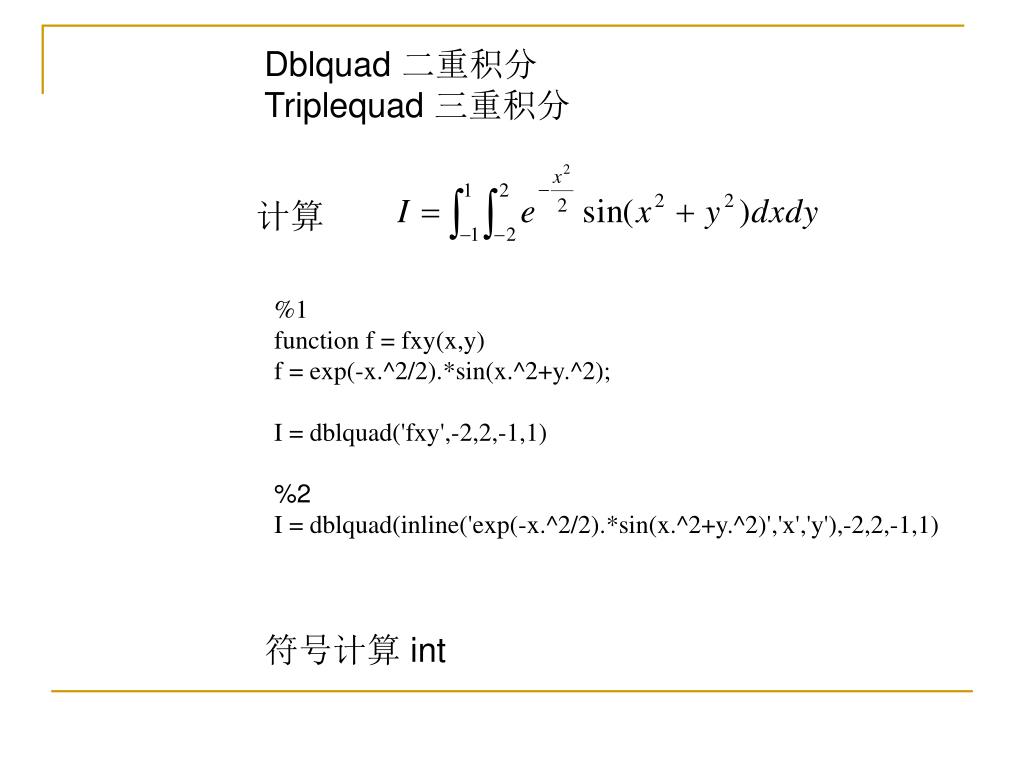

slide9

Dblquad 二重积分

Triplequad 三重积分

计算

%1

function f = fxy(x,y)

f = exp(-x.^2/2).*sin(x.^2+y.^2);

I = dblquad('fxy',-2,2,-1,1)

%2

I = dblquad(inline('exp(-x.^2/2).*sin(x.^2+y.^2)','x','y'),-2,2,-1,1)

符号计算 int

slide10

% integrating discrete data

x = 0:10;

y = x;

% composite trapezoid rule

T = sum(diff(x).*(y(1:end-1)+y(2:end))/2)

slide11

Gauss-Legendre公式

Gauss-Chebyshev公式

Gauss-Laguerre公式

Gauss-Hermite公式

n点求积公式若具有2n-1阶代数精度就成为 Gauss 型求积公式.

slide12

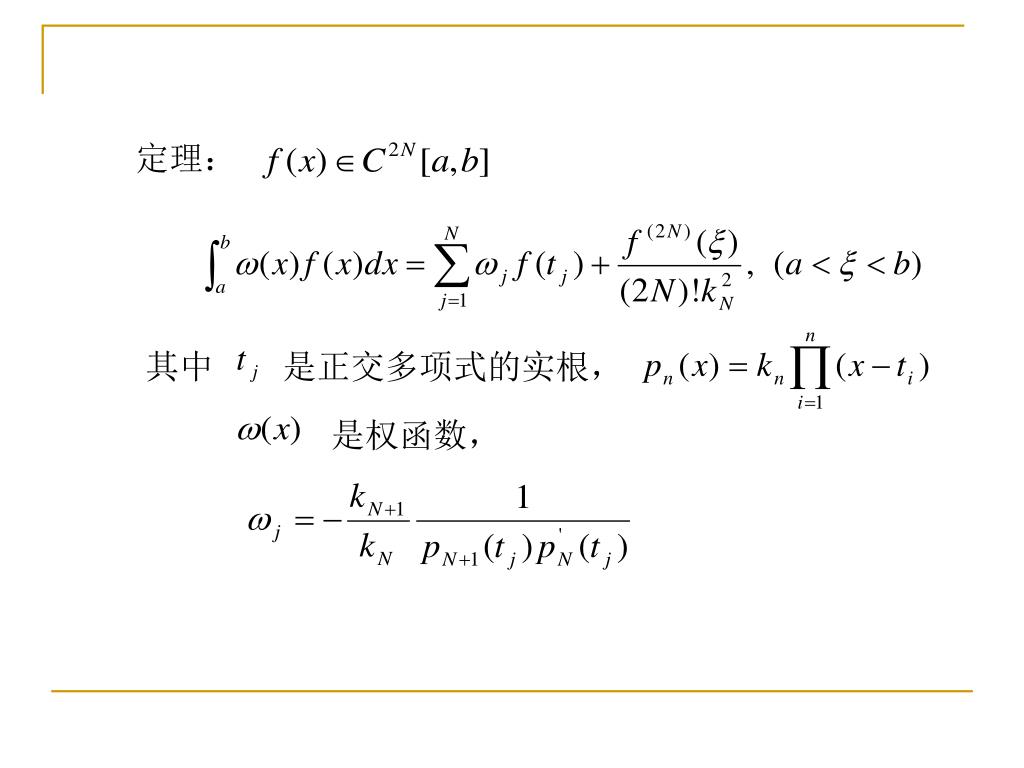

定理:

其中

是正交多项式的实根,

是权函数,

slide15

勒让德多项式(Legendre)

[-1,1] , (x)=1

递推关系:

P0(x)=1, P1(x)=x,

slide17

Christoffel-Darboux identity

对Legendre多项式

slide18

切比雪夫多项式(Chebyshev)

Tn(x)=cos(narccosx)

递推关系:

T0(x)=1 , T1(x)=x , T2(x)=2x2-1 ,

T3(x)= 4x3-3x,………

slide19

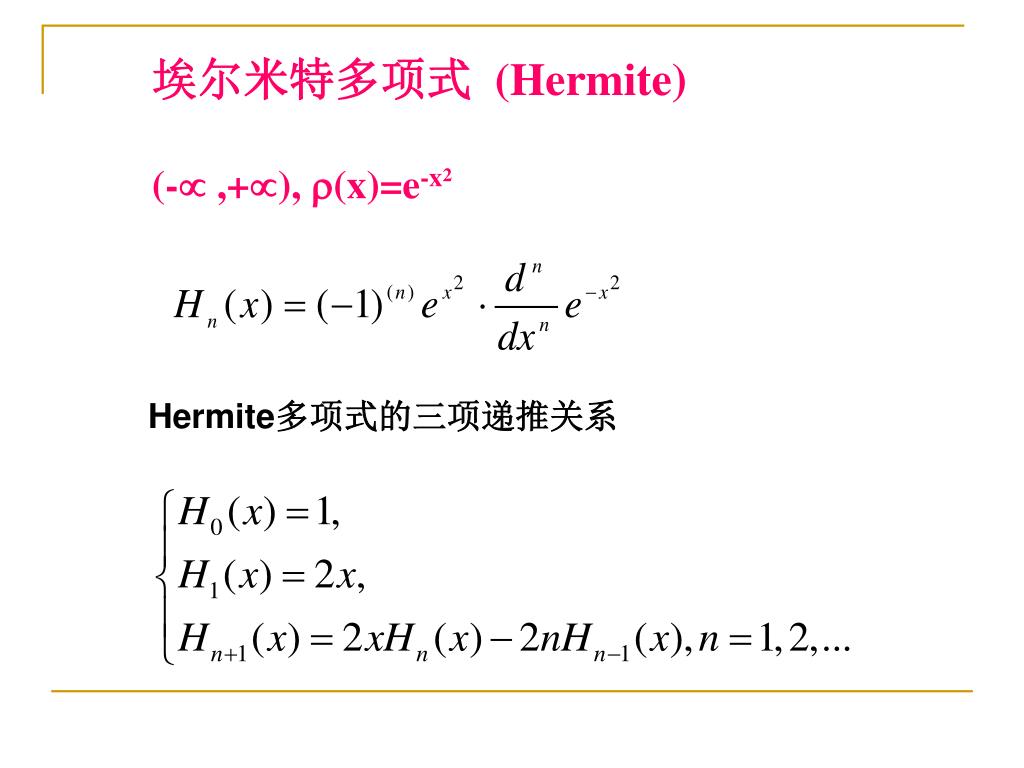

埃尔米特多项式 (Hermite)

  • (- ,+), (x)=e-x2

Hermite多项式的三项递推关系

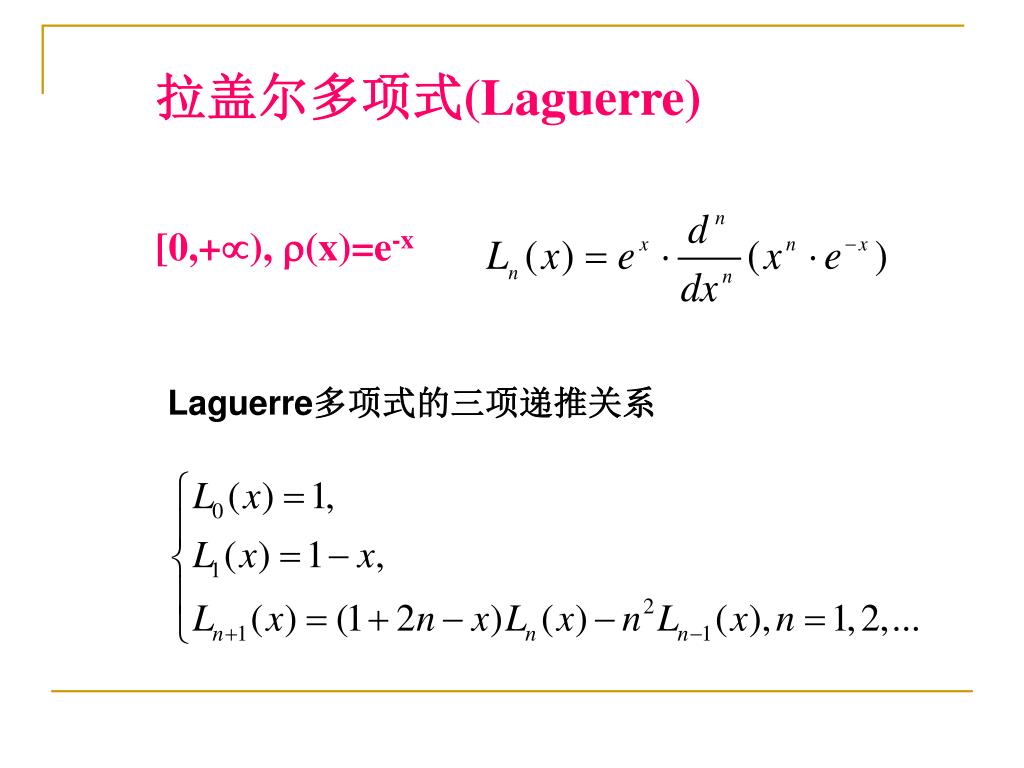

slide20

拉盖尔多项式(Laguerre)

[0,+), (x)=e-x

Laguerre多项式的三项递推关系

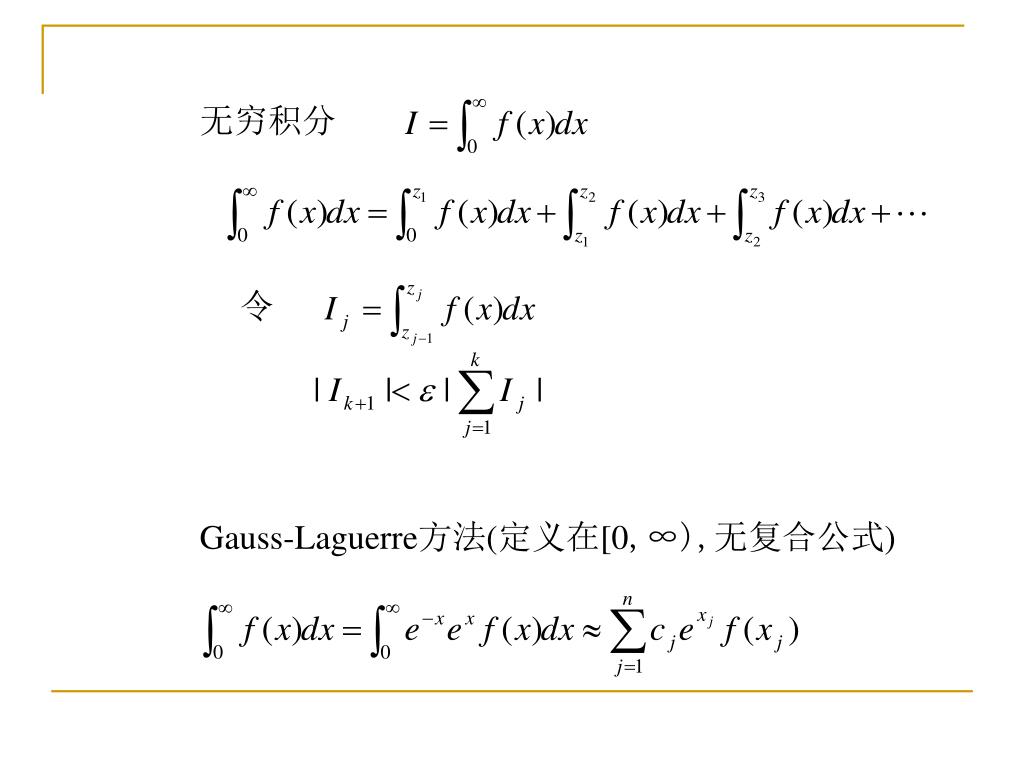

slide21

无穷积分

Gauss-Laguerre方法(定义在[0,∞),无复合公式)

slide22

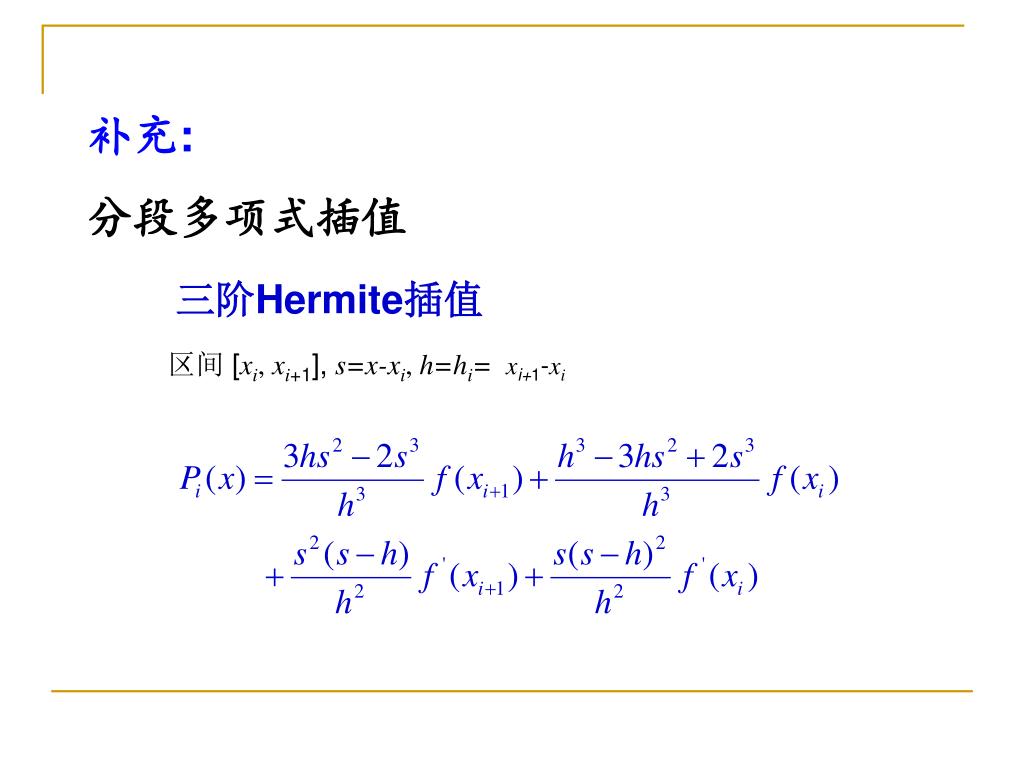

补充:

分段多项式插值

三阶Hermite插值

区间 [xi, xi+1], s=x-xi, h=hi= xi+1-xi

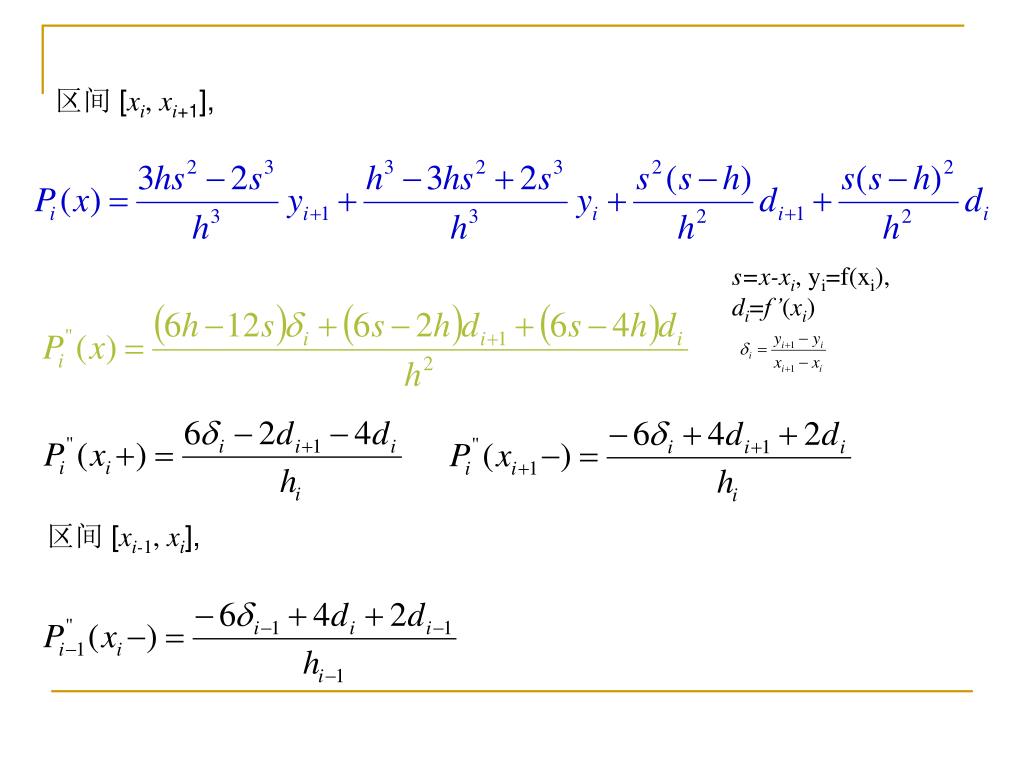

slide25

区间 [xi, xi+1],

s=x-xi, yi=f(xi), di=f’(xi)

区间 [xi-1, xi],

slide26

端点条件:

  • 固定斜率
  • 自然端点
  • 非节点

代入d3

slide27

The road to wisdom?

Well, it’s plain and simple to express:

Err

and err

and err again

but less

and less

and less

PIET HEIN, Grooks(1966)
