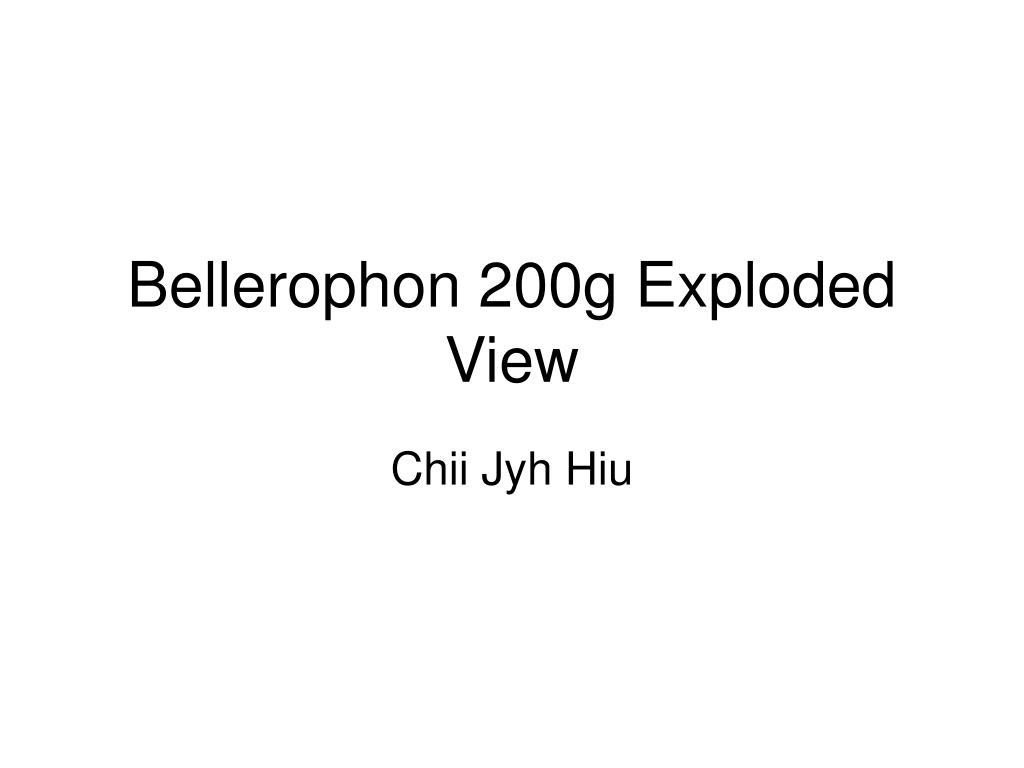

  1. Bellerophon 200g Exploded View Chii Jyh Hiu

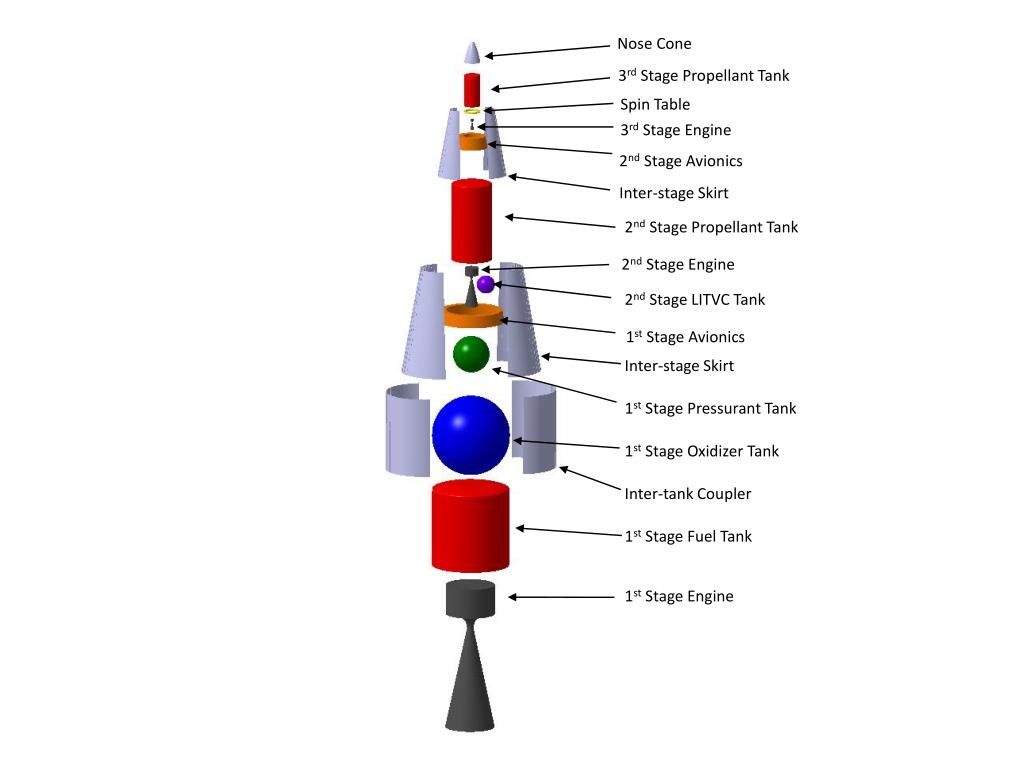

  2. Nose Cone 3rd Stage Propellant Tank Spin Table 3rd Stage Engine 2nd Stage Avionics Inter-stage Skirt 2nd Stage Propellant Tank 2nd Stage Engine 2nd Stage LITVC Tank 1st Stage Avionics Inter-stage Skirt 1st Stage Pressurant Tank 1st Stage Oxidizer Tank Inter-tank Coupler 1st Stage Fuel Tank 1st Stage Engine

  3. Nose Cone 3rd Stage Propellant Tank Spin Table 2nd Stage Avionics 3rd Stage Engine 2nd Stage Engine Inter-stage Skirt 2nd Stage Propellant Tank 1st Stage Pressurant Tank 2nd Stage LITVC Tank 1st Stage Avionics 1st Stage Oxidizer Tank Inter-stage Skirt 1st Stage Fuel Tank Inter-tank Coupler 1st Stage Engine

  4. (“yes, I know this looks retarded”)
