Threads

1. Threads Chapter 26

2. Threads • Light-weight processes • Each process can have multiple threads of concurrent control. • What’s wrong with processes? • fork() is expensive • 10 to 100 times slower • Copy of everything in parent. • Inter process communication • For returning information from child to parent

3. Threads… • Shared components • Global memory • Instructions • Most data • Open descriptors (files, sockets etc) • Signal handlers • Not shared • Registers, Program counter, stack pointer • Thread ID • Stack • Errno • Priority

4. Advantages of Threads • Light-weight • Lower Context Switching Overhead • Fewer OS resources • Shared State • Don’t need IPC-like mechanism to communicate between threads of same process

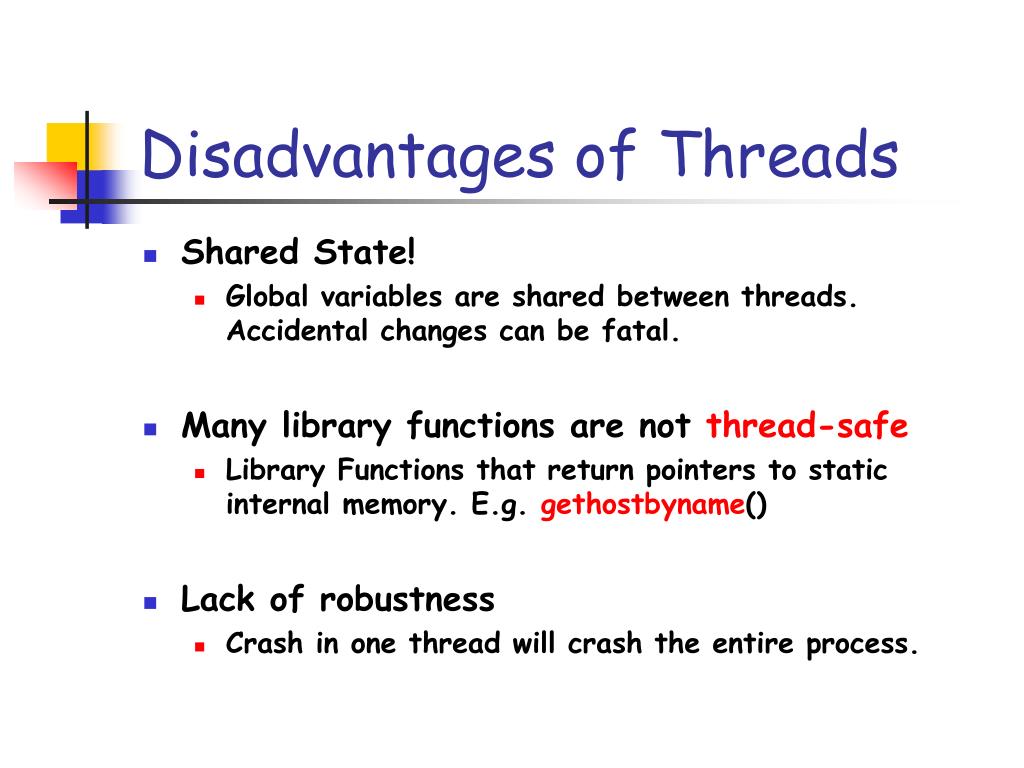

5. Disadvantages of Threads • Shared State! • Global variables are shared between threads. Accidental changes can be fatal. • Many library functions are not thread-safe • Library Functions that return pointers to static internal memory. E.g. gethostbyname() • Lack of robustness • Crash in one thread will crash the entire process.

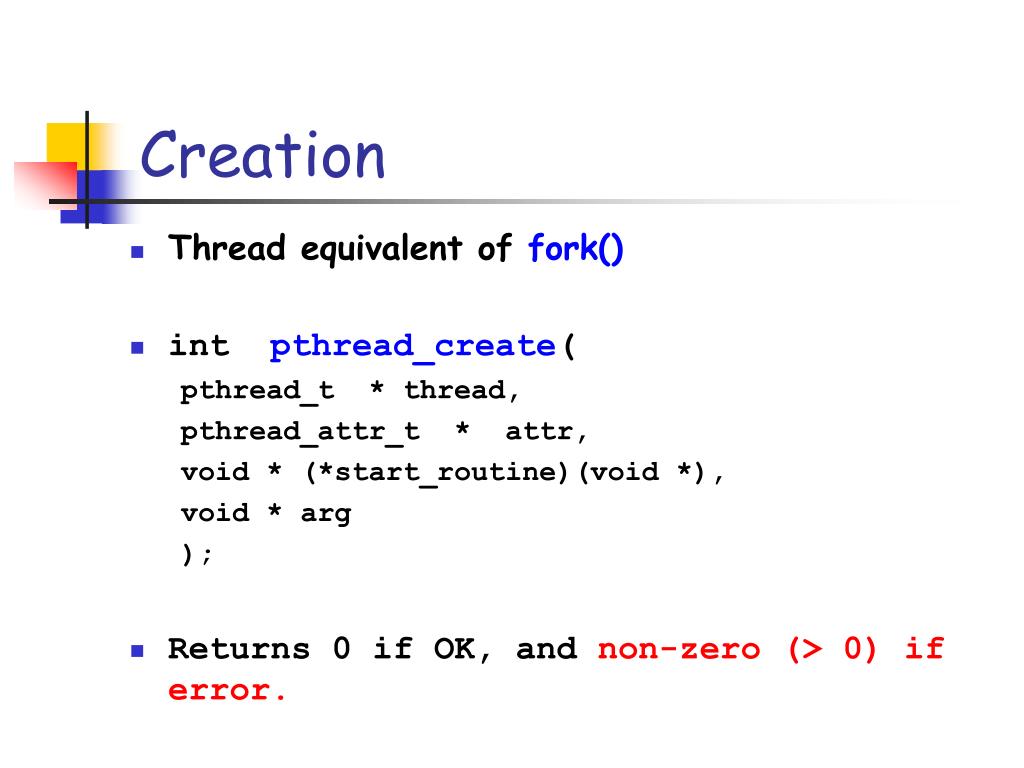

6. Creation • Thread equivalent of fork() • int pthread_create( pthread_t * thread, pthread_attr_t * attr, void * (*start_routine)(void *), void * arg ); • Returns 0 if OK, and non-zero (> 0) if error.

7. Termination Thread Termination • Return from initial function. • void pthread_exit(void * status) Process Termination • exit()called by any thread • main() returns

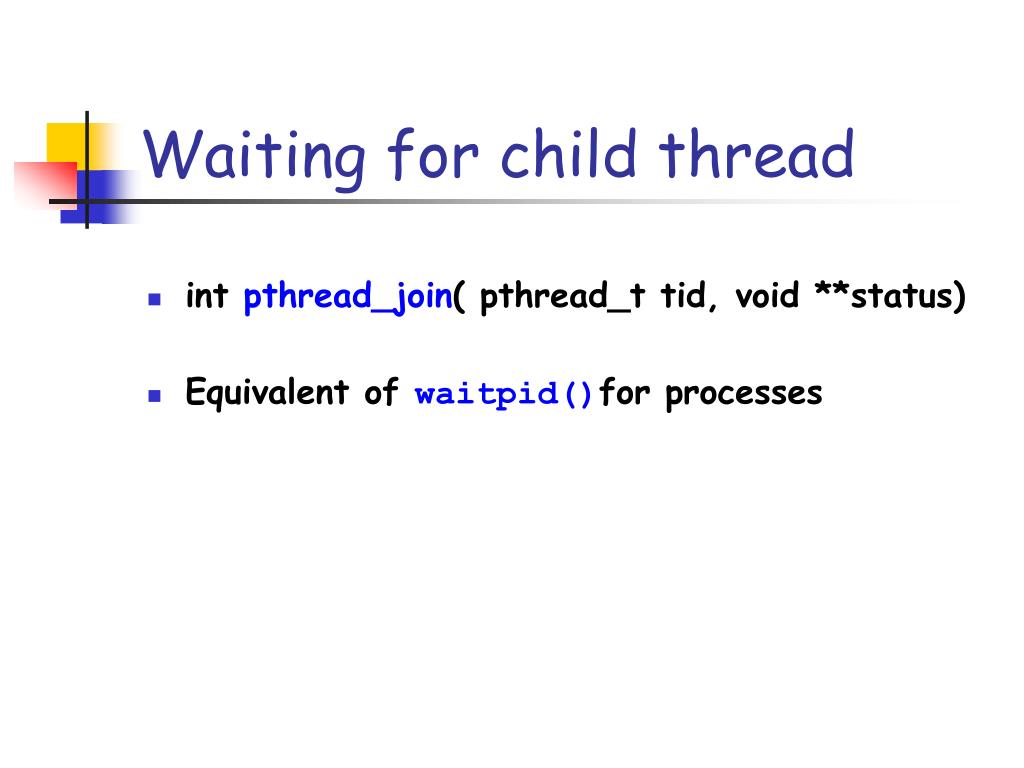

8. Waiting for child thread • int pthread_join( pthread_t tid, void **status) • Equivalent of waitpid()for processes

9. Detaching a thread • The detached thread can act as daemon thread • The parent thread doesn’t need to wait • int pthread_detach(pthread_t tid) • Detaching self : pthread_detach(pthread_self())

10. Echo client-server Server listenfd S1 S2 Read Read Write Write Client2 Client1 Read Thread Write Thread Read Thread Write Thread

11. Thread-based Echo Server

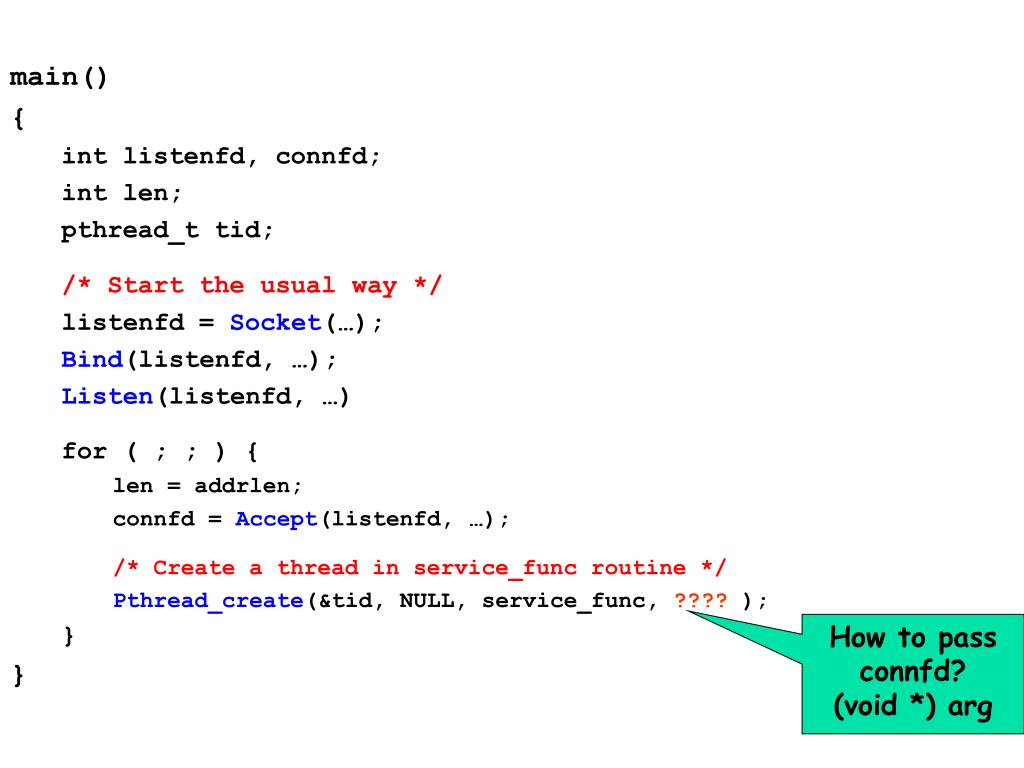

12. main() { int listenfd, connfd; int len; pthread_t tid; /* Start the usual way */ listenfd = Socket(…); Bind(listenfd, …); Listen(listenfd, …) for ( ; ; ) { len = addrlen; connfd = Accept(listenfd, …); /* Create a thread in service_func routine */ Pthread_create(&tid, NULL, service_func, ???? ); } } How to pass connfd? (void *) arg

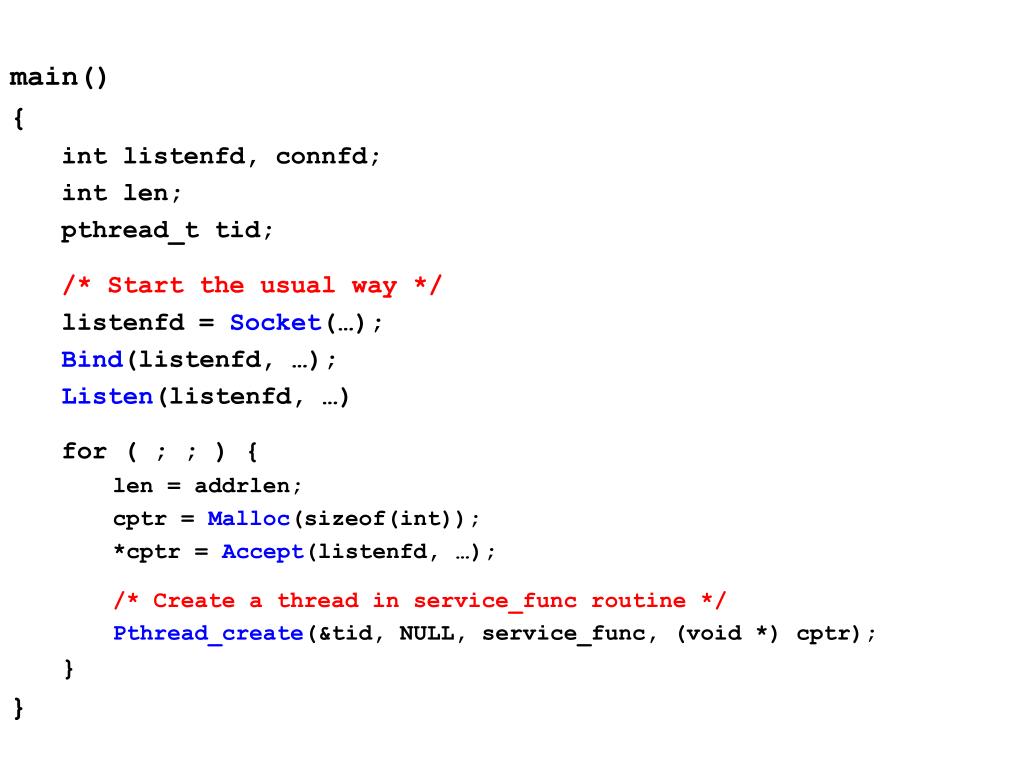

13. main() { int listenfd, connfd; int len; pthread_t tid; /* Start the usual way */ listenfd = Socket(…); Bind(listenfd, …); Listen(listenfd, …) for ( ; ; ) { len = addrlen; cptr = Malloc(sizeof(int)); *cptr = Accept(listenfd, …); /* Create a thread in service_func routine */ Pthread_create(&tid, NULL, service_func, (void *) cptr); } }

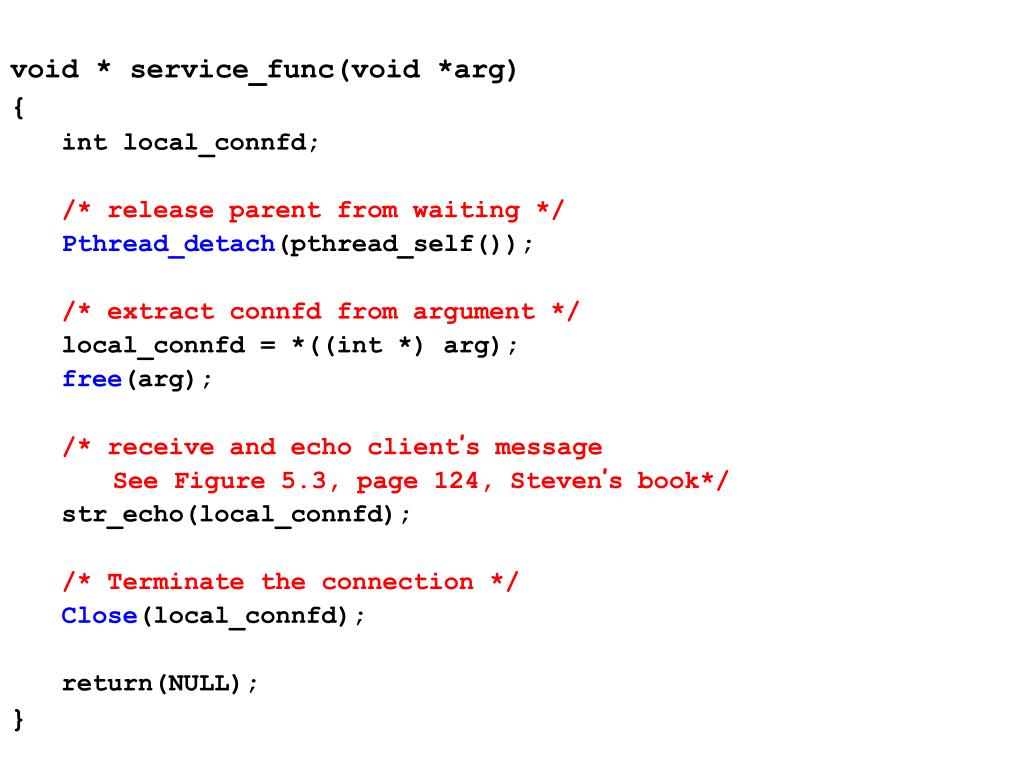

14. void * service_func(void *arg) { int local_connfd; /* release parent from waiting */ Pthread_detach(pthread_self()); /* extract connfd from argument */ local_connfd = *((int *) arg); free(arg); /* receive and echo client’s message See Figure 5.3, page 124, Steven’s book*/ str_echo(local_connfd); /* Terminate the connection */ Close(local_connfd); return(NULL); }

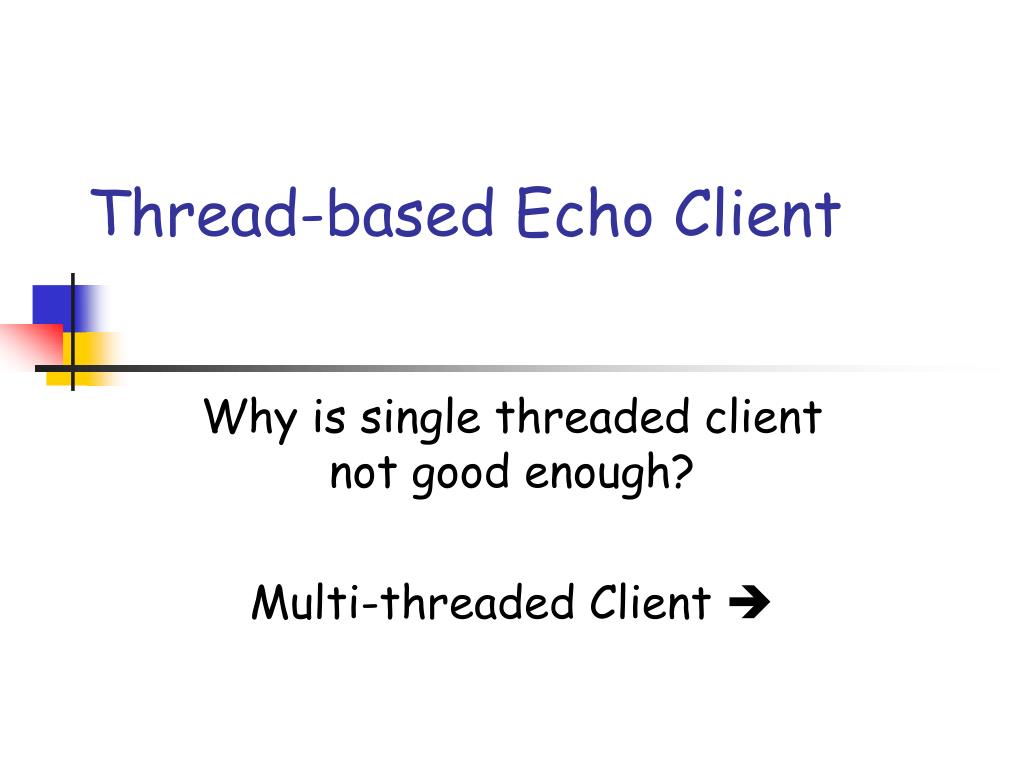

15. Thread-based Echo Client Why is single threaded client not good enough? Multi-threaded Client 

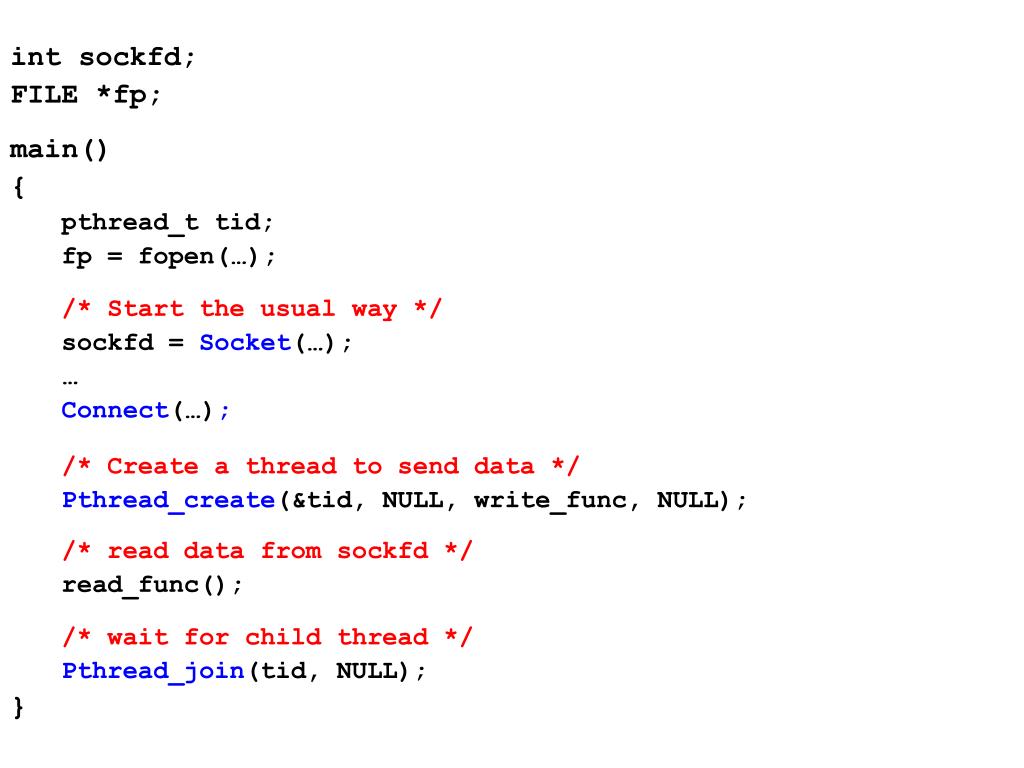

16. int sockfd; FILE *fp; main() { pthread_t tid; fp = fopen(…); /* Start the usual way */ sockfd = Socket(…); … Connect(…); /* Create a thread to send data */ Pthread_create(&tid, NULL, write_func, NULL); /* read data from sockfd */ read_func(); /* wait for child thread */ Pthread_join(tid, NULL); }

17. void * write_func(void *arg) { char sendline[MAXLINE]; while( more data in fp) Read from fp into sendline[]; Write sendline[] into sockfd; Shutdown(sockfd, SHUT_WR); return(NULL); } void read_func() { char recvline[MAXLINE]; while ( more data from sockfd) Read from sockfd into recvline[]; Write from recvline[] to stdout; }

18. Locking in Threads

19. Mutex – for mutual exclusion int counter = 0; void *thread_func(void *arg) { int val; /* unprotected code – why? */ val = counter; counter = val + 1; return NULL; }

20. Mutex… int counter = 0; ptread_mutex_t mutex = PTHREAD_MUTEX_INITIALIZER; void *thread_func(void *arg) { int val; /* protected by mutex */ Pthread_mutex_lock( &mutex ); val = counter; counter = val + 1; Pthread_mutex_unlock( &mutex ); return NULL; }

21. Condition Variable – for signaling • Think of Producer – consumer problem • Producers and consumers run in separate threads. • Producer produces data and consumer consumes data. • Producer has to inform the consumer when data is available • Consumer has to inform producer when buffer space is available

22. Without Condition Variables

23. /* Globals */ int data_avail = 0; pthread_mutex_t data_mutex = PTHREAD_MUTEX_INITIALIZER; void *producer(void *) { Pthread_mutex_lock(&data_mutex); Produce data Insert data into queue; data_avail=1; Pthread_mutex_unlock(&data_mutex); }

24. void *consumer(void *) { while( !data_avail ); /* do nothing – keep looping!!*/ Pthread_mutex_lock(&data_mutex); Extract data from queue; if (queue is empty) data_avail = 0; Pthread_mutex_unlock(&data_mutex); consume_data(); }

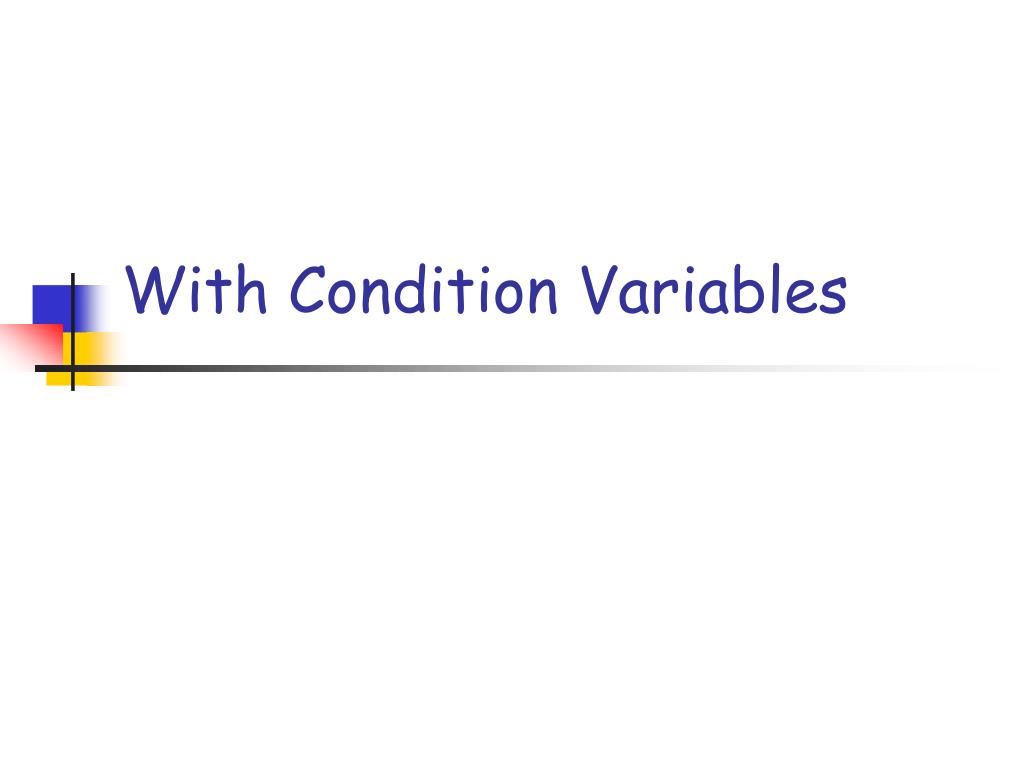

25. With Condition Variables

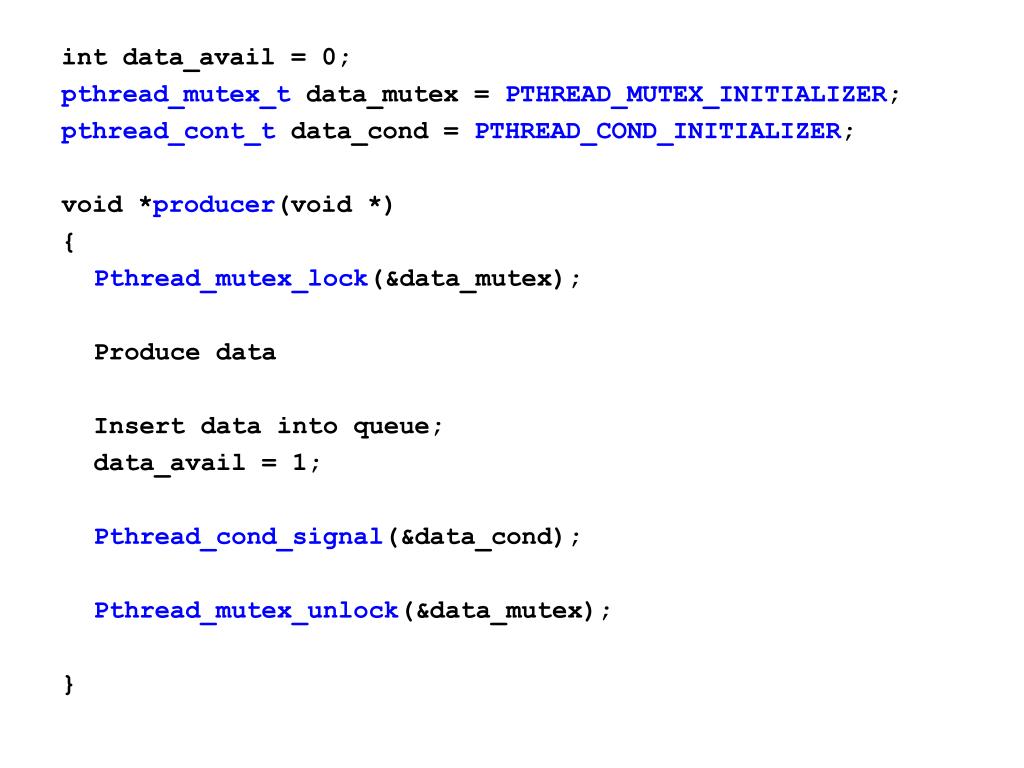

26. int data_avail = 0; pthread_mutex_t data_mutex = PTHREAD_MUTEX_INITIALIZER; pthread_cont_t data_cond = PTHREAD_COND_INITIALIZER; void *producer(void *) { Pthread_mutex_lock(&data_mutex); Produce data Insert data into queue; data_avail = 1; Pthread_cond_signal(&data_cond); Pthread_mutex_unlock(&data_mutex); }

27. void *consumer(void *) { Pthread_mutex_lock(&data_mutex); while( !data_avail ) { /* sleep on condition variable*/ Pthread_cond_wait(&data_cond, &data_mutex); } /* woken up */ Extract data from queue; if (queue is empty) data_avail = 0; Pthread_mutex_unlock(&data_mutex); consume_data(); }
