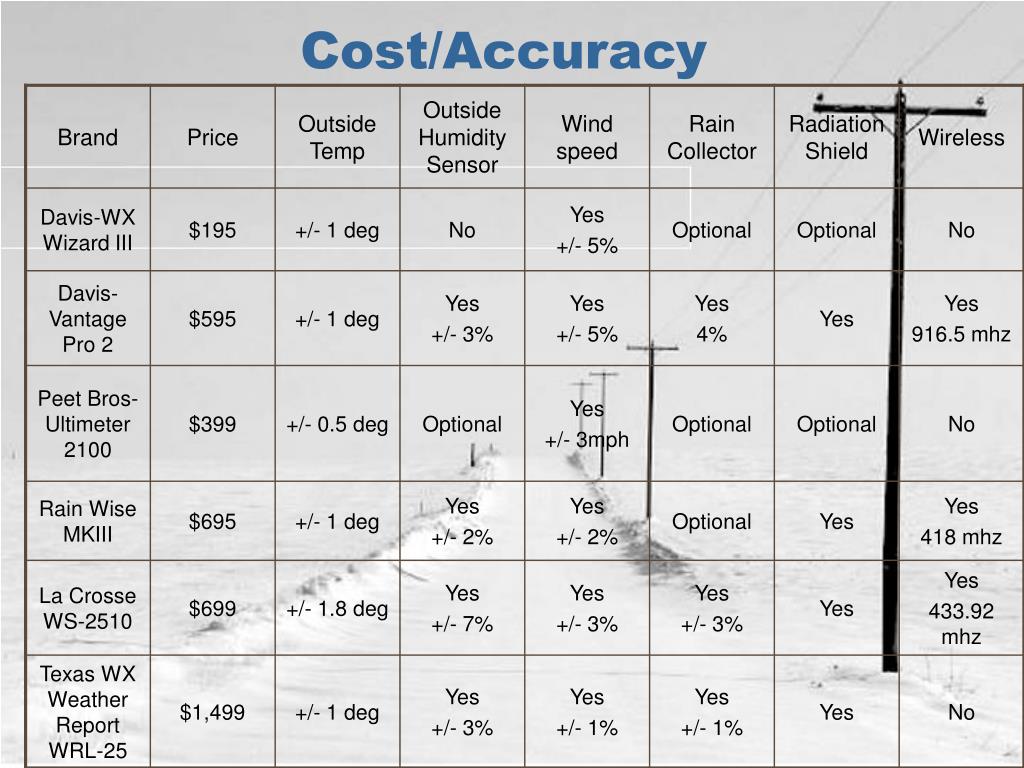

Home Electronic Weather Stations. By Bob Woodson WX4MMM. Considerations. Cost Accuracy Wired vs Wireless Station Setup Connect to the Internet. Cost/Accuracy. Wired Less expensive than wireless Not subject to intermittent data loss

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Home Electronic Weather Stations' - mohammed-jalila


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

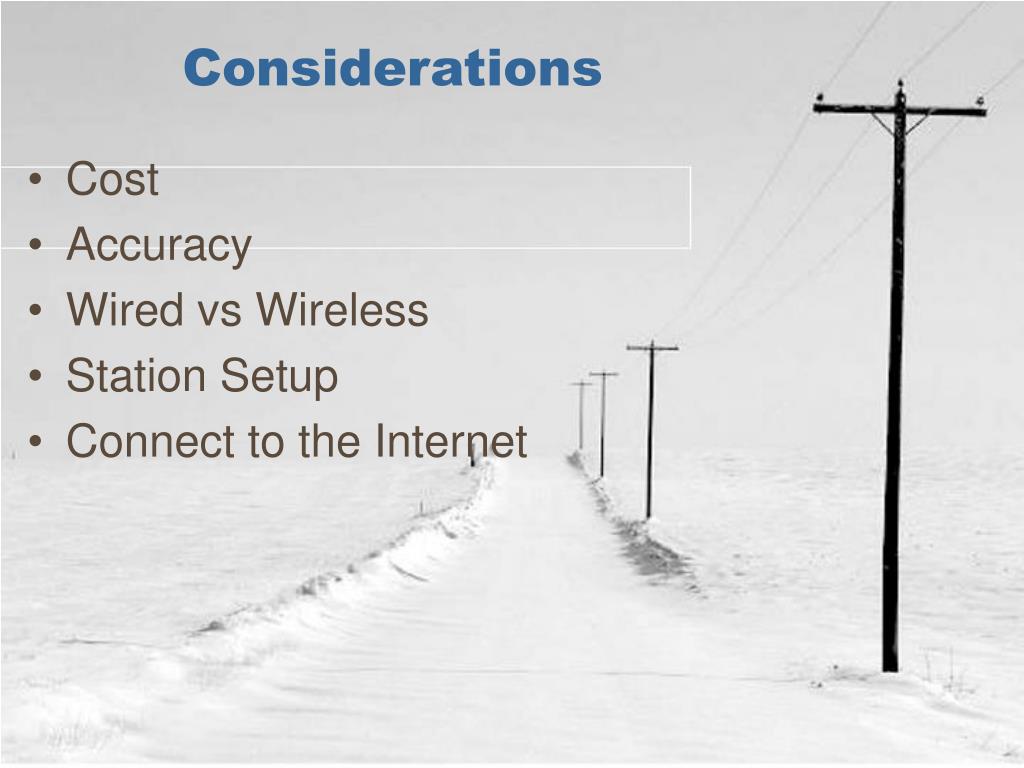

considerations
Considerations
  • Cost
  • Accuracy
  • Wired vs Wireless
  • Station Setup
  • Connect to the Internet
wired vs wireless
Wired

Less expensive than wireless

Not subject to intermittent data loss

Lightning strike can follow the wired sensor to console and PC

Sensor signal can be reduced as the cable length increases

Bury the cable deep enough so won’t be cut by lawn mower or aerator

Wireless

More expensive than wired

Don’t have to drill hole in wall

Sensor signal can be reduced by cordless phones and other other appliances

Require a solar powered system and batteries

Transmission distance may be an issue

Wired vs Wireless

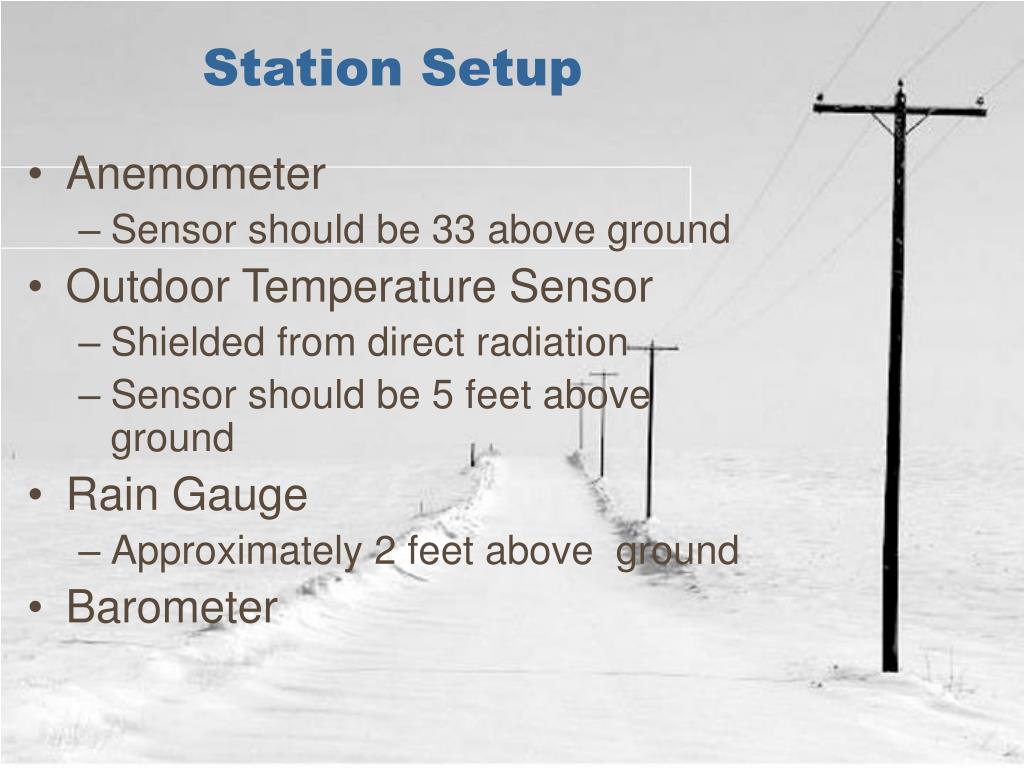

station setup
Station Setup
  • Anemometer
    • Sensor should be 33 above ground
  • Outdoor Temperature Sensor
    • Shielded from direct radiation
    • Sensor should be 5 feet above ground
  • Rain Gauge
    • Approximately 2 feet above ground
  • Barometer

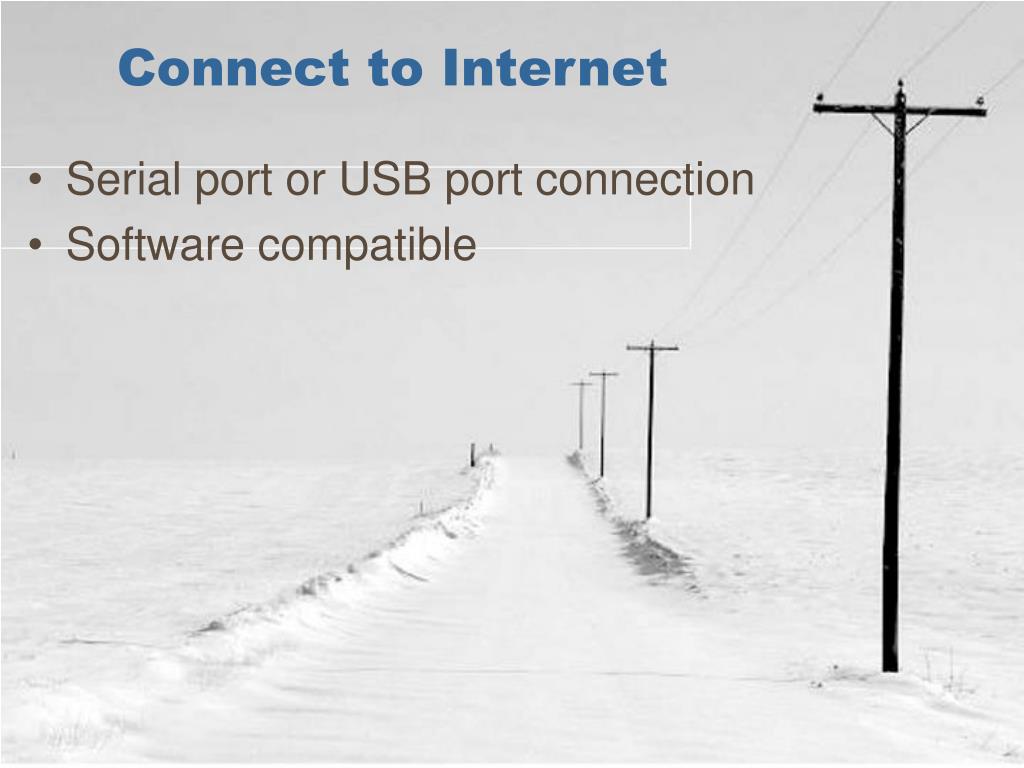

connect to internet
Connect to Internet
  • Serial port or USB port connection
  • Software compatible
