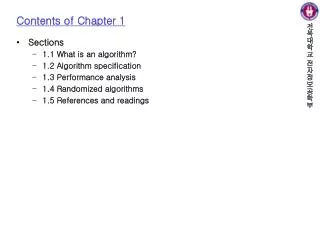

  1. Contents of Chapter 1 • Sections • 1.1 What is an algorithm? • 1.2 Algorithm specification • 1.3 Performance analysis • 1.4 Randomized algorithms • 1.5 References and readings

  2. 1.1 What is an Algorithm? • The word algorithm • Comes from the name of a Persian author, Abu Ja’far Mohammed ibn Musa al Khowarizmi (c. 825 A.D.) • Special significance in computer science referring to a method that can be used by a computer for the solution of a problem • Definition 1.1 [Algorithm] • A finite set of instructions that, if followed, accomplishes a particular task • Satisfying the criteria: • Input • Output • Definiteness • Finiteness • Effectiveness

  3. 1.1 What is an Algorithm? • Algorithm vs. program • Program: expression of an algorithm in a programming language • Program may never terminate (e.g, OS) • Four distinct areas of studying algorithms • How to devise algorithms • Art which may never be fully automated • Study of design strategies in this book is helpful • How to validate algorithms • Algorithm validation program verification (two stages) • How to analyze algorithms • Performance analysis on the best, worst, and average cases • How to test a program • Debugging (error correction) • Profiling (performance measurement) (E. Dijkstra “debugging can only point to the presence of errors, but not to their absence”)

  4. 1.2 Algorithm Specification • Algorithm vs. program • Use them interchangeably in this textbook • Algorithm specification • Natural language • Flowchart • Programming language • (Programming language + natural language) • Example 1.1 [selection sort] • Sort a collection of n1elements of type Type “From those elements that are currently unsorted, find the smallest and place it next in the sorted list”  Not an algorithm

  5. Selection Sort Algorithms • Program 1.1 • Program 1.2 • Type implementation • 1) using typedef, or 2) using template • for (i=1; i<=n; i++) { • examine a[i] to a[n] and suppose • the smallest element is at a[j]; • interchange a[i] and a[j]; • } • void SelectionSort(Type a[], int n) • // Sort the array a[1:n] into nondecreasing order. • { • for (int i=1; i<=n; i++) { • int j = i; • for (int k=i+1; k<=n; k++) • if (a[k]<a[j]) j=k; • Type t = a[i]; a[i] = a[j]; a[j] = t; • } • }

  6. 1.2.2 Recursive Algorithms • Recursion • Direct recursion: functions calling themselves directly • Indirect recursion: functions calling indirectly via other functions • A(…) • { • …. • A(…); • } • A(…) • { • …. • B(…); • } • B(…) • { • …. • A(…); • }

  7. Tower C Tower A Tower B 1.2.2 Recursive Algorithms • Example 1.2 [Tower of Hanoi] • 2 disks • AC; AB; CB; • 3 disks • AB; AC; BC; AB; CA; CB; AB; • 4 disks • ?

  8. 1.2.2 Recursive Algorithms • Program 1.3 • #include<iostream.h>enum tower { A='A', B='B', C='C'}; • void TowersOfHanoi(int n, tower x, tower y, tower z) • // Move the top n disks from tower x to tower y. • { if (n) { • TowersOfHanoi(n-1, x, z, y); • cout << "move top disk from tower " << char(x) • << " to top of tower " << char(y) << endl; • TowersOfHanoi(n-1, z, y, x); • } • }

  9. 1.2.2 Recursive Algorithms • 4 disks • TOH(4,A,B,C) • TOH(3,A,C,B) • TOH(2,A,B,C) • TOH(1,A,C,B) = AC; • AB; • TOH(1,C,B,A) = CB; • AC; • TOH(2,B,C,A) • TOH(1,B,A,C) = BA; • BC; • TOH(1,A,C,B) = AC; • AB; • TOH(3,C,B,A) • TOH(2,C,A,B) • TOH(1,C,B,A) = CB; • CA; • TOH(1,B,A,C) = BA; • CB; • TOH(2,A,B,C) • TOH(1,A,C,B) = AC; • AB; • TOH(1,C,B,A) = CB; • Solution=AC;AB;CB;AC;BA;BC;AC;AB;CB;CA;BA;CB;AC;AB;CB

  10. 1.2.2 Recursive Algorithms • Example 1.3: Permutation generator • Eg, permutation of (a,b,c,d) • a followed by permutations of (b,c,d) • b followed by permutations of (a,c,d) • c followed by permutations of (a,b,d) • d followed by permutations of (a,b,c)

  11. 1.2.2 Recursive Algorithms • Program 1.4 • #include<iostream.h> • void Perm(Type a[], int k, int n) • { • if (k==n) { // Output permutation. • for (int i=1; i<=n; i++) cout << a[i] << " "; • cout << endl; • } • else // a[k:n] has more than one permutation. • // Generate these recursively. • for (int i=k; i<=n; i++) { • Type t=a[k]; a[k]=a[i]; a[i]=t; • Perm(a, k+1, n); • // All permutations of a[k+1:n] • t=a[k]; a[k]=a[i]; a[i]=t; • } • }

  12. Programming Report • Section 1.2 Exercises (pp.9-11) • 세 문제 이상을 선택하여 프로그래밍(6, 7, 8, 11 중의 하나는 반드시 포함할 것) • 제출일: 2주 후 (늦으면 하루 당 5%씩 감점) • 제출 방법 • report (hwp 파일) • source code (p*.cpp 파일) • outputs (p*.txt 파일) *는 문제 번호 • 모든 파일을 하나의 파일로 압축하여 TA에게 email로 제출 • 압축 파일명은 r1_학번.zip

  13. 1.3 Performance Analysis • Criteria for making evaluative judgments about software • Correctness • Documentation • Modularity • Readability • Etc • Criteria for performance evaluation of algorithms • Definition 2.1: • Space complexity: amount of memory the algorithm needs to run to completion • Time complexity: amount of computer time the algorithm needs to run to completion • Two kinds of performance evaluation • Performance analysis: a priori estimate • Performance measurement: a posteriori testing

  14. 1.3.2 Time Complexity • One method • tp(n) = caADD(n) + csSUB(n) + cmMULT(n) … • n: instance characteristic • Impossible to estimate tp(n) • Another method (counting the number of program steps) • Program step: syntactically or semantically meaningful segment of a program that has an execution time being independent of the instance characteristics • Eg, return(a+b+b*c+(a+b-c)/(a+b)+4.0);

  15. 1.3.2 Time Complexity • Program 1.8 (counting the steps of the function Sum) • Each invocation of Sum executes a total of 2n+3 steps • float Sum(float a[], int n) • { float s = 0.0; • count++; // count is global • for (int i=1; i<=n; i++) { • count++; // For `for' • s += a[i]; count++; // For assignment • } • count++; // For last time of `for' • count++; // For the return • return s; • }

  16. 1.3.2 Time Complexity • Program 1.10 (counting the steps of the function RSum) • tRSum(n) = 2 if n=0, 2+tRSum(n-1) if n>0 • tRSum(n) = 2+tRSum(n-1) = 2+2+tRSum(n-2) …. = 2n+2 • float RSum(float a[], int n) • { count++; // For the if conditional • if (n <= 0) { • count++; // For the return • return 0.0; • } else { • count ++; // For the addition, function • // invocation and return • return (RSum(a, n-1) + a[n]); • } • }

  17. 1.3.2 Time Complexity • Sum is linear time algorithm • 2n+2 • If n is doubled, the run time also doubles approximately. • “The time complexity of Sum is linear in the input size n.” • Definition 1.3 [input size] • One of the instance characteristics • Number of elements needed to describe the instance • Example 1.9 (matrix addition) • Program 1.11 • Input size = 2mn+2 • Step count = 2mn+2m+1 • void Add(Type a[][SIZE], Type b[][SIZE], Type c[][SIZE], int m, int n) • { for (int i=1; i<=m; i++) • for (int j=1; j<=n; j++) • c[i][j] = a[i][j] + b[i][j]; • }

  18. 1.3.2 Time Complexity • Summary of time complexity • Sum, Rsum, Add is very simple examples • Not solely dependent on input sizes, but dependent on actual values of inputs • Eg, sequential searching algorithm • Best case: 1 comparison (query is the same as the first element) • Worst case: n+1 comparisons (query is the same as the last element) • Average case: n/2 • Which one is faster between n2+2n and 100n ?

  19. 1.3.3 Asymptotic Notation • Definition 1.4 [Big “oh”] • f(n)=O(g(n)) iff there exist positive constants c and n0 such that f(n)c*g(n) for all n, nn0. • Example 1.11 • 3n+2 = O(n) (because 3n+24n for all n2) • 3n+3 = O(n) ? • 100n+6 = O(n) ? • 10n2+4n+2 = O(n2) ? • 1000n2+100n-6 = O(n2) ? • 6*2n+n2 = O(2n) ? • 3n+3 = O(n2) ? • 10n2+4n+2 = O(n) ?

  20. 1.3.3 Asymptotic Notation • Comparison of speed • O(1): constant • O(log n) • O(n): linear • O(n log n) • O(n2): quadratic • O(n3): cubic • O(2n): exponential • In f(n)=O(g(n)), • g(n) is an upper bound of the value of f(n) for all n, nn0. • So, 3n+3=O(n2), 3n+3=O(2n) are correct • But, we say 3n+3=O(n) (almost never say 3n+3=O(n2), 3n+3=O(2n)) • Theorem 1.2 • If f(n)=amnm +…+ a1n+ a0, then f(n)=O(nm) faster

  21. 1.3.3 Asymptotic Notation • Definition 1.5 (Omega) • f(n)=(g(n)) iff there exist positive constants c and n0 such that f(n)c*g(n) for all n, nn0. • Example 1.12 • 3n+2 = (n) (because 3n+23n for all n1) • 3n+3 = (n) ? • 100n+6 = (n) ? • 10n2+4n+2 = (n2) ? • 1000n2+100n-6 = (n2) ? • 6*2n+n2= (2n) ? • 3n+3 = (n2) ? • 10n2+4n+2 = (n) ? • In f(n)=(g(n)), • g(n) is a lower bound of the value of f(n) for all n, nn0. • So, 3n+3= (1) is correct • But, we say 3n+3= (n) (almost never say 3n+3= (1))

  22. 1.3.3 Asymptotic Notation • Definition 1.6 (Theta) • f(n)=(g(n)) iff there exist positive constants c1, c2, and n0 such that c1*g(n) f(n)c2*g(n) for all n, nn0. • Example 1.13 • 3n+2 = (n) • 3n+3 = (n) ? • 100n+6 = (n) ? • 10n2+4n+2 = (n2) ? • 1000n2+100n-6 = (n2) ? • 6*2n+n2= (2n) ? • 3n+3 = (n2) ? • 10n2+4n+2 = (n) ? • In f(n)=(g(n)), • g(n) is both an upper and lower bound of the value of f(n) for all n, nn0. • So, 3n+3=O(1) is not correct

  23. 15 8 1 24 17 16 14 7 5 23 22 20 13 6 4 3 21 19 12 10 9 2 25 18 11 1.3.3 Asymptotic Notation • Example 1.17 [Magic square] • Figure 1.2

  24. #include<iostream.h> • #include<iomanip.h> • void Magic(int n) • // Create a magic square of size n, n being odd. • { int square[SIZE][SIZE]; • if (!(n%2)) {cout << "n is even" << endl; return;} • else { • for (int i=0; i<n; i++) // Initialize square to zero. • for (int j=0; j<n; j++) square[i][j] = 0; • square[0][(n-1)/2]=1; // Middle of first row • // (i, j) is the current position. • int j = (n-1)/2, k, l; • for (int key = 2; key <= n*n; key++) { • // Move up and left. The next two if statements • // may be replaced by the % operator if -1%n is • Program 1.15

  25. // implemented to have value n-1. • k = (i) ? (i-1) : (n-1); • l = (j) ? (j-1) : (n-1); • if (square[k][l]) i = (i+1)%n; • else { // square[k][l] is empty. • i = k; j = l; • } • square[i][j] = key; • } • // Output the magic square. • for (i=0; i<n; i++) • for (j=0; j<n; j++) cout << setw(5) << square[i][j]; • cout << endl; • } • } • } • Time complexity: (n2)

  26. 1.3.3 Asymptotic Notation • Example 1.18 [Computing xn] • Program 1.16 • Time complexity: (log n) • Type Exponentiate(Type x, int n) • // Return xn for an integer n>=0 • { • int m=n; Type power=1, z=x; • while (m>0) { • while (!(m%2)) { • m/=2; z*=z; • } • m--; power*=z; • } • return power; • }

  27. 1.3.4 Practical Complexities • When program P has (n) and Q has (n2), P is faster than Q for sufficiently large n. • Table 1.7

  28. 1.3.4 Practical Complexities • Figure 1.3

  29. 1.3.4 Practical Complexities • Table 1.8

  30. 1.3.5 Performance Measurement • Time functions in C++ #include <time.h> … T() { clock_t start_time, end_time; ….. start_time = clock(); …… /* program segment to measure the time */ end_time = clock(); printf("time elapsed=%f\n", (float)(end_time-start_time)/CLOCKS_PER_SEC); …. }

  31. 1.3.5 Performance Measurement • To time a short event, • Repeat it several times and divide the total time for the event by the number of repetitions. • Program 1.19 • void TimeSearch() • { // Repetition factors • int r[21] = {0, 200000, 200000, 150000, 100000, 100000, 100000, • 50000, 50000, 50000, 50000, 50000, 50000, 50000, 50000, • 50000, 50000, 25000, 25000, 25000, 25000}; • int a[1001], n[21]; • for (int j=1; j<=1000; j++) a[j]=j; • for (j=1; j<=10; j++) { • n[j]= 10*(j-1); n[j+10]=100*j; • } • cout << " n t1 t" << endl << endl; • cout << setiosflags (ios::fixed); • cout << setprecision(3);

  32. 1.3.5 Performance Measurement for (j=1; j<=20; j++) { int h = GetTime(); for (int i=1; i<=r[j]; i++) int k = SeqSearch(a, 0, n[j]); int h1 = GetTime(); int t1 = h1 - h; float t = t1; t /= r[j]; cout << setw(5) << n[j] << << setw(5) << t1 << << setw(8) << t << endl; } cout << "Times are in milliseconds" << endl; }

  33. 1.3.5 Performance Measurement • Improper timing • Programs 1.20 • float t = 0; • for (int i=1; i <= r[j]; i++) { • int h = GetTime(); • int k = SeqSearch(a, 0, n[j]); • int h1 = GetTime(); • t += h1 - h; • } • t /= r[j];

  34. 1.3.5 Performance Measurement • Improper timing • Programs 1.21 • int t = 0; • while (t < DESIRED_TIME) { • int h = GetTime(); • int k = SeqSearch(a, 0, n[j]) • int h1 = GetTime(); • t += h1 - h; • }

  35. 1.3.5 Performance Measurement • Proper timing • Program 1.22 • int h = GetTime(), t = 0; • while (t < DESIRED_TIME) { • int k = SeqSearch(a, 0, n[j]); • int h1 = GetTime(); • t = h1 - h; • }
