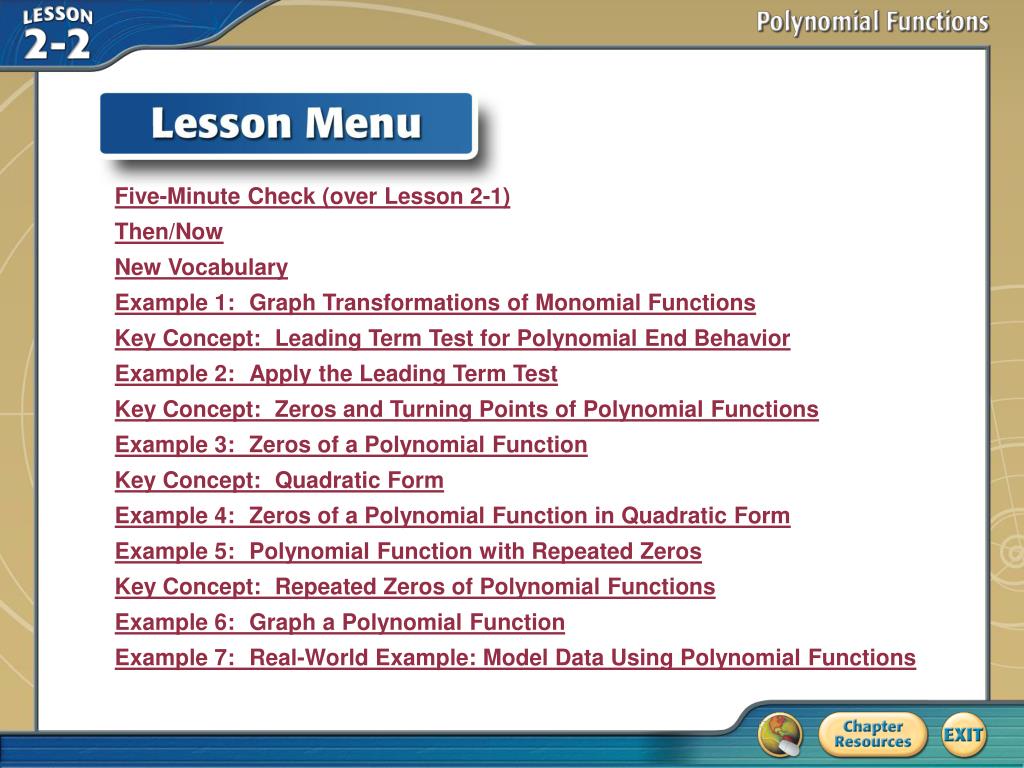

Five-Minute Check (over Lesson 2-1)

Then/Now

New Vocabulary

Example 1: Graph Transformations of Monomial Functions

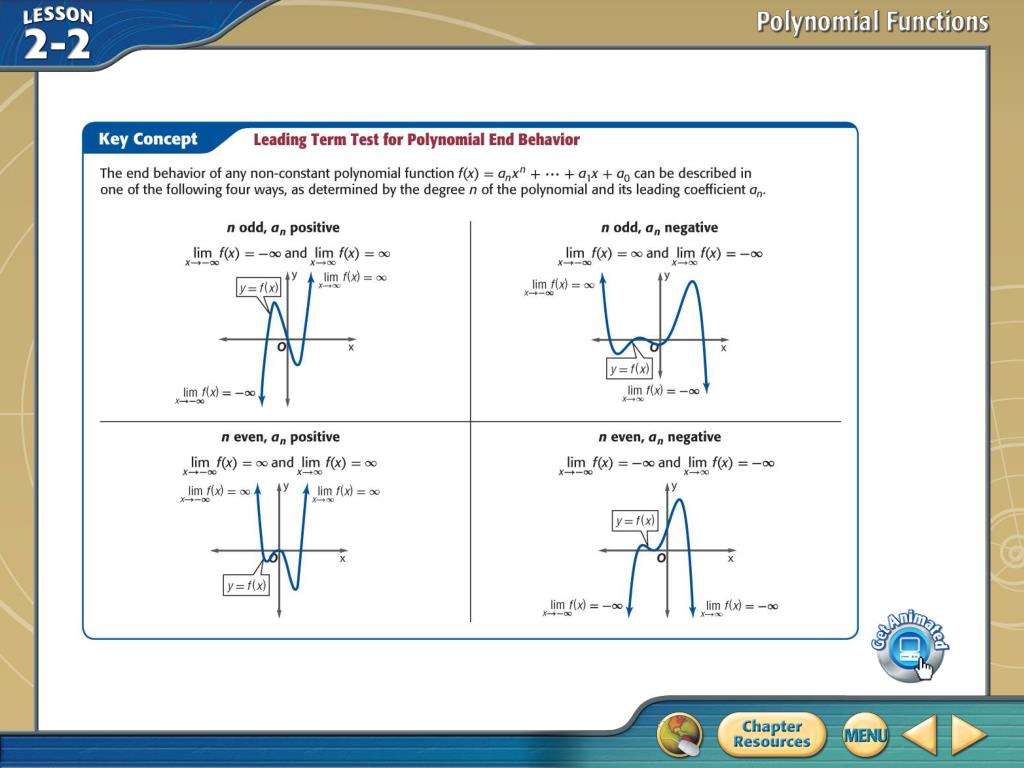

Key Concept: Leading Term Test for Polynomial End Behavior

Example 2: Apply the Leading Term Test

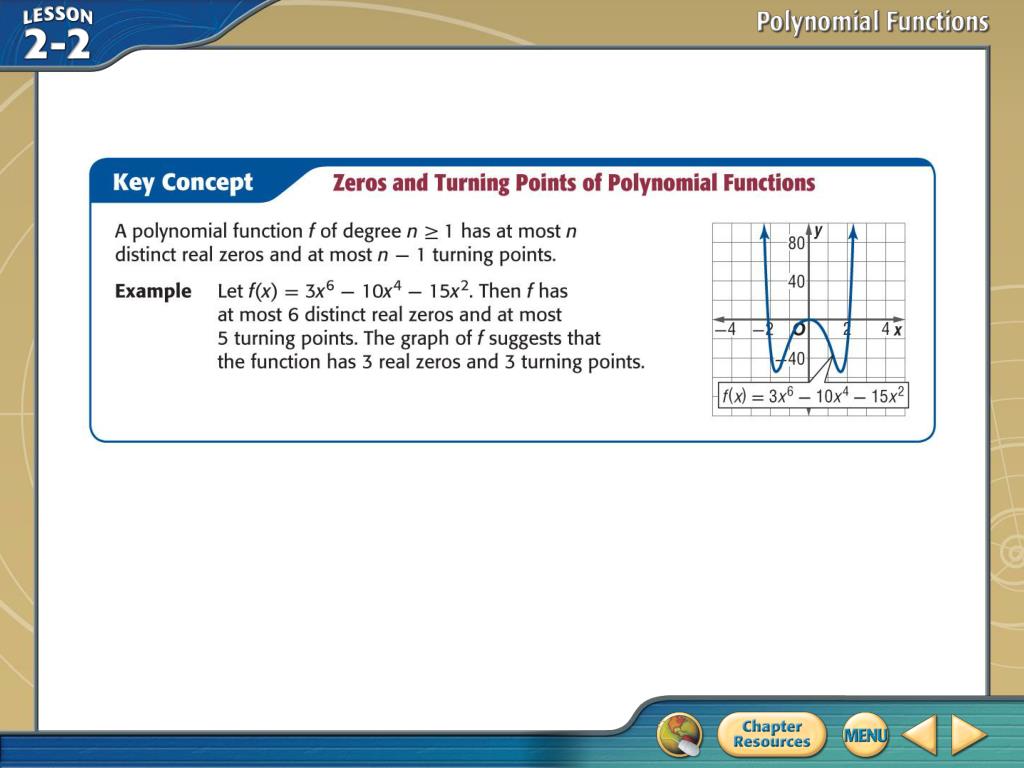

Key Concept: Zeros and Turning Points of Polynomial Functions

Example 3: Zeros of a Polynomial Function

Example 4: Zeros of a Polynomial Function in Quadratic Form

Example 5: Polynomial Function with Repeated Zeros

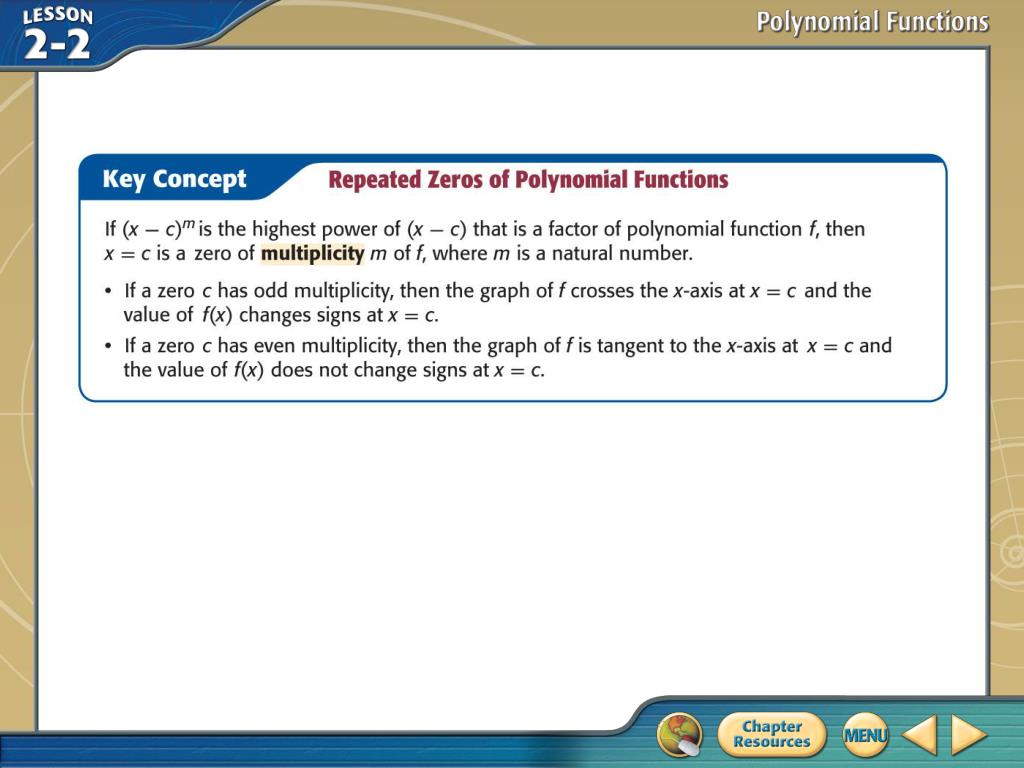

Key Concept: Repeated Zeros of Polynomial Functions

Example 6: Graph a Polynomial Function

Example 7: Real-World Example: Model Data Using Polynomial Functions

A.

B.

C.

D.

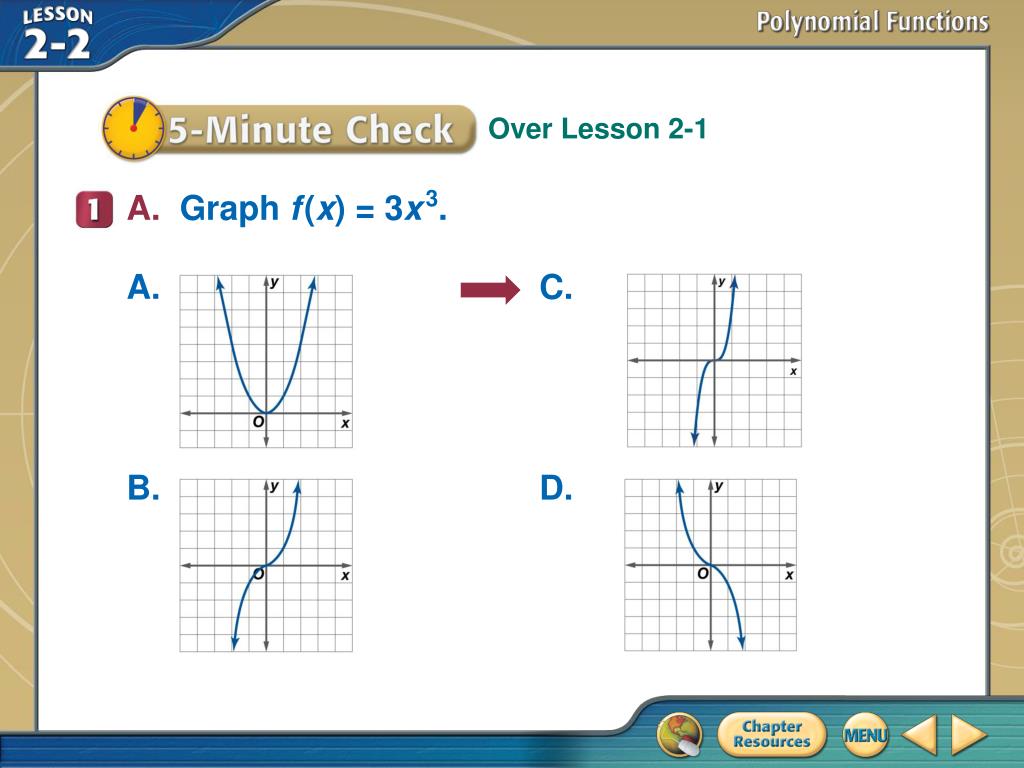

A. Graph f(x) = 3x3.

5–Minute Check 1

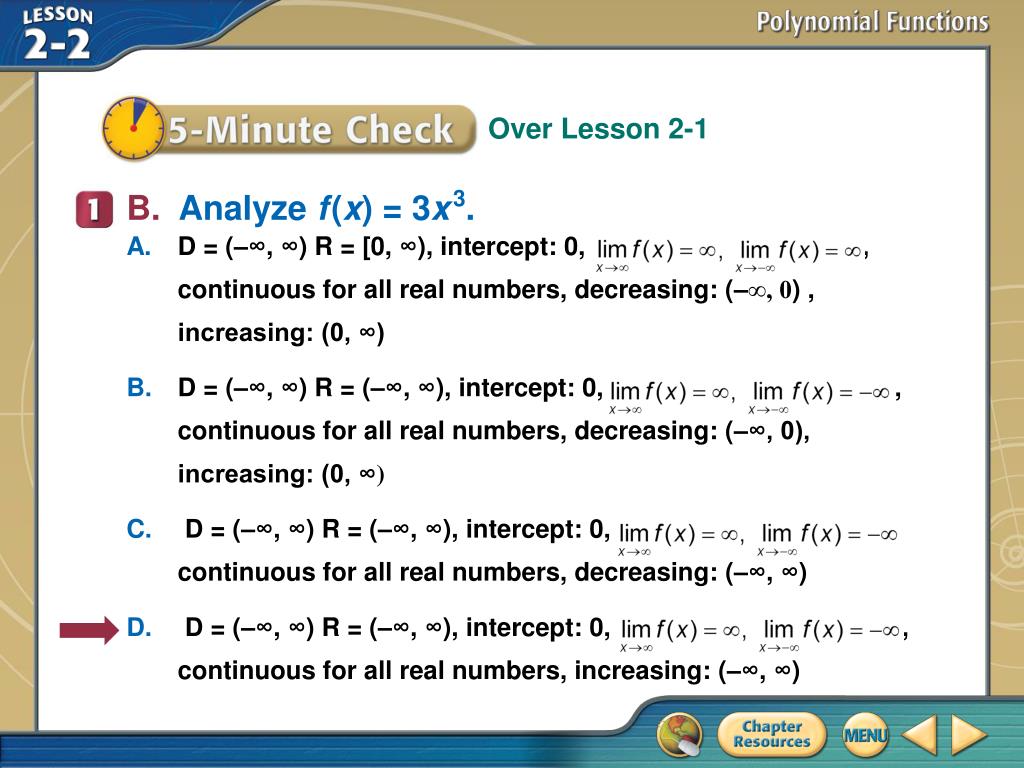

A. D = (–∞, ∞) R = [0, ∞), intercept: 0, , continuous for all real numbers, decreasing: (–∞, 0) , increasing: (0, ∞)

B. D = (–∞, ∞) R = (–∞, ∞), intercept: 0, , continuous for all real numbers, decreasing: (–∞, 0), increasing: (0, ∞)

C. D = (–∞, ∞) R = (–∞, ∞), intercept: 0, , continuous for all real numbers, decreasing: (–∞, ∞)

D. D = (–∞, ∞) R = (–∞, ∞), intercept: 0, , continuous for all real numbers, increasing: (–∞, ∞)

B. Analyze f(x) = 3x3.

5–Minute Check 1

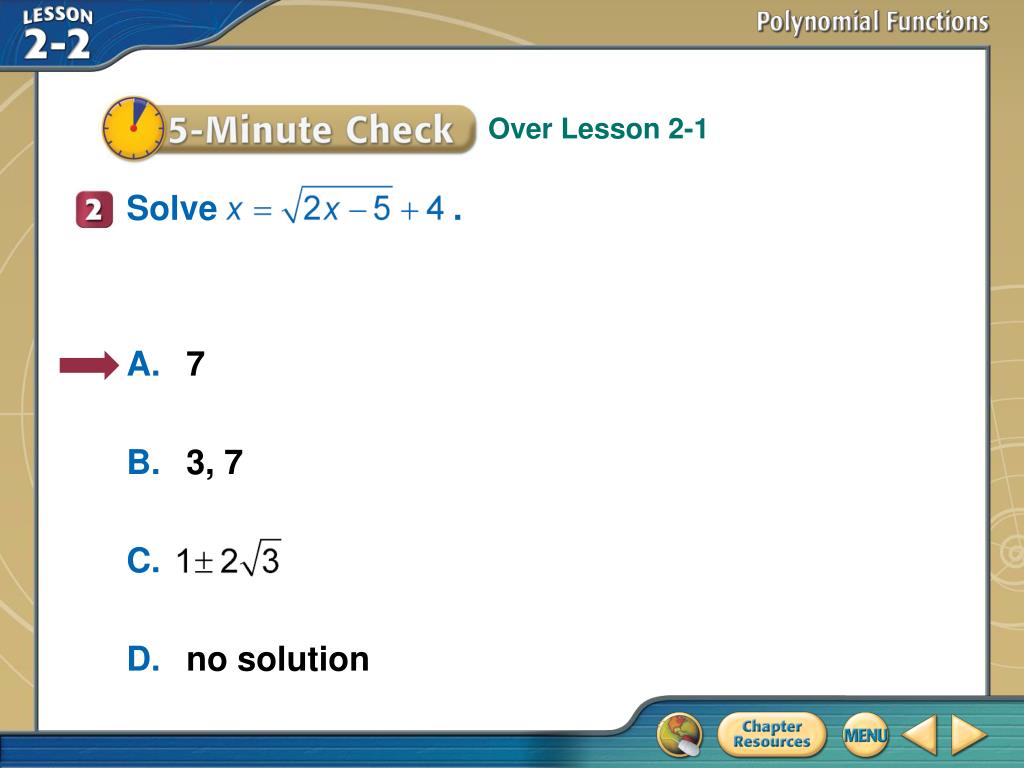

Solve .

A.7

B.3, 7

C.

D.no solution

5–Minute Check 2

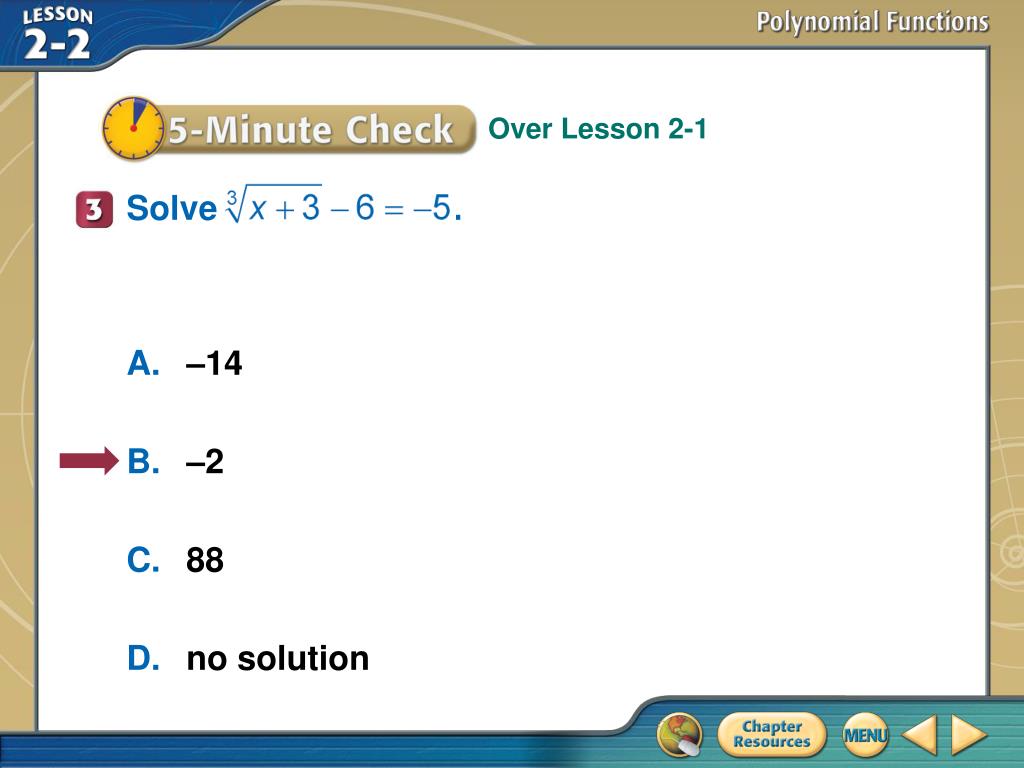

Solve .

A.–14

B.–2

C.88

D.no solution

5–Minute Check 3

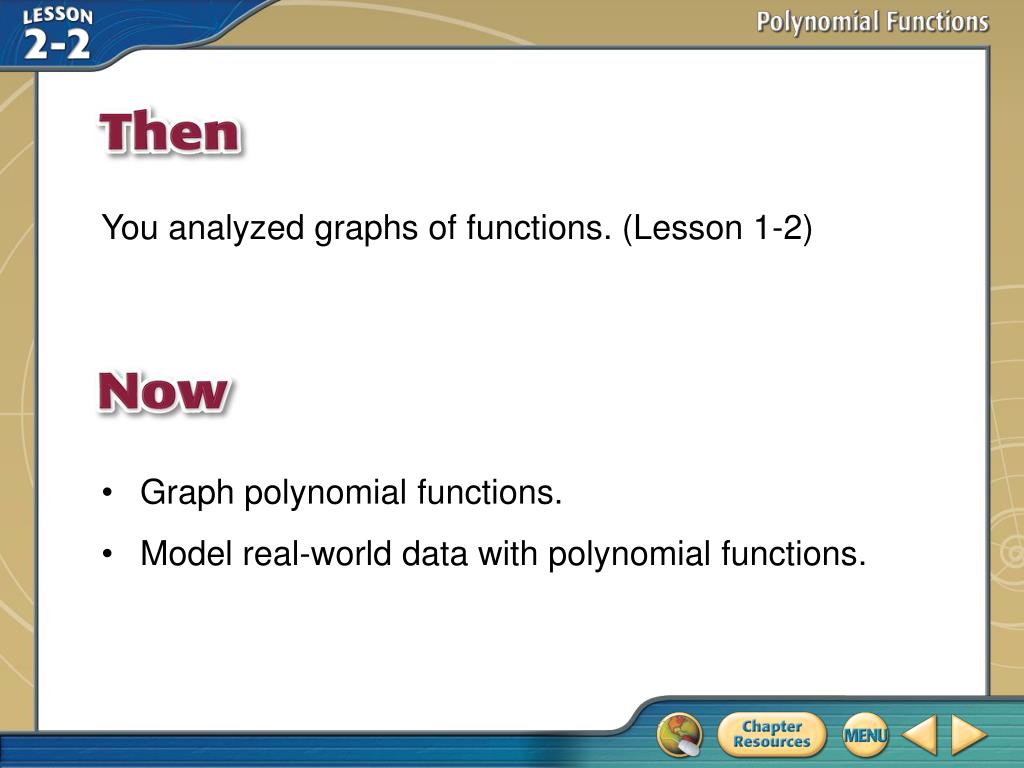

You analyzed graphs of functions. (Lesson 1-2)

• Graph polynomial functions.
• Model real-world data with polynomial functions.
Then/Now

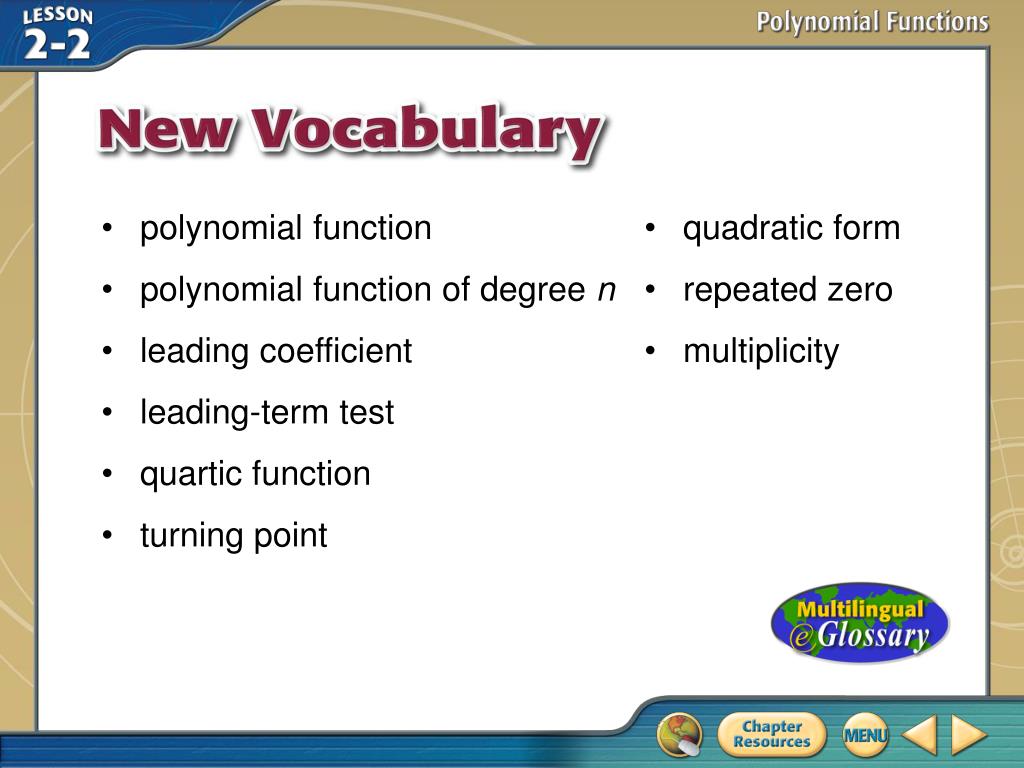

polynomial function

• polynomial function of degree n
• quartic function
• turning point
• repeated zero
• multiplicity
Vocabulary

Graph Transformations of Monomial Functions

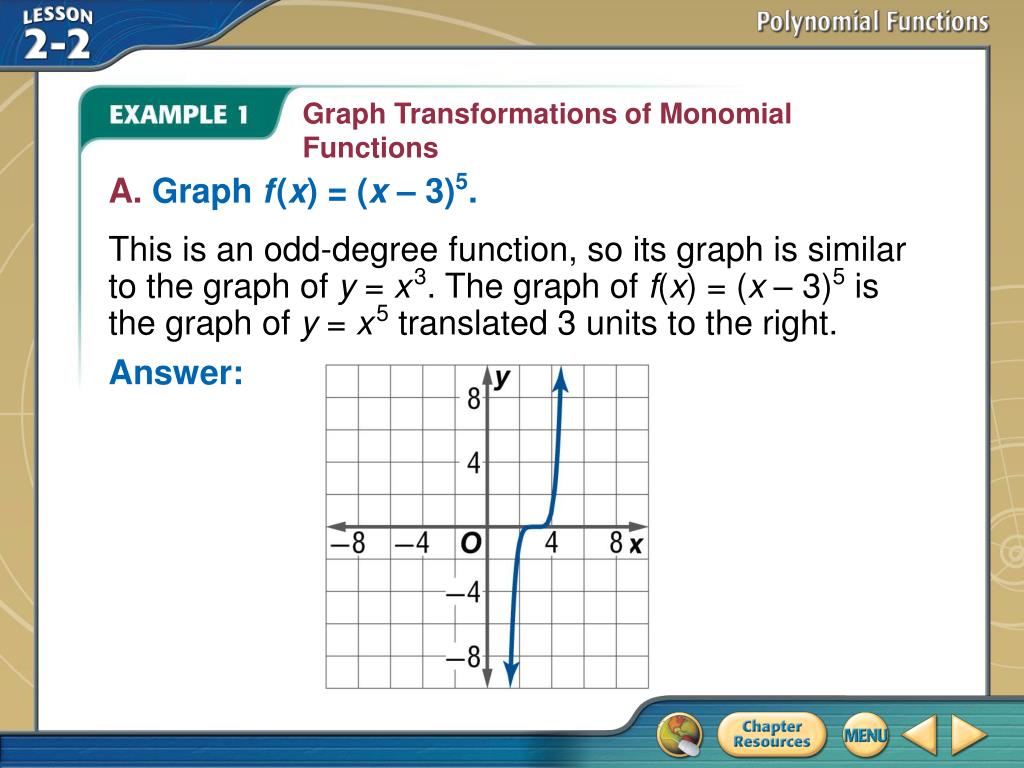

A. Graph f(x) = (x – 3)5.

This is an odd-degree function, so its graph is similar to the graph of y = x3. The graph of f(x) = (x – 3)5 is the graph of y = x5 translated 3 units to the right.

Example 1

Graph Transformations of Monomial Functions

B. Graph f(x) = x6– 1.

This is an even-degree function, so its graph is similar to the graph of y = x2. The graph of f(x) = x6 – 1 is the graph of y = x6 translated 1 unit down.

Example 1

A.

B.

C.

D.

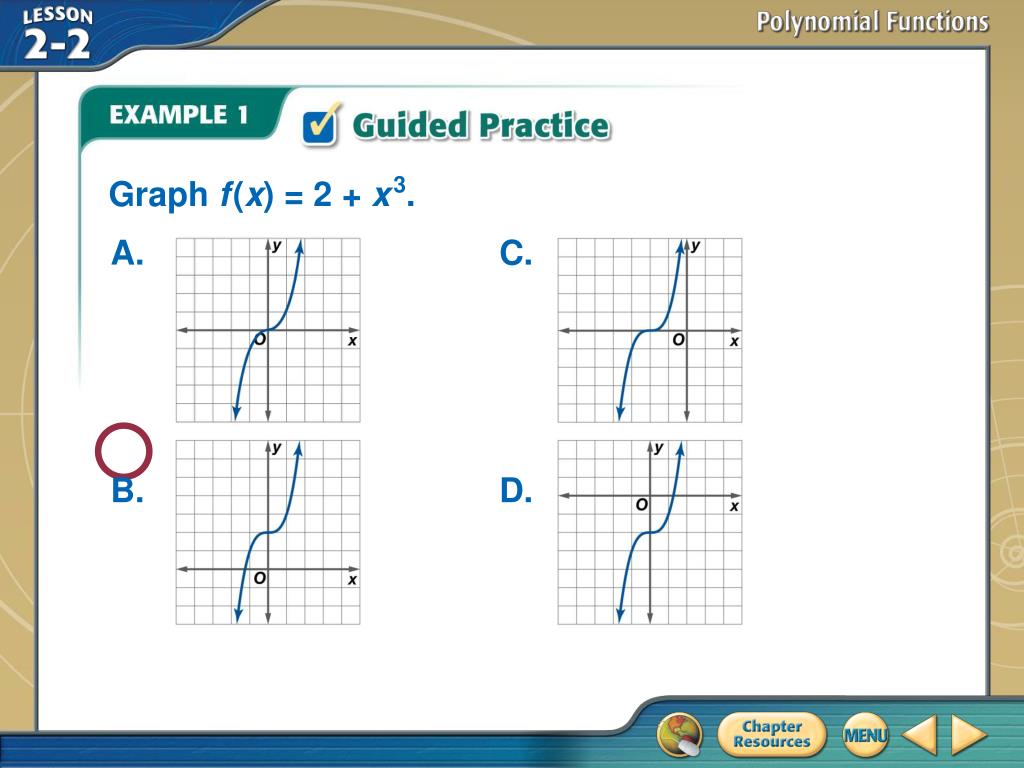

Graph f(x) = 2 + x3.

Example 1

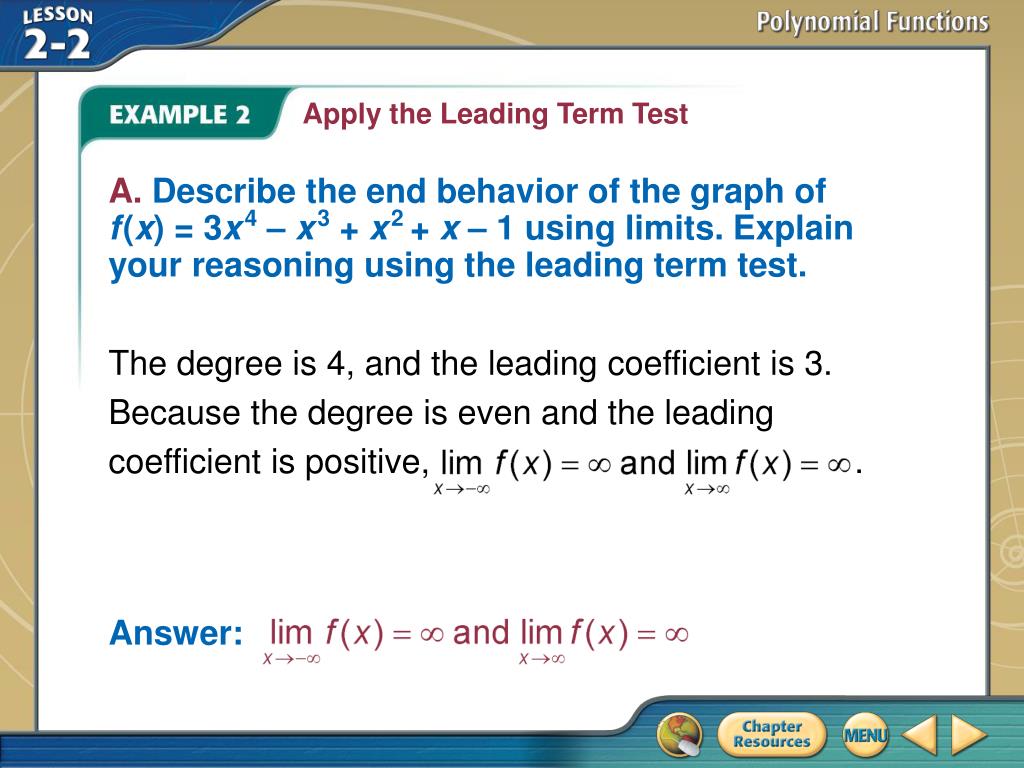

The degree is 4, and the leading coefficient is 3. Because the degree is even and the leading coefficient is positive, .

A. Describe the end behavior of the graph of f(x) = 3x4 – x3 + x2 + x – 1 using limits. Explain your reasoning using the leading term test.

Example 2

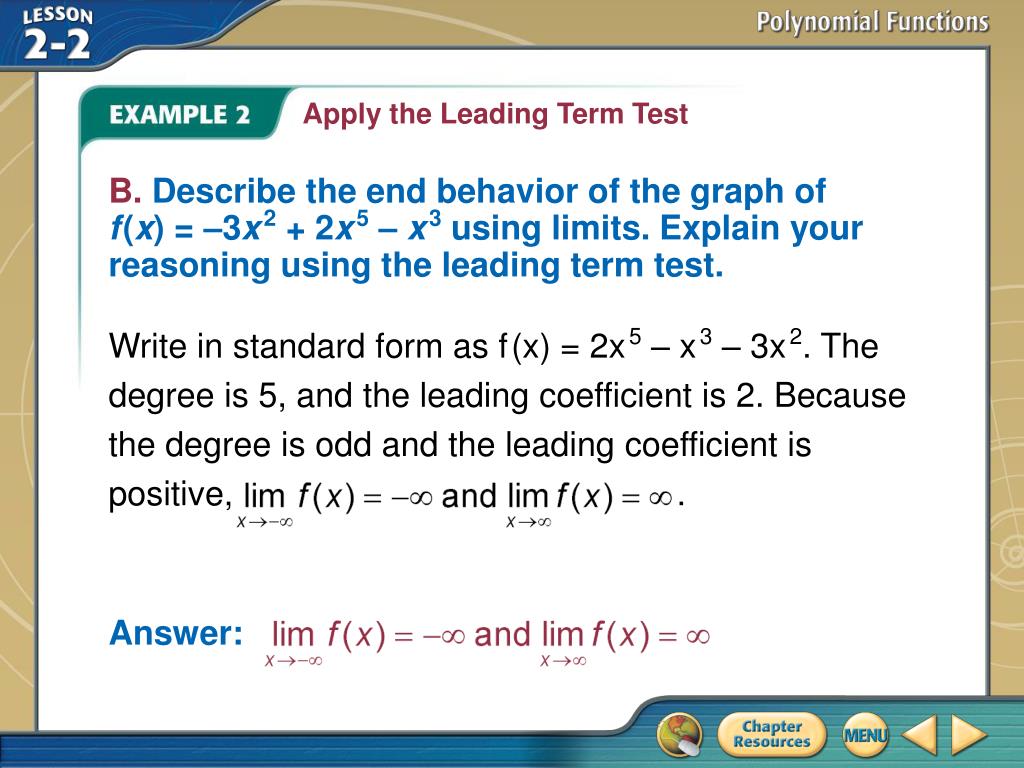

Write in standard form as f(x) = 2x5 – x3 – 3x2. The degree is 5, and the leading coefficient is 2. Because the degree is odd and the leading coefficient is positive, .

B. Describe the end behavior of the graph of f(x) = –3x2 + 2x5–x3 using limits. Explain your reasoning using the leading term test.

Example 2

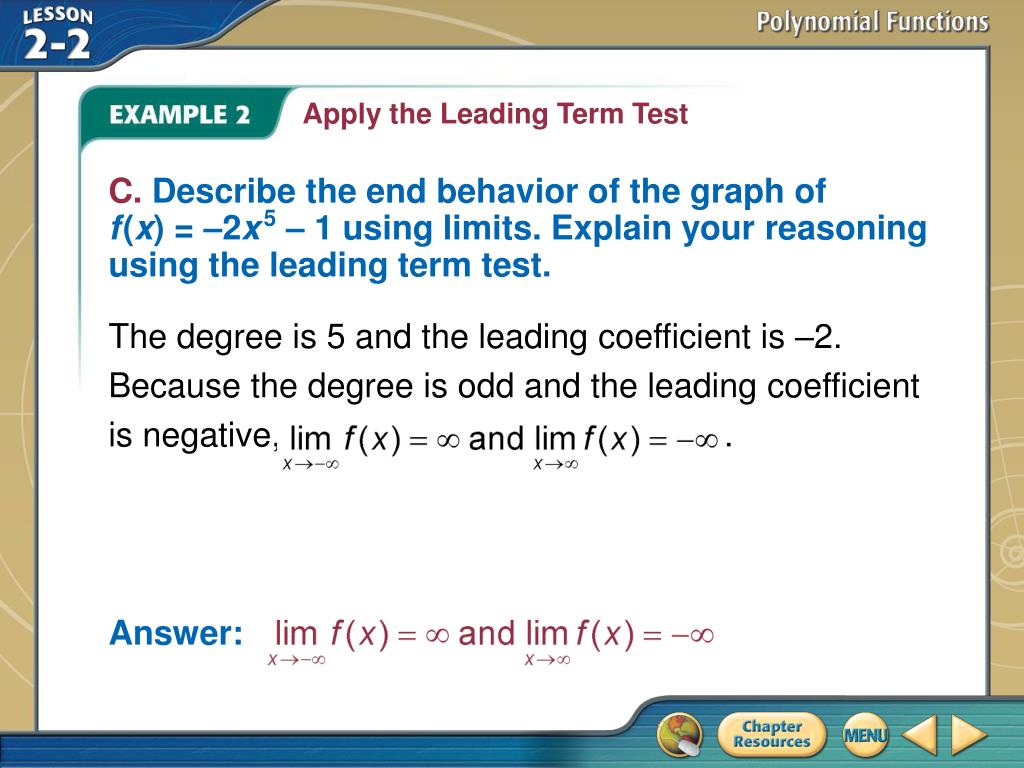

The degree is 5 and the leading coefficient is –2. Because the degree is odd and the leading coefficient is negative, .

C. Describe the end behavior of the graph of f(x) = –2x5– 1 using limits. Explain your reasoning using the leading term test.

Example 2

A. Because the degree is odd and the leading coefficient negative, .

B. Because the degree is odd and the leading coefficient negative, .

C. Because the degree is odd and the leading coefficient negative, .

D. Because the degree is odd and the leading coefficient negative, .

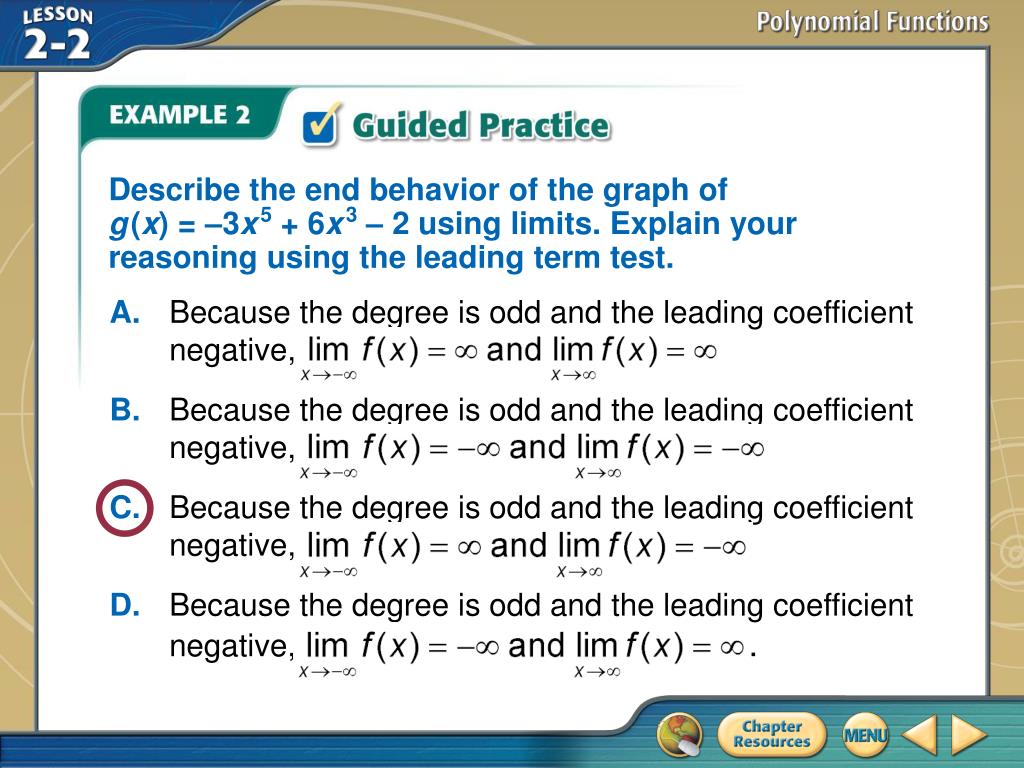

Describe the end behavior of the graph of g(x) = –3x5 + 6x3 – 2 using limits. Explain your reasoning using the leading term test.

Example 2

Zeros of a Polynomial Function

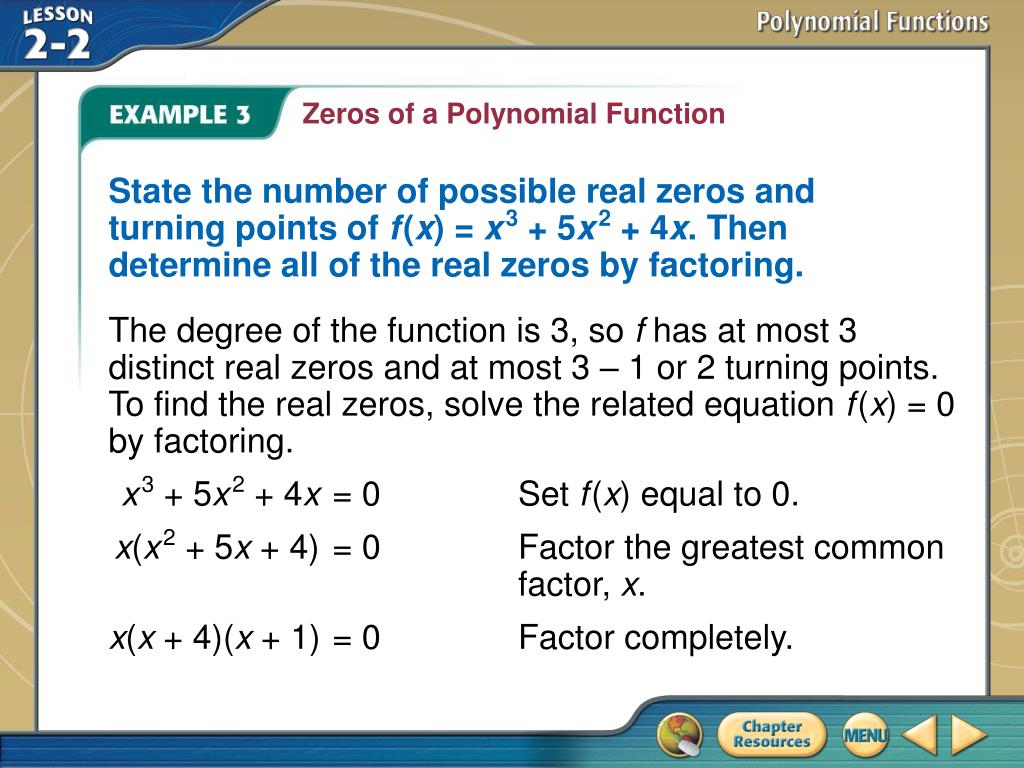

State the number of possible real zeros and turning points of f(x) = x3 + 5x2 + 4x. Then determine all of the real zeros by factoring.

The degree of the function is 3, so f has at most 3 distinct real zeros and at most 3 – 1 or 2 turning points. To find the real zeros, solve the related equation f(x) = 0 by factoring.

x3 + 5x2 + 4x = 0 Set f(x) equal to 0.

x(x2 + 5x + 4) = 0 Factor the greatest common factor, x.

x(x + 4)(x + 1) = 0 Factor completely.

Example 3

Zeros of a Polynomial Function

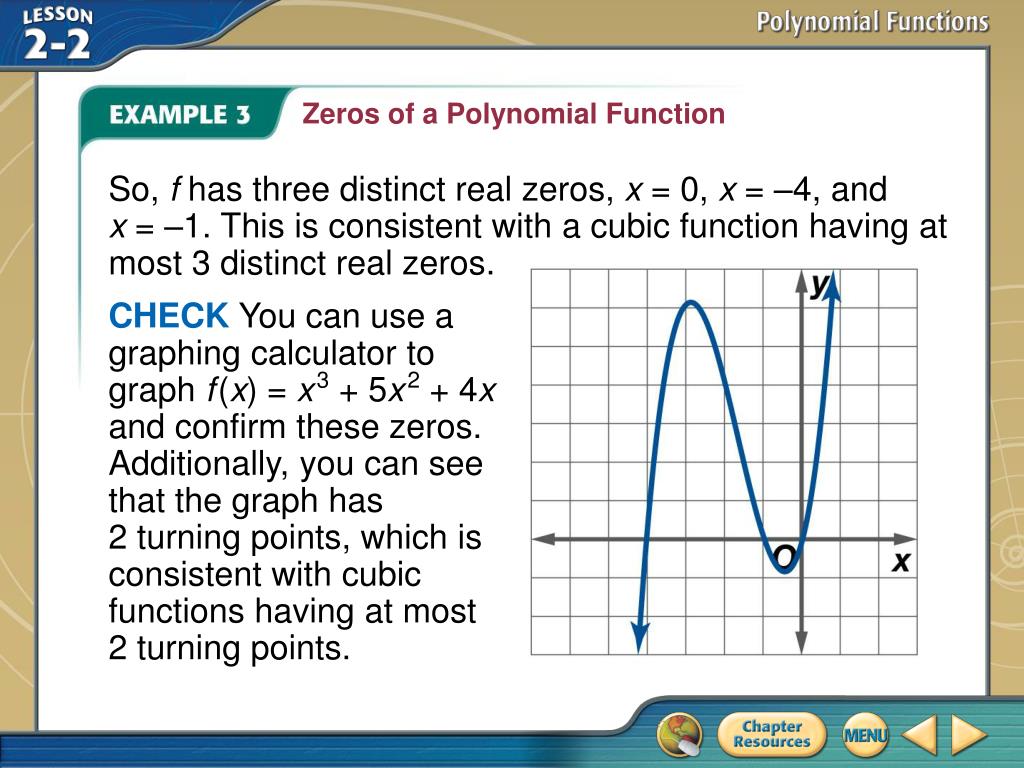

So, f has three distinct real zeros, x = 0, x = –4, and x = –1. This is consistent with a cubic function having at most 3 distinct real zeros.

CHECK You can use a graphing calculator to graph f(x) = x3 + 5x2 + 4x and confirm these zeros. Additionally, you can see that the graph has 2 turning points, which is consistent with cubic functions having at most 2 turning points.

Example 3

Zeros of a Polynomial Function

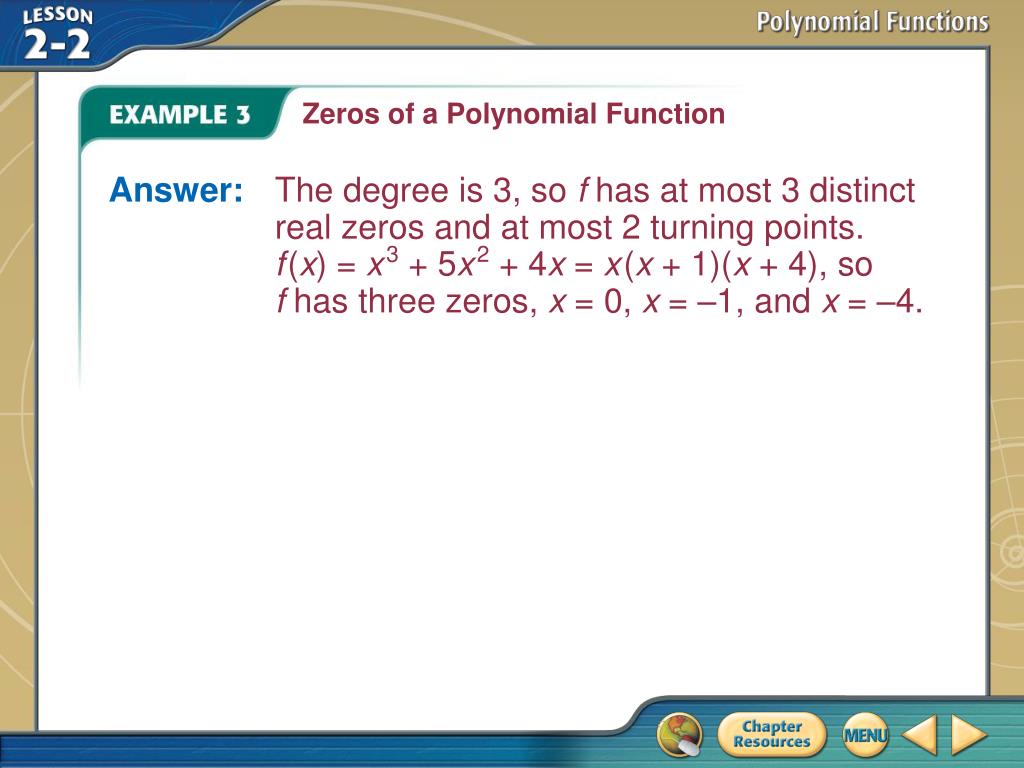

Answer:The degree is 3, so f has at most 3 distinct real zeros and at most 2 turning points. f(x) = x3 + 5x2 + 4x = x(x + 1)(x + 4), so f has three zeros, x = 0, x = –1, and x = –4.

Example 3

State the number of possible real zeros and turning points of f(x) = x4 – 13x2 + 36. Then determine all of the real zeros by factoring.

A. 4 possible real zeros, 3 turning points; zeros 2, –2, 3, –3

B. 4 possible real zeros, 2 turning points; zeros 4, 9

C. 3 possible real zeros, 2 turning points; zeros 2, 3

D. 4 possible real zeros, 4 turning points; zeros –2, –3

Example 3

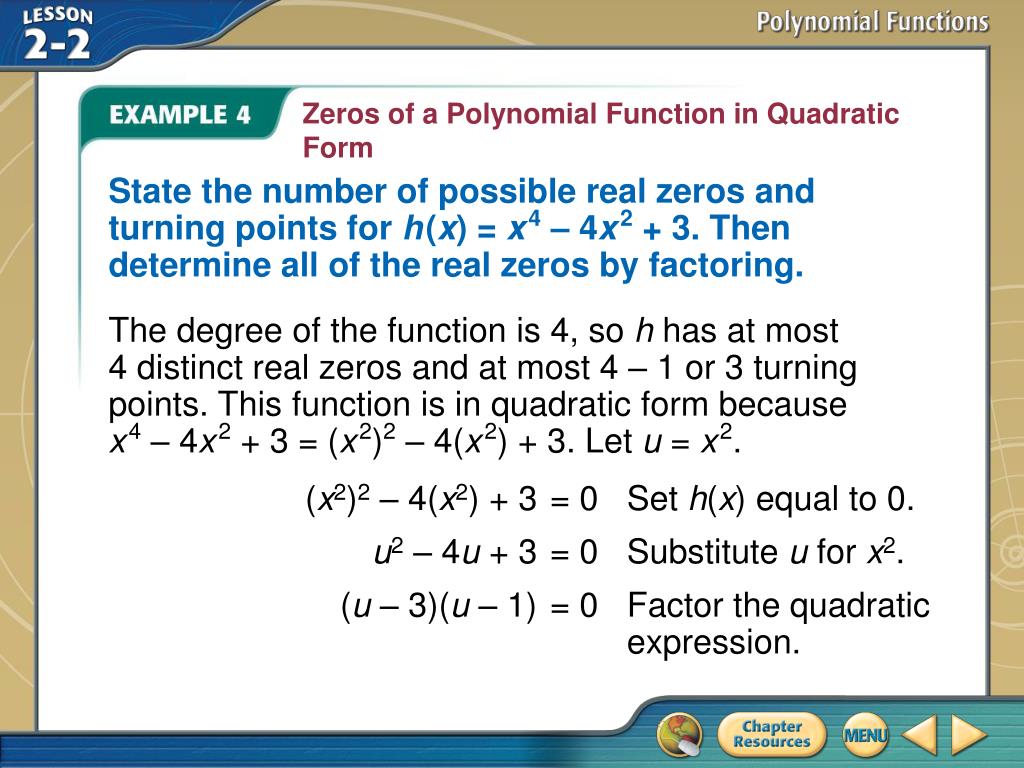

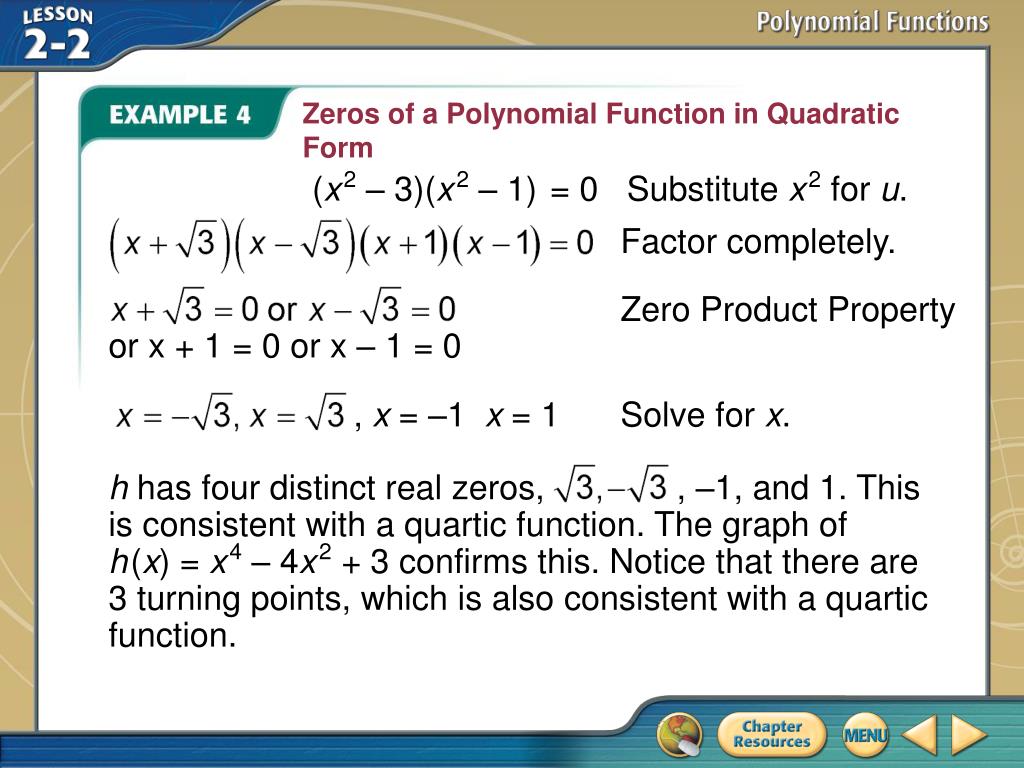

Zeros of a Polynomial Function in Quadratic Form

State the number of possible real zeros and turning points for h(x) = x4 – 4x2 + 3. Then determine all of the real zeros by factoring.

The degree of the function is 4, so h has at most 4 distinct real zeros and at most 4 – 1 or 3 turning points. This function is in quadratic form because x4 – 4x2 + 3 = (x2)2 – 4(x2) + 3. Let u = x2.

(x2)2 – 4(x2) + 3 = 0 Set h(x) equal to 0.

u2 – 4u + 3 = 0 Substitute u for x2.

(u – 3)(u – 1) = 0 Factor the quadratic expression.

Example 4

Factor completely.

Zero Product Property

or x + 1 = 0 or x – 1 = 0

,x = –1 x = 1 Solve for x.

h has four distinct real zeros, , –1, and 1. This is consistent with a quartic function. The graph of h(x) = x4 – 4x2 + 3 confirms this. Notice that there are 3 turning points, which is also consistent with a quartic function.

Zeros of a Polynomial Function in Quadratic Form

(x2 – 3)(x2 – 1) = 0 Substitute x2 for u.

Example 4

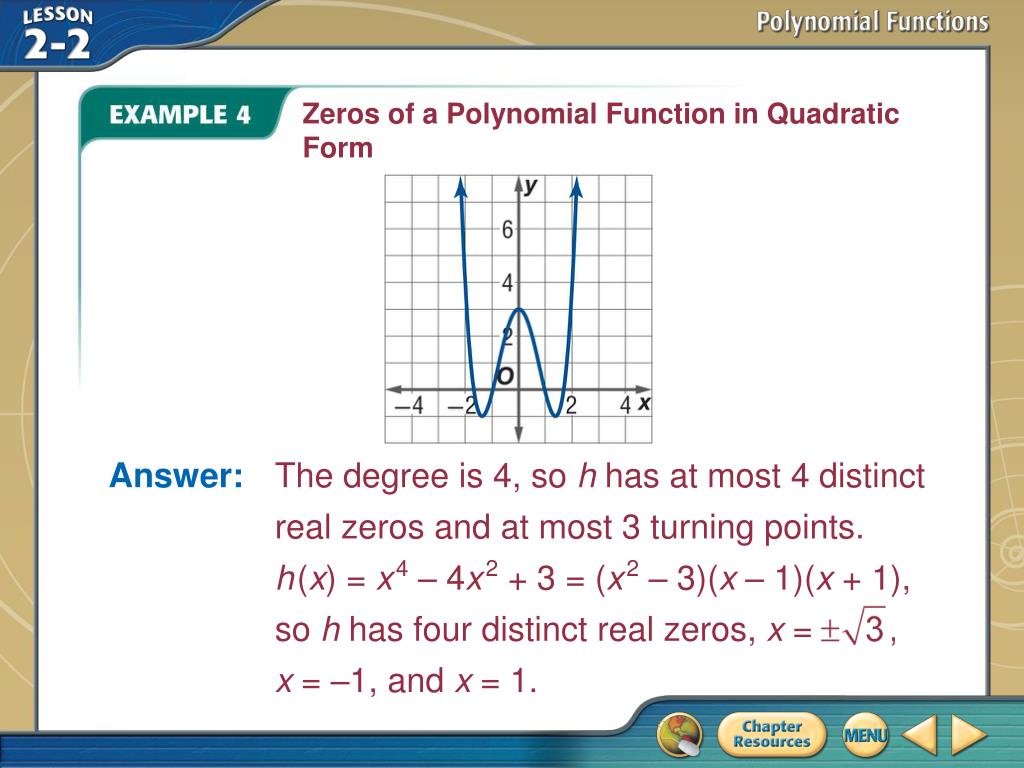

Answer:The degree is 4, so h has at most 4 distinct real zeros and at most 3 turning points. h(x) = x4 – 4x2 + 3 = (x2 – 3)(x – 1)(x + 1), so h has four distinct real zeros, x = , x = –1, and x = 1.

Zeros of a Polynomial Function in Quadratic Form

Example 4

B. 5 possible real zeros, 4 turning points; real zeros 0,

C. 3 possible real zeros, 3 turning points; real zeros 0, –1,.

D. 5 possible real zeros, 4 turning points; real zeros 0, 1, –1,

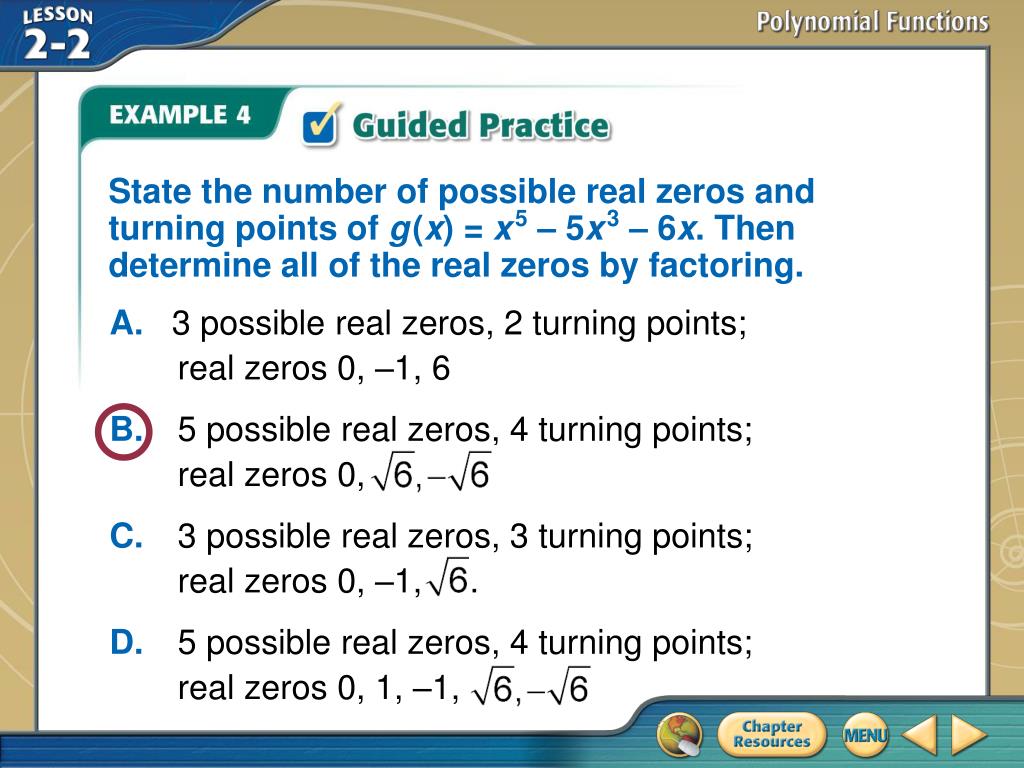

State the number of possible real zeros and turning points of g(x) = x5 – 5x3 – 6x. Then determine all of the real zeros by factoring.

Example 4

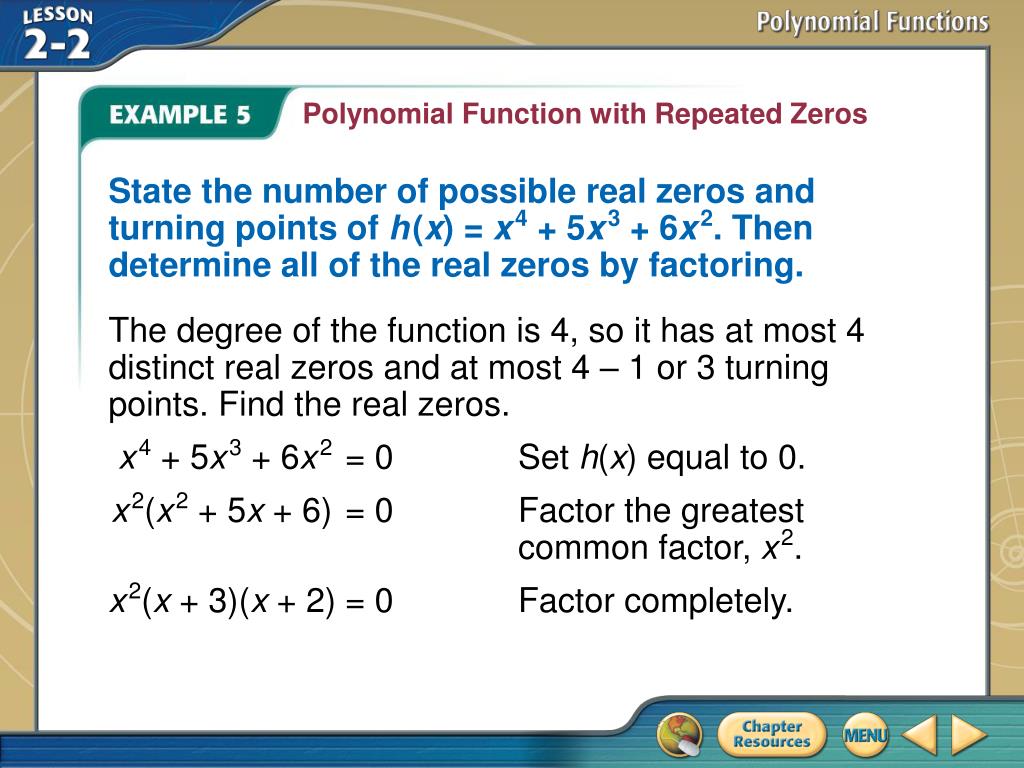

Polynomial Function with Repeated Zeros

State the number of possible real zeros and turning points of h(x) = x4 + 5x3 + 6x2. Then determine all of the real zeros by factoring.

The degree of the function is 4, so it has at most 4 distinct real zeros and at most 4 – 1 or 3 turning points. Find the real zeros.

x4 + 5x3 + 6x2 = 0 Set h(x) equal to 0.

x2(x2 + 5x + 6) = 0 Factor the greatest common factor, x2.

x2(x + 3)(x + 2) = 0 Factor completely.

Example 5

Polynomial Function with Repeated Zeros

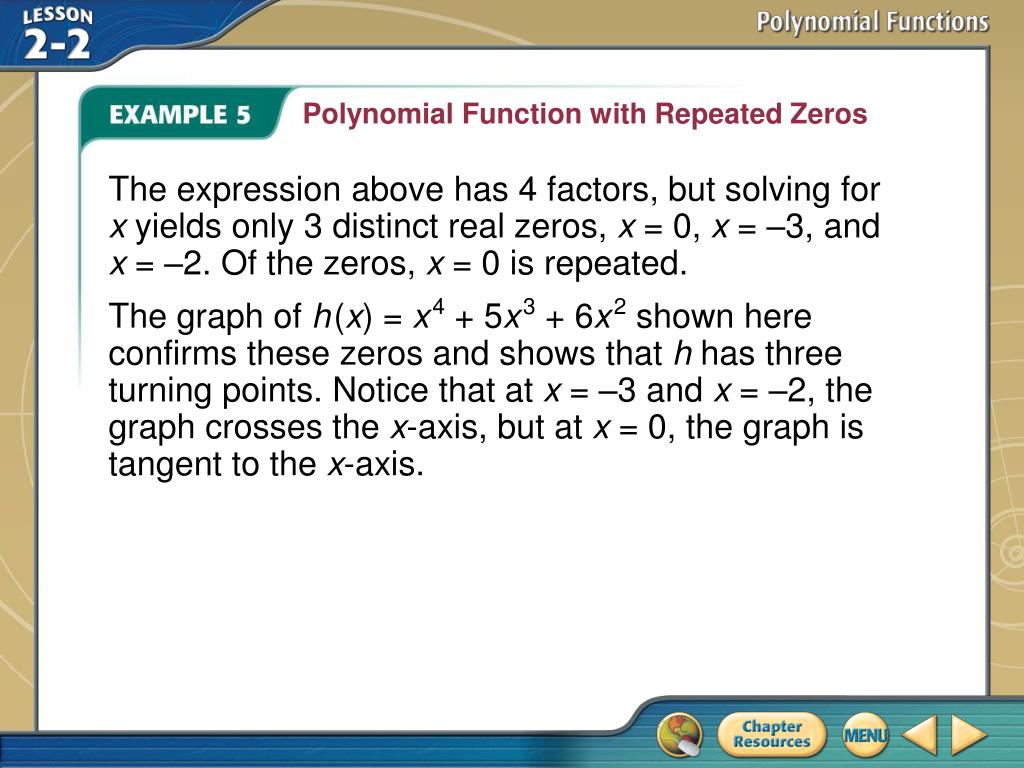

The expression above has 4 factors, but solving for x yields only 3 distinct real zeros, x = 0, x = –3, and x = –2. Of the zeros, x = 0 is repeated.

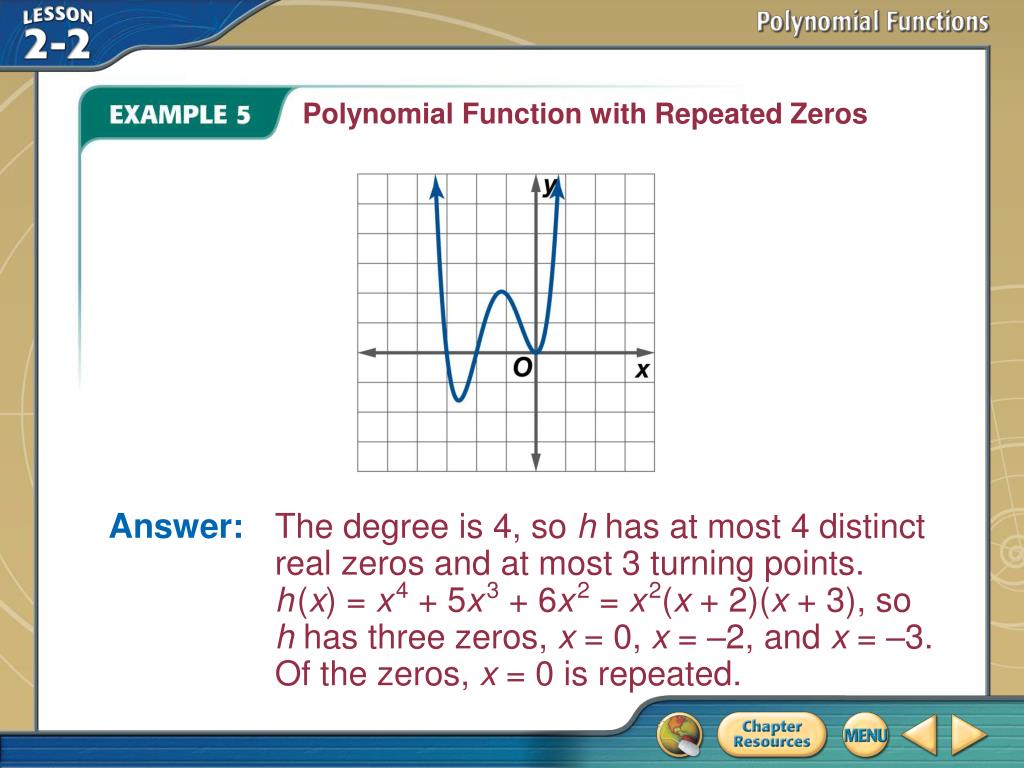

The graph of h(x) = x4 + 5x3 + 6x2 shown here confirms these zeros and shows that h has three turning points. Notice that at x = –3 and x = –2, the graph crosses the x-axis, but at x = 0, the graph is tangent to the x-axis.

Example 5

Polynomial Function with Repeated Zeros

Answer:The degree is 4, so h has at most 4 distinct real zeros and at most 3 turning points. h(x) = x4 + 5x3 + 6x2 = x2(x + 2)(x + 3), so h has three zeros, x = 0, x = –2, and x = –3. Of the zeros, x = 0 is repeated.

Example 5

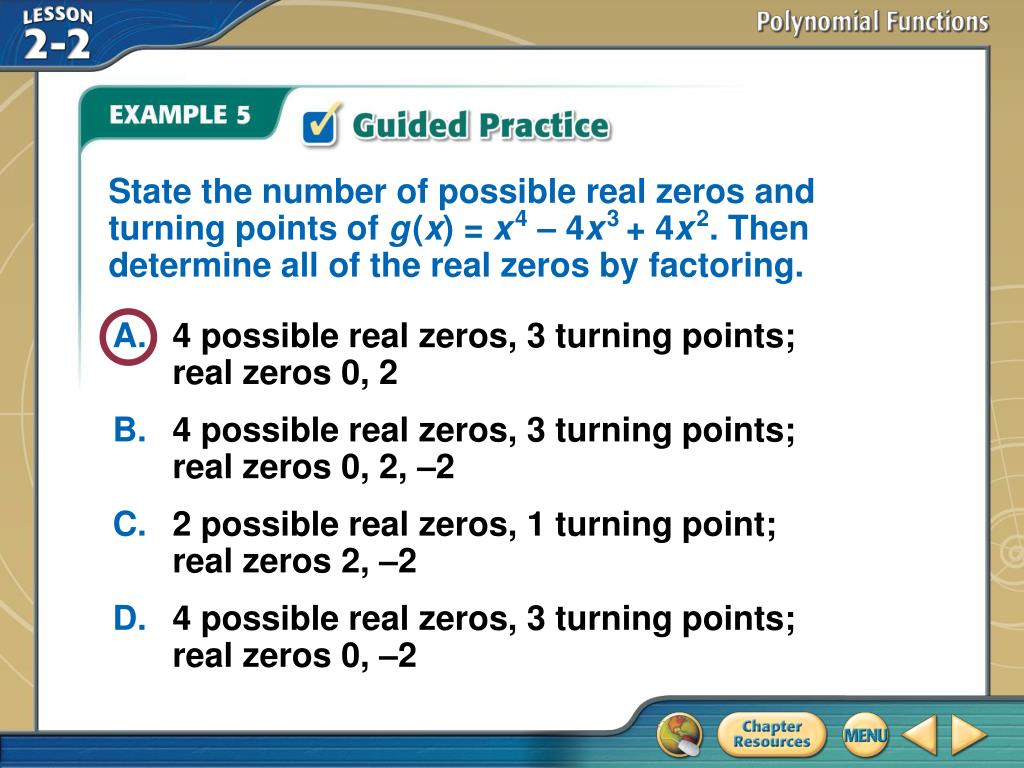

State the number of possible real zeros and turning points of g(x) = x4 – 4x3+ 4x2. Then determine all of the real zeros by factoring.

A. 4 possible real zeros, 3 turning points; real zeros 0, 2

B. 4 possible real zeros, 3 turning points; real zeros 0, 2, –2

C. 2 possible real zeros, 1 turning point; real zeros 2, –2

D. 4 possible real zeros, 3 turning points; real zeros 0, –2

Example 5

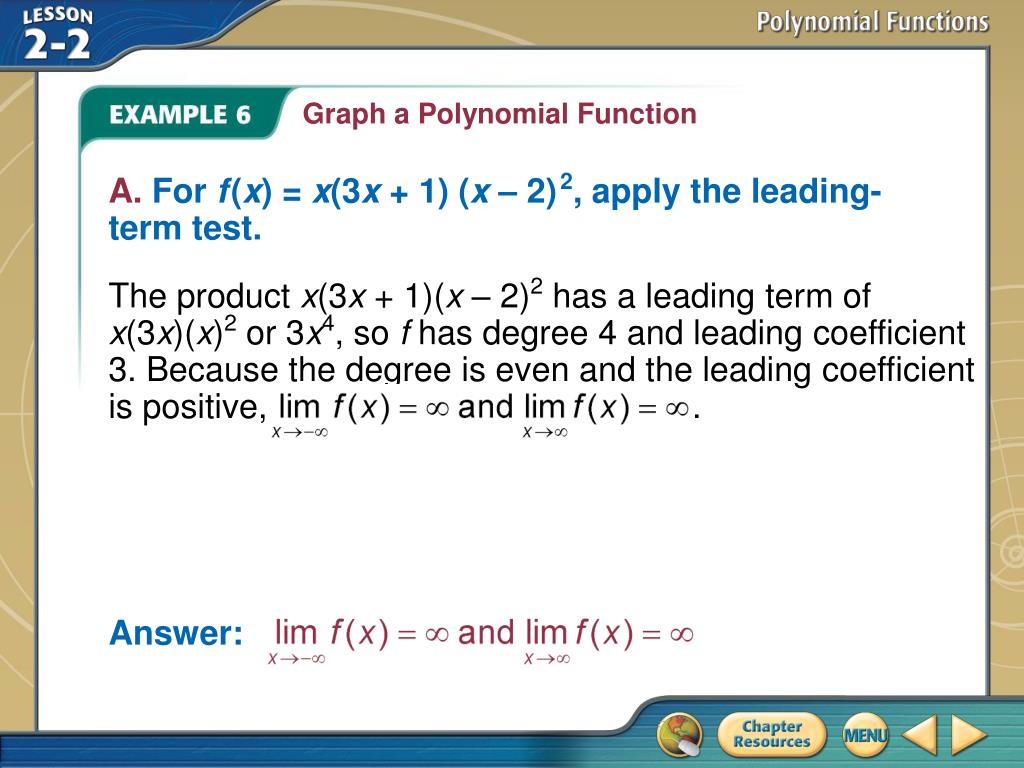

The product x(3x + 1)(x – 2)2 has a leading term of x(3x)(x)2 or 3x4, so f has degree 4 and leading coefficient 3. Because the degree is even and the leading coefficient is positive, .

Graph a Polynomial Function

A. For f(x) = x(3x + 1) (x – 2)2, apply the leading-term test.

Example 6

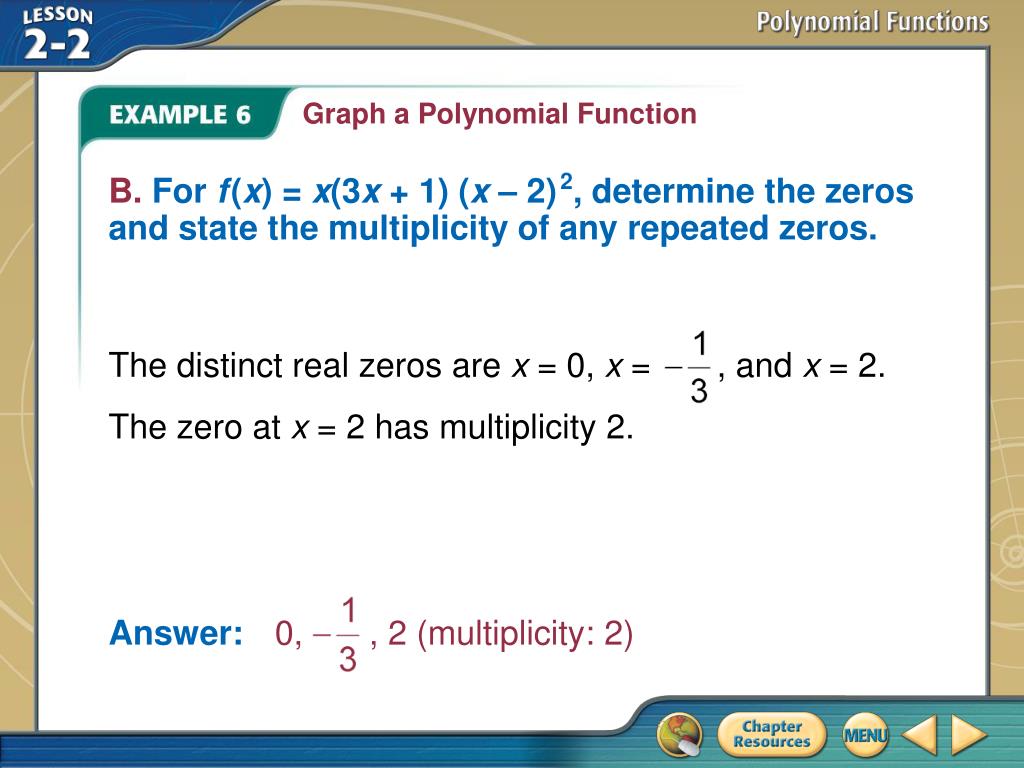

The distinct real zeros are x = 0, x = , and x = 2. The zero at x = 2 has multiplicity 2.

Graph a Polynomial Function

B. For f(x) = x(3x + 1) (x – 2)2, determine the zeros and state the multiplicity of any repeated zeros.

Example 6

Graph a Polynomial Function

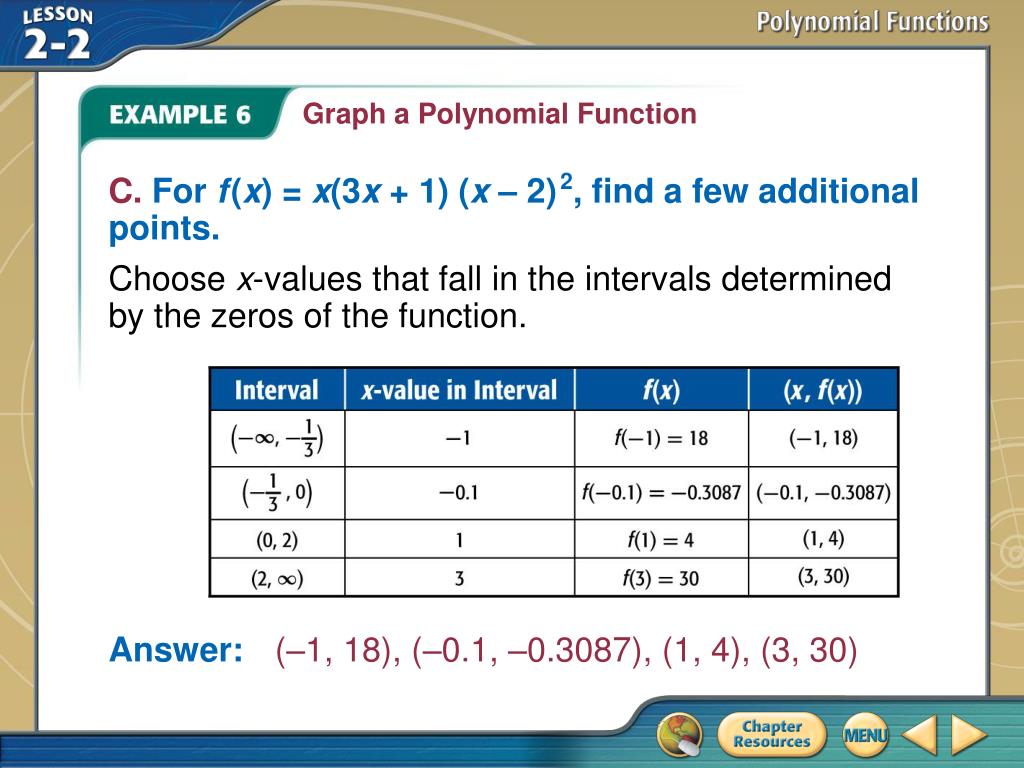

C. For f(x) = x(3x + 1) (x – 2)2, find a few additional points.

Choose x-values that fall in the intervals determined by the zeros of the function.

Answer:(–1, 18), (–0.1, –0.3087), (1, 4), (3, 30)

Example 6

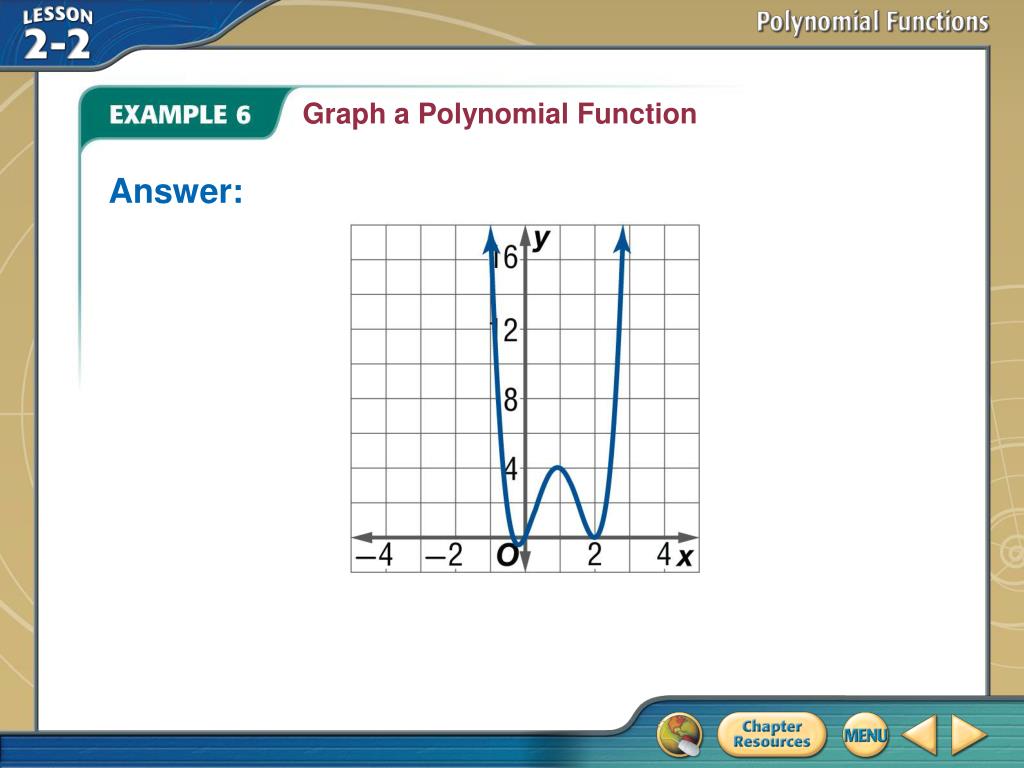

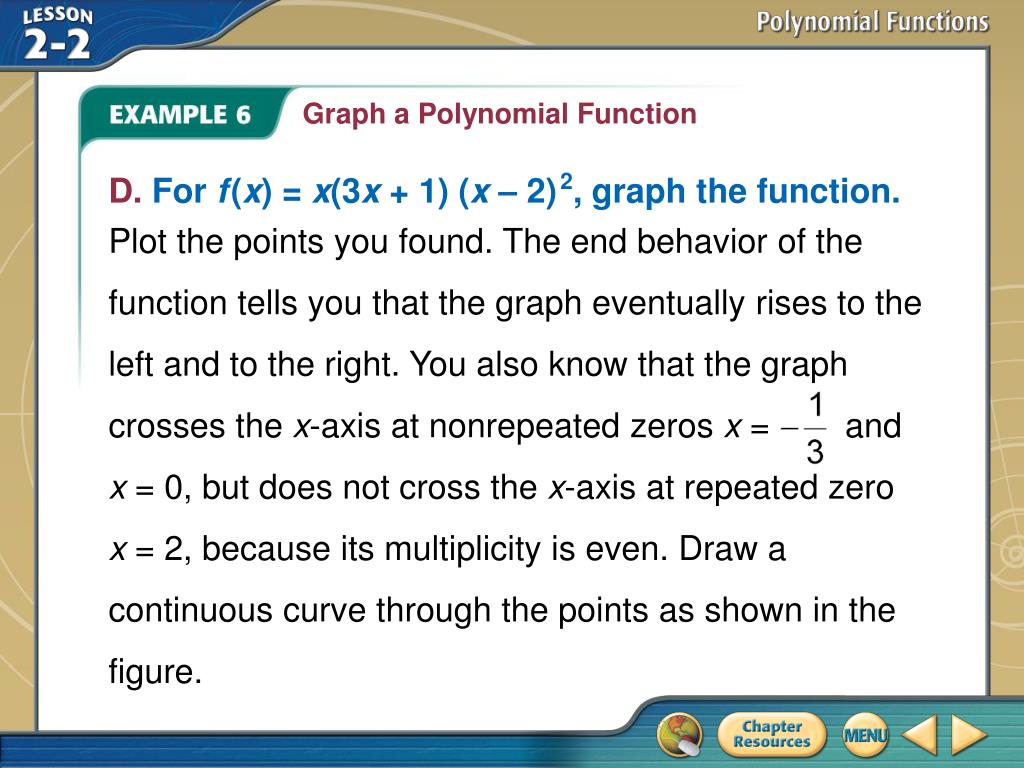

Plot the points you found. The end behavior of the function tells you that the graph eventually rises to the left and to the right. You also know that the graph crosses the x-axis at nonrepeated zeros x = and x = 0, but does not cross the x-axis at repeated zero x = 2, because its multiplicity is even. Draw a continuous curve through the points as shown in the figure.

Graph a Polynomial Function

D. For f(x) = x(3x + 1) (x – 2)2, graph the function.

Example 6

A. 0, –2 (multiplicity 2), (multiplicity 3)

B. 2 (multiplicity 2), – (multiplicity 3)

C. 4 (multiplicity 2), (multiplicity 3)

D. –2 (multiplicity 2), (multiplicity 3)

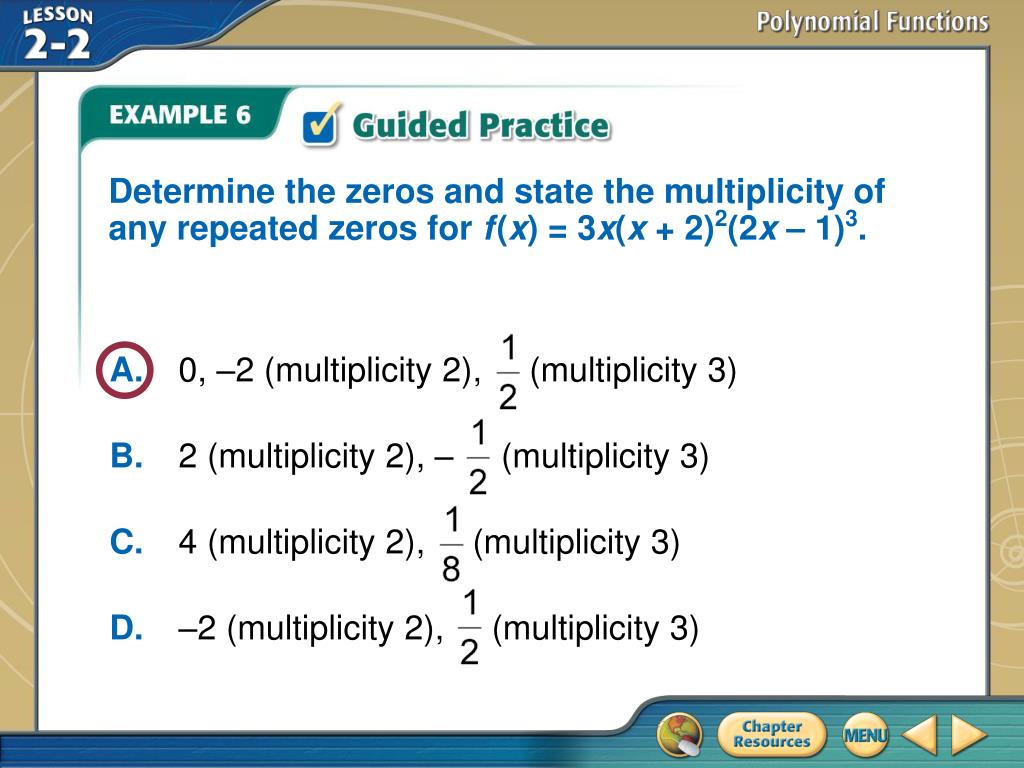

Determine the zeros and state the multiplicity of any repeated zeros for f(x) = 3x(x + 2)2(2x – 1)3.

Example 6

Model Data Using Polynomial Functions

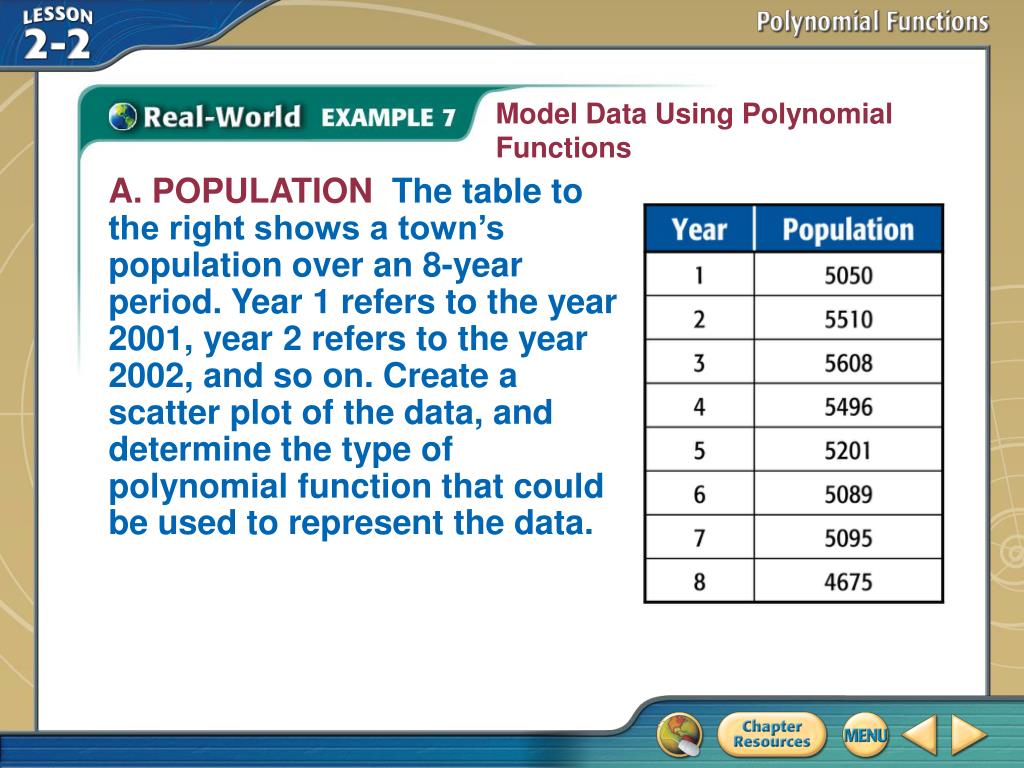

A. POPULATION The table to the right shows a town’s population over an 8-year period. Year 1 refers to the year 2001, year 2 refers to the year 2002, and so on. Create a scatter plot of the data, and determine the type of polynomial function that could be used to represent the data.

Example 7

Model Data Using Polynomial Functions

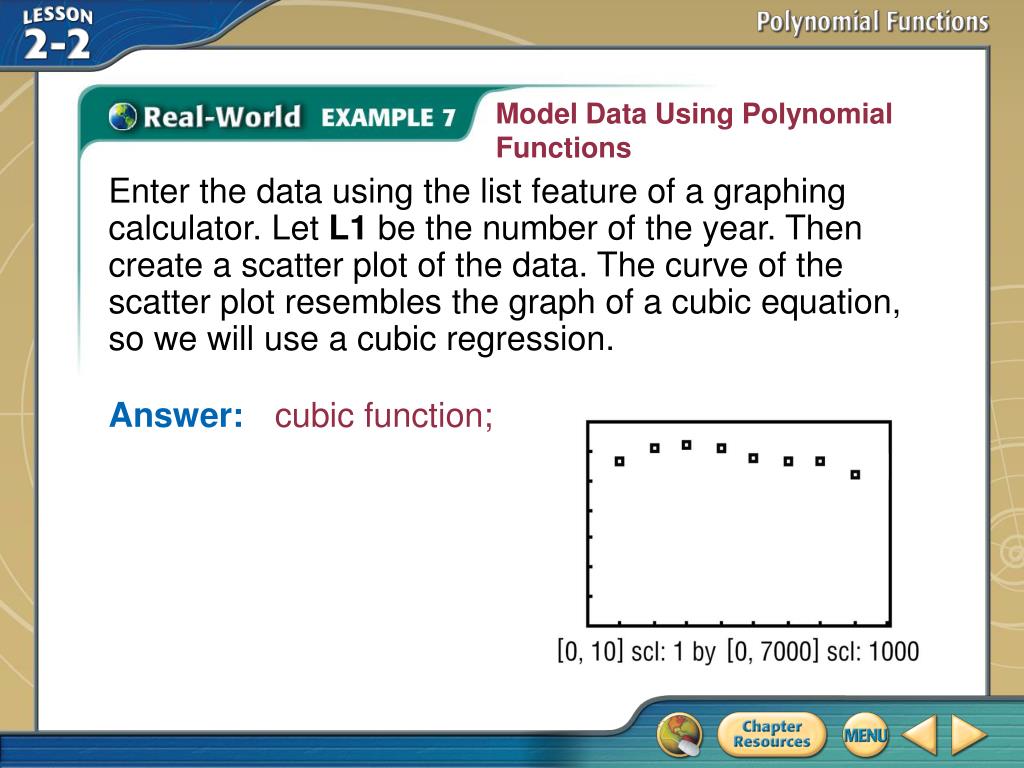

Enter the data using the list feature of a graphing calculator. Let L1 be the number of the year. Then create a scatter plot of the data. The curve of the scatter plot resembles the graph of a cubic equation, so we will use a cubic regression.

Example 7

Model Data Using Polynomial Functions

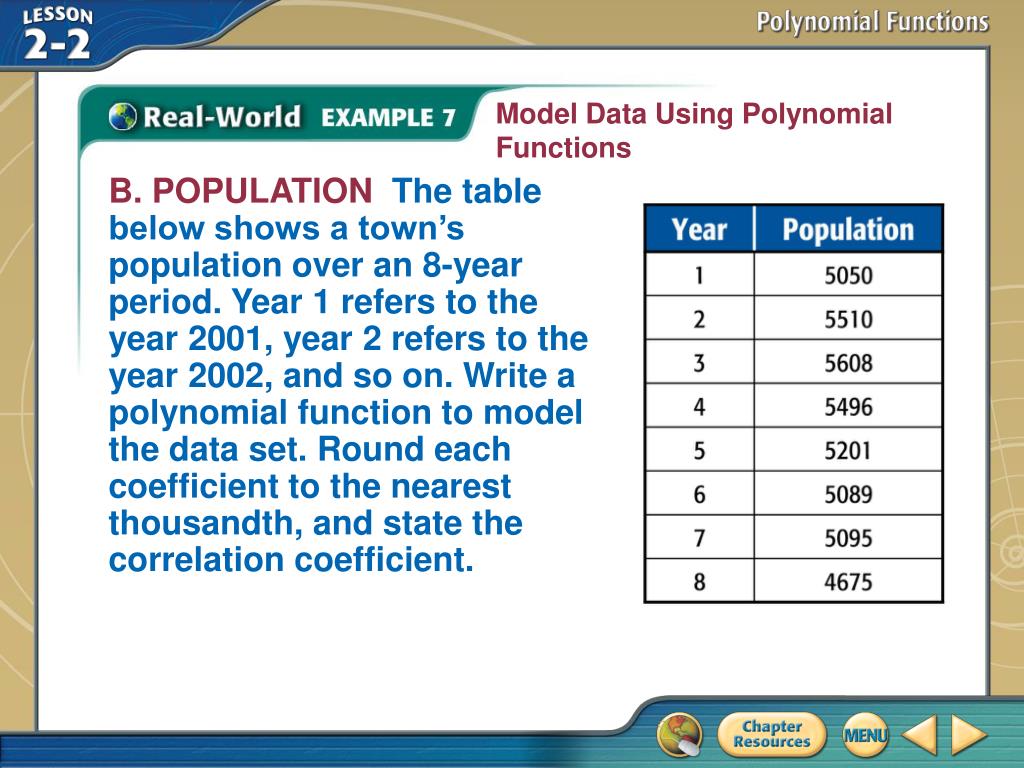

B. POPULATION The table below shows a town’s population over an 8-year period. Year 1 refers to the year 2001, year 2 refers to the year 2002, and so on. Write a polynomial function to model the data set. Round each coefficient to the nearest thousandth, and state the correlation coefficient.

Example 7

Using the CubicReg tool on a graphing calculator and rounding each coefficient to the nearest thousandth yields f(x) = 10.020x3 – 176.320x2 + 807.469x + 4454.786. The value of r2 for the data is 0.89, which is close to 1, so the model is a good fit. We can graph the complete (unrounded) regression by sending it to the Y= menu. In the Y= menu, pick up this regression equation by entering VARS , Statistics, EQ. Graph this function and the scatter plot in the same viewing window. The function appears to fit the data reasonably well.

Model Data Using Polynomial Functions

Example 7

Model Data Using Polynomial Functions

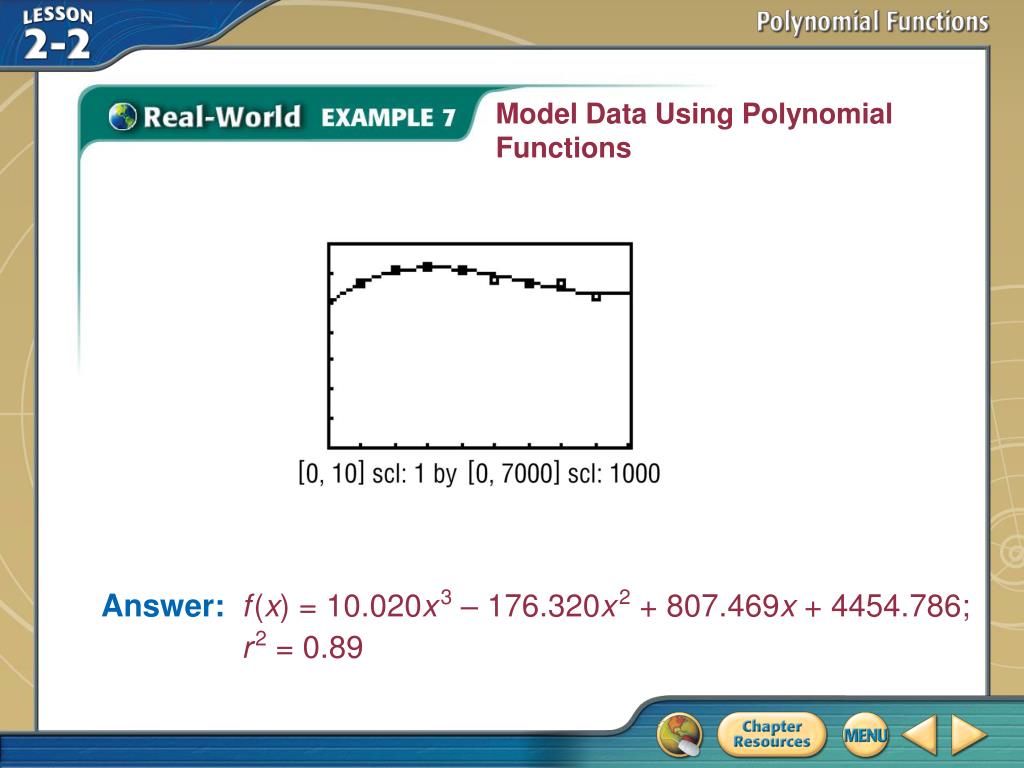

Answer:f(x) = 10.020x3 – 176.320x2 + 807.469x + 4454.786; r2 = 0.89

Example 7

Model Data Using Polynomial Functions

C. POPULATION The table below shows a town’s population over an 8-year period. Year 1 refers to the year 2001, year 2 refers to the year 2002, and so on. Use the model to estimate the population of the town in the year 2012.

Example 7

Model Data Using Polynomial Functions

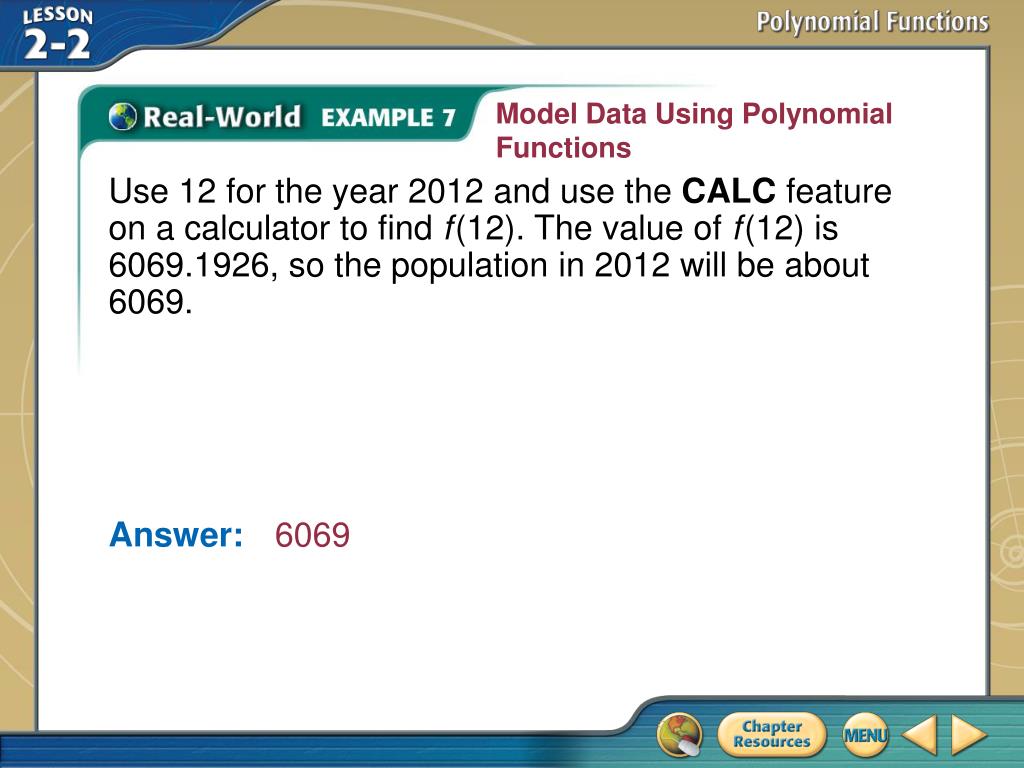

Use 12 for the year 2012 and use the CALC feature on a calculator to find f(12). The value of f(12) is 6069.1926, so the population in 2012 will be about 6069.

Example 7

Model Data Using Polynomial Functions

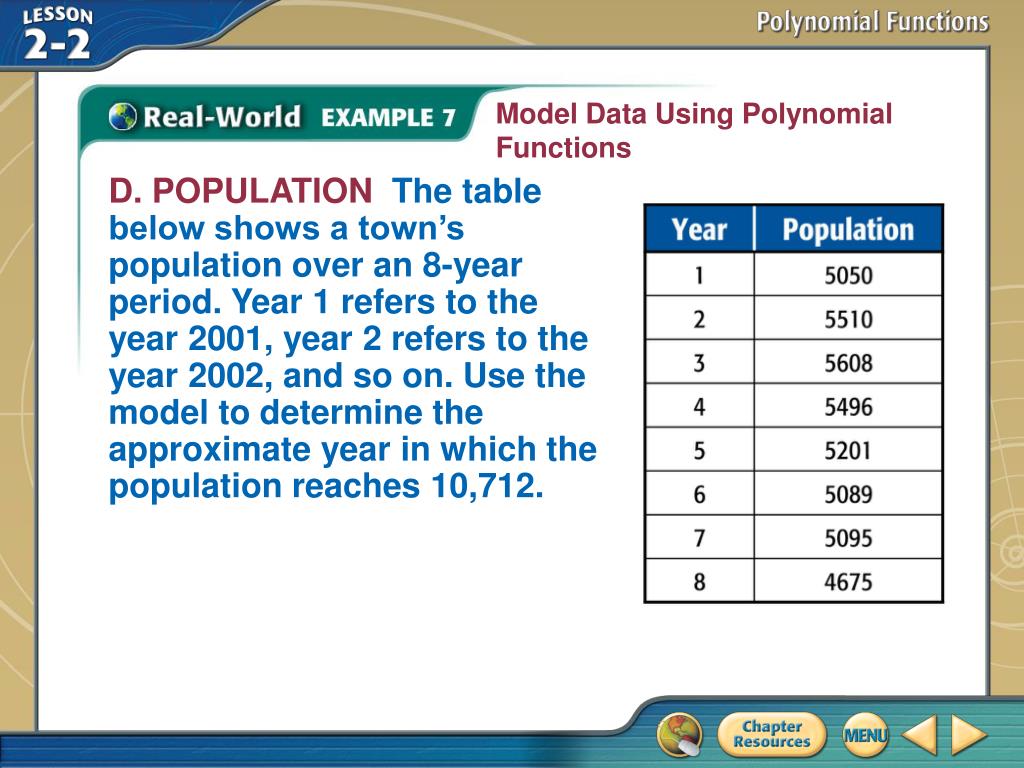

D. POPULATION The table below shows a town’s population over an 8-year period. Year 1 refers to the year 2001, year 2 refers to the year 2002, and so on. Use the model to determine the approximate year in which the population reaches 10,712.

Example 7

Model Data Using Polynomial Functions

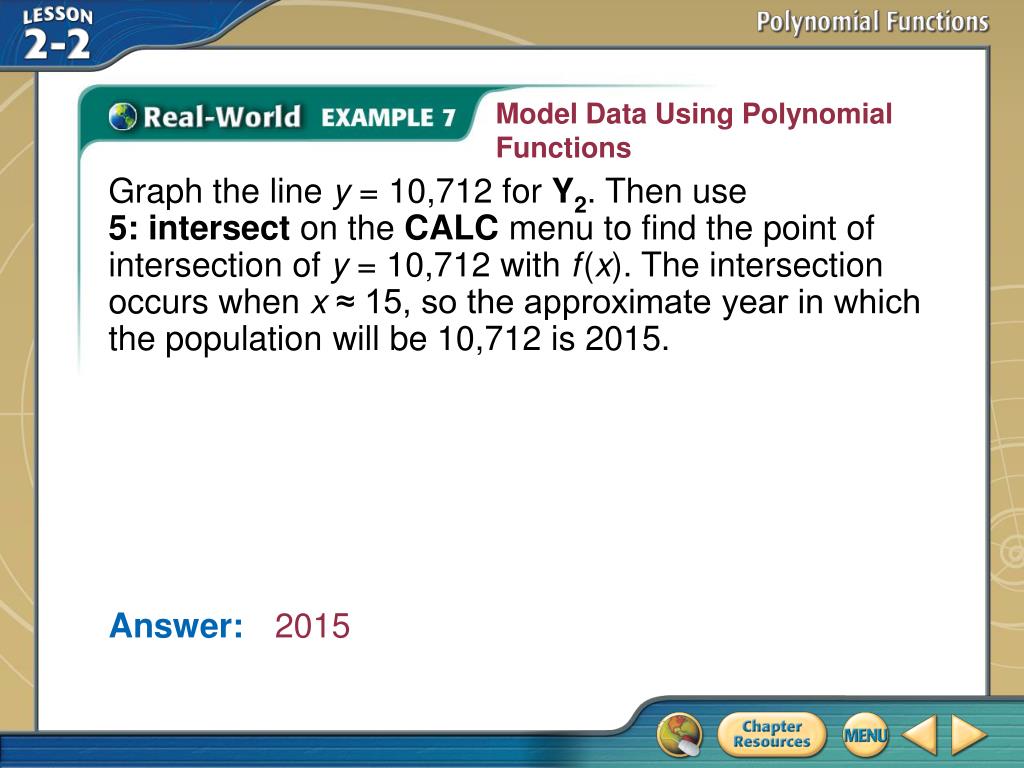

Graph the line y = 10,712 for Y2. Then use 5: intersect on the CALC menu to find the point of intersection of y = 10,712 with f(x). The intersection occurs when x ≈ 15, so the approximate year in which the population will be 10,712 is 2015.

Example 7

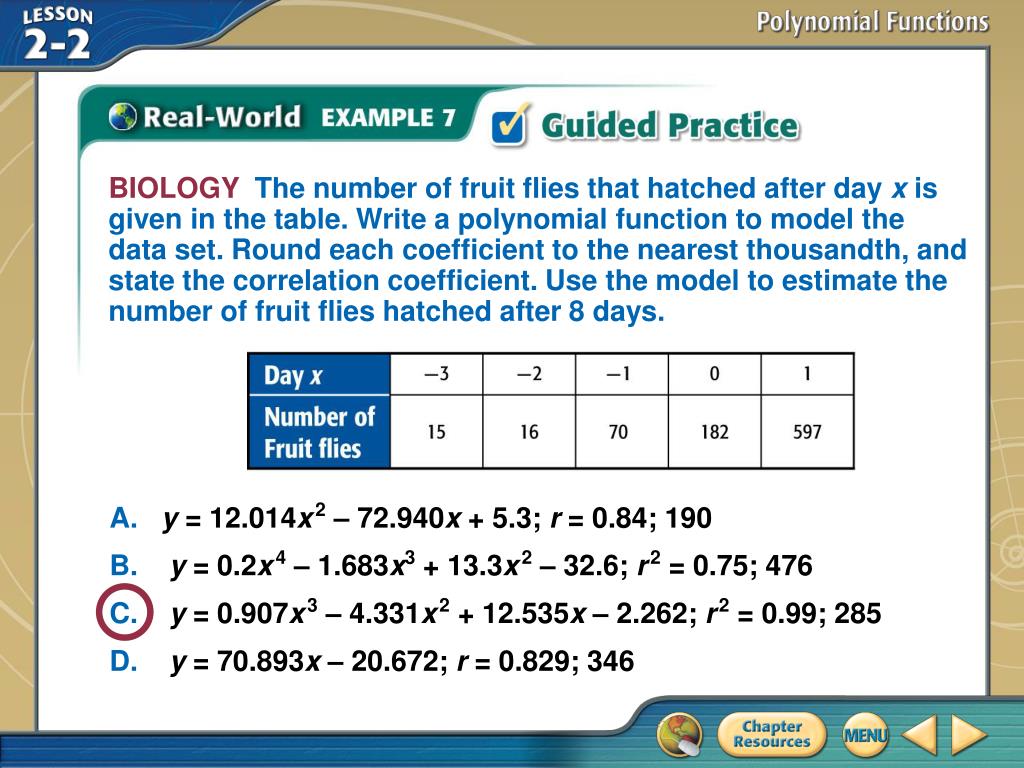

BIOLOGY The number of fruit flies that hatched after day x is given in the table. Write a polynomial function to model the data set. Round each coefficient to the nearest thousandth, and state the correlation coefficient. Use the model to estimate the number of fruit flies hatched after 8 days.

A. y = 12.014x2 – 72.940x + 5.3; r = 0.84; 190

B. y = 0.2x4 – 1.683x3 + 13.3x2 – 32.6; r2 = 0.75; 476

C. y = 0.907x3 – 4.331x2 + 12.535x – 2.262; r2 = 0.99; 285

D. y = 70.893x – 20.672; r = 0.829; 346

Example 7
