Central Dogma of Biology

Central Dogma of Biology. Nucleic Acids. Nucleic Acids Are Essential For Information Transfer in Cells Information encoded in a DNA molecule is transcribed via synthesis of an RNA molecule

Download Presentation

Central Dogma of Biology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

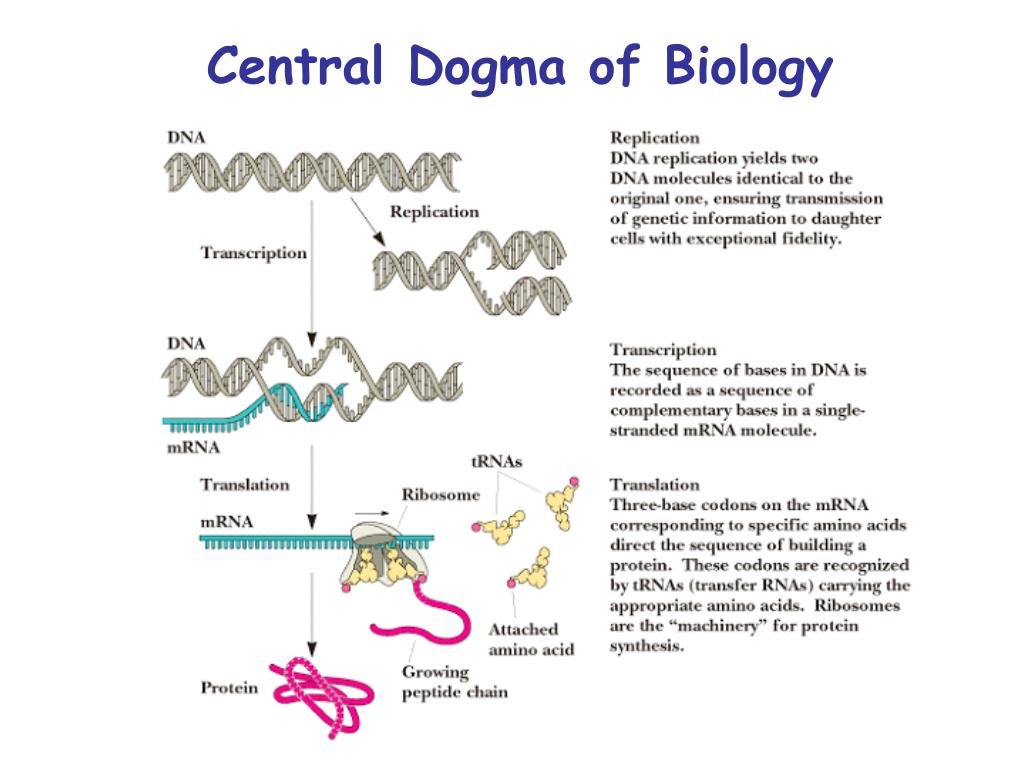

  1. Central Dogma of Biology

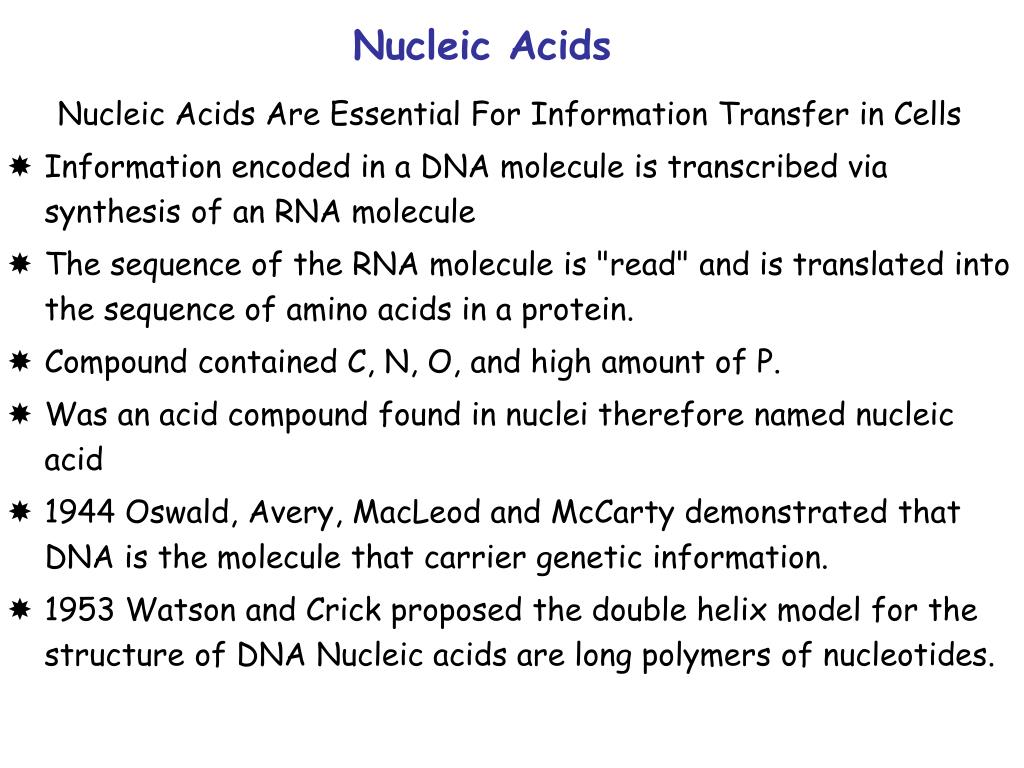

  2. Nucleic Acids • Nucleic Acids Are Essential For Information Transfer in Cells • Information encoded in a DNA molecule is transcribed via synthesis of an RNA molecule • The sequence of the RNA molecule is "read" and is translated into the sequence of amino acids in a protein. • Compound contained C, N, O, and high amount of P. • Was an acid compound found in nuclei therefore named nucleic acid • 1944 Oswald, Avery, MacLeod and McCarty demonstrated that DNA is the molecule that carrier genetic information. • 1953 Watson and Crick proposed the double helix model for the structure of DNA Nucleic acids are long polymers of nucleotides.

  3. Nucleotides and Nucleic Acids The amino acids sequence and nucleotide sequence in RNA is specified by a nucleotide sequence in the cell’s DNA Gene: segment of a DNA molecule that contains the information required for the synthesis of a functional biological product whether a protein or RNA The cell contains thousands of genes and DNA molecules Nucleic Acidsare polymers of nucleotides. Deoxyribonucleic acid - DNA - Storage of genetic information. Ribonucleic acid - RNA - carriers of genetic information and catalysis. Nucleotide Structure: Nitrogenous base + ribose phosphate:

  4. Nucleotides structure • The nucleotide has three characteristic components • Nitrogenous base • Pentose sugar • Phosphate

  5. Nitrogenous Bases Nitrogenous base: derivatives of Purines and pyrimidines DNA and RNA contain the same purine bases and the pyrimidine base Cytosine But Thymine found only in DNA and Uracil found only in RNA (A) (G) (U) (T) (C)

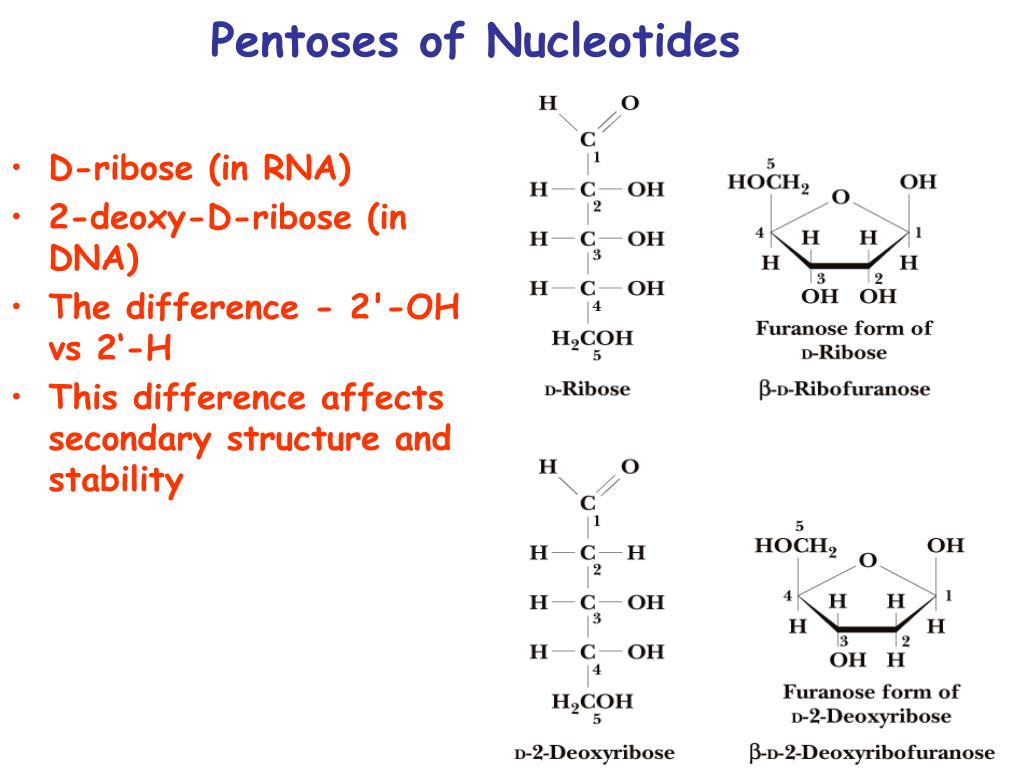

  6. Pentoses of Nucleotides • D-ribose (in RNA) • 2-deoxy-D-ribose (in DNA) • The difference - 2'-OH vs 2‘-H • This difference affects secondary structure and stability

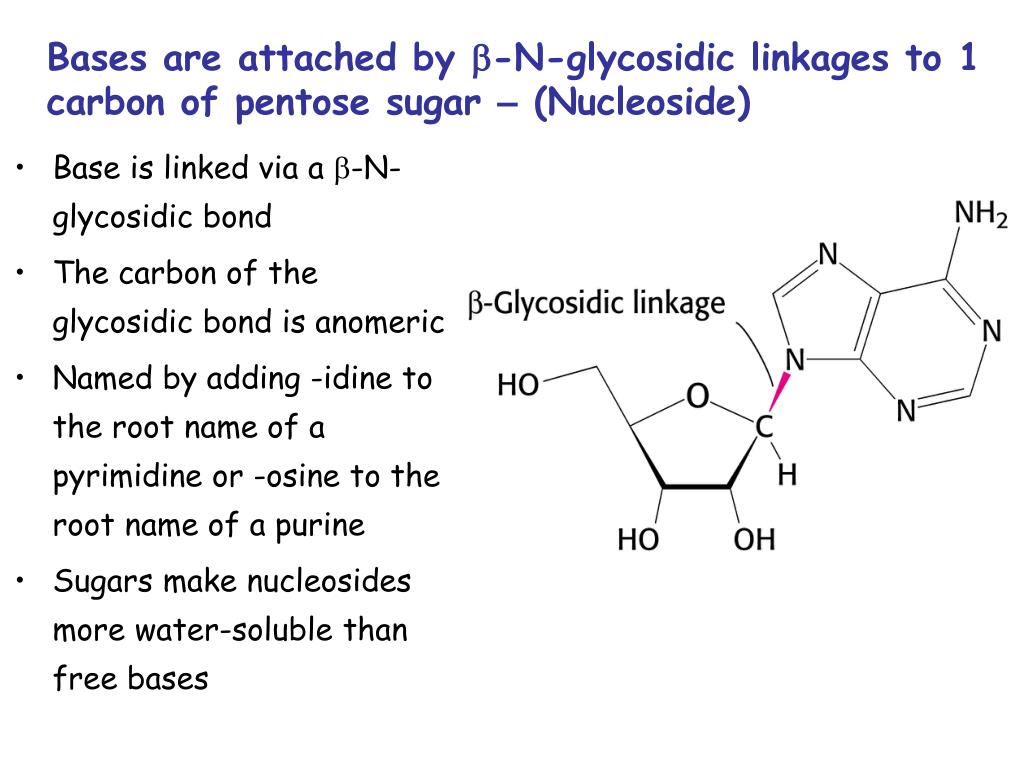

  7. Bases are attached by b-N-glycosidic linkages to 1 carbon of pentose sugar – (Nucleoside) • Base is linked via a b-N-glycosidic bond • The carbon of the glycosidic bond is anomeric • Named by adding -idine to the root name of a pyrimidine or -osine to the root name of a purine • Sugars make nucleosides more water-soluble than free bases

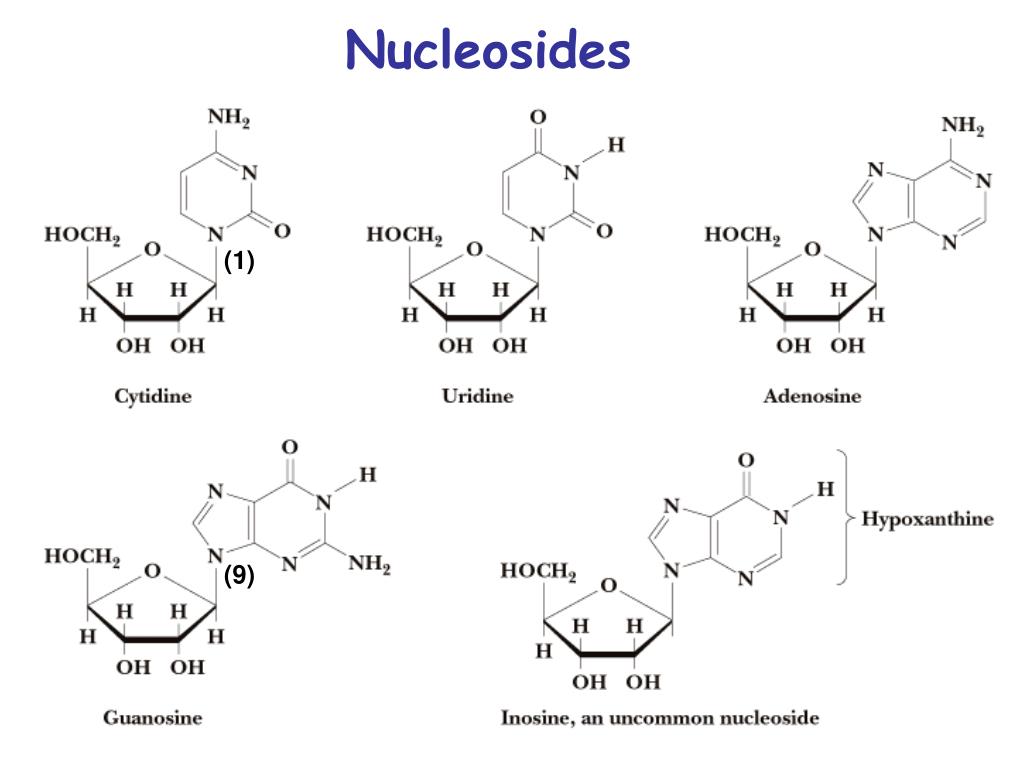

  8. Nucleosides (1) (9)

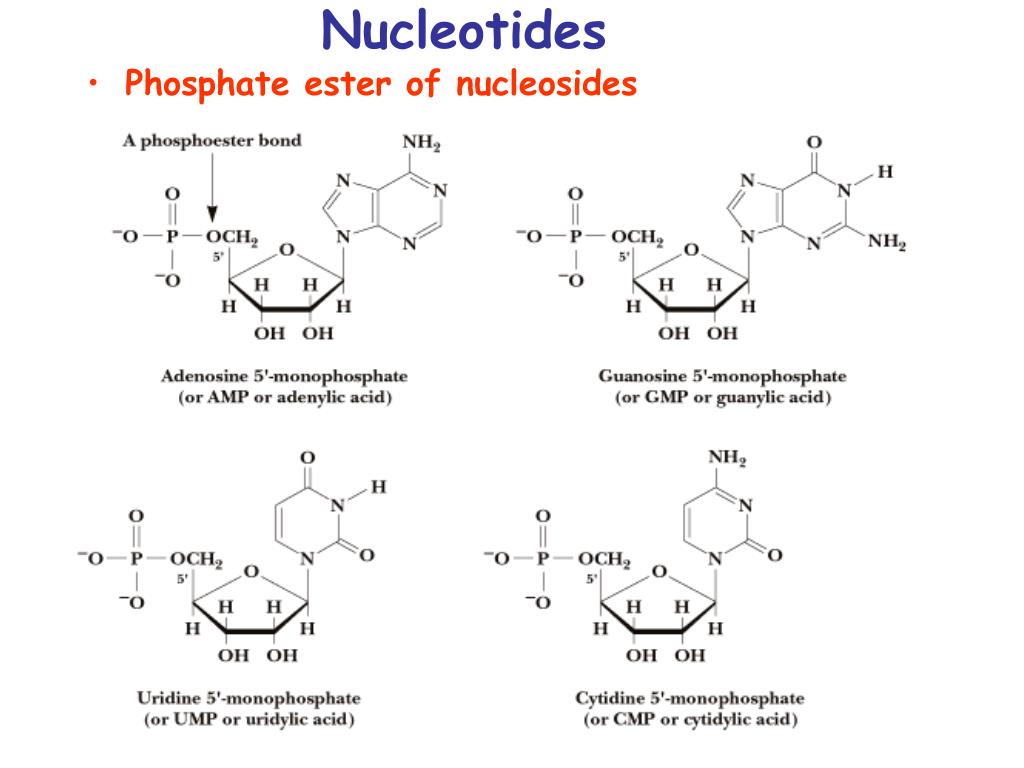

  9. Nucleotides • Phosphate ester of nucleosides

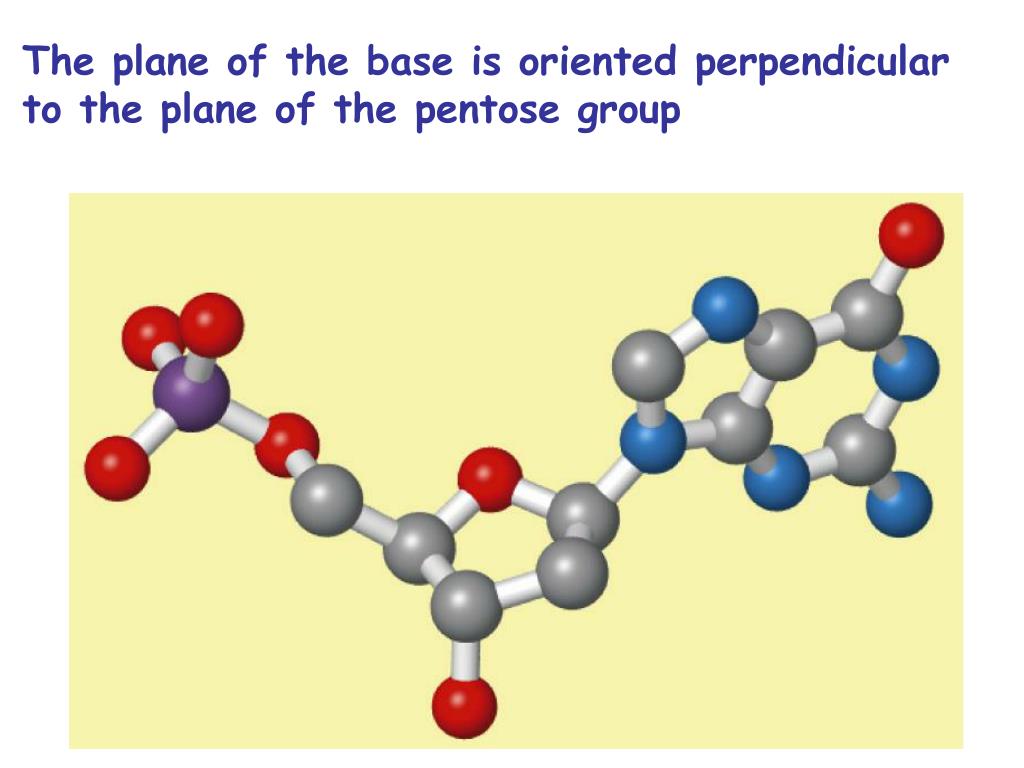

  10. The plane of the base is oriented perpendicular to the plane of the pentose group

  11. RNA contains Ribose while DNA contains 2'deoxy-D-Ribose Nucleoside: Nitrogenous base + ribose:

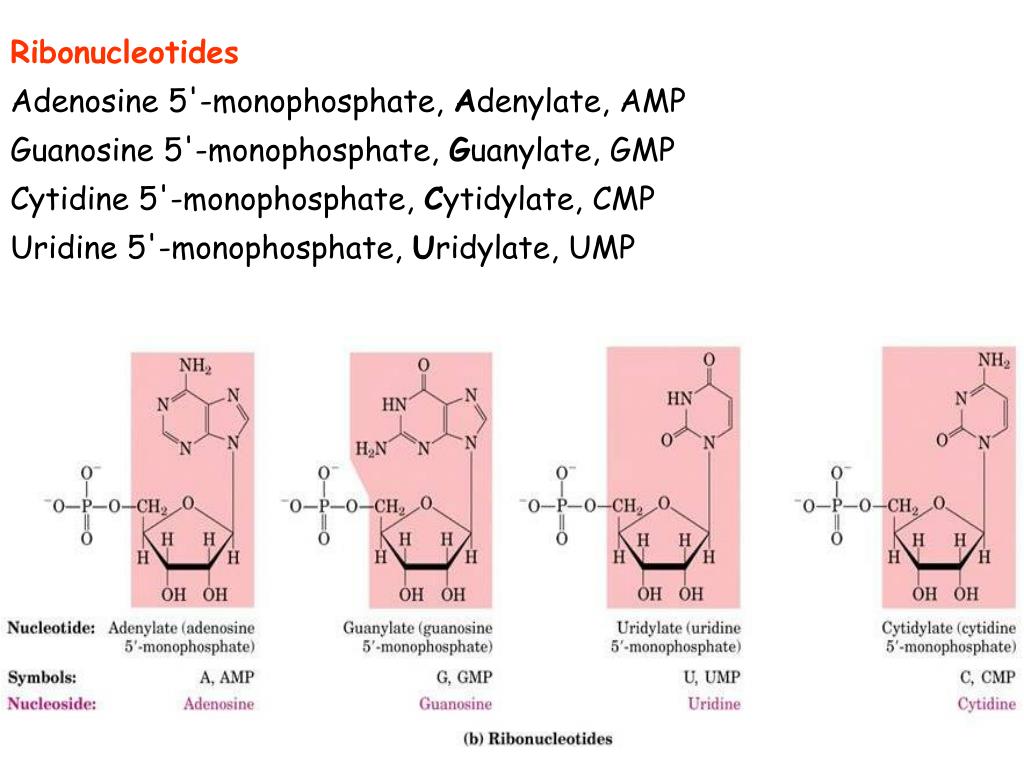

  12. Ribonucleotides Adenosine 5'-monophosphate, Adenylate, AMP Guanosine 5'-monophosphate, Guanylate, GMP Cytidine 5'-monophosphate, Cytidylate, CMP Uridine 5'-monophosphate, Uridylate, UMP

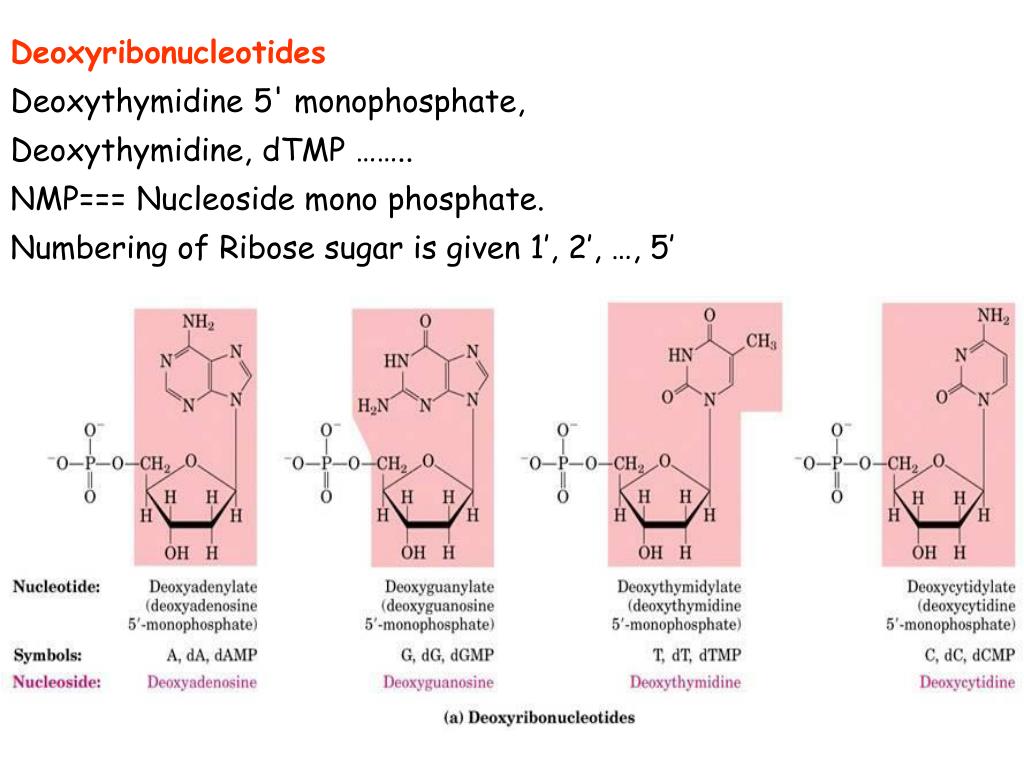

  13. Deoxyribonucleotides Deoxythymidine 5' monophosphate, Deoxythymidine, dTMP …….. NMP=== Nucleoside mono phosphate. Numbering of Ribose sugar is given 1’, 2’, …, 5’

  14. Unusual nucleotides Modified nucleotides found in some viral DNA and in Transfer RNA. These modifications include methylation, hydroxymethylation, glycosylation, acetylation ..

  15. Other Functions of Nucleotides • Nucleoside 5'-triphosphates are carriers of energy • Bases serve as recognition units • Cyclic nucleotides are signal molecules and regulators of cellular metabolism and reproduction • Structural component of some coenzymes, e.g CoA, FAD, NADH, NADPH • ATP is central to energy metabolism • GTP drives protein synthesis • CTP drives lipid synthesis • UTP drives carbohydrate metabolism

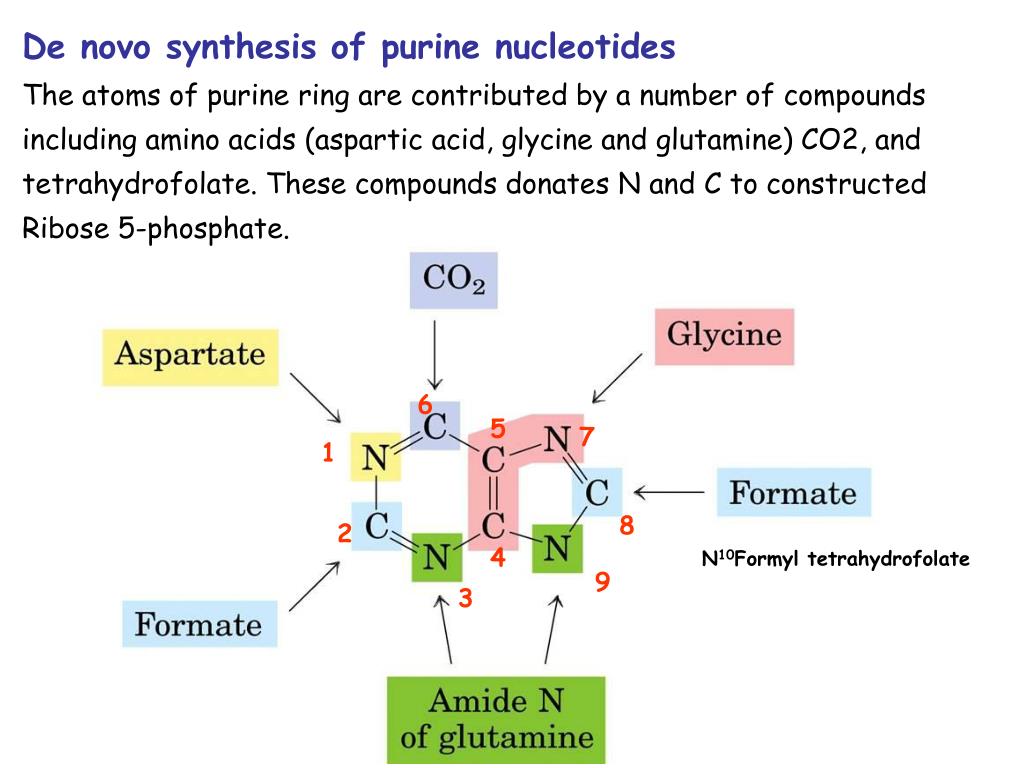

  16. N10Formyl tetrahydrofolate De novo synthesis of purine nucleotides The atoms of purine ring are contributed by a number of compounds including amino acids (aspartic acid, glycine and glutamine) CO2, and tetrahydrofolate. These compounds donates N and C to constructed Ribose 5-phosphate. 6 5 7 1 8 2 4 9 3

  17. 6 5 7 N N 1 8 2 N N 4 9 3 The order in which ring atoms are added is: 9 4 5 7 8 3 6 1 2 Glut Glycine For Glut CO2 Asp For Ribose-P

  18. Inhibitors Purines, nucleosides Activator Pi Ribose phosphate pyrophosphokinase Ribose5-phosphate ATP AMP De novo synthesis of purine nucleotides * Synthesis of 5-phosphoribosyl-1-pyrophosphate (PRPP) -Ribose 5-phosphate is synthesized from HMP (Hexose monophosphate pathway) - Ribonucleotides are first synthesized then may reduced to deoxyribonucleotides

  19. * Synthesis of 5-phosphoribosyl-1-pyrophosphate (PRPP) • The amide group of the glutamine replaces pyrophosphate group attached to PRPP, this reaction is mediated by Glutamine:phosphoribosyl pyrophosphate amidotransferase. • This enzyme is inhibited by end product of this pathway purine 5’-nucleotides AMP, GMP and IMP. • This reaction is the committed step in purine nucleotide synthesis

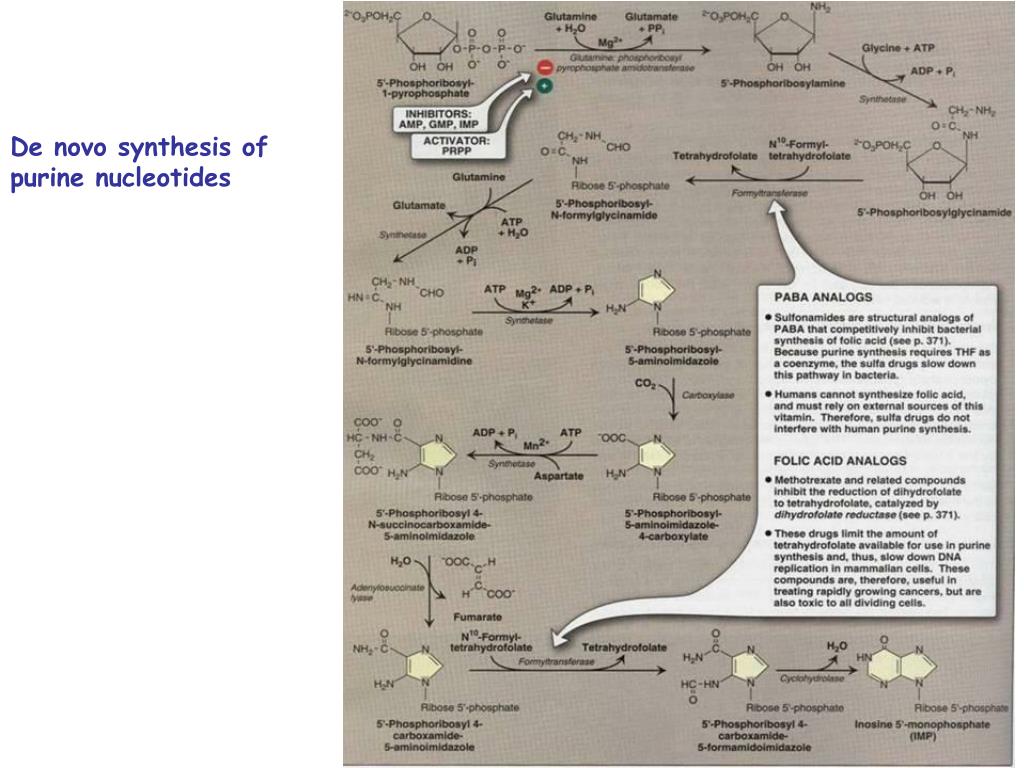

  20. De novo synthesis of purine nucleotides

  21. * Synthesis Inosine monophosphate (IMP) • IMP is the parent purine nucleotide • the synthesis of IMP requires 4 ATP molecules • Inhibitors of Purine synthesis • Specific inhibitors that inhibits the growth of rapidly growing microorganisms e.g Sulfonamides • Structural analogues for folic acid (methotroxate)

  22. Adenylosuccinate synthetase Feed back inhibition IMP dehydrogenase Feed back inhibition * Conversion of IMP into AMP and GMP -this reaction is energy-requiring pathway

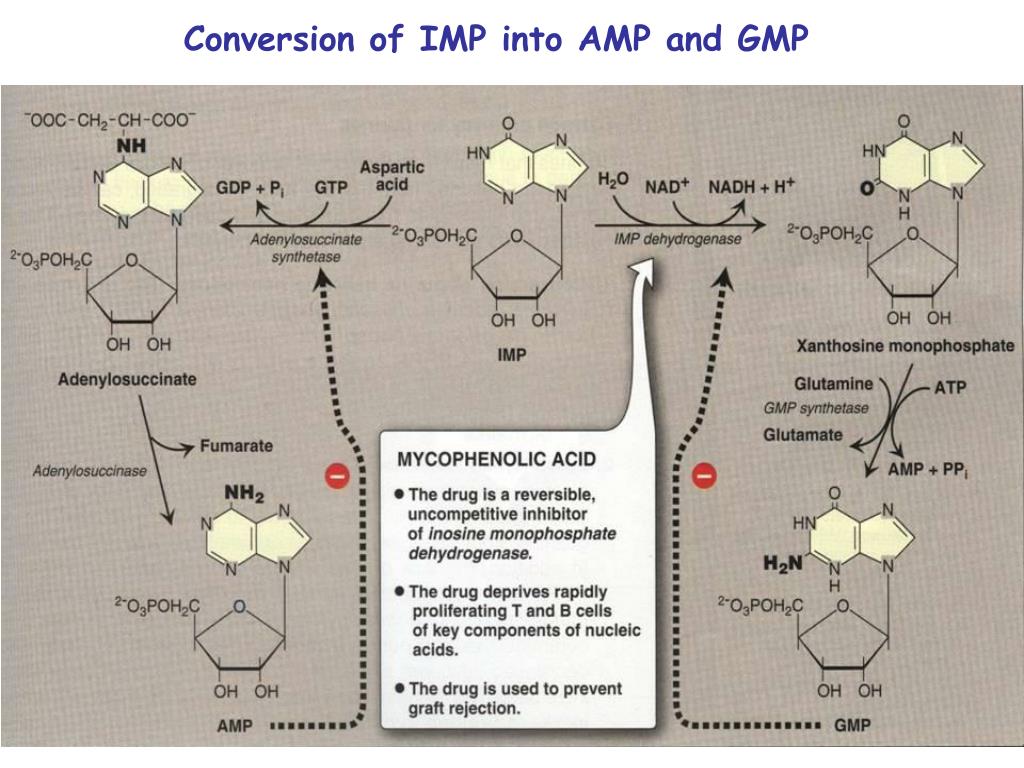

  23. Conversion of IMP into AMP and GMP

  24. * Conversion Nucleoside momophosphate (NMP) to nucleoside diphosphate (NDP) and triphosphate (NTP) • NDP and NTP are synthesized from the corresponding NMP by Nucleoside monophosphate kinases • These kinases don't discriminate between ribose or deoxyribose in the substrate. • ATP is the source of the transferred phosphate • examples • AMP + ATP  2 ADP  adenylate kinase (highly active in the liver) • GMP + ATP  GDP + ADP  Guanylate kinase • Nucleoside diphosphates and triphosphates are interconverted by nucleoside diphosphate kinase • GDP + ATP  GTP + ADP • CDP + ATP  CTP + ADP

  25. De novo synthesis of purine nucleotides

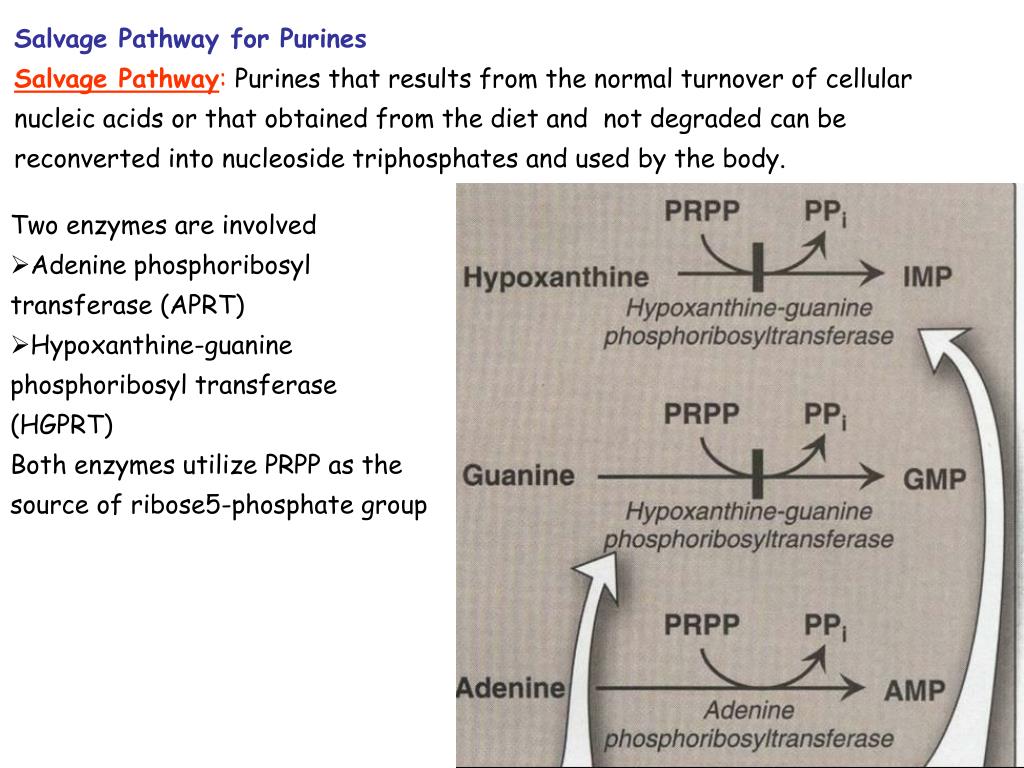

  26. Salvage Pathway for Purines Salvage Pathway: Purines that results from the normal turnover of cellular nucleic acids or that obtained from the diet and not degraded can be reconverted into nucleoside triphosphates and used by the body. • Two enzymes are involved • Adenine phosphoribosyl transferase (APRT) • Hypoxanthine-guanine phosphoribosyl transferase (HGPRT) • Both enzymes utilize PRPP as the source of ribose5-phosphate group

  27. Degradation of Purine nucleotides

  28. Degradation of Purine nucleotides • Purines are sequentially degraded into uric acids (in humans) • Several steps will be involved in this catabolic pathway Degradation of Dietary nucleic acids in the small intestine • Ribonucleases and deoxyriboncleases secreted in the pancreatic juice can hydrolyze RNA and DNA into oligonucleotides. • Oligonucleotides are further hydrolyzed by pancreatic phophodiesterases producing a mixture of 3’-and 5’ mononucleotides • A family of nucleotidases remove the phosphate group releasing nucleosides that may absorbed from GIT • Dietary nucleotides are not used to large extent in cells because they are converted into uric acid in the small intestine and also used by the normal flora

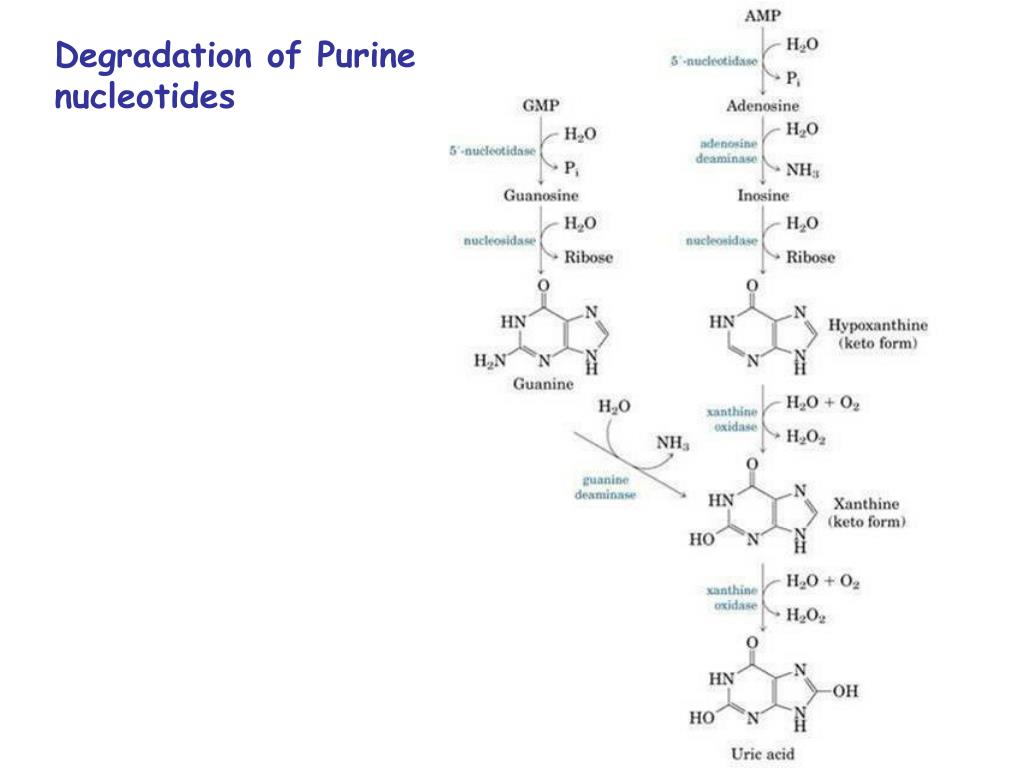

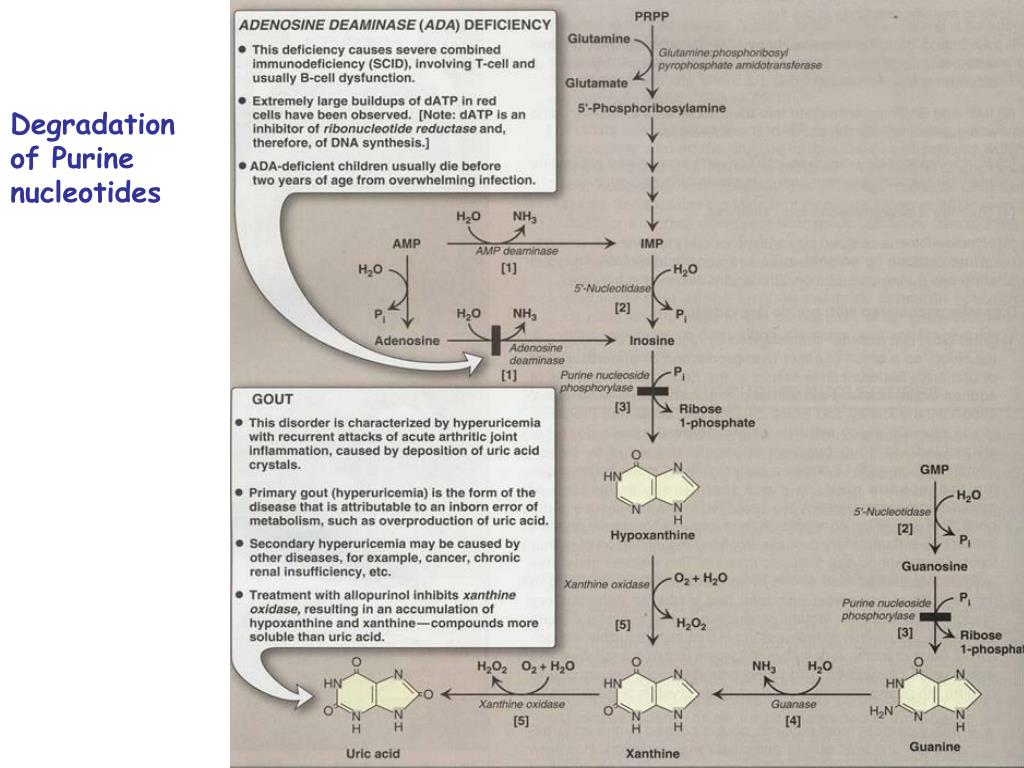

  29. Degradation of Purine nucleotides

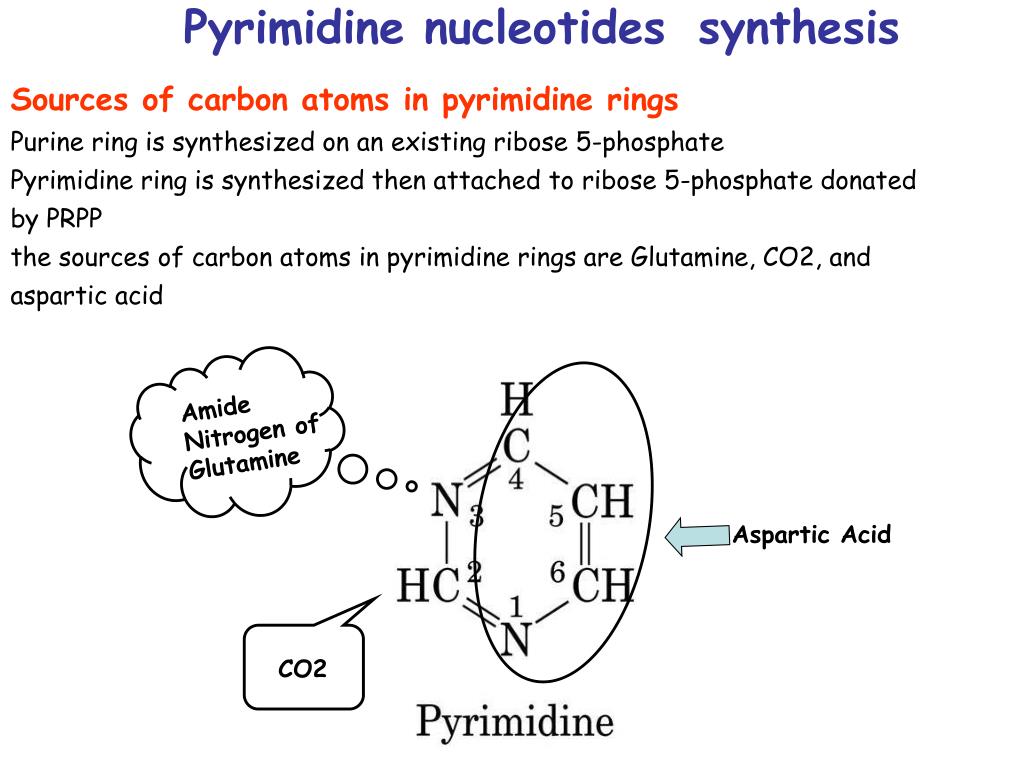

  30. Pyrimidine nucleotides synthesis Amide Nitrogen of Glutamine Aspartic Acid CO2 Sources of carbon atoms in pyrimidine rings Purine ring is synthesized on an existing ribose 5-phosphate Pyrimidine ring is synthesized then attached to ribose 5-phosphate donated by PRPP the sources of carbon atoms in pyrimidine rings are Glutamine, CO2, and aspartic acid

  31. Pyrimidine nucleotides synthesis • - *Synthesis of carbamoyl phosphate • The committed step of this pathway in mammalian cell is the synthesis of carbamoyl phosphate from Glutamine and CO2 • 2 ATP + CO2 + Glutamine  Carbamoyl phosphate + 2ADP + Glutamate • This reaction is mediated by Carbamoyl Phosphate Synthetase II (CPS II) • CPS II is inhibited by UTP and activated by ATP and PRPP • Carbamoyl phosphate is the precursor of Urea; the pyrimidine synthesis occurs in the cytosol while the urea production occurs in the mitochondria by Carbamoyl Phosphate Synthetase I (CPS I) • CPS I uses ammonia as source of nitrogen • CPS II uses the amide group of glutamine • Glutamine is required in the synthesis • of both Purines and Pyrimidine

  32. Synthesis of carbamoyl phosphate

  33. De Novo Pyrimidine Synthesis

  34. De Novo Pyrimidine Synthesis

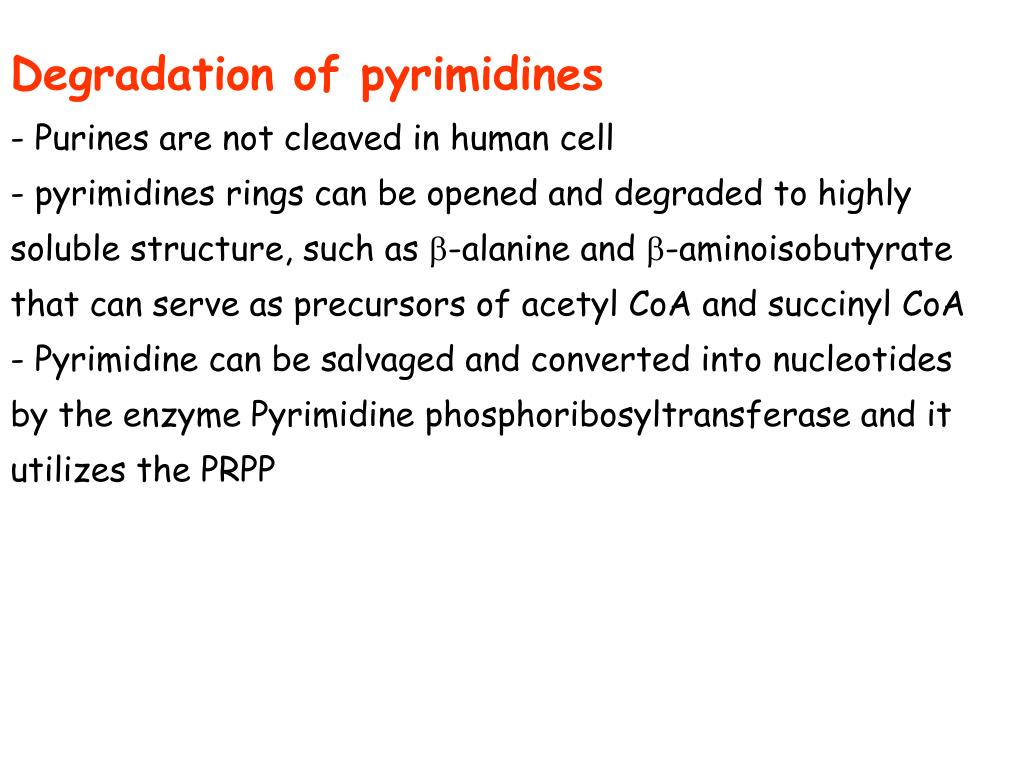

  35. Degradation of pyrimidines - Purines are not cleaved in human cell - pyrimidines rings can be opened and degraded to highly soluble structure, such as -alanine and -aminoisobutyrate that can serve as precursors of acetyl CoA and succinyl CoA - Pyrimidine can be salvaged and converted into nucleotides by the enzyme Pyrimidine phosphoribosyltransferase and it utilizes the PRPP

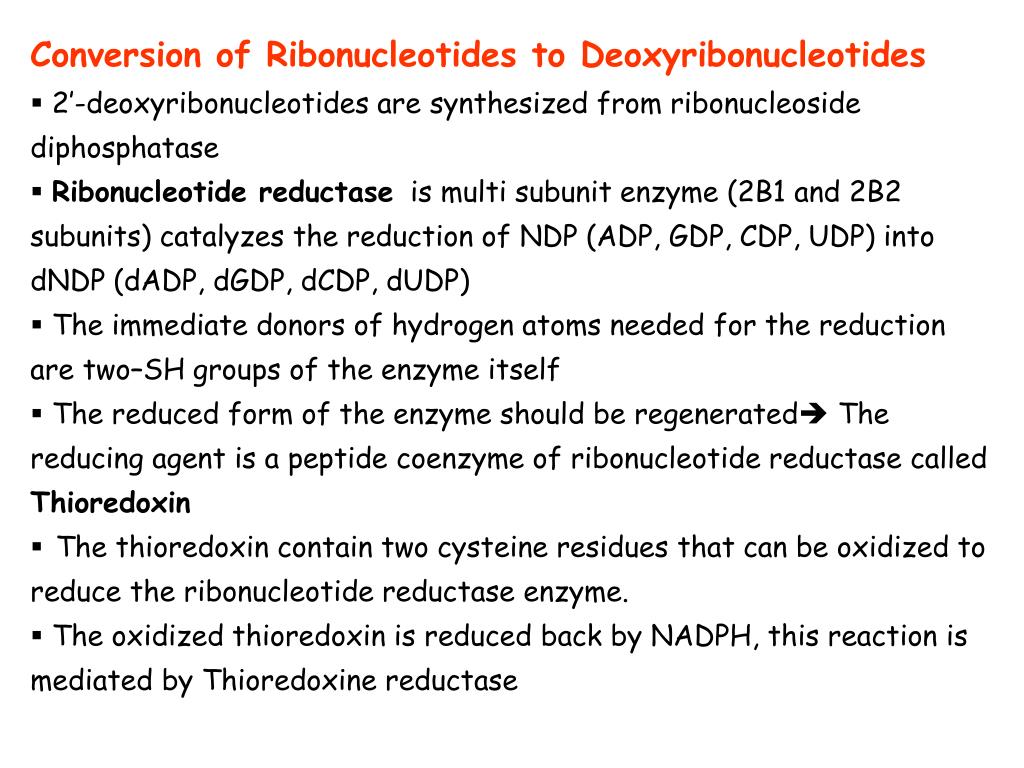

  36. Conversion of Ribonucleotides to Deoxyribonucleotides • 2’-deoxyribonucleotides are synthesized from ribonucleoside diphosphatase • Ribonucleotide reductase is multi subunit enzyme (2B1 and 2B2 subunits) catalyzes the reduction of NDP (ADP, GDP, CDP, UDP) into dNDP (dADP, dGDP, dCDP, dUDP) • The immediate donors of hydrogen atoms needed for the reduction are two–SH groups of the enzyme itself • The reduced form of the enzyme should be regenerated The reducing agent is a peptide coenzyme of ribonucleotide reductase called Thioredoxin • The thioredoxin contain two cysteine residues that can be oxidized to reduce the ribonucleotide reductase enzyme. • The oxidized thioredoxin is reduced back by NADPH, this reaction is mediated by Thioredoxine reductase

  37. Regulation of Deoxyribonucleotides synthesis • The regulation of this enzyme is complex • Not only the activity is regulated but also substrate specificity • The binding of dATP to an allosteric site called activity site inhibits the enzyme while the binding of ATP to this site activate the enzyme. • The binding of NTP to an allosteric site called substrate specificity will increase the conversion of different NTP to their corresponding dNTP according to the need of the cell When ATP or dATP are bound to this site  reduction of UDP, and CDP is favored When dTTP,or dGTP is bound  the reduction of GDP, ADP is stimulated

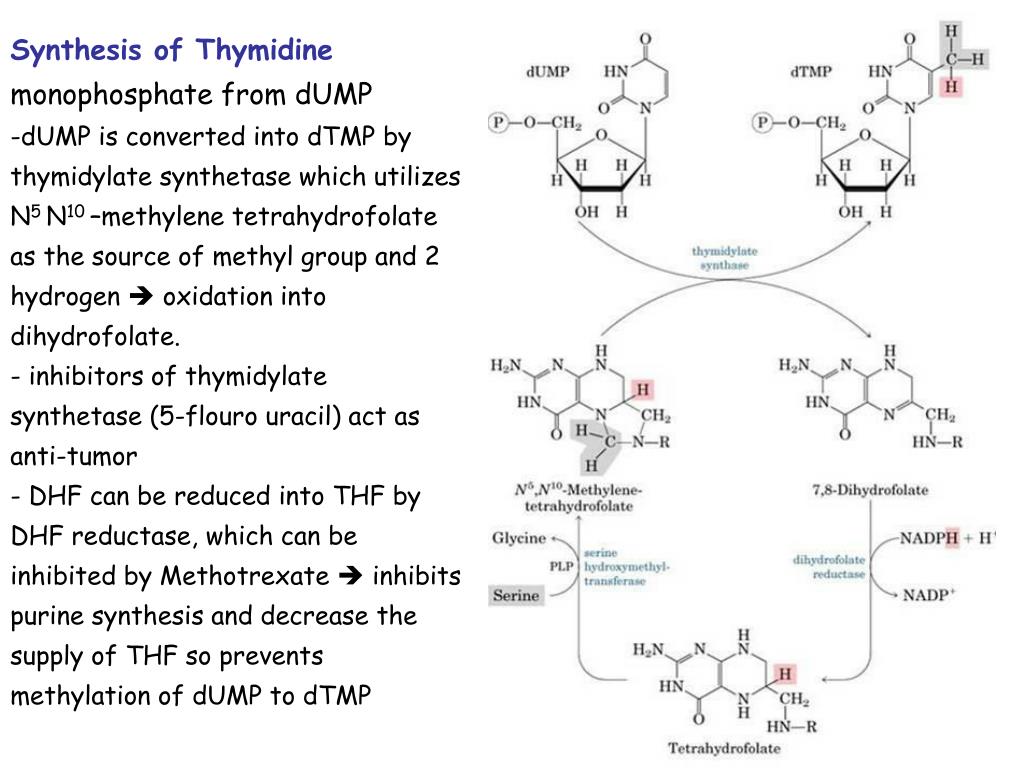

  38. Synthesis of Thymidine monophosphate from dUMP • dUMP is converted into dTMP by thymidylate synthetase which utilizes N5 N10 –methylene tetrahydrofolate as the source of methyl group and 2 hydrogen  oxidation into dihydrofolate. • inhibitors of thymidylate synthetase (5-flouro uracil) act as anti-tumor • DHF can be reduced into THF by DHF reductase, which can be inhibited by Methotrexate  inhibits purine synthesis and decrease the supply of THF so prevents methylation of dUMP to dTMP

  39. The End

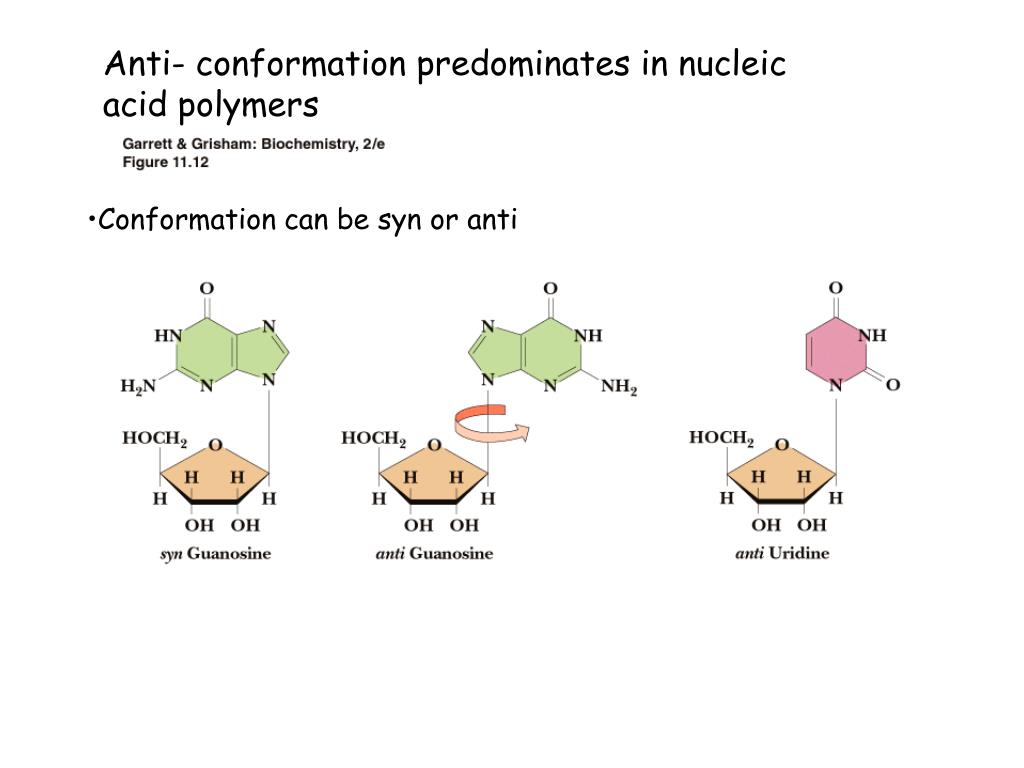

  40. Anti- conformation predominates in nucleic acid polymers • Conformation can be syn or anti

  41. Nitrogenous base: derivatives of Purines and pyrimidines DNA and RNA contain the same purine bases and the pyrimidine base Cytosine But Thymine found only in DNA and Uracil found only in RNA (G) (A) (U) (T) (C)
