1. Ghatge Patil Industries Ltd (GPI) High-Quality Oil & Gas Equipment Manufacturers with Global Reach

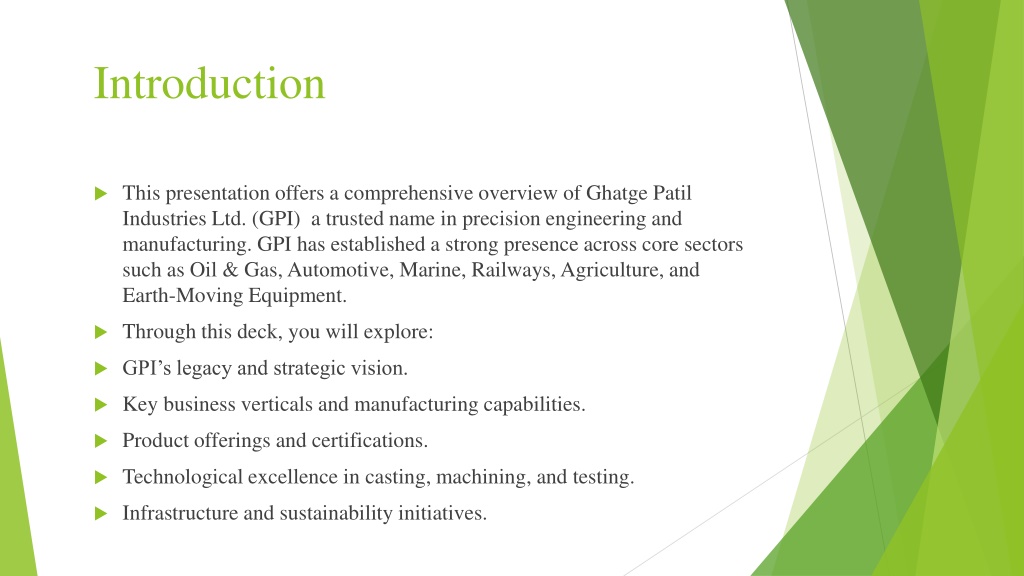

2. Introduction • This presentation offers a comprehensive overview of Ghatge Patil Industries Ltd. (GPI) a trusted name in precision engineering and manufacturing. GPI has established a strong presence across core sectors such as Oil & Gas, Automotive, Marine, Railways, Agriculture, and Earth-Moving Equipment. • Through this deck, you will explore: • GPI’s legacy and strategic vision. • Key business verticals and manufacturing capabilities. • Product offerings and certifications. • Technological excellence in casting, machining, and testing. • Infrastructure and sustainability initiatives.

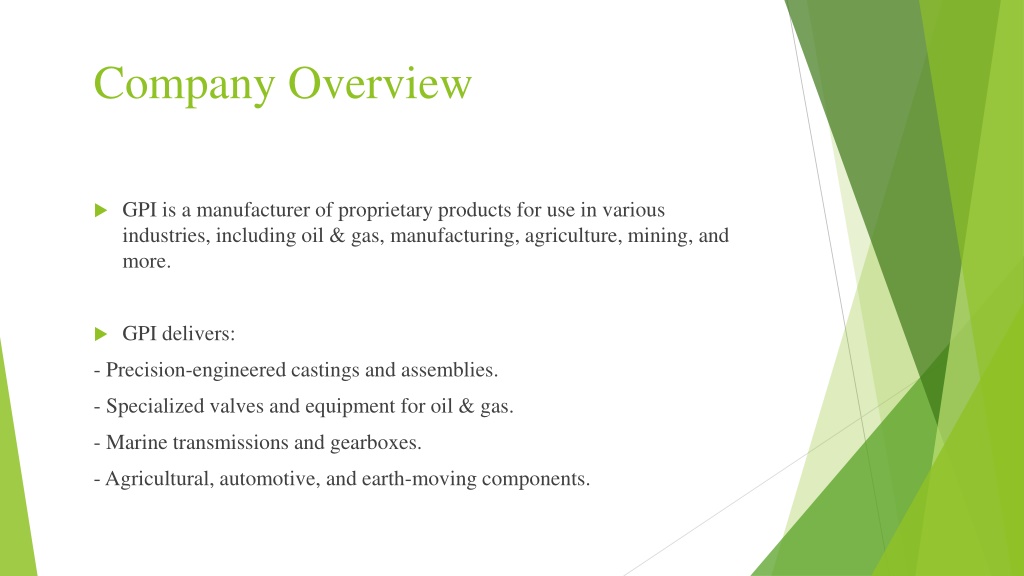

3. Company Overview • GPI is a manufacturer of proprietary products for use in various industries, including oil & gas, manufacturing, agriculture, mining, and more. • GPI delivers: - Precision-engineered castings and assemblies. - Specialized valves and equipment for oil & gas. - Marine transmissions and gearboxes. - Agricultural, automotive, and earth-moving components.

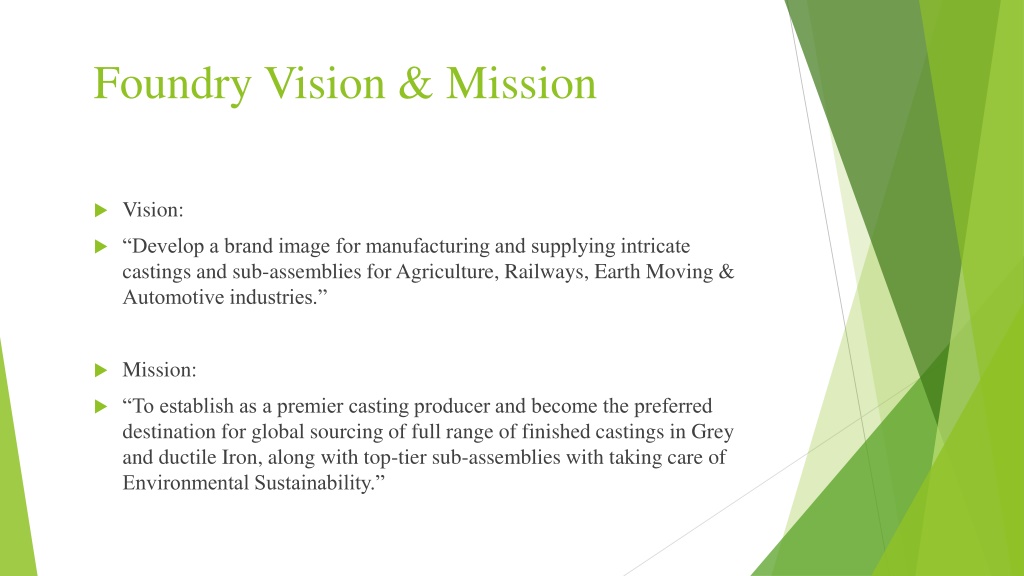

4. Foundry Vision & Mission • Vision: • “Develop a brand image for manufacturing and supplying intricate castings and sub‑assemblies for Agriculture, Railways, Earth Moving & Automotive industries.” • Mission: • “To establish as a premier casting producer and become the preferred destination for global sourcing of full range of finished castings in Grey and ductile Iron, along with top‑tier sub‑assemblies with taking care of Environmental Sustainability.”

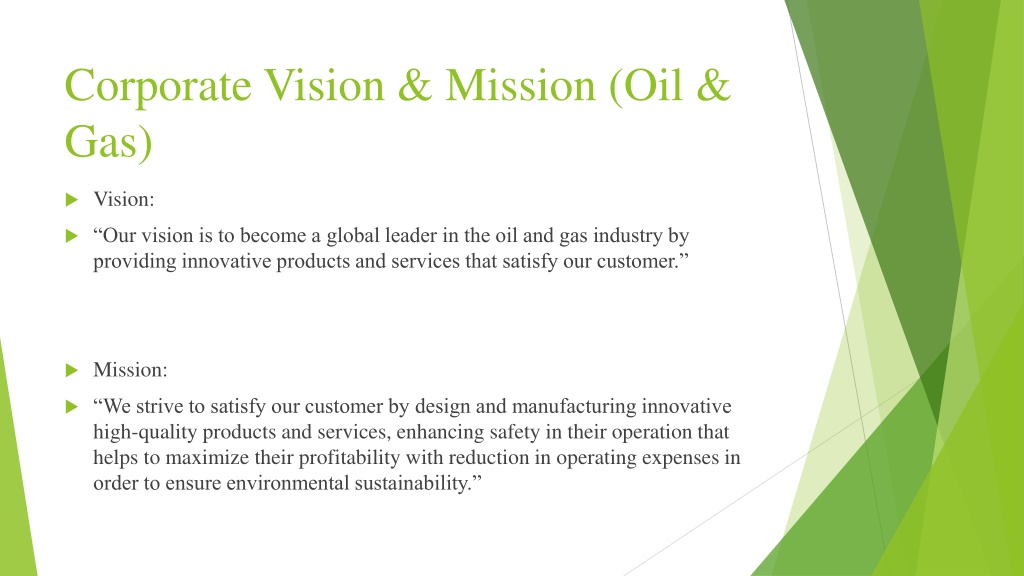

5. Corporate Vision & Mission (Oil & Gas) • Vision: • “Our vision is to become a global leader in the oil and gas industry by providing innovative products and services that satisfy our customer.” • Mission: • “We strive to satisfy our customer by design and manufacturing innovative high‑quality products and services, enhancing safety in their operation that helps to maximize their profitability with reduction in operating expenses in order to ensure environmental sustainability.”

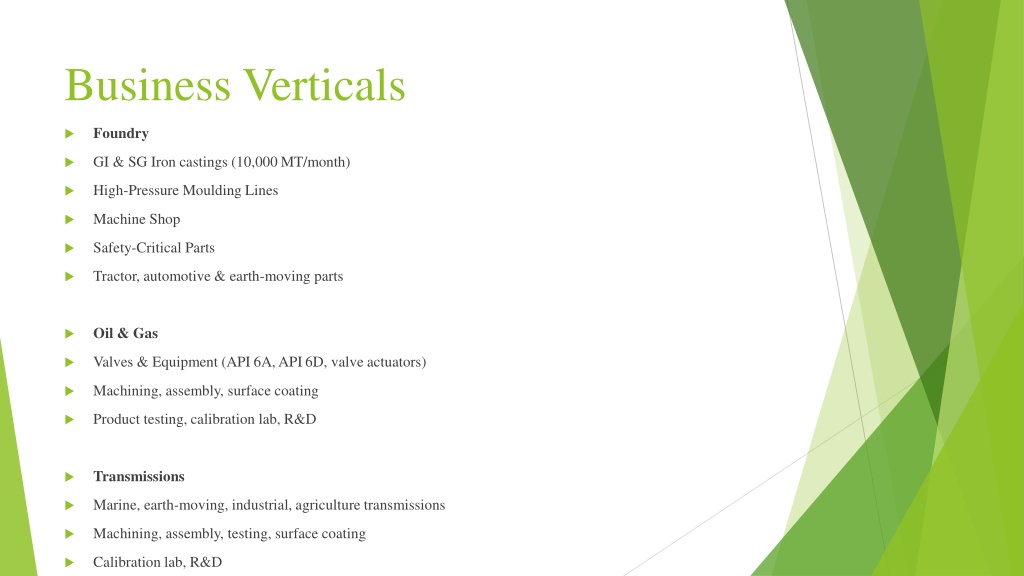

6. Business Verticals • Foundry • GI & SG Iron castings (10,000 MT/month) • High‑Pressure Moulding Lines • Machine Shop • Safety‑Critical Parts • Tractor, automotive & earth‑moving parts • Oil & Gas • Valves & Equipment (API 6A, API 6D, valve actuators) • Machining, assembly, surface coating • Product testing, calibration lab, R&D • Transmissions • Marine, earth-moving, industrial, agriculture transmissions • Machining, assembly, testing, surface coating • Calibration lab, R&D

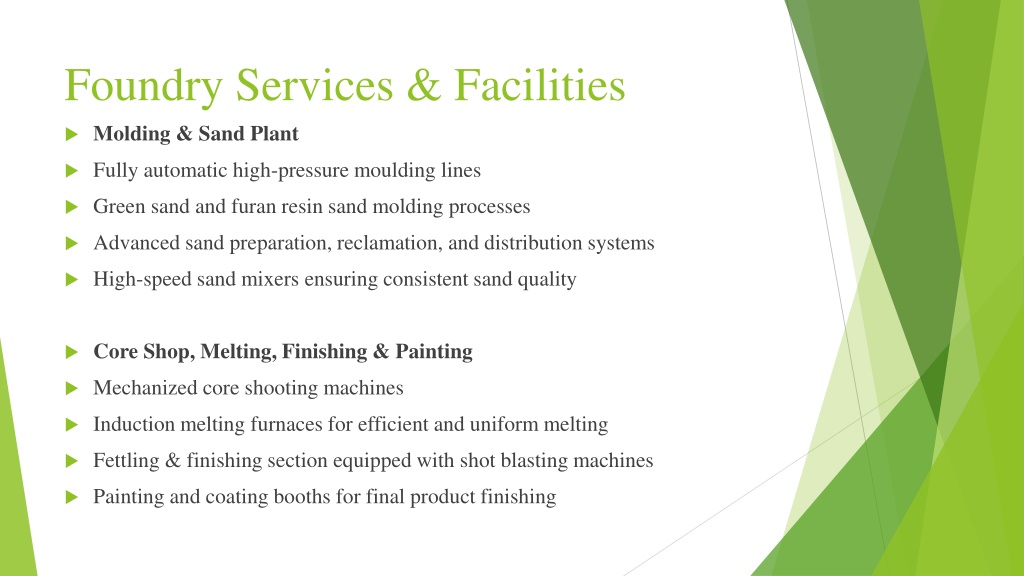

7. Foundry Services & Facilities • Molding & Sand Plant • Fully automatic high-pressure moulding lines • Green sand and furan resin sand molding processes • Advanced sand preparation, reclamation, and distribution systems • High-speed sand mixers ensuring consistent sand quality • Core Shop, Melting, Finishing & Painting • Mechanized core shooting machines • Induction melting furnaces for efficient and uniform melting • Fettling & finishing section equipped with shot blasting machines • Painting and coating booths for final product finishing

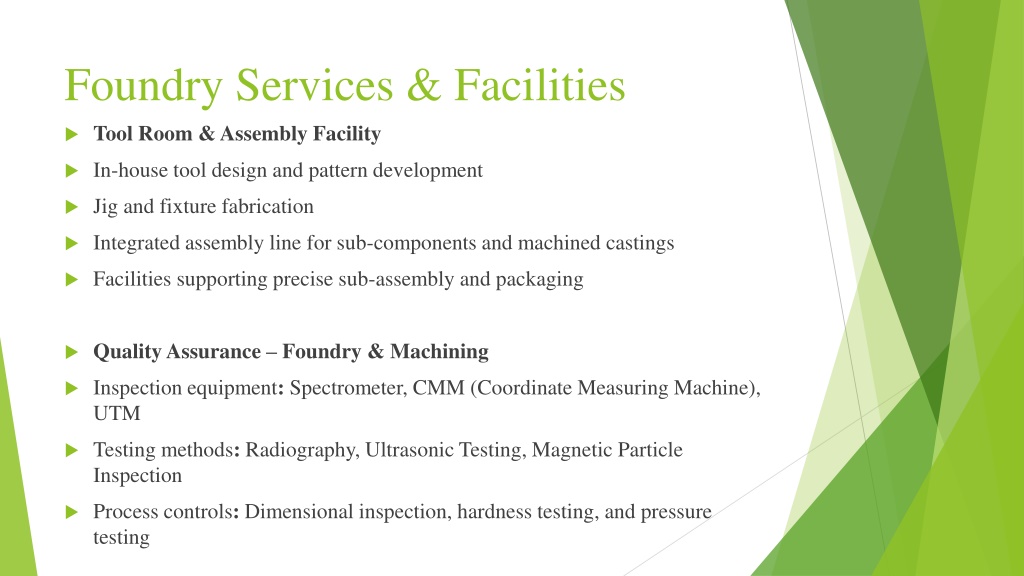

8. Foundry Services & Facilities • Tool Room & Assembly Facility • In-house tool design and pattern development • Jig and fixture fabrication • Integrated assembly line for sub-components and machined castings • Facilities supporting precise sub-assembly and packaging • Quality Assurance – Foundry & Machining • Inspection equipment: Spectrometer, CMM (Coordinate Measuring Machine), UTM • Testing methods: Radiography, Ultrasonic Testing, Magnetic Particle Inspection • Process controls: Dimensional inspection, hardness testing, and pressure testing

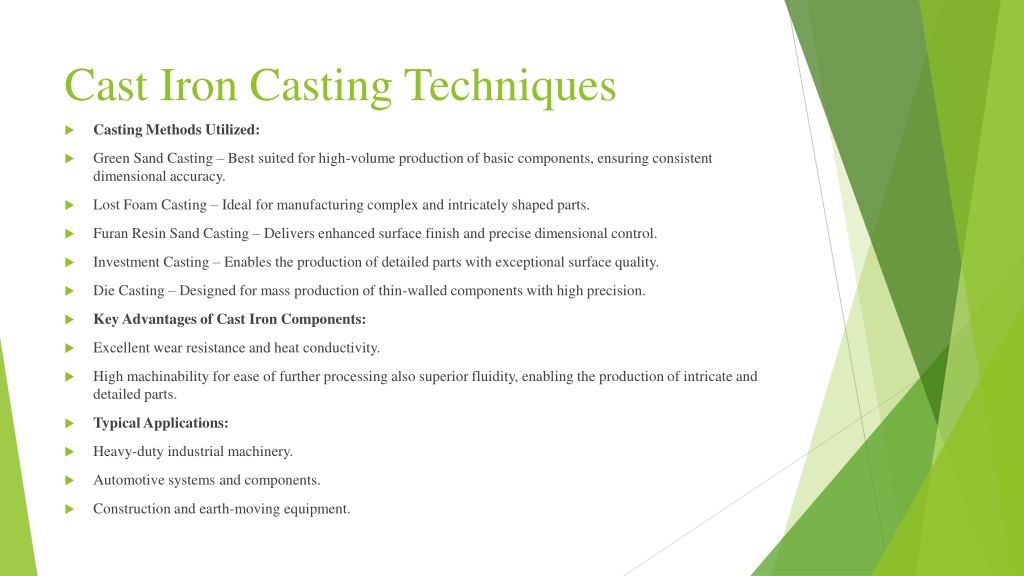

9. Cast Iron Casting Techniques • Casting Methods Utilized: • Green Sand Casting – Best suited for high-volume production of basic components, ensuring consistent dimensional accuracy. • Lost Foam Casting – Ideal for manufacturing complex and intricately shaped parts. • Furan Resin Sand Casting – Delivers enhanced surface finish and precise dimensional control. • Investment Casting – Enables the production of detailed parts with exceptional surface quality. • Die Casting – Designed for mass production of thin-walled components with high precision. • Key Advantages of Cast Iron Components: • Excellent wear resistance and heat conductivity. • High machinability for ease of further processing also superior fluidity, enabling the production of intricate and detailed parts. • Typical Applications: • Heavy-duty industrial machinery. • Automotive systems and components. • Construction and earth-moving equipment.

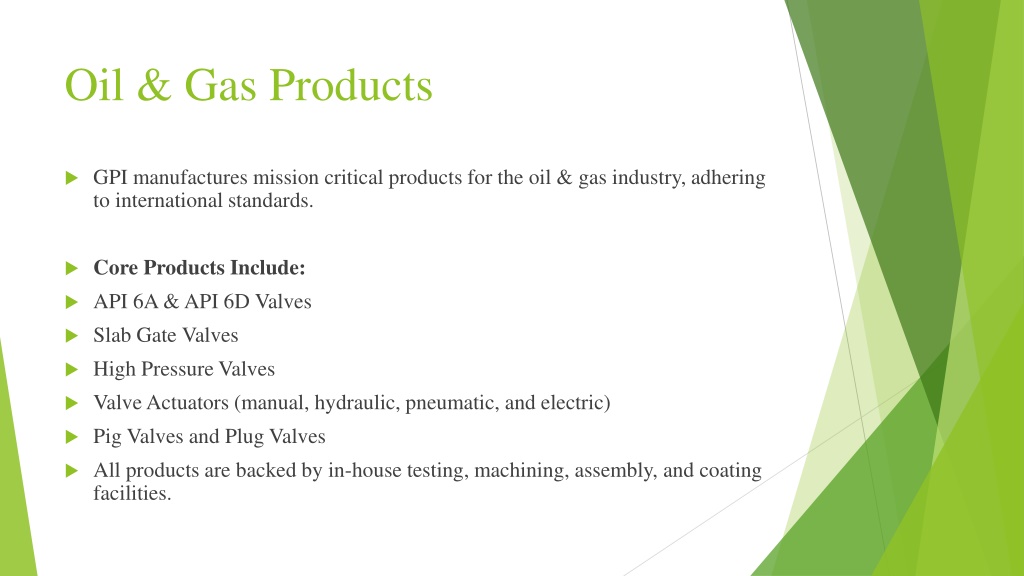

10. Oil & Gas Products • GPI manufactures mission critical products for the oil & gas industry, adhering to international standards. • Core Products Include: • API 6A & API 6D Valves • Slab Gate Valves • High Pressure Valves • Valve Actuators (manual, hydraulic, pneumatic, and electric) • Pig Valves and Plug Valves • All products are backed by in-house testing, machining, assembly, and coating facilities.

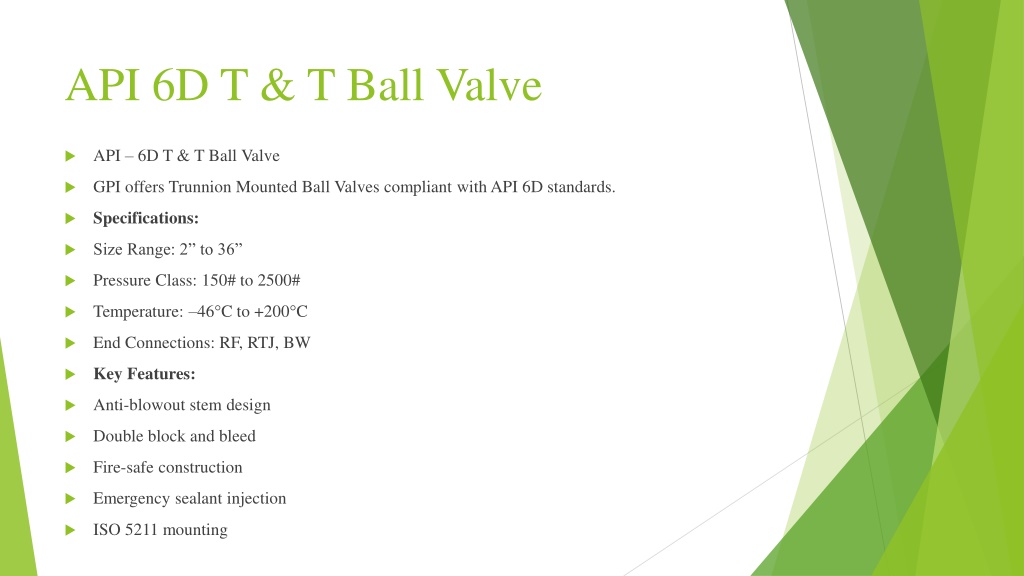

11. API 6D T & T Ball Valve • API – 6D T & T Ball Valve • GPI offers Trunnion Mounted Ball Valves compliant with API 6D standards. • Specifications: • Size Range: 2” to 36” • Pressure Class: 150# to 2500# • Temperature: –46°C to +200°C • End Connections: RF, RTJ, BW • Key Features: • Anti-blowout stem design • Double block and bleed • Fire-safe construction • Emergency sealant injection • ISO 5211 mounting

12. High Pressure Valves Overview • GPI manufactures durable, high-performance valves for critical pressure applications. • “High pressure valves are used to control the flow of liquids and gases in pipelines and systems operating under extreme pressures.” • Product Range Includes: • API 6A & 6D Valves • Slab Gate Valves • Check Valves, Plug Valves, Pig Valves • Manual & Actuated Systems • Designed for long service life, these valves are tested under stringent conditions.

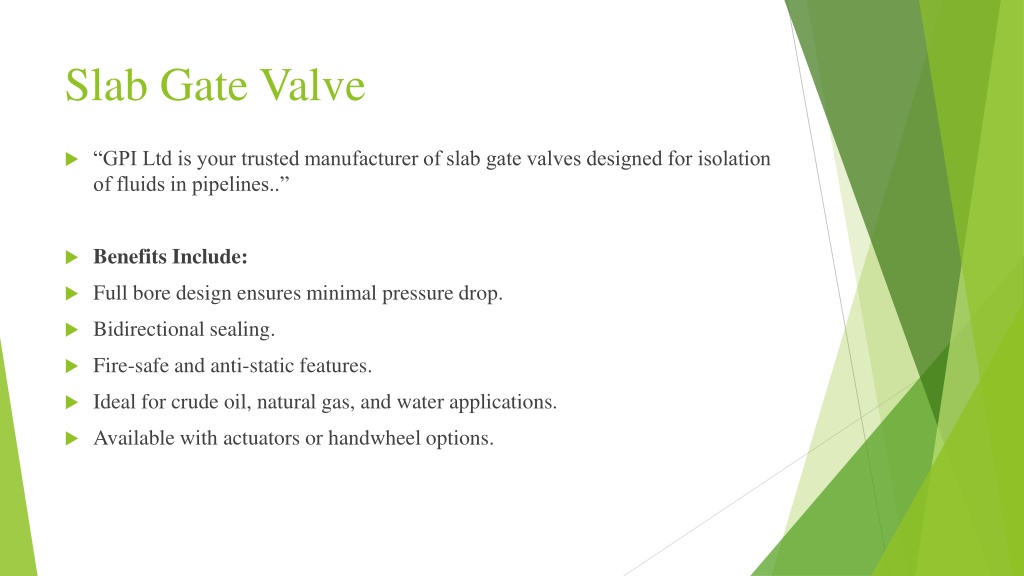

13. Slab Gate Valve • “GPI Ltd is your trusted manufacturer of slab gate valves designed for isolation of fluids in pipelines..” • Benefits Include: • Full bore design ensures minimal pressure drop. • Bidirectional sealing. • Fire-safe and anti-static features. • Ideal for crude oil, natural gas, and water applications. • Available with actuators or handwheel options.

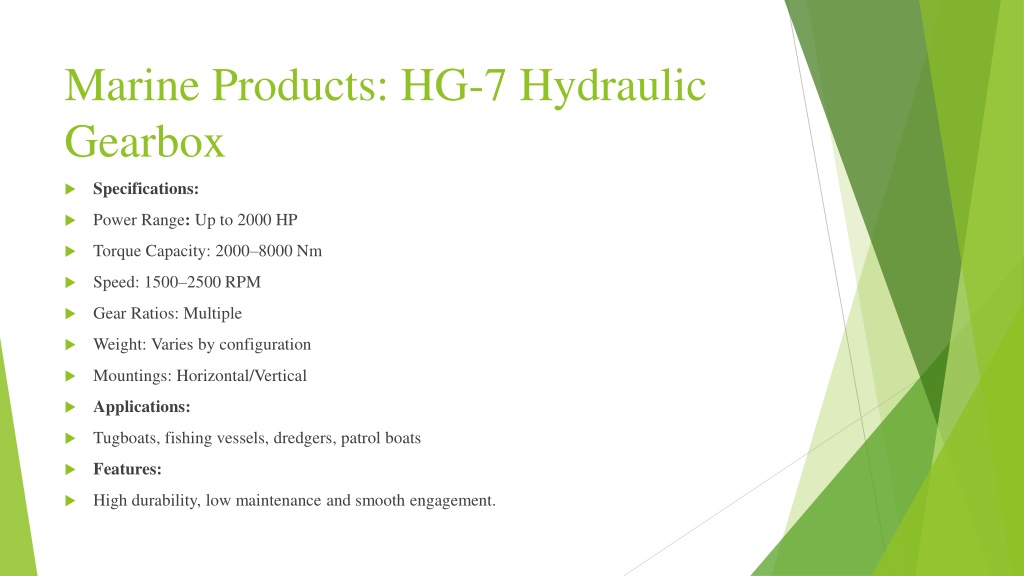

14. Marine Products: HG-7 Hydraulic Gearbox • Specifications: • Power Range: Up to 2000 HP • Torque Capacity: 2000–8000 Nm • Speed: 1500–2500 RPM • Gear Ratios: Multiple • Weight: Varies by configuration • Mountings: Horizontal/Vertical • Applications: • Tugboats, fishing vessels, dredgers, patrol boats • Features: • High durability, low maintenance and smooth engagement.

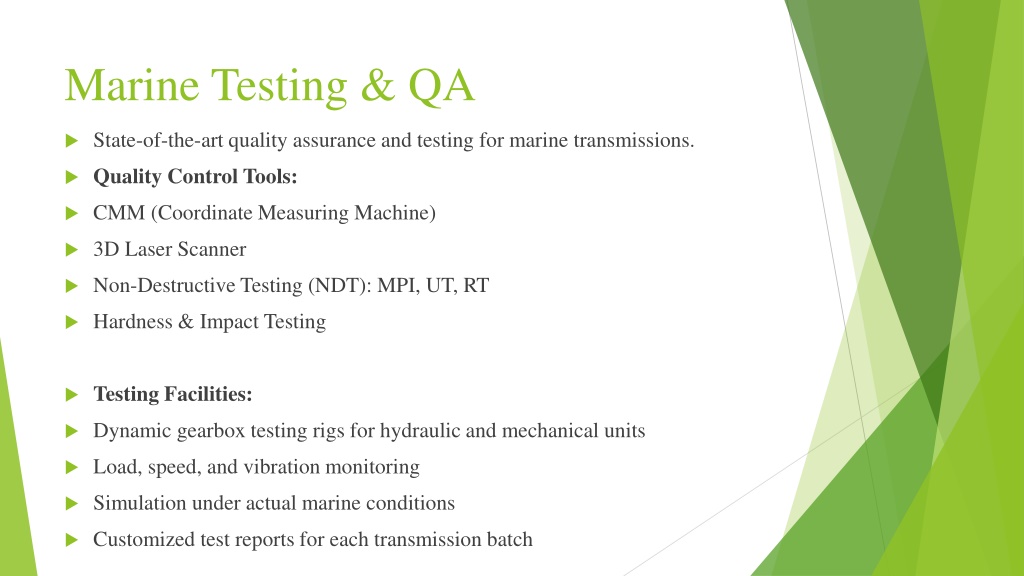

15. Marine Testing & QA • State-of-the-art quality assurance and testing for marine transmissions. • Quality Control Tools: • CMM (Coordinate Measuring Machine) • 3D Laser Scanner • Non-Destructive Testing (NDT): MPI, UT, RT • Hardness & Impact Testing • Testing Facilities: • Dynamic gearbox testing rigs for hydraulic and mechanical units • Load, speed, and vibration monitoring • Simulation under actual marine conditions • Customized test reports for each transmission batch

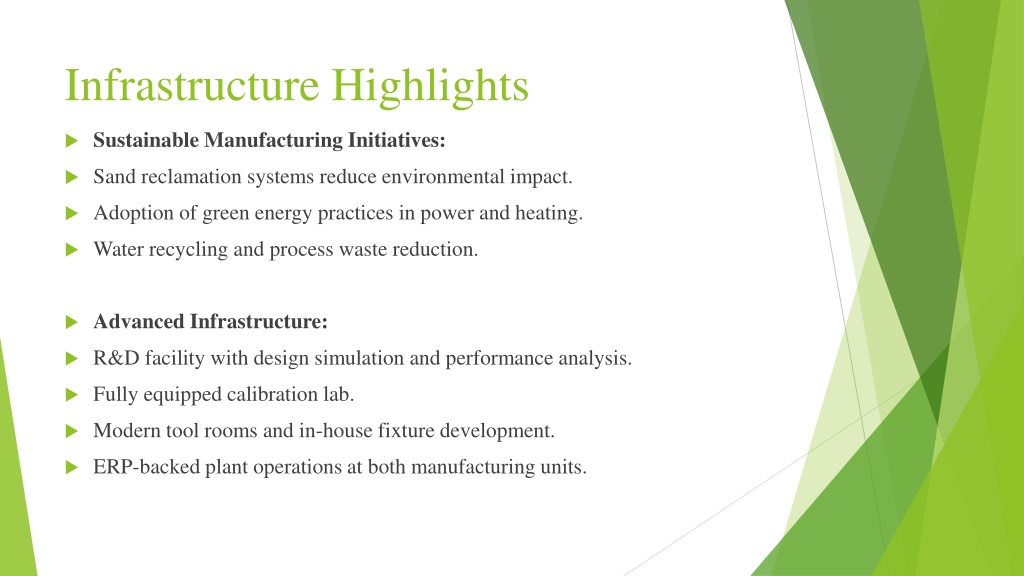

16. Infrastructure Highlights • Sustainable Manufacturing Initiatives: • Sand reclamation systems reduce environmental impact. • Adoption of green energy practices in power and heating. • Water recycling and process waste reduction. • Advanced Infrastructure: • R&D facility with design simulation and performance analysis. • Fully equipped calibration lab. • Modern tool rooms and in-house fixture development. • ERP-backed plant operations at both manufacturing units.

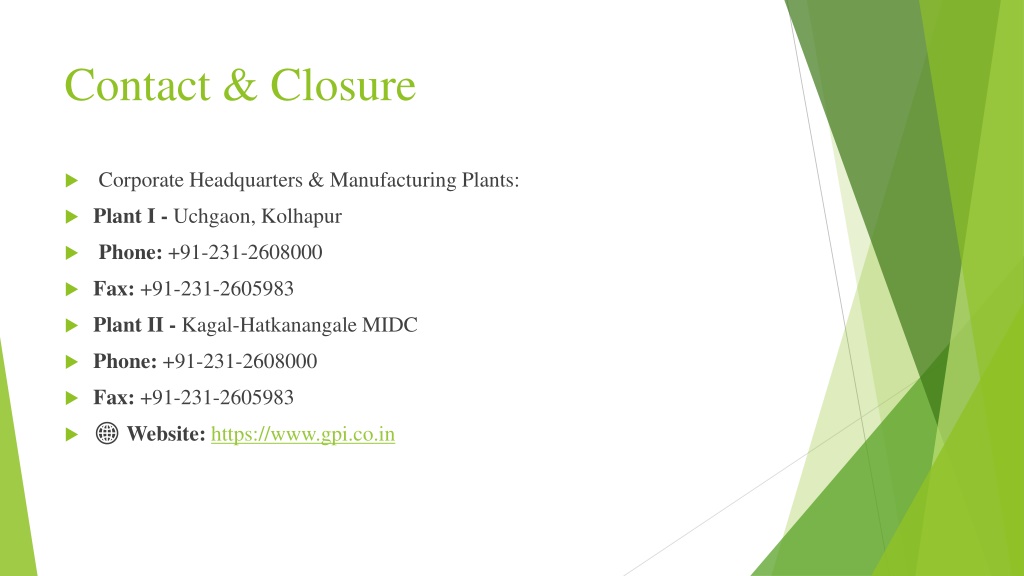

17. Contact & Closure • Corporate Headquarters & Manufacturing Plants: • Plant I - Uchgaon, Kolhapur • Phone: +91-231-2608000 • Fax: +91-231-2605983 • Plant II - Kagal-Hatkanangale MIDC • Phone: +91-231-2608000 • Fax: +91-231-2605983 • 🌐 Website:https://www.gpi.co.in
