  1. Part I: Core networking concepts Naming & Addressing

  2. Names and addresses • Names are identifiers • Used by • end users / applications to interact with your system • system components to interact with each other • Name operators • compare, resolve, bind/un-bind • Addresses: names that locate objects • Good names should be decoupled from addresses

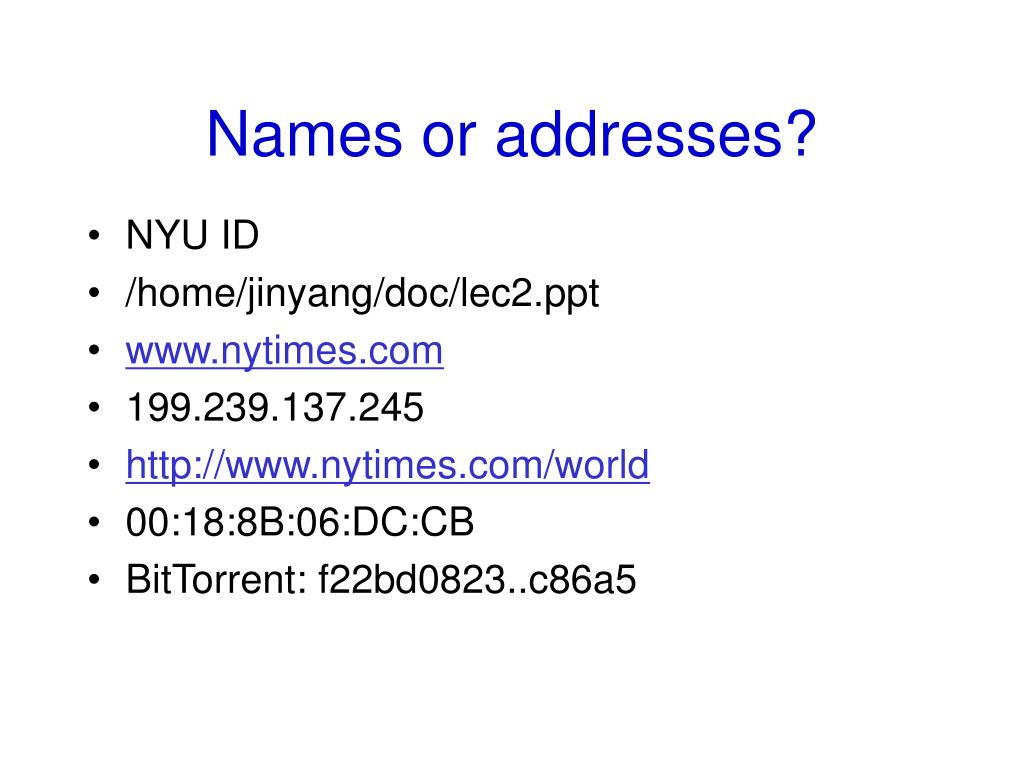

  3. Names or addresses? • NYU ID • /home/jinyang/doc/lec2.ppt • www.nytimes.com • 199.239.137.245 • http://www.nytimes.com/world • 00:18:8B:06:DC:CB • BitTorrent: f22bd0823..c86a5

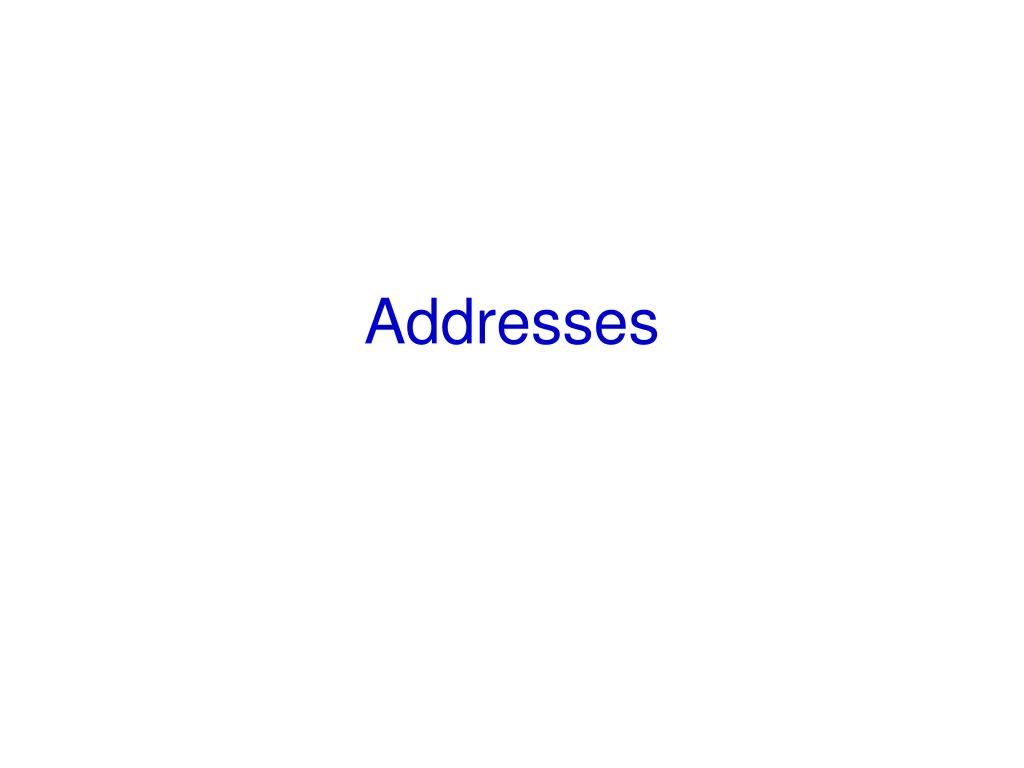

  4. Addresses

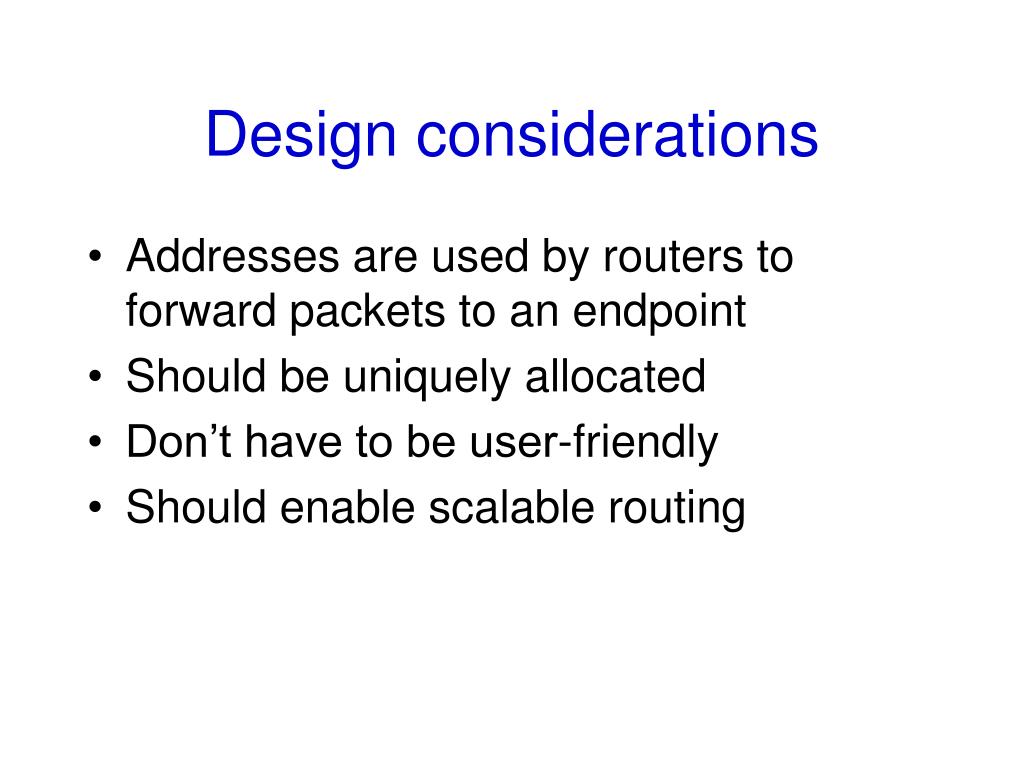

  5. Design considerations • Addresses are used by routers to forward packets to an endpoint • Should be uniquely allocated • Don’t have to be user-friendly • Should enable scalable routing

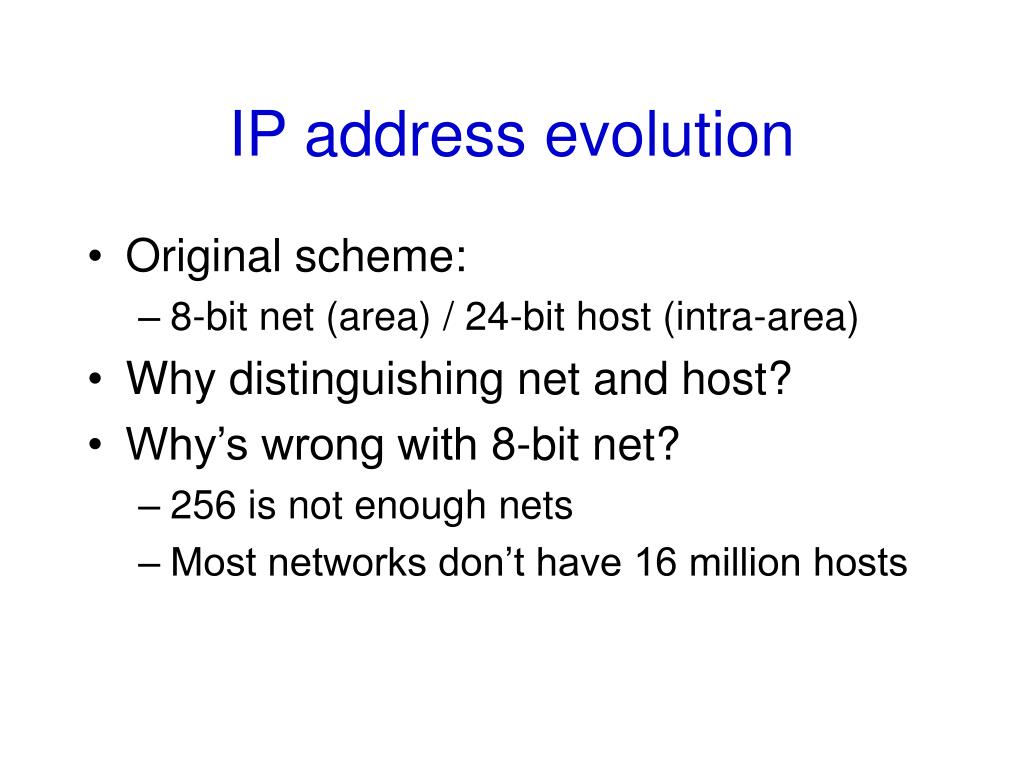

  6. IP address evolution • Original scheme: • 8-bit net (area) / 24-bit host (intra-area) • Why distinguishing net and host? • Why’s wrong with 8-bit net? • 256 is not enough nets • Most networks don’t have 16 million hosts

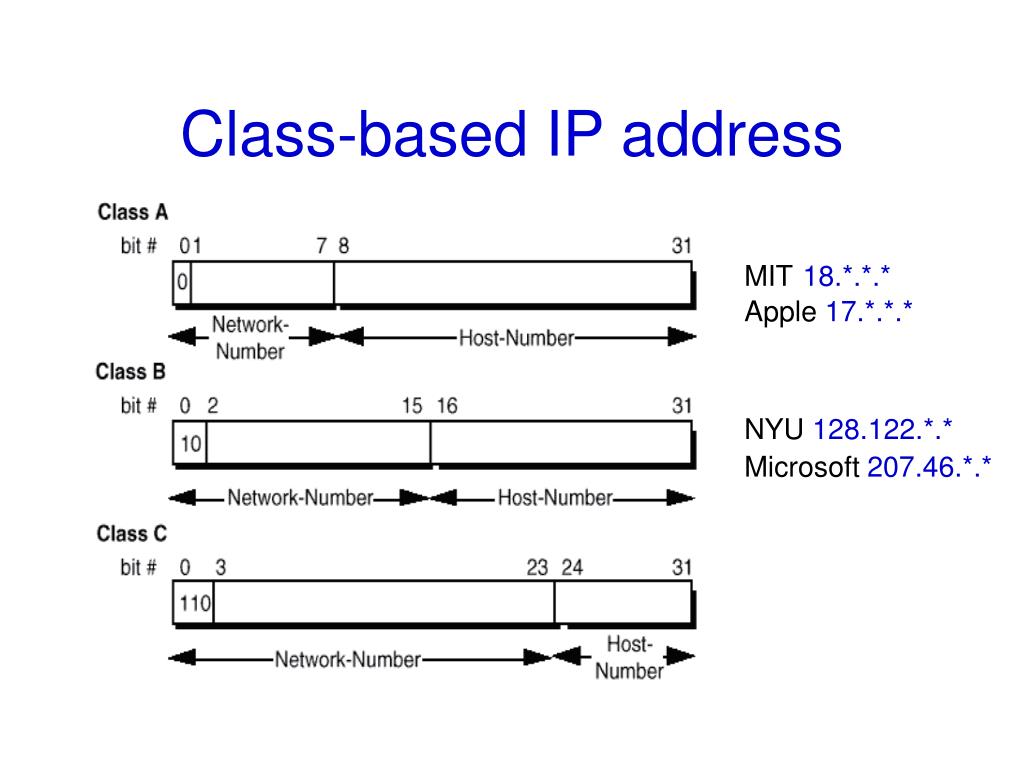

  7. Class-based IP address MIT18.*.*.* Apple 17.*.*.* NYU 128.122.*.* Microsoft 207.46.*.*

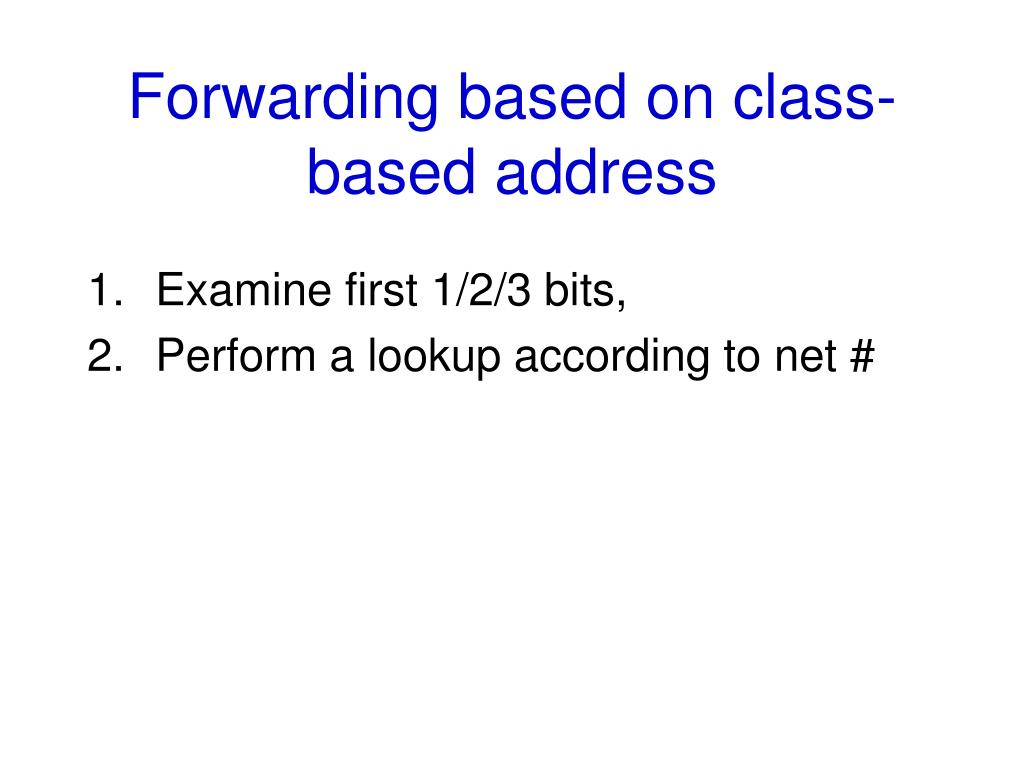

  8. Forwarding based on class-based address • Examine first 1/2/3 bits, • Perform a lookup according to net #

  9. Class-based --> CIDR • Why not class-based addresses? • Class A is wasteful! • Too many organizations are > C, but < B • Too many entries at routers • CIDR: classless inter-domain routing • Represent net size explicitly 216.239.32.0/19 61.135.0.0/16 • Allocate appropriate size • Allocate hierarchically

  10. Hierarchical allocation At&t 12.0.0.0/8 Sprint Another ISP ISP 12.4.0.0/16 12.4.240.0/20

  11. Forwarding w/ CIDR addresses • Longest prefix match • 12.4.225.69 matches 12.24.225.0/20 instead of 12.0.0.0/8 • Non-trivial • 10-100 millions pkts/sec • Memory latency 5-10 ns

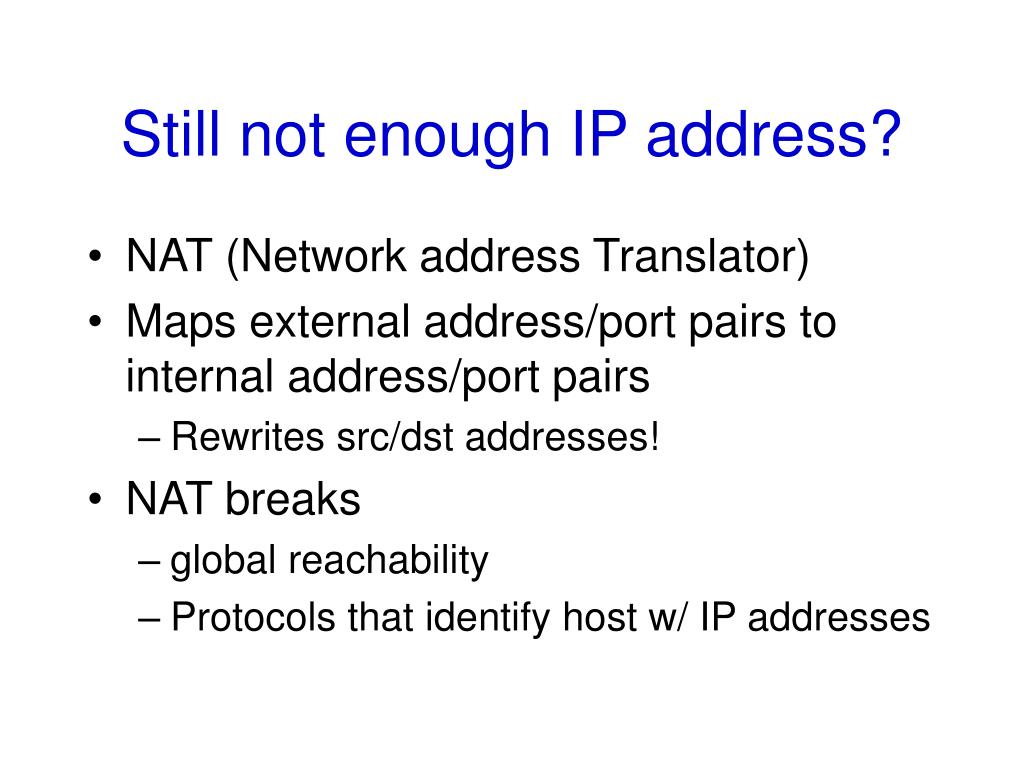

  12. Still not enough IP address? • NAT (Network address Translator) • Maps external address/port pairs to internal address/port pairs • Rewrites src/dst addresses! • NAT breaks • global reachability • Protocols that identify host w/ IP addresses

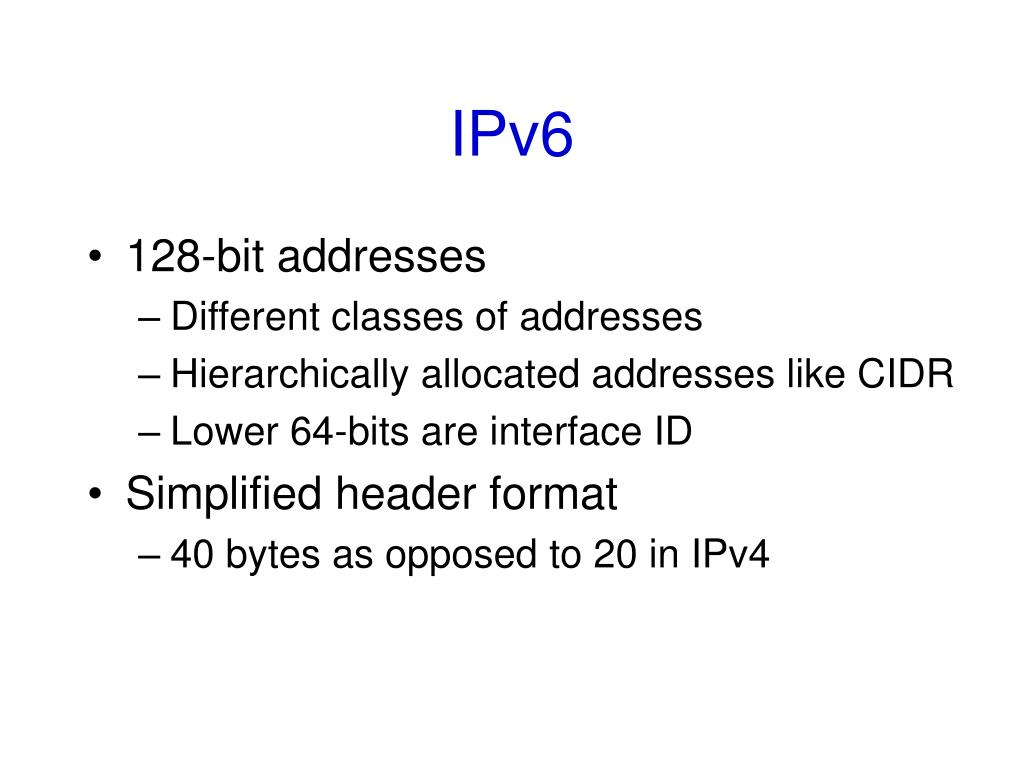

  13. IPv6 • 128-bit addresses • Different classes of addresses • Hierarchically allocated addresses like CIDR • Lower 64-bits are interface ID • Simplified header format • 40 bytes as opposed to 20 in IPv4

  14. IPv6 deployment options • Embed v4 addresses in low bits of IPv6 • Tunnel IPv6 packets over IPv4 networks • Applications must be dual-stacked or use a v4-to-v6 translator

  15. IPv6 deployment status

  16. Names

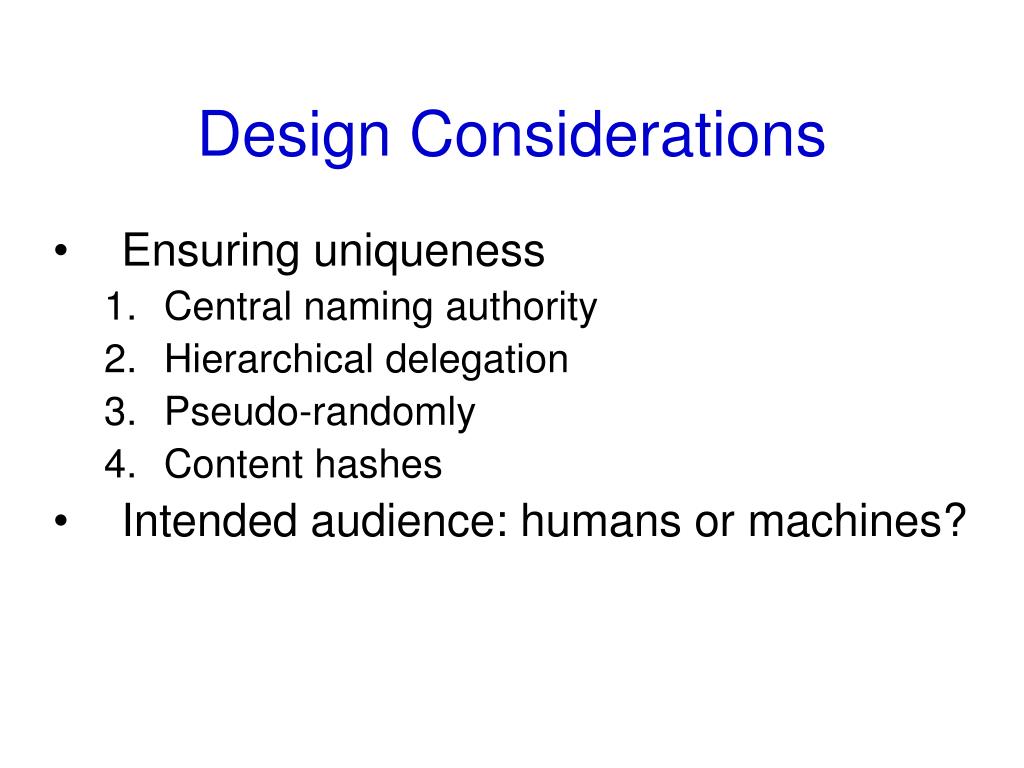

  17. Design Considerations • Ensuring uniqueness • Central naming authority • Hierarchical delegation • Pseudo-randomly • Content hashes • Intended audience: humans or machines?

  18. DNS • Why domain names? • IP addresses are not user friendly • Need topology-independent names • Early 80s: hosts.txt file, maps host name  IP • DNS: distributed service, maps domain name  IP • Record types: A, NS, MX, CNAME, PTR …

  19. Deep hierarchy Hierarchical names enable delegation . flat .com .edu .gov .cn .uk .nyu .cs .news www

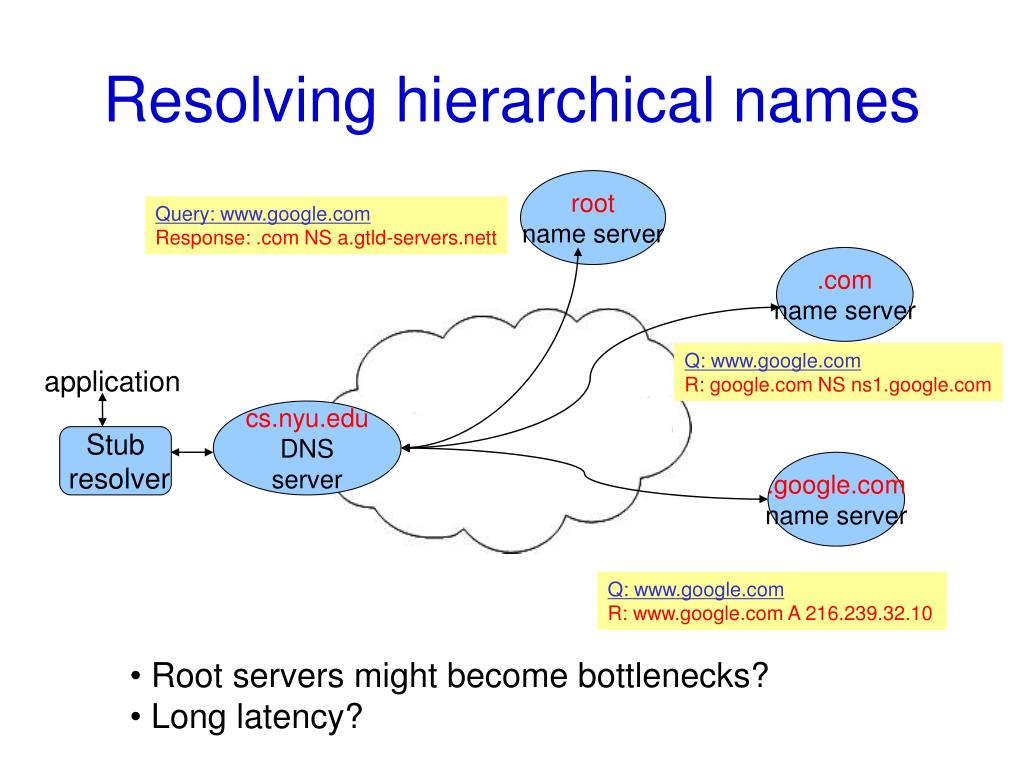

  20. Query: www.google.com Response: .com NS a.gtld-servers.nett Q: www.google.com R: google.com NS ns1.google.com Q: www.google.com R: www.google.com A 216.239.32.10 Resolving hierarchical names root name server .com name server application cs.nyu.edu DNS server Stub resolver .google.com name server • Root servers might become bottlenecks? • Long latency?

  21. Replicating servers for capacity/availability • Each sub-tree (zone) is kept at  2 name servers • 13 root servers • [A-M].root-servers.net • Geographically diverse: VA, CA, MD, Japan etc. • Another 13 name servers for .com, .net

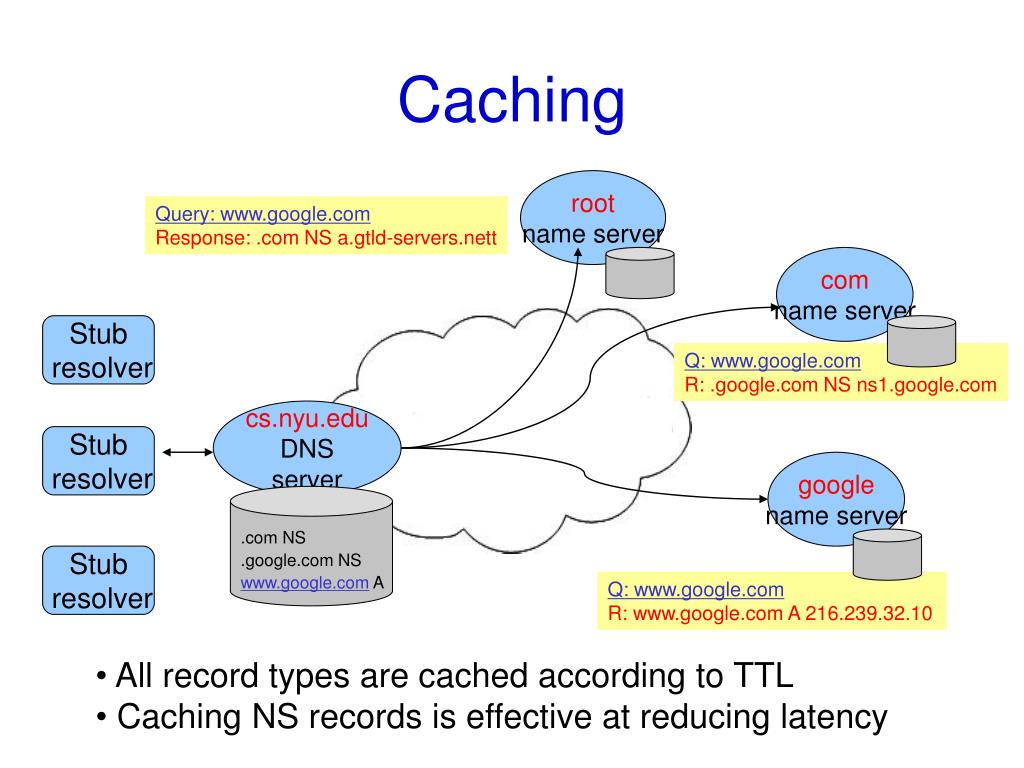

  22. Query: www.google.com Response: .com NS a.gtld-servers.nett Q: www.google.com R: .google.com NS ns1.google.com Q: www.google.com R: www.google.com A 216.239.32.10 Caching root name server com name server Stub resolver cs.nyu.edu DNS server Stub resolver google name server .com NS .google.com NS www.google.com A Stub resolver • All record types are cached according to TTL • Caching NS records is effective at reducing latency

  23. Caching, continued • Cache negative response • 10-42% lookups result in a neg answer • Most neg answers are for reverse IP lookups • Setting low TTL for A records harmful? • Not really [Jung et. al. 2002] • Most DNS cache hits happen in short succession • Sharing DNS caches at multiple sites useful? • Not really • Names follow zipf distribution, misses are for rare names

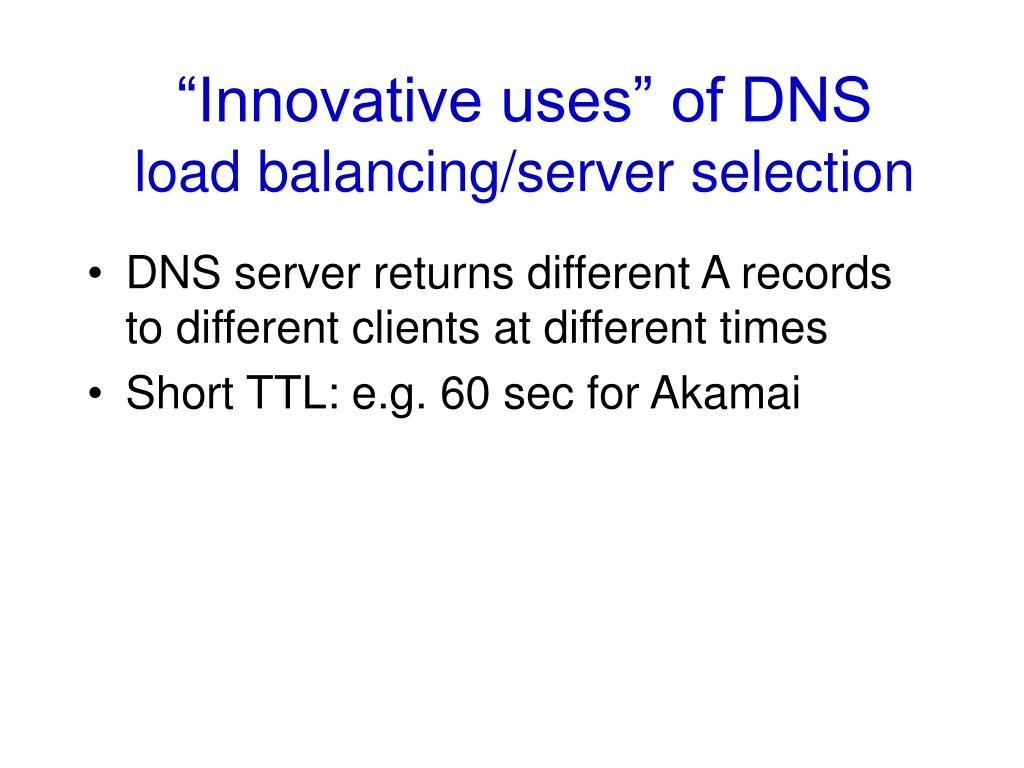

  24. “Innovative uses” of DNSload balancing/server selection • DNS server returns different A records to different clients at different times • Short TTL: e.g. 60 sec for Akamai

  25. “Innovative” uses of DNSspam blacklisting • Is 125.191.168.35 a spam source? • Resolve name 35.168.191.125.bl.spamcop.net

  26. Problems with current naming/addressing

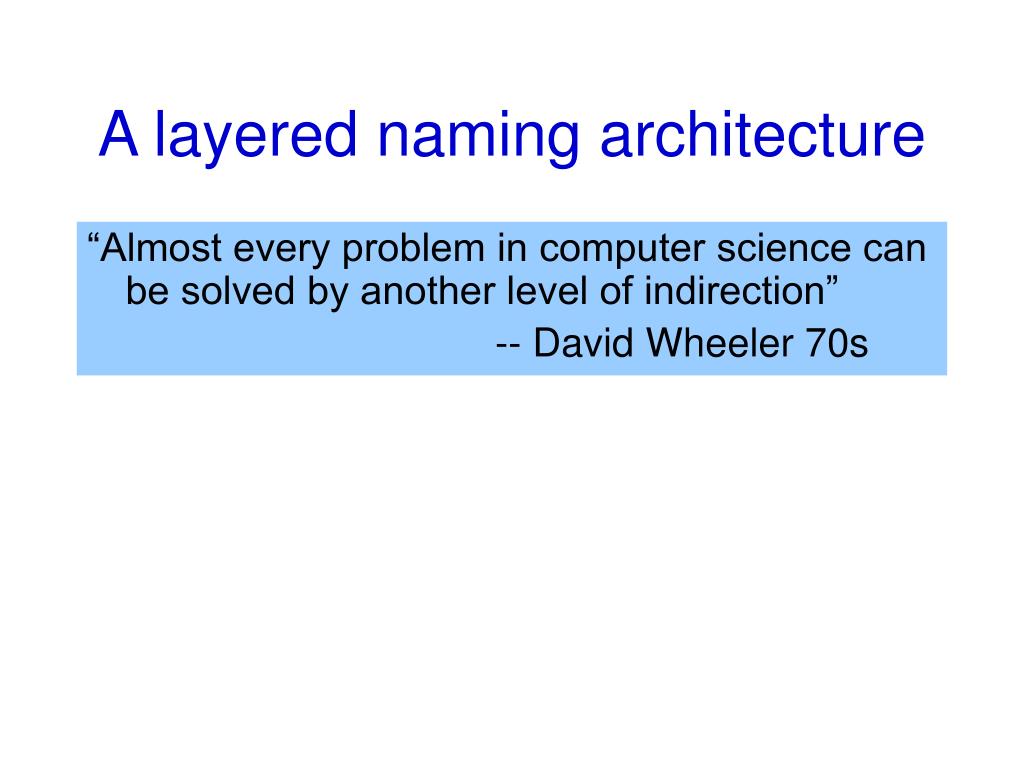

  27. A layered naming architecture “Almost every problem in computer science can be solved by another level of indirection” -- David Wheeler 70s

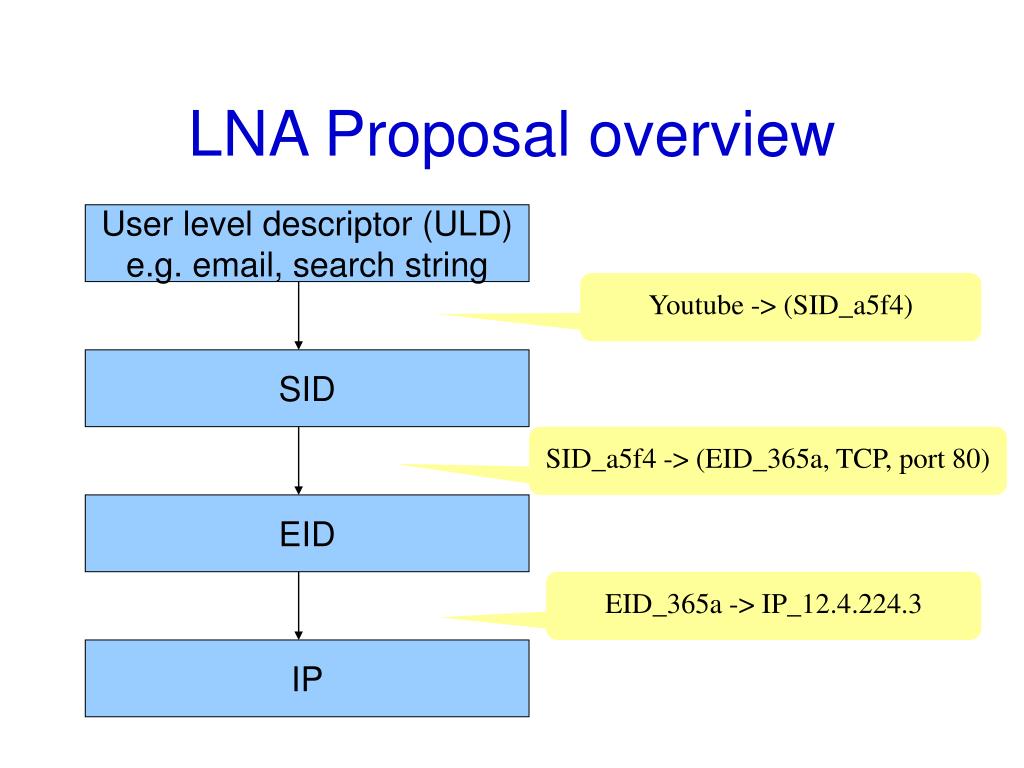

  28. LNA Proposal overview User level descriptor (ULD) e.g. email, search string Youtube -> (SID_a5f4) SID SID_a5f4 -> (EID_365a, TCP, port 80) EID EID_365a -> IP_12.4.224.3 IP

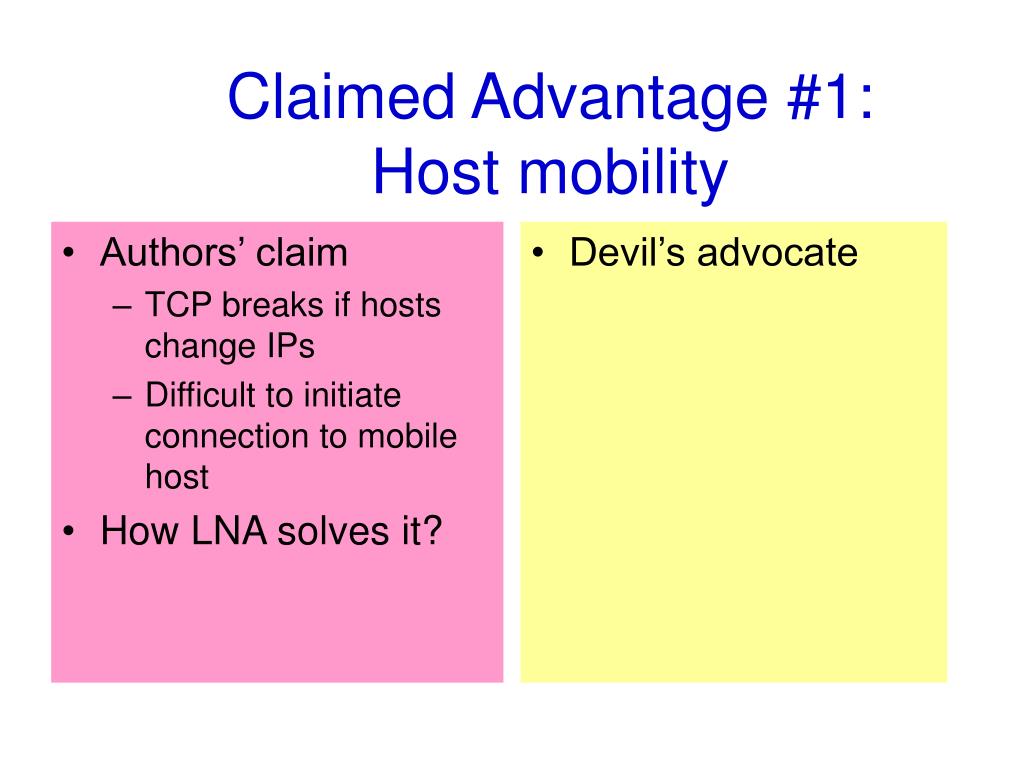

  29. Authors’ claim TCP breaks if hosts change IPs Difficult to initiate connection to mobile host How LNA solves it? Devil’s advocate Claimed Advantage #1: Host mobility

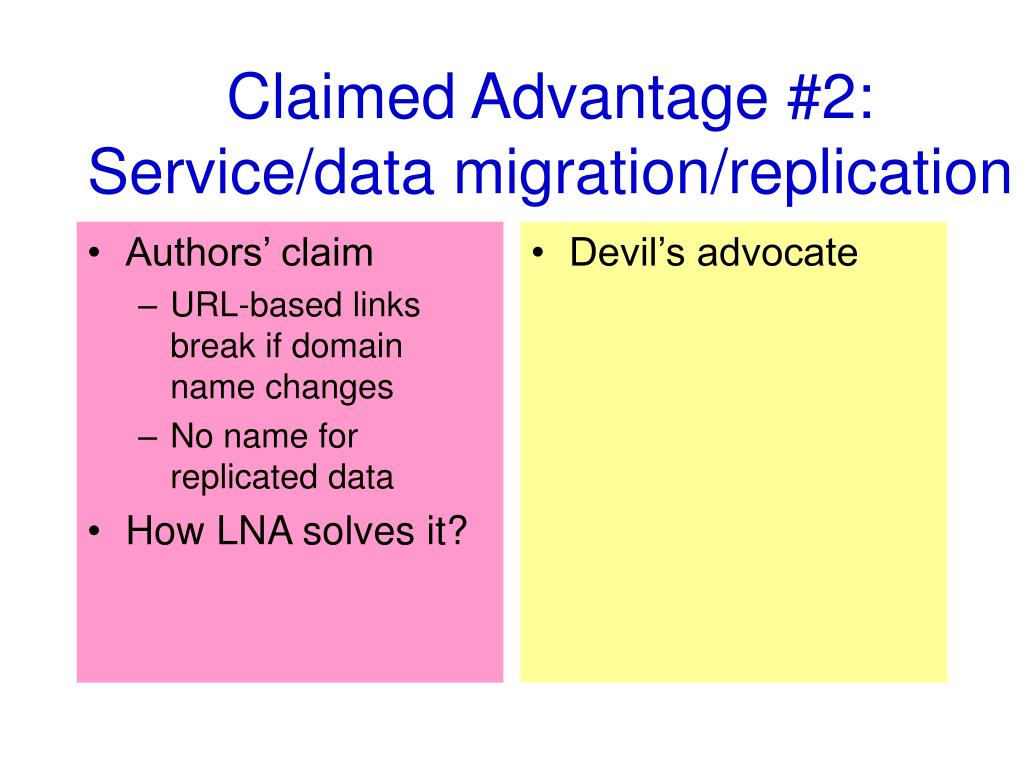

  30. Authors’ claim URL-based links break if domain name changes No name for replicated data How LNA solves it? Devil’s advocate Claimed Advantage #2: Service/data migration/replication

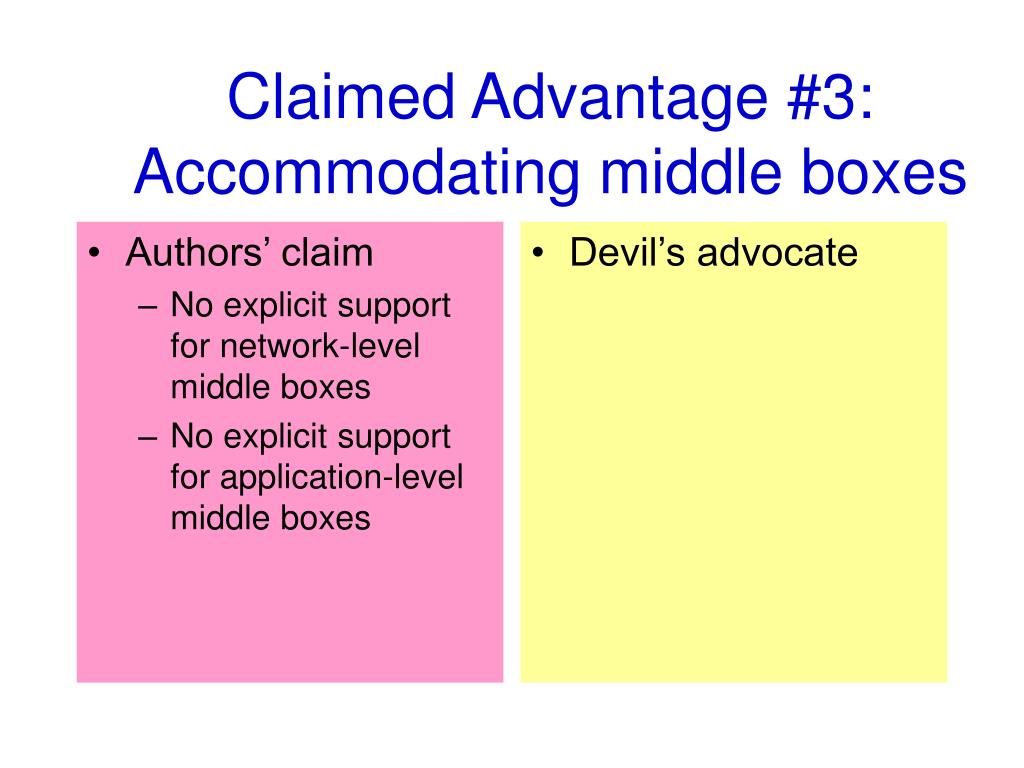

  31. Authors’ claim No explicit support for network-level middle boxes No explicit support for application-level middle boxes Devil’s advocate Claimed Advantage #3: Accommodating middle boxes
