Presentation Transcript
slide1

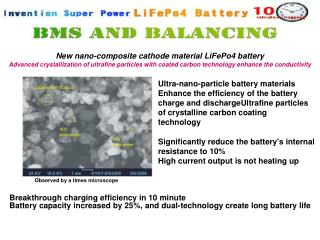

New nano-composite cathode material LiFePo4 batteryAdvanced crystallization of ultrafine particles with coated carbon technology enhance the conductivity

Ultra-nano-particle battery materials

Enhance the efficiency of the battery charge and dischargeUltrafine particles of crystalline carbon coating technology

Coating with Carbon

400

nanometer

Breakthrough charging efficiency in 10 minute

Battery capacity increased by 25%, and dual-technology create long battery life

100

nanometer

Significantly reduce the battery's internal resistance to 10%

High current output is not heating up

Observed by a times microscope

slide2

1 Innovative battery manufacturing

2 numbers of leading technologies

3 advanced in Nano-Dispersion blending technology

4 ultra slim positive and negative coating technology

5 brand- new electrolyte with super-conductive efficiency

6 multiple complex technology ensure absolute safety battery

7 fast charging up to 6C

8 EV battery capacity up to 5 years beyond 80%

9 high capacity of solar battery exceed in the field

10 Solar Battery life over 10 years

new various design on high performance battery
New various design on high-performance battery

1865155(12.5AH) for Electric Bus, EV

1865105(8.0AH) for EV, E-Moto

185465(4.2AH) for E-Bike, Electric Tools

185465(4.6AH for) solar storage, Mobile lighting

slide4

R&D target:

First, absolute safety. Second, super power. Third, advanced environmental protection

Pass through the examination of ROHS in EUR.

Pass through the USA UL1642 class1

slide5

High temperature

safety tests

Fully charged battery put into the oven, then Heated to 150 degrees Celsius for 30 minutes. (UL standard is 10 minutes)

NO combustion NO explosion

slide6
Acupuncture safety test

use the crude nails in pressure penetrated

fully charged battery. Without combustion

explosion

NO combustion NO explosion

Crash safety tests

fully charged battery was pressed by iron rods, then falling down from high place without combustion and explosion

NO combustion NO explosion

slide7

Short-circuit safety test

fully charged battery was with short-circuit between positive and negative without burning or explosion

NO combustion NO explosion

Over-charging

battery safety tests

continuing charging in high-voltage and high-current until the battery broke down. Without explosion and combustion.

NO combustion NO explosion

slide8

commercials value exists on absolute safety

Slice collection

Positive level + Isolation membrane + negative level

Battery assembled

Battery aluminum shell

Special Note:Batteries are not required to put the fuse in internal and external, and completely passing through the safest test of UL1642 Class.

slide9
The actual test with 10 minutes fast charge, please refer to "institute test report"

P6-class fast 10-minutes rechargeable battery compares with the efficiency ratio of

1 hour fast charge can be over 85% (new arrival)

P3-20 minutes quick charge battery (up to 87%) is in mass production, please refer to

test report ITRI

slide10

1 hour fast charge, and 1 hour fast discharge, simulate working four years later.

Battery capacity retention rate is 94.6%, continuing in ...

slide11
After charging 10 minutes, the capacity can up to 85%Because of strong power output, large power drill can replaced by a small power drill Ultra-light battery reduces the weight to half but doubles work, Enhanced battery’s weight is equal but increase four times in working
slide12

10 minutes quick charge can travel 30 to 35 kmSuper strong power output, completely replace the 50cc motorcycle10 minutes quick charge equal a hair dryer (1500W in 10 minutes)

slide13
10 minutes quick charge can travel 80 to 90 kmSuper-strong power output completely replace the 150cc motorcycleThe new rescue design only 5 minutes (40%) docking charge by two vehicles
slide14

E-BUS electric bus running 250km for 18 hours a day 30 minutes quick charge can travel half a day about 120 kilometersThe new rescue design, only 5 minutes (30 km) docking charging by two vehicles

slide15

20 minutes quick charge and discharge cycle life test

20 minutes quick charge, 20 minute quick discharge, simulation two-year work life.

Battery capacity retention rate is 86.3%, still continuing in ...

slide19

New technology New battery

Create best performance

high volte low current high efficiency low wastage Super power Fast start high strength climbing

Low motor temperature Stronger torque battery does not heat sliding and braking reserve charge make the running distance increase by 25%

Each charge can travel 120 to 150 kmCharging cost is 15~20% as much as gasoline costs

slide20

EV new design conceptLiFePo4 power battery 358V-50Ah350 KW inverter motor strength horsepower quick speed up20 minutes fast charge drive more than 100 kmMicro precision battery management system (BMS)New concept of water-cooled of battery balancing system

slide23

3.2V-50AH Battery set

Battery management system Battery balance systemAssembled battery 358V-50AH

51V-50AH Battery box

slide24

High volt, High performance, New BNS challenge

112 series high-358V battery voltage group

448 battery life performance of the same assembly capacity

Battery in use after 3 to 5 years should be maintained to optimize

Accurate real-time scanning 112 Battery Group

Accurate calculation of the effective capacity of battery

Detection and calculation of the total output voltage and current

Single high pressure and low battery alarm

Dynamic analysis of the pressure group series battery

Scan and detect the internal temperature of the battery box

Sent to the vehicle computer by CAN communication

slide25

Ensure 7-year life of BMSBMS connection with the operation of real-time synchronizationAutomatically detects the battery charging pressureAutomatic balance battery charge current of each groupAutomatic switching fast charging and balanceBest balance range of dropout voltage is 20 mVAuto stop reverse charging balanceAutomatically detect anomalies and alertAfter balance more than 95% of capacity of workLong-standing automatically added power

slide26

Ultra-high capacity battery GC Energy actual test, please refer to "institute test report"E46-class ultra-high capacity battery than the batteries in the industry beyond the 18% to 27

(new arrival)

slide27

High-capacity LiFePo4 battery Advantages ︰1 low internal resistance, the best charging efficiency i2 charging platform stability, without step-up charge3 storage efficiency is more than other batteries 25 to 35%4 cycle life up to 10 years

slide28

ultra-high brightness、light up three kilometers available、ultra-light weight 3.8KG

Super bright HID main light could illuminate 100 minutes, LED assisted light illumination 100 hours
