Fabric-Air-Permeability-Tester-LFAP-A10

Labtron Fabric Air Permeability Tester delivers dynamic, high-precision measurements with a range of 1u201340000 mm/s and 1u20134000 Pa pressure. It includes microcomputer processing for direct results, an English LCD menu, and a PC interface, ensuring efficient and accurate performance.

millyyates
Download Presentation

Fabric-Air-Permeability-Tester-LFAP-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

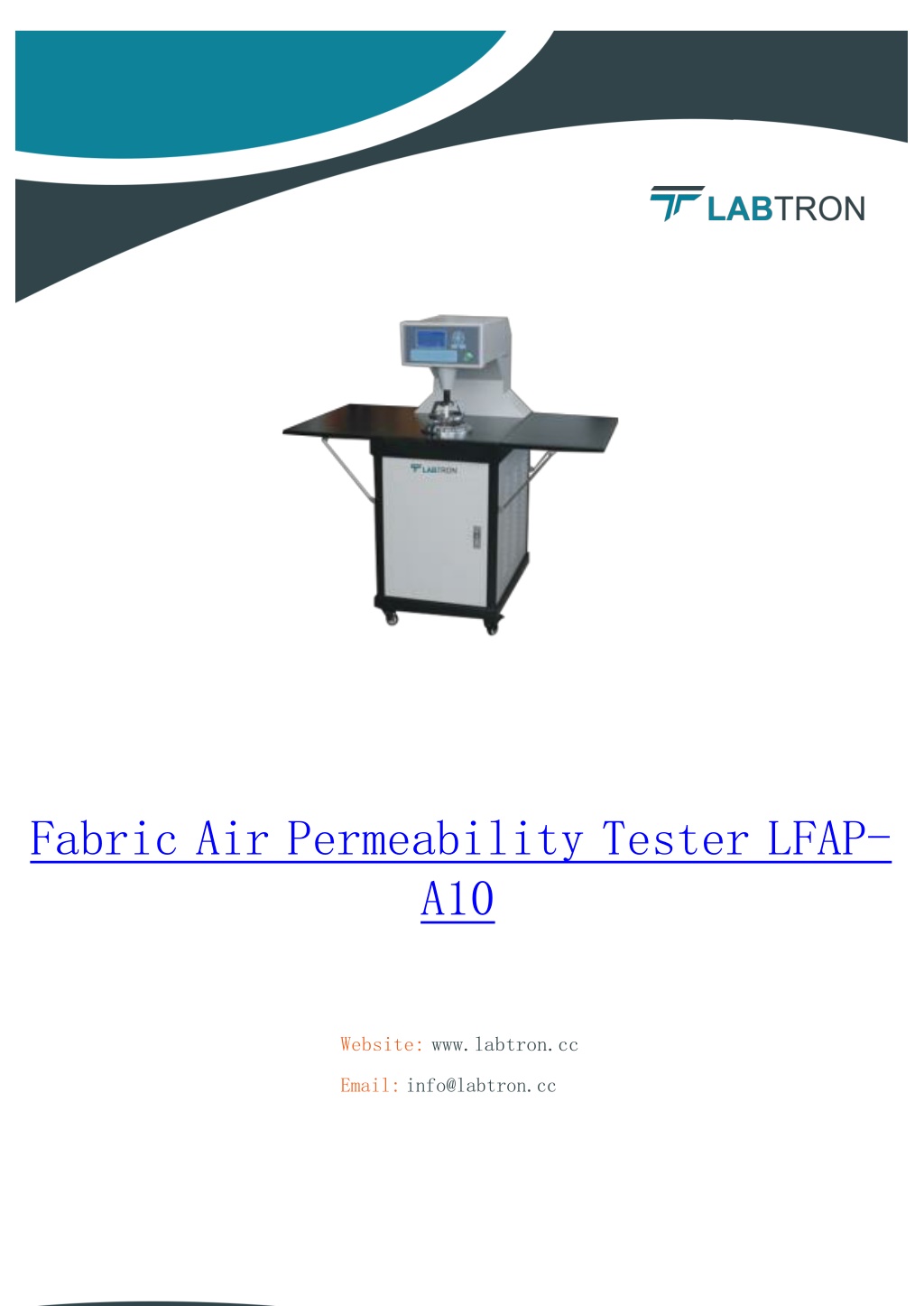

  1. Fabric Air Permeability Tester LFAP- A10 Website: www.labtron.cc Email: info@labtron.cc

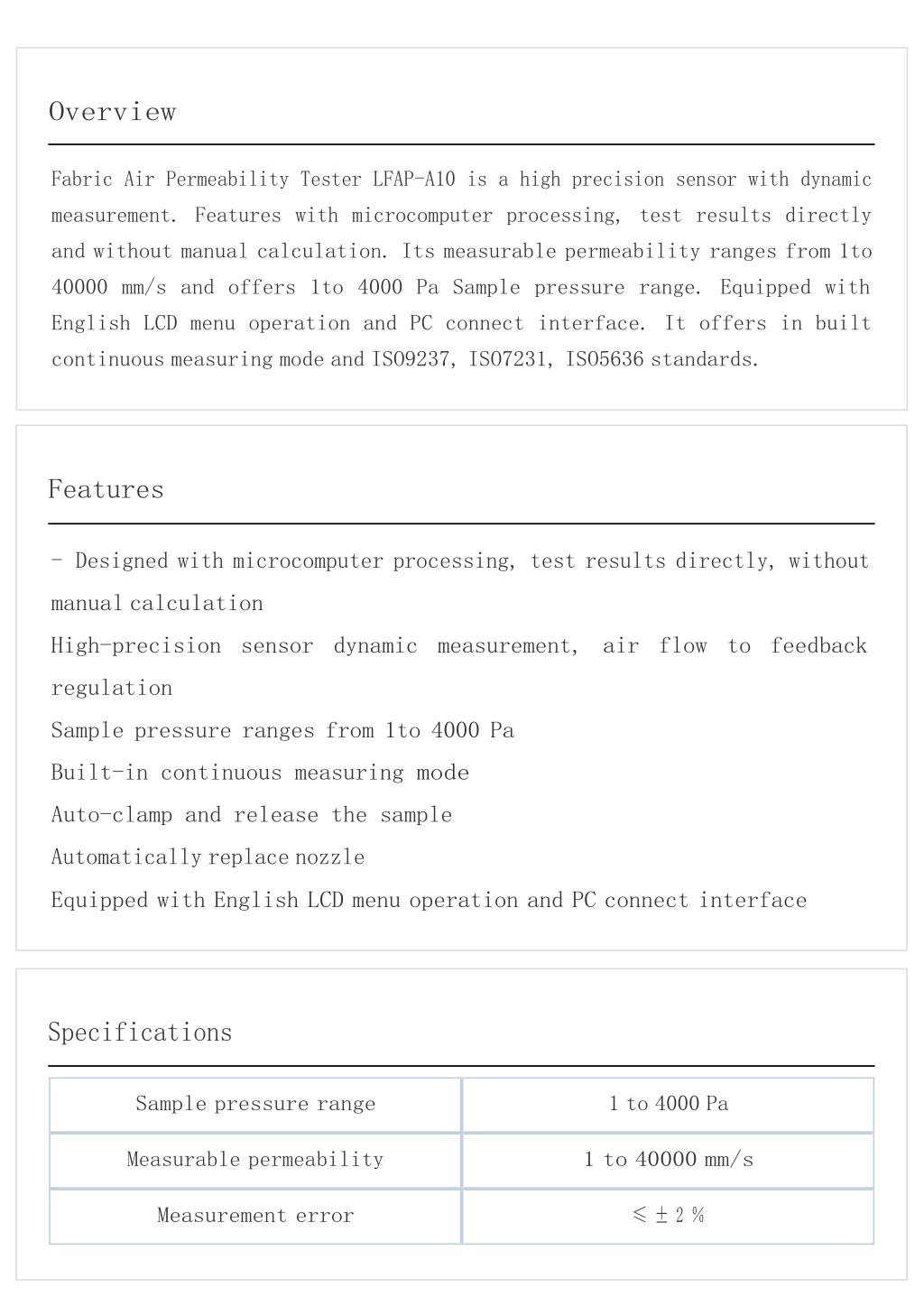

  2. Overview Fabric Air Permeability Tester LFAP-A10 is a high precision sensor with dynamic measurement. Features with microcomputer processing, test results directly and without manual calculation. Its measurable permeability ranges from 1to 40000 mm/s and offers 1to 4000 Pa Sample pressure range. Equipped with English LCD menu operation and PC connect interface. It offers in built continuous measuring mode and ISO9237, ISO7231, ISO5636 standards. Features - Designed with microcomputer processing, test results directly, without manual calculation High-precision sensor dynamic measurement, air flow to feedback regulation Sample pressure ranges from 1to 4000 Pa Built-in continuous measuring mode Auto-clamp and release the sample Automatically replace nozzle Equipped with English LCD menu operation and PC connect interface Specifications Sample pressure range 1 to 4000 Pa Measurable permeability 1 to 40000 mm/s Measurement error ≤± 2 ％

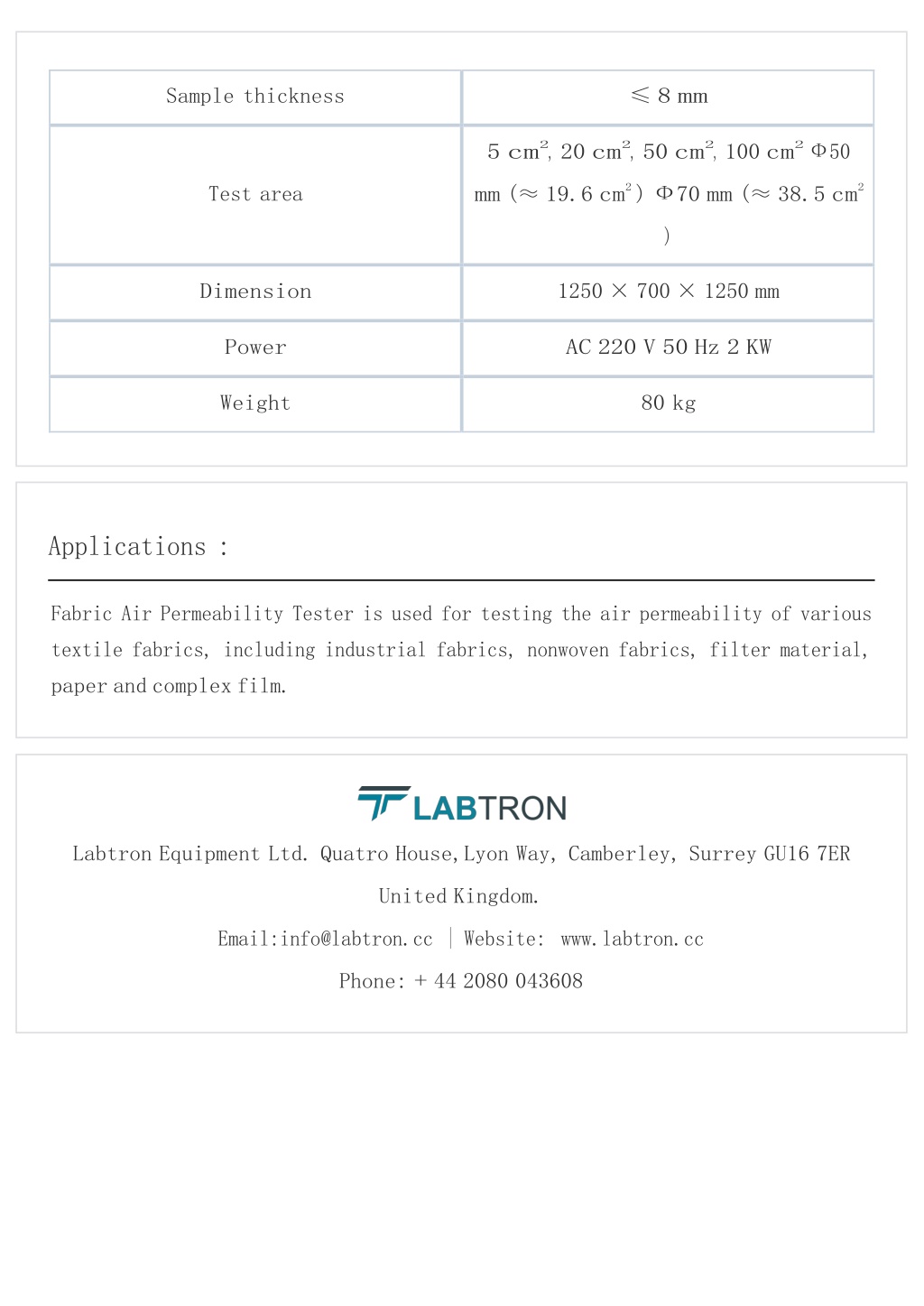

  3. Sample thickness ≤8 mm 5cm2,20cm2,50cm2,100cm2Ф50 2) Ф70mm (≈38.5 cm 2 Test area mm (≈19.6 cm ) Dimension 1250 ×700 ×1250 mm Power AC 220 V 50 Hz 2 KW Weight 80 kg Applications : Fabric Air Permeability Tester is used for testing the air permeability of various textile fabrics, including industrial fabrics, nonwoven fabrics, filter material, paper and complex film. Labtron Equipment Ltd. Quatro House,Lyon Way, Camberley, Surrey GU16 7ER United Kingdom. Email:info@labtron.cc | Website: www.labtron.cc Phone: + 44 2080 043608
