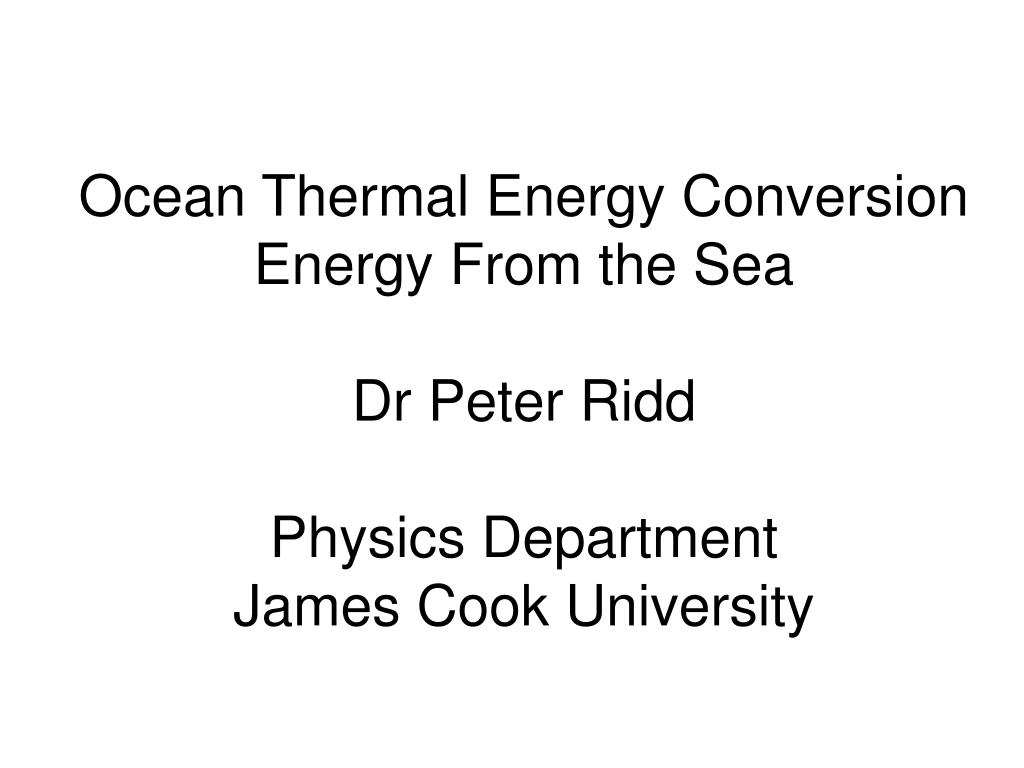

Ocean Thermal Energy Conversion Energy From the Sea Dr Peter Ridd Physics Department James Cook University. Alternative Energy. Solar Power Wind Power Wave Power Tidal Power Bio-fuels Nuclear Energy OTEC. Heat Engines. Petrol Engines Diesel Engines Steam Engines

Download Presentation
## Alternative Energy

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

**Ocean Thermal Energy ConversionEnergy From the SeaDr Peter**RiddPhysics Department James Cook University**Alternative Energy**• Solar Power • Wind Power • Wave Power • Tidal Power • Bio-fuels • Nuclear Energy • OTEC**Heat Engines**• Petrol Engines • Diesel Engines • Steam Engines • Gas Turbines (e.g. jet engines)**All heat engines have a hot end and a cold end**• Gas is heated (Hot end) and allowed to expand. • Expanding gases cool • Much of the heat in the gas is wasted in the exhaust gas (cold end)**Rankine Cycle**Heating Required HOT WATER Cooling required COLD WATER**Surface Seawater around 25 degrees**• Bottom seawater around 4 degrees Coral Sea**1000 m**Cairns Townsville**Problem**• As the temperature difference between the hot end and cold end gets smaller, the efficiency decreases • Diesel engine DT =500 degrees • OTEC DT =20 degrees • Diesel Engine Efficiency is about 25% • OTEC Efficiency is at most 7%**Other Problems**• Submarine Cable • Moorings • Extreme environment (Salt Water)**Consider 1000 MWatt plant**• Assume 3% efficiency • Require 1000 cubic meters/sec flow rate • Pipe of radius of 10 m with flow rate of 3 m/s • Approximately the same flow rate as the Tully River in moderate flood • Energy loss is relatively small as pumping head is equivalent about 6 m. Perhaps 60 MW**Waste Water Plume**• High in Nutrients (orders of magnitude higher than shelf water) • Plume must be discharged on slope below thermocline
