  1. Pulsed Laser Deposition (PLD) Anne Reilly College of William and Mary Department of Physics

  2. Outline 1. Thin film deposition 2. Pulsed Laser Deposition a) Compared to other growth techniques b) Experimental Setup c) Advantages and Disadvantages 3. Basic Theory of PLD 4. Opportunities

  3. Thin Film Deposition Transfer atoms from a target to a vapor (or plasma) to a substrate

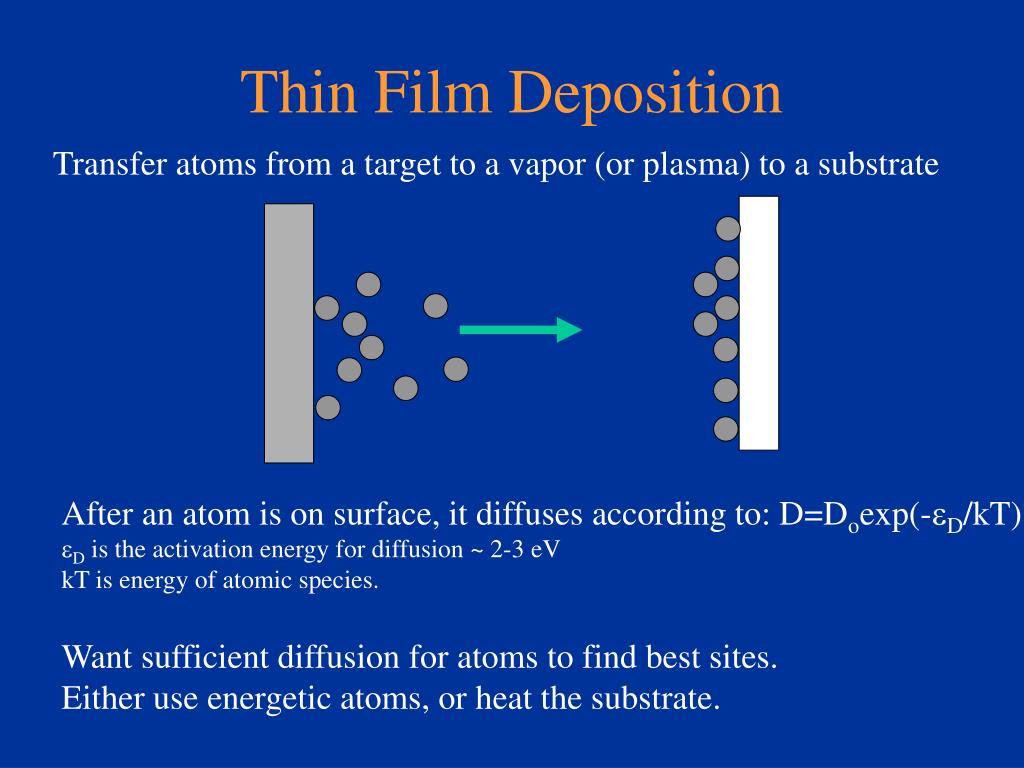

  4. Thin Film Deposition Transfer atoms from a target to a vapor (or plasma) to a substrate • After an atom is on surface, it diffuses according to: D=Doexp(-eD/kT) • eD is the activation energy for diffusion ~ 2-3 eV • kT is energy of atomic species. • Want sufficient diffusion for atoms to find best sites. • Either use energetic atoms, or heat the substrate.

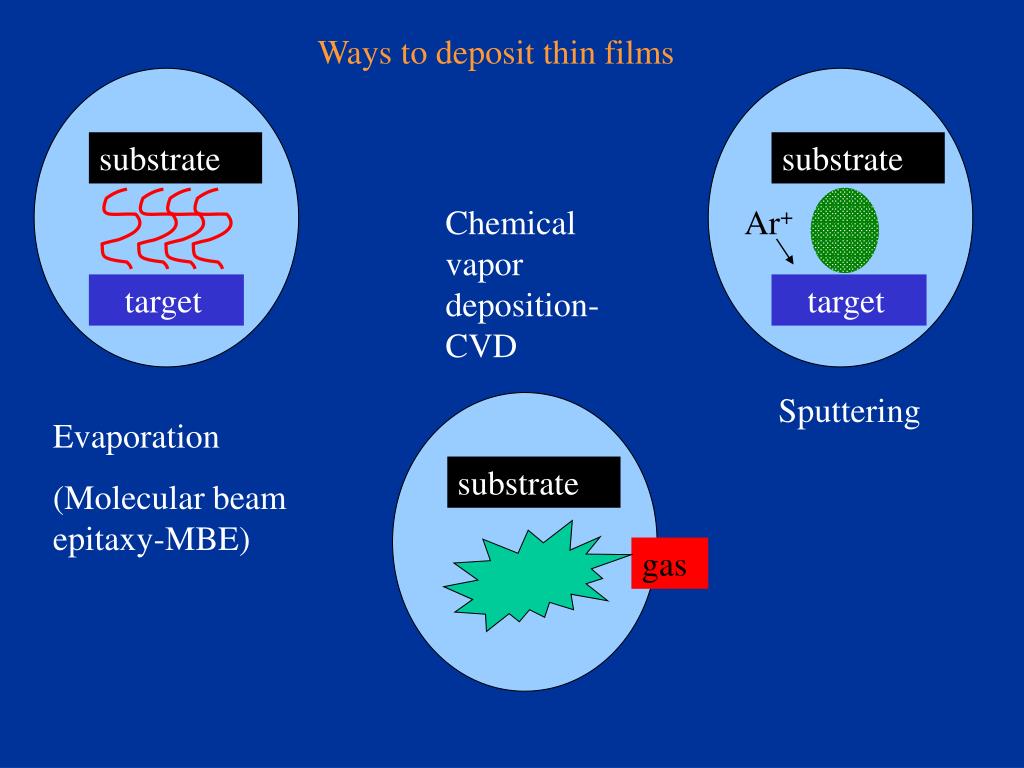

  5. Ways to deposit thin films substrate substrate Chemical vapor deposition-CVD Ar+ target target Sputtering Evaporation (Molecular beam epitaxy-MBE) substrate gas

  6. Low energy deposition (MBE): ~0.1 eV may get islanding unless you pick right substrate or heat substrate to high temperatures High energy deposition (Sputtering ~ 1 eV) smoother films at lower substrate temperatures, but may get intermixing

  7. Low energy deposition (MBE): ~0.1 eV may get islanding unless you pick right substrate or heat substrate to high temperatures High energy deposition (Sputtering ~ 1 eV) smoother films at lower substrate temperatures, but may get intermixing

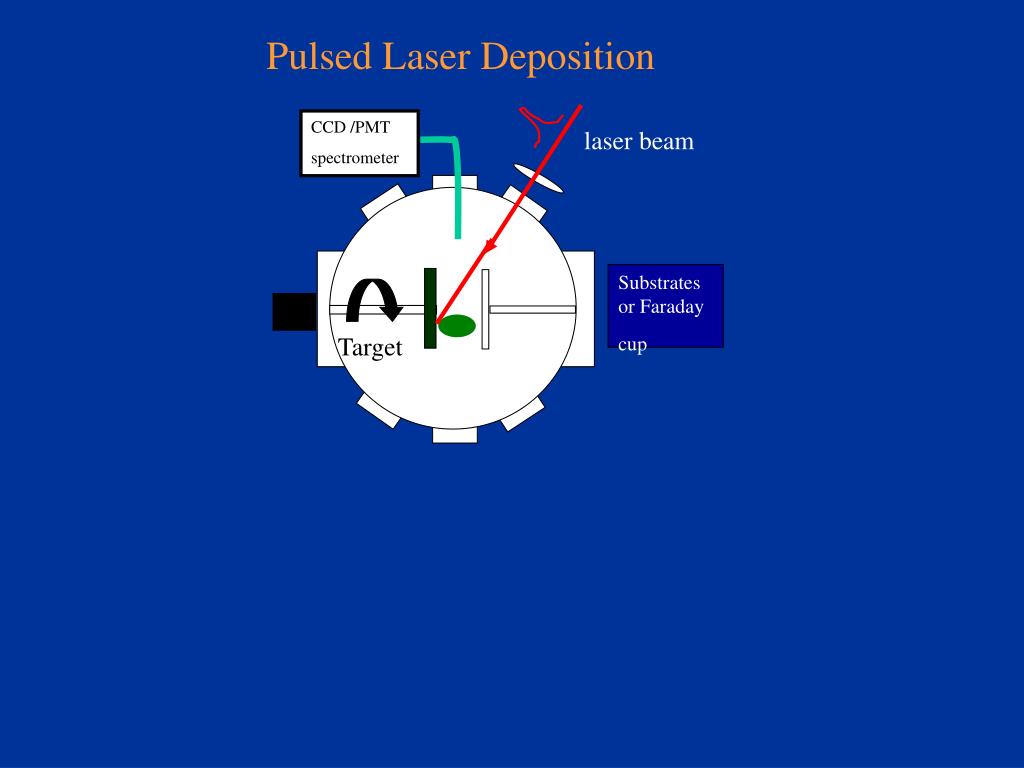

  8. Pulsed Laser Deposition CCD /PMT spectrometer laser beam Substrates or Faraday cup Target

  9. Pulsed Laser Deposition CCD /PMT spectrometer laser beam Substrates or Faraday cup Target Target: Just about anything! (metals, semiconductors…) Laser: Typically excimer (UV, 10 nanosecond pulses) Vacuum: Atmospheres to ultrahigh vacuum

  10. Advantages of PLD • Flexible, easy to implement • Growth in any environment • Exact transfer of complicated materials (YBCO) • Variable growth rate • Epitaxy at low temperature • Resonant interactions possible (i.e., plasmons in metals, absorption peaks in dielectrics and semiconductors) • Atoms arrive in bunches, allowing for much more controlled deposition • Greater control of growth (e.g., by varying laser parameters)

  11. Disadvantages of PLD • Uneven coverage • High defect or particulate concentration • Not well suited for large-scale film growth • Mechanisms and dependence on parameters not well understood

  12. Processes in PLD Laser pulse

  13. e- e- e- e- e- e- e- e- e- e- e- e- e- e- Processes in PLD Electronic excitation

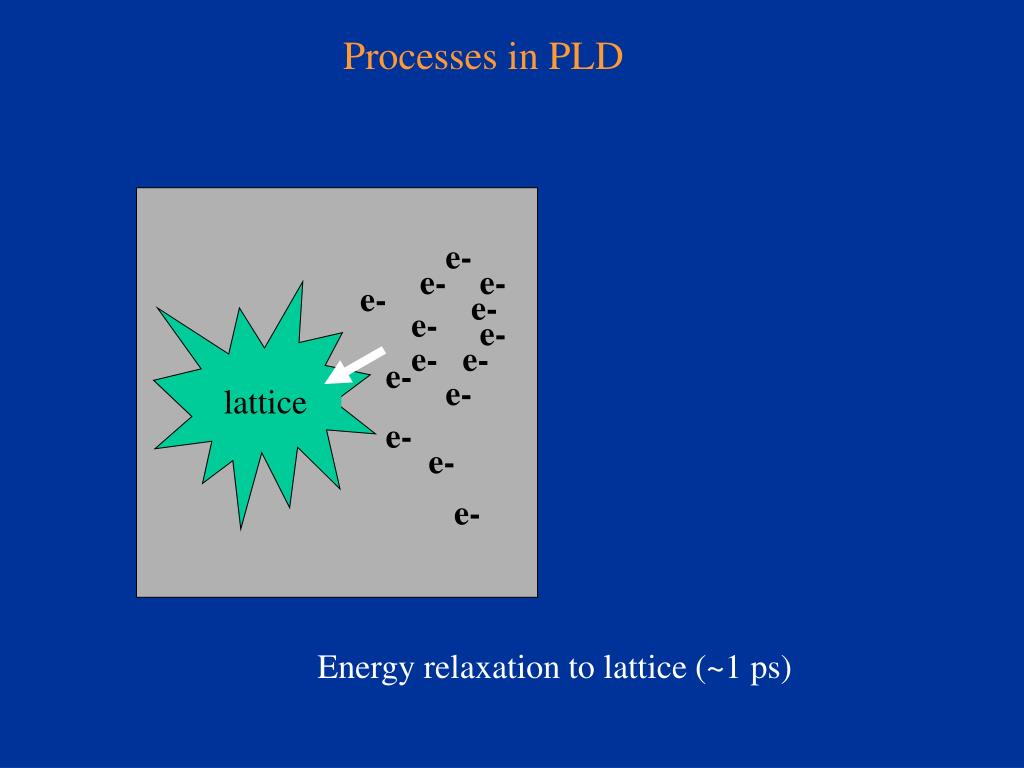

  14. Processes in PLD e- e- e- e- e- e- e- e- e- e- e- lattice e- e- e- Energy relaxation to lattice (~1 ps)

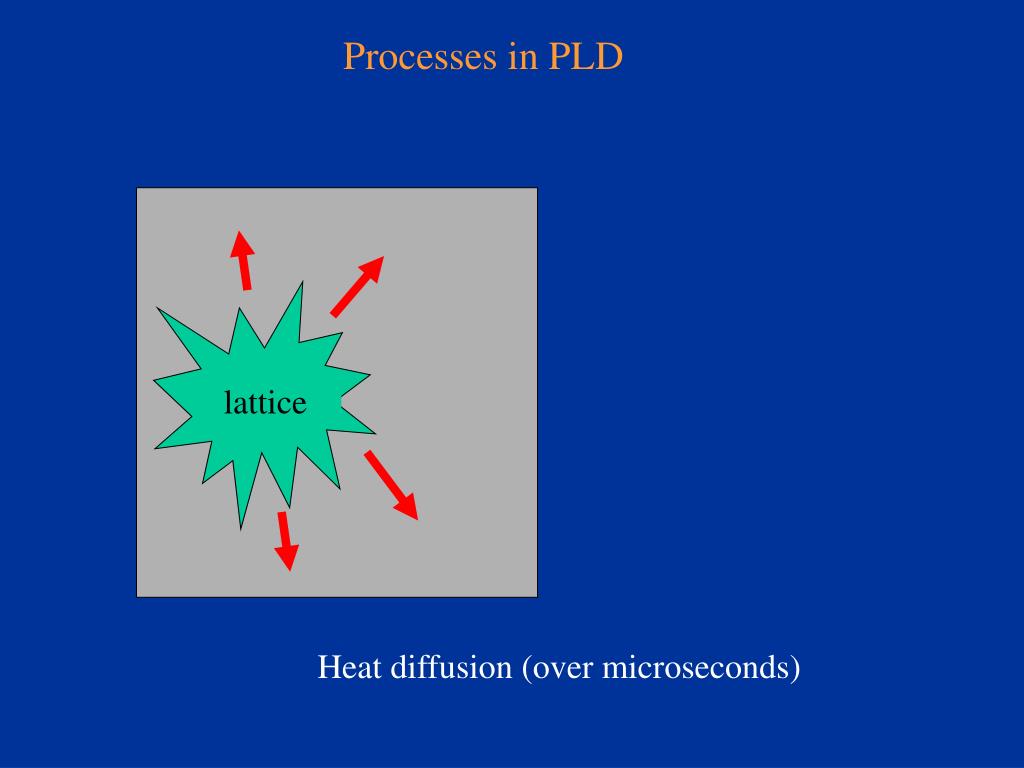

  15. Processes in PLD lattice Heat diffusion (over microseconds)

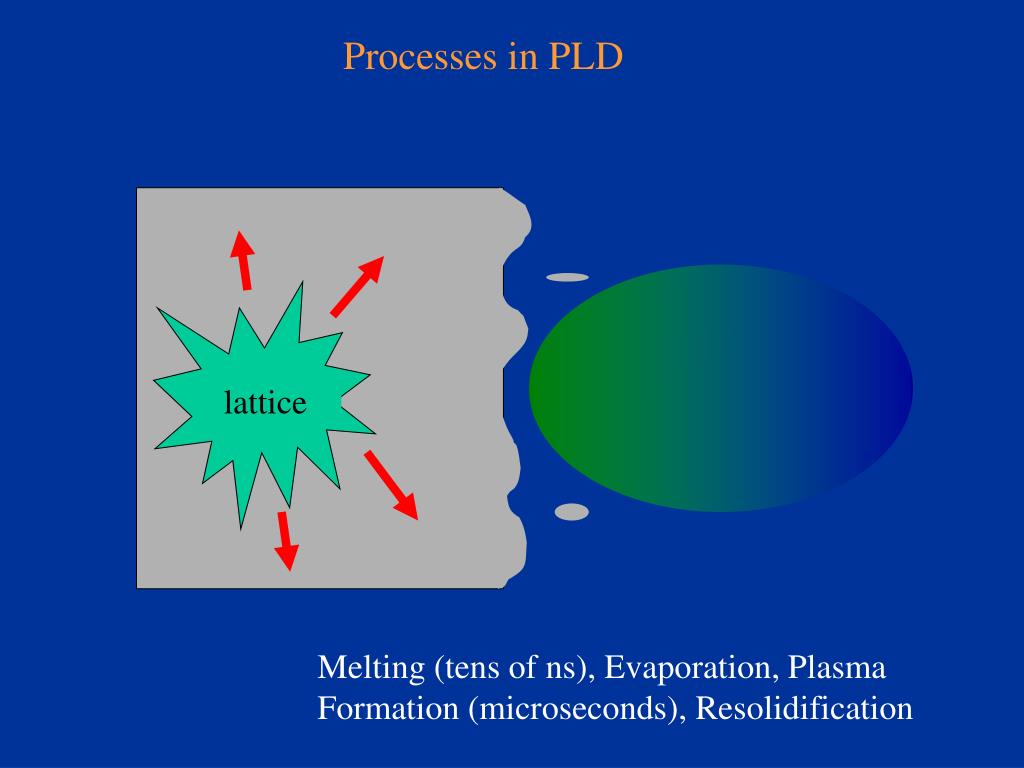

  16. Processes in PLD lattice Melting (tens of ns), Evaporation, Plasma Formation (microseconds), Resolidification

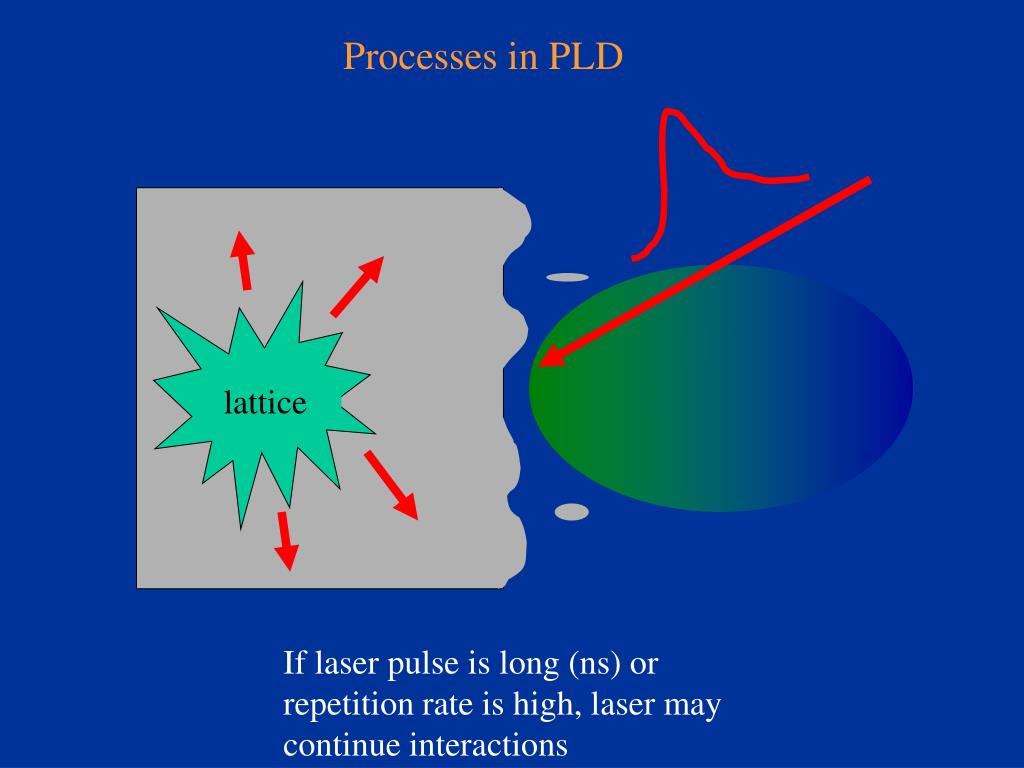

  17. Processes in PLD lattice If laser pulse is long (ns) or repetition rate is high, laser may continue interactions

  18. Processes in Pulsed Laser Deposition • 1. Absorption of laser pulse in material • Qab=(1-R)Ioe-aL • (metals, absorption depths ~ 10 nm,depends on l) • 2. Relaxation of energy (~ 1 ps) (electron-phonon interaction) • 3. Heat transfer, Melting and Evaporation • when electrons and lattice at thermal equilibrium (long pulses) • use heat conduction equation: • (or heat diffusion model)

  19. Processes in Pulsed Laser Deposition 4. Plasma creation threshold intensity: goverened by Saha equation: 5. Absorption of light by plasma, ionization (inverse Bremsstrahlung) 6. Interaction of target and ablated species with plasma 7. Cooling between pulses (Resolidification between pulses)

  20. Incredibly Non-Equilibrium!!! At peak of laser pulse, temperatures on target can reach >105 K (> 40 eV!) Electric Fields > 105 V/cm, also high magnetic fields Plasma Temperatures 3000-5000 K Ablated Species with energies 1 –100 eV

  21. PLD with Ultrafast Pulses (< 1 picosecond) see Stuart et al., Phys. Rev. B, 53 1749 (1996) A new research area! If the pulse width < electron lattice-relaxation time, heat diffusion, melting significantly reduced! Means cleaner holes and cleaner ablation Direct conversion of solid to vapor, less plasma formation Reactive chemistry: energetic ions, ionized nitrogen, high charge states Leads to less target damage (cleaner holes), and smoother films (less particulates)

  22. PLD with Ultrafast Pulses (< 1 picosecond) see Stuart et al., Phys. Rev. B, 53 1749 (1996) A new research area! If the pulse width < electron lattice-relaxation time, heat diffusion, melting significantly reduced! Means cleaner holes and cleaner ablation Direct conversion of solid to vapor, less plasma formation Reactive chemistry: energetic ions, ionized nitrogen, high charge states Leads to less target damage (cleaner holes), and smoother films (less particulates) t < 10 ps Electrons photoionized, collisional and multiphoton ionization Plasma formation with no melting Deviation from t1/2 scaling t> 50 ps Conventional melting, boiling and fracture Threshold fluence for ablation scales as t1/2

  23. 20 ns EXCIMER versus 1 ps TJNAF-FEL Cobalt ~20 mJ/pulse, 20 ns, 308 nm, 25 Hz, 1 x 10-5 Torr Steel, ~20 mJ/pulse, 18 MHz, 3.1 micron 1 x 10-2 Torr, 60 Hz pulsed, rastered beam Less melting! TARGET Few particulates! for Nb: < 1 per cm-2 FILM (deposited onsilicon) SEMs by B. Robertson, T. Wang, TJNAF

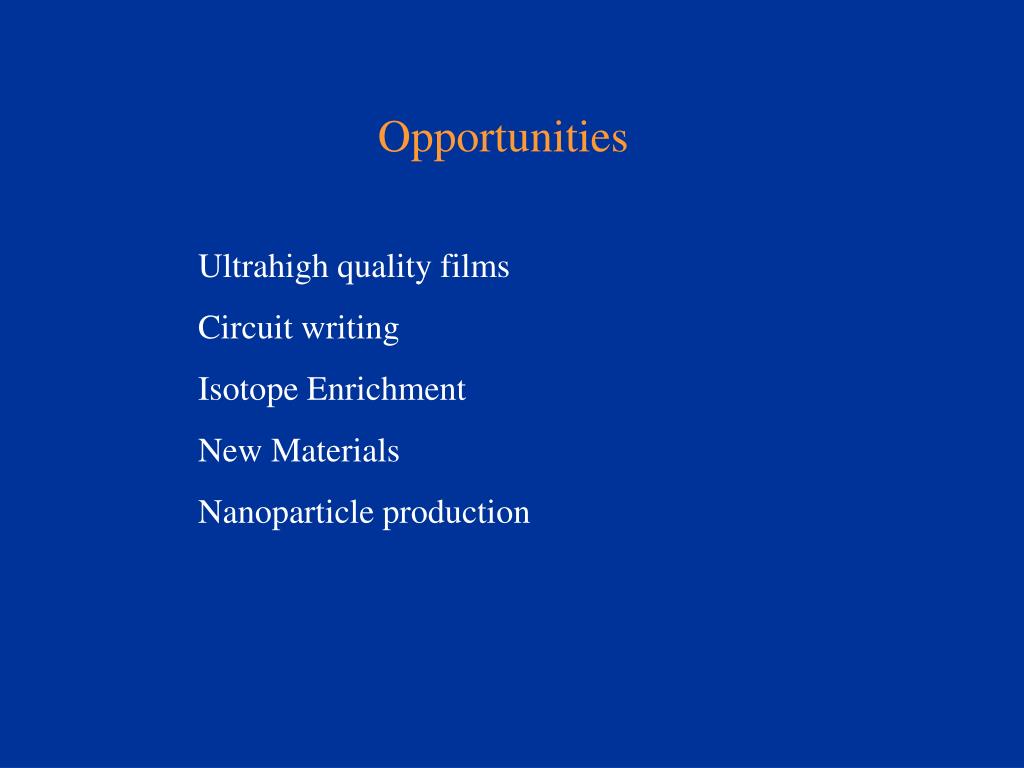

  24. Opportunities Ultrahigh quality films Circuit writing Isotope Enrichment New Materials Nanoparticle production

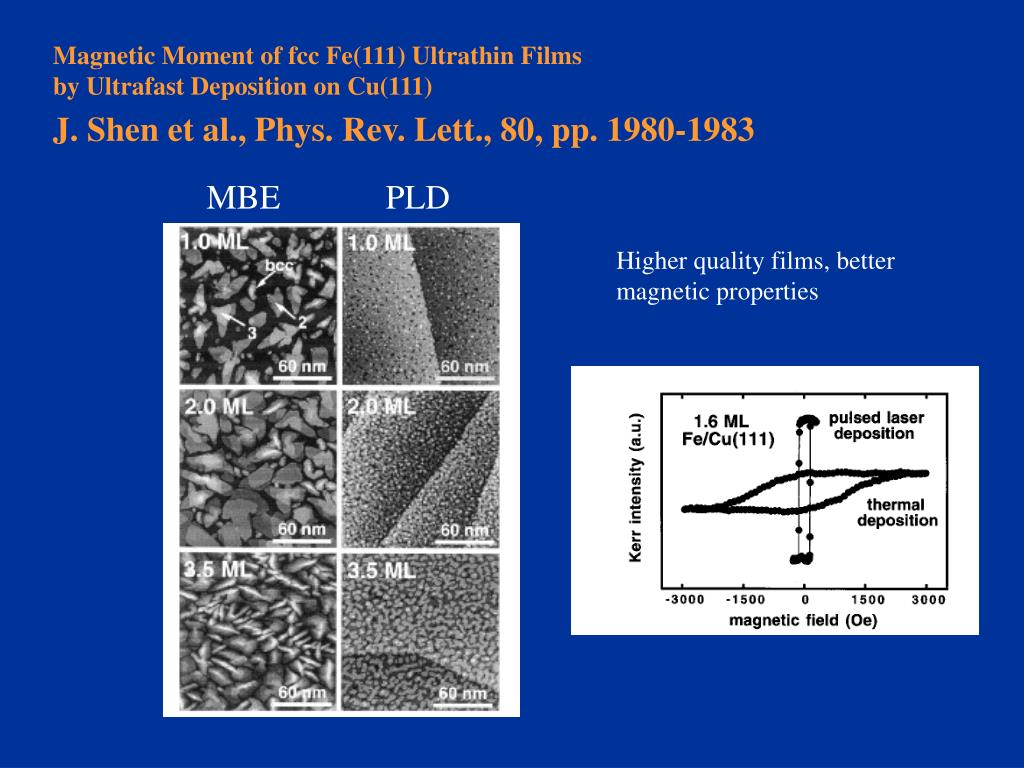

  25. Magnetic Moment of fcc Fe(111) Ultrathin Films • by Ultrafast Deposition on Cu(111) • J. Shen et al., Phys. Rev. Lett., 80, pp. 1980-1983 MBE PLD Higher quality films, better magnetic properties

  26. MICE • Direct writing of electronic components- in air! • Rapid process refinement • No masks, preforms, or long cycle times • True 3-D structure fabrication possible • Single laser does surface pretreatment, spatially selective material deposition, surface annealing ,component trimming, ablative micromachining, dicing and via-drilling

  27. Isotope Enrichment in Laser-Ablation Plumes and Commensurately Deposited Thin Films • P. P. Pronko, et al. Phys Rev. Lett., 83, pp. 2596-2599 Over twice the natural enrichment of B10/B11, Ga69/Ga71 in BN and GaN films Plasma centrifuge by toroidal and axial magnetic fields of 0.6MG!

  28. Transient States of Matter during Short Pulse Laser Ablation K. Sokolowski-Tinten et al.,Phys. Rev. Lett., 81, pp. 224-227 Fluid material state of high index of refraction, optically flat surface

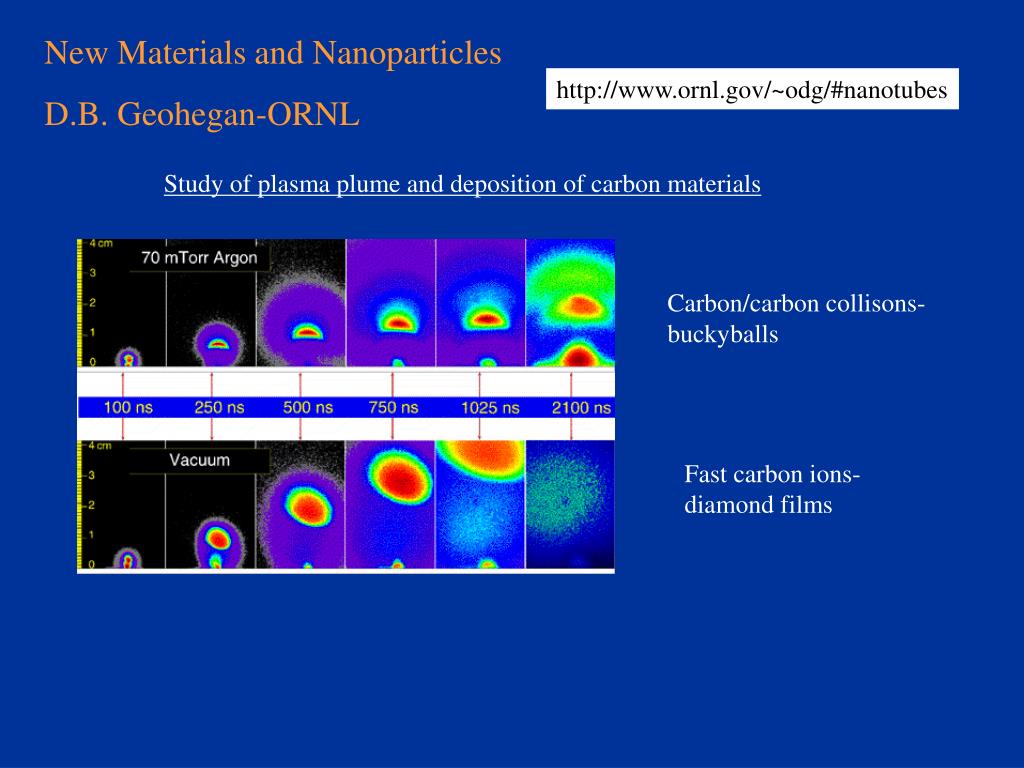

  29. New Materials and Nanoparticles D.B. Geohegan-ORNL http://www.ornl.gov/~odg/#nanotubes Study of plasma plume and deposition of carbon materials Carbon/carbon collisons-buckyballs Fast carbon ions- diamond films

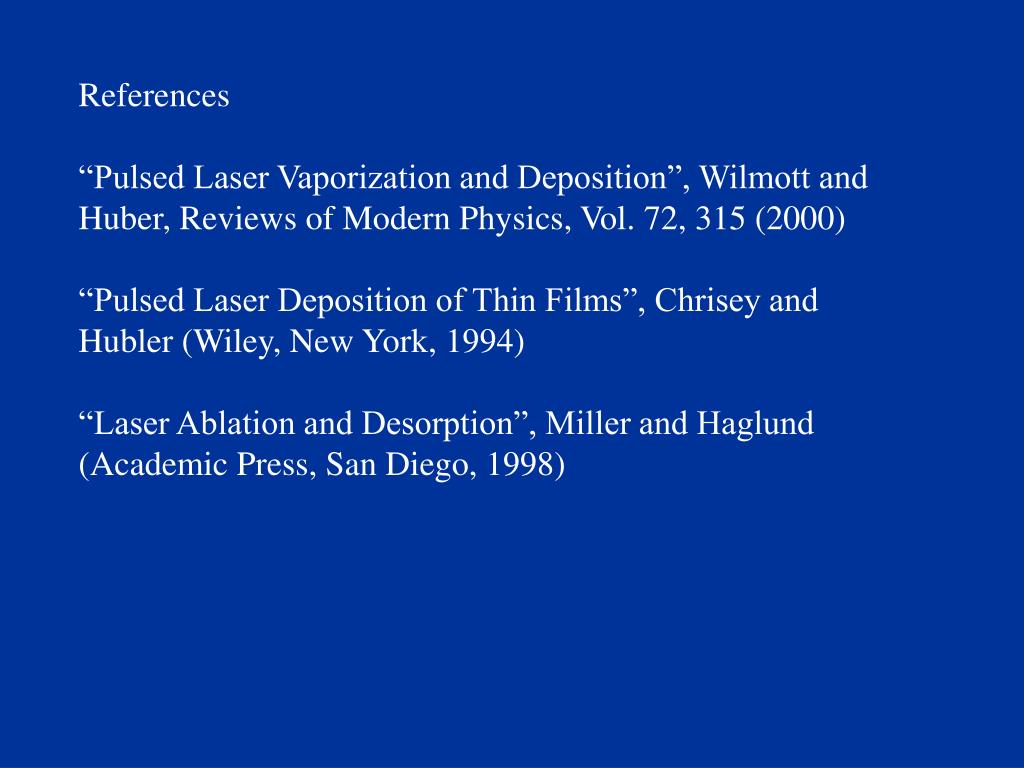

  30. References “Pulsed Laser Vaporization and Deposition”, Wilmott and Huber, Reviews of Modern Physics, Vol. 72, 315 (2000) “Pulsed Laser Deposition of Thin Films”, Chrisey and Hubler (Wiley, New York, 1994) “Laser Ablation and Desorption”, Miller and Haglund (Academic Press, San Diego, 1998)
