Biological Molecules: Carbohydrates, Lipids, Proteins, Nucleic Acids

Learn about the diverse functions and structures of key biological molecules: carbohydrates for energy, lipids for storage, proteins for cellular functions, and nucleic acids for genetic information.

mendozad
Download Presentation

Biological Molecules: Carbohydrates, Lipids, Proteins, Nucleic Acids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

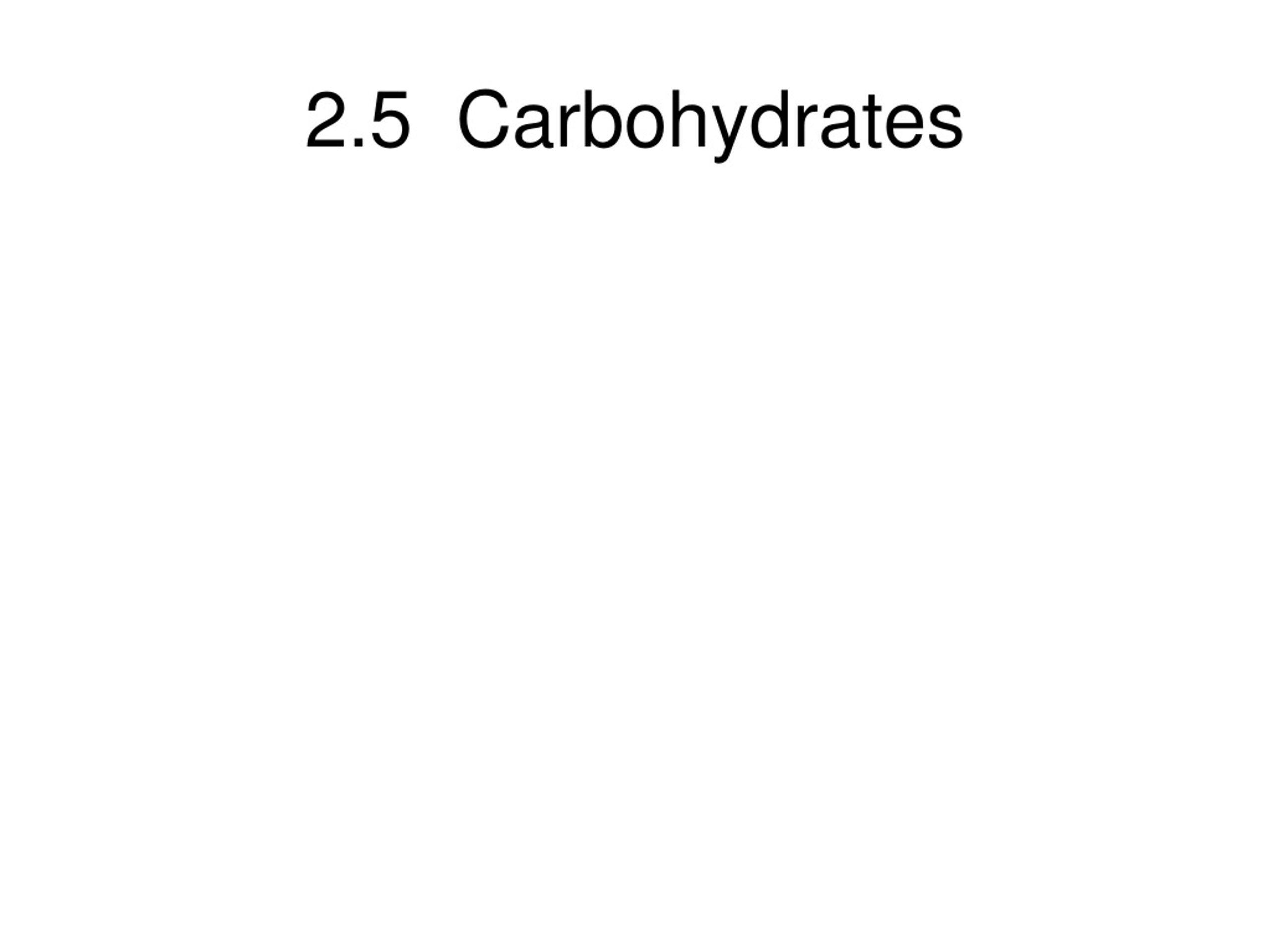

  1. 2.5 Carbohydrates

  2. 2.5 Carbohydrates • Some Functions: • Quick fuel • Short-term energy storage • Structure of organisms • Cell to cell recognition

  3. 2.5 Carbohydrates • Simple Carbohydrates

  4. 2.5 Carbohydrates • Simple Carbohydrates • Monosaccharides are sugars with 3 - 7 carbon atoms

  5. 2.5 Carbohydrates • Simple Carbohydrates • Monosaccharides are sugars with 3 - 7 carbon atoms • Pentose refers to a 5-carbon sugar • Hexose refers to a 6-carbon sugar

  6. 2.5 Carbohydrates Three ways to represent the structure of glucose.

  7. 2.5 Carbohydrates • Disaccharides contain two monosaccharides.

  8. 2.5 Carbohydrates • Polysaccharidesare long polymers that contain many glucose subunits.

  9. 2.5 Carbohydrates • Polysaccharidesare long polymers that contain many glucose subunits. • Starchis the storage form of glucose in plants.

  10. 2.5 Carbohydrates • Polysaccharidesare long polymers that contain many glucose subunits. • Starch is the storage form of glucose in plants. • Glycogen is the storage form of glucose in animals.

  11. 2.5 Carbohydrates • Polysaccharidesare long polymers that contain many glucose subunits. • Starchis the storage form of glucose in plants. • Glycogen is the storage form of glucose in animals. • Cellulose can be found in the cell walls of plants.

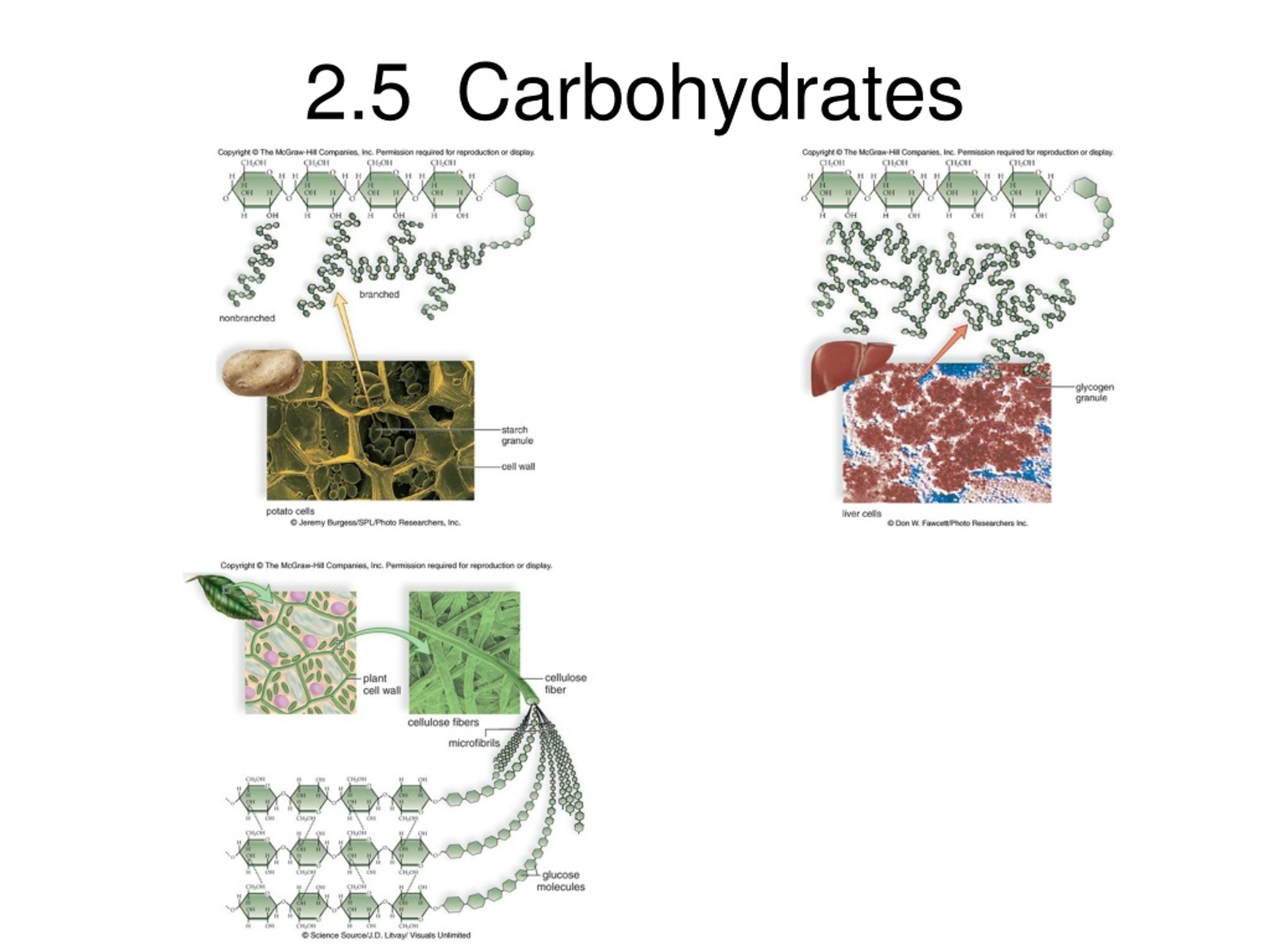

  12. 2.5 Carbohydrates

  13. 2.6 Lipids

  14. 2.6 Lipids • Some Functions: • Energy Storage • Found in the plasma membrane • Component of steroid hormones Lipids do not dissolve in water

  15. 2.6 Lipids • Some Functions: • Energy Storage • Found in the plasma membrane • Component of steroid hormones Lipids do not dissolve in water Lipids are electrically neutral

  16. 2.6 Lipids • Fats and Oils

  17. 2.6 Lipids • Fats and Oils • Fats • Usually of animal origin • Solid at room temperature

  18. 2.6 Lipids • Fats and Oils • Fats • Usually of animal origin • Solid at room temperature

  19. 2.6 Lipids • Fats and Oils • Fats • Usually of animal origin • Solid at room temperature • Oils • Usually of plant origin • Liquid at room temperature

  20. 2.6 Lipids • Functions of Fats

  21. 2.6 Lipids • Functions of Fats • Long-term energy storage • Insulation against heat loss • Protection of major organs

  22. 2.6 Lipids Synthesis and degradation of a fat molecule

  23. 2.6 Lipids Emulsification

  24. 2.6 Lipids • Saturated and Unsaturated Fatty Acids

  25. 2.6 Lipids • Saturated and Unsaturated Fatty Acids • Fatty acids are hydrocarbon chains that end with -COOH.

  26. 2.6 Lipids • Saturated and Unsaturated Fatty Acids • Fatty acids are hydrocarbon chains that end with -COOH. • Saturated fatty acids: No double covalent bonds between carbon atoms • Unsaturated fatty acids: Double bonds between carbon atoms

  27. 2.6 Lipids Saturated Fatty Acid Unsaturated Fatty Acid

  28. 2.6 Lipids • Phospholipids

  29. 2.6 Lipids • Phospholipids • Comprised of 2 fatty acids + a phosphate group • Primary components of cellular membranes

  30. 2.6 Lipids

  31. 2.6 Lipids • Steroids

  32. 2.6 Lipids • Steroids • All steroids have four adjacent rings.

  33. 2.6 Lipids • Steroids • All steroids have four adjacent rings. • Examples: • Cholesterol • Testosterone • Estrogen

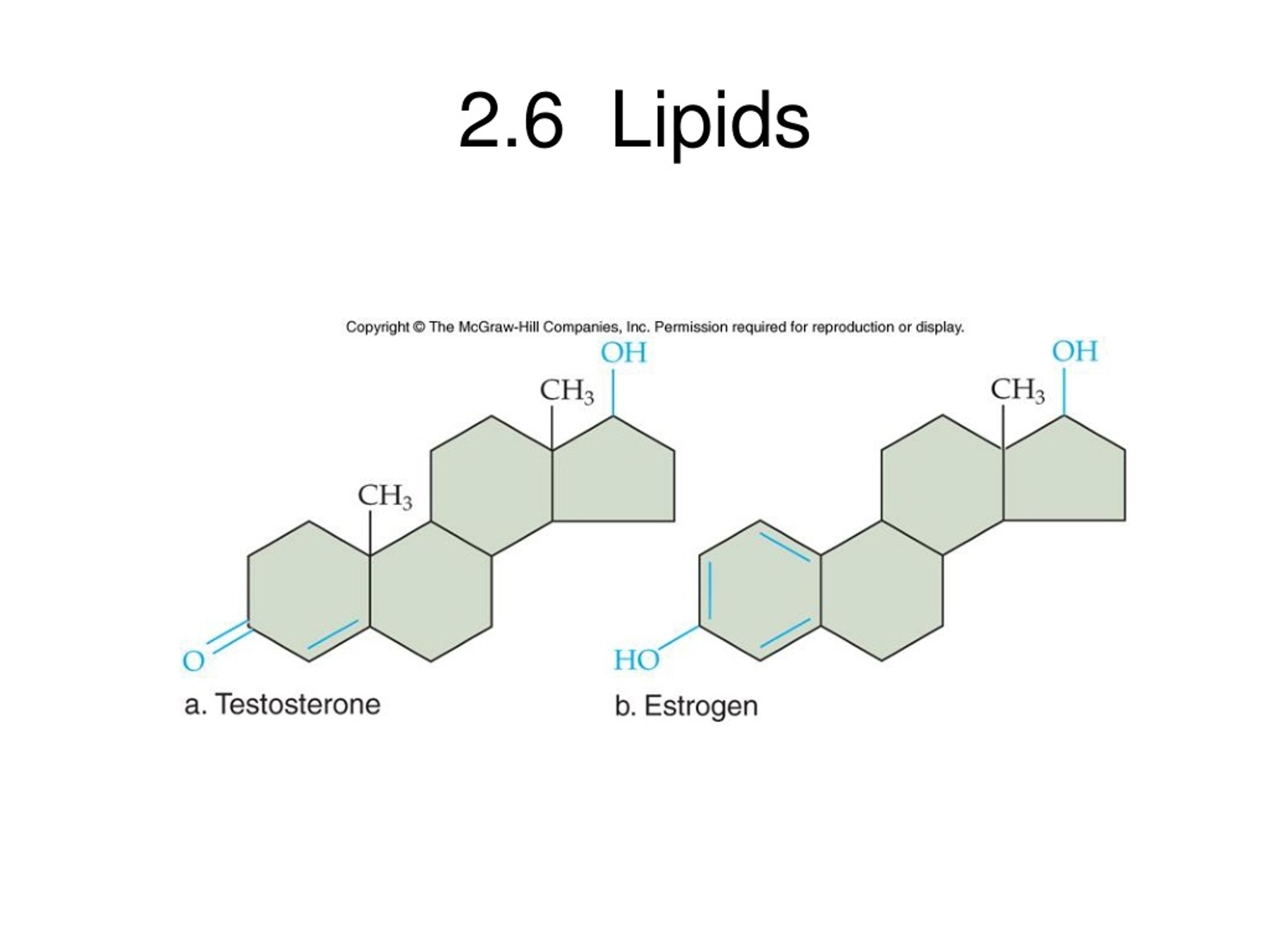

  34. 2.6 Lipids

  35. 2.7 Proteins • Proteins have important functions in cells. • Proteins such as keratin and collagen have structural roles. • Proteins are also enzymes that speed up the chemical reactions of metabolism. • Proteins such as hemoglobin are responsible for the transport of substances within the body. • Proteins also transport substances across cell membranes.

  36. 2.7 Proteins • Proteins have important functions in cells. • Proteins form the antibodies of the immune system that defend the body from disease. • Proteins such as insulin are hormones that regulate cellular function. • Contractile proteins such as actin and myosin allow parts of cells to move and muscles to contract.

  37. 2.7 Proteins • Proteins are comprised of amino acids.

  38. 2.7 Proteins • Amino acids • Amino group (-NH2) • Acidic group (-COOH) • R group (remainder)

  39. 2.7 Proteins

  40. 2.7 Proteins • Peptides • A polypeptide is a single chain of amino acids. • A peptide bond joins two amino acids.

  41. 2.7 Proteins

  42. 2.7 Proteins • Levels of Protein Organization • The structure of a protein has three or four levels of organization. • The final shape of a protein is very important to its function.

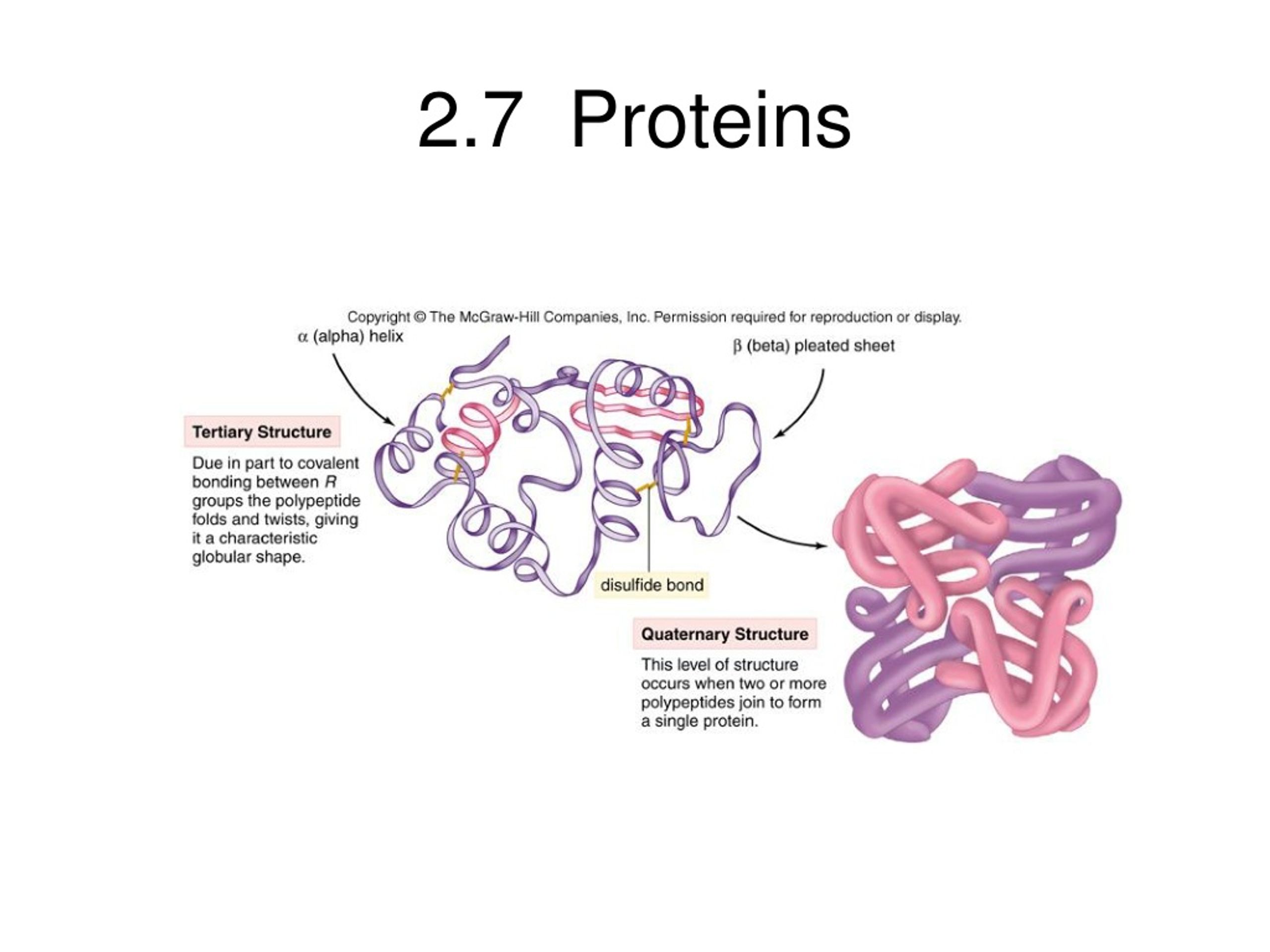

  43. 2.7 Proteins

  44. 2.7 Proteins

  45. 2.7 Proteins

  46. 2.8 Nucleic Acids • DNA (deoxyribonucleic acid)

  47. 2.8 Nucleic Acids • DNA (deoxyribonucleic acid) • RNA (ribonucleic acid)

  48. 2.8 Nucleic Acids • DNA stores genetic information. • DNA codes for the order of amino acids in a protein. • RNA is an intermediary in the sequencing of amino acids into a protein.

  49. 2.8 Nucleic Acids • Components of a nucleotide • Phosphate • Pentose sugar • Nitrogen-containing base

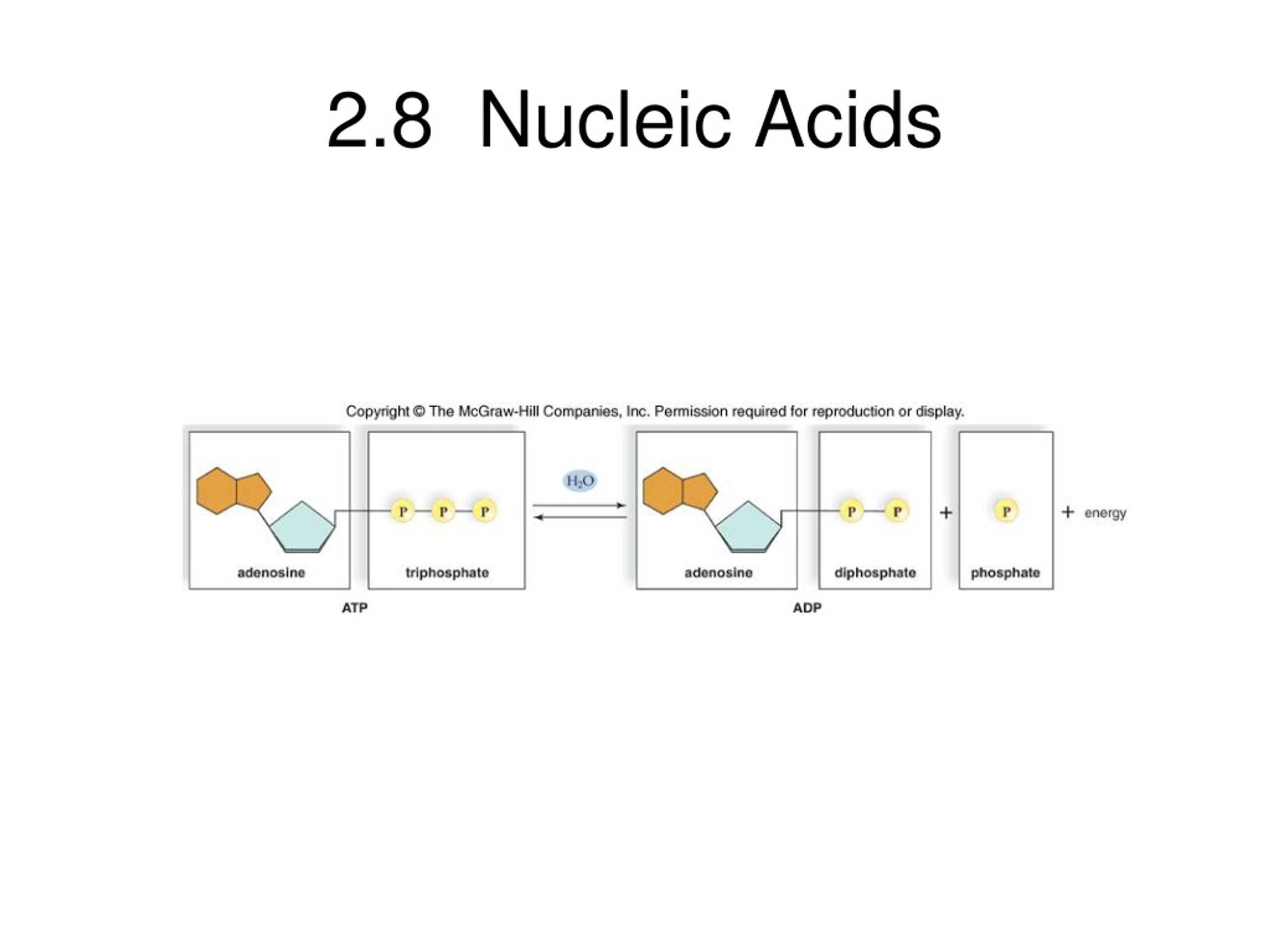

  50. 2.8 Nucleic Acids DNA Structure
