Stratigraphic column for megaregional cross section (
Download
1 / 6

The study area - PowerPoint PPT Presentation


  • 79 Views
  • Uploaded on

Stratigraphic column for megaregional cross section ( Figure 4 ), northern Gulf of Mexico Basin. Letters refer to the stratigraphic sequences defined by Feng (1995) for the deep Gulf of Mexico. The study area.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The study area' - melina


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
The study area



The study area

  • 1:1 depth section and sequential restorations of seismic profile C from regional study area (see Figure 3 for location). The restorations show the evolution of a central salt stock into a bowl-shaped minibasin, and how this evolution influenced petroleum migration pathways through time. Arrows represent petroleum migration pathways at the time of each restoration. Migration is believed to be vertical until it reaches the base of salt (in black), at which point it is deflected up the dip along the base of salt. Vertical migration is believed to resume when and where salt welds form. The evolution of salt concentrates petroleum migration in some regions through time, whereas salt shields suprasalt sediments from petroleum migration for significant amounts of time. Changes in length of suprasalt section show amounts of extension and contraction.


The study area

Generalized stratigraphic framework of the northern Gulf of Mexico Basin with reservoirs and probable source intervals highlighted. Modified from Piggott and Pulham (1993). MCSB = middle Cretaceous sequence boundary.


The study area

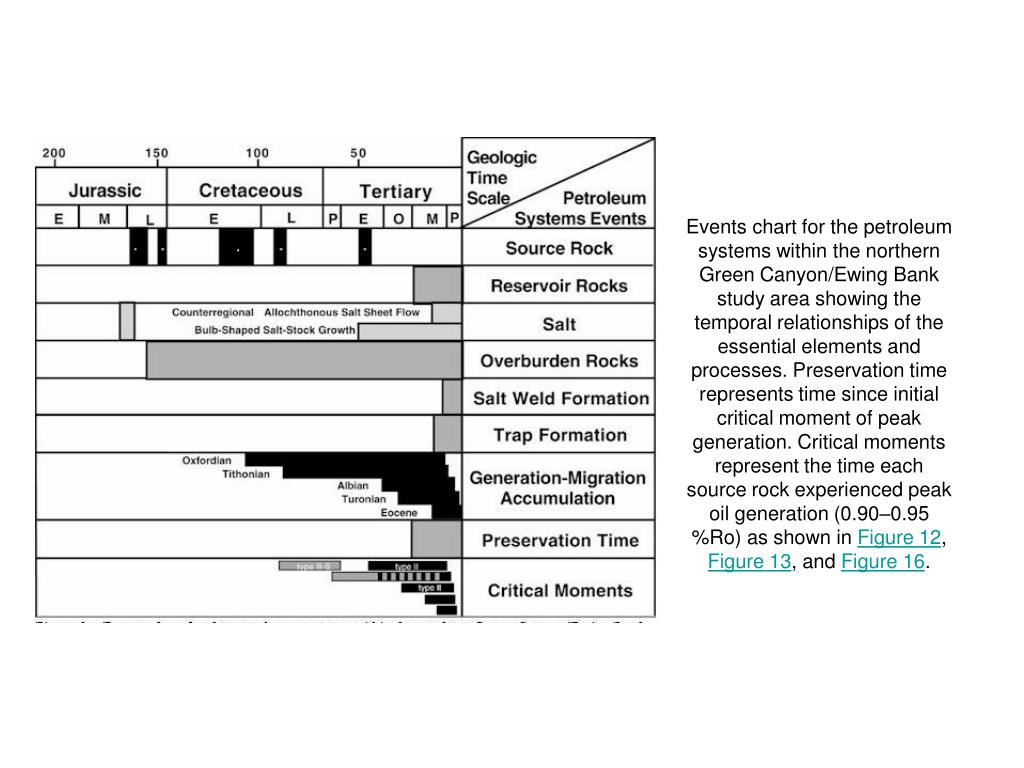

Events chart for the petroleum systems within the northern Green Canyon/Ewing Bank study area showing the temporal relationships of the essential elements and processes. Preservation time represents time since initial critical moment of peak generation. Critical moments represent the time each source rock experienced peak oil generation (0.90–0.95 %Ro) as shown in Figure 12, Figure 13, and Figure 16.
