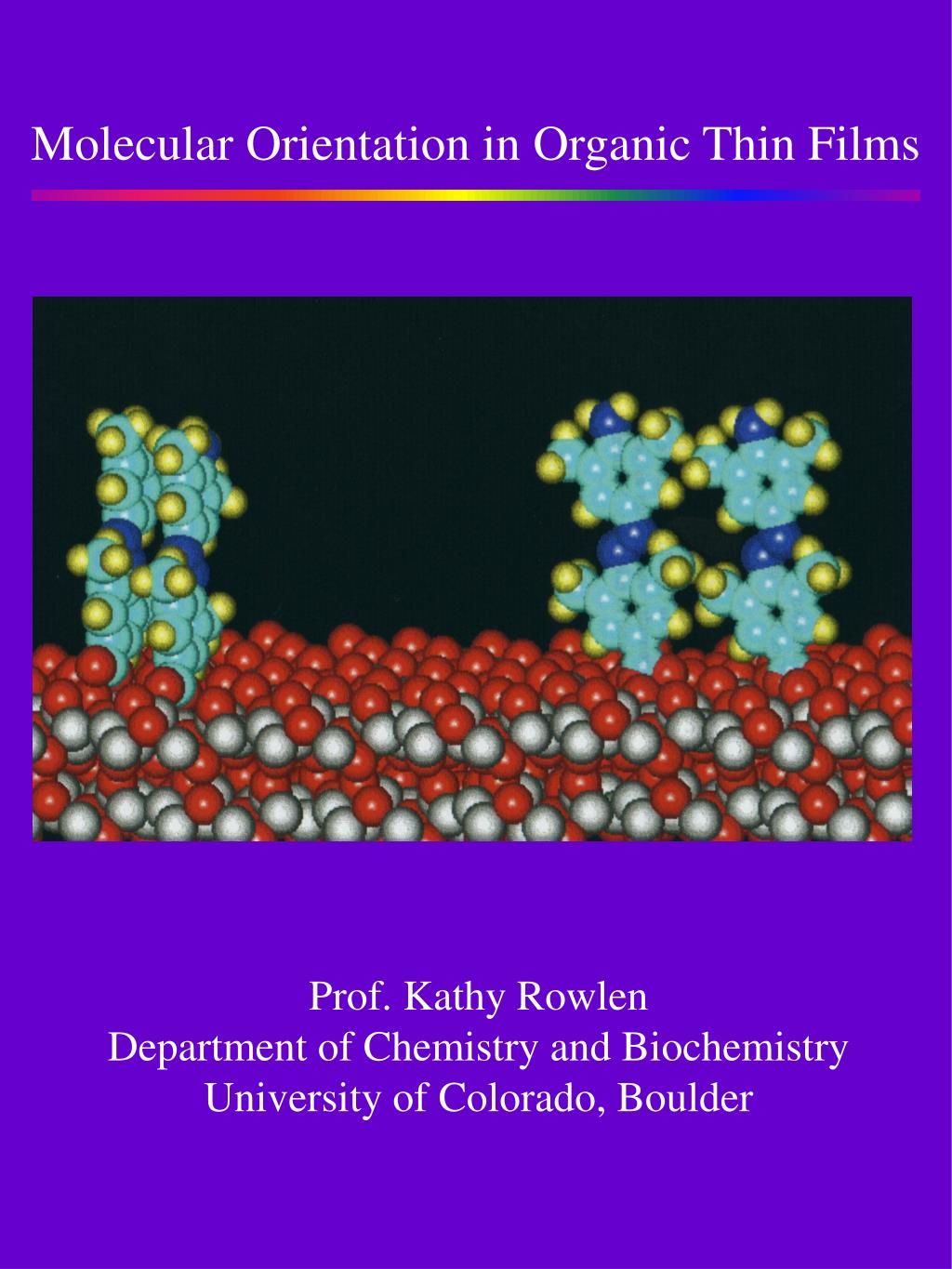

  1. Molecular Orientation in Organic Thin Films Prof. Kathy Rowlen Department of Chemistry and Biochemistry University of Colorado, Boulder

  2. Why study molecular orientation in thin films? • interfacial properties (optical, electronic and mechanical) • molecular interactions • organizational model for complex systems

  3. Questions to be addressed: • best means to probe molecular orientation? • does the substrate affect thin film characteristics? • how does molecular structure affect thin film characteristics? • does molecular orientation and organization vary with time and (or) coverage?

  4. Organization at Low Surface Coverage?

  5. Photoacoustic Spectroscopy A + hn A* A* A +heat

  6. Angle-Resolved Absorbance with Photoacoustic Detection (ARAPD) Lab Z-axis Incident Beam Molecular z'-axis qz'Z  Lab Y-axis 90 - g Lab X-axis Surface Plane For a long-axis transition moment:

  7. Katz et al. Science (1991) 254, 1485-1487 • Exhibited second harmonic generation • No linear dichroism • Apparent orientation angle (by SHG) ~ 45° • No change in orientation as layers added

  8. Evolution of Orientation in Multilayer Film

  9. Molecular Long Axis Orientation (as a function of number of layers)

  10. One “layer” 32°± 2° 15°± 1° Six “layers” “Self-Healing” ? • Questions: • How does the angular distribution change? • What is the effect of surface roughness?

  11. Local Surface Normal, s Lab Z-axis qsZ qsz' DZ L Substrate Roughness

  12. Effect of surface roughness on ARAPD (linear dichroism) measurements in which each value of Kij is equal to <cos2qij> and the subscripts indicate the relevant angle, such that qz'Z is the angle between the molecular orientation axis, z', and the macroscopic surface normal, Z.

  13. Error as a function of length scale

  14. Second Harmonic Generation 1064 nm 532 nm

  15. Z-axis Molecular Long Axis cosq q bzzz X-axis sinq Molecular Orientation by SHG cZZZ = Ns<cos3q>bzzz cZXX = (1/2)Ns<sin2q cosq >bzzz

  16. Effect of surface roughness on SHG

  17. Influence of Angular Distribution (on SHG determination of zZ) Common assumption:

  18. Influence of Angular Distribution (on SHG determination of zZ) Common asumption: Assume Gaussian distribution:

  19. SHG “Magic Angle”

  20. Legendre Polynomial (cos)

  21. SHG Magic Angle Sequence of events as angular distribution broadens • as <P3> approaches zero, SHG apparent tilt angle converges to 39.2° • as <P2> approaches zero, loss of linear dichroism • as <P1> approaches zero,loss of SHG intensity

  22. Reported orientation angles (by SHG) within 2 degrees of 39.2° 1) Heinz, T. F.; Tom, H. W. K.; Shen, Y. R. Phys. Rev. A1983, 28, 1883. 2) Grubb, S. G.; Kim, M. W.; Rasing, Th.; Shen, Y. R. Langmuir1988, 4, 452. 3) Campbell, D. J.; Higgins, D. A.; Corn, R. M. J. Phys. Chem. 1990, 94, 3681. 4) Shirota, K.; Kajikawa, K.; Takezoe, H.; Fukuda, A. Jpn. J. Appl. Phys.1990, 29, 750. 5) Li, DeQ.; Ratner, M. A.; Marks, T. J.; Zhang, C. H.; Yang, J.; Wong, G. K. J. Am. Chem. Soc. 1990, 112, 7389. 6) Bubeck, C.; Laschewsky, A.; Lupo, D.; Neher, D.; Ottenbreit, P.; Paulus, W.; Prass, W.; Ringsdorf, H.; Wegner, G. Adv. Mater.1991, 3, 54. 7) Liu, X.; Liu, L.; Chen, Z.; Lu, X.; Zheng, J.; Wang, W. Thin Solid Films1992, 219, 221. 8) Bell, A. J.; Frey, J. G.; VanderNoot, T. J. J. Chem. Soc. Faraday Trans.1992, 88, 2027. 9) Yitzchaik, S.; Roscoe, T. B.; Kakkar, A. K.; Allan, D. S.; Marks, T. J.; Xu, Z.; Zhang, T.; Lin, W.; Wong, G. K. J. Phys. Chem.1993, 97, 6958. 10) Nalwa, H. S.; Watanabe, T.; Nakajima, K.; Miyata, S. Thin Solid Films1993, 227, 205. 11) Higgins, D. A.; Naujok, R. R.; Corn, R. M. Chem. Phys. Lett.1993, 213, 485. 12) Yokoyama, S.; Yamada, T.; Kajikawa, K.; Kakimoto, M.; Imai, Y.; Takezoe, H.; Fukudo, A. Langmuir1994, 10, 4599. 13) Kezhi, W.; Chunhui, H.; Guangxian, X.; Xinsheng, Z.; Xiaming, X.; Lingge, X.; Tiankai, L. Thin Solid Films1994, 247, 1. 14) Naujok, R. R.; Higgins, D. A.; Hanken, D. G.; Corn, R. M. J. Chem. Soc. Faraday Trans.1995, 91, 1411. 15) Lin, W.; Yitzchaik, S.; Lin, W.; Malik, A.; Durbin, M. K.; Richter, A. G.; Wong, G. K.; Dutta, P.; Marks, T. J. Angew. Chem. Int. Ed. Engl.1995, 34, 1497. 16) Marks, T. J.; Ratner, M. A. Angew. Chem. Int. Ed. Engl.1995, 34, 155. 17) Roscoe, S. B.; Kakkar, A. K.; Marks, T. J.; Malik, A.; Durbin, M. K.; Lin, W.; Wong, G. K.; Dutta, P. Langmuir1996, 12, 4128. 18) Yokoyama, S.; Kakimoto, M.; Imai, Y.; Yamada, T.; Kajikawa, K.; Takezoe, H.; Fukuda, A. Thin Solid Films1996, 273, 254. 19) Zhang, T.; Feng, Z.; Wong, G. K.; Ketterson, J. B. Langmuir1996, 12, 2298.

  23. DM Nd:YAG DM PD QF GLP HWP DM Nd:YAG V DM PMT PD IR P IF QF GLP HWP L Combined SHG and ARAPD Total Internal Reflection Cell 2w w Piezo Inlet Outlet ARAPD SHG

  24. Physisorbed Stilbene Dye (DPB)

  25. Ellipsometry yields an average orientation angle of ~75° Assuming a 45 Å rod-like molecular length

  26. Angle-Resolved Photoacoustic Detection If a narrow distribution is assumed: Mean tilt angle ~ 72°± 3° (monolayer)

  27. SHG for Monolayer DPB Monolayer DPB If a narrow angular distribution is assumed the calculated orientation angle is 73°± 3°

  28. Mean and Angular Distribution For the DPB monolayer: ARAPD yields a tilt angle of 72°± 3° SHG yields a tilt angle of 73°± 3°

  29. For DPB, molecular long axis tilted ~70° with respect to surface normal, fairly narrow angular distribution.

  30. DPB Multilayer by ARAPD If a narrow distribution is assumed: Mean tilt angle ~ 72°± 3° (monolayer) Mean tilt angle ~ 53°± 0.9° (multilayer)

  31. DPB Multilayer by SHG If a narrow angular distribution is assumed the calculated orientation angle is 70°± 3°

  32. Mean and Angular Distribution For the DPB monolayer: ARAPD yields a tilt angle of 72°± 3° SHG yields a tilt angle of 73°± 3° For DPB multilayer: ARAPD yields a tilt angle of 53°± 0.9° SHG yields a tilt angle of 70°± 3°

  33. Covalent Molecular System: Azo Dye

  34. Water Contact Angle and Ellipsometry Ellipsometry indicates only 6.5 Å thickness, estimated 0.1 monolayer, 37 Å2 per molecule

  35. Combined SHG and ARAPD Results

  36. Mean and Angular Distribution Assuming a narrow distribution for ARAPD: 58° ± 2° for SHG: 46° ± 2°

  37. Mean and Angular Distribution Assuming a narrow distribution for ARAPD: 58° ± 2° for SHG: 46° ± 2° Linear Dichroism SHG

  38. Mean and Angular Distribution Assuming a narrow distribution for ARAPD: 58° ± 2° for SHG: 46° ± 2°

  39. Azo Dye with aminopropyl silane linker 57 °± 30°

  40. SHG for adsorption isotherms and adsorption / desorption kinetics • SHG intensity depends on both the number density and molecular orientation • Experimental geometry can be used to minimize sensitivity to orientation cZZZ = Ns<cos3q>bzzz cZXX = (1/2)Ns<sin2q cosq >bzzz

  41. Conventional SHG Adsorption Measurements • Single polarization combination (e.g., p-polarized  and 2 ), assume molecular orientation does not change with surface coverage • Orientation angle corrected (OAC) • Measurement of several polarization combinations at each concentration • Calculation of molecular orientation, , at each concentration (assuming narrow angular distribution) • Signal normalization • Construction of isotherm

  42. Theoretical p-polarized SHG response curves as a function of orientation angle (bzzz dominant)

  43. RMS deviation for p-polarized 2w (bzzz dominant) g*

  44. Test Case: Disperse Red 1 (in methylene chloride) Fused Silica

  45. Adsorption isotherm for DR-1 as determined by a variety of polarization conditions

  46. Apparent orientation angle as a function of concentration

  47. Adsorption isotherm for DR-1 after correcting for change in orientation

  48. Experimental constants obtained from Langmuir fit to adsorption isotherms IppIpsIs45Ip63 OAC Keq (M-1) 940 410 470 540 500 ± 40 ± 40 ± 50 ± 60 ± 40 DGads (kJ/mol) -16.8 -14.7 -15.1 -15.4 -15.2 ± 0.1 ± 0.3 ± 0.3 ± 0.3 ± 0.2 OAC = orientation angle corrected

  49. Future Directions Adsorption / Desorption Kinetics by SHG

  50. Thin Film Growth Mechanism
