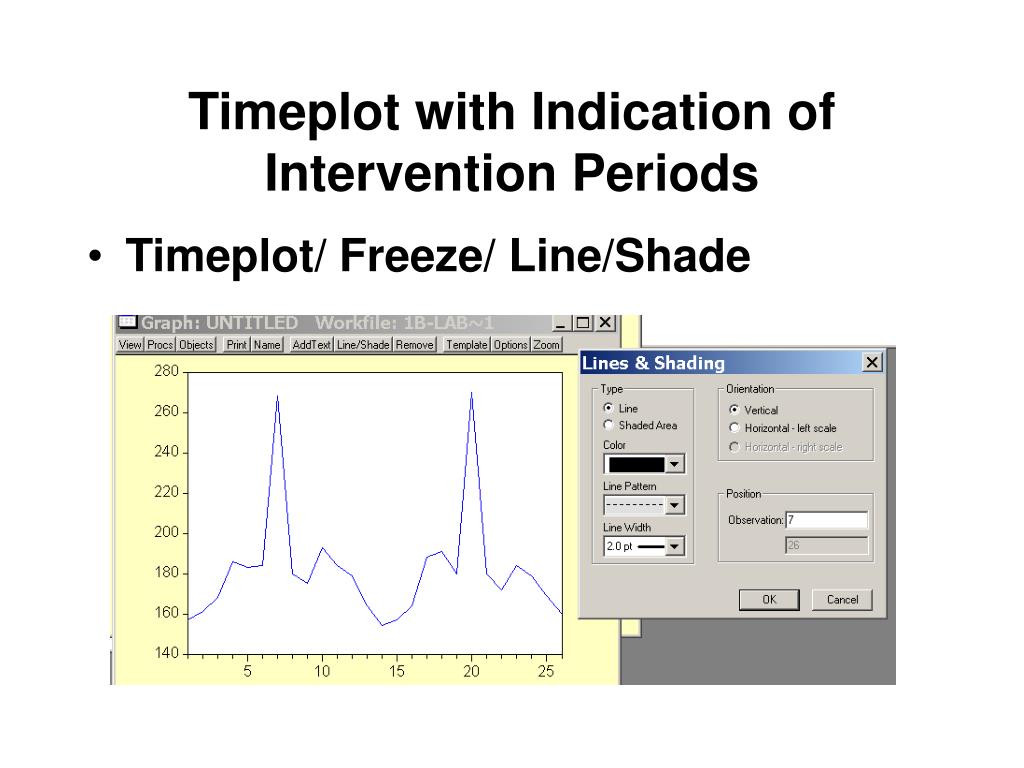

Regression for Time Series Data – Part II. Modeling the Dynamic Effect of Independent Variables. Intervention Analysis. Box and Tiao, 1975. Timeplot with Indication of Intervention Periods . Timeplot/ Freeze/ Line/Shade. Data Generating Process. Data t = Intervention Effect t + Noise t

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about '' - meadow

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Regression for time series data part ii l.jpg

Regression for Time Series Data – Part II

Modeling the Dynamic Effect of Independent Variables

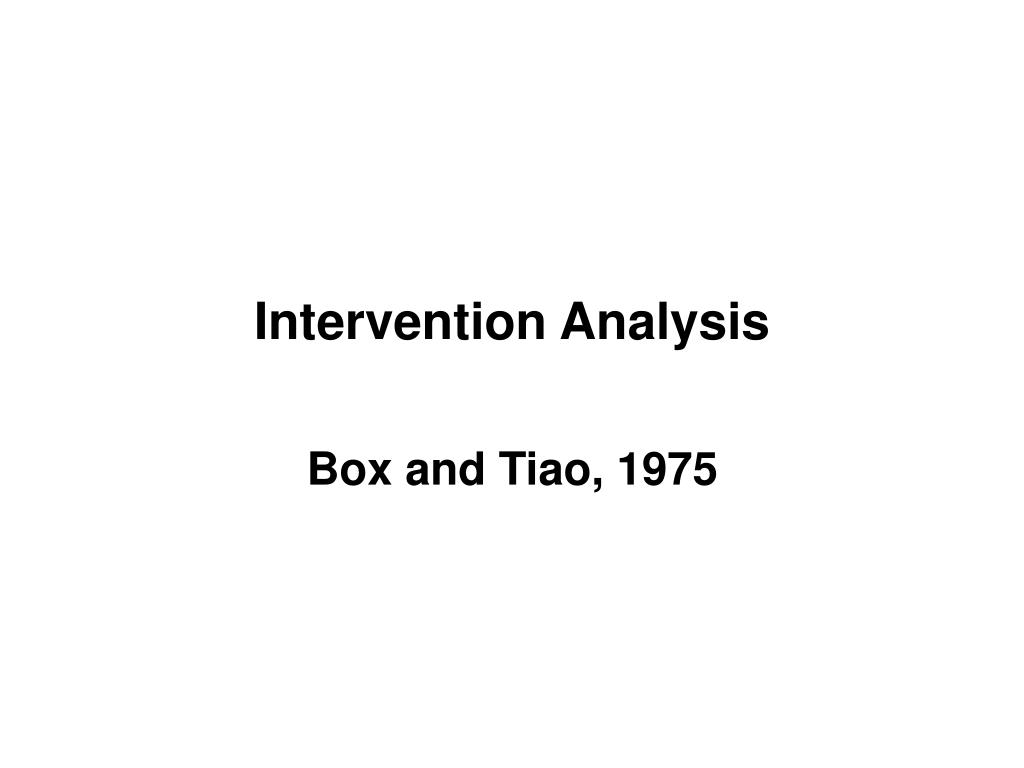

Intervention analysis l.jpg

Intervention Analysis

Box and Tiao, 1975

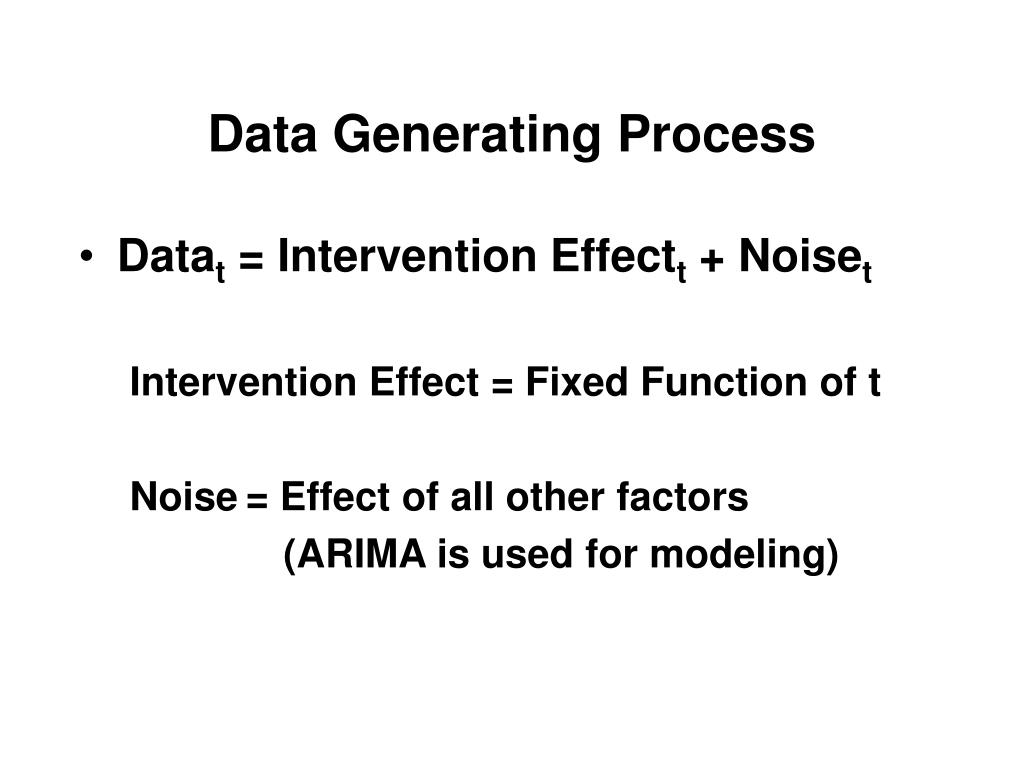

Data generating process l.jpg
Data Generating Process

  • Datat = Intervention Effectt + Noiset

    Intervention Effect = Fixed Function of t

    Noise= Effect of all other factors

    (ARIMA is used for modeling)

Intervention modeling strategy iterative trial and error box tiao l.jpg
Intervention Modeling Strategy:Iterative, Trial and Error - Box-Tiao

  • Frame a model for change which describes what is expected to occur given knowledge of the known intervention;

  • Work out the appropriate data analysis based on that model;

  • If diagnostic checks show no inadequacy in the model, make appropriate inferences; if serious deficiencies are uncovered, make appropriate model modification, repeat the analysis, etc.

Steps of intervention analysis l.jpg
Steps of Intervention Analysis

  • Define the series to represent the intervention

  • Formulate a “transfer function” that translates the series of intervention to a series of response

  • Identify a reasonable model for the noise

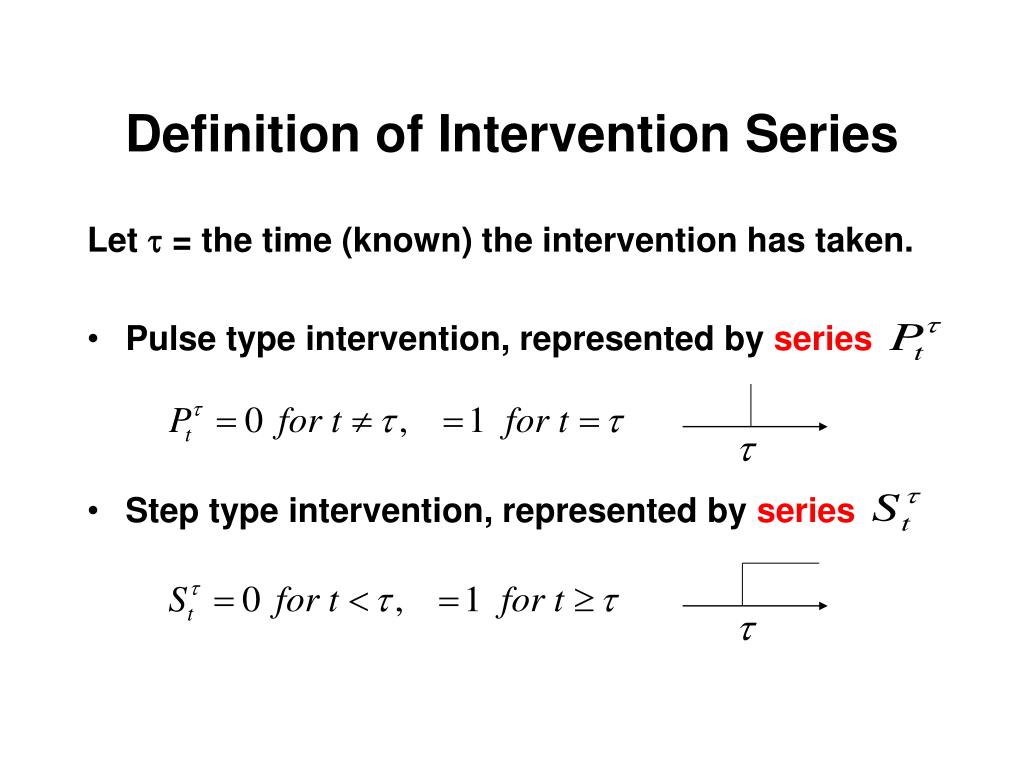

Definition of intervention series l.jpg
Definition of Intervention Series

Let t = the time (known) the intervention has taken.

  • Pulse type intervention, represented by series

  • Step type intervention, represented by series

Graph of the intervention effect l.jpg
Graph of the Intervention Effect

  • Excel workbook demonstration
