  1. Effect of Maintaining Wavelength Continuity on Minimizing Network Coding Resources in Optical Long-haul Networks Ramanathan S Thinniyam

  2. Approaches to Minimize Network Coding Resources • 2-Stage approach • Minimize link cost (i.e. # of wavelengths) required to maintain given connection through Integer Programming to obtain subgraph. • Minimize coding cost (i.e. # of coded wavelengths) in subgraph obtained from stage 1 using a Genetic Algorithm(GA). • Multi-Objective Evolutionary Approach(MOEA)- Obtain a Pareto front of tradeoffs between link cost and coding cost. Specifically, we use the NSGA –II algorithm* * K. Deb, A. Pratap, S. Agarwal, and T. Meyarivan, "A fast and elitist multiobjective genetic algorithm: NSGA-II",IEEE Trans. Evol. Comput.,6(2):182–197(2002).

  3. Wavelength Continuity Case 2 Case 1 • Assume routing- dashed lines not routed, solid lines routed. • In optical networks, O/E/O equipment can be used for both wavelength conversion as well to enable network coding. • If case 2 uses O/E/O equipment at node 1 to maintain wavelength continuity, we can also code at this node if coding is allowed. 1 1

  4. Simulation Results • We perform experiments based on two different assumptions: • Hardware allowing wavelength conversion present at every node, cost of such conversion is zero (i.e. cost-free conversion). • O/E/O equipment present when conversion is needed (i.e. O/E/O based conversion). The cost of one or both coding and conversion at a node (or of a wavelength) is the same.

  5. Results for O/E/O Based Continuity • The fitness criterion is changed from number of coded wavelengths to number of wavelengths requiring O/E/O. • # of wavelengths requiring O/E/O = # of solely converted wavelengths + # of coded wavelengths (coded wavelengths may or may not be converted). • Results from 2 stage approach • never reduce O/E/O requirement to 0, • the number of O/E/O wavelengths on average is much higher than the number of coded wavelengths in cost-free conversion. • The cost of continuity is more O/E/O equipment

  6. 2-Stage Approach Result 1- Average Network Coding Requirement • Fraction of nodes where O/E/O equipment is required is much larger than fraction of wavelengths, when optimizing using number of wavelengths as criterion.

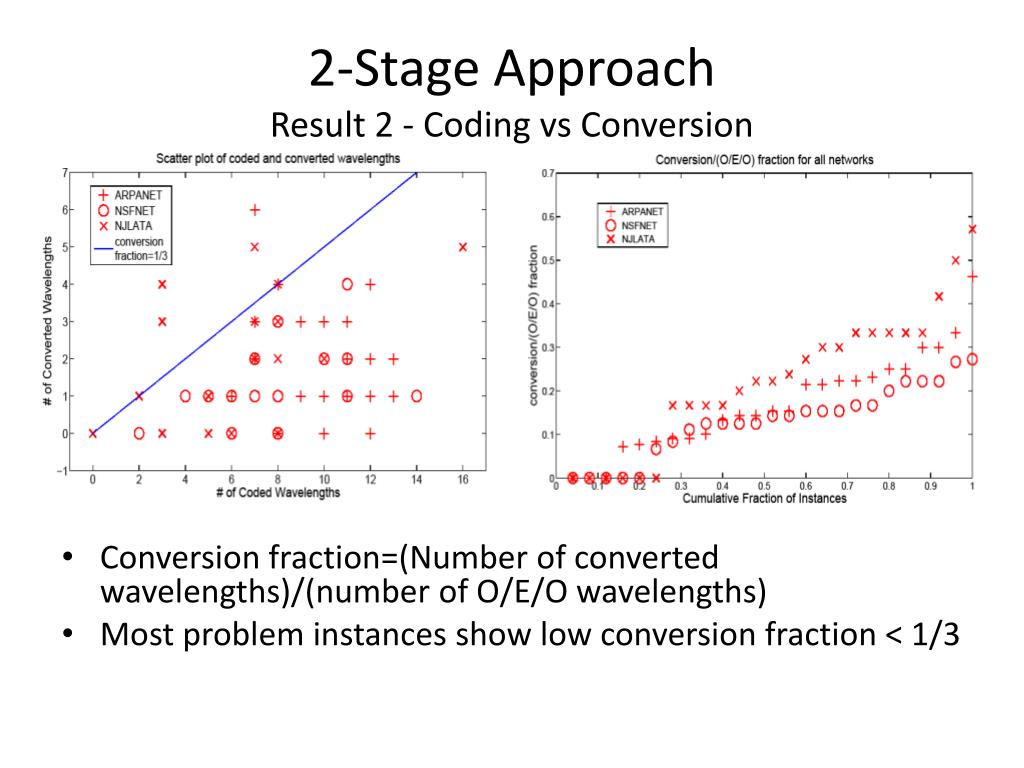

  7. 2-Stage Approach Result 2 - Coding vs Conversion • Conversion fraction=(Number of converted wavelengths)/(number of O/E/O wavelengths) • Most problem instances show low conversion fraction < 1/3

  8. 2-Stage Approach Result 3 -Distribution of Number of O/E/O Wavelengths

  9. 2-Stage Approach Result 3 -Distribution of Number of O/E/O Wavelengths

  10. 2-Stage ApproachResult 4a- Comparing Cost-free vs O/E/O

  11. 2-Stage Approach Result 4b - Comparing Cost-free vs O/E/O

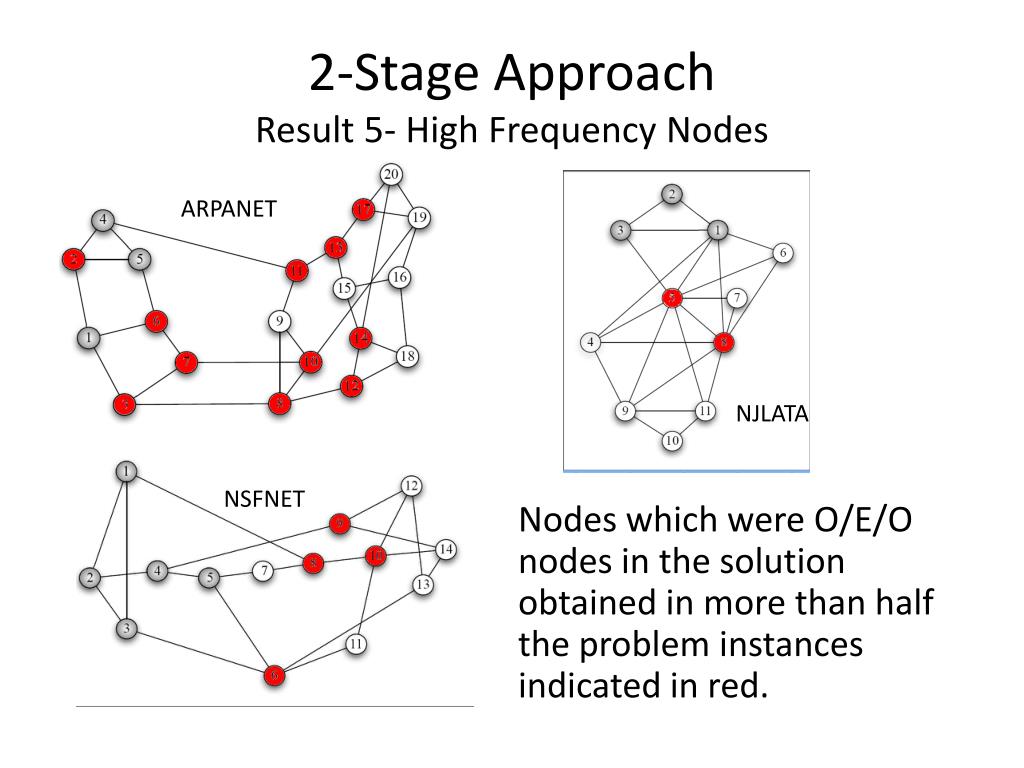

  12. 2-Stage ApproachResult 5- High Frequency Nodes Nodes which were O/E/O nodes in the solution obtained in more than half the problem instances indicated in red. ARPANET NSFNET NJLATA
