  1. Compounds • combination of two or more elements • molecular formulas for molecular compounds • empirical formulas for ionic compounds

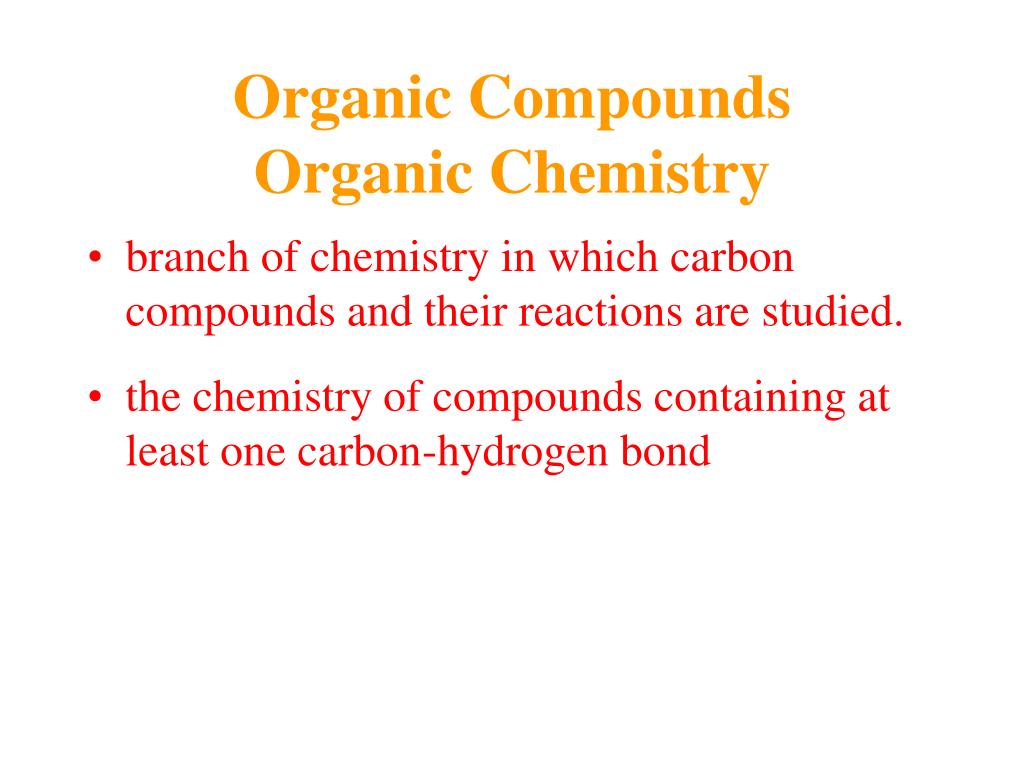

  2. Organic CompoundsOrganic Chemistry • branch of chemistry in which carbon compounds and their reactions are studied. • the chemistry of compounds containing at least one carbon-hydrogen bond

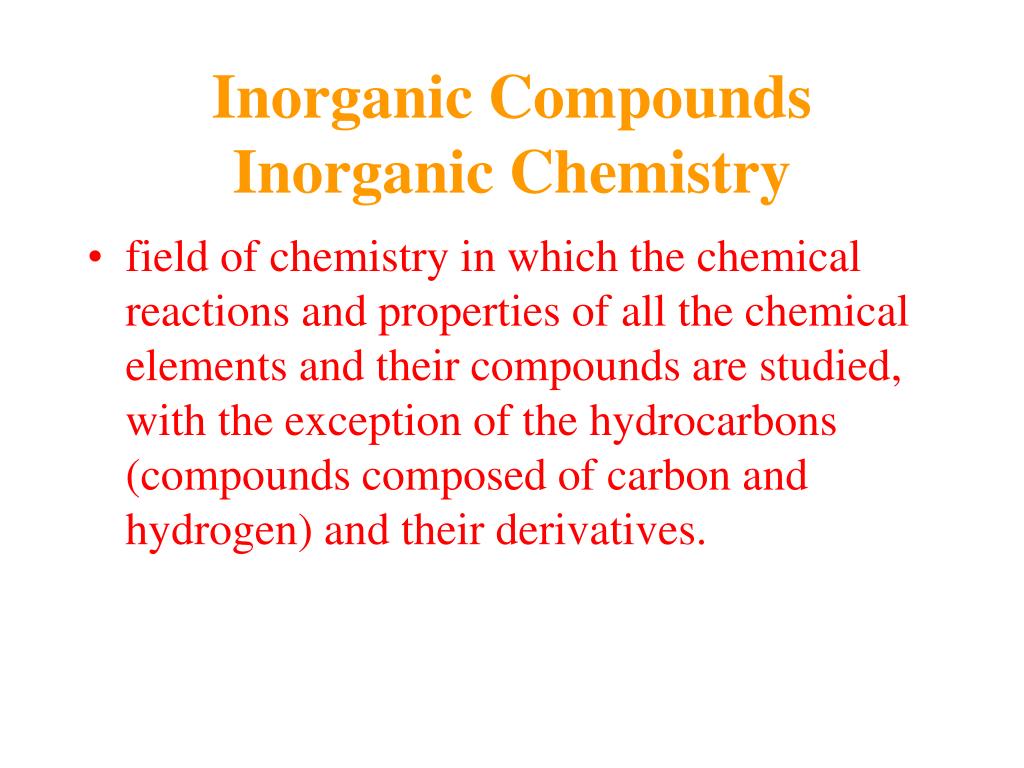

  3. Inorganic Compounds Inorganic Chemistry • field of chemistry in which the chemical reactions and properties of all the chemical elements and their compounds are studied, with the exception of the hydrocarbons (compounds composed of carbon and hydrogen) and their derivatives.

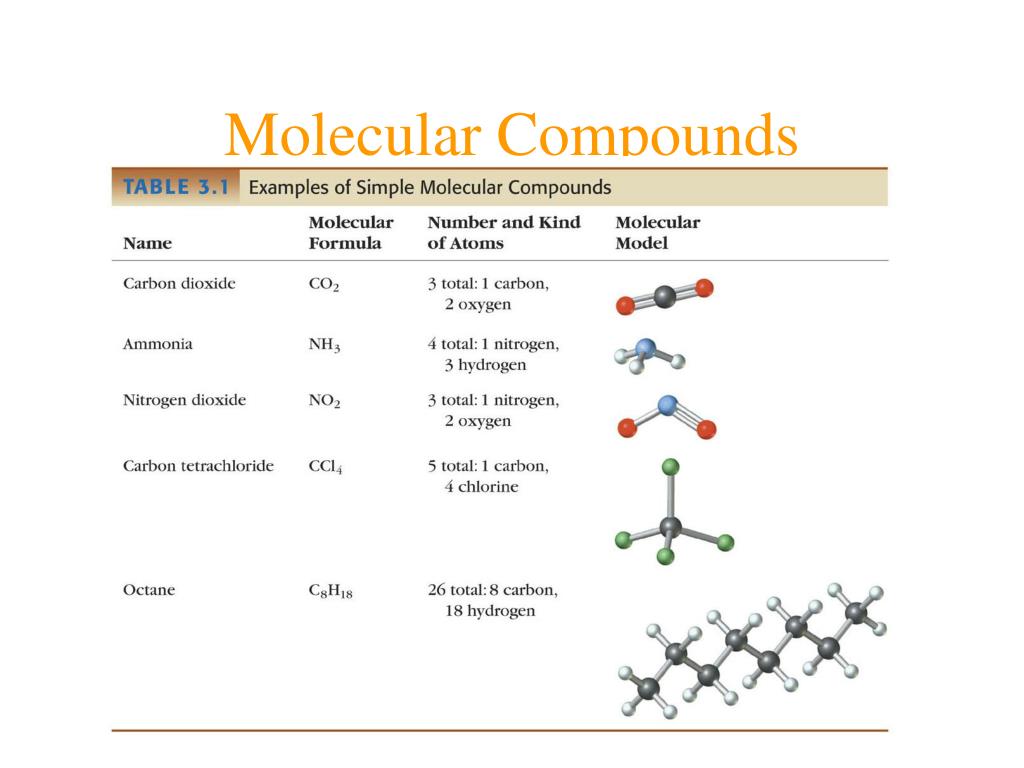

  4. Molecular Compounds

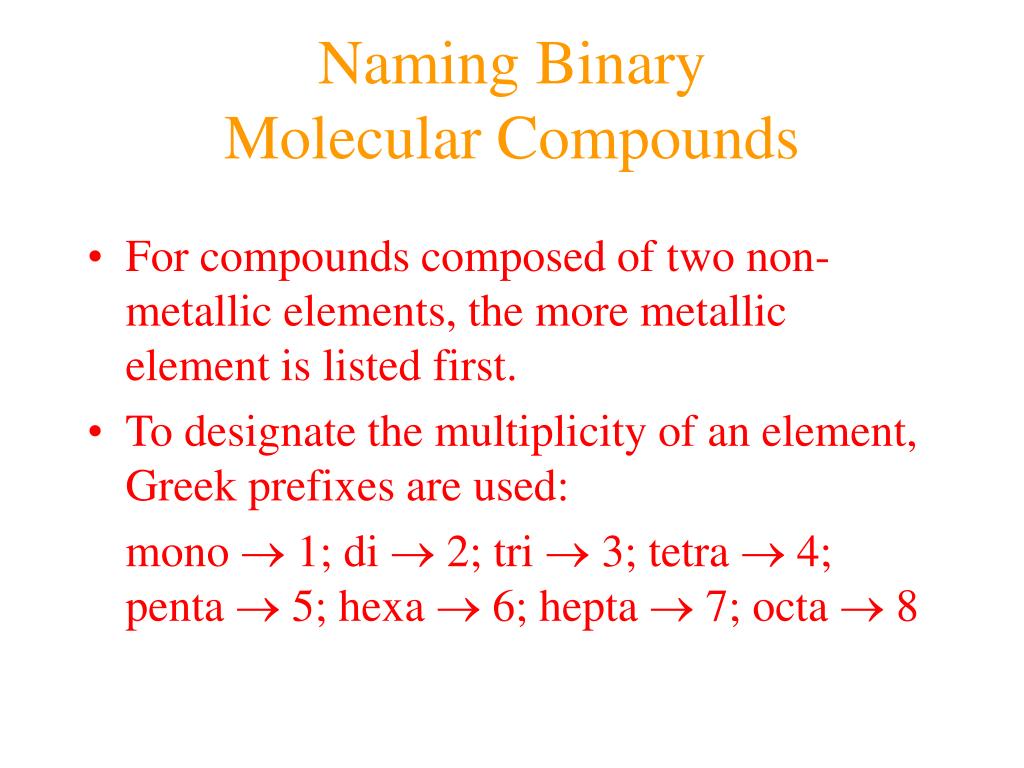

  5. Naming Binary Molecular Compounds • For compounds composed of two non-metallic elements, the more metallic element is listed first. • To designate the multiplicity of an element, Greek prefixes are used: mono  1; di  2; tri  3; tetra  4; penta  5; hexa  6; hepta  7; octa  8

  6. H2O water NH3 ammonia N2O nitrous oxide CO carbon monoxide CS2 carbon disulfide SO3 sulfur trioxide CCl4 carbon tetrachloride PCl5 phosphorus pentachloride SF6 sulfur hexafluoride Common Compounds

  7. Hydrocarbons and Alcohols • alkanes – CnH2n+2 • alkenes – CnH2n • alkynes – CnH2n-2 • alcohols – ROH • where R refers to the hydrocarbon radical backbone • created by substituting an -OH functional group for a H atom in the hydrocarbon

  8. methane – CH4 ethane – C2H6 propane – C3H8 butanes – C4H10 pentanes – C5H12 hexanes – C6H14 heptanes – C7H16 octanes – C8H18 nonanes – C9H20 decanes – C10H22 Alkanes – CnH2n+2

  9. Butane molecules are present in the liquid and gaseous states in the lighter Butane

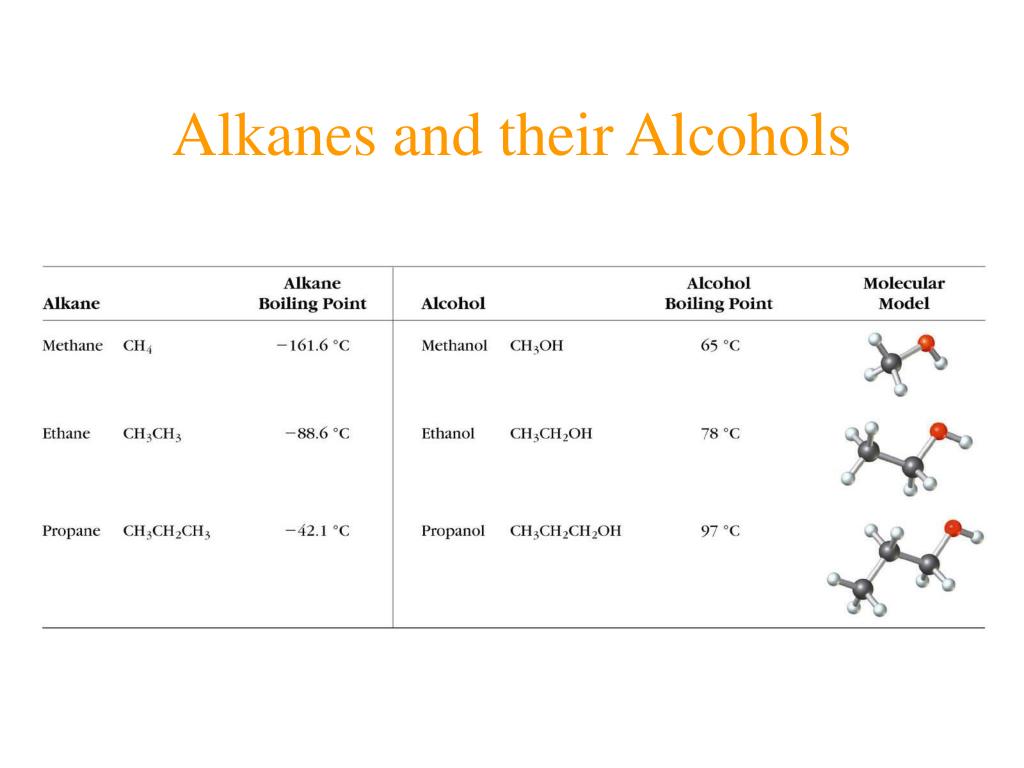

  10. Alkanes and their Alcohols

  11. Straight & Branch-Chain Alkanes

  12. Some Common Alkyl Groups

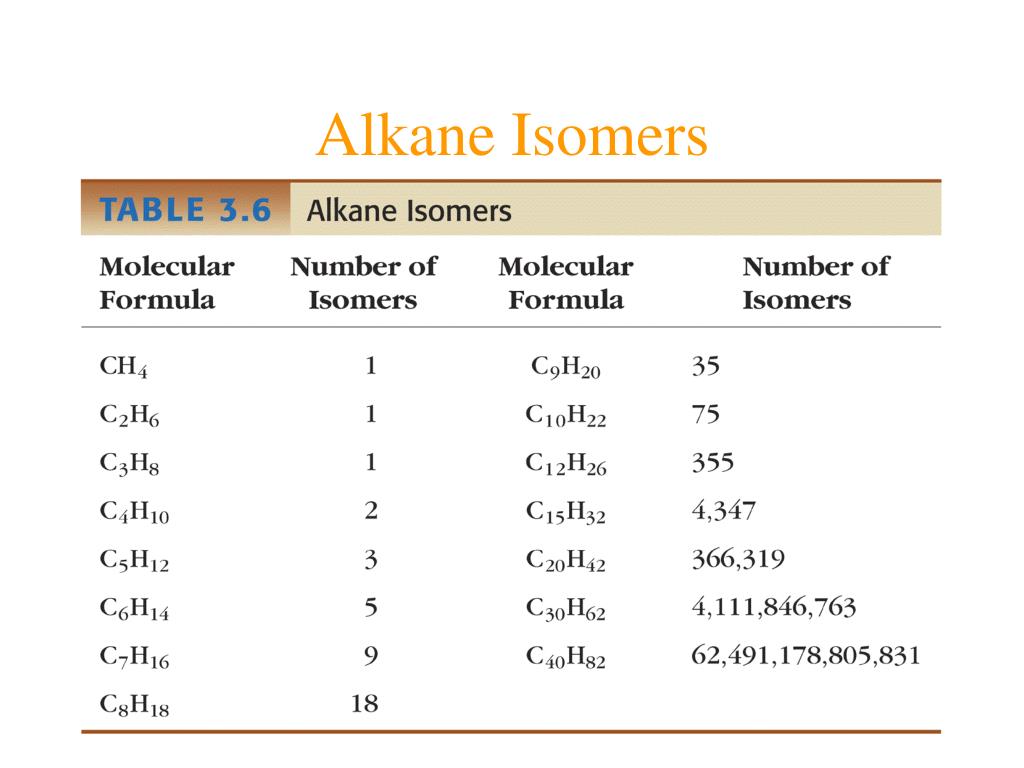

  13. Alkane Isomers

  14. Naming Branch-Chain Alkanes • select the longest chain alkane as the base name • determine the side chains and give them a number corresponding to the carbon number on the base chain • use Greek prefixes of mono-(1), bi-(2), tri(3), etc. for multiplicity of same side chain

  15. Naming Branch-Chain Alkanes

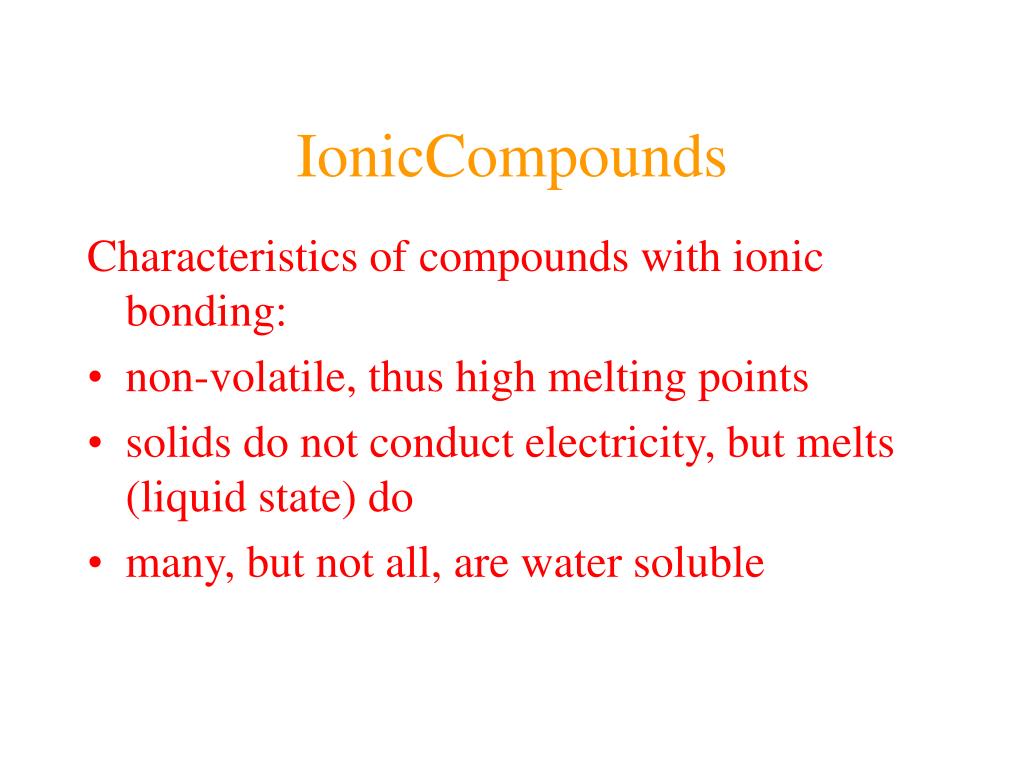

  16. IonicCompounds Characteristics of compounds with ionic bonding: • non-volatile, thus high melting points • solids do not conduct electricity, but melts (liquid state) do • many, but not all, are water soluble

  17. Formation of Ionic Compound, NaCl

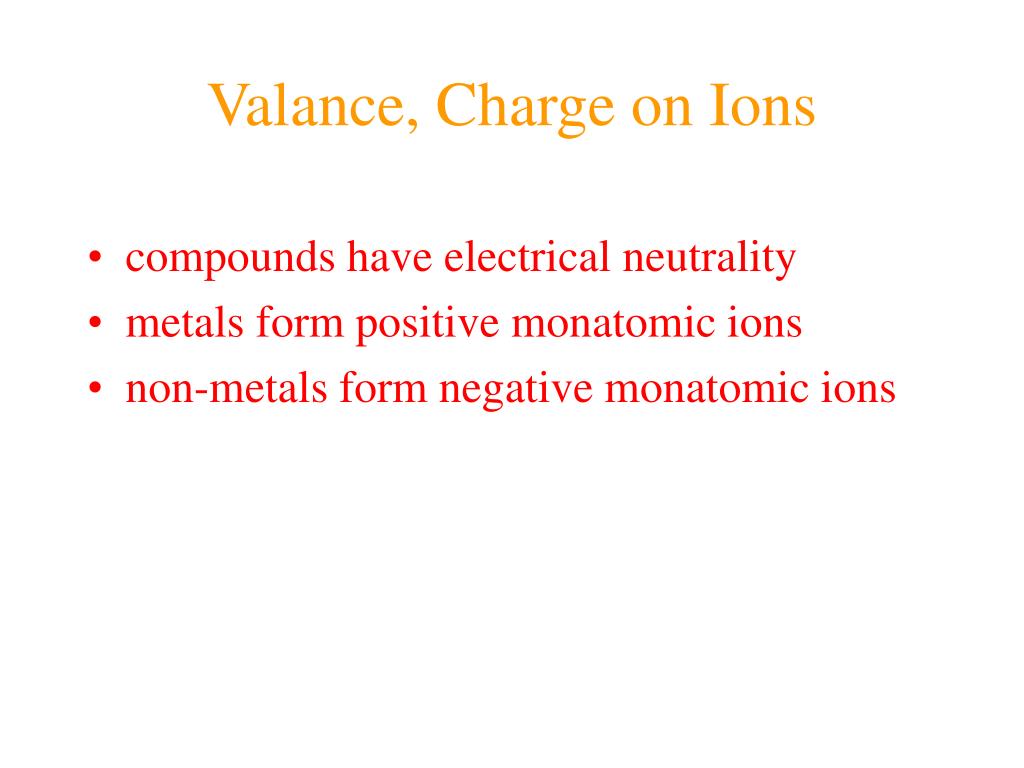

  18. Valance, Charge on Ions • compounds have electrical neutrality • metals form positive monatomic ions • non-metals form negative monatomic ions

  19. Valence of Metal Ions Monatomic Ions Group IA  +1 Group IIA  +2 Maximum positive valence equals Group A #

  20. Valence of Non-Metal Ions Monatomic Ions Group VIA  -2 Group VIIA  -1 Maximum negative valence equals (8 – Group A #)

  21. Charges on Some Common Monatomic Cations and Anions

  22. Polyatomic Ions • more than one atom joined together • have negative charge except for NH4+ and its relatives • negative charges range from -1 to -4

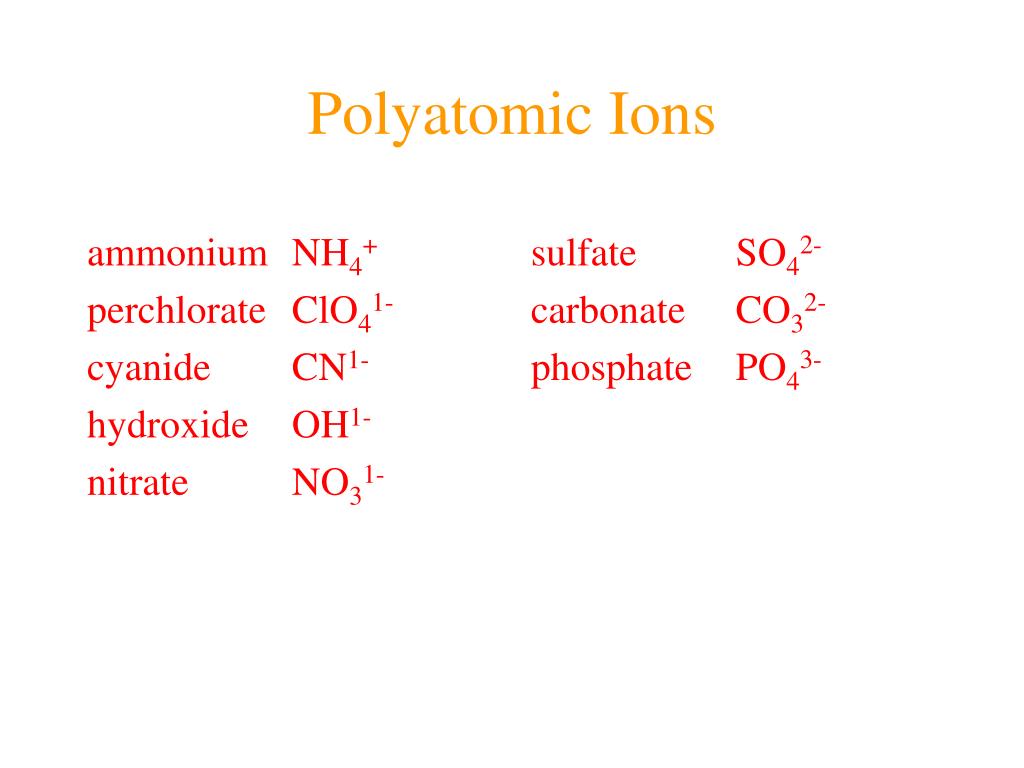

  23. ammonium NH4+ perchlorate ClO41- cyanide CN1- hydroxide OH1- nitrate NO31- sulfate SO42- carbonate CO32- phosphate PO43- Polyatomic Ions

  24. Names of Ionic Compounds 1. Name the metal first. If the metal has more than one oxidation state, the oxidation state is specified by Roman numerals in parentheses. 2. Then name the non-metal, changing the ending of the non-metal to -ide.

  25. NaCl sodium chloride Fe2O3 iron(III) oxide N2O4 dinitrogen tetroxide KI potassium iodide Mg3N2 magnesium nitride SO3 sulfur trioxide Nomenclature

  26. Nomenclature NH4NO3 ammonium nitrate KClO4 potassium perchlorate CaCO3 calcium carbonate NaOH sodium hydroxide

  27. Bulk Substances • mainly ionic compounds • such as NaCl and most minerals • empirical formulas • structural formulas

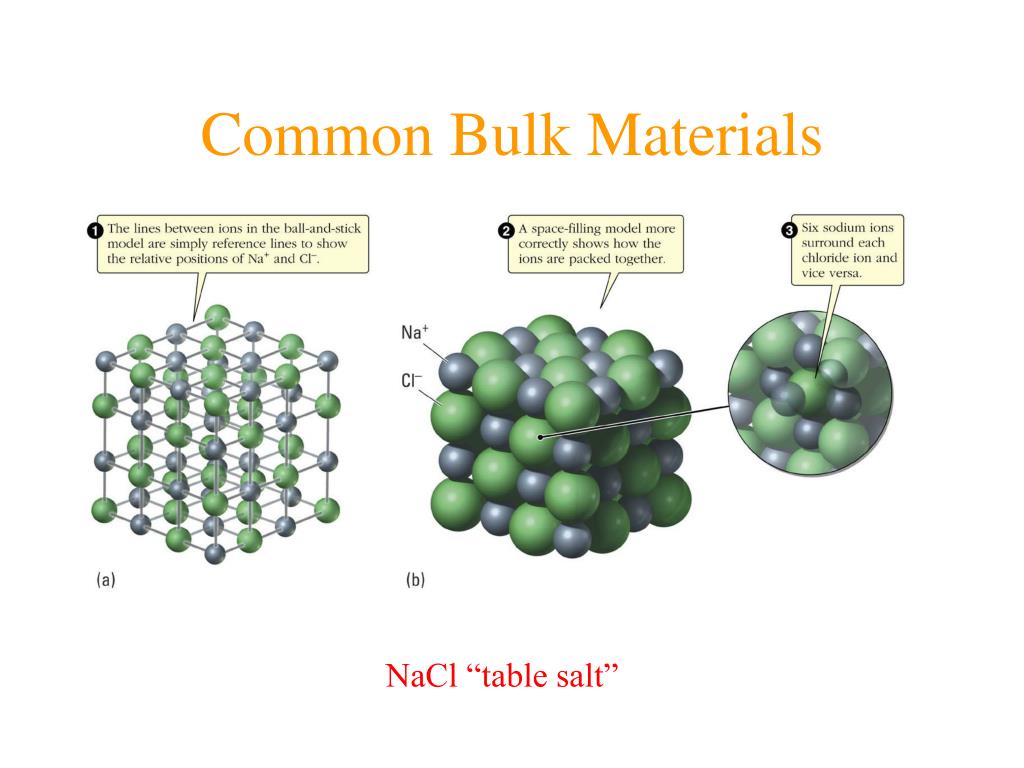

  28. Common Bulk Materials NaCl “table salt”

  29. Cleaving NaCl

  30. Properties of Molecular & Ionic Compounds

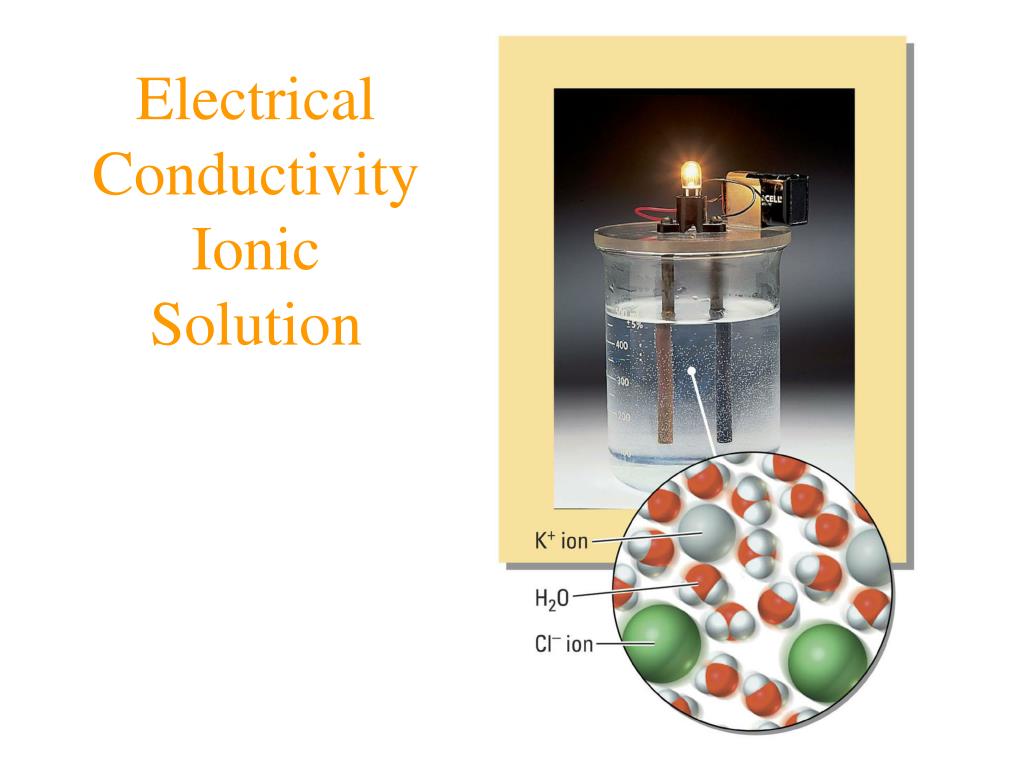

  31. Electrical ConductivityIonic Solution

  32. Molar Mass Sum atomic masses represented by formula atomic masses  gaw molar mass  MM

  33. One-Mole Quantities

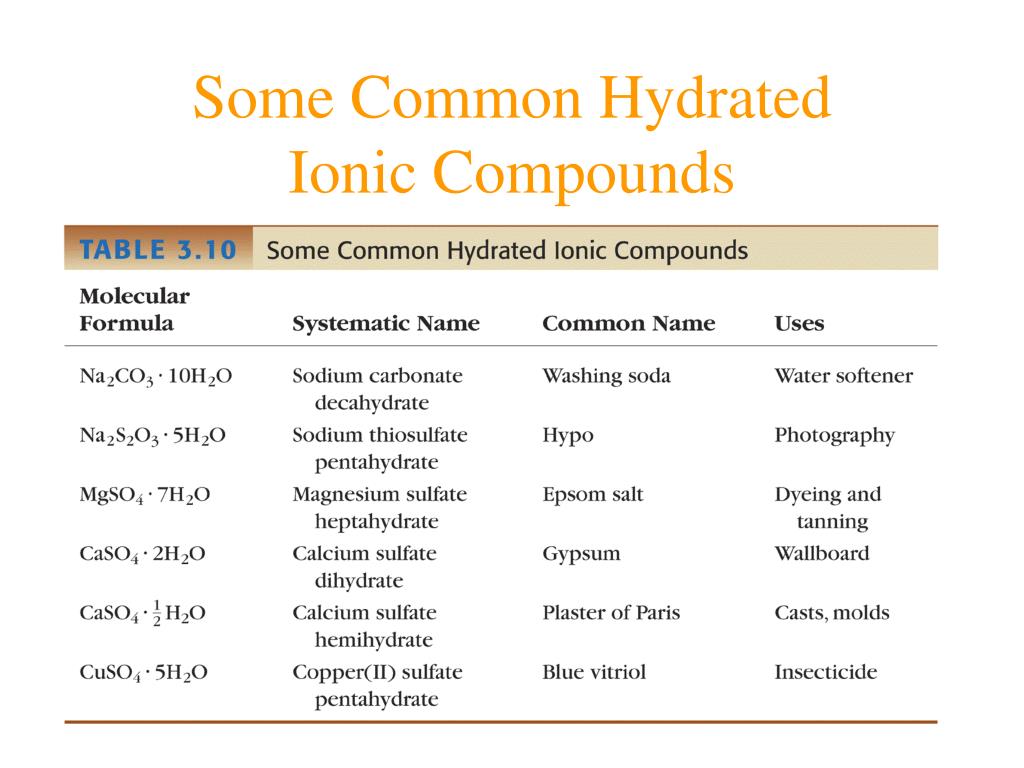

  34. Some Common Hydrated Ionic Compounds

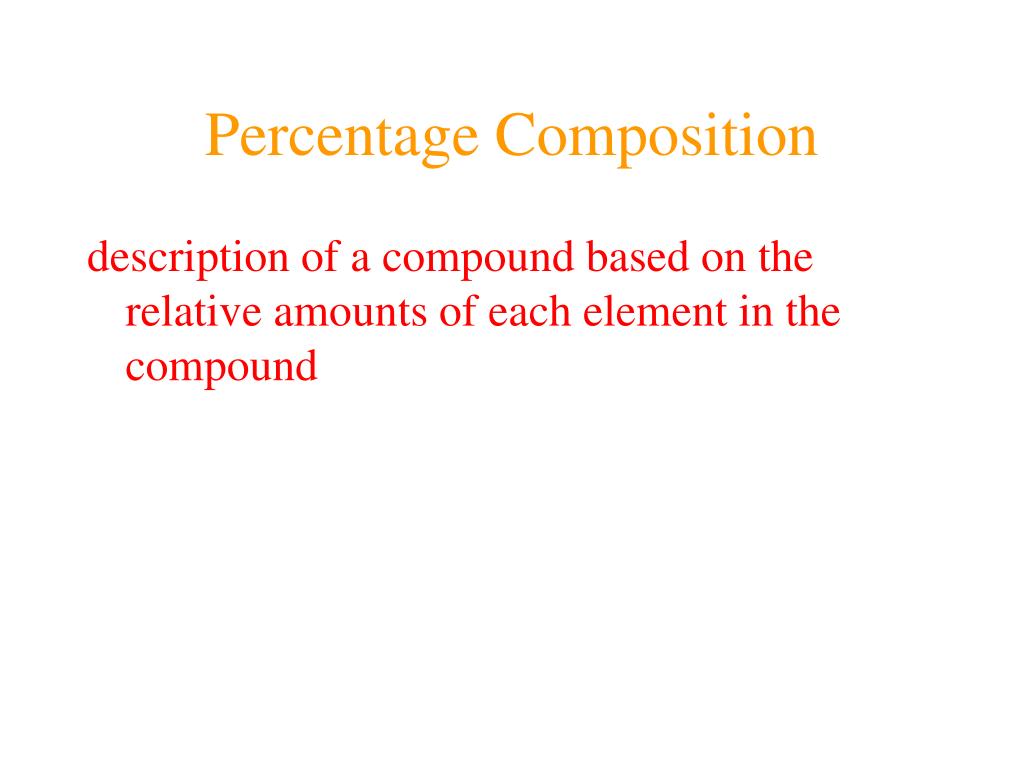

  35. Percentage Composition description of a compound based on the relative amounts of each element in the compound

  36. EXAMPLE: What is the percent composition of chloroform, CHCl3, a substance once used as an anesthetic? MM = 1(gaw)C + 1(gaw)H + 3(gaw)Cl = (12.011 + 1.00797 + 3  35.453)amu = 119.377amu

  37. EXAMPLE: What is the percent composition of chloroform, CHCl3, a substance once used as an anesthetic? MM = 1(gaw)C + 1(gaw)H + 3(gaw)Cl = (12.011 + 1.00797 + 3  35.453)amu = 119.377amu 1(gaw) %C =  100 MM 1(12.011) %C =  100 = 10.061% C 119.377

  38. EXAMPLE: What is the percent composition of chloroform, CHCl3, a substance once used as an anesthetic? MM = 1(gaw)C + 1(gaw)H + 3(gaw)Cl = (12.011 + 1.00797 + 3  35.453)amu = 119.377amu 1(1.00797) %H =  100 = 0.844359% H 119.377

  39. EXAMPLE: What is the percent composition of chloroform, CHCl3, a substance once used as an anesthetic? MM = 1(gaw)C + 1(gaw)H + 3(gaw)Cl = (12.011 + 1.00797 + 3  35.453)amu = 119.377amu 3(35.453) %Cl =  100 = 89.095% Cl 119.377

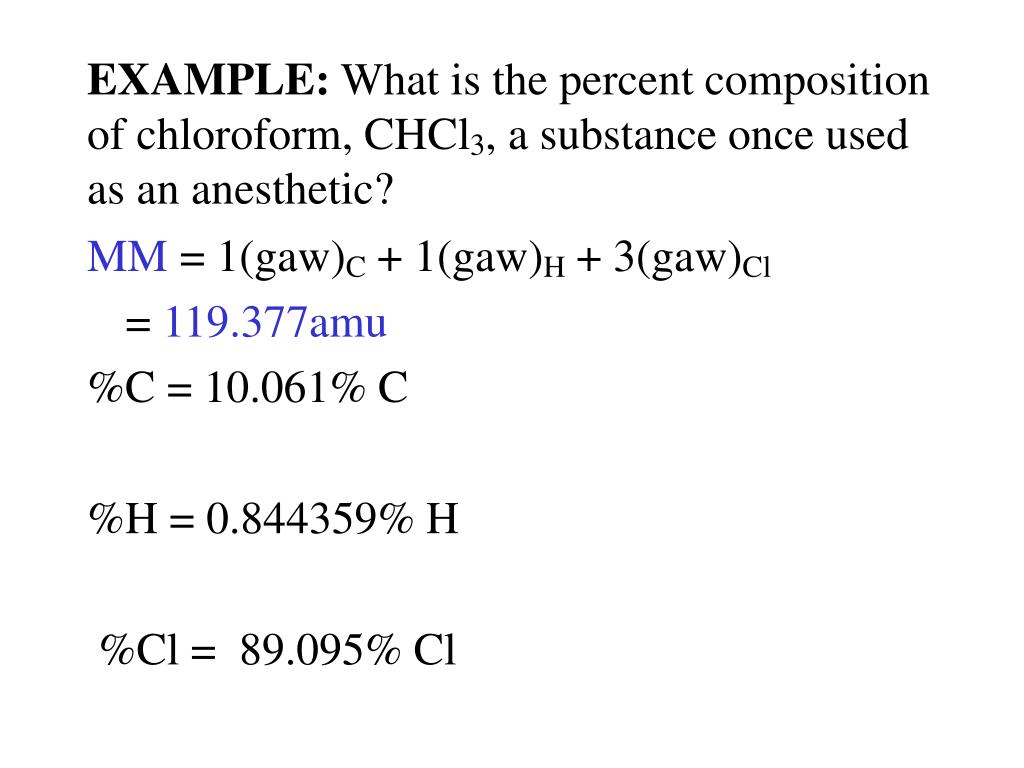

  40. EXAMPLE: What is the percent composition of chloroform, CHCl3, a substance once used as an anesthetic? MM = 1(gaw)C + 1(gaw)H + 3(gaw)Cl = 119.377amu %C = 10.061% C %H = 0.844359% H %Cl = 89.095% Cl

  41. Simplest (Empirical) Formula • formula describing a substance based on the smallest set of subscripts

  42. EXAMPLE: Phosphorus burns in air to produce a white compound that is 43.7% P and 56.3% O by mass. What is the empirical formula of the compound? % 43.7% P 56.3% O Relative Number of Atoms Multiply by Integer (%/gaw) Divide by Smaller 2  1.00 2 2  2.50 5 43.7/30.97 = 1.41 56.3/15.9994 = 3.52 1.41/1.41 = 1.00 3.52/1.41 = 2.50 Empirical Formula P2O5

  43. EXAMPLE: The burning of fossil fuels in air produces a brown-colored gas, a major air pollutant, that contains 2.34 g of N and 5.34 g of O. What is the empirical formula of the compound? 2.34 %N =  100 = 30.5% N 2.34 + 5.34 5.34 %O =  100 = 69.5% O 2.34 + 5.34

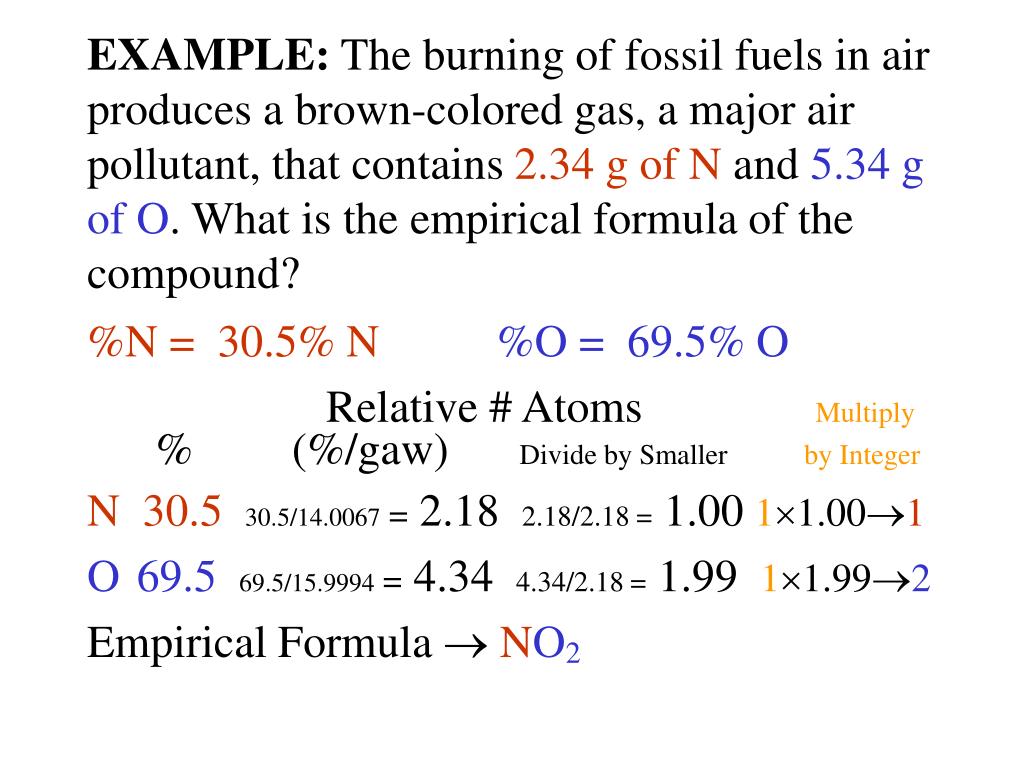

  44. EXAMPLE: The burning of fossil fuels in air produces a brown-colored gas, a major air pollutant, that contains 2.34 g of N and 5.34 g of O. What is the empirical formula of the compound? %N = 30.5% N%O = 69.5% O Relative # Atoms Multiply % (%/gaw) Divide by Smaller by Integer N 30.5 30.5/14.0067 = 2.18 2.18/2.18 = 1.00 11.001 O 69.5 69.5/15.9994 = 4.34 4.34/2.18 = 1.99 11.992 Empirical Formula NO2

  45. Molecular Formula • the exact proportions of the elements that are formed in a molecule

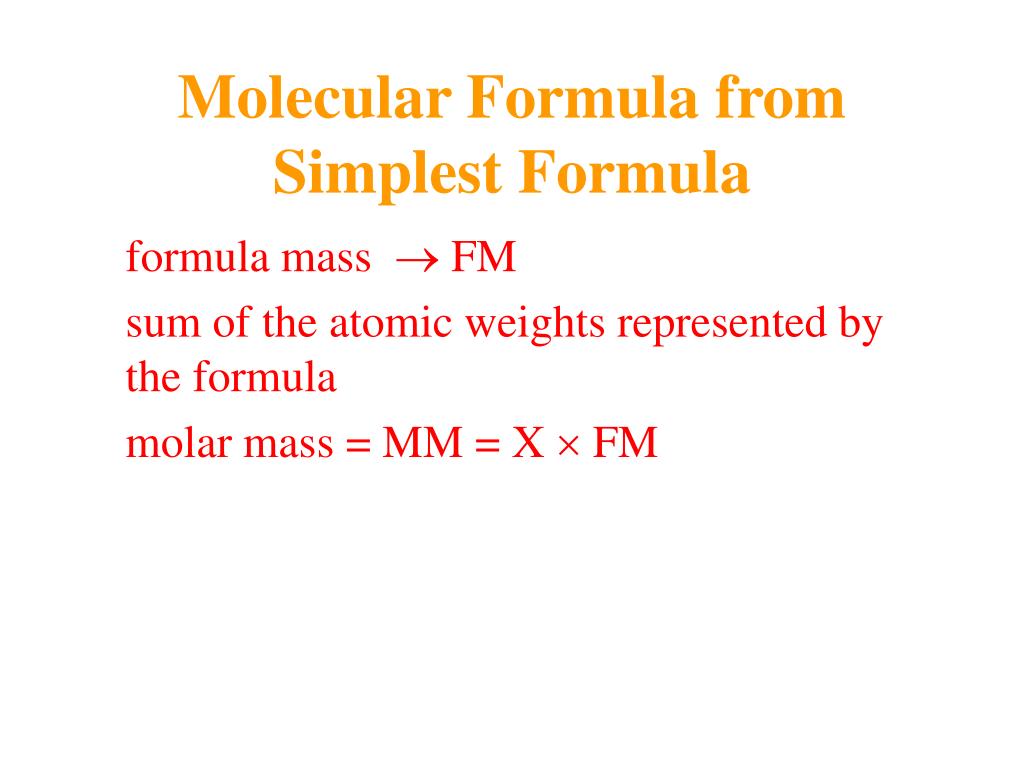

  46. Molecular Formula from Simplest Formula formula mass  FM sum of the atomic weights represented by the formula molar mass = MM = X  FM

  47. Molecular Formula from Simplest Formula first, knowing MM and FM X = MM/FM then MF = X  EF

  48. EXAMPLE: A colorless liquid used in rocket engines, whose empirical formula is NO2, has a molar mass of 92.0. What is the molecular formula? FM = 1(gaw)N + 2(gaw)O = 46.0 MM 92.0 X = = = 2 FM 46.0 thus MF = 2 EF N2O4

  49. Biological Periodic Table

  50. Glucose
