  1. Challenges in Produced Water Treatment and MeasurementEmerging TrendsTe David B. Burnett, Frank Platt, Carl Vavra Department of Petroleum Engineering GPRI Texas A&M University September 2013 GPRI

  2. U.S. Lower 48 Technology Developments

  3. Growth of Natural Gas Resources, International EU Technology Developments

  4. Challenge Community Acceptance

  5. Texas A&M University GPRI Team’s Successes contd. 2010 EFD A&M Marcellus Shale Pre-Treatment Field Demos 2010 EFD EU Program Started 2011 Frac Flowback Brine Analytical Technology Roundtable 2012 EFD Technology Integration Program Funded 2013 EFD Advanced Analytical Project Initiated

  6. Texas A&M Involvement with Key Environmental Programs Sustainability Research Network A&M IRNR Field Access - Trials Environmentally Friendly Drilling Program GSI Environmental Advanced Analytics

  7. Challenges Facing Produced Water Management Varying Water Compositions Lack of Infrastructure Public/policy Demands (environmental & perception Issues) Water Transport/storage Variation in Use of Product Water Disposal

  8. 24

  9. Challenge Getting Good Ideas Adopted EFD 2006 - 2013 EFD-TIP 2013 - 2016

  10. EFD Field Trials

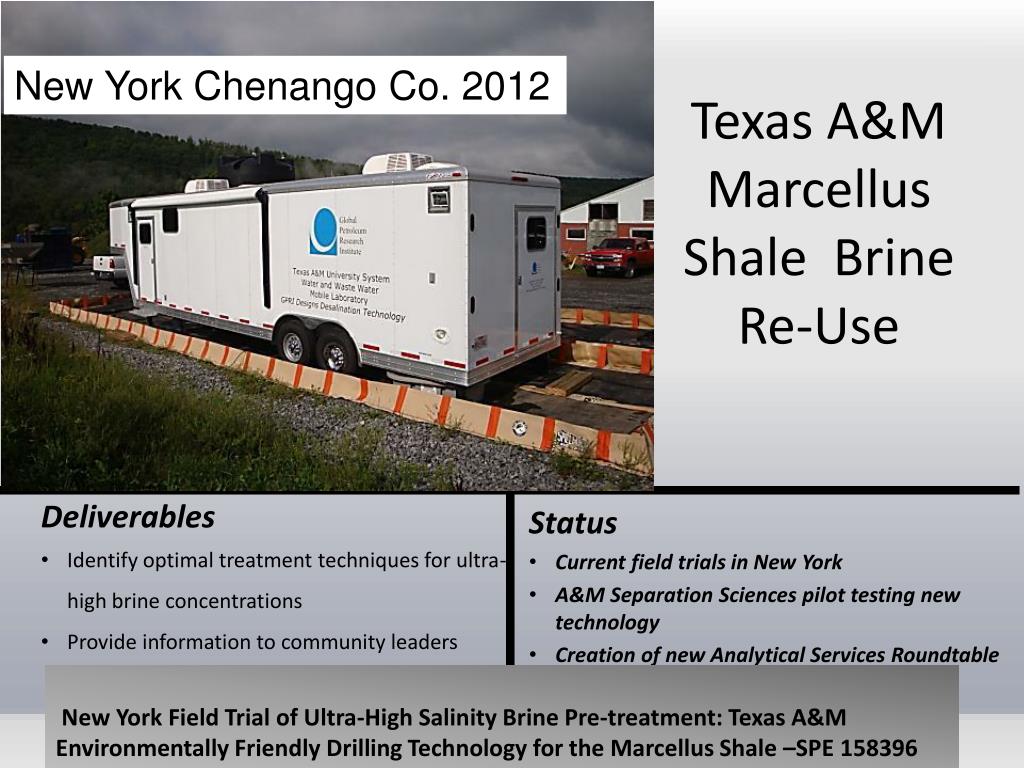

  11. Texas A&M Marcellus Shale Brine Re-Use New York Chenango Co. 2012 Courtesy Williams Bros. Company • Deliverables • Identify optimal treatment techniques for ultra-high brine concentrations • Provide information to community leaders • Status • Current field trials in New York • A&M Separation Sciences pilot testing new technology • Creation of new Analytical Services Roundtable New York Field Trial of Ultra-High Salinity Brine Pre-treatment: Texas A&M Environmentally Friendly Drilling Technology for the Marcellus Shale –SPE 158396

  12. A&M Lab in the Eagle Ford

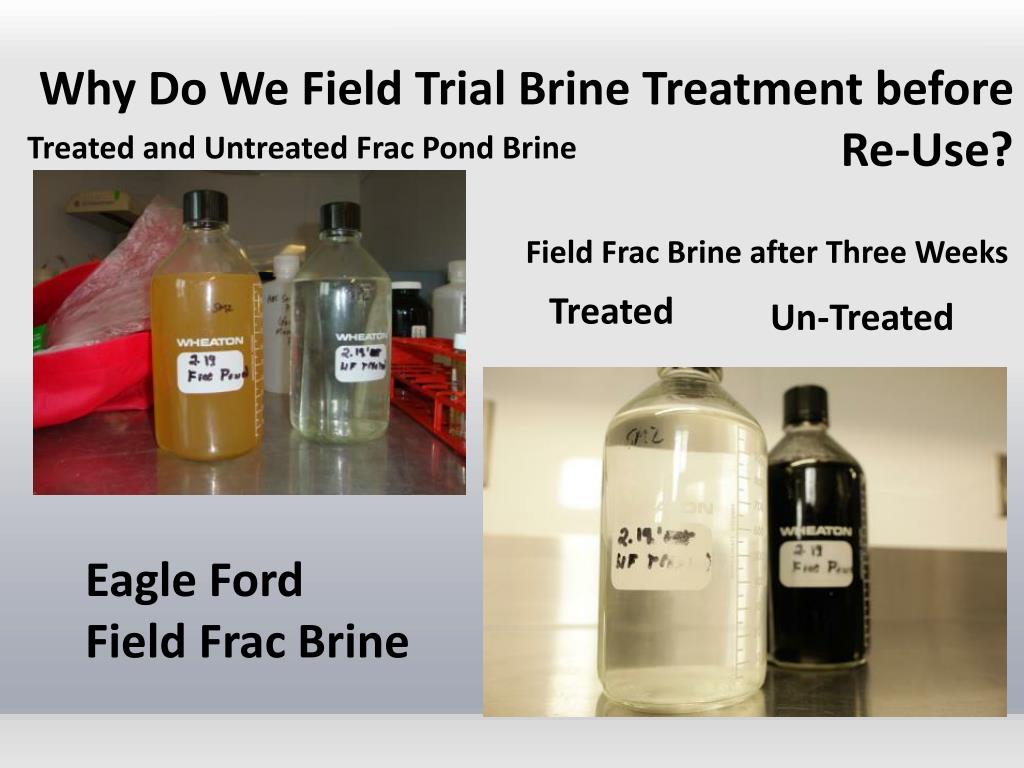

  13. Why Do We Field Trial Brine Treatment before Re-Use? Treated and Untreated Frac Pond Brine Field Frac Brine after Three Weeks Treated Un-Treated Eagle Ford Field Frac Brine

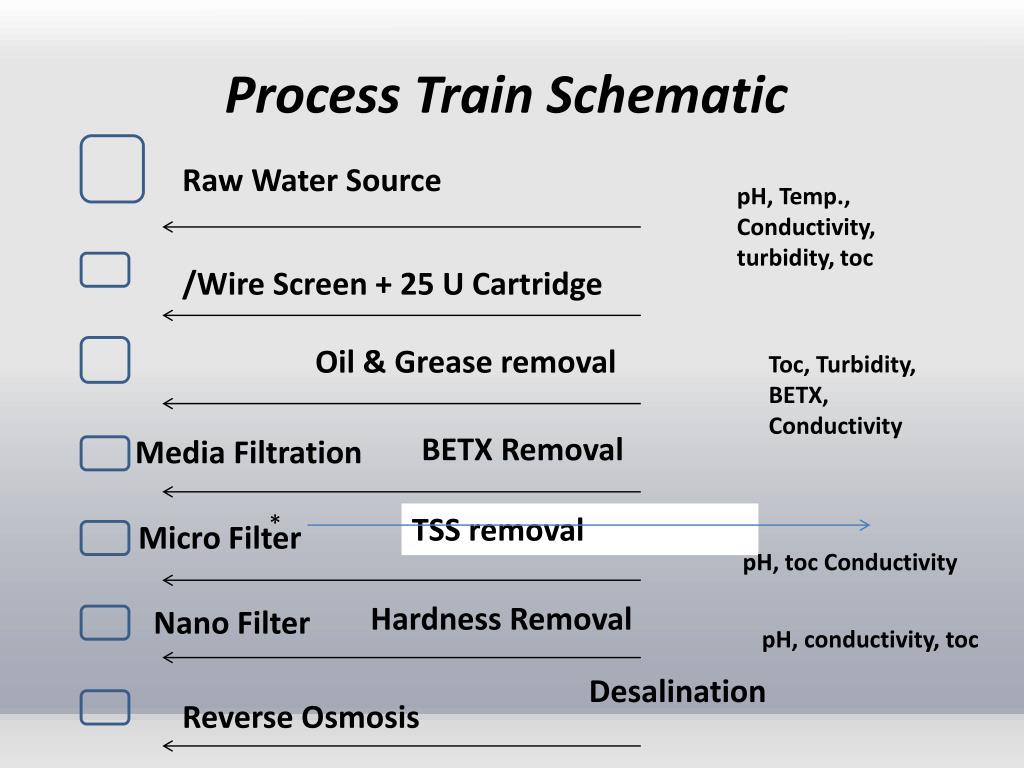

  14. Process Train Schematic Raw Water Source pH, Temp., Conductivity, turbidity, toc /Wire Screen + 25 U Cartridge Oil & Grease removal Toc, Turbidity, BETX, Conductivity BETX Removal Media Filtration * TSS removal Micro Filter pH, toc Conductivity Hardness Removal Nano Filter pH, conductivity, toc Desalination Reverse Osmosis

  15. Table 1 Target Values of Treatment Characteristic/Item Reduction or Target Value Hydrocarbon Reduction 80% reduction Turbidity 1 NTU or less Total iron 22% reduction Hardness Ca++ 50% reduction Barium 44% reduction Sulfate B/A 77% reduction

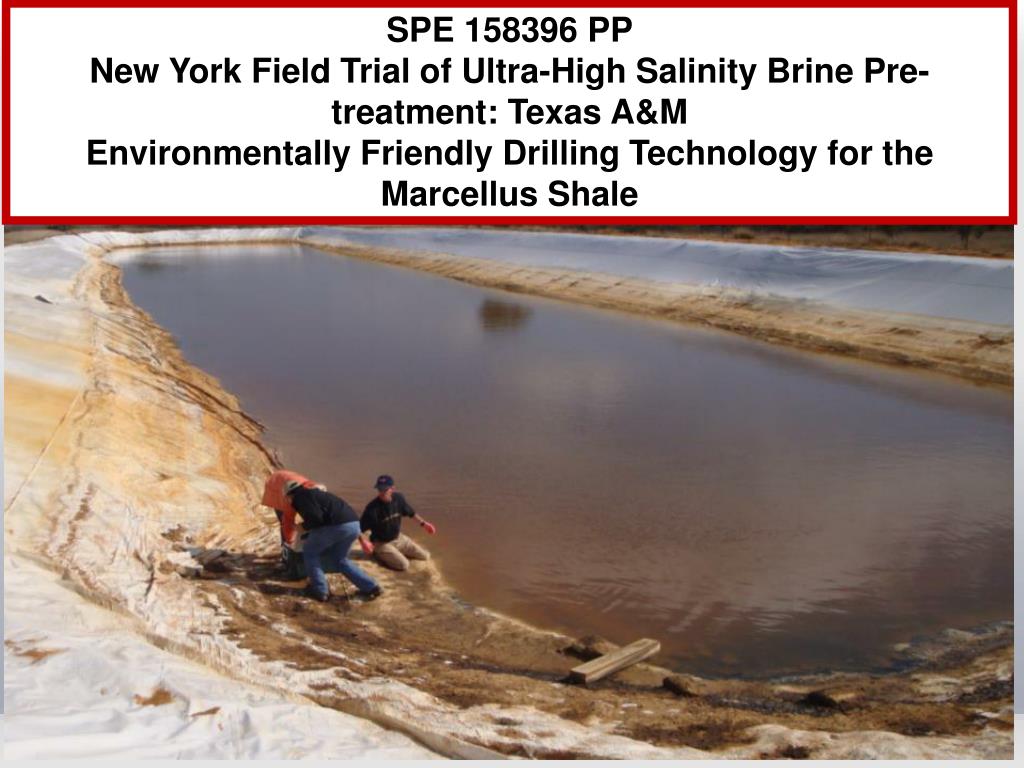

  16. SPE 158396 PP New York Field Trial of Ultra-High Salinity Brine Pre-treatment: Texas A&M Environmentally Friendly Drilling Technology for the Marcellus Shale Analytical Laboratory at A&M

  17. Low Pressure Media Filtration

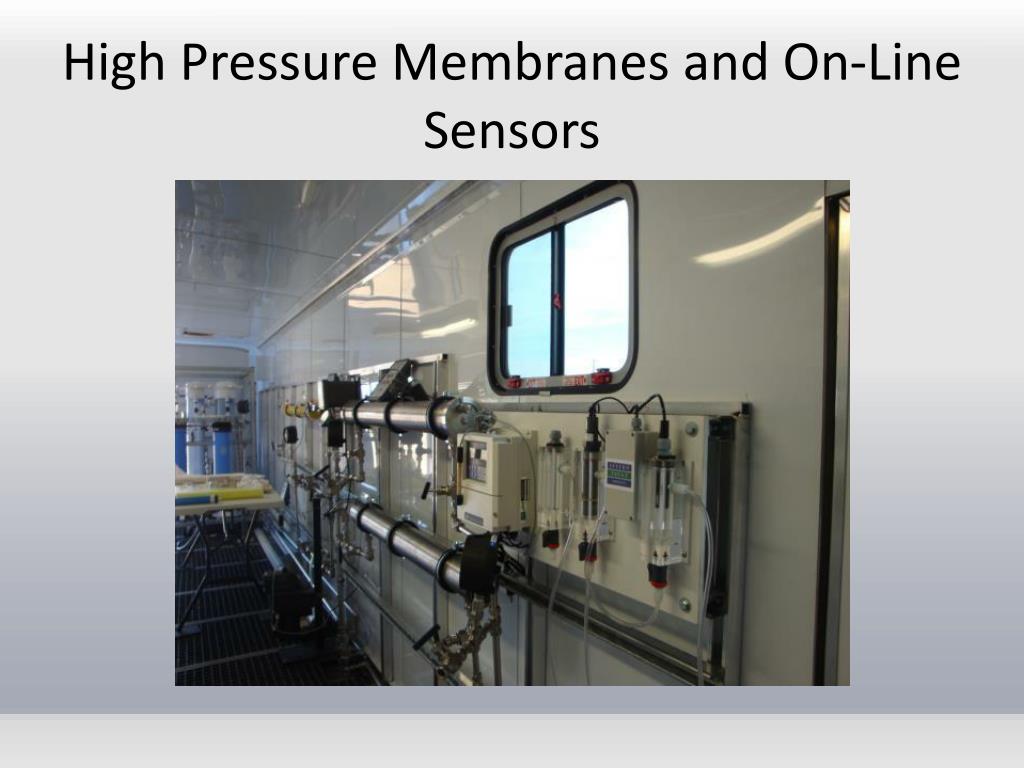

  18. High Pressure Membranes and On-Line Sensors

  19. Power Costs of Produced Water Treatment Utica Formation (Herkimer Sand) 180,000 tds NY Trial, 2011

  20. Emerging Trend Looking Ahead - Advanced Analytics Air Emissions from Produced Water Open Impoundments Frac flowback Water Sampling Stray Methane Gas Sampling http://epicphotogear.com/tip/panos

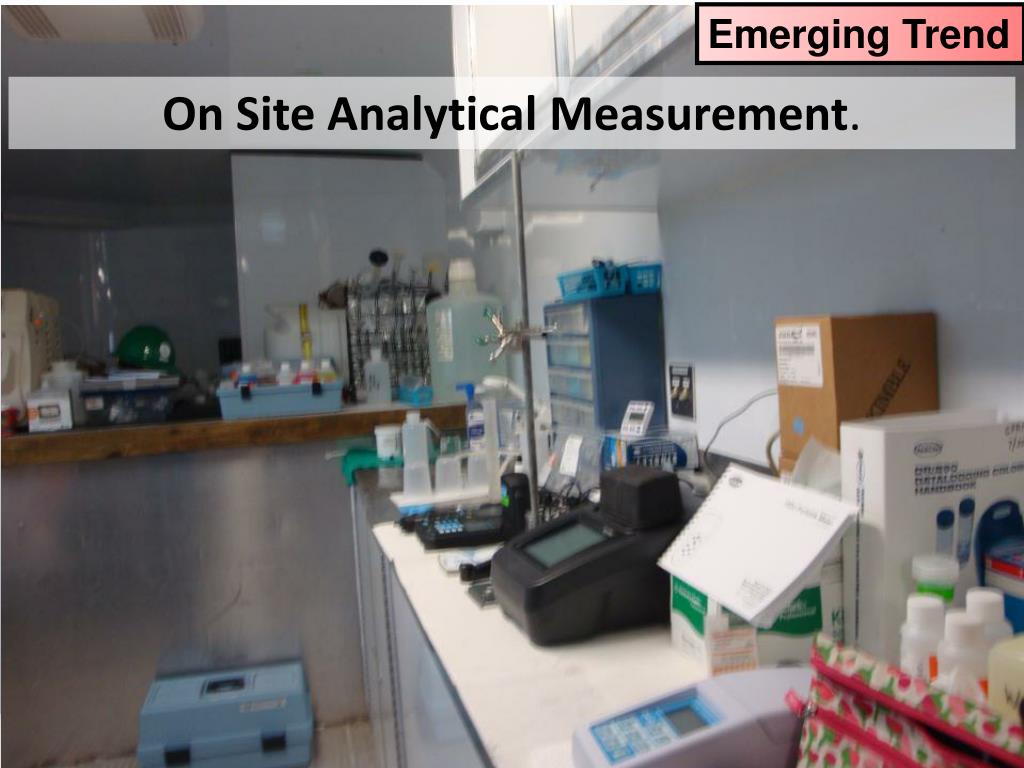

  21. Emerging Trend On Site Analytical Measurement.

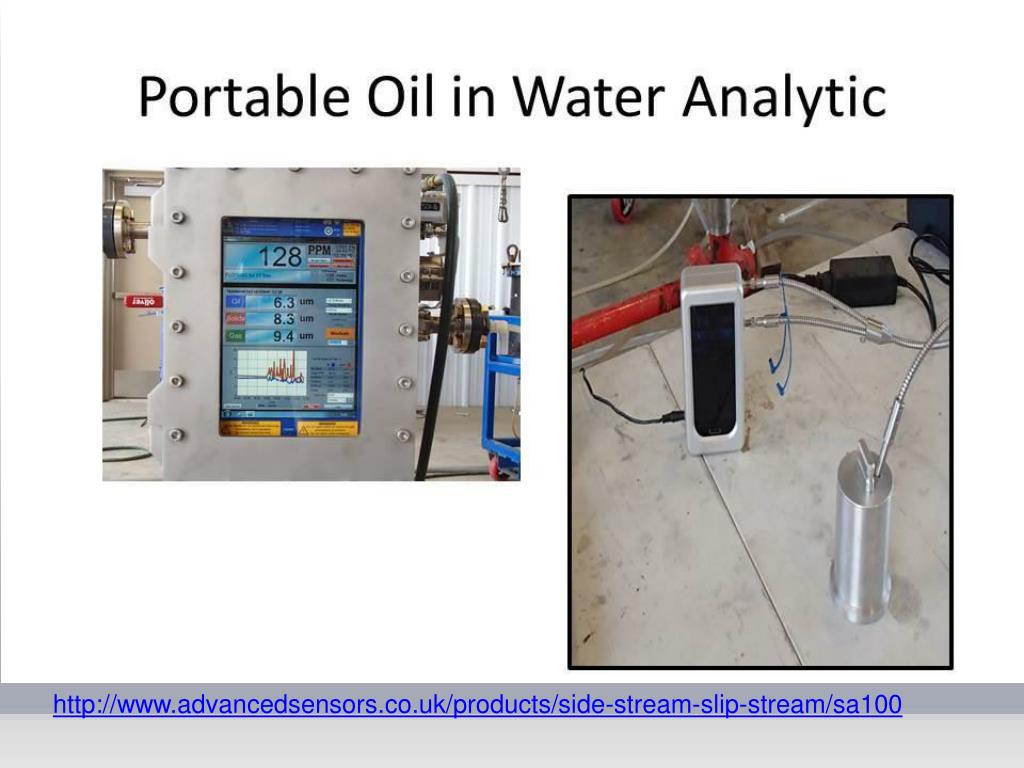

  22. http://www.advancedsensors.co.uk/products/side-stream-slip-stream/sa100http://www.advancedsensors.co.uk/products/side-stream-slip-stream/sa100

  23. Advanced Sensors Inc. http://www.advancedsensors.co.uk/?gclid=CInEu6D10rkCFcZj7AodpVkABw

  24. Analytes: Non Purgeable Organics

  25. Emerging Trend

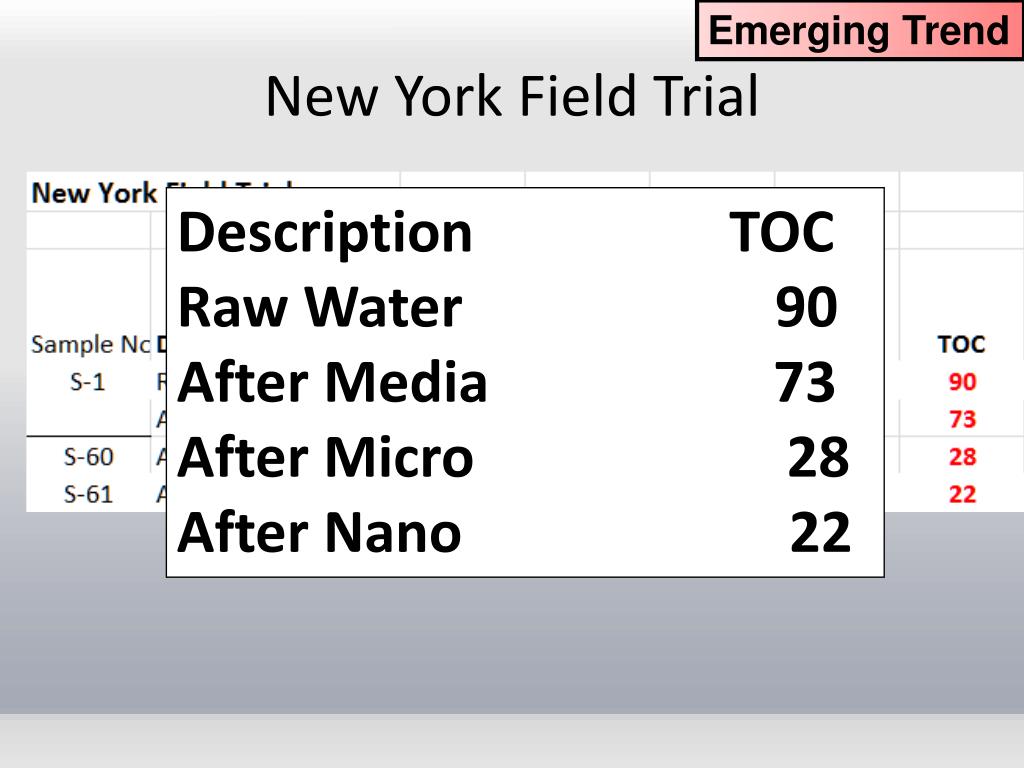

  26. Emerging Trend New York Field Trial Description TOC Raw Water 90 After Media 73 After Micro 28 After Nano 22

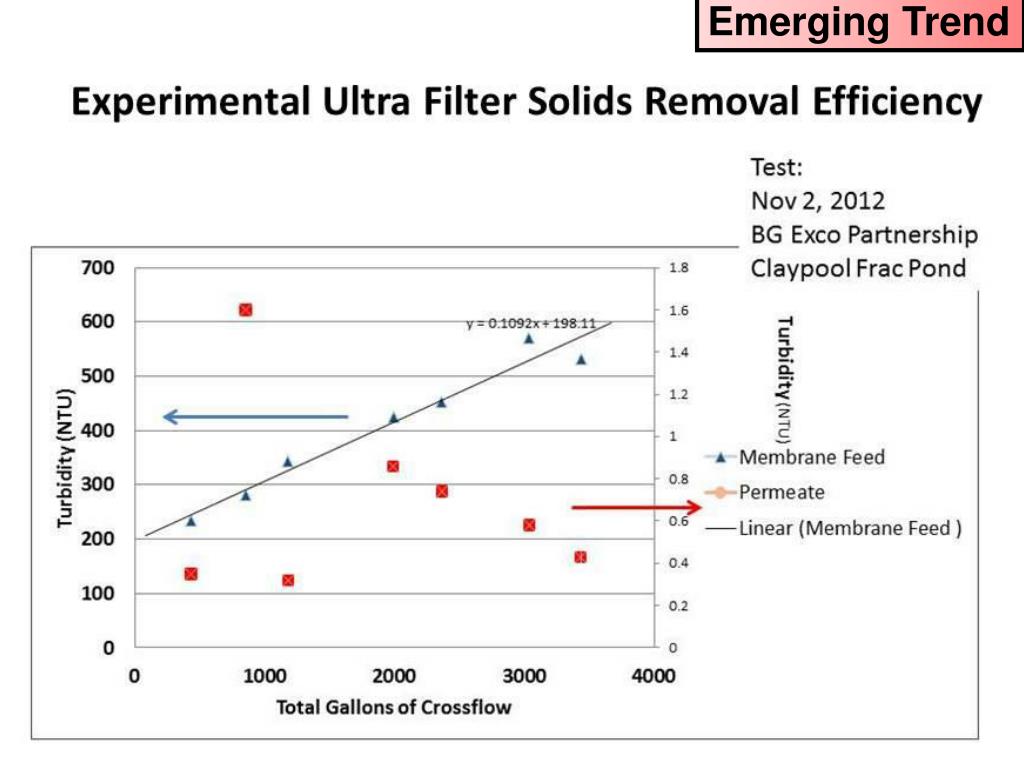

  27. Emerging Trend Ultra-Filter Results Before >5700E cfu per ml After 1E cfu per ml

  28. The Environmentally Friendly Drilling Systems Program Emerging Trend AwardedOctober 5, 2009 Demonstrating innovative technologies that reduce environmental footprints www.efdsystems.org www.efd-tip.org

  29. The EFD Team Co-funded by RPSEA, U.S. Fish & Wildlife, Industry, Environmental Organizations ENVIRONMENTAL ORGANIZATIONS MANAGEMENT TEAM SPONSORS COLLABORATORS ALLIANCE MEMBERS

  30. Links to More Information Thank you Videos and Panorama Shots http://epicphotogear.com/tip/panos/ http:/www.efdsystems.org https://sites.google.com/site/amefdtipprogram2013/page-3
