SWIM Segment 1 Program Overview

1. SWIM Segment 1 Program Overview August 2007

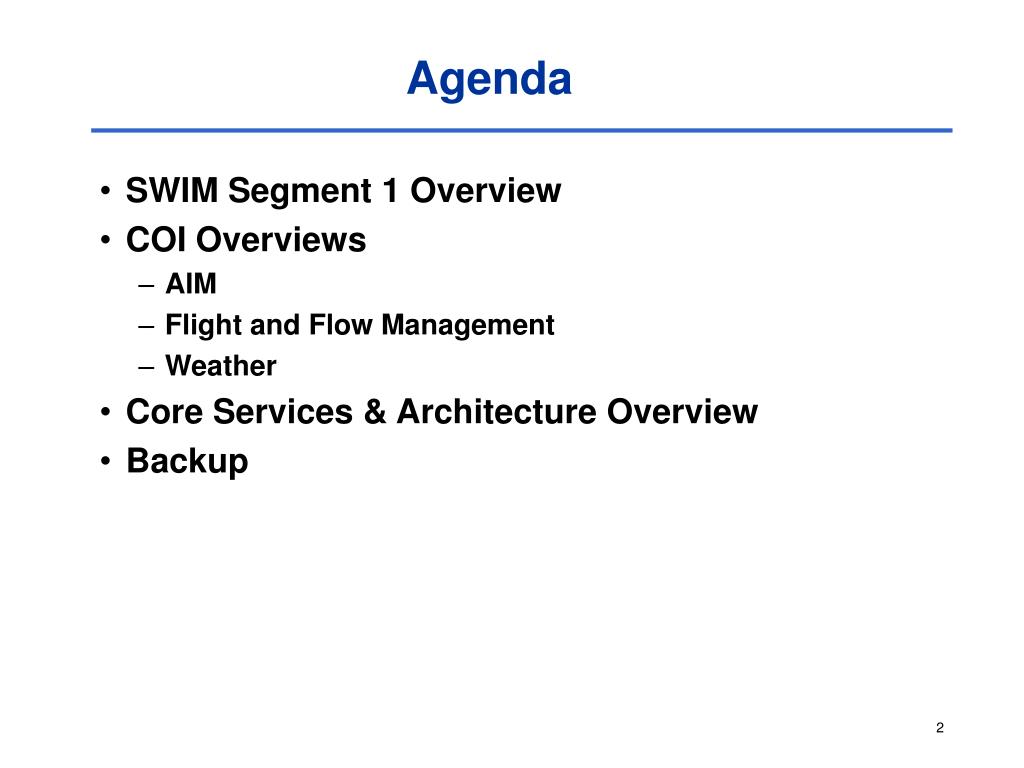

2. Agenda • SWIM Segment 1 Overview • COI Overviews • AIM • Flight and Flow Management • Weather • Core Services & Architecture Overview • Backup

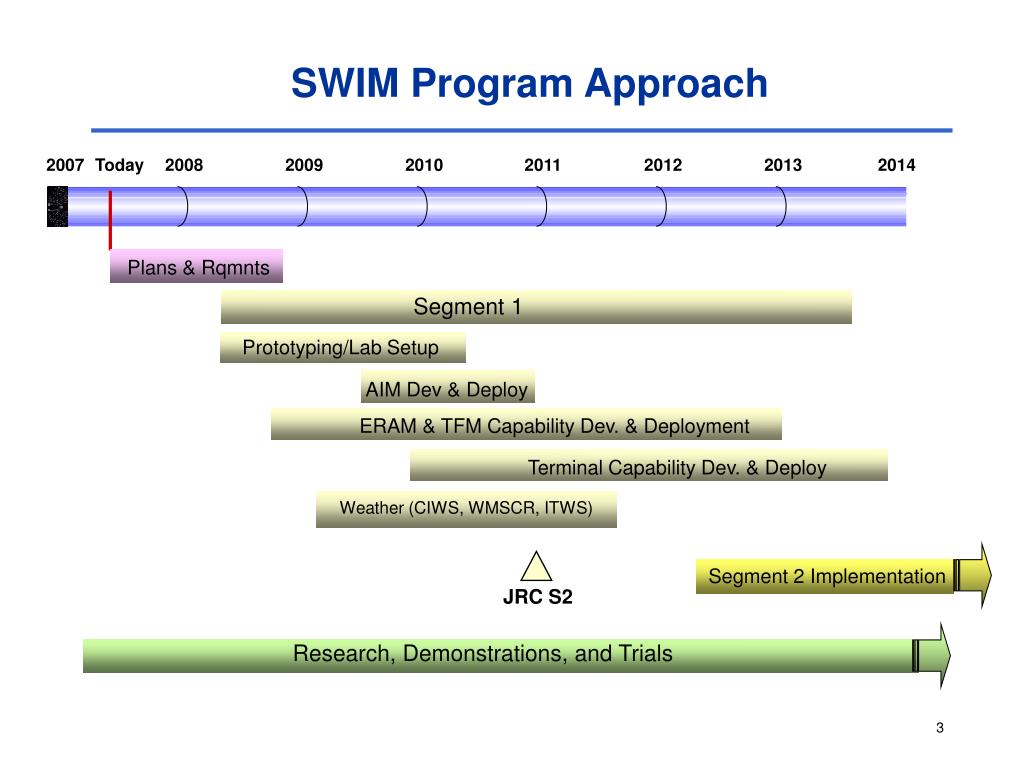

3. 2007 Today 2008 2009 2010 2011 2012 2013 2014 SWIM Program Approach Plans & Rqmnts Segment 1 Prototyping/Lab Setup AIM Dev & Deploy ERAM & TFM Capability Dev. & Deployment Terminal Capability Dev. & Deploy Weather (CIWS, WMSCR, ITWS) Segment 2 Implementation JRC S2 Research, Demonstrations, and Trials

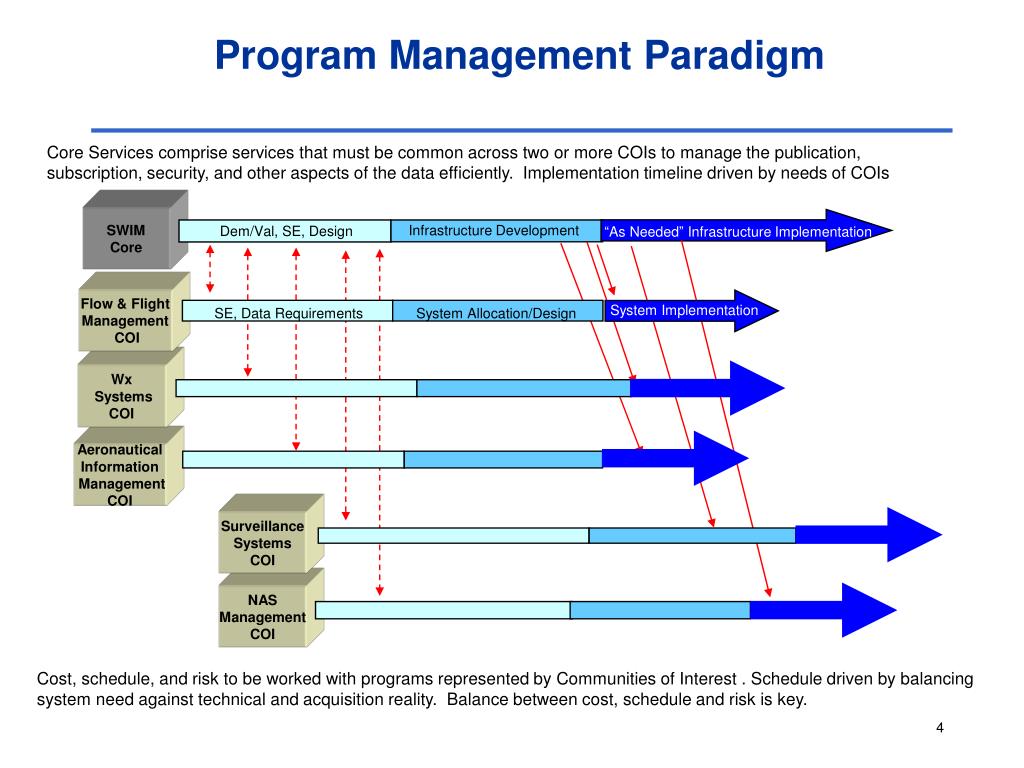

4. Program Management Paradigm Core Services comprise services that must be common across two or more COIs to manage the publication, subscription, security, and other aspects of the data efficiently. Implementation timeline driven by needs of COIs SWIM Core Infrastructure Development Dem/Val, SE, Design “As Needed” Infrastructure Implementation Flow & Flight Management COI System Implementation SE, Data Requirements System Allocation/Design Wx Systems COI Aeronautical Information Management COI Surveillance Systems COI NAS Management COI Cost, schedule, and risk to be worked with programs represented by Communities of Interest . Schedule driven by balancing system need against technical and acquisition reality. Balance between cost, schedule and risk is key.

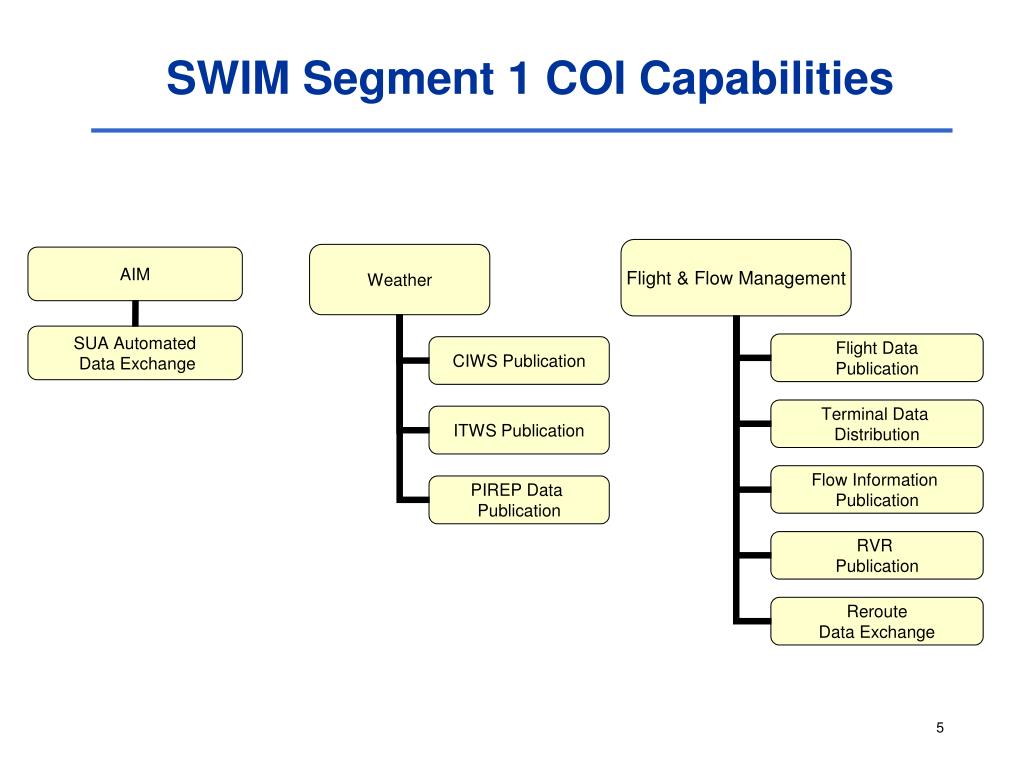

5. SWIM Segment 1 COI Capabilities

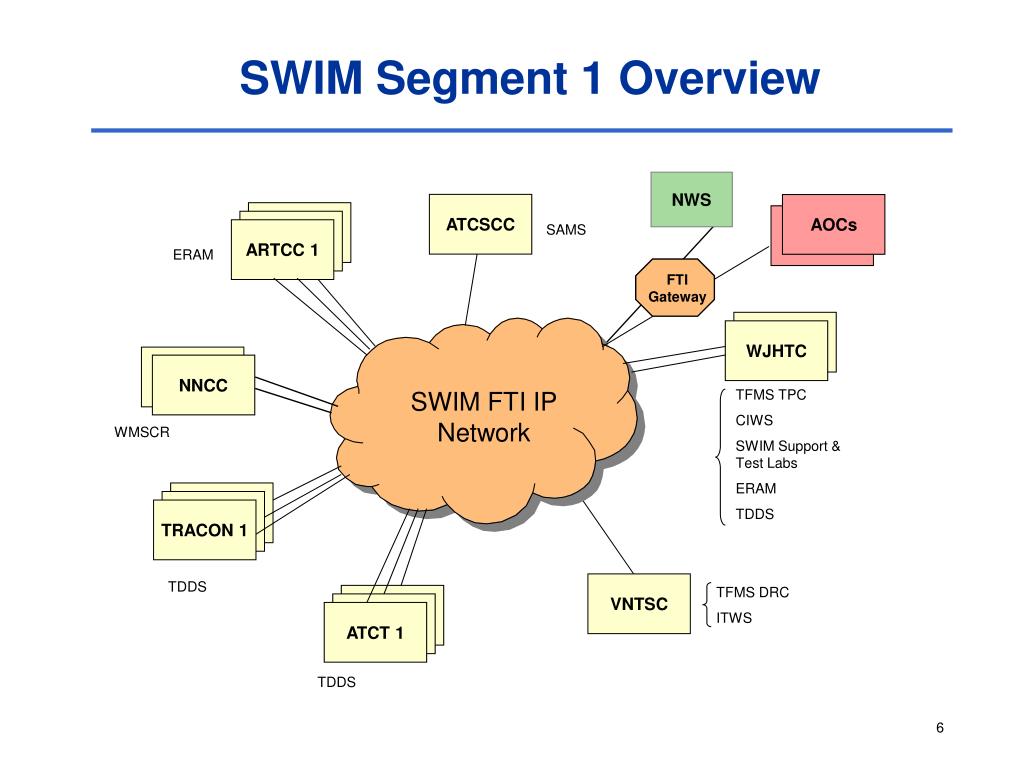

6. FTI Gateway SWIM Segment 1 Overview NWS ATCSCC AOCs AOCs SAMS ARTCC 1 ERAM WJHTC NNCC SWIM FTI IP Network TFMS TPC CIWS SWIM Support & Test Labs ERAM TDDS WMSCR TRACON 1 TDDS VNTSC TFMS DRC ITWS ATCT 1 TDDS

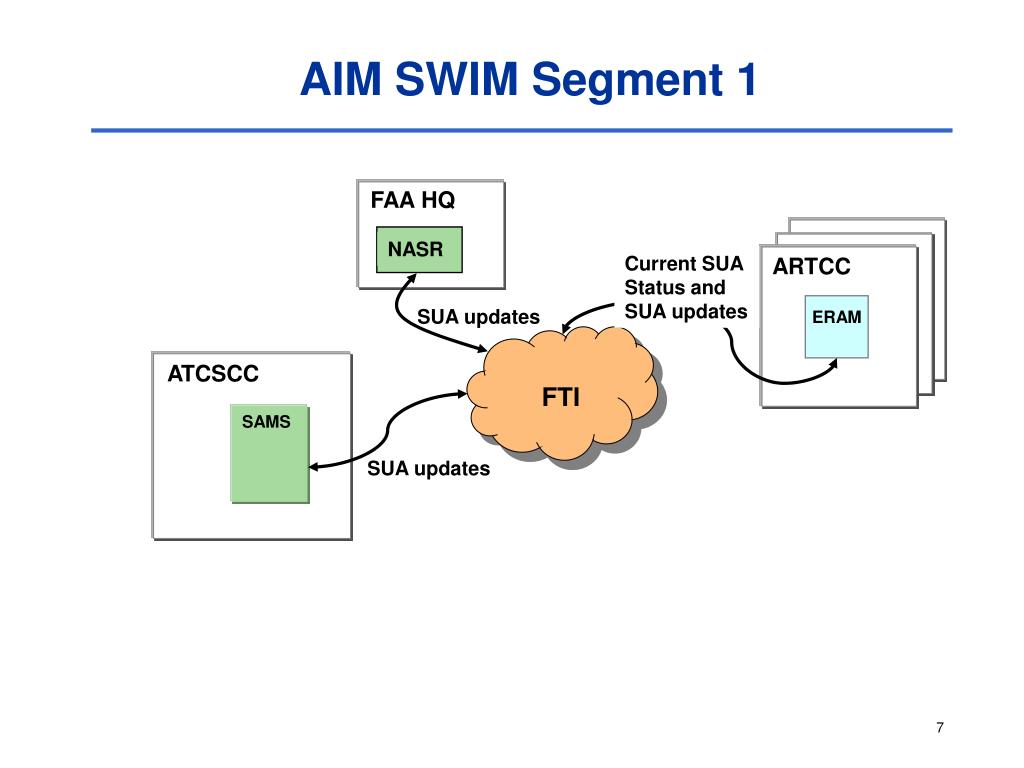

7. ARTCC ERAM ERAM ERAM NASR AIM SWIM Segment 1 FAA HQ Current SUA Status and SUA updates SUA updates ATCSCC FTI SAMS SUA updates

8. TDDS TDLS EFSTS FDIO ASDE-X RVR Terminal Cluster (TRACON & TOWER) F&FM: ERAM and Terminal SWIM Segment 1 VNTSC WJHTC ATCSCC TFMS SAMS NORAD SUA Data Flight Information ICE Gateway (FTI) FTI ERAM Flight Information Flight Information ARTCC

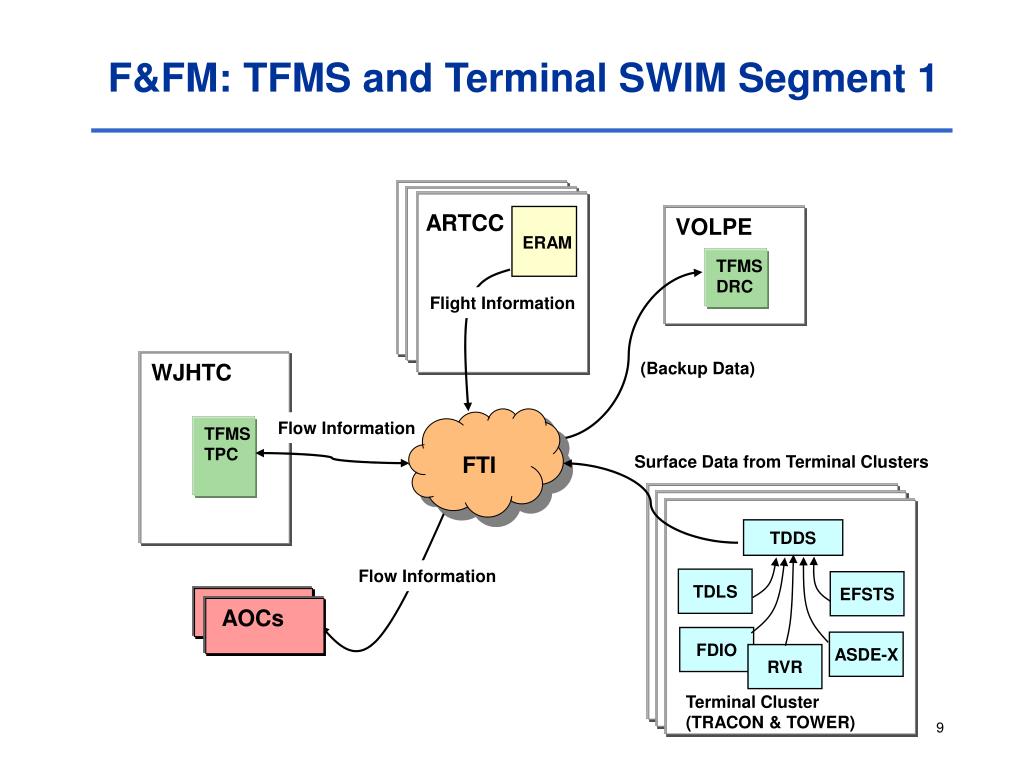

9. WJHTC TFMS TPC TDDS TDLS EFSTS FDIO ASDE-X RVR Terminal Cluster (TRACON & TOWER) F&FM: TFMS and Terminal SWIM Segment 1 ARTCC VOLPE ERAM TFMS DRC Flight Information (Backup Data) Flow Information FTI Surface Data from Terminal Clusters Flow Information AOCs AOCs

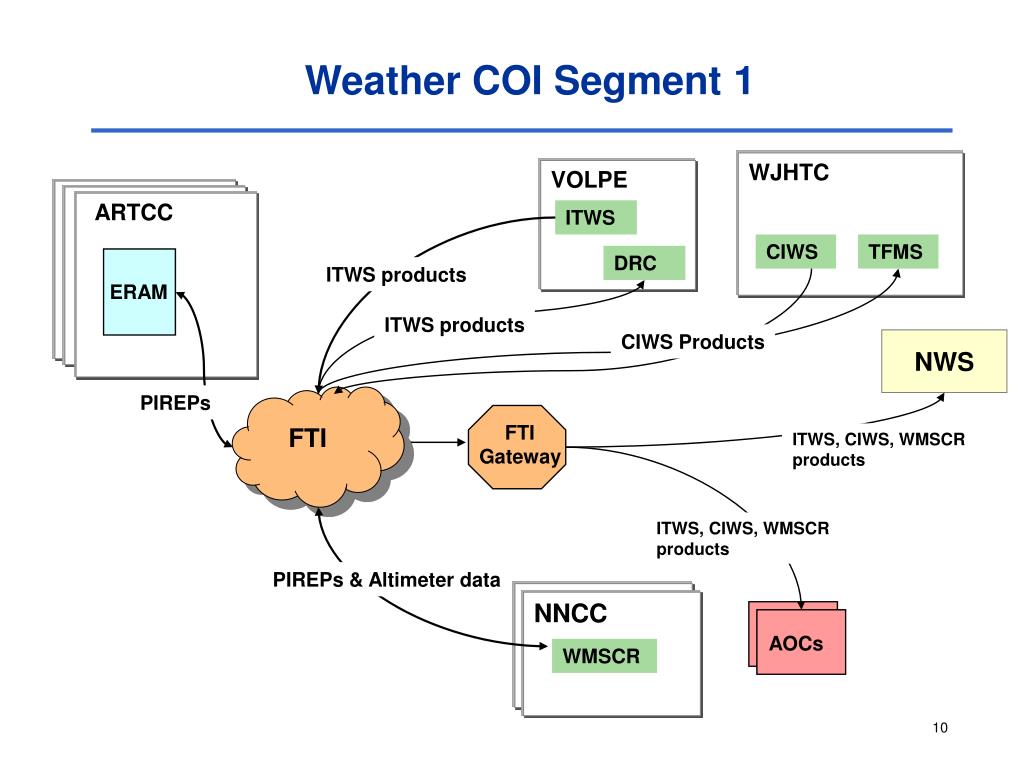

10. FTI Gateway Weather COI Segment 1 WJHTC VOLPE ARTCC ITWS CIWS TFMS DRC ITWS products ERAM ITWS products CIWS Products NWS PIREPs FTI ITWS, CIWS, WMSCR products ITWS, CIWS, WMSCR products PIREPs & Altimeter data NNCC AOCs WMSCR

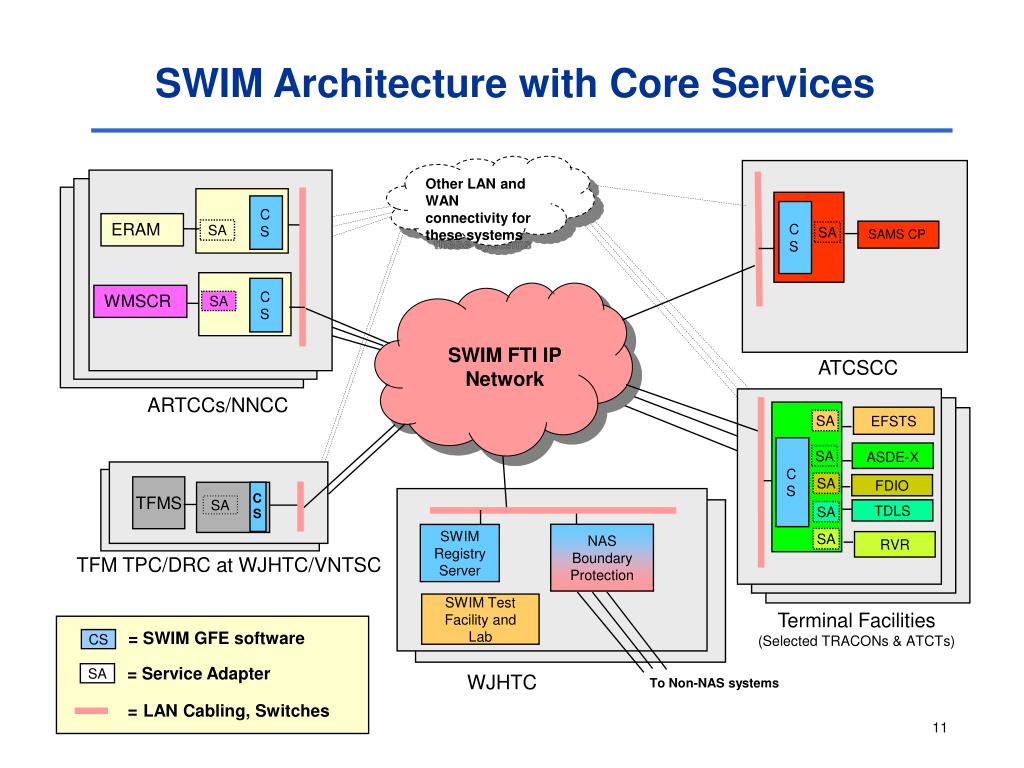

11. = SWIM GFE software CS = Service Adapter SA =LAN Cabling, Switches C S SWIM Architecture with Core Services Other LAN and WAN connectivity for these systems CS CS ERAM SA SAMS CP SA CS WMSCR SA SWIM FTI IP Network ATCSCC ARTCCs/NNCC EFSTS SA CS ASDE-X SA SA FDIO TFMS SA TDLS SA NAS Boundary Protection SWIM Registry Server SA RVR TFM TPC/DRC at WJHTC/VNTSC SWIM Test Facility and Lab Terminal Facilities (Selected TRACONs & ATCTs) WJHTC To Non-NAS systems

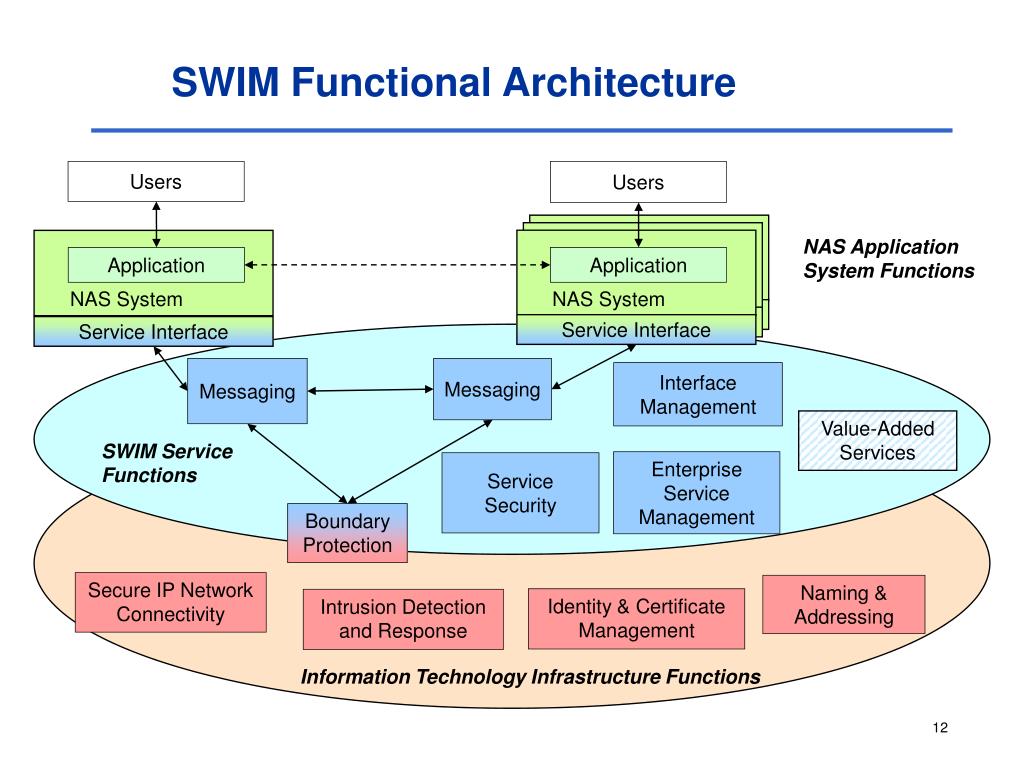

12. Application NAS System Service Interface Service Interface Service Interface SWIM Functional Architecture Users Users NAS Application System Functions Application NAS System Service Interface Messaging Messaging Interface Management Value-Added Services SWIM Service Functions Enterprise Service Management Service Security Boundary Protection Secure IP Network Connectivity Naming & Addressing Identity & Certificate Management Intrusion Detection and Response Information Technology Infrastructure Functions

13. SWIM Core Services Segment 1 Capability Key Segment 1 Future Segments NAS Systems

14. Backup

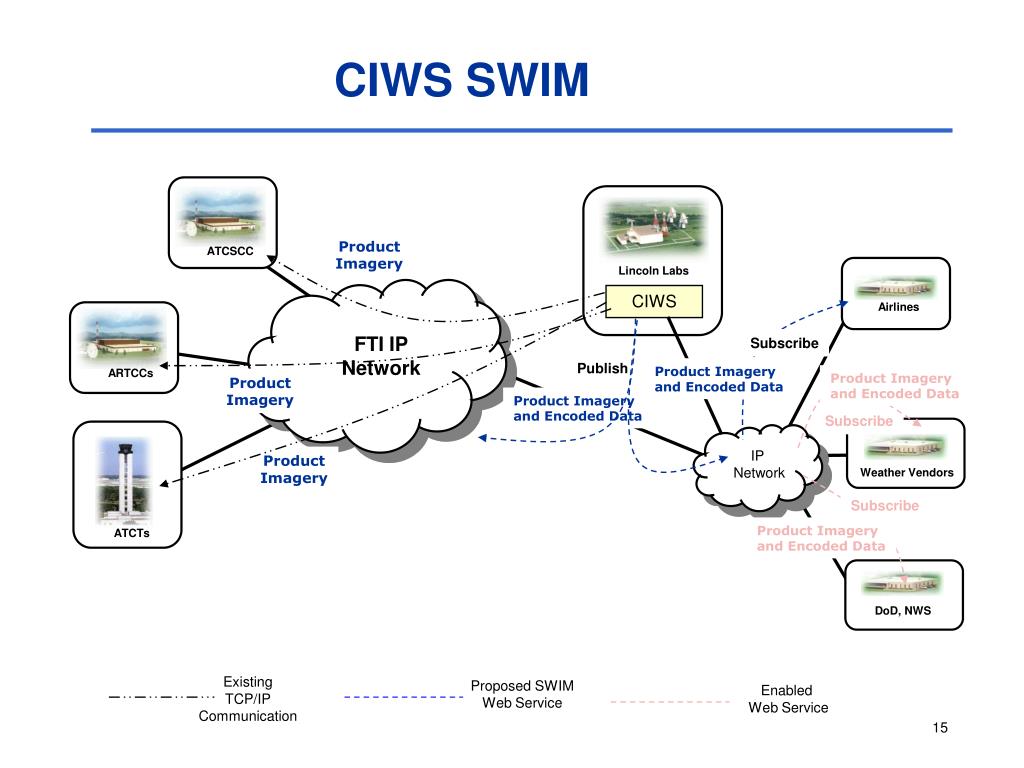

15. ARTCCs ATCSCC IP Network Airlines ATCTs Weather Vendors DoD, NWS CIWS SWIM Product Imagery Lincoln Labs CIWS FTI IP Network Subscribe Publish Product Imagery and Encoded Data Product Imagery and Encoded Data Product Imagery Product Imagery and Encoded Data Subscribe Product Imagery Subscribe Product Imagery and Encoded Data Existing TCP/IP Communication Proposed SWIM Web Service Enabled Web Service

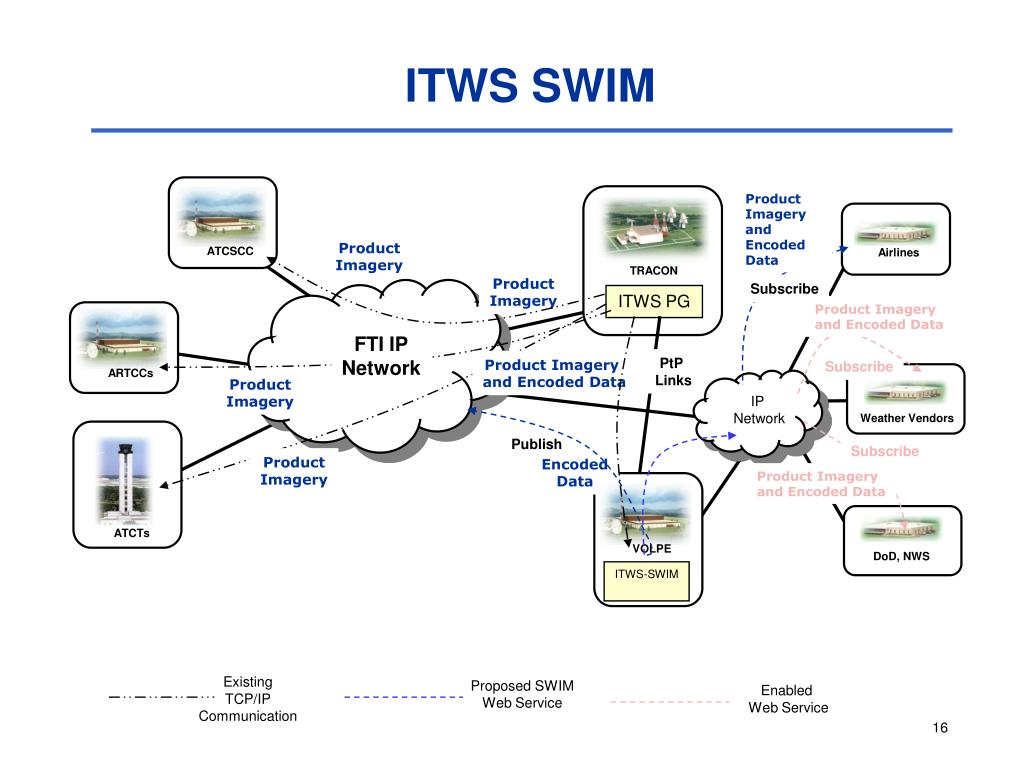

16. ARTCCs ATCSCC VOLPE IP Network Airlines ATCTs Weather Vendors DoD, NWS ITWS SWIM Product Imagery and Encoded Data Product Imagery TRACON Product Imagery Subscribe ITWS PG Product Imagery and Encoded Data FTI IP Network PtP Links Product Imagery and Encoded Data Subscribe Product Imagery Publish Subscribe Product Imagery Encoded Data Product Imagery and Encoded Data ITWS-SWIM Existing TCP/IP Communication Proposed SWIM Web Service Enabled Web Service

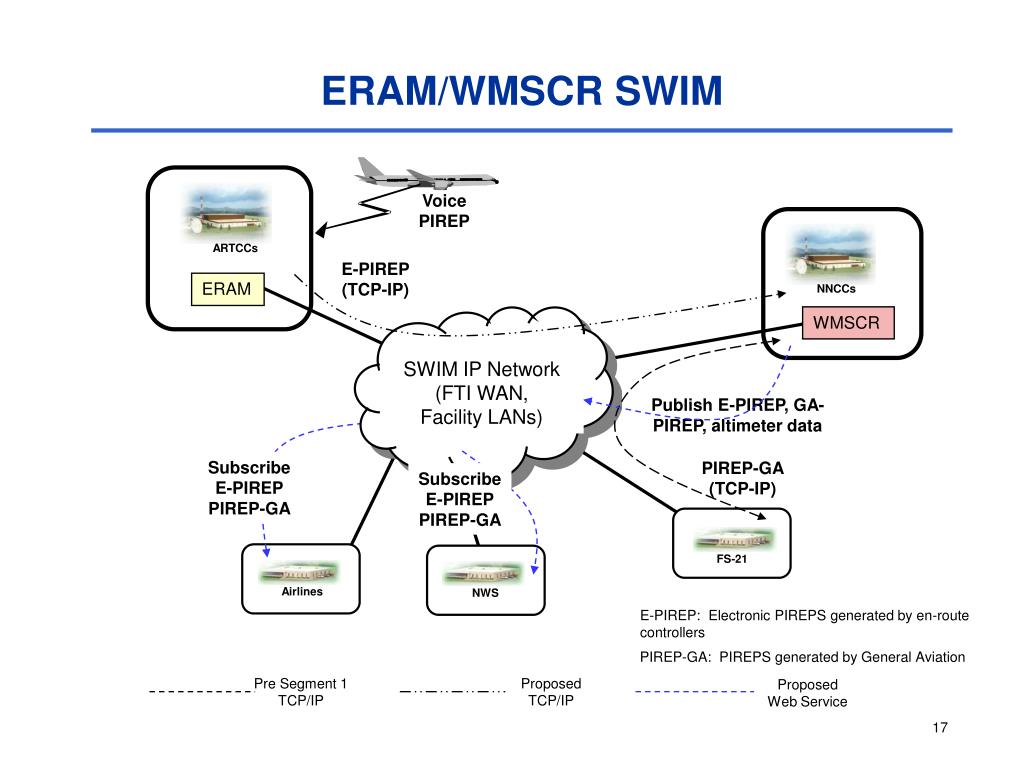

17. Voice PIREP ARTCCs NNCCs ERAM/WMSCR SWIM E-PIREP (TCP-IP) ERAM WMSCR SWIM IP Network (FTI WAN, Facility LANs) Publish E-PIREP, GA-PIREP, altimeter data Subscribe E-PIREP PIREP-GA PIREP-GA (TCP-IP) Subscribe E-PIREP PIREP-GA FS-21 Airlines NWS E-PIREP: Electronic PIREPS generated by en-route controllers PIREP-GA: PIREPS generated by General Aviation Pre Segment 1 TCP/IP Proposed TCP/IP Proposed Web Service

18. AIM SUA – Segment 1 Data Flow Focus

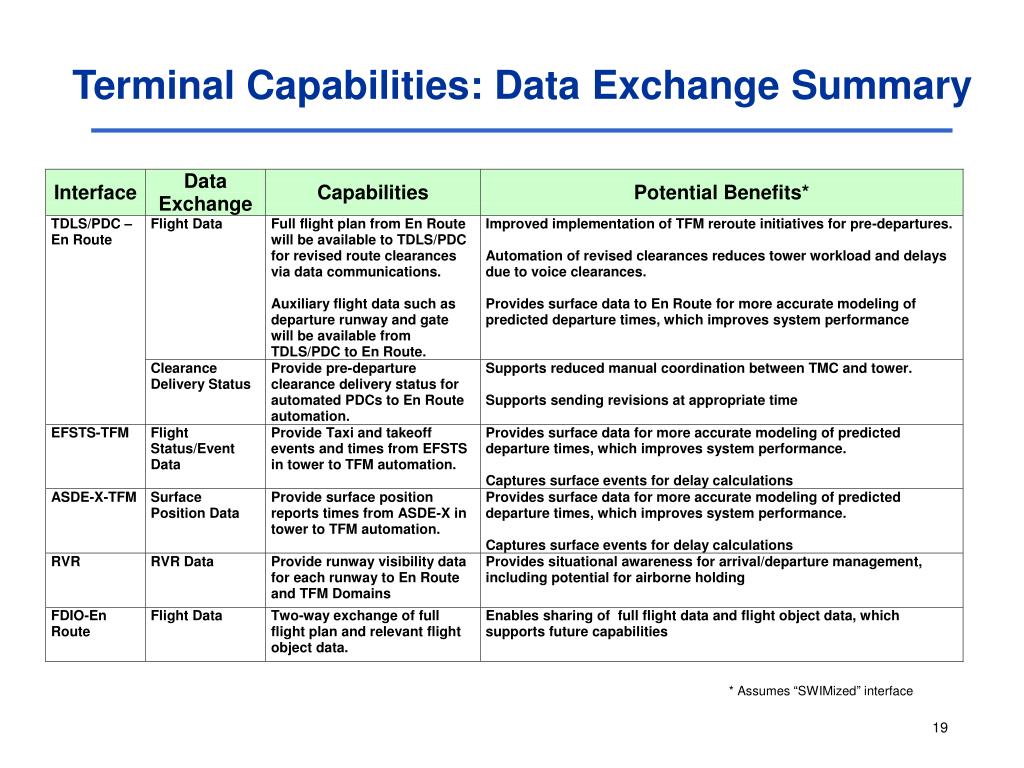

19. Terminal Capabilities: Data Exchange Summary * Assumes “SWIMized” interface

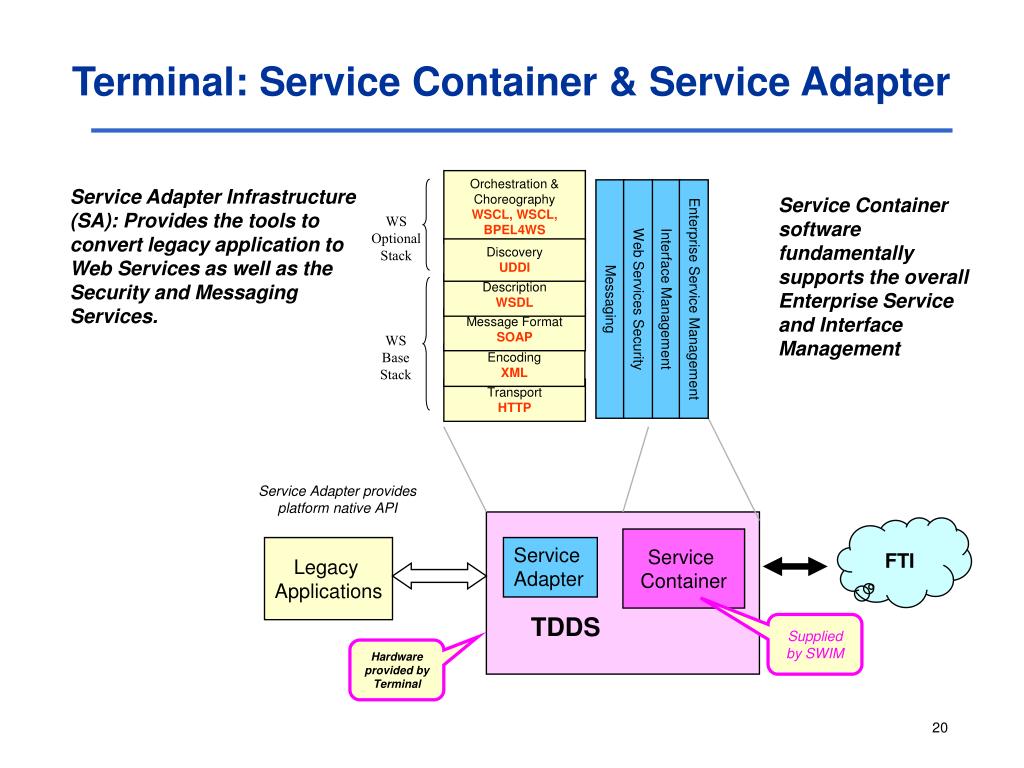

20. Web Services Security Enterprise Service Management Messaging Interface Management Terminal: Service Container & Service Adapter Orchestration & Choreography WSCL, WSCL, BPEL4WS Service Adapter Infrastructure (SA): Provides the tools to convert legacy application to Web Services as well as the Security and Messaging Services. Service Container software fundamentally supports the overall Enterprise Service and Interface Management WS Optional Stack Discovery UDDI Description WSDL Message Format SOAP WS Base Stack Encoding XML Transport HTTP Service Adapter provides platform native API FTI Service Container Legacy Applications Service Adapter TDDS Supplied by SWIM Hardware provided by Terminal

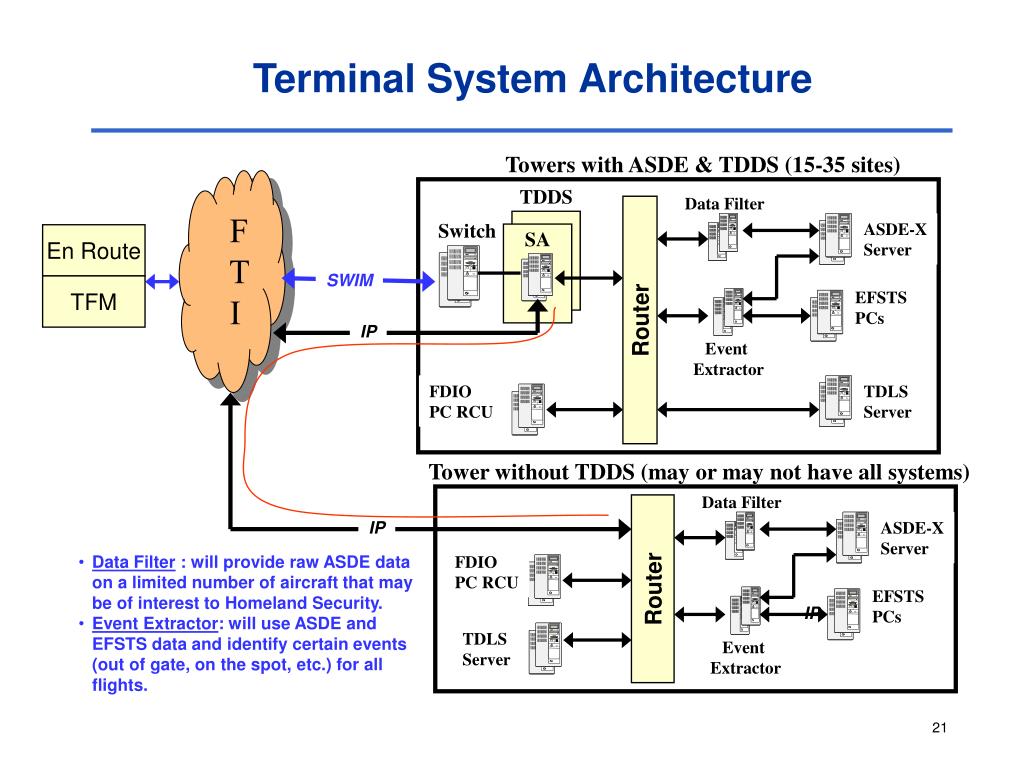

21. Terminal System Architecture Towers with ASDE & TDDS (15-35 sites) F T I TDDS Data Filter Switch ASDE-X Server SA En Route SWIM TFM EFSTS PCs Router IP Event Extractor FDIO PC RCU TDLS Server Tower without TDDS (may or may not have all systems) Data Filter IP ASDE-X Server • Data Filter : will provide raw ASDE data on a limited number of aircraft that may be of interest to Homeland Security. • Event Extractor: will use ASDE and EFSTS data and identify certain events (out of gate, on the spot, etc.) for all flights. FDIO PC RCU Router EFSTS PCs IP TDLS Server Event Extractor

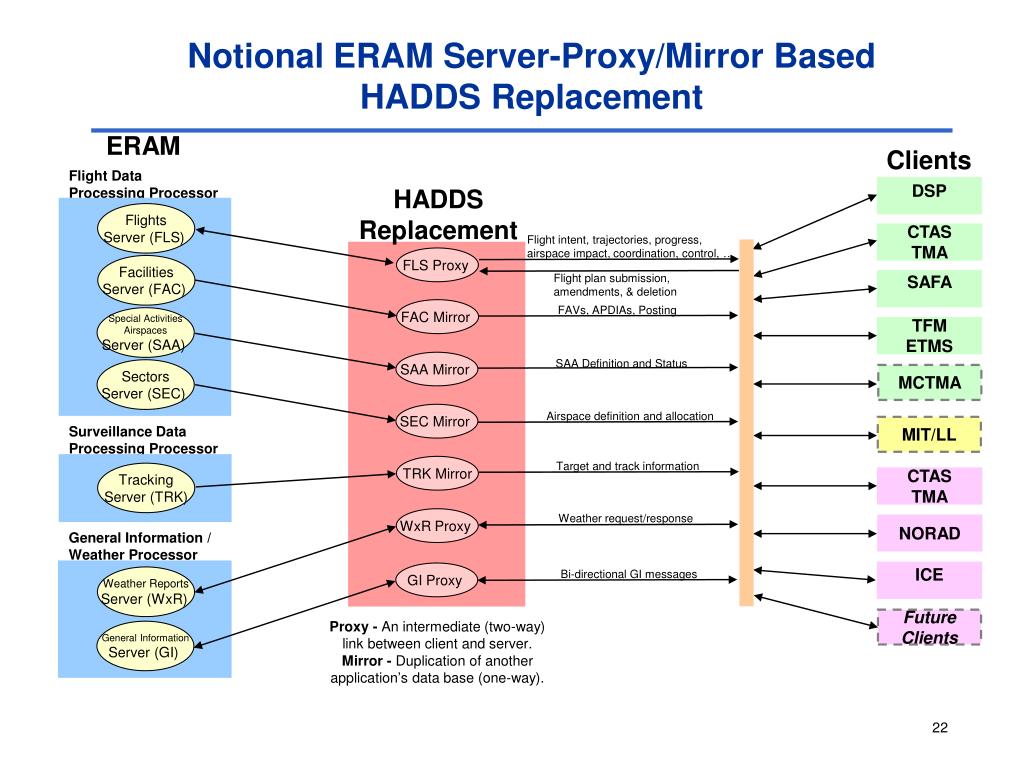

22. Notional ERAM Server-Proxy/Mirror BasedHADDS Replacement ERAM Clients Flight Data Processing Processor DSP HADDS Replacement Flights Server (FLS) CTAS TMA Flight intent, trajectories, progress, airspace impact, coordination, control, … FLS Proxy Facilities Server (FAC) Flight plan submission, amendments, & deletion SAFA FAVs, APDIAs, Posting FAC Mirror Special Activities Airspaces Server (SAA) TFM ETMS SAA Definition and Status SAA Mirror Sectors Server (SEC) MCTMA Airspace definition and allocation SEC Mirror MIT/LL Surveillance Data Processing Processor Target and track information TRK Mirror Tracking Server (TRK) CTAS TMA Weather request/response WxR Proxy NORAD General Information / Weather Processor Bi-directional GI messages ICE GI Proxy Weather Reports Server (WxR) Future Clients Proxy - An intermediate (two-way) link between client and server. Mirror - Duplication of another application’s data base (one-way). General Information Server (GI)

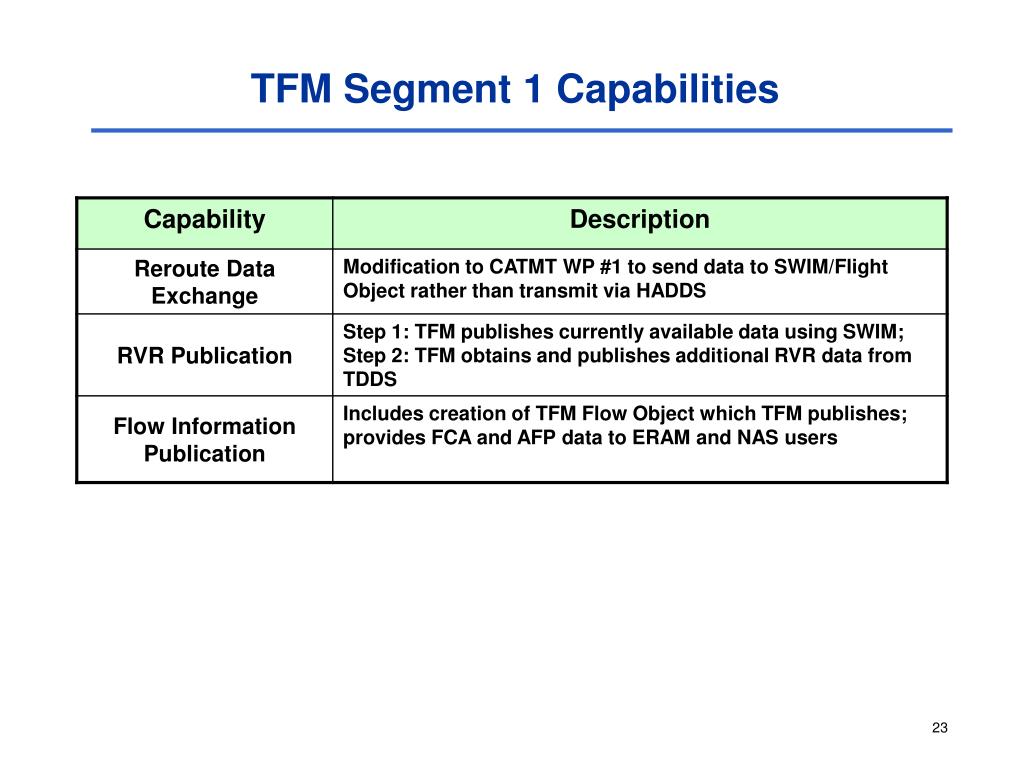

23. TFM Segment 1 Capabilities

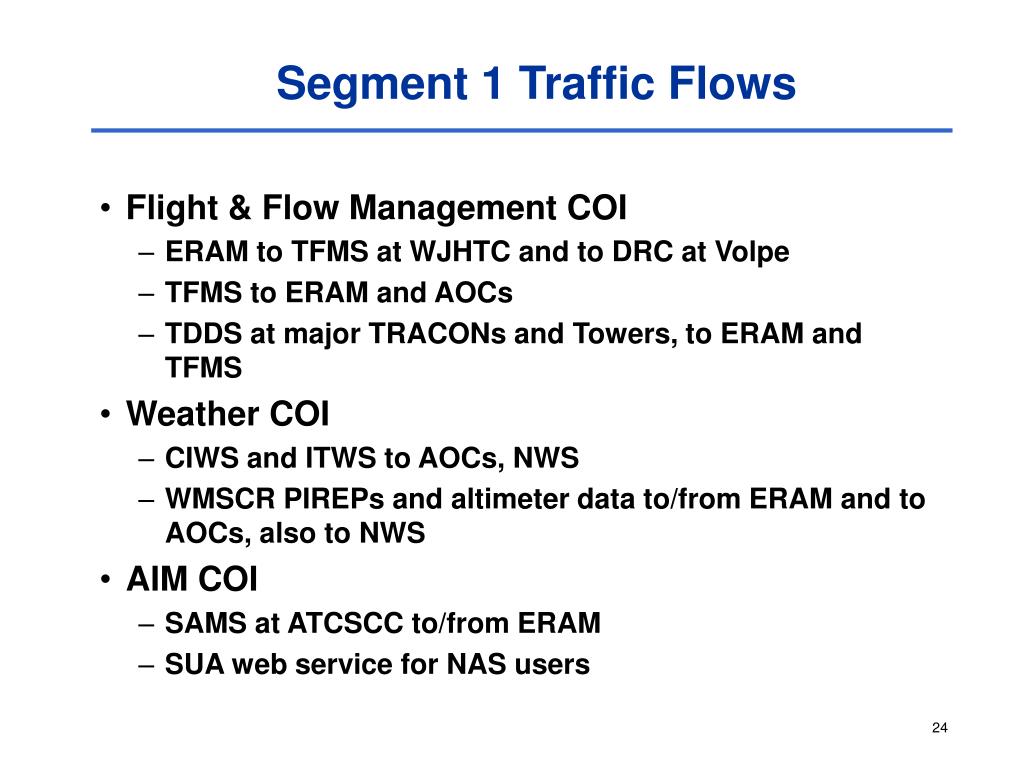

24. Segment 1 Traffic Flows • Flight & Flow Management COI • ERAM to TFMS at WJHTC and to DRC at Volpe • TFMS to ERAM and AOCs • TDDS at major TRACONs and Towers, to ERAM and TFMS • Weather COI • CIWS and ITWS to AOCs, NWS • WMSCR PIREPs and altimeter data to/from ERAM and to AOCs, also to NWS • AIM COI • SAMS at ATCSCC to/from ERAM • SUA web service for NAS users
