    Presentation Transcript
    1. The Moon A look at our nearest neighbor in Space! Free powerpoints at http://www.worldofteaching.com

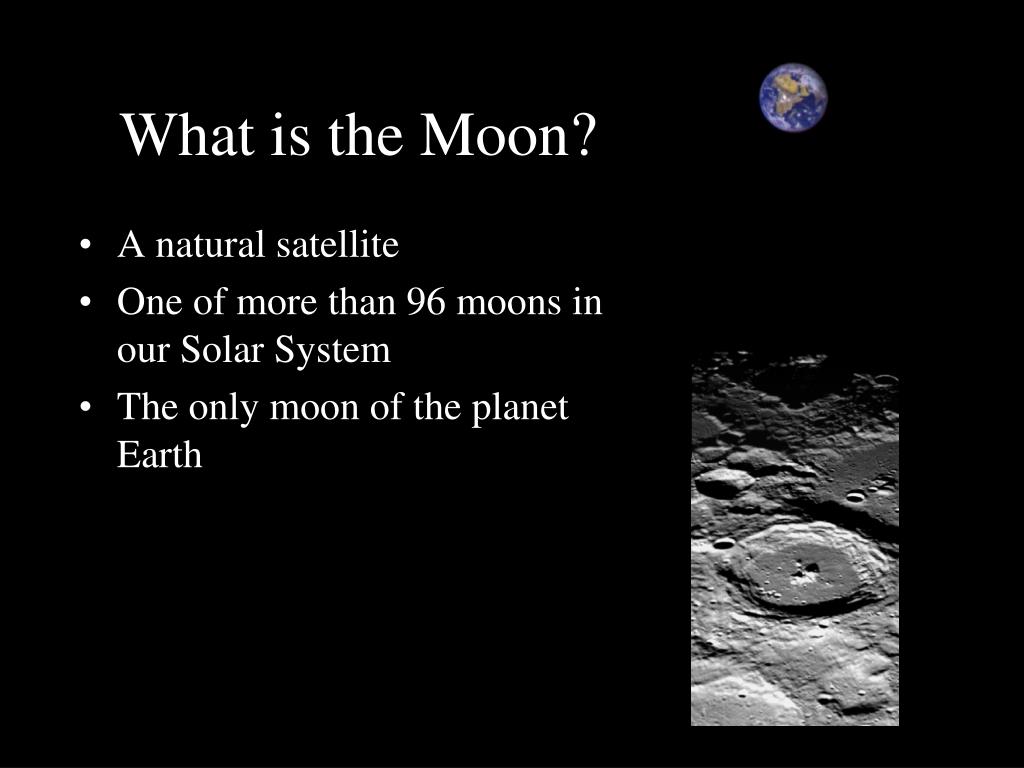

    2. What is the Moon? • A natural satellite • One of more than 96 moons in our Solar System • The only moon of the planet Earth

    3. Location, location, location! • About 384,000 km (240,000 miles) from Earth • 3,468 km (2,155 miles) in diameter (about ¼ the size of Earth)

    4. Orbits (revolves around) Earth every 27.3 days Elliptical orbit (not a perfect circle) • About 384,000 km (240,000 miles) from Earth • 360,000 km 406,000 km • 224,000 miles 252,000 miles

    5. Earth Plane of earth’s orbit Moon Plane of lunar orbit Moon

    6. The Moon orbits the Earth at a 5o angle with respect to the Earth’s orbit around the Sun.

    7. The Earth-Moon System • Apogee- point at which the Moon is farthest from Earth • Perigee- point at which the Moon is closest to Earth

    8. Birth of the Moon • “Born” 4-5 billion years ago • Formed from impact of Mars-sized “planetesimal” on Earth • Debris from both objects melted together to form the Moon

    9. Space Exploration • 1957- the Soviet Union launches, Sputnik, the first artificial satellite • 1958- the U.S. launched its first, Explorer 1 • Thousands now orbit the Earth

    10. Exploring the Moon • Neil Armstrong First man on the Moon – July 20, 1969 • Six Apollo missions (1969-1972) • 382 kg (842 lbs) rocks • 12 Americans have walked on the moon

    11. Movements of the Moon • Revolution: the Moon orbits the Earth every 27.3 days • Rotation – Moon turns on its axis every 27.3 days • We always see the same side of the Moon because its period of rotation equals its revolution! • This is called synchronous rotation.

    12. Movements of the Moon • The moon rises in the east and sets in the west • The moon rises and sets 50 minutes later each day

    13. Cut to the Core • 3 major divisions of the Lunar interior • Crust - average thickness of about 70 kilometers • Mantle • Core - radius is between 300 and 425 kilometers

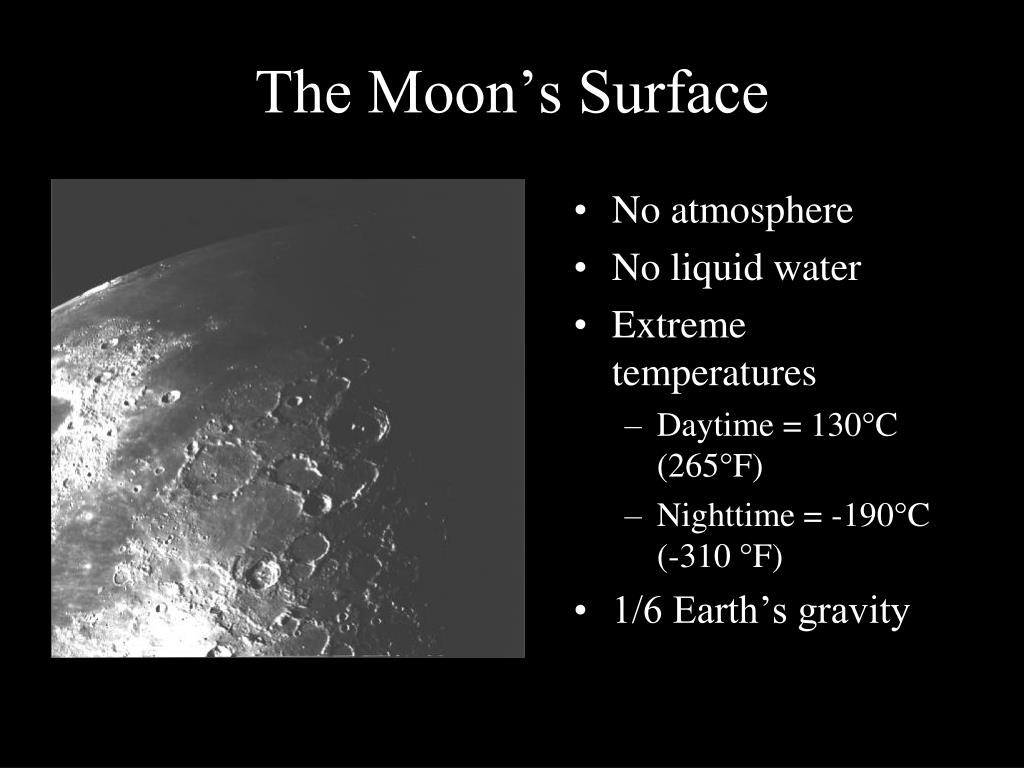

    14. The Moon’s Surface • No atmosphere • No liquid water • Extreme temperatures • Daytime = 130C (265°F) • Nighttime = -190C (-310 F) • 1/6 Earth’s gravity

    15. The Lunar Surface Highlands • Mountains up to 7500 m (25,000 ft) tall • Ridges- long, narrow elevations of rock that crisscross the moon’s surface. Highlands

    16. The Lunar SurfaceMaria • Originally thought to be seas by early astronomers like Galileo and he named them for their “sea”-like appearance • Darkest areas made chiefly of basalt rock (igneous rock) • Filled by lava after crash of huge meteors on lunar surface • Formed 3-4 billion years Mare

    17. Lunar FeaturesRilles Long, deep ancient lava channels (trench-like valleys) leftover from the formation of maria

    18. Lunar FeaturesCraters • Most formed by meteor impact on the Moon • Some formed by volcanic action inside the Moon • Young craters characterized by bright streaks, called rays • Up to 2500 km (1,553 miles) across

    19. Lunar FeaturesRegolith Fine layer of dust and rock that covers the moon’s surface

    20. Lunar FeaturesRocks • Mostly made of Basalt (iron and magnesium rich volcanic rock) • Similar to igneous rocks found in Earth’s crust • Breccia- contain fragments of other rocks fused together

    21. Limb The line where the surface of the moon meets the sky. Terminator The imaginary line between the reflected light and shadow.

    22. Craters Can you see the rays? Maria Does this photo show us a limb or terminator line?

    23. Far Side of the Moon • First seen by Luna 3 Russian space probe in 1959 • Surface features different from near side • More craters • Very few maria • Thicker crust

    24. It’s Just a Phase • Moonlight is reflected sunlight • Half the moon’s surface is always reflecting light • From Earth we see different amounts of the Moon’s lit surface • The amount seen is called a “phase”

    25. Illumination of the Moon • Waxing- occurs when the size of the lighted part of the Moon is increasing • Waning- occurs when the size of the lighted part of the Moon is decreasing

    26. Waxing and Waning • New moon • Waxing Crescent moon • First Quarter moon • Waxing Gibbous moon • Full moon • Waning Gibbous moon • Third Quarter moon • Waning Crescent moon • New moon

    27. FOUR MAIN SHAPES FULL CRESCENT Four Basic Shapes GIBBOUS QUARTER

    28. Moon rise times: • The New Moon always rises at sunrise. • The first quarter Moon rises at noon. • The Full Moon rises at sunset. • The last quarter Moon rises at midnight. • Moonrise takes place about 50 minutes later each day than the day before.

    29. starchild.gsfc.nasa.gov/docs/StarChild/questions/phases.html

    30. Eclipses • Eclipses are caused when one celestial body passes through the shadow of another • The Sun and Moon occasionally line up with the Earth so that an eclipse occurs

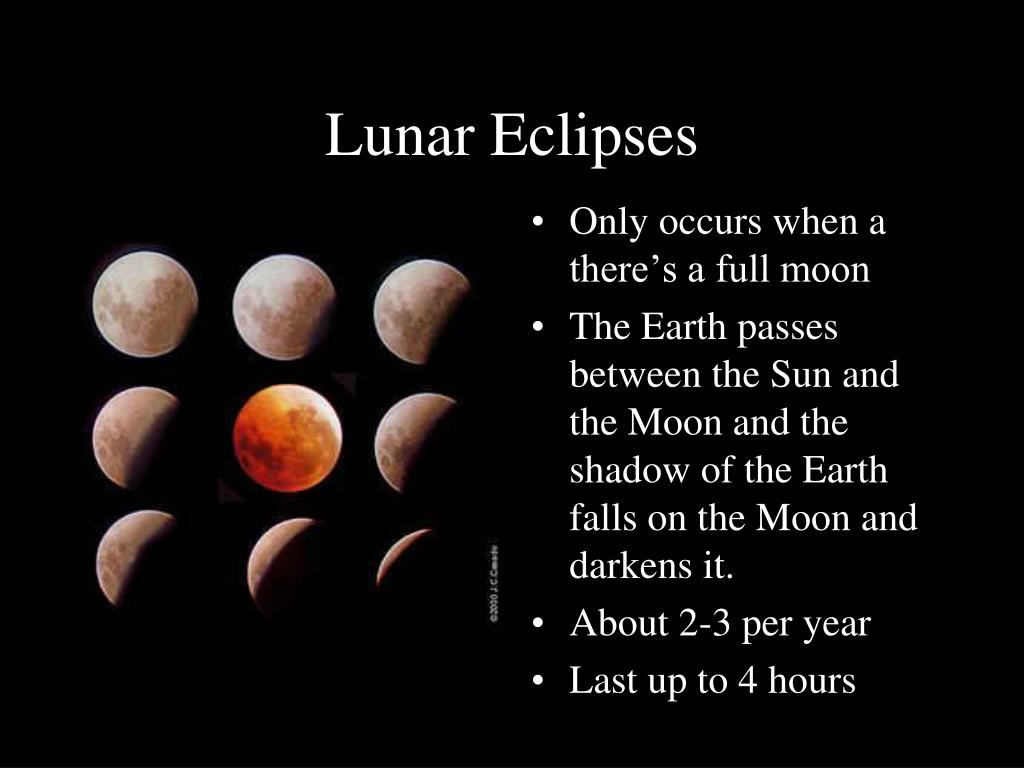

    31. Lunar Eclipses • Only occurs when a there’s a full moon • The Earth passes between the Sun and the Moon and the shadow of the Earth falls on the Moon and darkens it. • About 2-3 per year • Last up to 4 hours

    32. Lunar Eclipses • Penumbra A portion of the light source is blocked and an observer in the penumbra experiences a partial lunar eclipse • Umbra The light source is completely blocked and an observer in the umbra experiences a total lunar eclipse

    33. Lunar Eclipses Why is the moon red during a lunar eclipse?

    34. Lunar Eclipses • Even during a total lunar eclipse, sunlight is bent around Earth through the atmosphere • The Moon is visible and appears to have a reddish tint

    35. Lunar Eclipses Indirect sunlight still manages to reach and illuminate the moon. However, this sunlight must first pass deep through the Earth's atmosphere which filters out most of the blue colored light. The remaining light is a deep red or orange in color and is much dimmer than pure white sunlight.

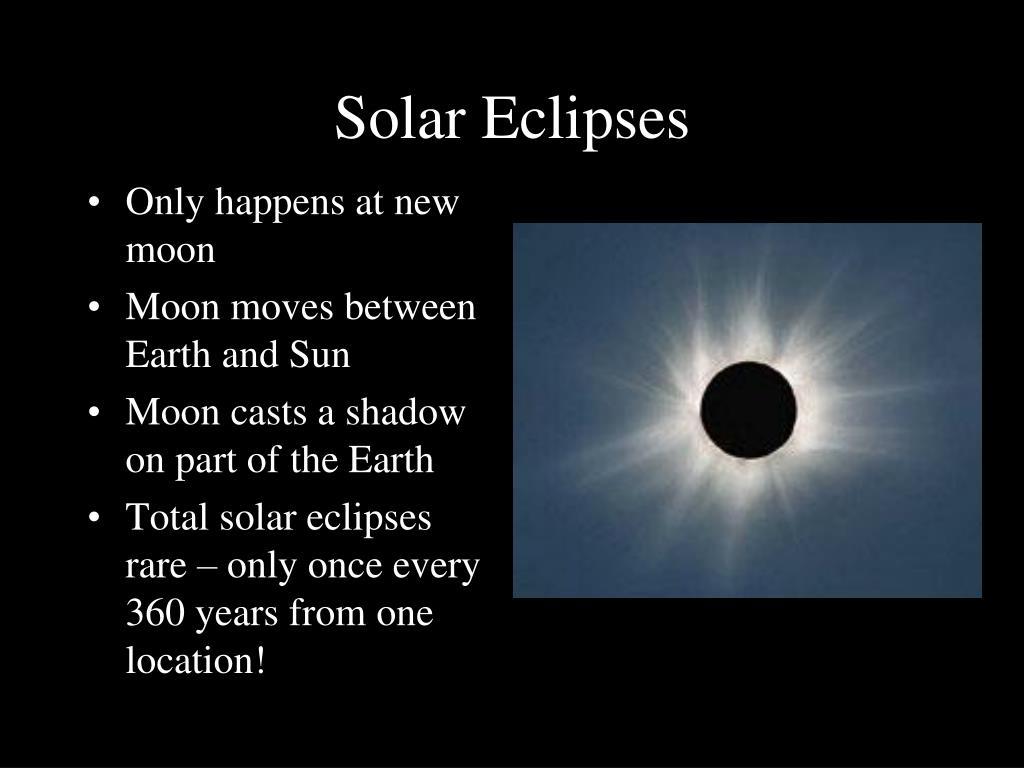

    36. Solar Eclipses • Only happens at new moon • Moon moves between Earth and Sun • Moon casts a shadow on part of the Earth • Total solar eclipses rare – only once every 360 years from one location!

    37. The Tides • The Moon’s gravity tugs on the Earth. • It pulls the most on the part of Earth closest and least on the farthest causing tidal bulges • High tide – • Side facing Moon and side away from Moon • Low tide – • On sides of Earth Note: The earth rotates within the tidal bulge

    38. Tidal Patterns

    39. When will we return?

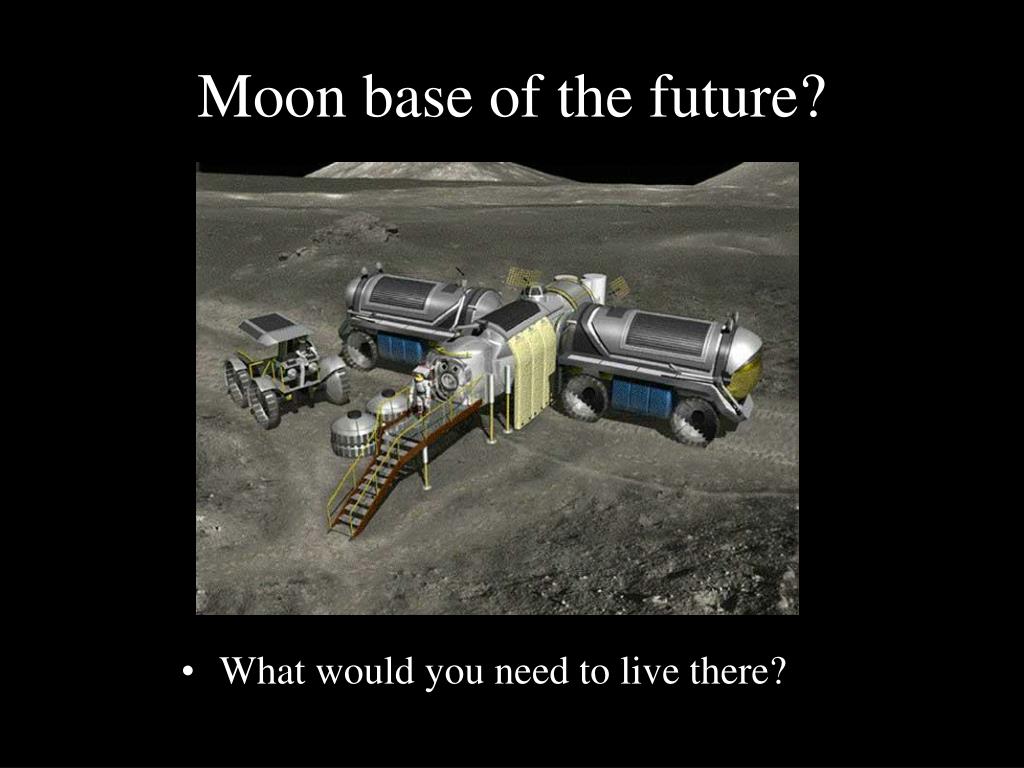

    40. Moon base of the future? • What would you need to live there?

    41. The Lunar Challenge!

    42. Name this phase! Full Moon What time does this phase rise and set?

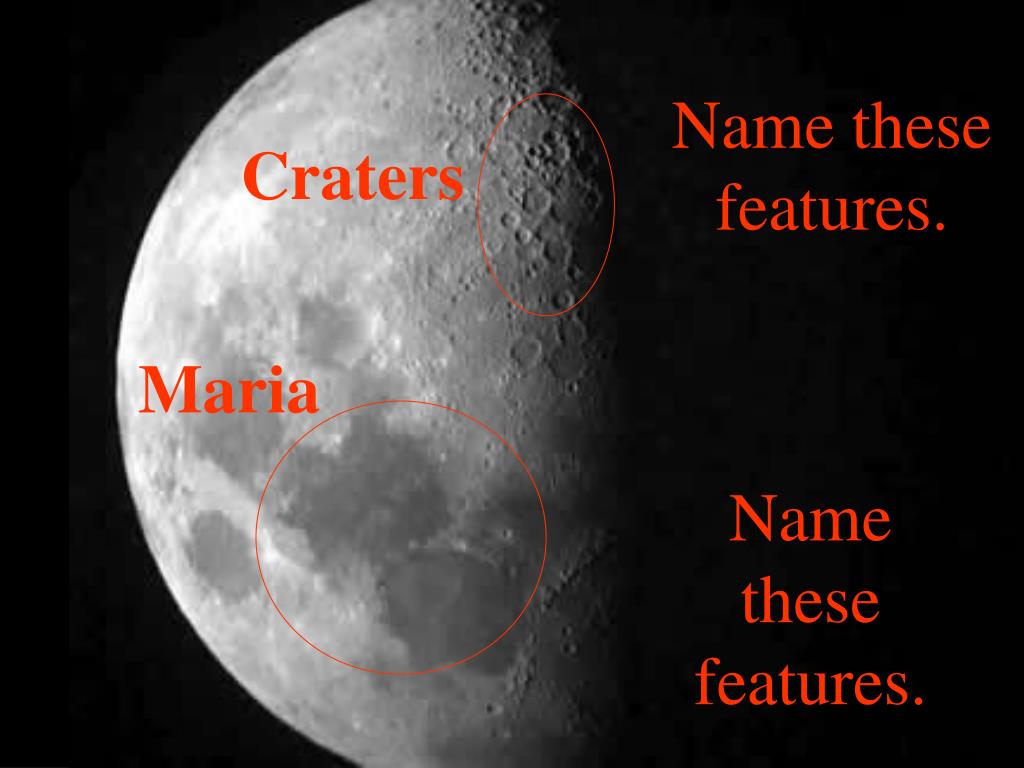

    43. Name these features. Craters Maria Name these features.
