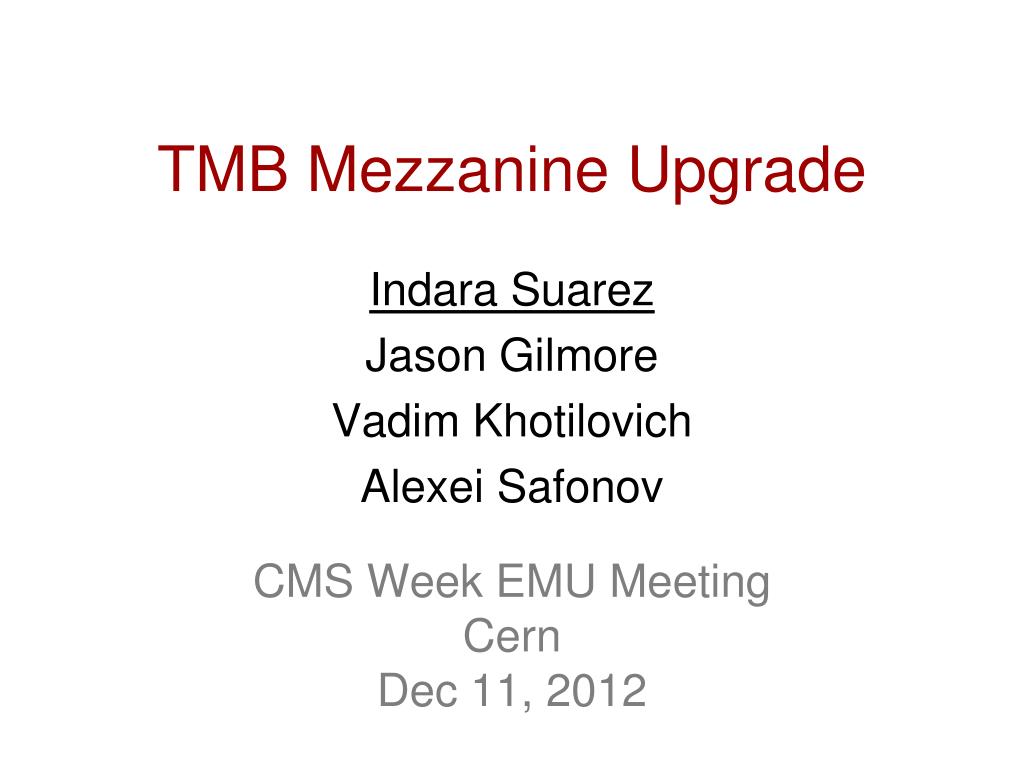

tmb mezzanine upgrade

TMB Mezzanine Upgrade

Indara Suarez

Jason Gilmore

Vadim Khotilovich

Alexei Safonov

CMS Week EMU Meeting

Cern

Dec 11, 2012

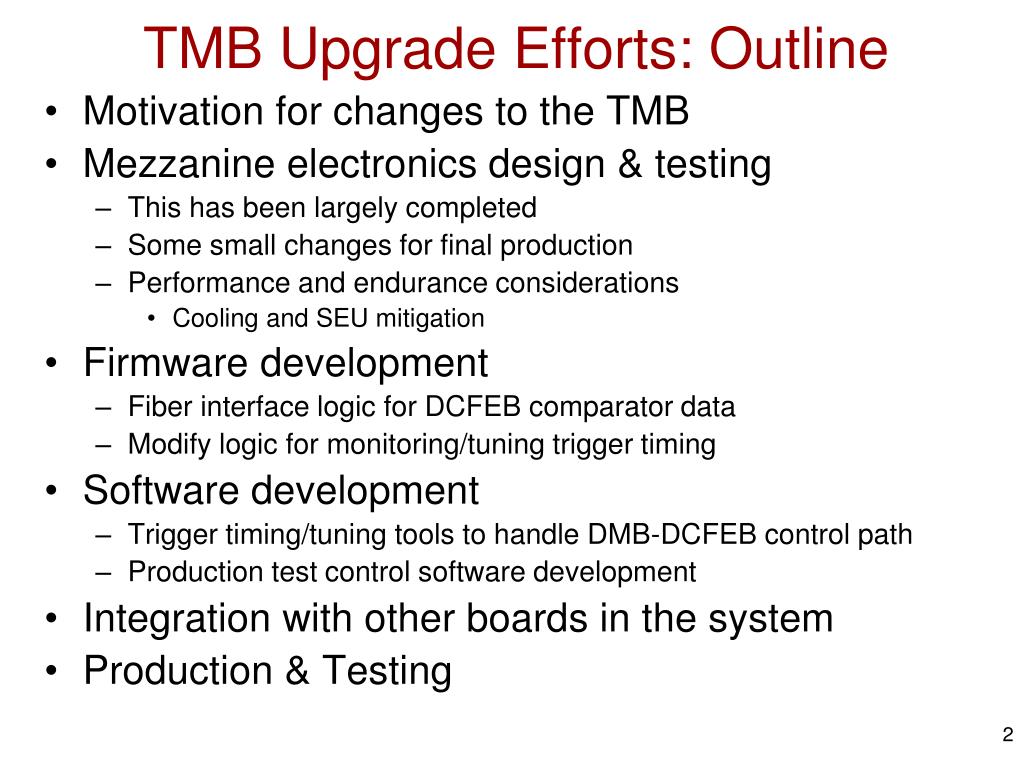

tmb upgrade efforts outline
TMB Upgrade Efforts: Outline
  • Motivation for changes to the TMB
  • Mezzanine electronics design & testing
    • This has been largely completed
    • Some small changes for final production
    • Performance and endurance considerations
      • Cooling and SEU mitigation
  • Firmware development
    • Fiber interface logic for DCFEB comparator data
    • Modify logic for monitoring/tuning trigger timing
  • Software development
    • Trigger timing/tuning tools to handle DMB-DCFEB control path
    • Production test control software development
  • Integration with other boards in the system
  • Production & Testing
csc frontend trigger problem
CSC: Frontend Trigger Problem
  • Out-of-time PU induces deadtime at higher luminosity  look at PU100
  • Particular issue is the ME1/1 “TMB” building chamber track segments
    • Two aspects making ME1/1 special:
      • Very high occupancies
      • ME1/1 TMBs effectively serve two chambers (inner ME1/a, outer ME1/b)
  • Need better FPGA to maintain efficiency
    • The algorithm is ready (V. Khotilovich)
    • Design of prototype TMB completed
  • Improve muon trigger efficiency for |h|>2.1
    • Rate increase compensated by requiring 3 station coincidence for |h|>2.1
      • With new TMB can do w/o efficiency loss
      • Needs firmware modifications in CSCTF
tmb design considerations
TMB Design Considerations
  • Virtex 6 FPGA enhances our capabilities
    • Space & speed for improved trigger logic
    • Use 7 multi-gigabit serial links for data from DCFEBs
  • But it is a complicated chip to use
    • Requires 6 voltage levels, ~6 amps total
      • Power supply and cooling must be considered
    • Virtex 6 I/O is limited to 2.5V
      • Current TMB uses 3.3V signals throughout
      • Require external signal-level translators for the FPGA
  • We need the new board to be backwards compatible
    • Keep the copper connections for old CFEBs
    • Make fiber inputs available for new DCFEBs

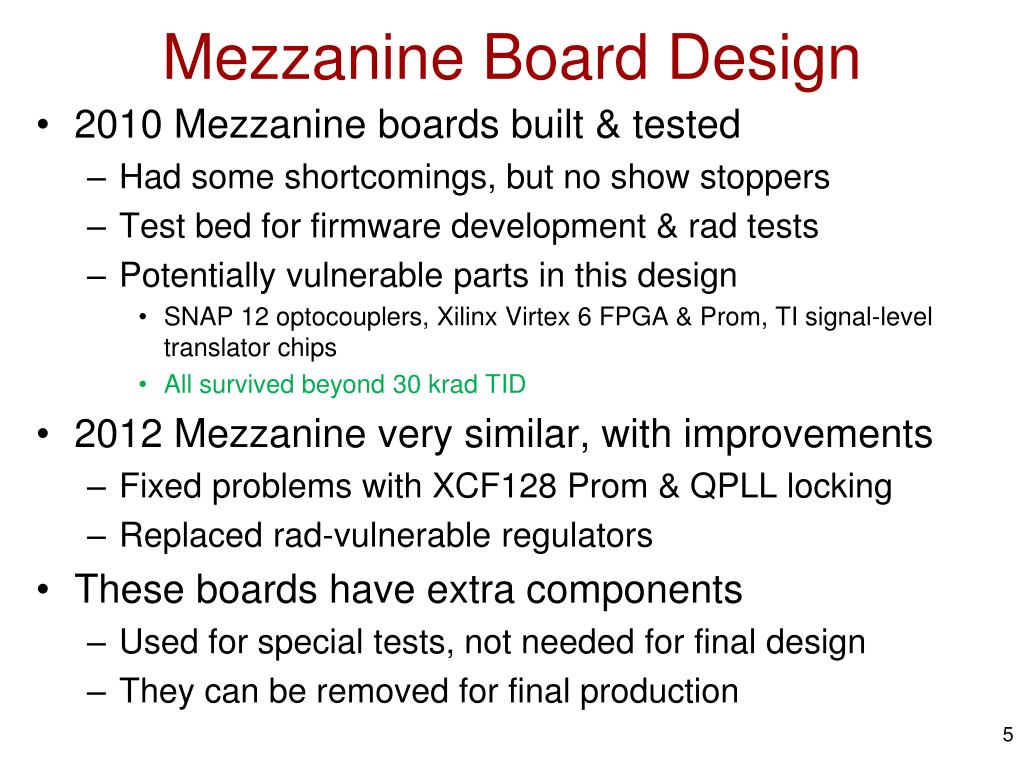

mezzanine board design
Mezzanine Board Design
  • 2010 Mezzanine boards built & tested
    • Had some shortcomings, but no show stoppers
    • Test bed for firmware development & rad tests
    • Potentially vulnerable parts in this design
      • SNAP 12 optocouplers, Xilinx Virtex 6 FPGA & Prom, TI signal-level translator chips
      • All survived beyond 30 krad TID
  • 2012 Mezzanine very similar, with improvements
    • Fixed problems with XCF128 Prom & QPLL locking
    • Replaced rad-vulnerable regulators
  • These boards have extra components
    • Used for special tests, not needed for final design
    • They can be removed for final production
tmb mezzanine 2012 prototype
TMB Mezzanine 2012 Prototype

Virtex 6 FPGA + PROM

QPLL

Snap 12 Fiber

Transmitter socket

(not used in final design)

Snap 12 Fiber

Receiver

- fibers from 7 DCFEBs

Signal-level translators

3.3 V to 2.5 V

Dimensions: 7.5” wide by 5.9” high

11.1 mm clearance from TMB main board

changes for final mez in 2013
Changes for Final Mez in 2013

Remove Parts Not needed…

Might keep this

-Convenient for fiber self-tests

Can shrink PCB size to 7.5” wide by 5.25” high

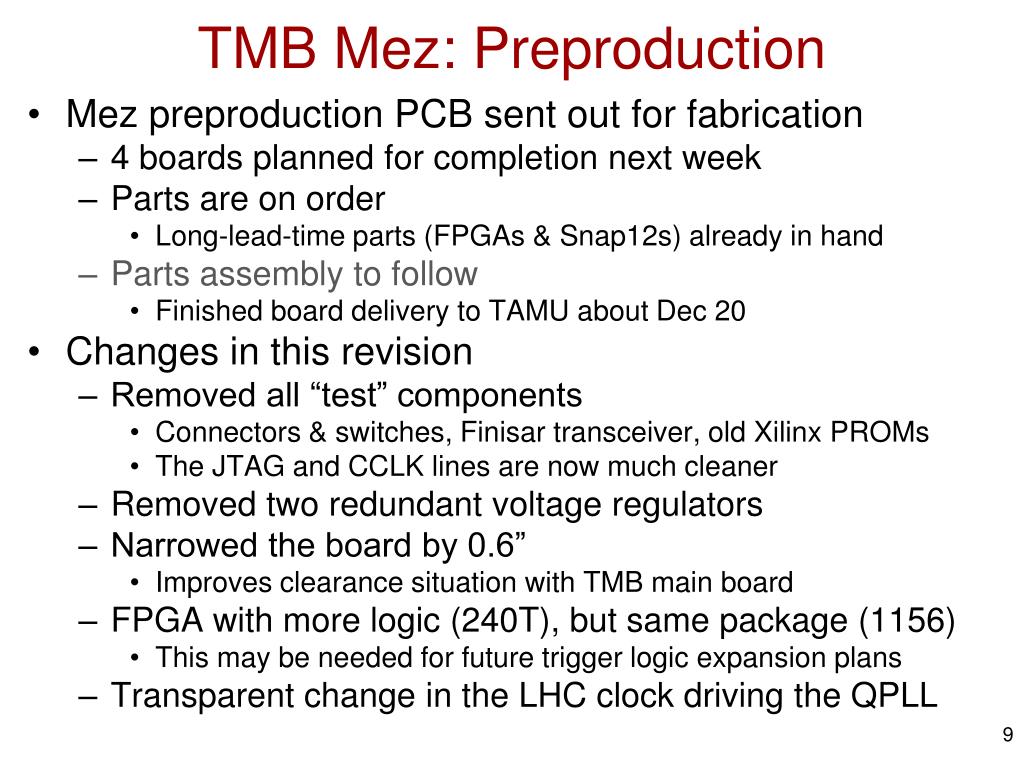

tmb mez preproduction
TMB Mez: Preproduction
  • Mez preproduction PCB sent out for fabrication
    • 4 boards planned for completion next week
    • Parts are on order
      • Long-lead-time parts (FPGAs & Snap12s) already in hand
    • Parts assembly to follow
      • Finished board delivery to TAMU about Dec 20
  • Changes in this revision
    • Removed all “test” components
      • Connectors & switches, Finisar transceiver, old Xilinx PROMs
      • The JTAG and CCLK lines are now much cleaner
    • Removed two redundant voltage regulators
    • Narrowed the board by 0.6”
      • Improves clearance situation with TMB main board
    • FPGA with more logic (240T), but same package (1156)
      • This may be needed for future trigger logic expansion plans
    • Transparent change in the LHC clock driving the QPLL

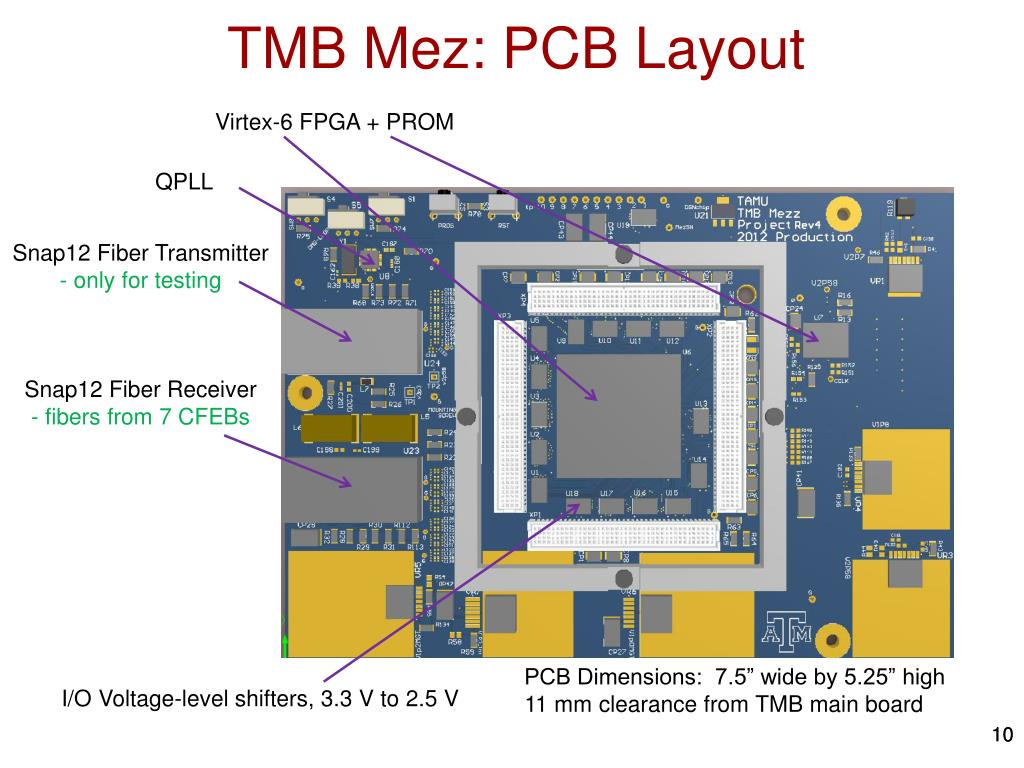

tmb mez pcb layout
TMB Mez: PCB Layout

Virtex-6 FPGA + PROM

QPLL

Snap12 Fiber Transmitter

- only for testing

Snap12 Fiber Receiver

- fibers from 7 CFEBs

PCB Dimensions: 7.5” wide by 5.25” high

11 mm clearance from TMB main board

I/O Voltage-level shifters, 3.3 V to 2.5 V

10

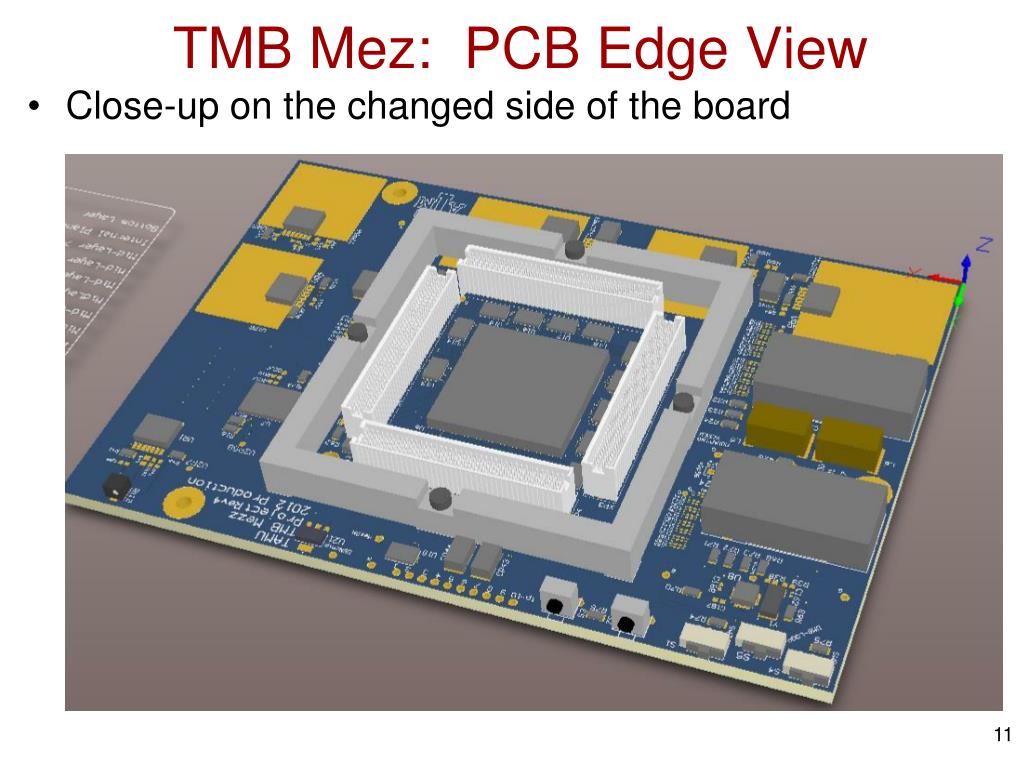

tmb mez pcb edge view
TMB Mez: PCB Edge View
  • Close-up on the changed side of the board
voltage regulator radiation tests
Voltage Regulator Radiation Tests
  • Testing performed at the Texas A&M Nuclear Science Center
    • 1 megawatt reactor operating at 6 kW, provides 9.9 *108 n/cm2s
  • Multiple samples of several COTS regulators, two exposures
    • First exposure represents ~10 SLHC year dose
    • Second exposure adds ~20 SLHC years, total of 30 year dose
    • Regulator performance tested before and after each exposure
      • Regulators were unpowered during exposure
  • Several regulators showed no ill-effects
    • National Semi LP38501 and LP38853
    • Micrel 49500 and 69502
    • TI TPS74901
  • Others did not fare so well…
    • Maxim 8557
    • Sharp PQ035ZN1, PQ05VY053, PQ070XZ
    • TI TPS75601, TPS75901
    • No improvement seen with additional cool-down time

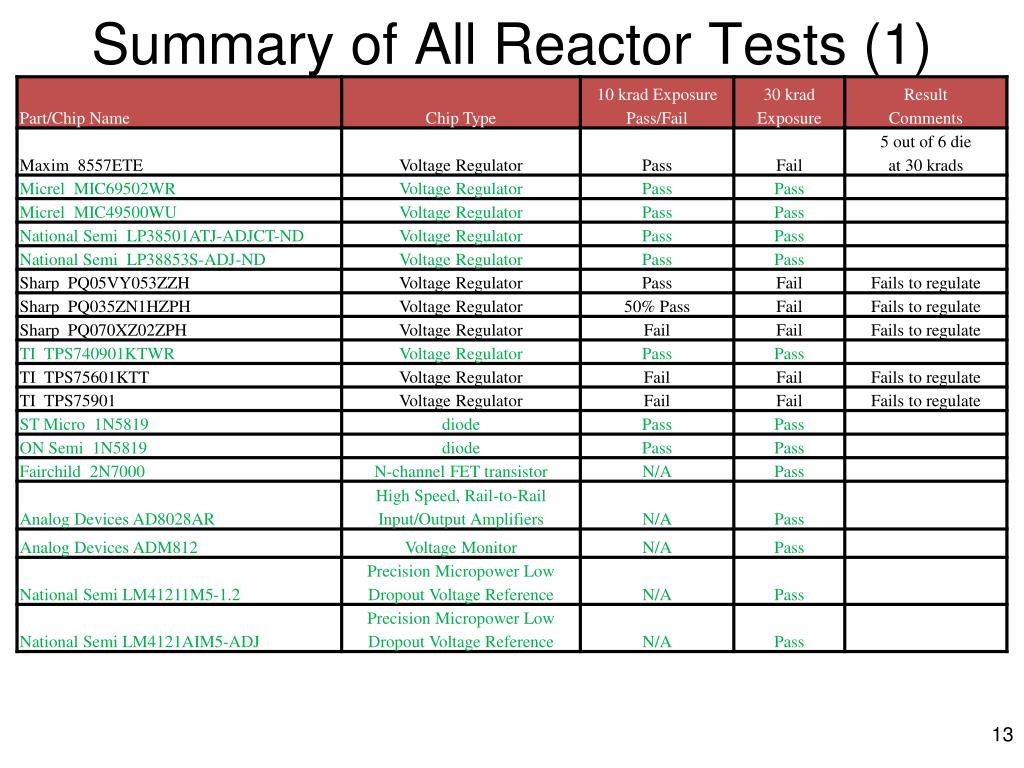

seu studies for new csc boards
SEU Studies for New CSC Boards
  • Tests were designed to study SEU effects in Virtex-6 and investigate mitigation methods for CMS Endcap
    • FPGA sensitive elements include GTX primitives, Block RAMs, CLBs
      • Use of these elements may vary for different boards & firmware
      • Measure SEU cross sections for each type to allow for rescaling
  • Expected 20 MeV neutron fluence in ME1/1 at HL-LHC:

2.7 *1011 n/cm2over 10-years

  • Initial radiation testing done in 2011
    • Tests with 55 MeV protons
      • Performed at Texas A&M Cyclotron
        • Raw SEU sensitivity with *no mitigation*
      • Some FPGA elements are SEU sensitive
        • Many Block RAM errors, all single bit flips
        • CLB errors are common, but GTX errors are rare
  • Additional tests completed this summer at UC Davis
    • 64 MeV protons with higher flux
      • Tests in Block RAMs and CLBs *with mitigation*
        • We can effectively deal with SEUs in the FPGA

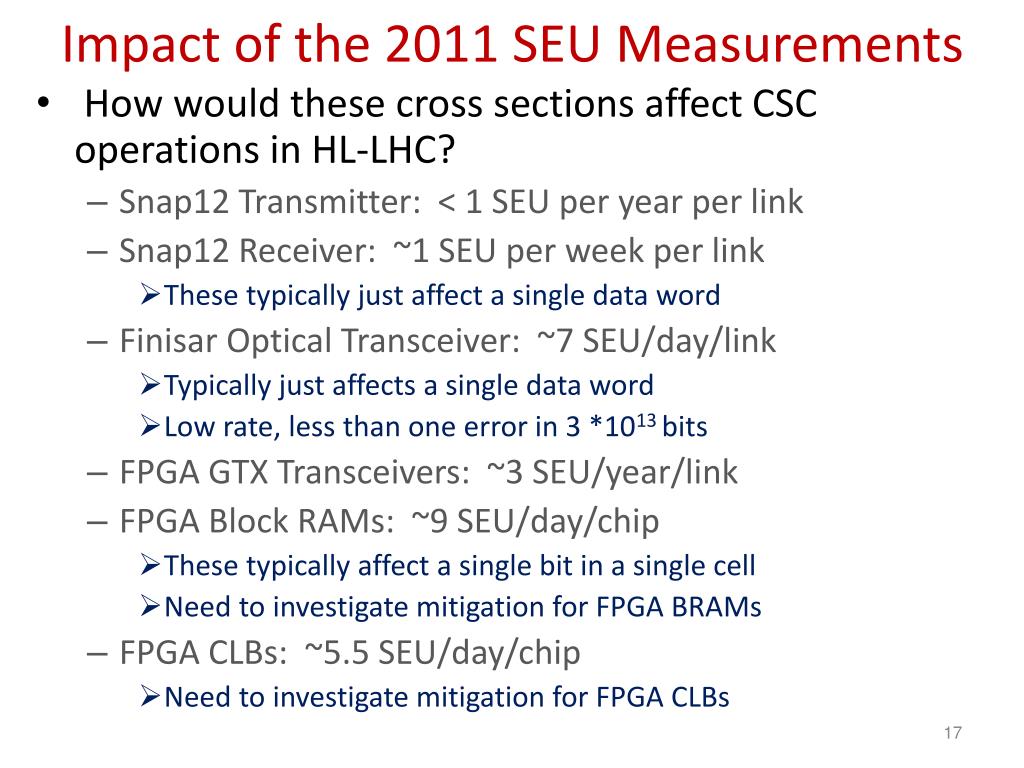

impact of the 2011 seu measurements
Impact of the 2011 SEU Measurements
  • How would these cross sections affect CSC operations in HL-LHC?
    • Snap12 Transmitter: < 1 SEU per year per link
    • Snap12 Receiver: ~1 SEU per week per link
      • These typically just affect a single data word
    • Finisar Optical Transceiver: ~7 SEU/day/link
      • Typically just affects a single data word
      • Low rate, less than one error in 3 *1013 bits
    • FPGA GTX Transceivers: ~3 SEU/year/link
    • FPGA Block RAMs: ~9 SEU/day/chip
      • These typically affect a single bit in a single cell
      • Need to investigate mitigation for FPGA BRAMs
    • FPGA CLBs: ~5.5 SEU/day/chip
      • Need to investigate mitigation for FPGA CLBs

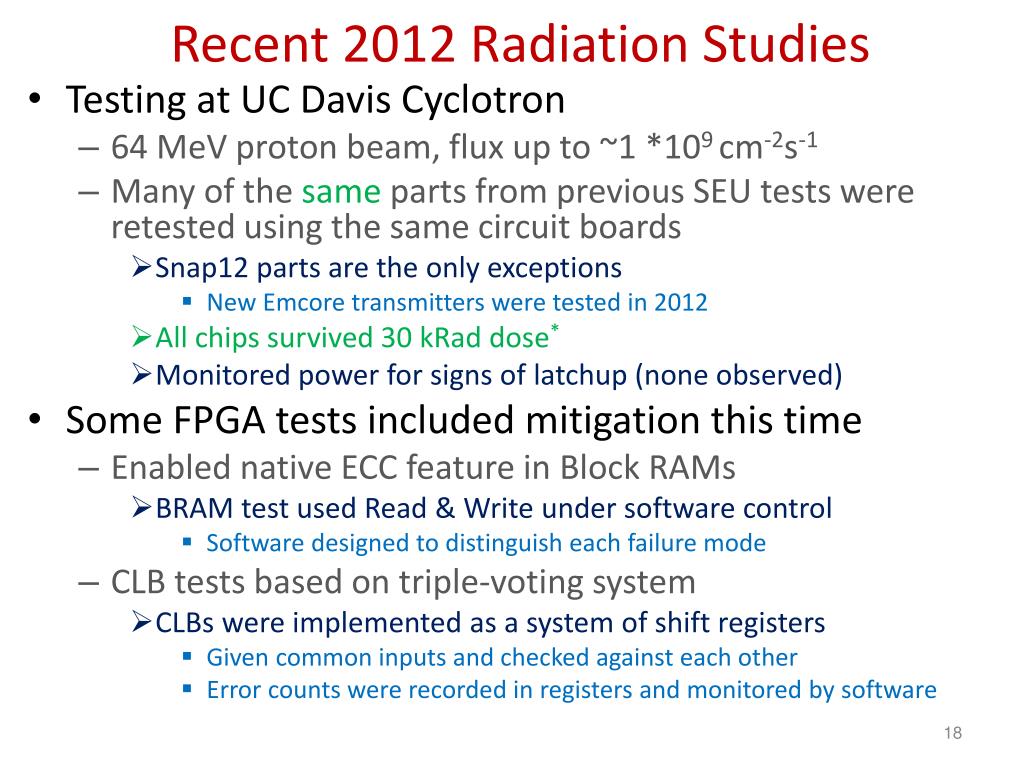

recent 2012 radiation studies
Recent 2012 Radiation Studies
  • Testing at UC Davis Cyclotron
    • 64 MeV proton beam, flux up to ~1 *109 cm-2s-1
    • Many of the same parts from previous SEU tests were retested using the same circuit boards
      • Snap12 parts are the only exceptions
        • New Emcore transmitters were tested in 2012
      • All chips survived 30 kRad dose*
      • Monitored power for signs of latchup (none observed)
  • Some FPGA tests included mitigation this time
    • Enabled native ECC feature in Block RAMs
      • BRAM test used Read & Write under software control
        • Software designed to distinguish each failure mode
    • CLB tests based on triple-voting system
      • CLBs were implemented as a system of shift registers
        • Given common inputs and checked against each other
        • Error counts were recorded in registers and monitored by software
seu test results 2012 1
SEU Test Results 2012 (1)
  • Reflex Photonics 3.5 Gbps Snap12 Receiver: r12-c00501
    • Random PRBG data patterns @3.2 Gbps on each of eight links
    • These SEUs only caused transient bit errors in the data
    • 2012 SEU cross section result: s = (6.4 ± 0.2) *10-9 cm2
      • Similar to 2011 result, about 40% smaller: < 1 SEU per week per link
    • Combined 2011+2012: s = 9.5 *10-10 cm2 per link
  • Emcore 3.3 Gbps Snap12 Receiver: EMRS1216
    • Same PRBG test as above
    • 2012 SEU cross section result: s = (9.8 ± 0.2) *10-9 cm2
      • This gives s = 12 *10-10 cm2 per link
      • Similar to Reflex Photonics result, about 30% larger: ~1 SEU per week per link
  • Emcore 3.3 Gbps Snap12 Transmitter: EMTS1216
    • Same PRBG test as above; tested two of these parts
    • These SEUs only caused transient bit errors in the data
    • 2012 SEU cross section: s = (1.7 ± 0.2) *10-10 cm2
      • This gives s = 2.1 *10-11 cm2 per link
        • Nearly double the 2011 result for Reflex Photonics transmitter
        • Still very low rate of SEUs, so not a concern: ~1 SEU per year per link

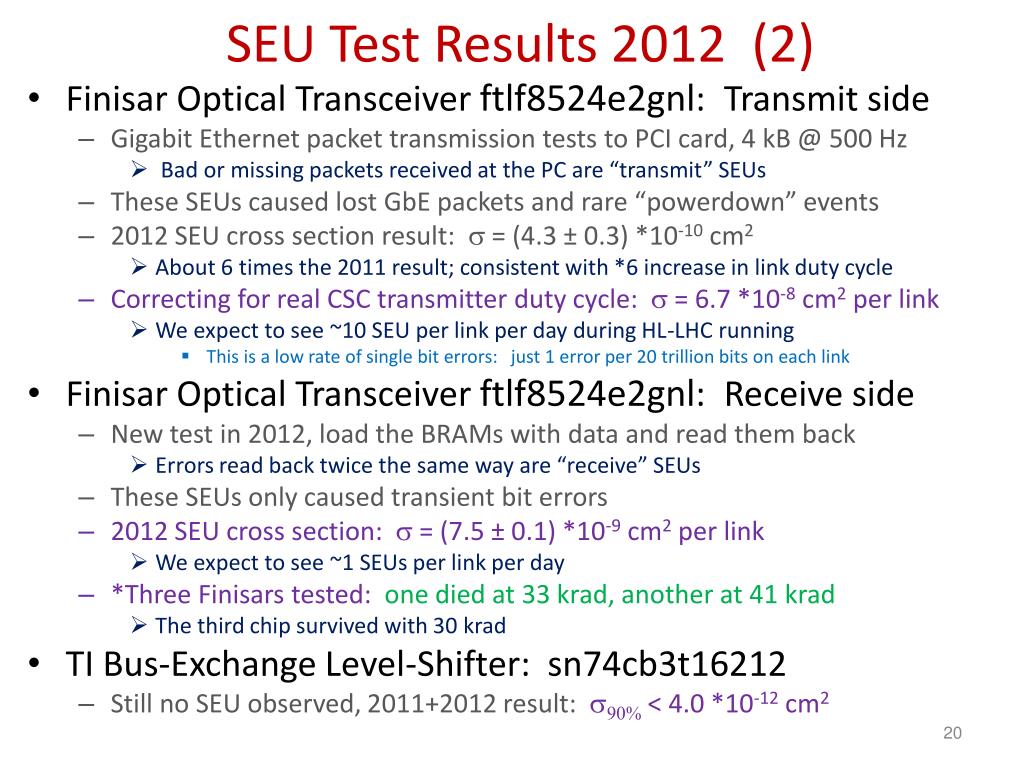

seu test results 2012 2
SEU Test Results 2012 (2)
  • Finisar Optical Transceiver ftlf8524e2gnl: Transmit side
    • Gigabit Ethernet packet transmission tests to PCI card, 4 kB @ 500 Hz
      • Bad or missing packets received at the PC are “transmit” SEUs
    • These SEUs caused lost GbE packets and rare “powerdown” events
    • 2012 SEU cross section result: s = (4.3 ± 0.3) *10-10 cm2
      • About 6 times the 2011 result; consistent with *6 increase in link duty cycle
    • Correcting for real CSC transmitter duty cycle: s = 6.7 *10-8 cm2 per link
      • We expect to see ~10 SEU per link per day during HL-LHC running
        • This is a low rate of single bit errors: just 1 error per 20 trillion bits on each link
  • Finisar Optical Transceiver ftlf8524e2gnl: Receive side
    • New test in 2012, load the BRAMs with data and read them back
      • Errors read back twice the same way are “receive” SEUs
    • These SEUs only caused transient bit errors
    • 2012 SEU cross section: s = (7.5 ± 0.1) *10-9 cm2 per link
      • We expect to see ~1 SEUs per link per day
    • *Three Finisars tested: one died at 33 krad, another at 41 krad
      • The third chip survived with 30 krad
  • TI Bus-Exchange Level-Shifter: sn74cb3t16212
    • Still no SEU observed,2011+2012 result: s90% < 4.0 *10-12 cm2

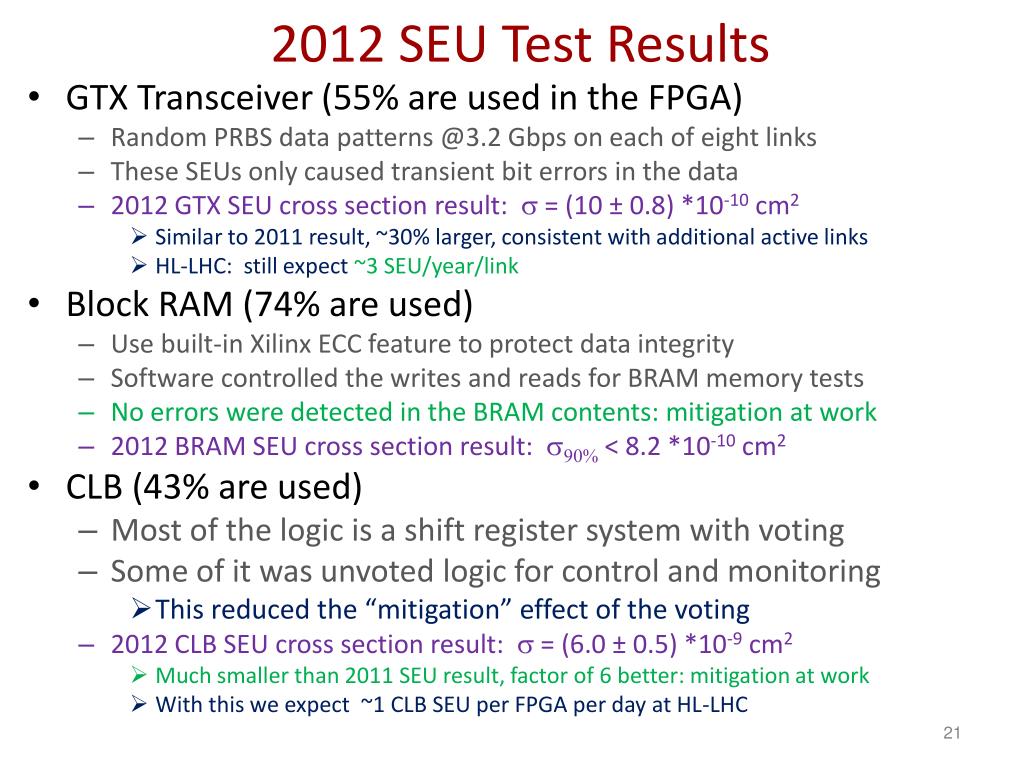

2012 seu test results
2012 SEU Test Results
  • GTX Transceiver (55% are used in the FPGA)
    • Random PRBS data patterns @3.2 Gbps on each of eight links
    • These SEUs only caused transient bit errors in the data
    • 2012 GTX SEU cross section result: s = (10 ± 0.8) *10-10 cm2
      • Similar to 2011 result, ~30% larger, consistent with additional active links
      • HL-LHC: still expect ~3 SEU/year/link
  • Block RAM (74% are used)
    • Use built-in Xilinx ECC feature to protect data integrity
    • Software controlled the writes and reads for BRAM memory tests
    • No errors were detected in the BRAM contents: mitigation at work
    • 2012 BRAM SEU cross section result: s90% < 8.2 *10-10 cm2
  • CLB (43% are used)
    • Most of the logic is a shift register system with voting
    • Some of it was unvoted logic for control and monitoring
      • This reduced the “mitigation” effect of the voting
    • 2012 CLB SEU cross section result: s = (6.0 ± 0.5) *10-9 cm2
      • Much smaller than 2011 SEU result, factor of 6 better: mitigation at work
      • With this we expect ~1 CLB SEU per FPGA per day at HL-LHC
slide22

TAMU Production Test Stand

  • Standard P. Crate
  • TMB w/Mezz 2012
  • Snap12 fiber linked to transmitter board on the bench
  • Custom loopback boards for DMB and ALCT/RPC tests
    • Special firmware
  • Tests controlled via VME and CCB w/customized test suite
    • Big software effort
mezzanine production testing
Mezzanine Production & Testing
  • Equipment and procedures for production testing
    • TMB Mezzanine test stand with full capability at TAMU
      • CFEB emulator board with support for 5 cables
      • Fiber link tester for Snap12 link inputs
        • Will use a prototype board to transmit PRBS data to production boards
      • Crate tests with loopback boards (CCB, DMB, ALCT and RPC path tests)
      • VME and MPC tests performed with standard EmuLib tools
    • Software and automation
      • Developing a custom GUI to control tests and log all results
        • Vadim and students are doing this work
  • Final Mezzanine production begins early-2013
    • Need 72 boards for ME1/1 operation
    • Fabrication & assembly should be completed ~April
    • Expect to test 10 boards per week at TAMU
tmb mezz installation in uxc

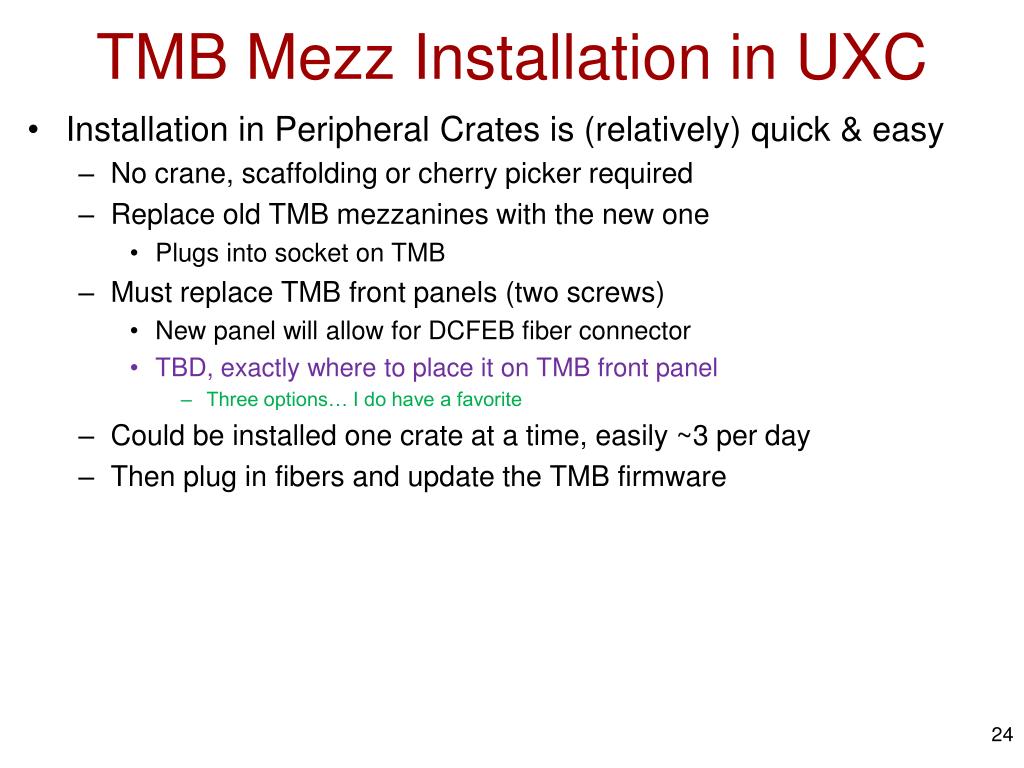

TMB Mezz Installation in UXC
  • Installation in Peripheral Crates is (relatively) quick & easy
    • No crane, scaffolding or cherry picker required
    • Replace old TMB mezzanines with the new one
      • Plugs into socket on TMB
    • Must replace TMB front panels (two screws)
      • New panel will allow for DCFEB fiber connector
      • TBD, exactly where to place it on TMB front panel
        • Three options… I do have a favorite
    • Could be installed one crate at a time, easily ~3 per day
    • Then plug in fibers and update the TMB firmware
tmb front panel modification

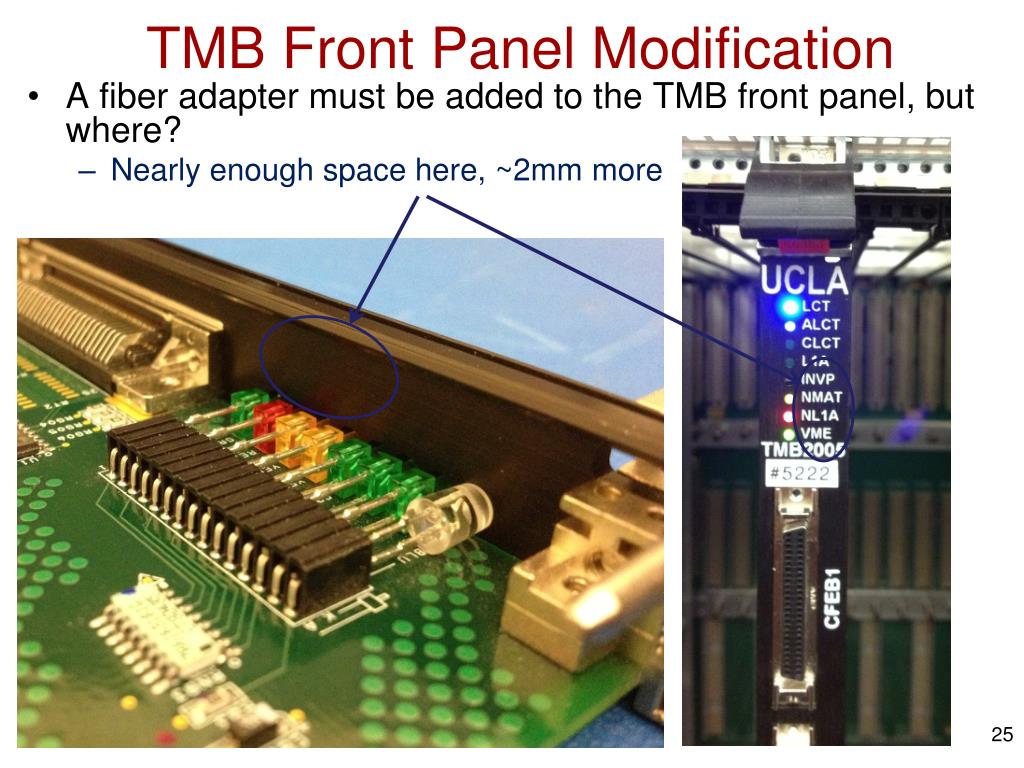

TMB Front Panel Modification
  • A fiber adapter must be added to the TMB front panel, but where?
    • Nearly enough space here, ~2mm more
tmb front panel plan

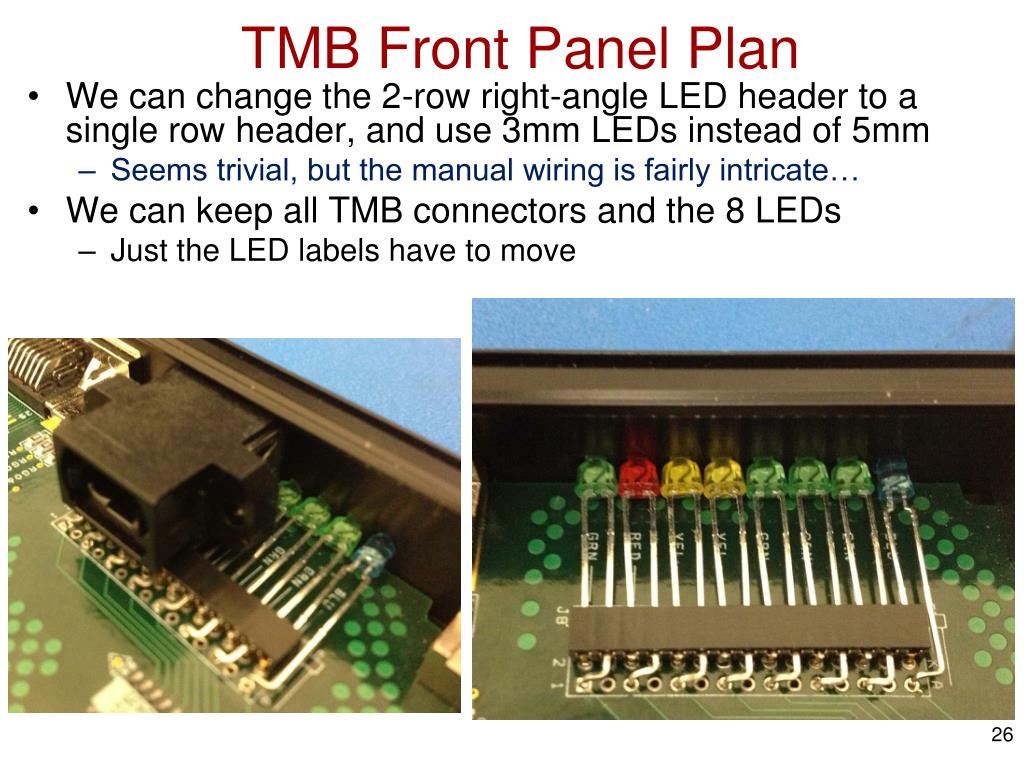

TMB Front Panel Plan
  • We can change the 2-row right-angle LED header to a single row header, and use 3mm LEDs instead of 5mm
    • Seems trivial, but the manual wiring is fairly intricate…
  • We can keep all TMB connectors and the 8 LEDs
    • Just the LED labels have to move
conclusion

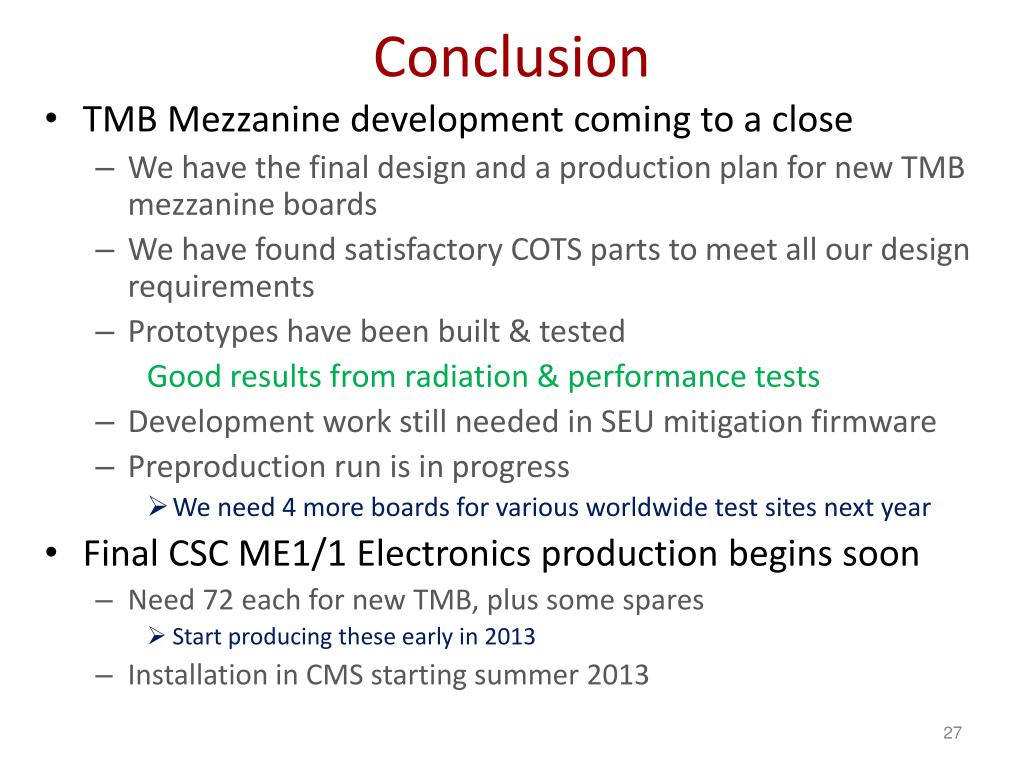

Conclusion
  • TMB Mezzanine development coming to a close
    • We have the final design and a production plan for new TMB mezzanine boards
    • We have found satisfactory COTS parts to meet all our design requirements
    • Prototypes have been built & tested

Good results from radiation & performance tests

    • Development work still needed in SEU mitigation firmware
    • Preproduction run is in progress
      • We need 4 more boards for various worldwide test sites next year
  • Final CSC ME1/1 Electronics production begins soon
    • Need 72 each for new TMB, plus some spares
      • Start producing these early in 2013
    • Installation in CMS starting summer 2013
seu testing of cots components 1
SEU Testing of COTS Components (1)
  • Testing performed at Texas A&M Cyclotron
    • 55 MeV protons with uniform flux, collimated to 1.5” diam
    • Maximum proton flux ~3 *107 cm-2s-1
    • 45 to 90 minute runs on each target device, 5-10 kRad
  • Two samples tested for each COTS component
    • Reflex Photonics Snap12 Receiver: r12-c01001
      • PRBG data transfers @3.2 gbps on each of six links
      • s = (8.18 ± 0.34) *10-9 cm2
      • Also tested to ~30 krad TID at TAMU reactor: no problems
    • Reflex Photonics Snap12 Transmitter: t12-c01001
      • Tested for use in DMB upgrade
      • PRBG data transfers @3.2 gbps on six links
      • s = (7.31 ± 2.44) *10-11 cm2
    • Finisar Optical Transceiver: ftlf8524e2gnl
      • Tested for use in CFEB upgrade
      • randomized GbE data packets to PC
      • s = (1.02 ± 0.27) *10-10 cm2
seu testing of cots components 2

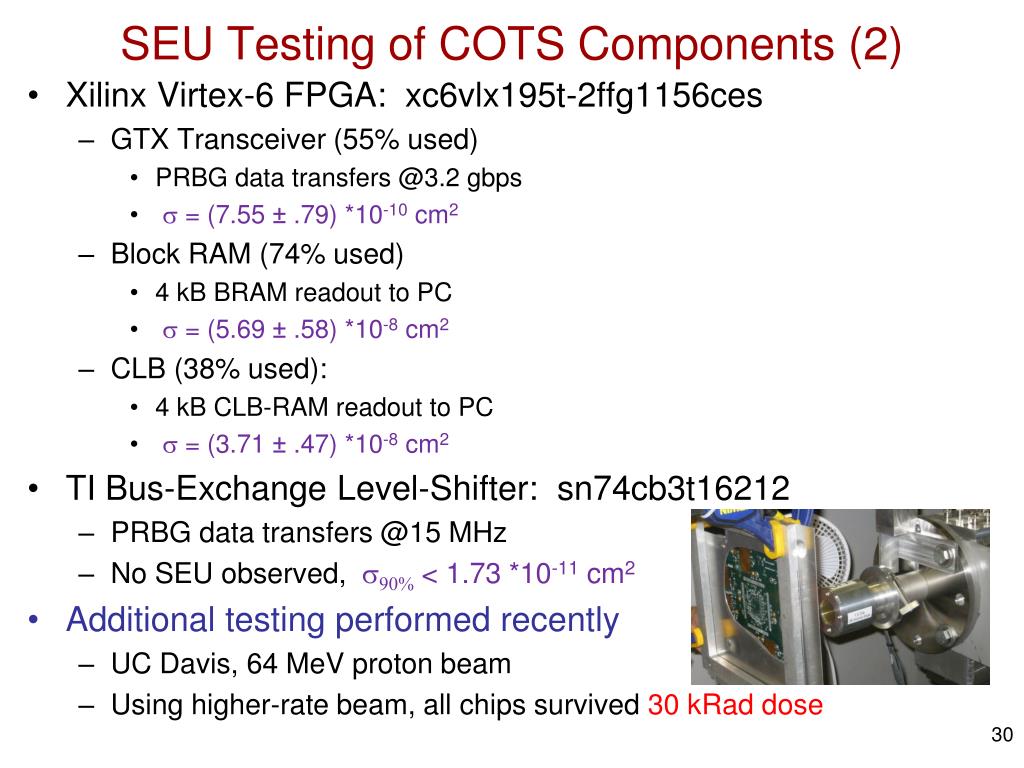

SEU Testing of COTS Components (2)
  • Xilinx Virtex-6 FPGA: xc6vlx195t-2ffg1156ces
    • GTX Transceiver (55% used)
      • PRBG data transfers @3.2 gbps
      • s = (7.55 ± .79) *10-10 cm2
    • Block RAM (74% used)
      • 4 kB BRAM readout to PC
      • s = (5.69 ± .58) *10-8 cm2
    • CLB (38% used):
      • 4 kB CLB-RAM readout to PC
      • s = (3.71 ± .47) *10-8 cm2
  • TI Bus-Exchange Level-Shifter: sn74cb3t16212
    • PRBG data transfers @15 MHz
    • No SEU observed, s90% < 1.73 *10-11 cm2
  • Additional testing performed recently
    • UC Davis, 64 MeV proton beam
    • Using higher-rate beam, all chips survived 30 kRad dose
