intel 8085
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.comINTEL 8085

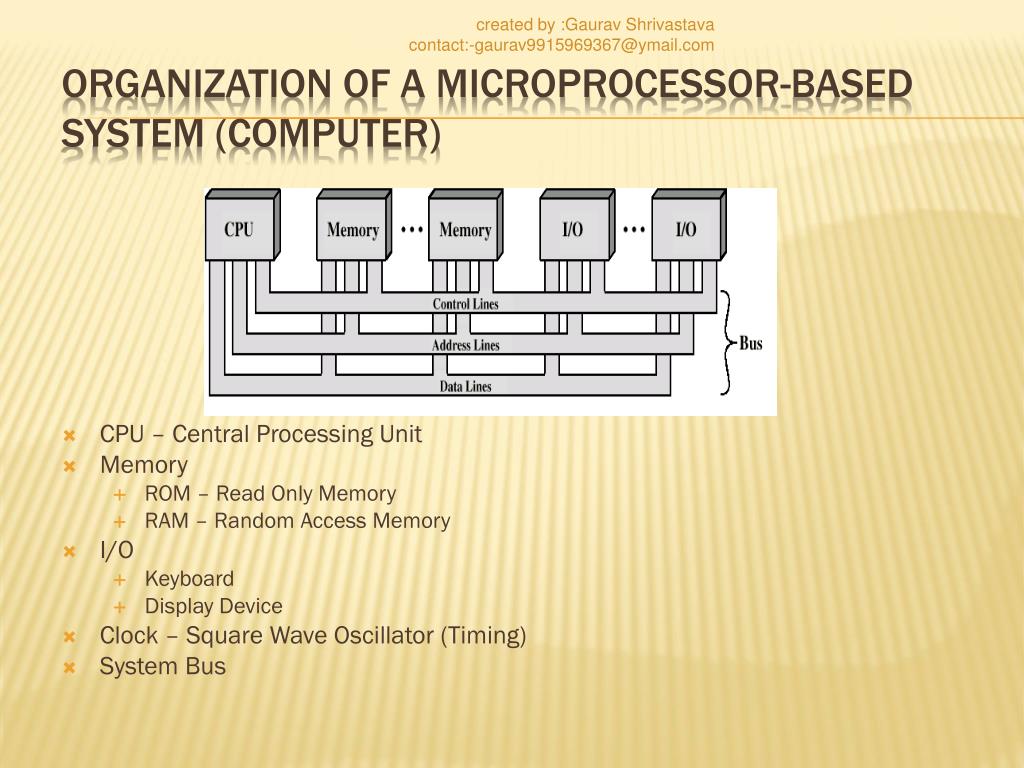

organization of a microprocessor based system computer
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.comOrganization of A Microprocessor-based System (Computer)
  • CPU – Central Processing Unit
  • Memory
    • ROM – Read Only Memory
    • RAM – Random Access Memory
  • I/O
    • Keyboard
    • Display Device
  • Clock – Square Wave Oscillator (Timing)
  • System Bus
slide3

Microprocessor (CPU)

    • Programmable integrated device (silicon chip) that has computing & decision making capabilities
    • Communicates & operates in binary numbers 0 & 1, called bits
    • Has a fixed set of instructions in the form of binary patterns – machine language
    • Difficult for humans to remember machine language – each instruction is represented using abbreviated names (mnemonics)

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

slide4

Word length

1 word instruction

2 word instruction

address

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

  • Memory
    • Symbolic representation
  • Word: no. of bits micro-P recognizes and processes at a time ( 4 - 64bit ).
  • Instruction: combination of bit patterns with specific meaning known to micro-P.
  • Program: Set of all instructions.
slide5

I/O

    • Microprocessor’s connection to the outside world
      • Input: Keyboard, mouse
      • Output: Monitor, printer

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

slide6

System Bus – wires connecting memory & I/O to microprocessor

    • Address Bus
      • Unidirectional
      • Identifying peripheral or memory location
    • Data Bus
      • Bidirectional
      • Transferring data
    • Control Bus
      • Synchronization signals
      • Timing signals
      • Control signal

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

slide7

Actions performed by microprocessor:

    • CPU – Memory
    • CPU – I/O
    • Data Processing
      • Arithmetic operations
      • Logical operations
    • Control
      • Jump
      • Interrupts

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

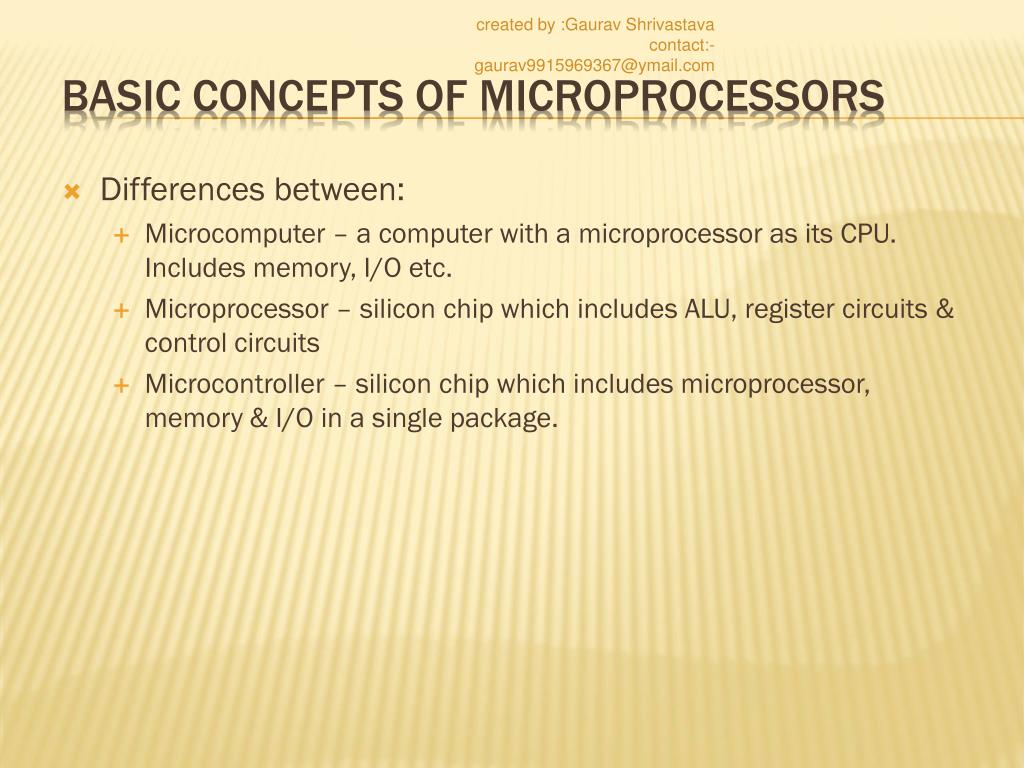

basic concepts of microprocessors

Differences between:

    • Microcomputer – a computer with a microprocessor as its CPU. Includes memory, I/O etc.
    • Microprocessor – silicon chip which includes ALU, register circuits & control circuits
    • Microcontroller – silicon chip which includes microprocessor, memory & I/O in a single package.

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Basic Concepts of Microprocessors
slide9
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

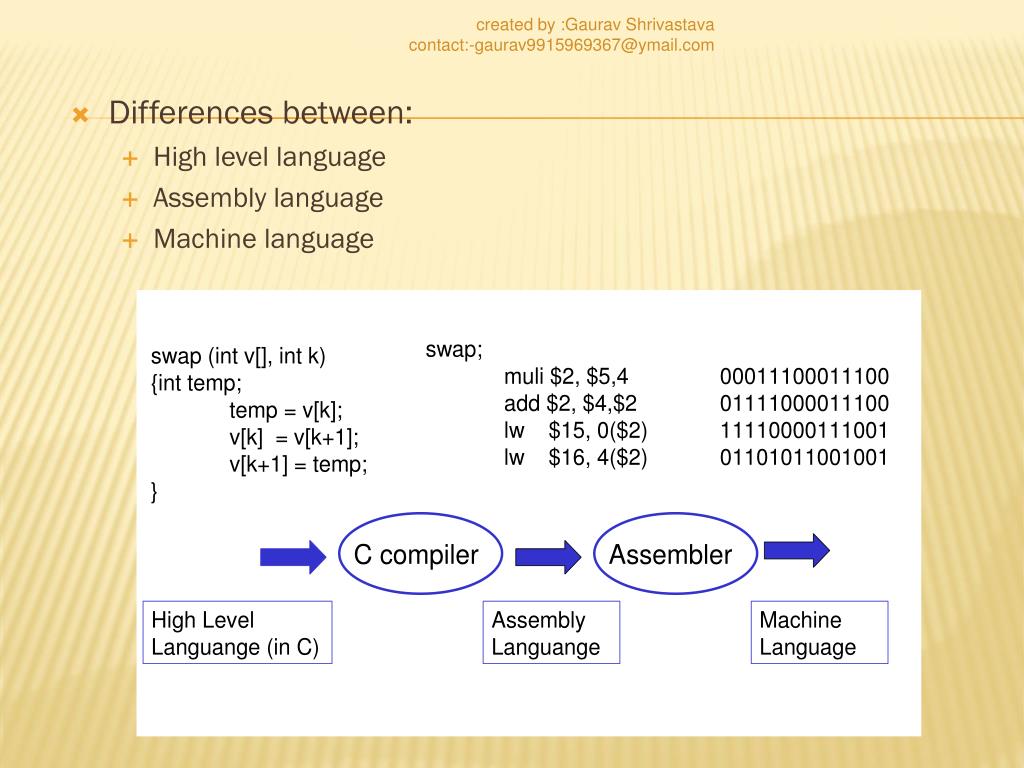

  • Differences between:
    • High level language
    • Assembly language
    • Machine language

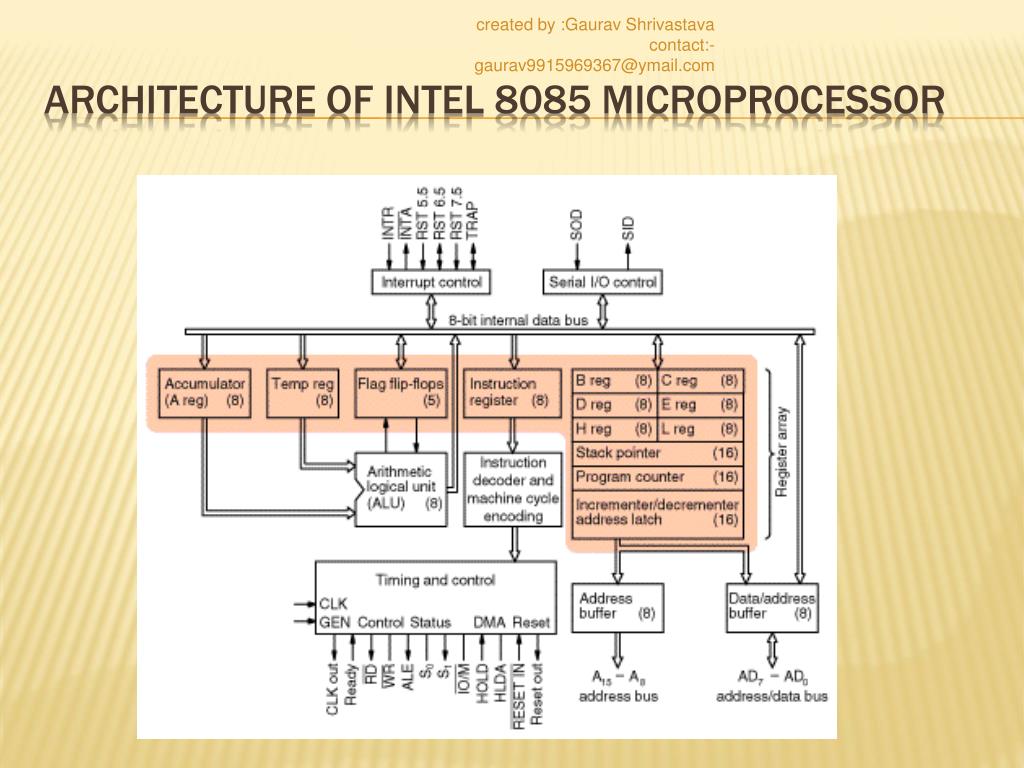

intel 8085 microprocessor

Microprocessor consists of:

    • Control unit: control microprocessor operations.
    • ALU: performs data processing function.
    • Registers: provide storage internal to CPU.
    • Interrupts
    • Internal data bus

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Intel 8085 Microprocessor
slide12

Registers

    • General Purpose Registers
      • B, C, D, E, H & L (8 bit registers)
      • Can be used singly
      • Or can be used as 16 bit register pairs
        • BC, DE, HL
      • H & L can be used as a data pointer (holds memory address)
    • Special Purpose Registers
      • Accumulator (8 bit register)
        • Store 8 bit data
        • Store the result of an operation
        • Store 8 bit data during I/O transfer

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

slide13
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com
  • Flag Register
    • 8 bit register – shows the status of the microprocessor before/after an operation
    • S (sign flag), Z (zero flag), AC (auxillary carry flag), P (parity flag) & CY (carry flag)
    • Sign Flag
      • Used for indicating the sign of the data in the accumulator
      • The sign flag is set if negative (1 – negative)
      • The sign flag is reset if positive (0 – positive)
slide14

Zero Flag

    • Is set if result obtained after an operation is 0
    • Is set following an increment or decrement operation of that register
  • Carry Flag
    • Is set if there is a carry or borrow from arithmetic operation

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

10110011

+ 01001101

---------------

1 00000000

1011 0101

+ 0110 1100

---------------

Carry 1 0010 0001

1011 0101

- 1100 1100

---------------

Borrow 1 1110 1001

slide15

Auxillary Carry Flag

    • Is set if there is a carry out of bit 3
  • Parity Flag
    • Is set if parity is even
    • Is cleared if parity is odd

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

1011 0101

+ 0110 1100

---------------

1 0010 0001

slide16

16 – Bit Registers

    • Program Counter
      • A pointer to the next instruction to be executed
      • Contains the 16-bit memory address of the next instruction
      • Updated after processor has fetched the instruction
    • Stack Pointer
      • Stack – an area in memory in which temporary info is stored
      • Stack – FILO (First In Last Out) basis
      • Holds the address of the top of the stack

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

non programmable registers

Instruction Register & Decoder

    • Instruction is stored in IR after fetched by processor
    • Decoder decodes instruction in IR

Internal Clock generator

    • 3.125 MHz internally
    • 6.25 MHz externally

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Non Programmable Registers

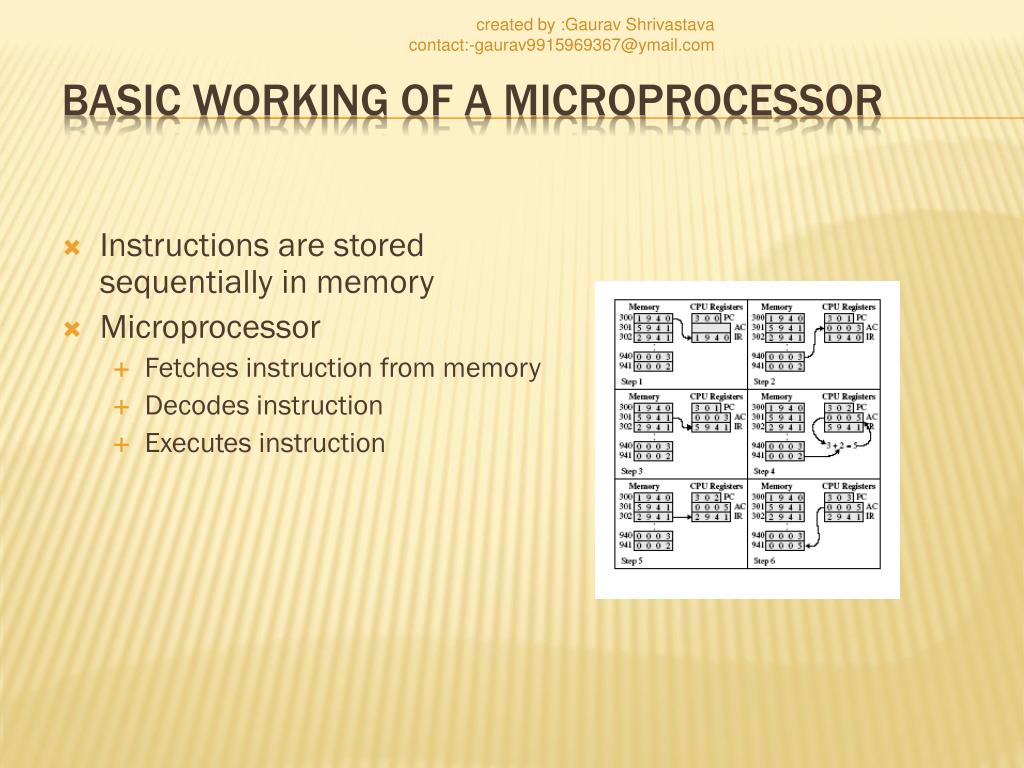

basic working of a microprocessor
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.comBasic Working of a Microprocessor
  • Instructions are stored sequentially in memory
  • Microprocessor
    • Fetches instruction from memory
    • Decodes instruction
    • Executes instruction

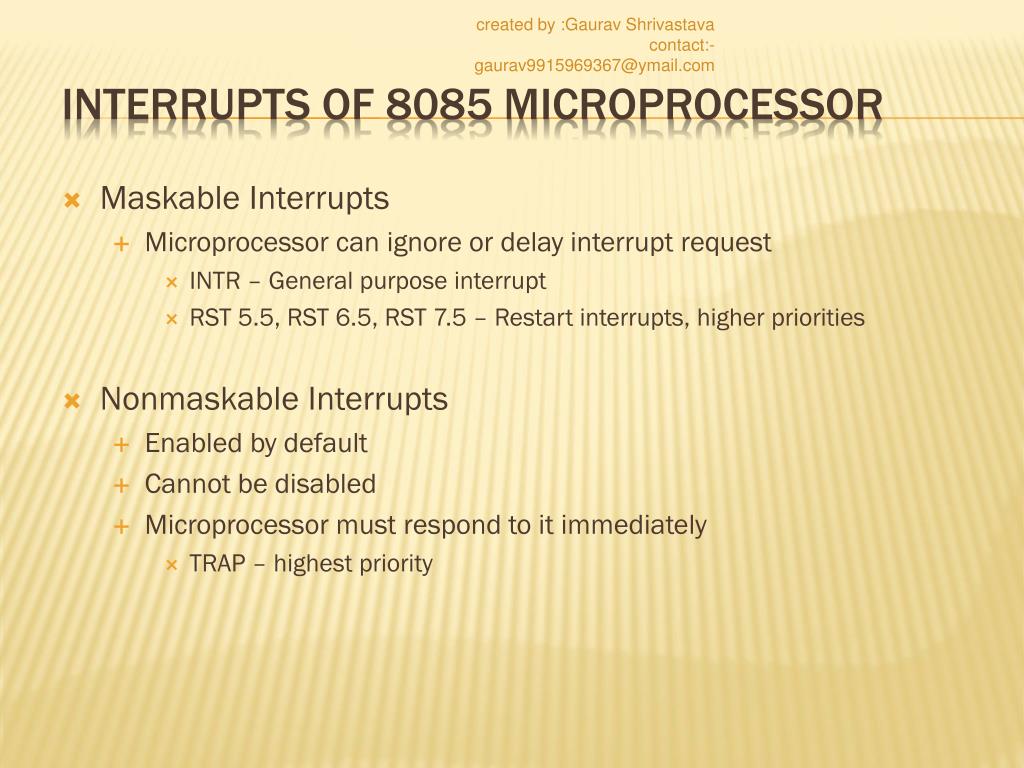

interrupts of 8085 microprocessor

Maskable Interrupts

    • Microprocessor can ignore or delay interrupt request
      • INTR – General purpose interrupt
      • RST 5.5, RST 6.5, RST 7.5 – Restart interrupts, higher priorities
  • Nonmaskable Interrupts
    • Enabled by default
    • Cannot be disabled
    • Microprocessor must respond to it immediately
      • TRAP – highest priority

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Interrupts of 8085 Microprocessor

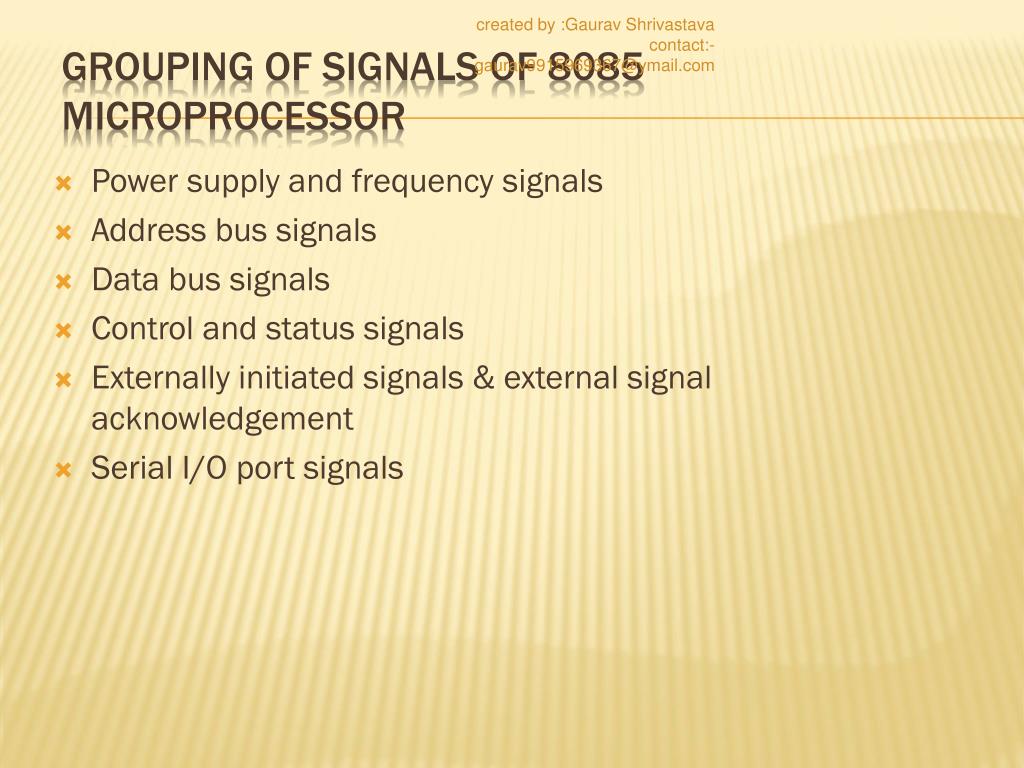

grouping of signals of 8085 microprocessor

Power supply and frequency signals

Address bus signals

Data bus signals

Control and status signals

Externally initiated signals & external signal acknowledgement

Serial I/O port signals

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Grouping of Signals of 8085 Microprocessor
address bus signals data bus signals

AD0-AD7, A8-A15

    • 16 address lines – 2 sets
    • Most significant bits (A8-A15) – single directional
    • Least significant bits (AD0-AD7) – bidirectional
      • Multiplexed with the bits of bi-directional data bus
      • It is used as both address and data bus

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Address bus signals, Data bus signals

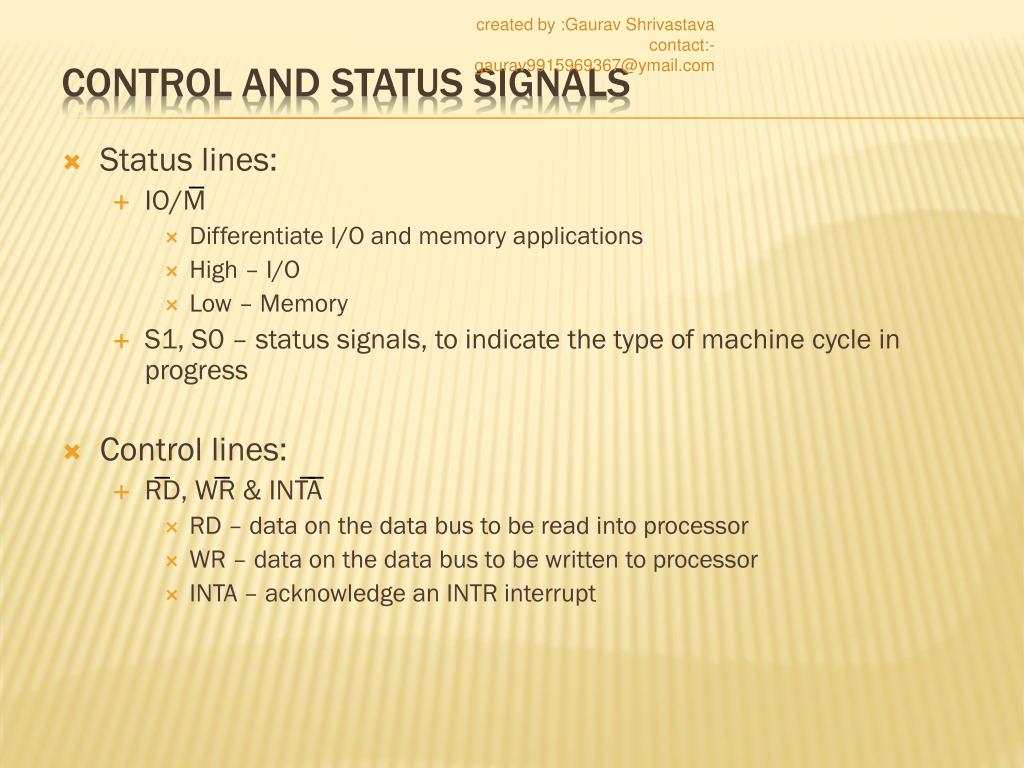

control and status signals

Status lines:

    • IO/M
      • Differentiate I/O and memory applications
      • High – I/O
      • Low – Memory
    • S1, S0 – status signals, to indicate the type of machine cycle in progress
  • Control lines:
    • RD, WR & INTA
      • RD – data on the data bus to be read into processor
      • WR – data on the data bus to be written to processor
      • INTA – acknowledge an INTR interrupt

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Control and status signals

_

_

_

_

_

externally initiated signals signal acknowledgement

Initiated signals

    • Reset In – reset CPU
    • Hold – suspend CPU operation
    • Ready – CPU go into wait state, to sync with slower devices
  • Signal acknowledgement
    • Reset out – high once CPU is rest
    • HLDA – acknowledges hold signal

created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com

Externally initiated signals & signal acknowledgement
slide24
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com
slide25
created by :Gaurav Shrivastava contact:-gaurav9915969367@ymail.com
