Presentation Transcript
simulators for sensor networks

Simulators for Sensor Networks

Sagnik Bhattacharya

9/12/2001

overview

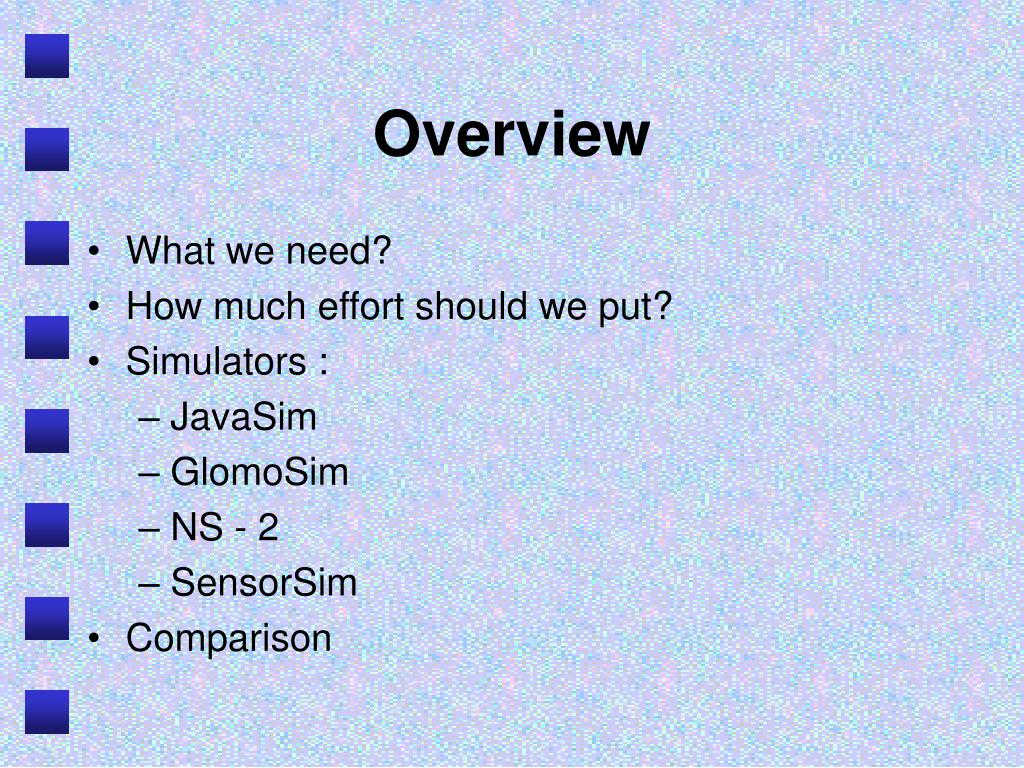

Overview
  • What we need?
  • How much effort should we put?
  • Simulators :
    • JavaSim
    • GlomoSim
    • NS - 2
    • SensorSim
  • Comparison
what we want

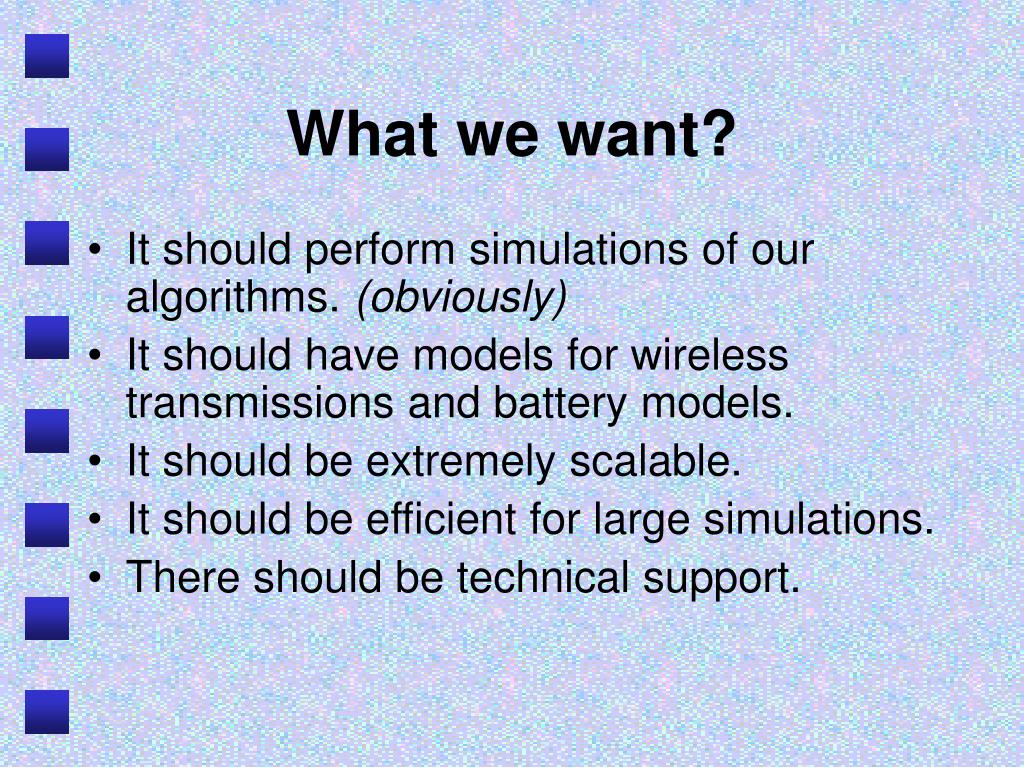

What we want?
  • It should perform simulations of our algorithms. (obviously)
  • It should have models for wireless transmissions and battery models.
  • It should be extremely scalable.
  • It should be efficient for large simulations.
  • There should be technical support.
how much effort should we put in

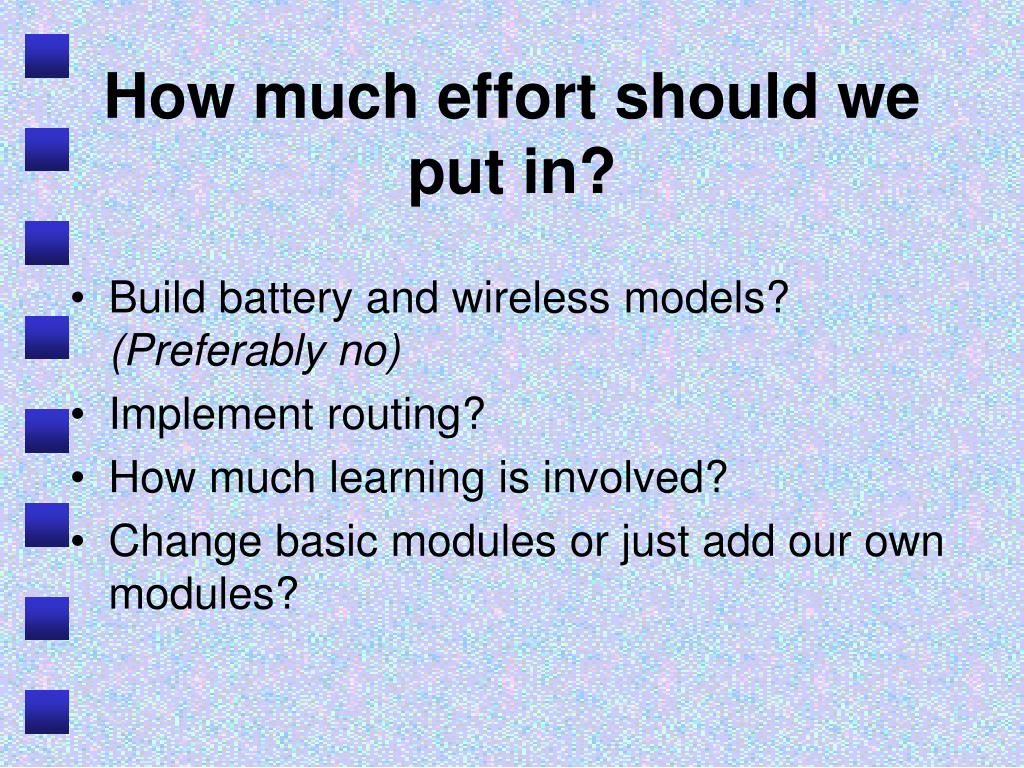

How much effort should we put in?
  • Build battery and wireless models? (Preferably no)
  • Implement routing?
  • How much learning is involved?
  • Change basic modules or just add our own modules?
javasim
JavaSim
  • Pros
    • Very modular
    • Easy to use
  • Cons
    • Geared for wired internetworks
    • No wireless support
glomosim

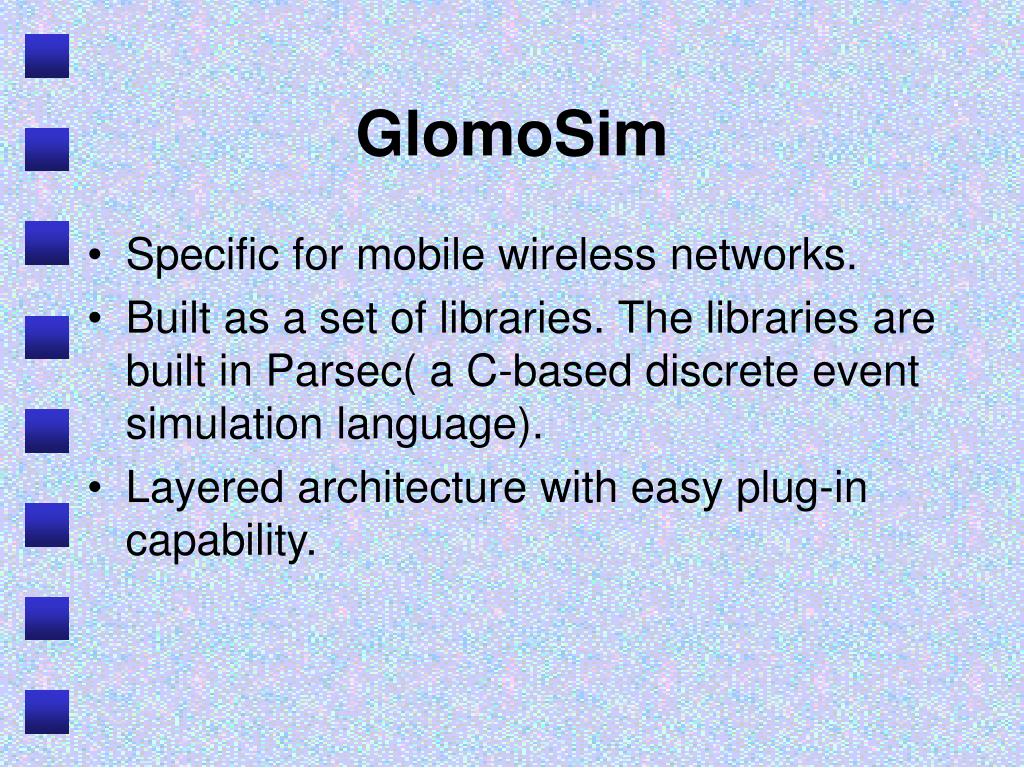

GlomoSim
  • Specific for mobile wireless networks.
  • Built as a set of libraries. The libraries are built in Parsec( a C-based discrete event simulation language).
  • Layered architecture with easy plug-in capability.
slide7

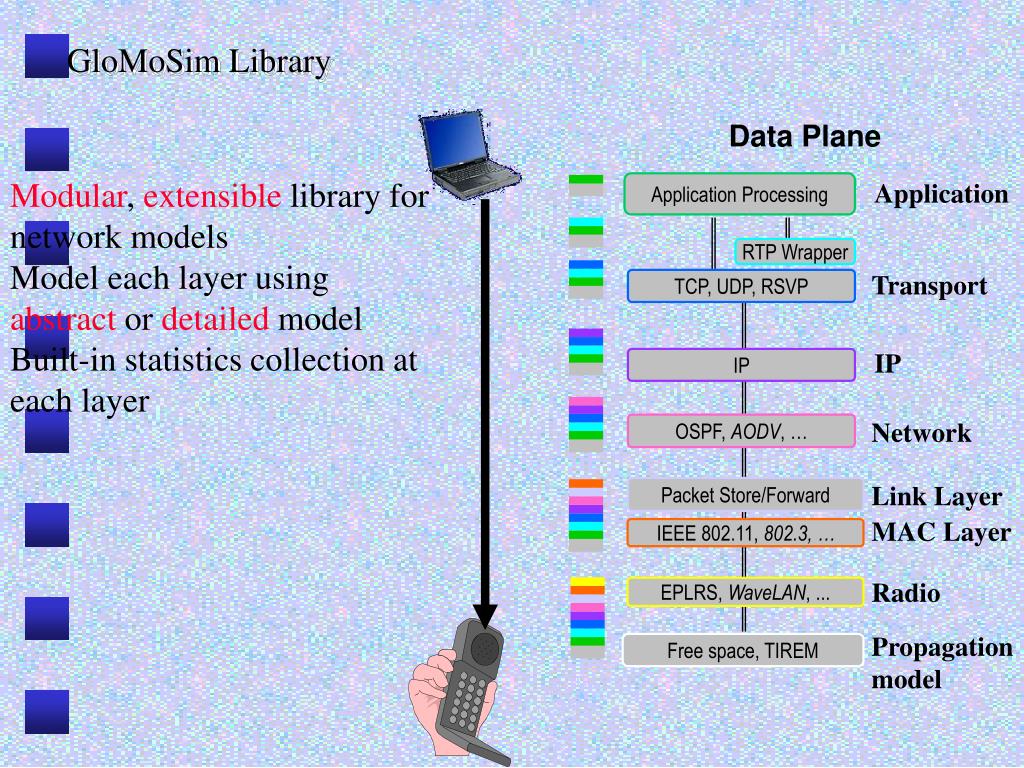

GloMoSim Library

Application

Transport

IP

Network

Link Layer

MAC Layer

Radio

Propagation

model

Data Plane

Modular, extensible library for network models

Model each layer using abstract or detailed model

Built-in statistics collection at each layer

Application Processing

RTP Wrapper

TCP, UDP, RSVP

IP

OSPF, AODV, …

Packet Store/Forward

IEEE 802.11, 802.3, …

EPLRS, WaveLAN, ...

Free space, TIREM

slide8
NS - 2
  • De facto standard for network simulations
  • Does support wireless simulations
  • A primitive energy model is present.
  • Lots of documentation.
  • Uses Tcl to specify the Components, and Otcl to glue them together.
ns 2 contd
NS - 2 (contd.)
  • Cons :
    • Difficult to use and learn
    • Supposedly more useful for getting statistics for lower level protocols.
    • Originally built for wired networks, later extended for wireless.
    • Supposedly, does not work well for large topologies.
sensorsim
SensorSim
  • Extension to NS - 2.
  • Provides battery models, radio propagation models and sensor channel models.
  • Provides a lightweight protocol stack.
  • Has support for hybrid simulation.
  • To be integrated with NS - 2.
slide11

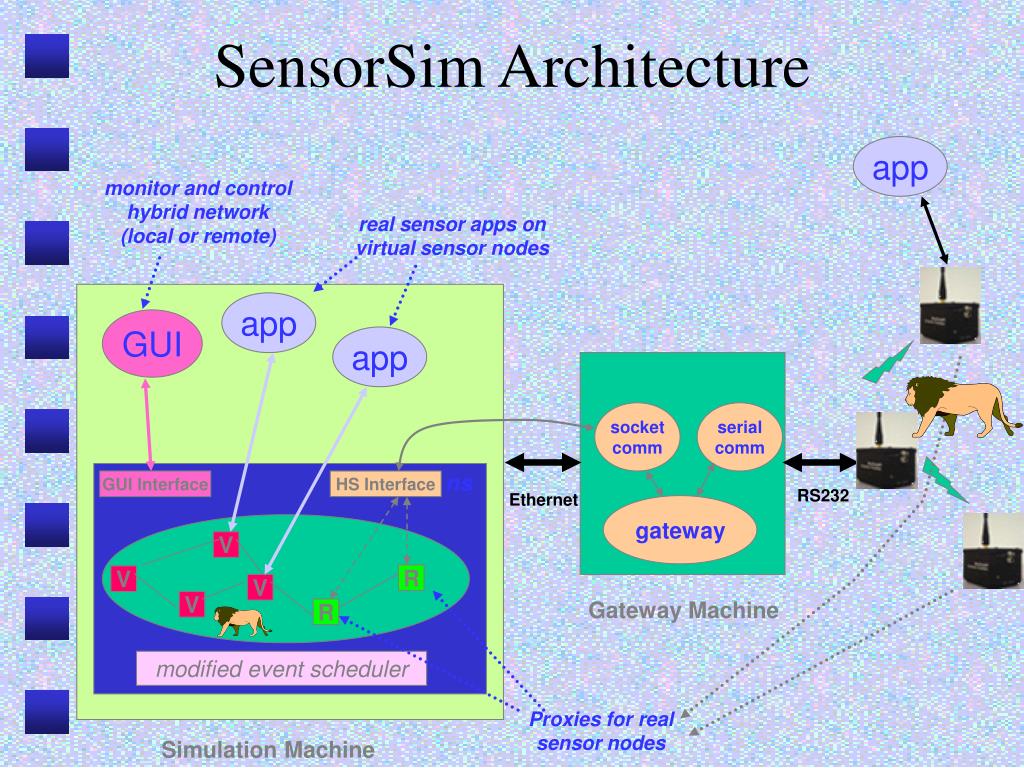

SensorSim Architecture

app

monitor and control

hybrid network

(local or remote)

real sensor apps on

virtual sensor nodes

app

GUI

app

socket

comm

serial

comm

ns

GUI Interface

HS Interface

RS232

Ethernet

gateway

V

R

V

V

Gateway Machine

V

R

modified event scheduler

Proxies for real

sensor nodes

Simulation Machine

slide12

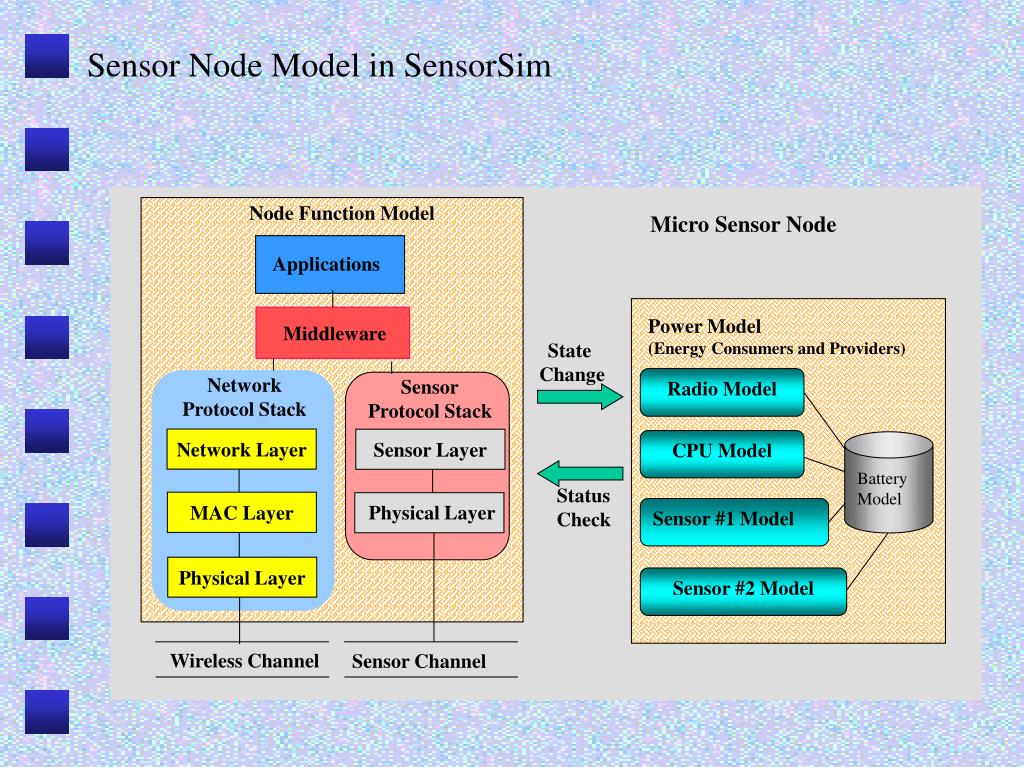

Sensor Node Model in SensorSim

Battery

Model

Node Function Model

Micro Sensor Node

Applications

Power Model

(Energy Consumers and Providers)

Middleware

State

Change

Network

Protocol Stack

Radio Model

Sensor

Protocol Stack

Network Layer

Sensor Layer

CPU Model

Status

Check

MAC Layer

Physical Layer

Sensor #1 Model

Physical Layer

Sensor #2 Model

Wireless Channel

Sensor Channel

slide13

Power Management Model

BZR event

Off

BZR event

BZR event

BZR event

Off

BZR event

Transmit

transmit

Receive

Transmit

BZR event

Receive

transmit

done

receive

done

Idle

transmit

transmit

receive done

Idle

timeout

receive

transmit

done

timeout(3 sec)

Sleep

With Power Management

Without Power Management

sensorsim problems

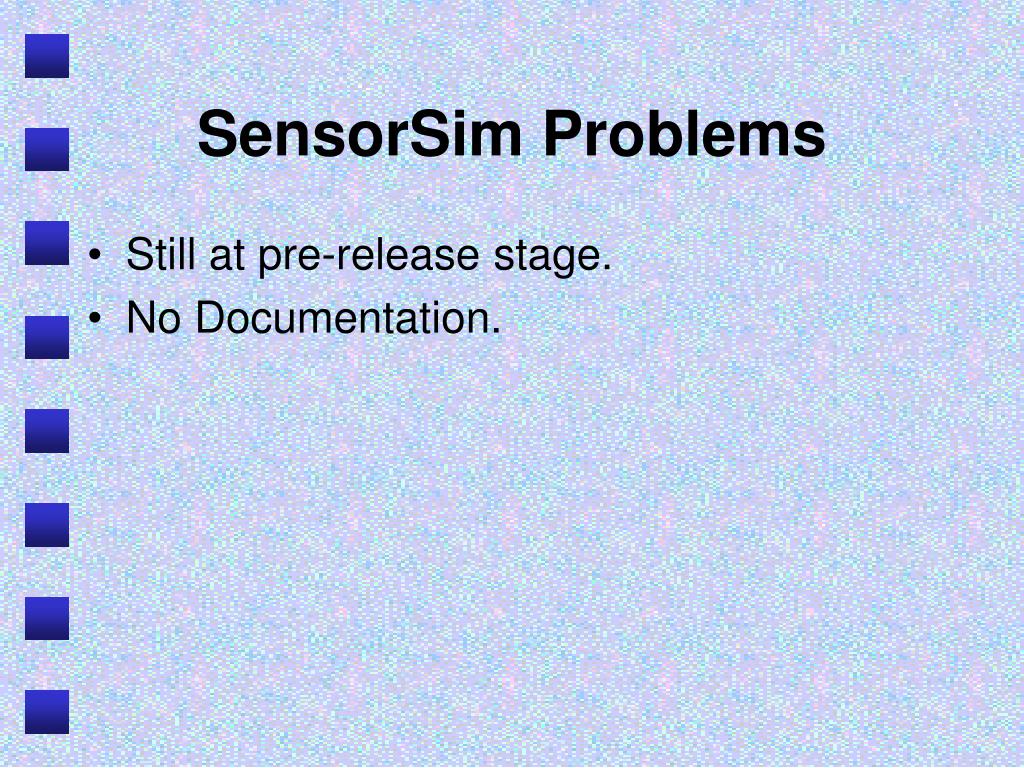

SensorSim Problems
  • Still at pre-release stage.
  • No Documentation.
comparison

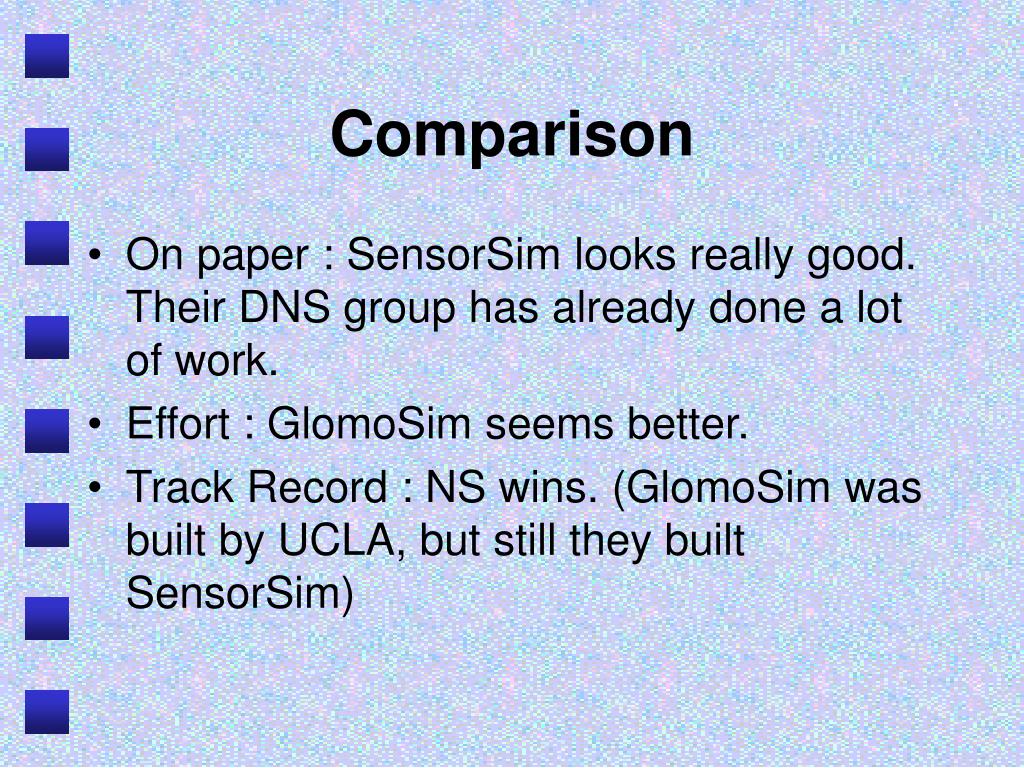

Comparison
  • On paper : SensorSim looks really good. Their DNS group has already done a lot of work.
  • Effort : GlomoSim seems better.
  • Track Record : NS wins. (GlomoSim was built by UCLA, but still they built SensorSim)
