Advanced Integrated Drainage Modeling with InfoWorks Suite: A Technology Overview

Discover the latest capabilities of the InfoWorks Suite, presented by Andrew Walker. This technology preview showcases an advanced modeling solution for both above and below ground drainage systems, integrating natural and engineered components in one comprehensive platform. Key features include a new user interface, multi-user version control, and enhanced GIS support for platforms like ESRI ArcGIS and MapInfo. The software facilitates rapid scenario management and network analysis through efficient modeling techniques, supporting GPU acceleration for high-performance simulations.

marli
Download Presentation

Advanced Integrated Drainage Modeling with InfoWorks Suite: A Technology Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Technology Preview presented by Andrew Walker

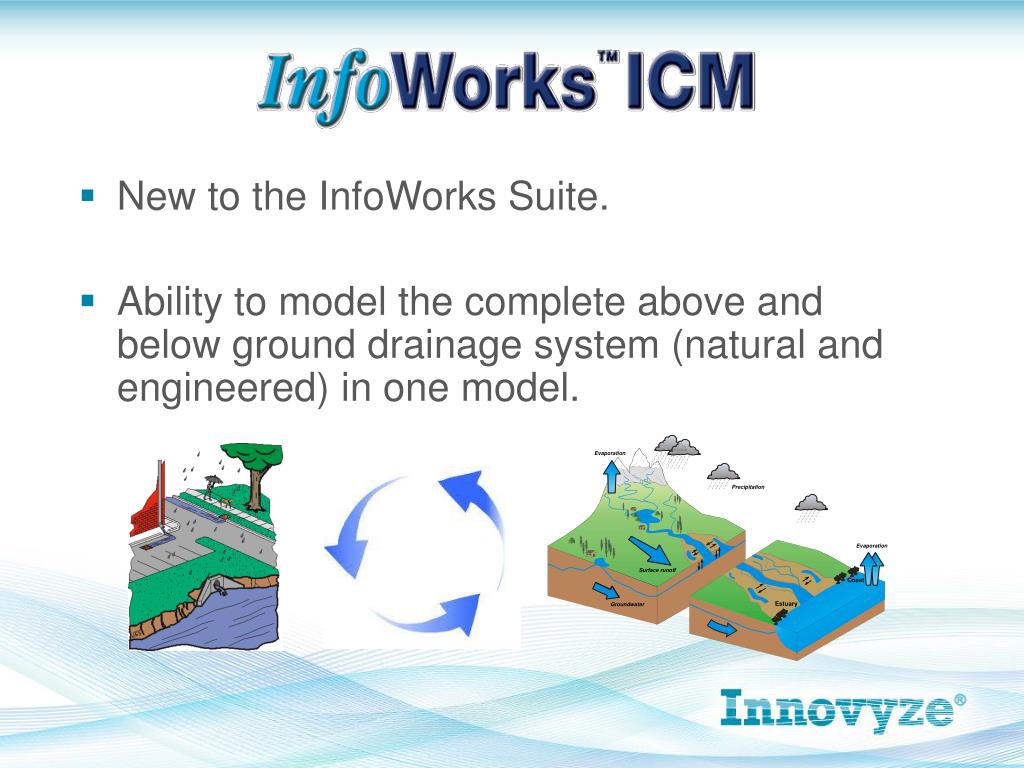

  2. New to the InfoWorks Suite. • Ability to model the complete above and below ground drainage system (natural and engineered) in one model.

  3. Single simulation engine • Manholes, pipes, inlets • Natural and man-made channels • Catchment and floodplain • Common hydrology • 1D and 2D integrated solution • New User Interface • New multi user version control system • New editing methodology • New grouping structure • Recycle bin

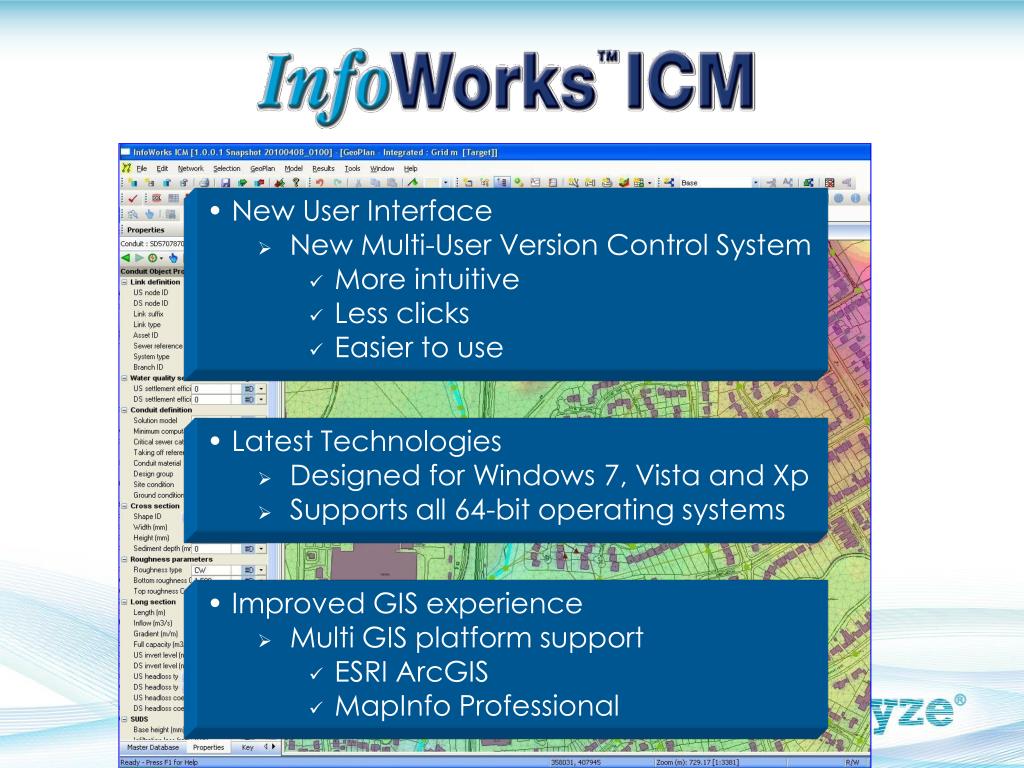

  4. New User Interface • New Multi-User Version Control System • More intuitive • Less clicks • Easier to use • Latest Technologies • Designed for Windows 7, Vista and Xp • Supports all 64-bit operating systems • Improved GIS experience • Multi GIS platform support • ESRI ArcGIS • MapInfo Professional

  5. Tree View • New grouping structure • New editing methodology • Recycle bin • Tabbed Windows • Group docking windows together • Easy switching between views

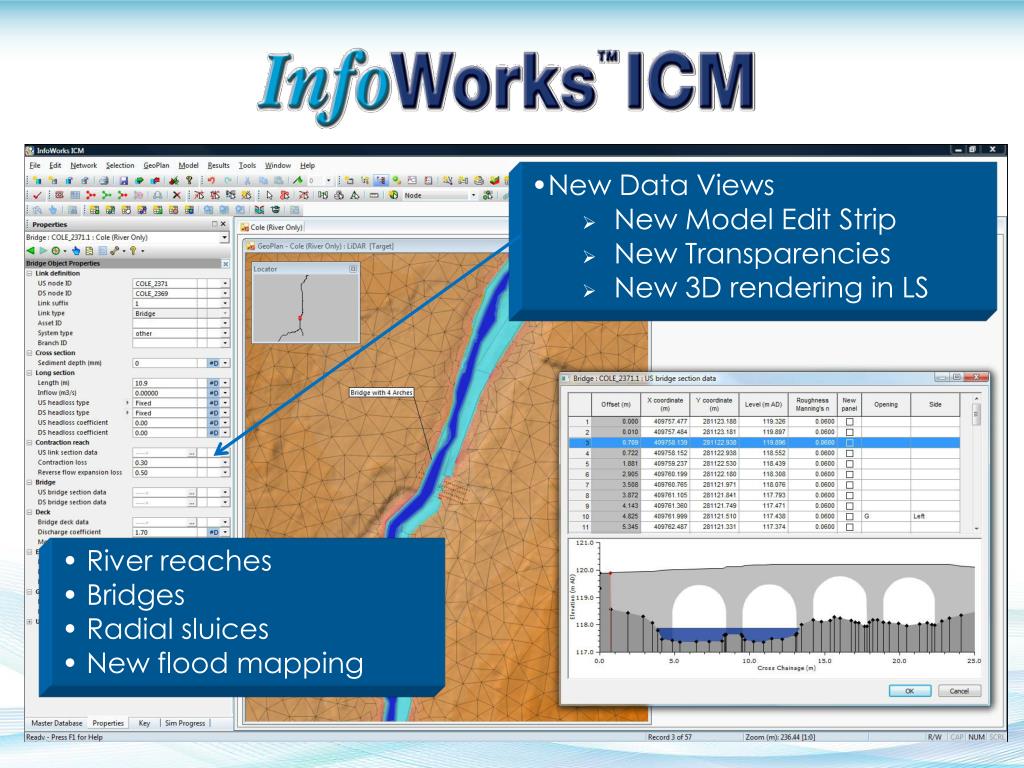

  6. New Data Views • New Model Edit Strip • New Transparencies • New 3D rendering in LS • River reaches • Bridges • Radial sluices • New flood mapping

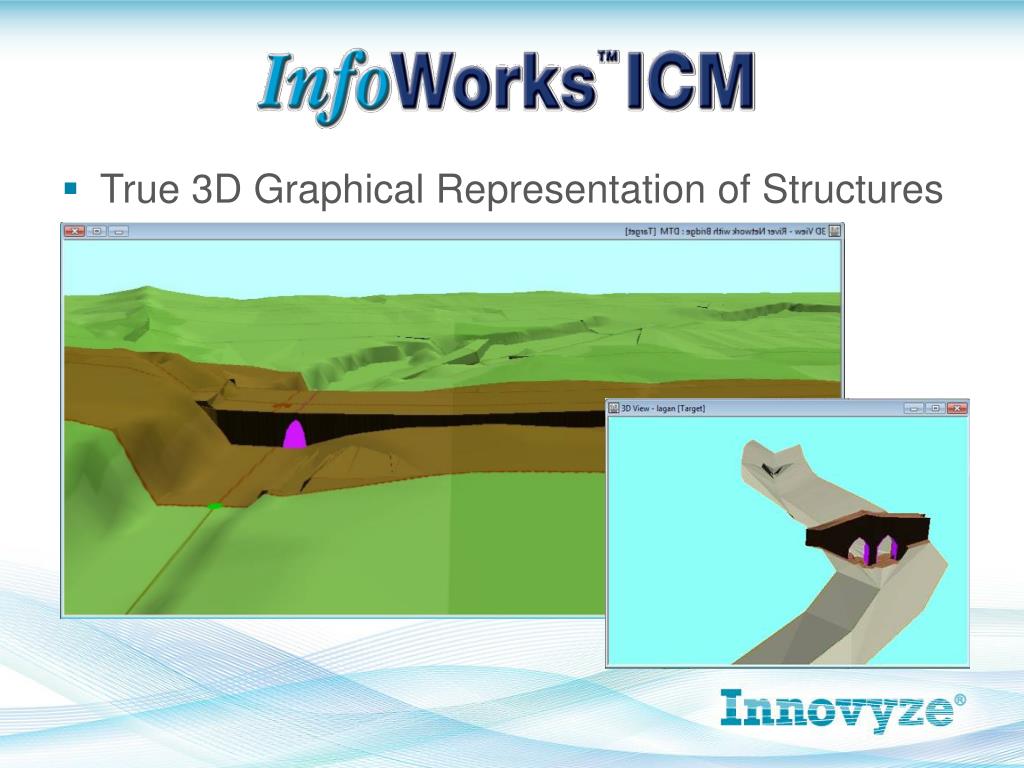

  7. True 3D Graphical Representation of Structures

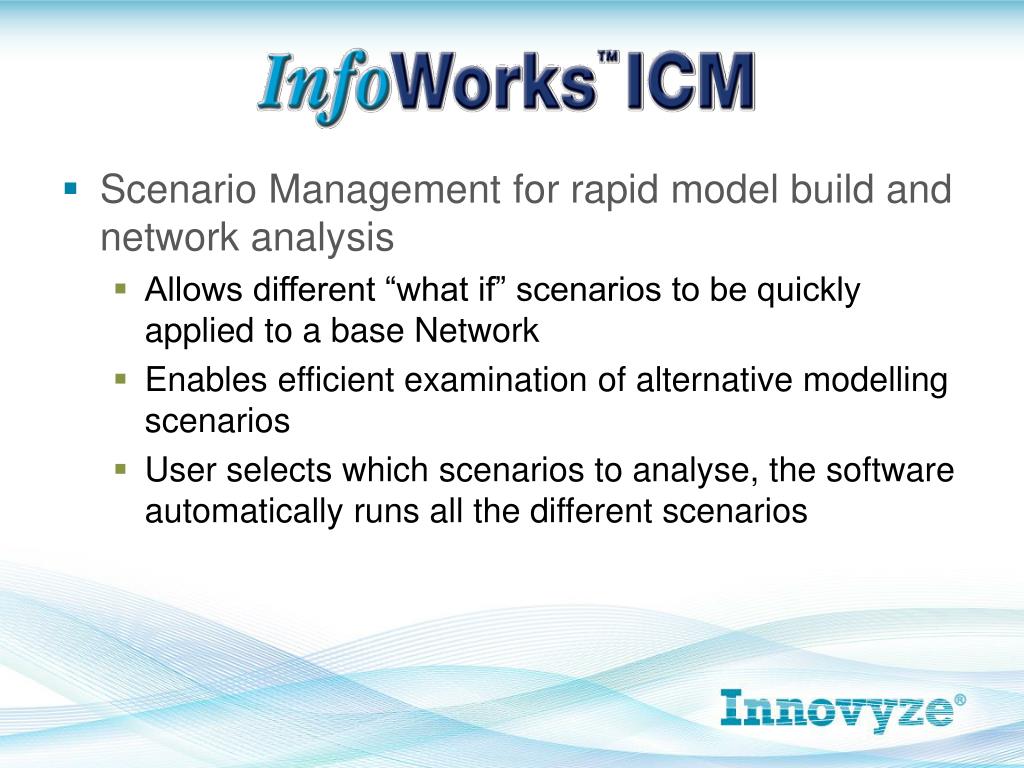

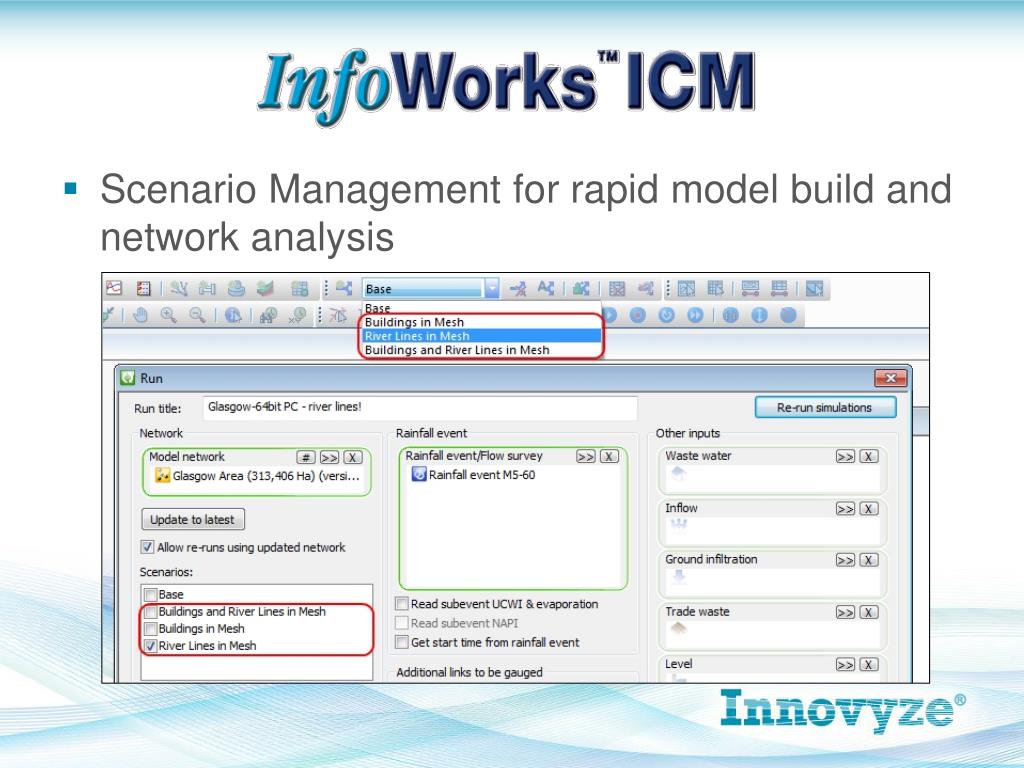

  8. Scenario Management for rapid model build and network analysis • Allows different “what if” scenarios to be quickly applied to a base Network • Enables efficient examination of alternative modelling scenarios • User selects which scenarios to analyse, the software automatically runs all the different scenarios

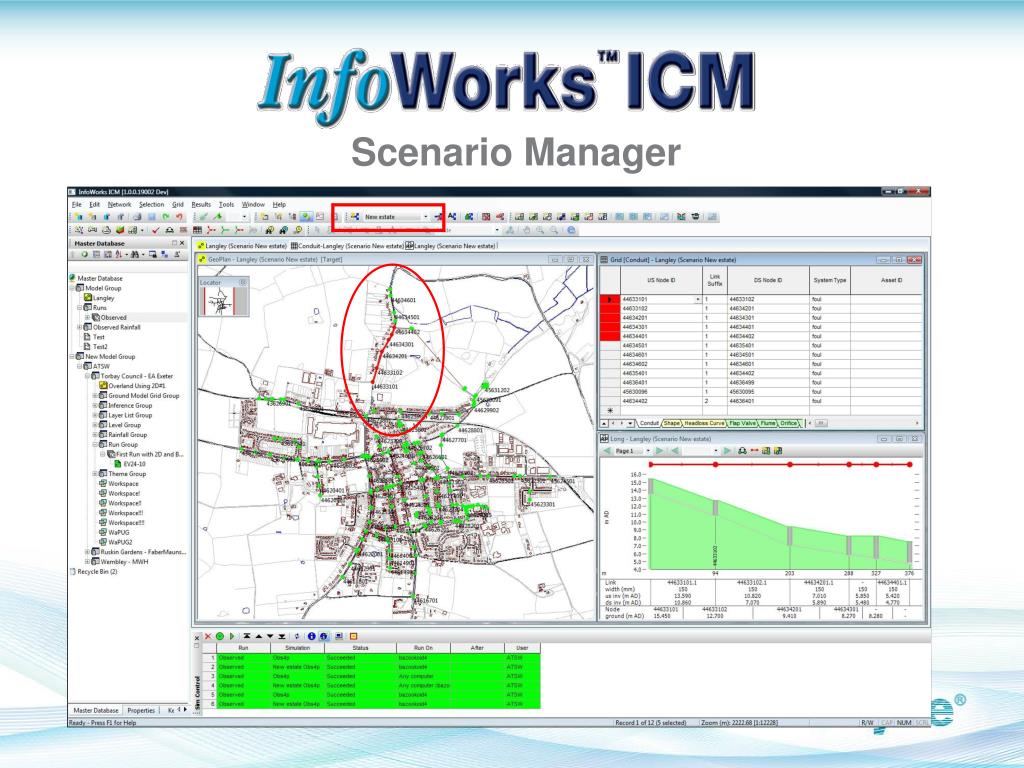

  9. Scenario Manager

  10. Scenario Management for rapid model build and network analysis

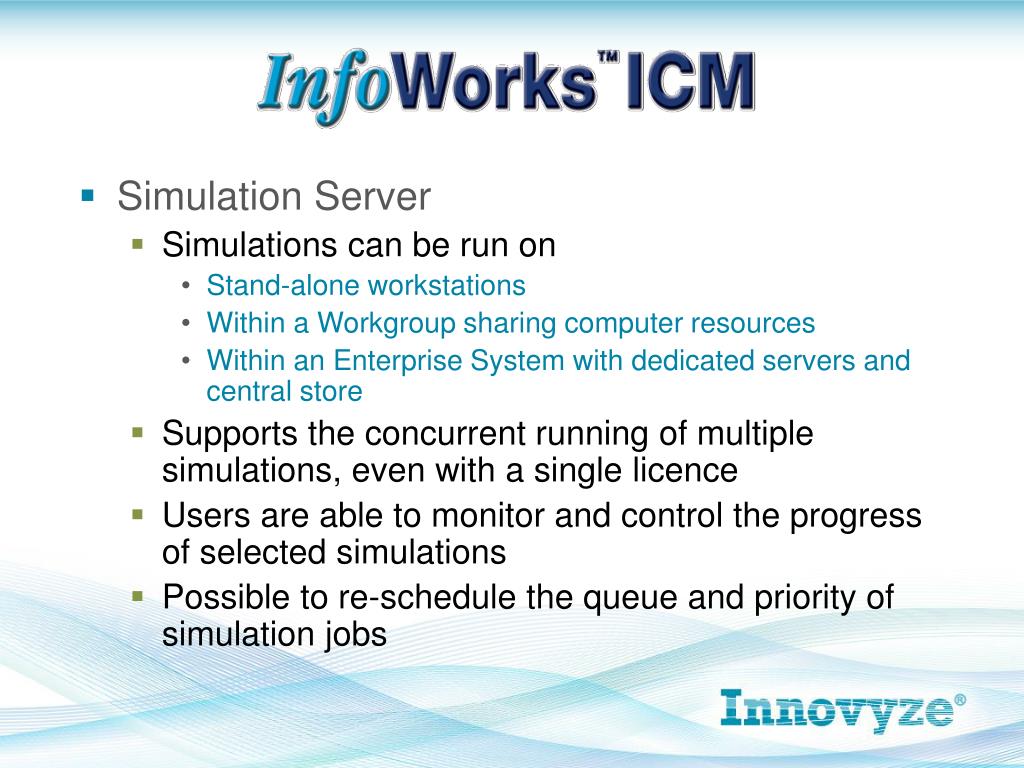

  11. Simulation Server • Simulations can be run on • Stand-alone workstations • Within a Workgroup sharing computer resources • Within an Enterprise System with dedicated servers and central store • Supports the concurrent running of multiple simulations, even with a single licence • Users are able to monitor and control the progress of selected simulations • Possible to re-schedule the queue and priority of simulation jobs

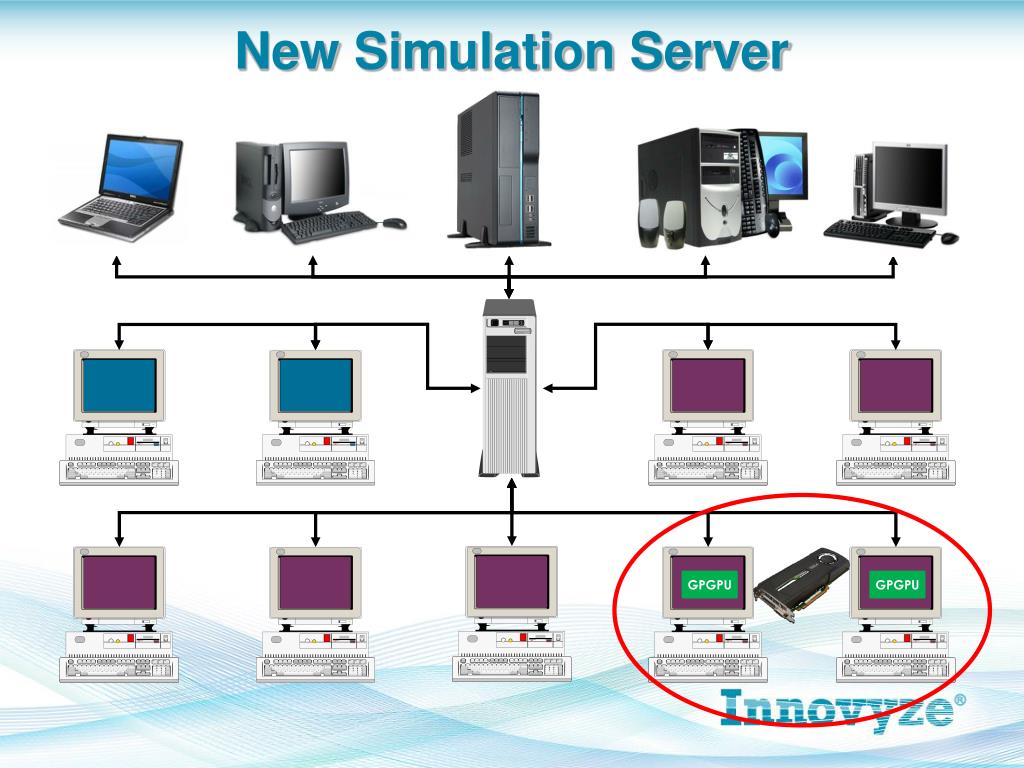

  12. GPGPU GPGPU New Simulation Server

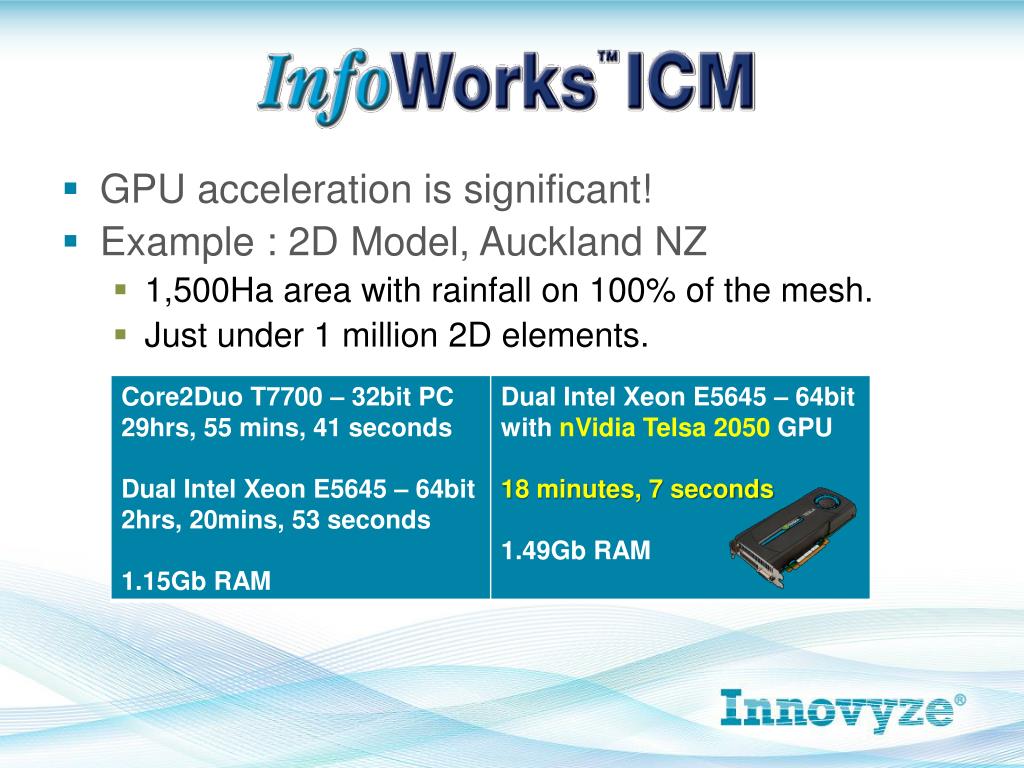

  13. GPU acceleration is significant! • Example : 2D Model, Auckland NZ • 1,500Ha area with rainfall on 100% of the mesh. • Just under 1 million 2D elements.

  14. Example Models

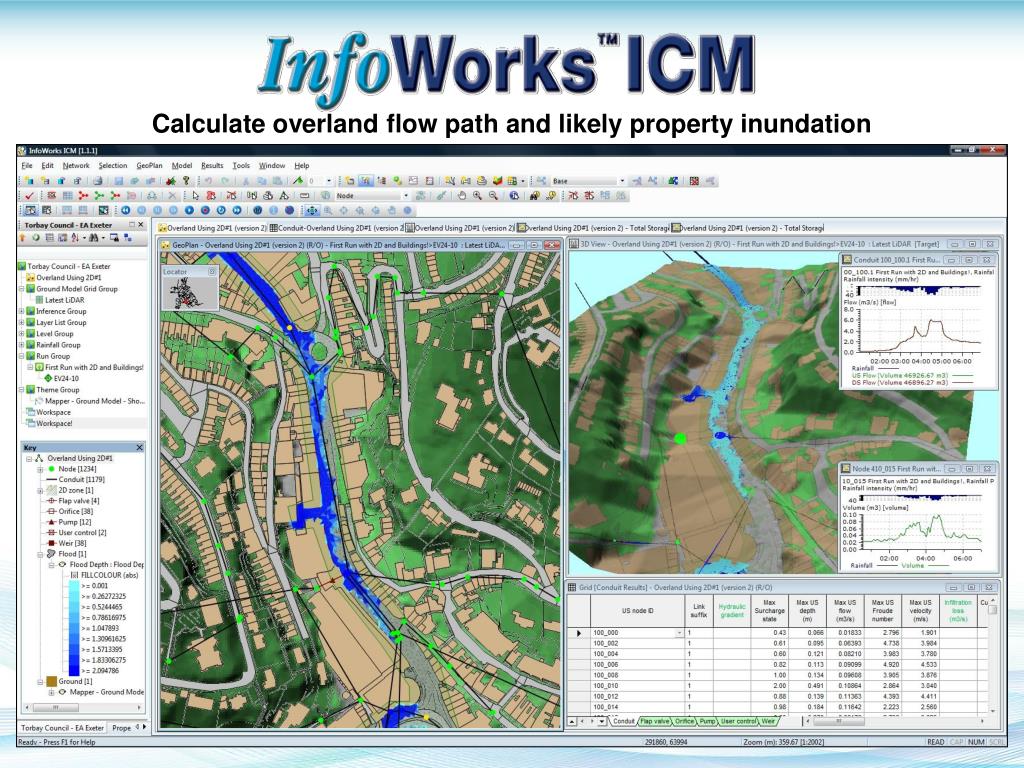

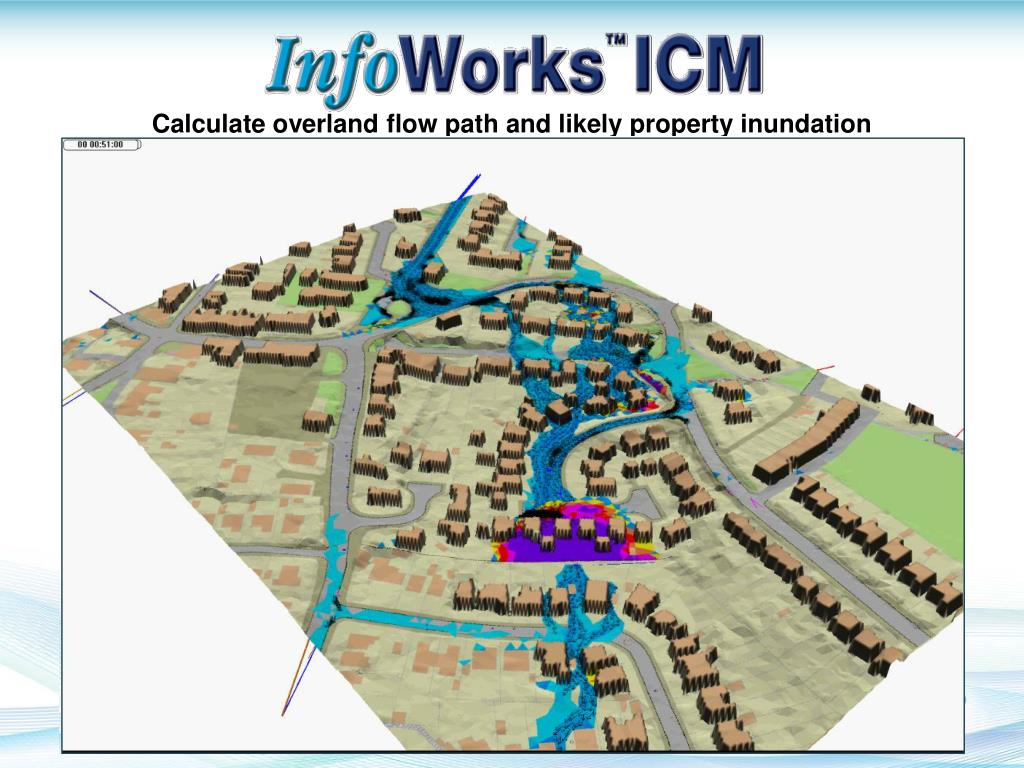

  15. Calculate overland flow path and likely property inundation

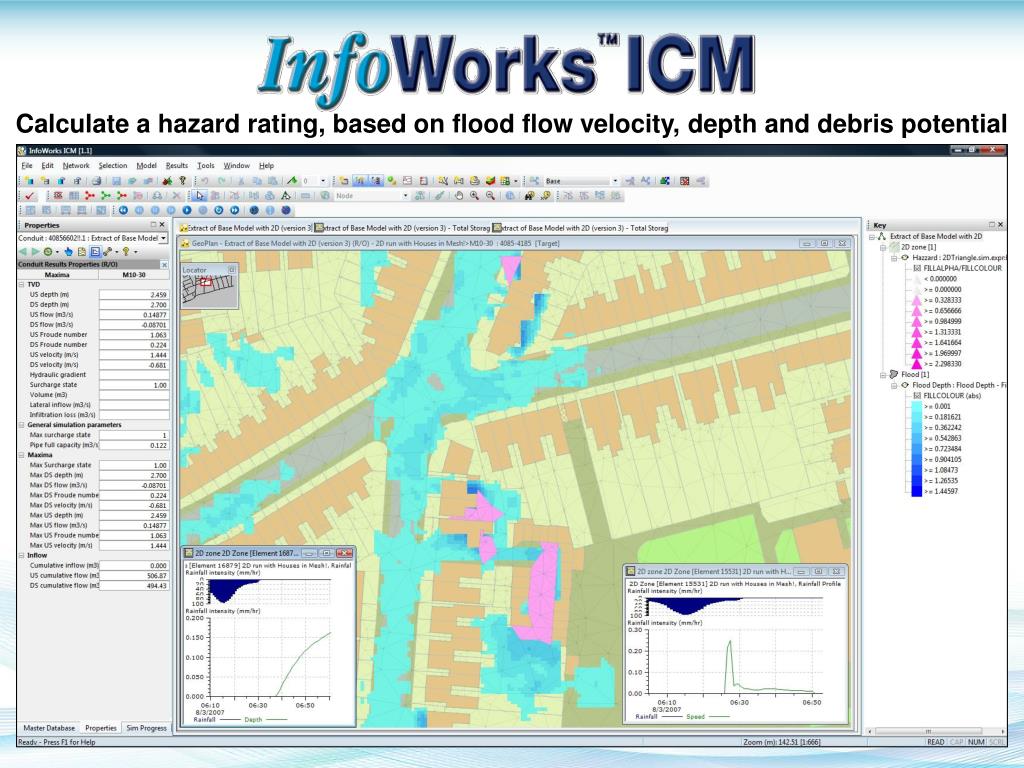

  16. Calculate a hazard rating, based on flood flow velocity, depth and debris potential

  17. Calculate overland flow path and likely property inundation

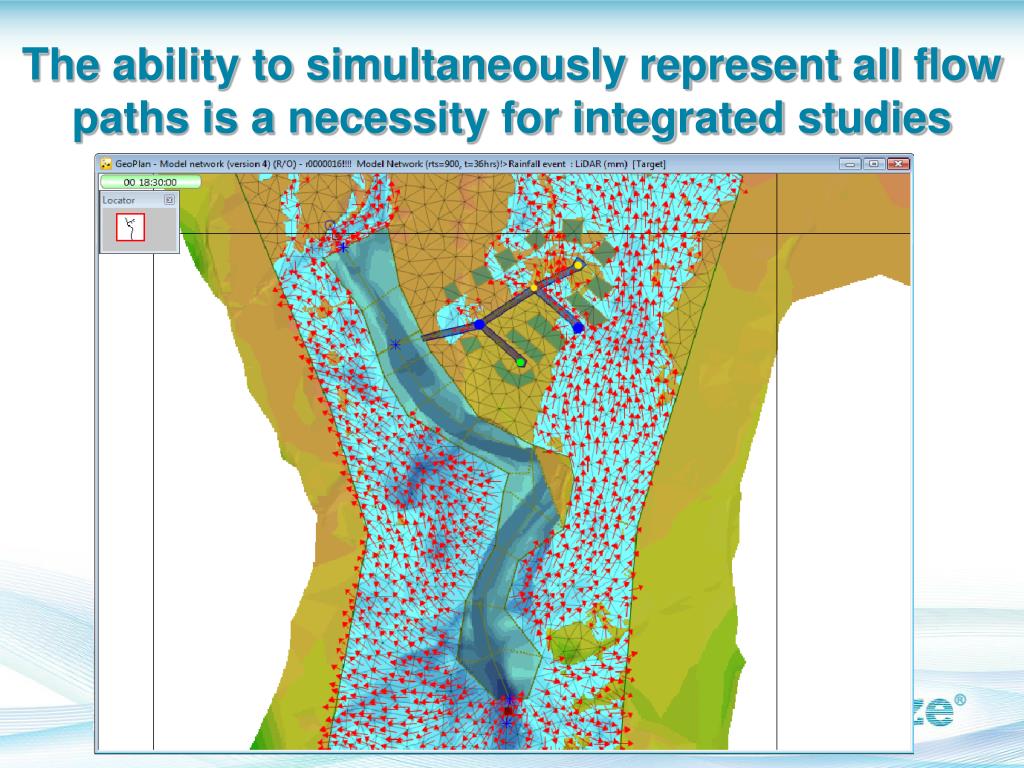

  18. The ability to simultaneously represent all flow paths is a necessity for integrated studies

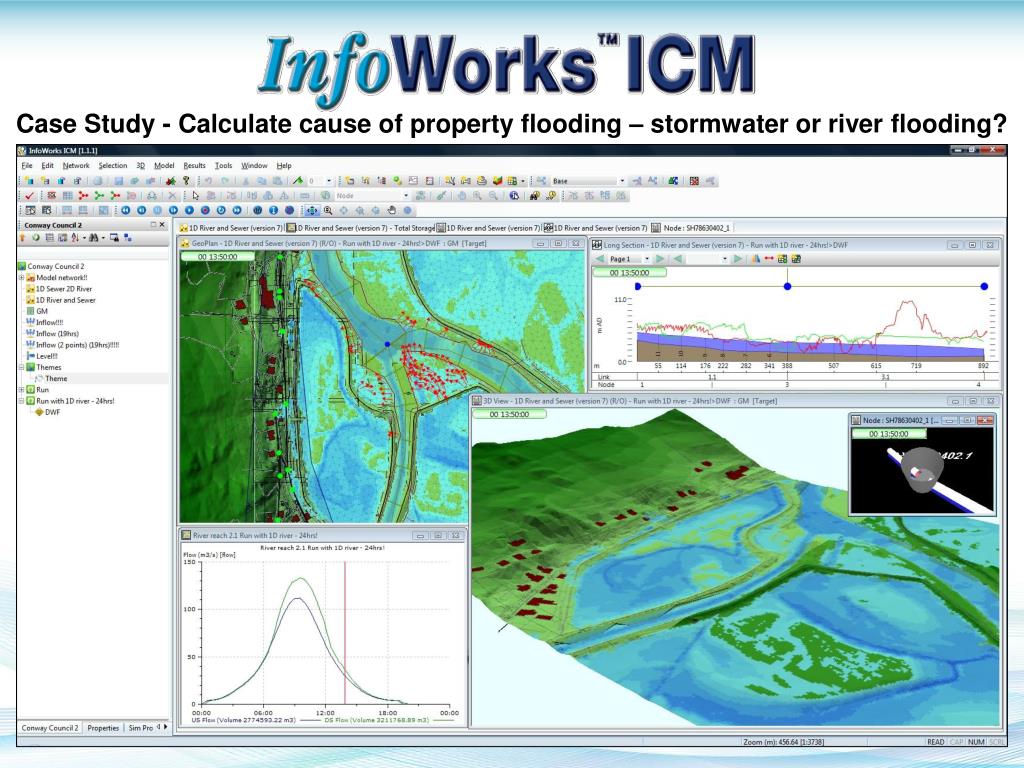

  19. Case Study - Calculate cause of property flooding – stormwater or river flooding?

  20. Case Study - Calculate cause of property flooding – stormwater or river flooding?

  21. Technology Preview presented by Andrew Walker
