  1. Technology Preview presented by Andrew Walker

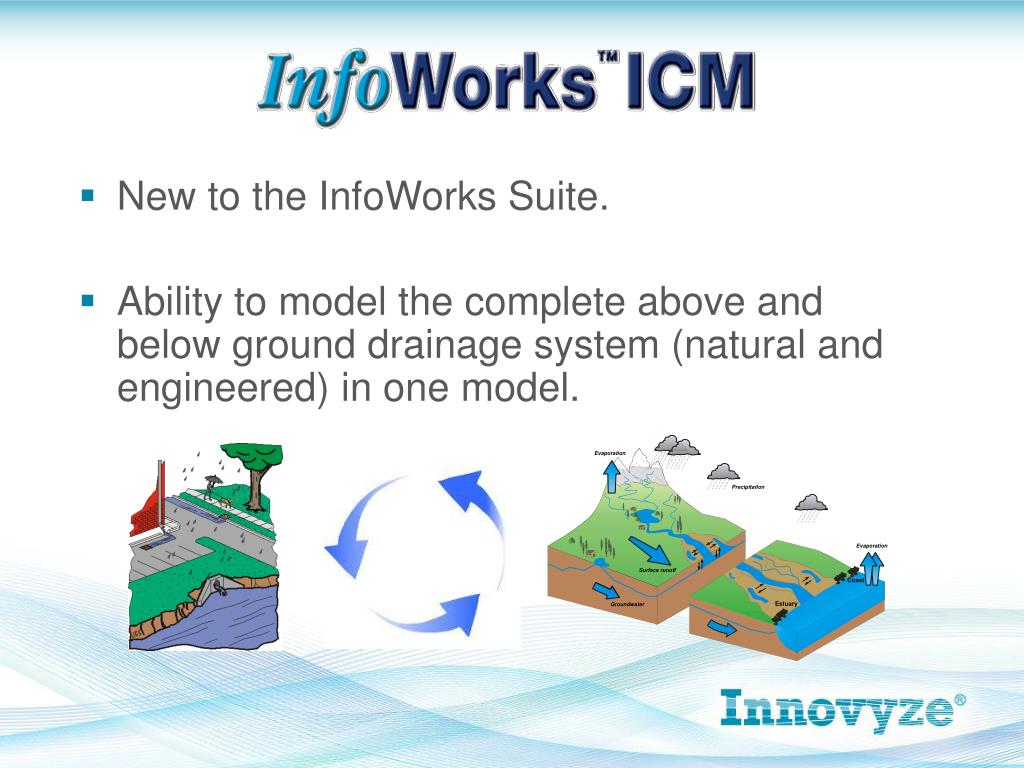

  2. New to the InfoWorks Suite. • Ability to model the complete above and below ground drainage system (natural and engineered) in one model.

  3. Single simulation engine • Manholes, pipes, inlets • Natural and man-made channels • Catchment and floodplain • Common hydrology • 1D and 2D integrated solution • New User Interface • New multi user version control system • New editing methodology • New grouping structure • Recycle bin

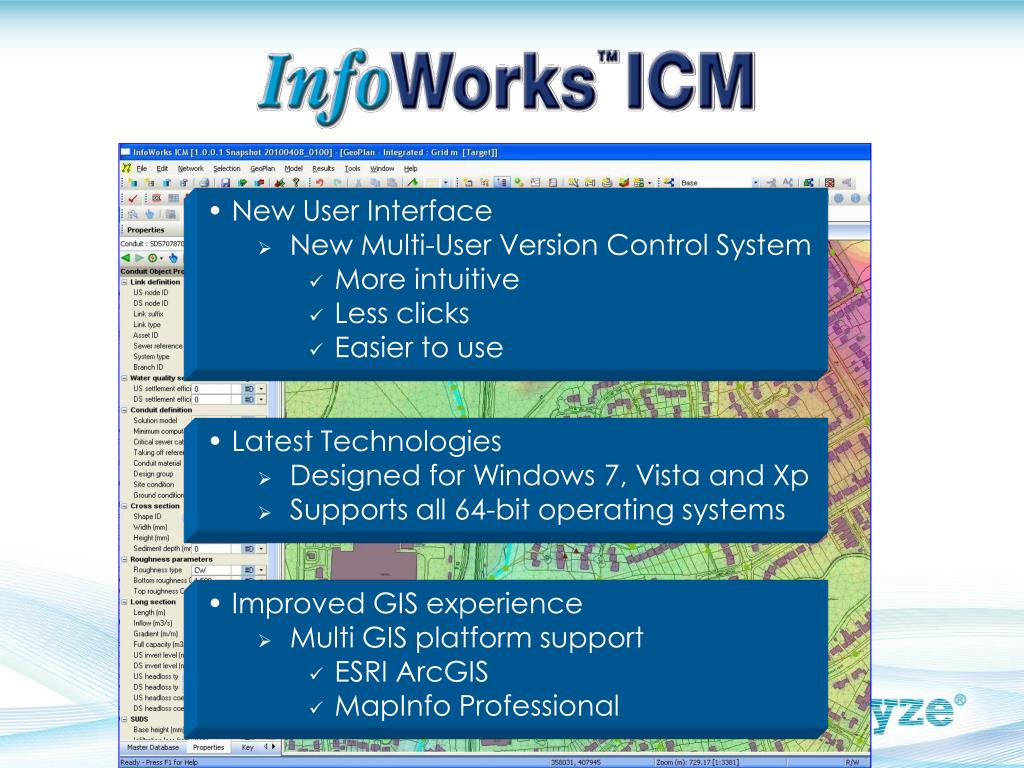

  4. New User Interface • New Multi-User Version Control System • More intuitive • Less clicks • Easier to use • Latest Technologies • Designed for Windows 7, Vista and Xp • Supports all 64-bit operating systems • Improved GIS experience • Multi GIS platform support • ESRI ArcGIS • MapInfo Professional

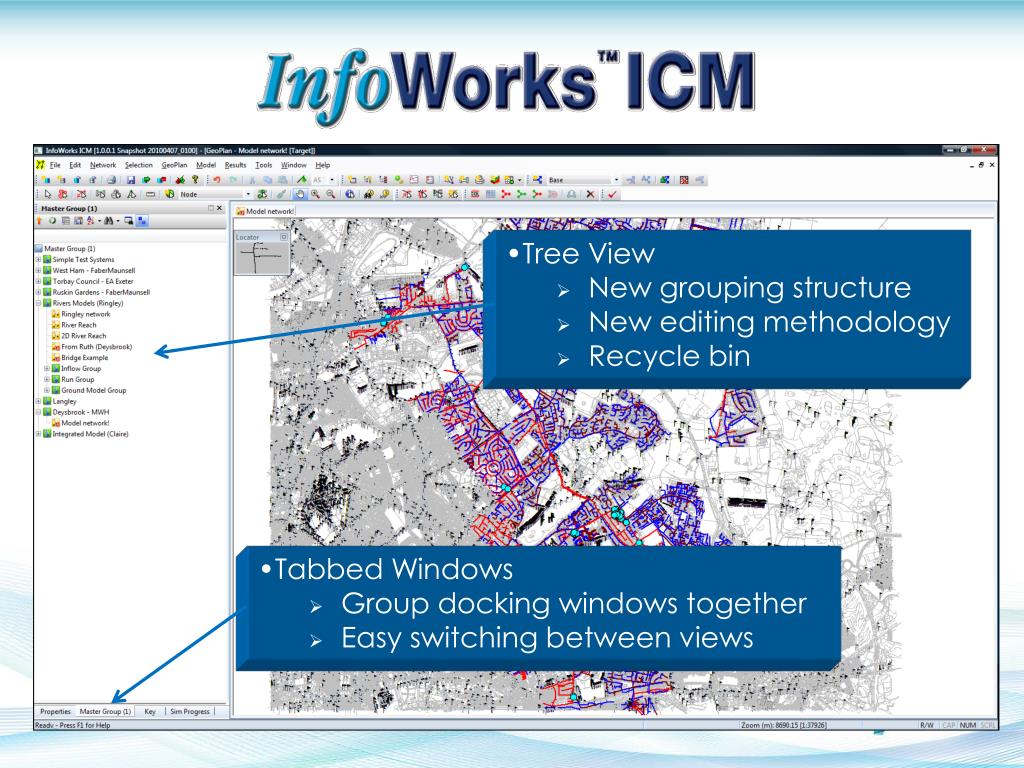

  5. Tree View • New grouping structure • New editing methodology • Recycle bin • Tabbed Windows • Group docking windows together • Easy switching between views

  6. New Data Views • New Model Edit Strip • New Transparencies • New 3D rendering in LS • River reaches • Bridges • Radial sluices • New flood mapping

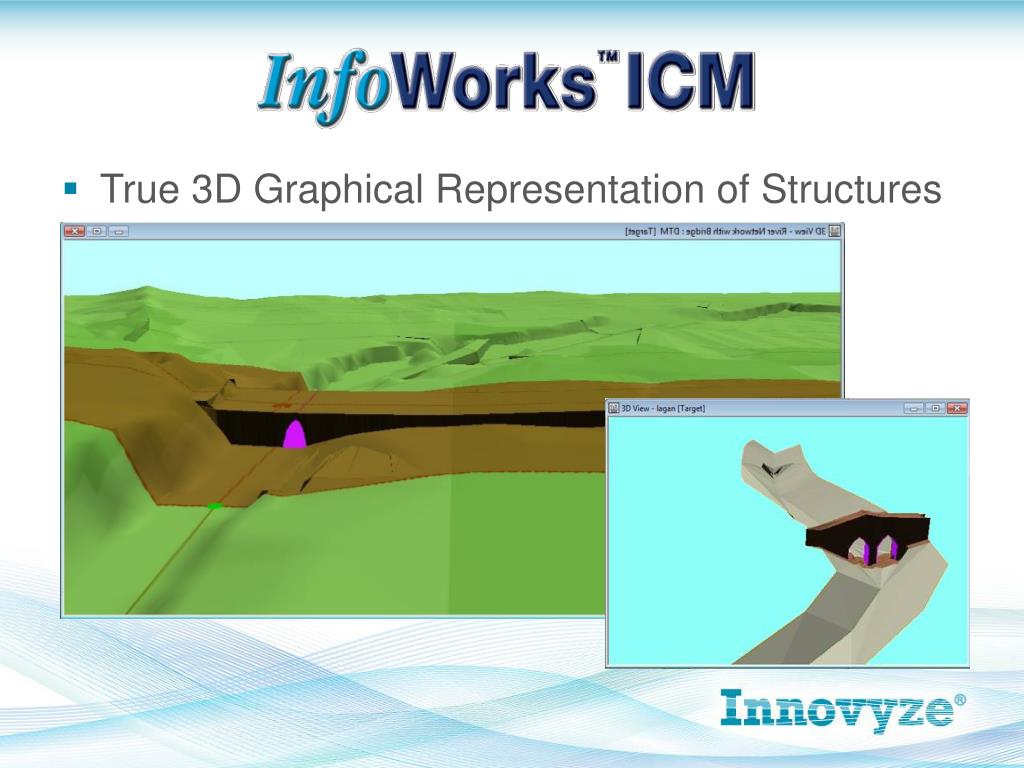

  7. True 3D Graphical Representation of Structures

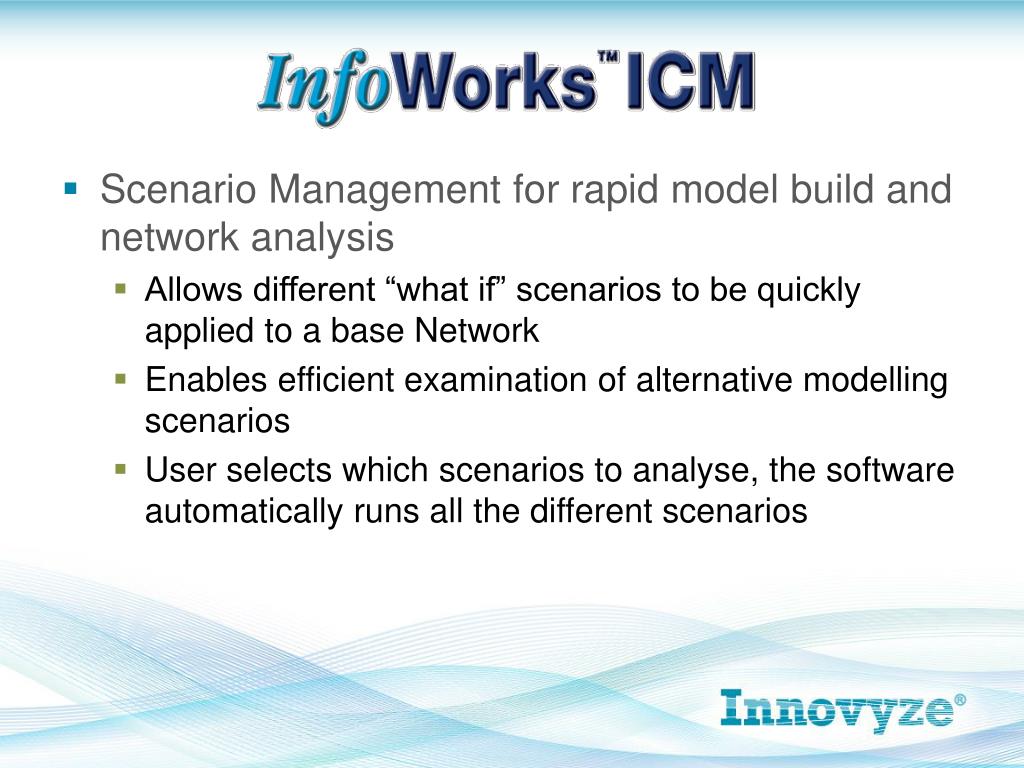

  8. Scenario Management for rapid model build and network analysis • Allows different “what if” scenarios to be quickly applied to a base Network • Enables efficient examination of alternative modelling scenarios • User selects which scenarios to analyse, the software automatically runs all the different scenarios

  9. Scenario Manager

  10. Scenario Management for rapid model build and network analysis

  11. Simulation Server • Simulations can be run on • Stand-alone workstations • Within a Workgroup sharing computer resources • Within an Enterprise System with dedicated servers and central store • Supports the concurrent running of multiple simulations, even with a single licence • Users are able to monitor and control the progress of selected simulations • Possible to re-schedule the queue and priority of simulation jobs

  12. GPGPU GPGPU New Simulation Server

  13. GPU acceleration is significant! • Example : 2D Model, Auckland NZ • 1,500Ha area with rainfall on 100% of the mesh. • Just under 1 million 2D elements.

  14. Example Models

  15. Calculate overland flow path and likely property inundation

  16. Calculate a hazard rating, based on flood flow velocity, depth and debris potential

  17. Case Study - Calculate cause of property flooding – stormwater or river flooding?

  18. Case Study - Calculate cause of property flooding – stormwater or river flooding?

  19. Technology Preview presented by Andrew Walker
