slide1

United Arab Emirates UniversityCollege of EngineeringDepartment of Civil and Environmental EngineeringGraduation Project IISecond Semester 2007/2008

Silica Fume influence on RC Beams Behavior

Advisor: Dr. Ahmed Bushlaibi

Group members:

Khamis Ahmed Khamis 199900588

Khalid HazaáMansour 200235841

Nasser Abdullah Alnaqbi 200212673

KhaledMoussalli200337587

1

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

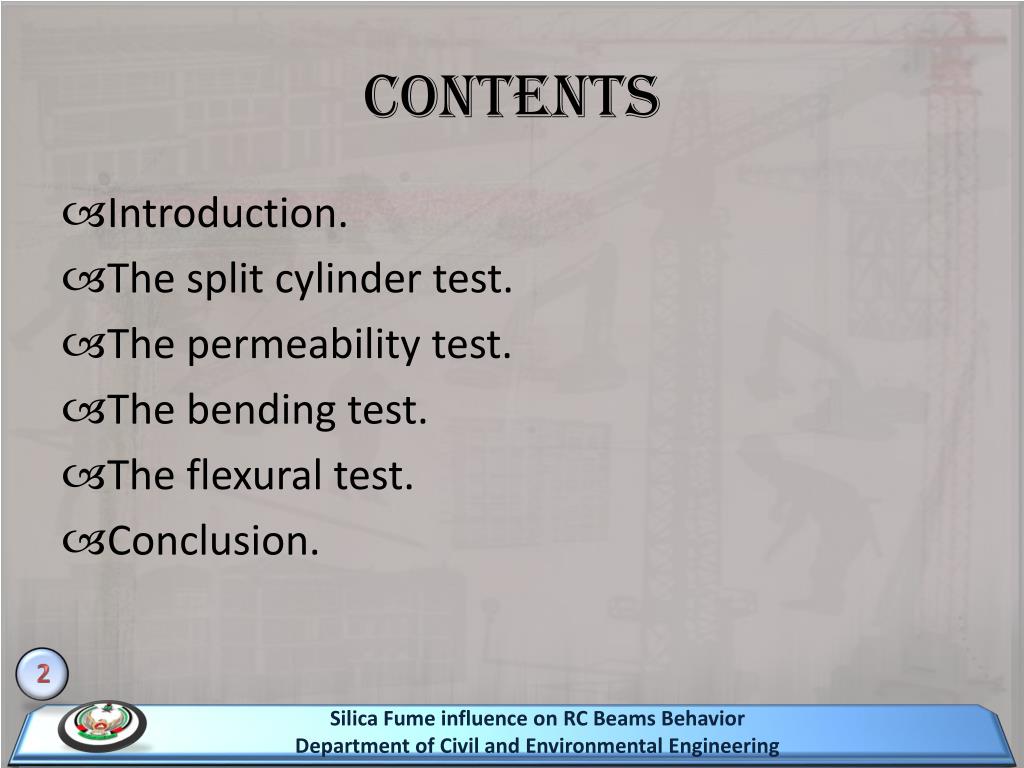

contents
contents
  • Introduction.
  • The split cylinder test.
  • The permeability test.
  • The bending test.
  • The flexural test.
  • Conclusion.

2

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

introduction
Introduction
  • Using silica fume as an enhancer for the concrete beams, slabs, columns and any other concrete structure.
  • Concrete is very good material in compression however it is very week in tension so that is way we use reinforcement in it.

3

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide4

Why Silica Fume ?

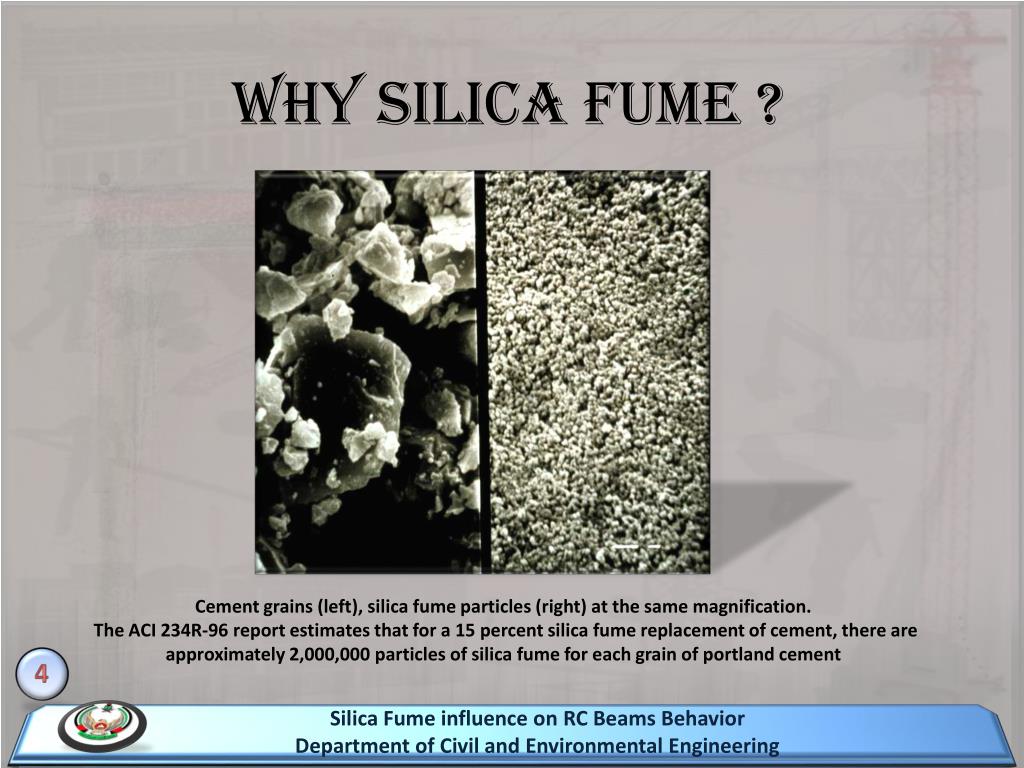

Cement grains (left), silica fume particles (right) at the same magnification.

The ACI 234R-96 report estimates that for a 15 percent silica fume replacement of cement, there are approximately 2,000,000 particles of silica fume for each grain of portland cement

4

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide5

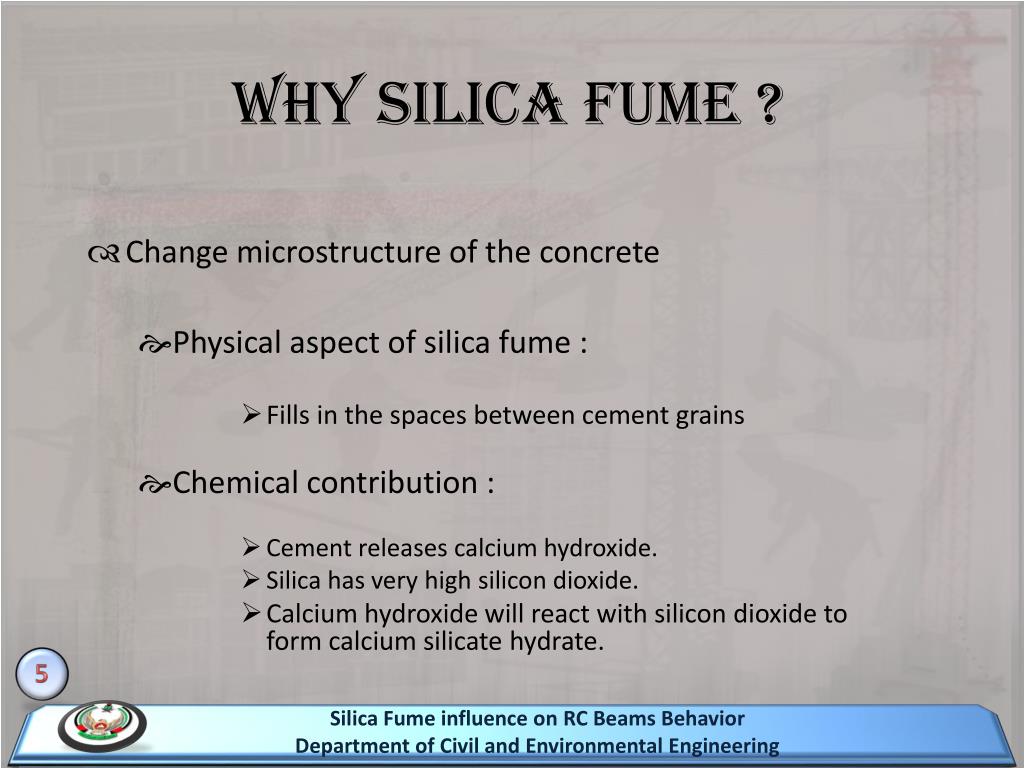

Why Silica Fume ?

  • Change microstructure of the concrete
    • Physical aspect of silica fume :
        • Fills in the spaces between cement grains
    • Chemical contribution :
        • Cement releases calcium hydroxide.
        • Silica has very high silicon dioxide.
        • Calcium hydroxide will react with silicon dioxide to form calcium silicate hydrate.

5

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

introduction6
Introduction
  • Concrete solidifies and hardens after mixing and placement due to a chemical process known as hydration. The water reacts with cement which bonds the other components together eventually creating a stone-like material.
  • Reinforcement is a good indication for failure because it gives us a warning.

6

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

introduction7
Introduction

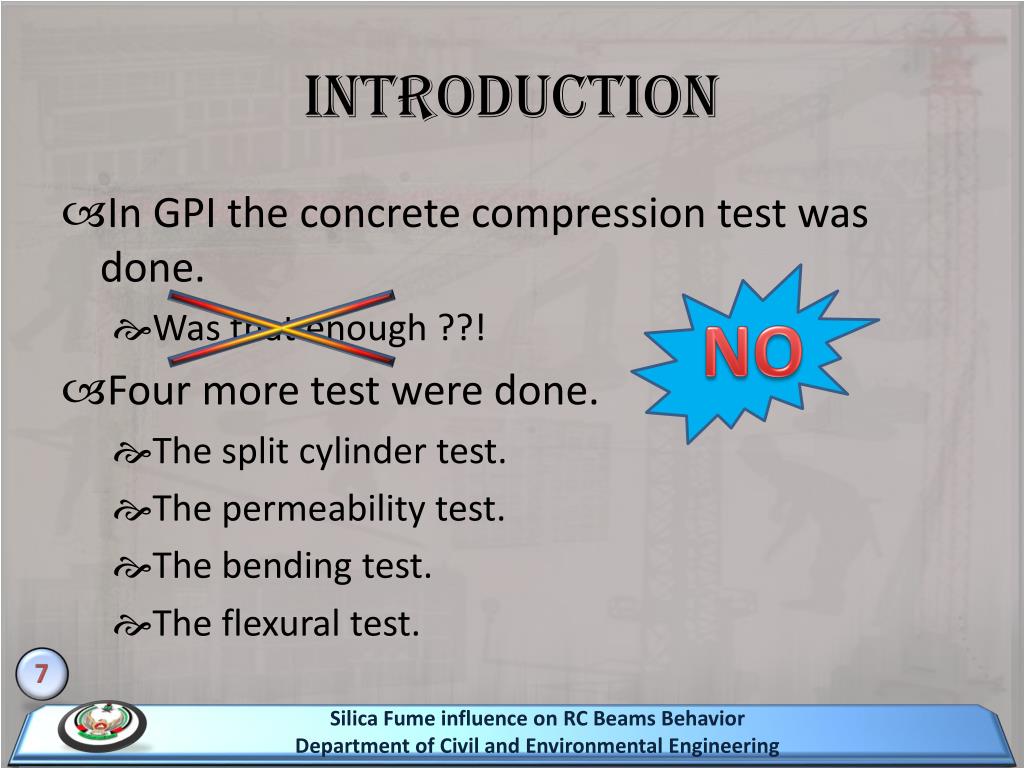

  • In GPI the concrete compression test was done.
    • Was that enough ??!
  • Four more test were done.
    • The split cylinder test.
    • The permeability test.
    • The bending test.
    • The flexural test.

NO

7

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide8

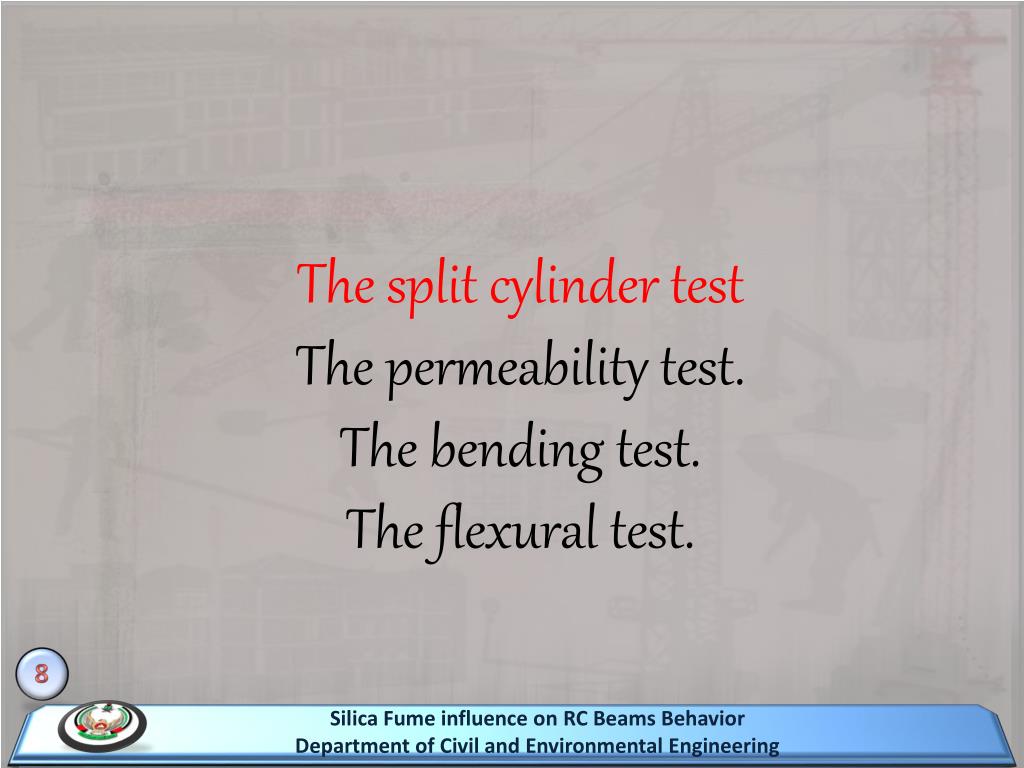

The split cylinder test

  • The permeability test.
  • The bending test.
  • The flexural test.

8

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

split cylinder test

Split Cylinder Test

9

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

split cylinder test10

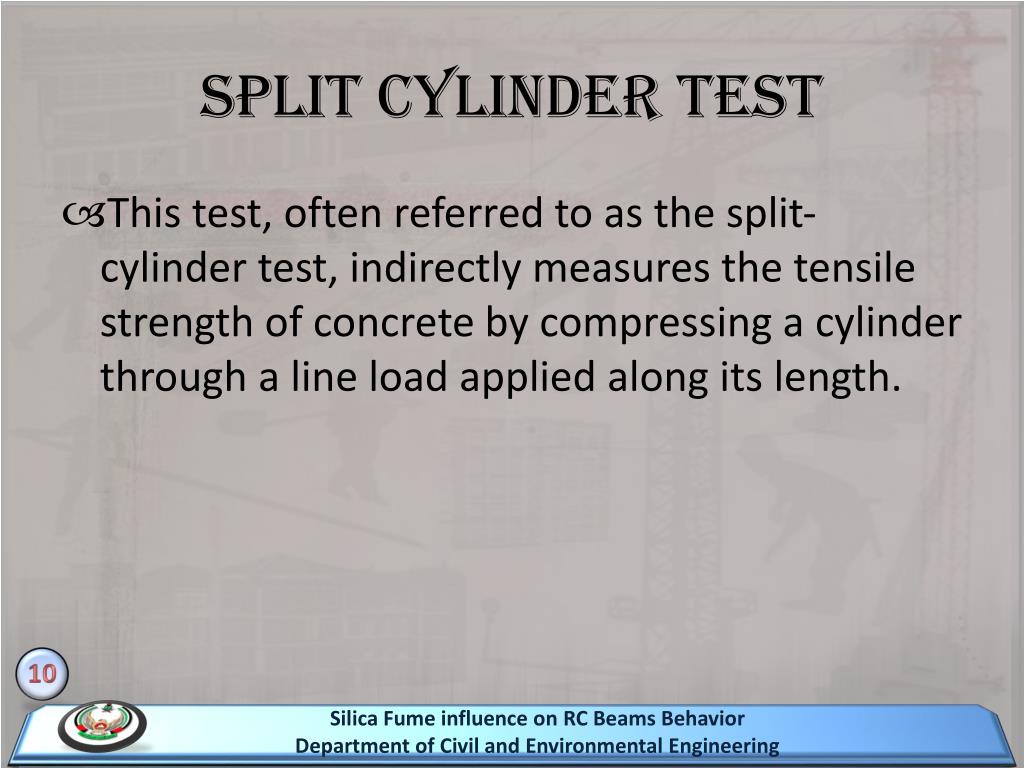

Split cylinder test

10

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

  • This test, often referred to as the split-cylinder test, indirectly measures the tensile strength of concrete by compressing a cylinder through a line load applied along its length.
the testing machine
The testing machine

11

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

  • This test can be completed in a standard concrete compression testing machine, with only one special requirement the hinged bearing that loads the specimen.
the experiment
The Experiment

12

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

results
Results

The results above are in MPa

13

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

results14
Results

The results above are in MPa

14

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

results15

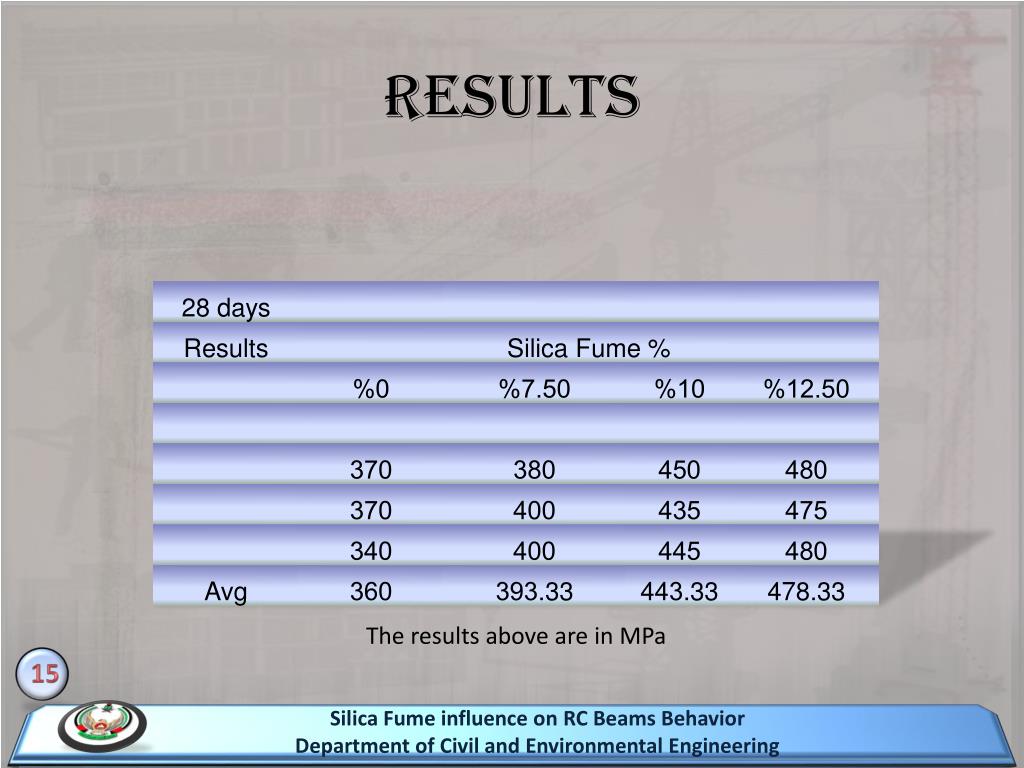

Results

The results above are in MPa

15

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

results16
Results

16

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide17

The split cylinder test.

  • The permeability test.
  • The bending test.
  • The flexural test.

17

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

permeability

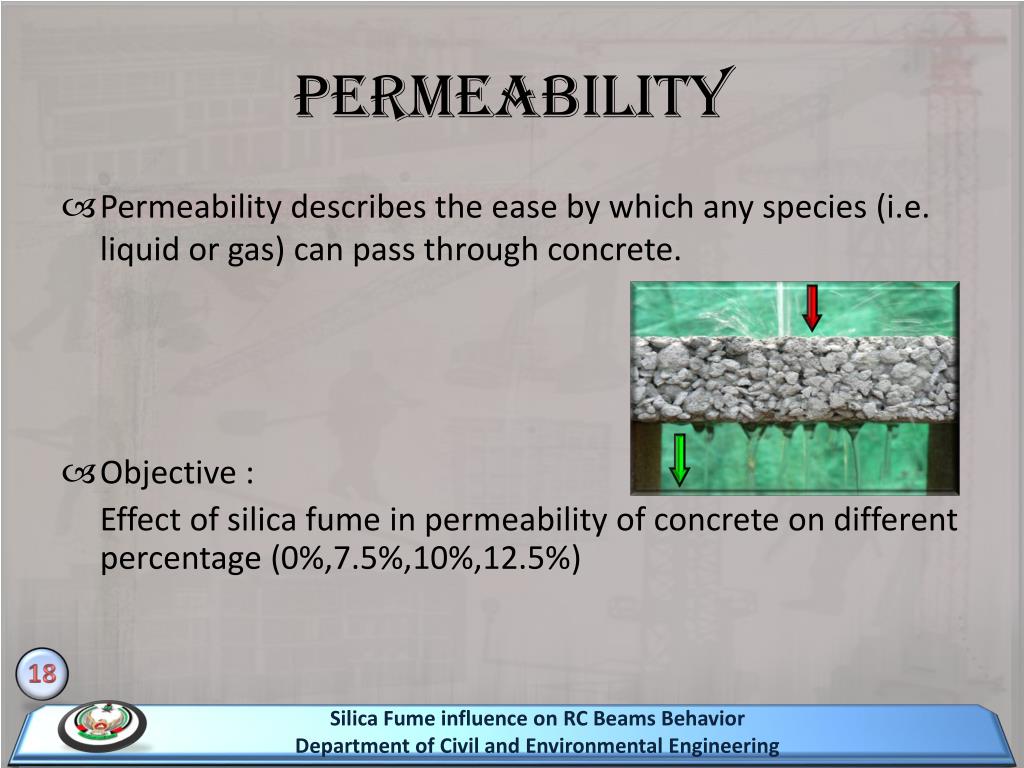

Permeability
  • Permeability describes the ease by which any species (i.e. liquid or gas) can pass through concrete.
  • Objective :

Effect of silica fume in permeability of concrete on different percentage (0%,7.5%,10%,12.5%)

18

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

permeability19

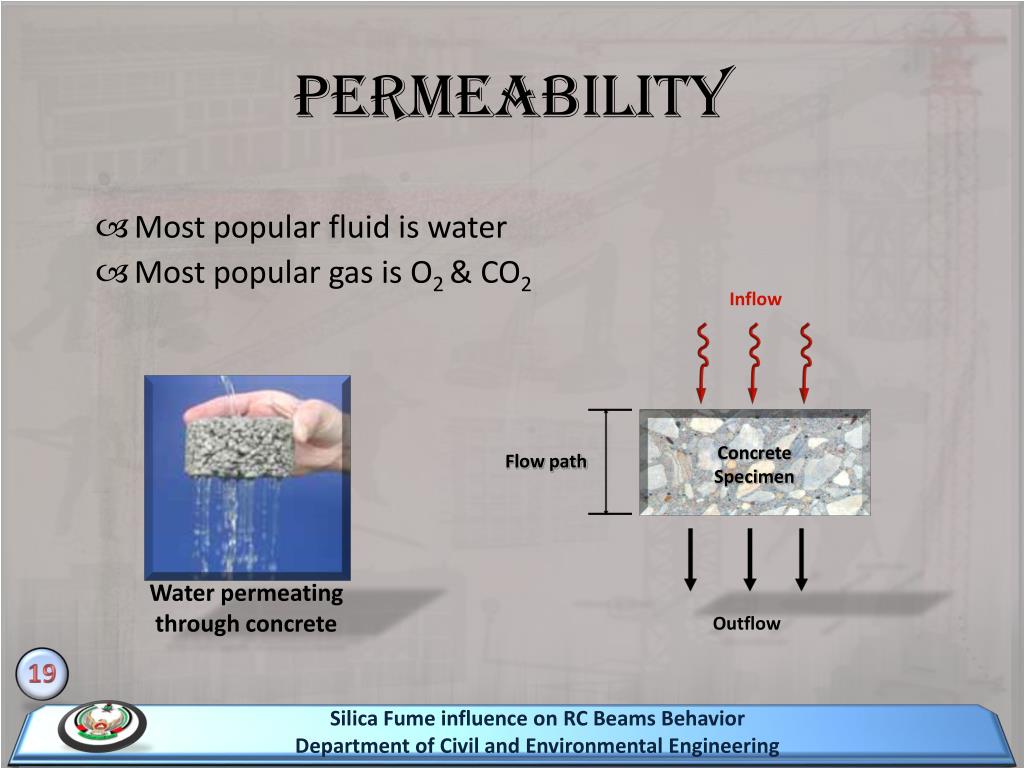

Inflow

Concrete

Specimen

Flow path

Water permeating

through concrete

Outflow

Permeability
  • Most popular fluid is water
  • Most popular gas is O2 & CO2

19

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

permeability test
Permeability test

Shape: Cylinder

v=πr2h

R=15cm=0.15m

r=7.5cm=0.075m

h=2cm=0.02m

V =(π )*(0.075)2*(0.02)

=0.00035m3

V for 16 cylinder = (16)*(0.00035) =0.0056m3

R=15cm

h=2cm

20

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

calculation
Calculation
  • Water content for 16 cylinder=1.12Kg/m3
  • Cement content for 16 cylinder=3.3936kg

Coarse Aggregate:

For 16 cylinder = 5.1072 Kg

Fine Aggregate:

For 16 cylinder = 3.3432 Kg

Super plasticizer:

Sp=1.5 to 2 % of the total cement.

SP= 1.65% * 3.3936 = 53 ml

21

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

experiment
Experiment

22

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

curing
Curing
  • Water
  • 25 days
  • Oven
  • 3days

23

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

transportation
Transportation

To protect sample against air moisture

24

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

air permeability device

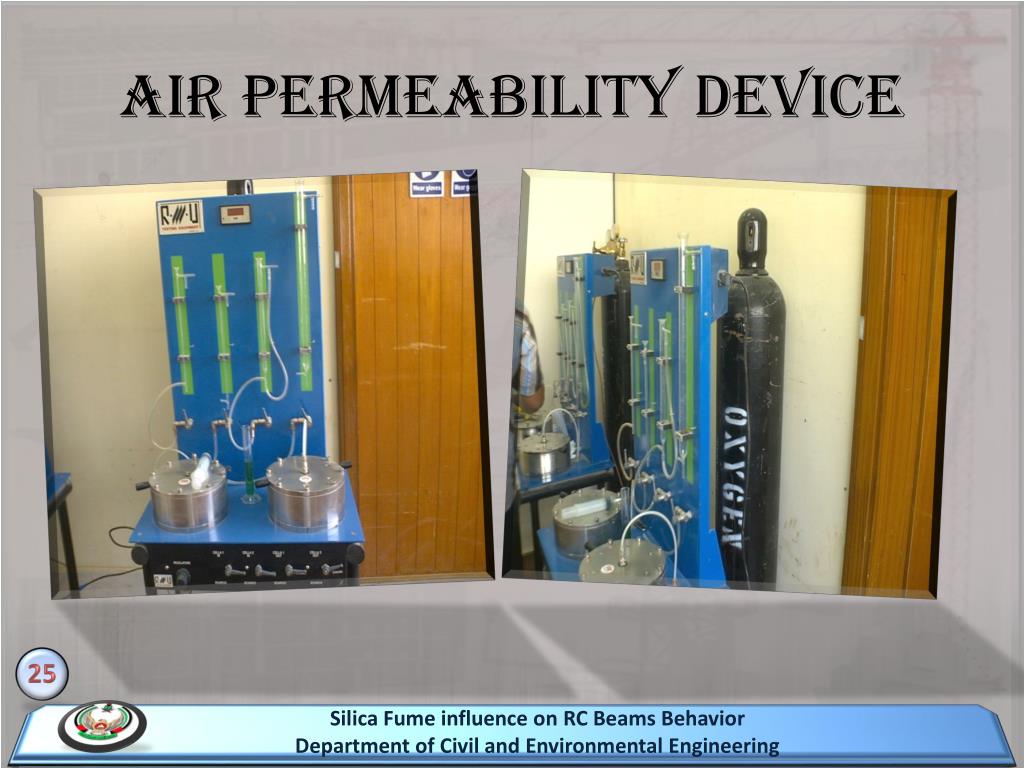

Air permeability device

25

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide26

Line diagram for the oxygen permeability apparatus

26

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

the permeability cell

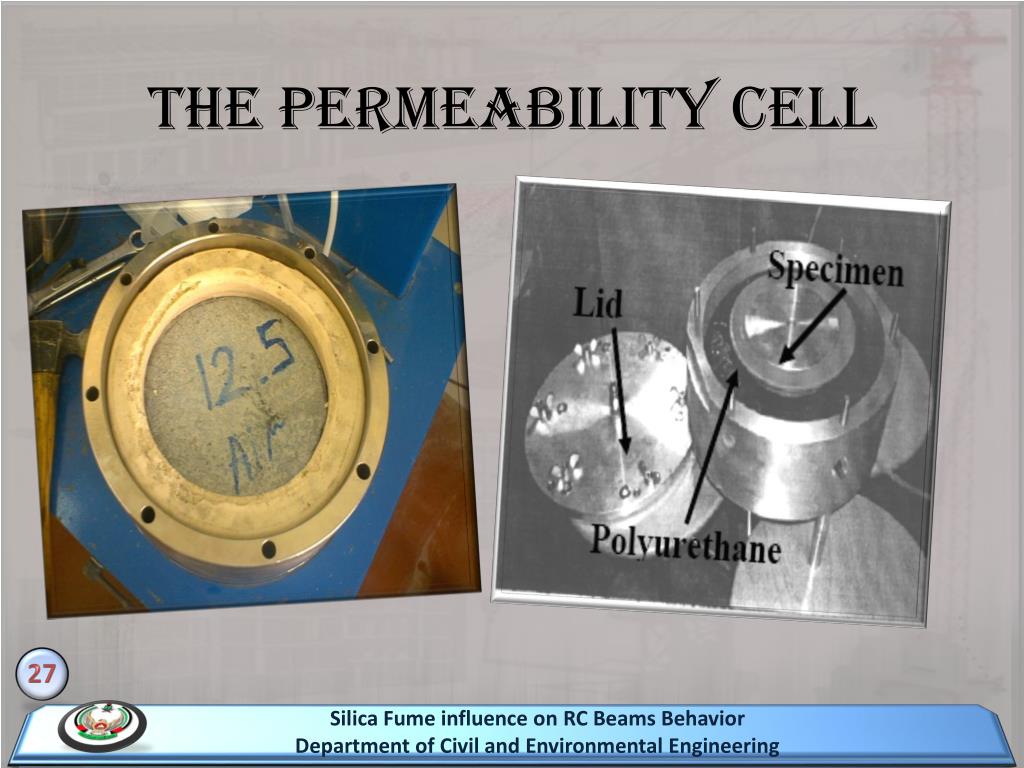

The Permeability Cell

27

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

permeability28

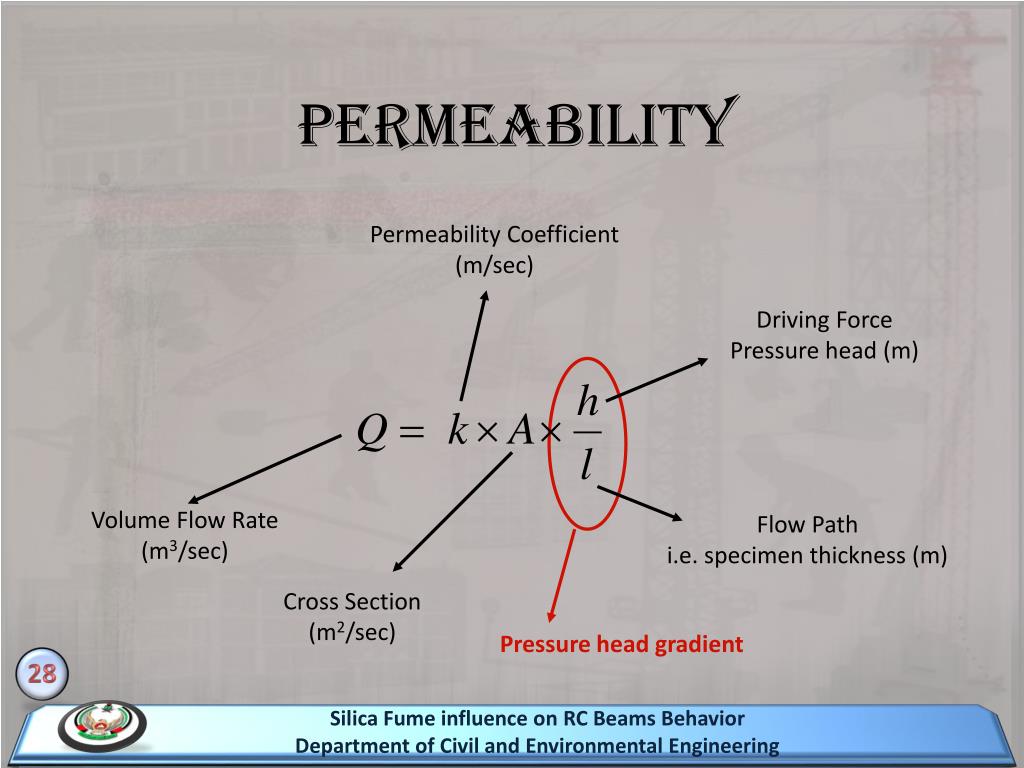

Permeability Coefficient

(m/sec)

Pressure head gradient

Driving Force

Pressure head (m)

Volume Flow Rate

(m3/sec)

Flow Path

i.e. specimen thickness (m)

Cross Section

(m2/sec)

Permeability

28

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide29

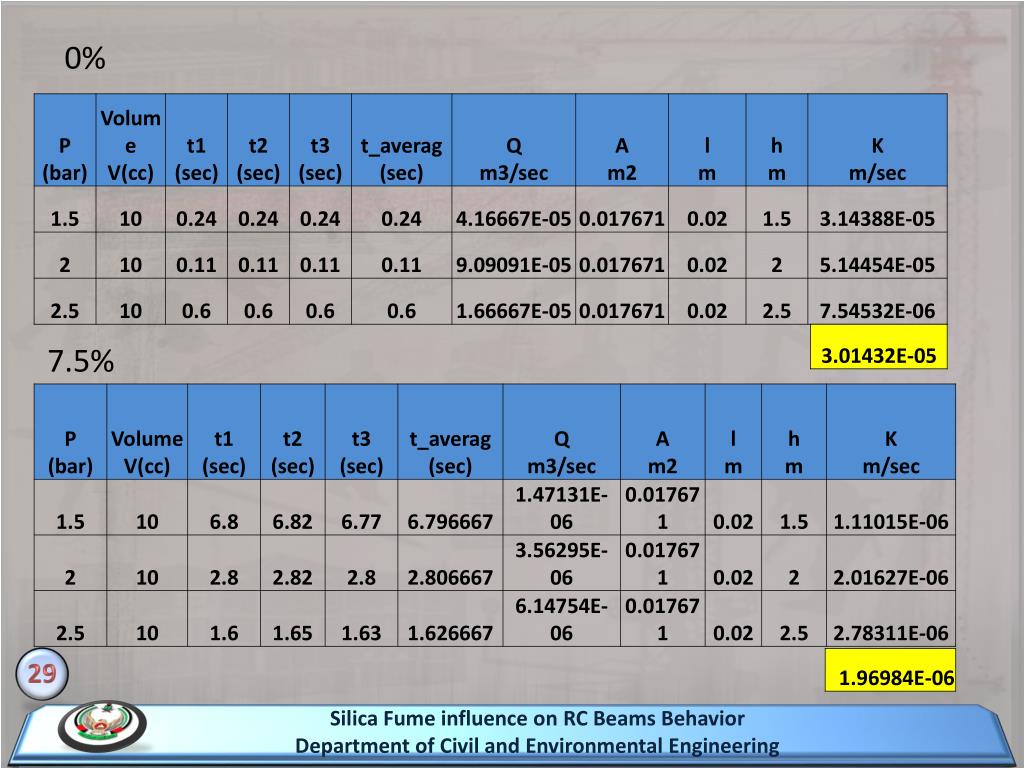

0%

7.5%

29

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide30

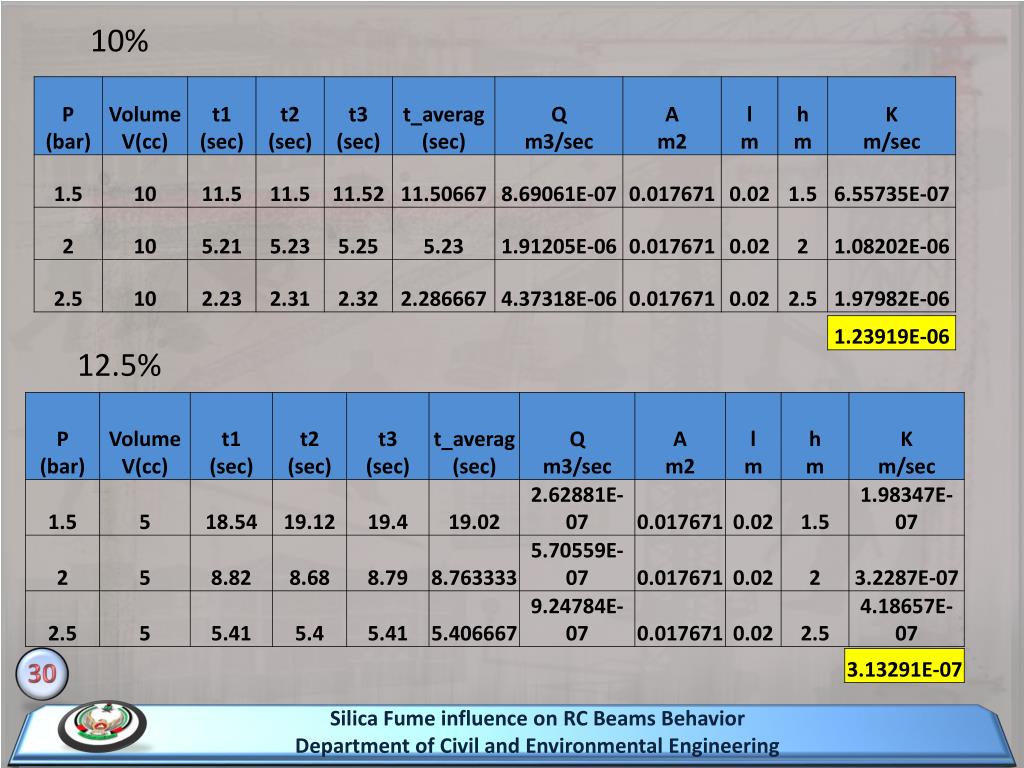

10%

12.5%

30

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide31

The silica fume will effect on the permeability as shown in the chart, when the quantity of silica fume increase the permeability will decrease.

31

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide32

The split cylinder test.

  • The permeability test.
  • The bending test.
  • The flexural test.

32

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design
Beam Design

Design of RC Section Requires Determination of:

  • Concrete Dimensions
      • Beam width b
      • Depth of steel reinforcement d
      • Section height h = d + cover-to-center of steel
  • Area of steel reinforcement As
  • Ensure safety requirements (As) min ≤ As ≤ (As) max

33

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design34
Beam Design

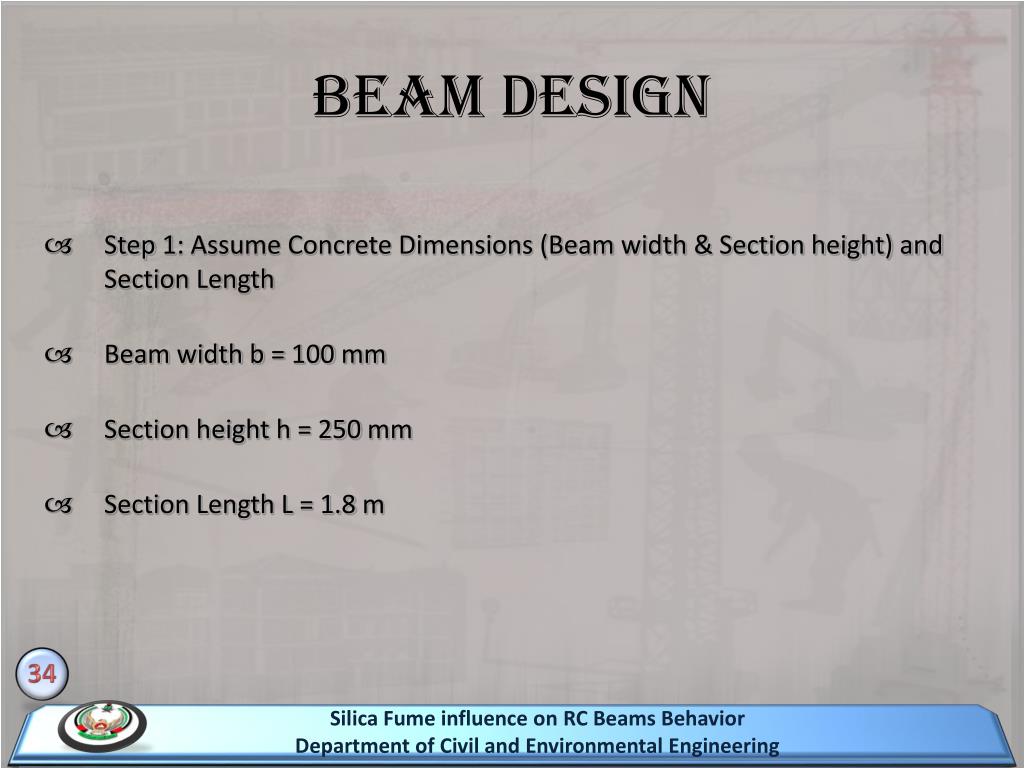

  • Step 1: Assume Concrete Dimensions (Beam width & Section height) and Section Length
  • Beam width b = 100 mm
  • Section height h = 250 mm
  • Section Length L = 1.8 m

34

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design35
Beam Design

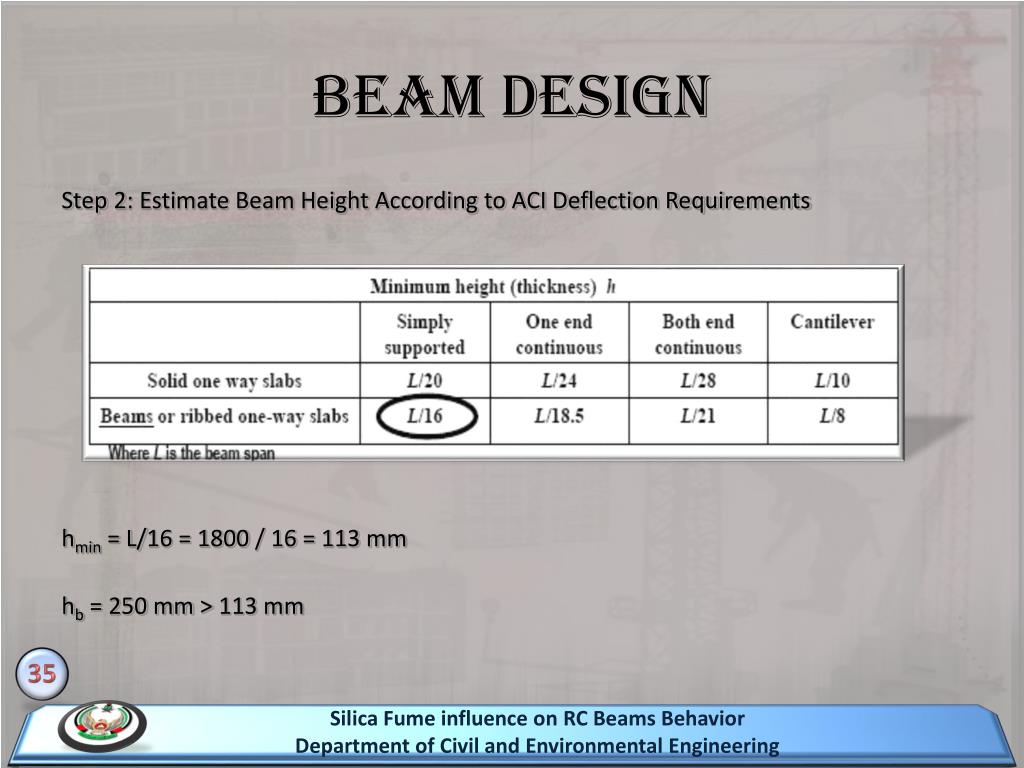

Step 2: Estimate Beam Height According to ACI Deflection Requirements

hmin = L/16 = 1800 / 16 = 113 mm

hb = 250 mm > 113 mm

35

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design36
Beam Design

Step 3: Assume bar size No. 10

For bar size No. 10, db = 9.5 mm

36

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design37
Beam Design

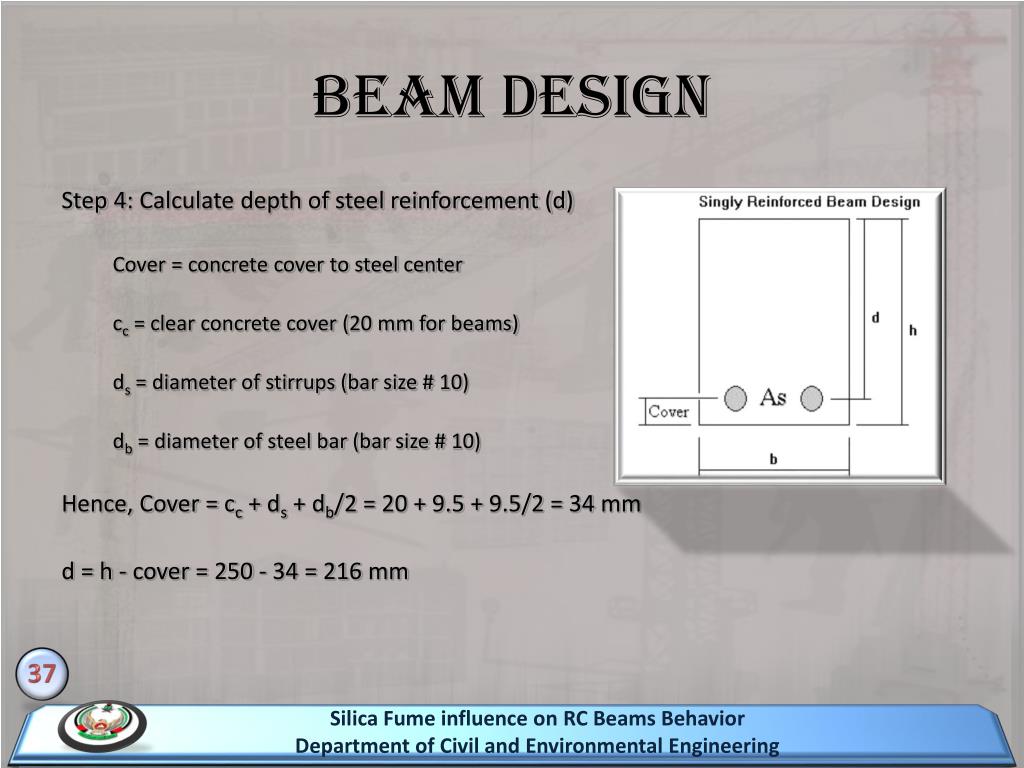

Step 4: Calculate depth of steel reinforcement (d)

Cover = concrete cover to steel center

cc = clear concrete cover (20 mm for beams)

ds = diameter of stirrups (bar size # 10)

db = diameter of steel bar (bar size # 10)

Hence, Cover = cc + ds + db/2 = 20 + 9.5 + 9.5/2 = 34 mm

d = h - cover = 250 - 34 = 216 mm

37

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design38
Beam Design

Step 5: Assume grade of a steel reinforcing bar & area of steel reinforcement As

Grade 420 (i.e. fy = 420 MPa) is the most commonly used steel

Use 2 bars No. 10 (As = 142 mm2)

Step 6: Compute steel ratio (ρ)

ρ = 142 / (100 * 216) = 0.00658

38

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design39
Beam Design

Step 7: Ensure safety requirements (ρ) min ≤ ρ ≤ (ρ) max

39

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide40

40

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam design41
Beam Design

Step 7: Ensure safety requirements (ρ) min ≤ ρ ≤ (ρ) max

For fc' = 61.33 MPa 0.00466 ≤ ρ ≤ 0.03559

For fc' = 78.7 MPa 0.00528 ≤ ρ ≤ 0.04567

For fc' = 85.17 MPa 0.00549 ≤ ρ ≤ 0.04943

For fc' = 90 MPa 0.00565 ≤ ρ ≤ 0.05223

41

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

experiment42

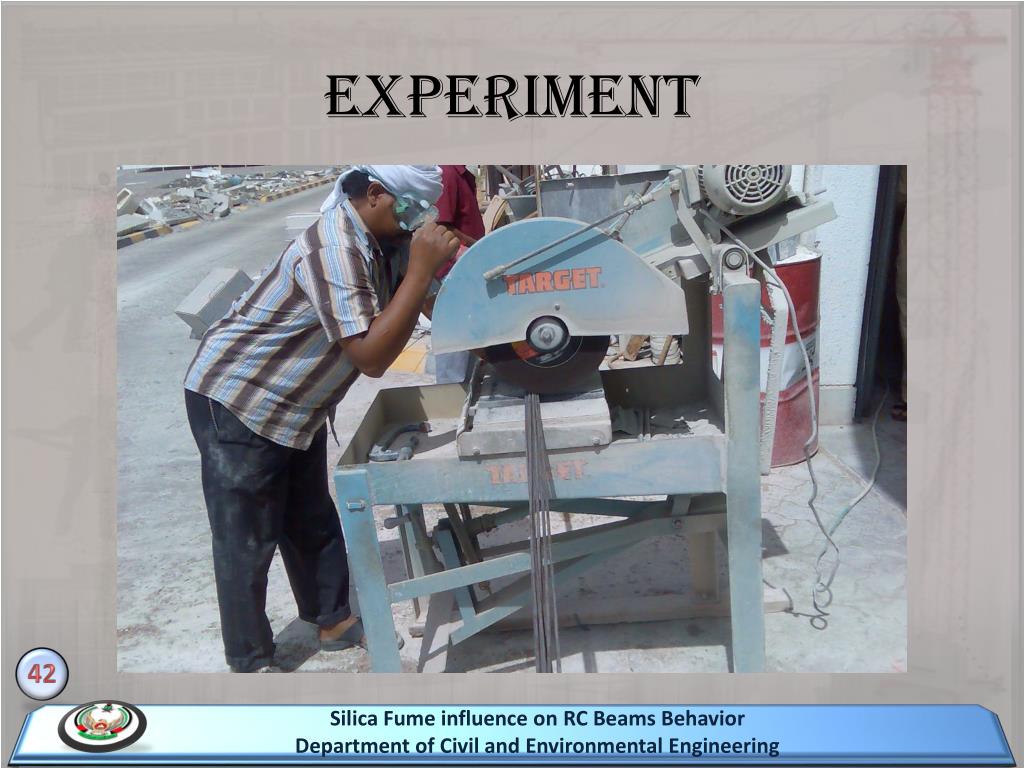

Experiment

42

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

strain gauges

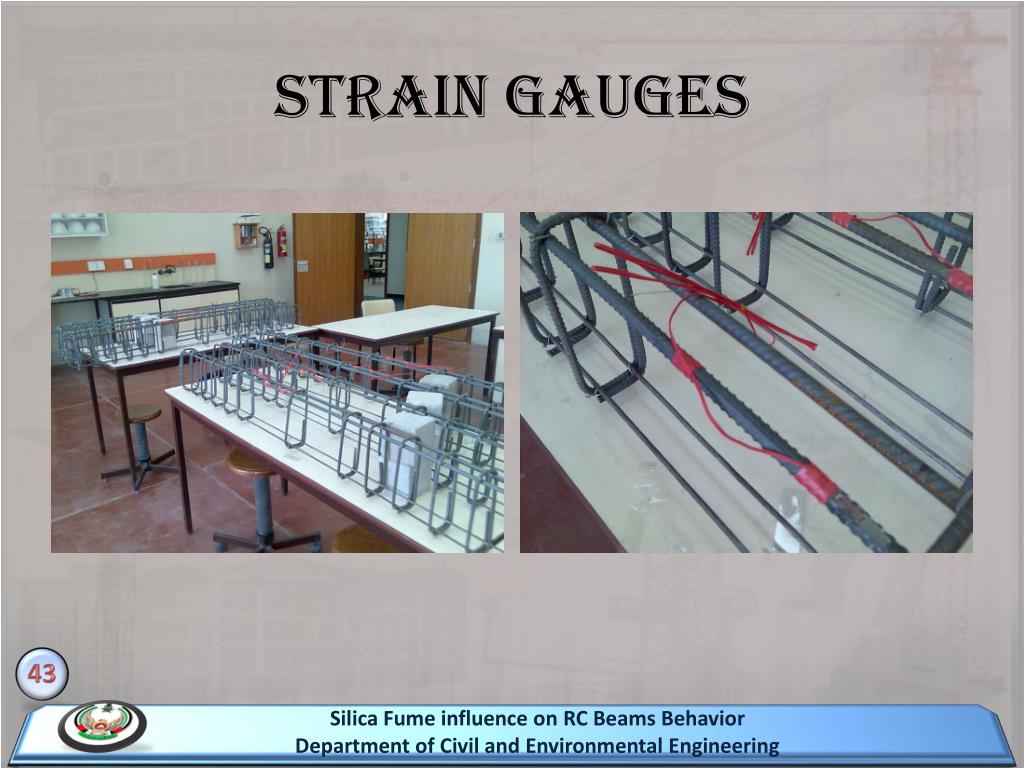

Strain Gauges

43

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

pouring the concrete

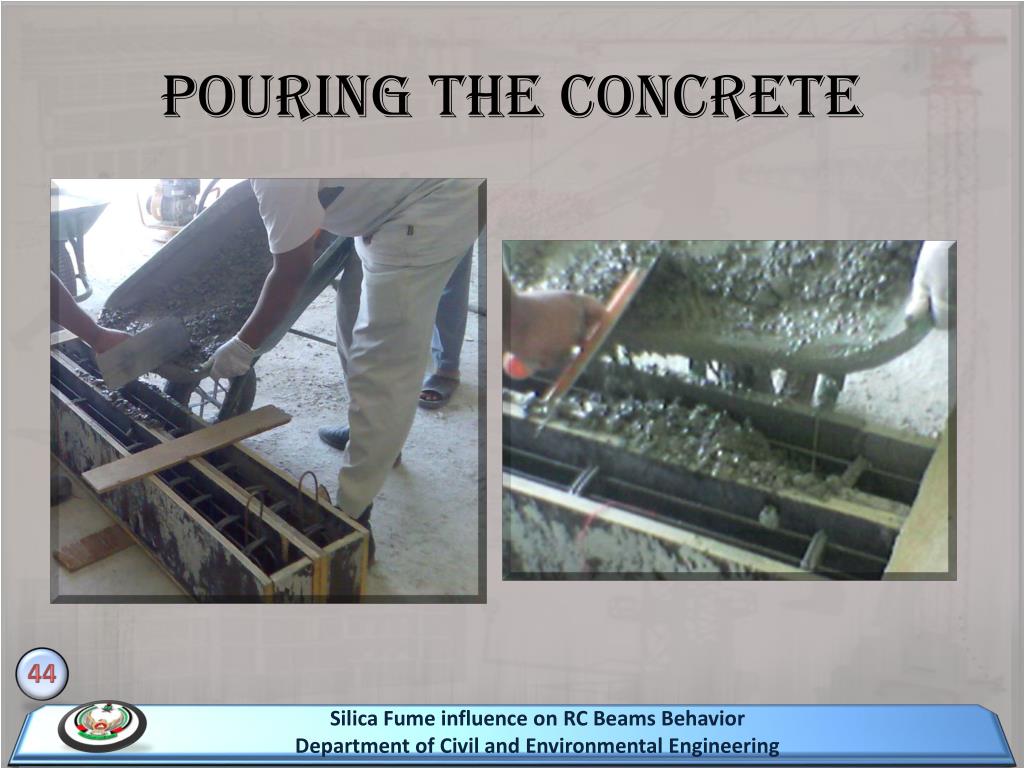

Pouring the Concrete

44

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

the smooth concrete surface
The Smooth Concrete Surface

45

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

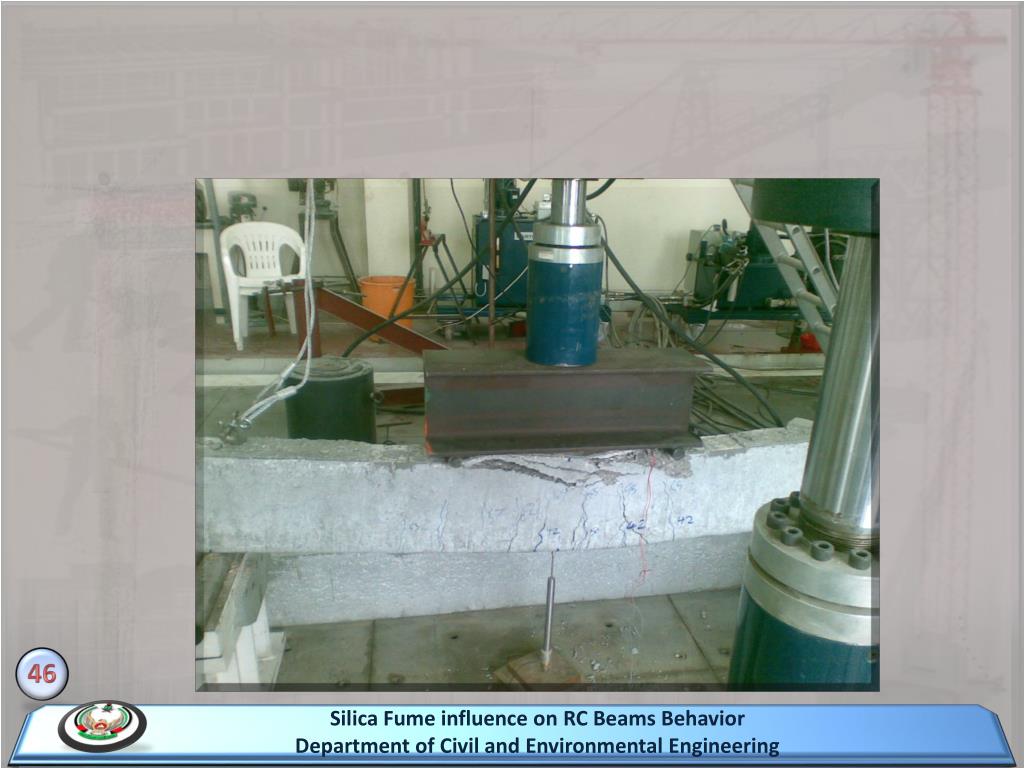

slide46

46

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

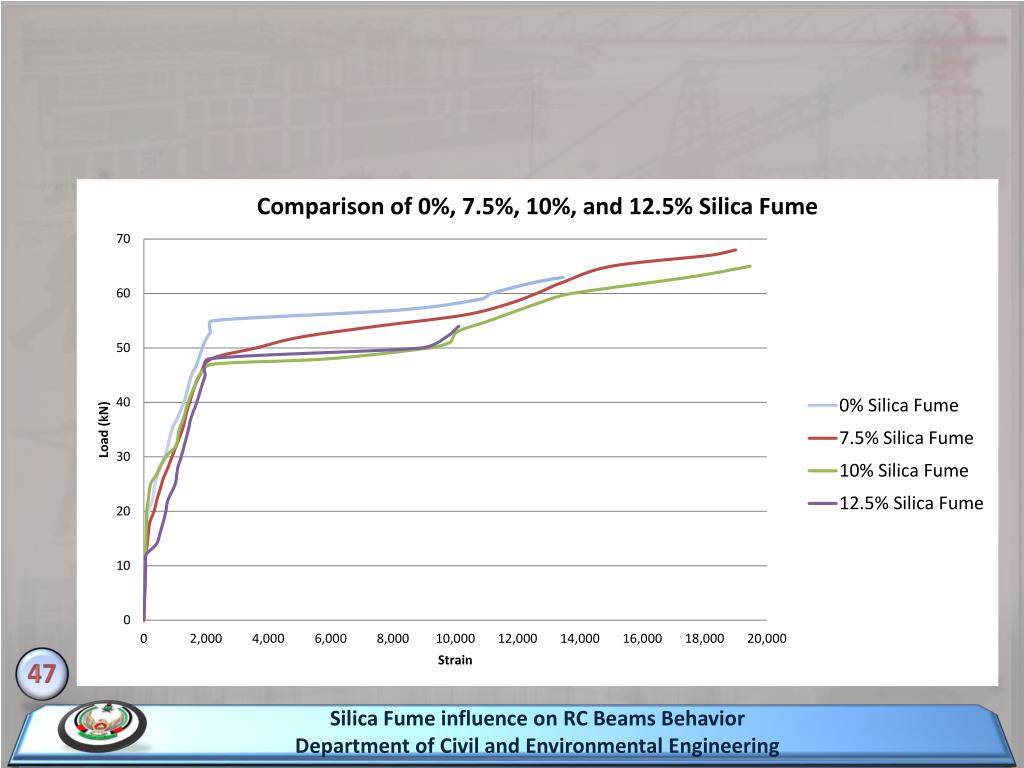

slide47

47

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

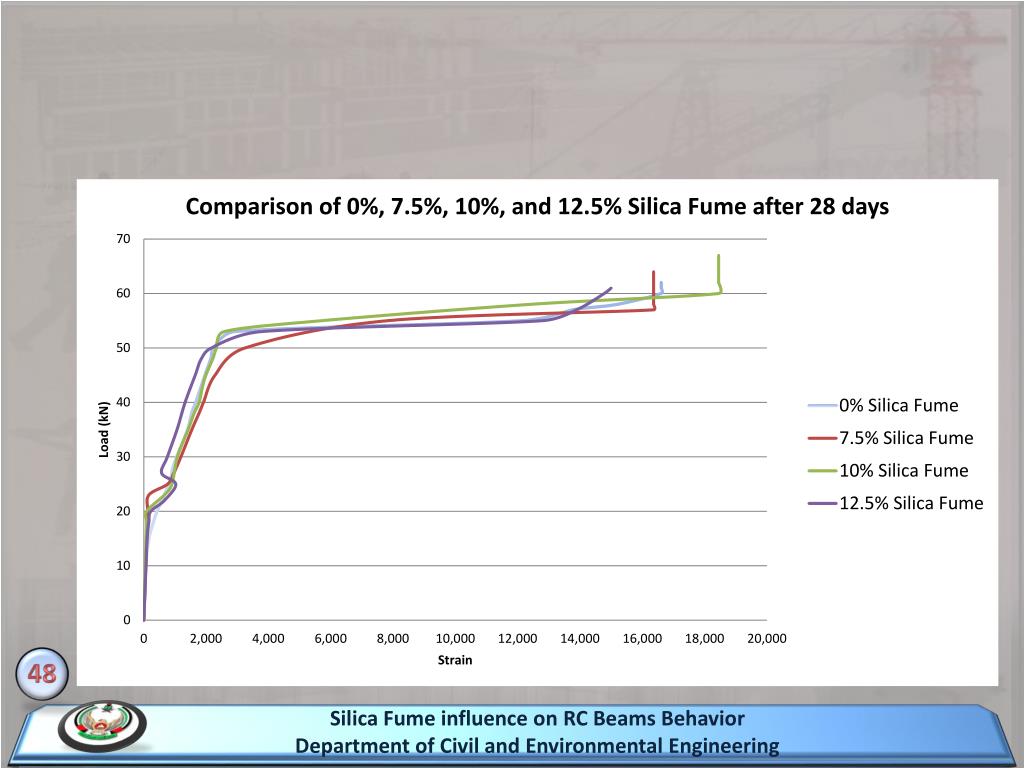

slide48

48

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

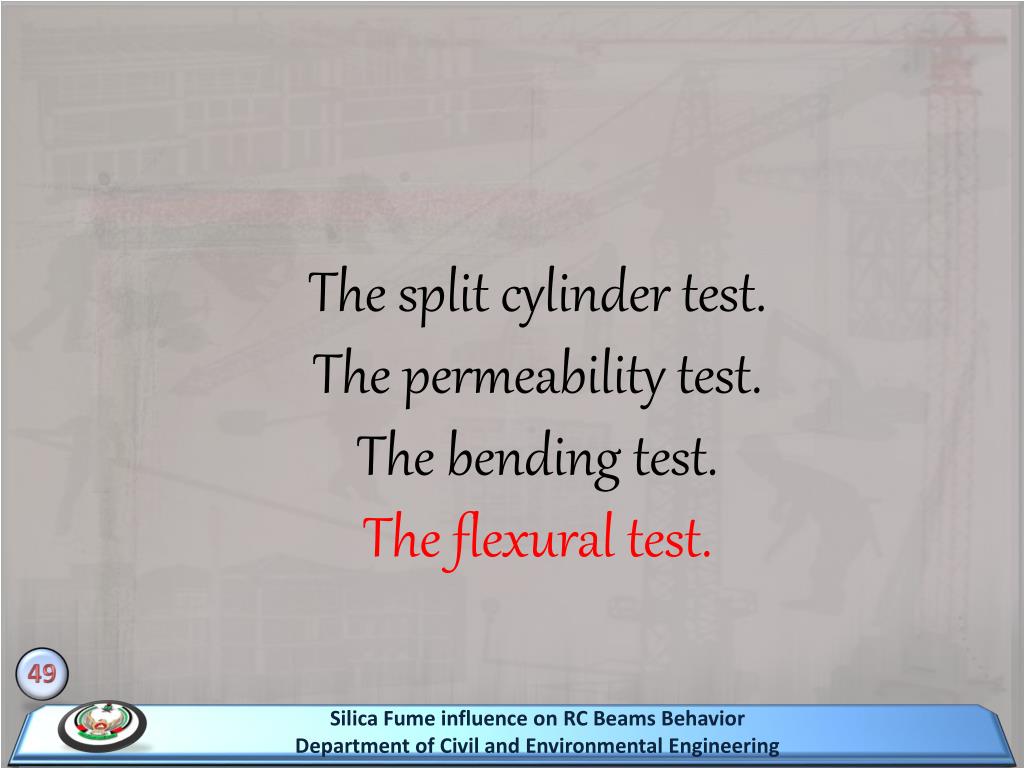

slide49

The split cylinder test.

  • The permeability test.
  • The bending test.
  • The flexural test.

49

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

what is flexural strength
What is Flexural Strength ?
  • One measure of the tensile strength.
  • Measure of an unreinforced concrete.
  • Loading beams with tow concentrated load.

50

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

beam details
Beam Details

51

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

flexural strength experimentally
Flexural Strength Experimentally

52

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

flexural strength theoretically
Flexural Strength Theoretically

fcu = 1.25 fc’

fc’ = 0.8 fcu

fr = 0.7 √ (0.8 fcu)

53

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

theoretical load
Theoretical Load

54

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide55

55

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

our trial mix data
Our Trial Mix Data

Water content for 7 beams = 200 x V

Cement content for 7 beams = 606 x V

Coarse Aggregate for 7 beams = 912 x V

Grade 10_14 = 30%

Grade 5_10 = 70%

Fine Aggregatefor 7 beams = 597 x V

Dune sand = 20%

Black sand = 80 %

56

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

our trial mix data57
Our Trial Mix Data

57

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

experiment steps
Experiment steps

Preparing

Weighting

Mixing

58

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

58

experiment steps59
Experiment steps

Mixing

Prism Preparing

Concrete casting

59

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

59

after 2 days
After 2 days

60

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

60

concrete compression machine
Concrete Compression Machine
  • Consist of:
  • Two supporting rollers
  • Two load-applying rollers
  • Steel with circular cross-section
  • Diameter of 20 mm to 40 mm
  • At least 10 mm longer

61

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

doing the experiment
Doing the Experiment

62

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

doing the experiment63
Doing the Experiment

63

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

doing the experiment64
Doing the Experiment

64

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

result
Result

65

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

result66
Result

66

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

result67
Result

67

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

result68
Result

68

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

comparison
Comparison

69

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

conclusion
Conclusion
  • All the tests results were very encouraging.
  • Adding the silica fume to any concrete mixture will enhance the properties of the concrete far beyond its initial properties.
  • Increasing the amount of silica fume will result in enhancing the concrete properties.

70

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

conclusion71
Conclusion
  • The silica fume is a very promising industry in the future.
  • For the next semester it is recommended for one of the GPI groups to investigate the influence of fly ash on concrete and compare it with our results.

71

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering

slide72

Thanks

for

listening

72

Silica Fume influence on RC Beams Behavior

Department of Civil and Environmental Engineering
