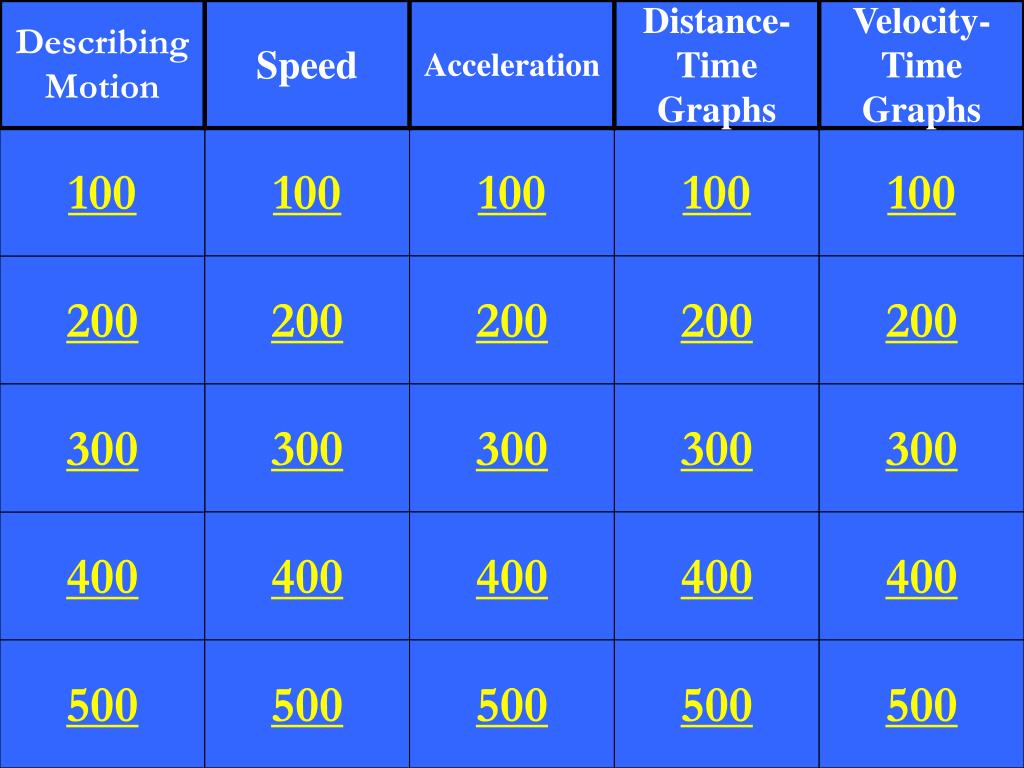

  1. Describing Motion Speed Acceleration Distance-Time Graphs Velocity-Time Graphs 100 100 100 100 100 200 200 200 200 200 300 300 300 300 300 400 400 400 400 400 500 500 500 500 500

  2. Motion is a change in — Time. Speed. Velocity. Position.

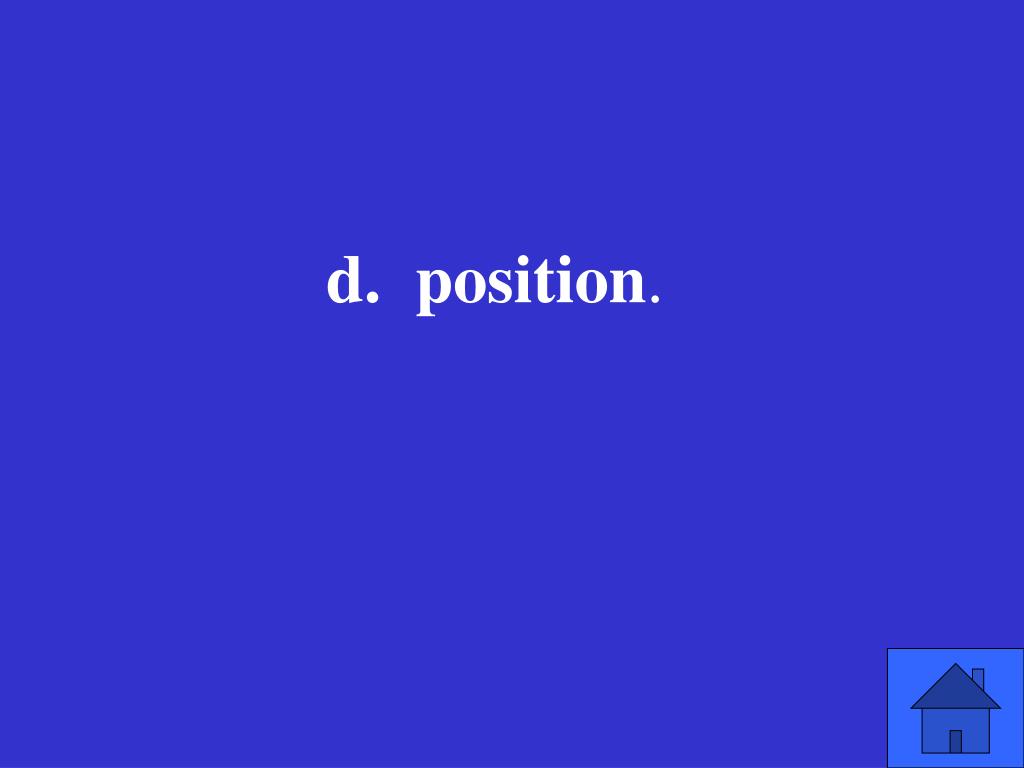

  3. d. position.

  4. One of these is NOT a unit of distance. Which one? • Mile • Inch • Meter • newton

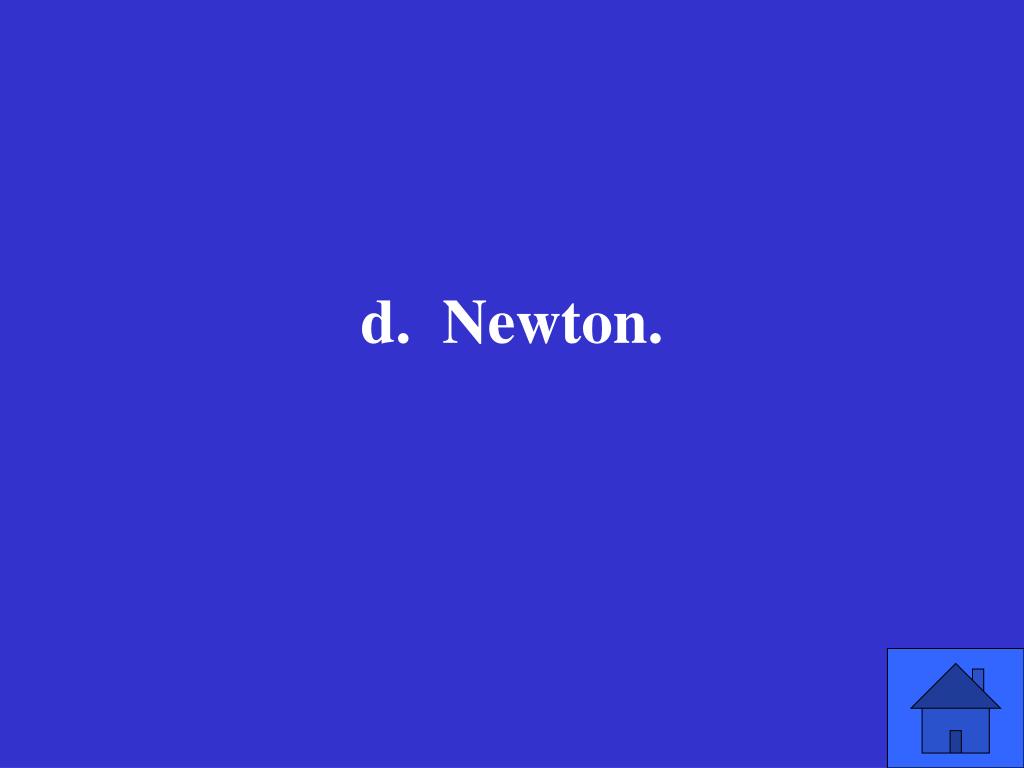

  5. d. Newton.

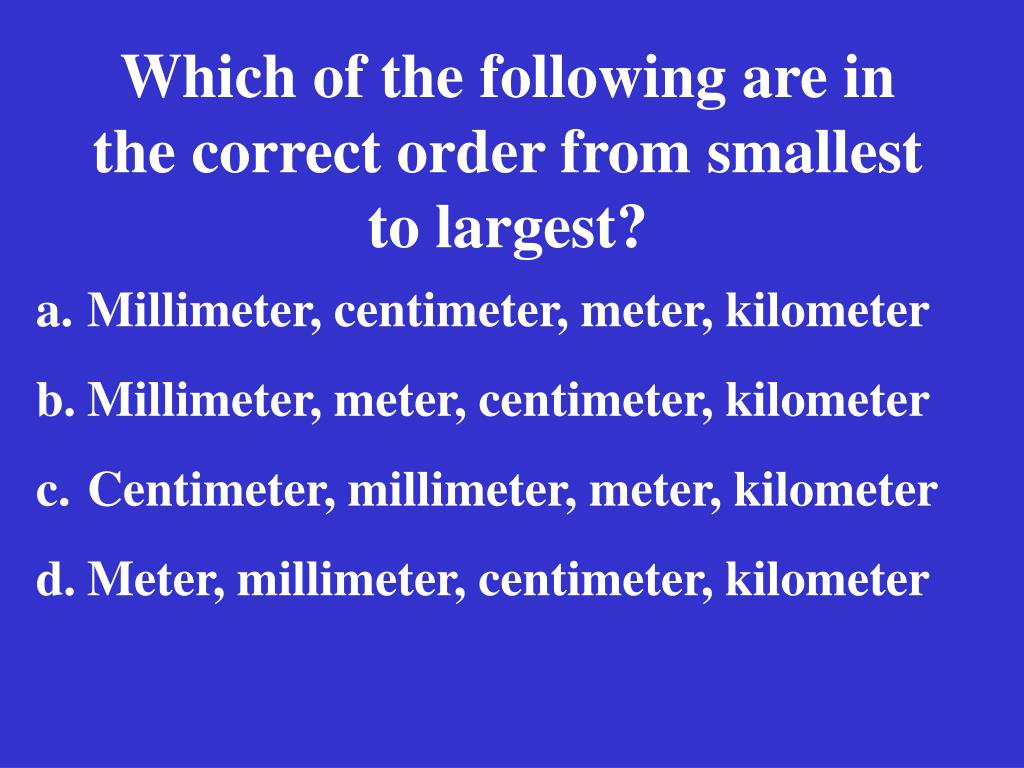

  6. Which of the following are in the correct order from smallest to largest? • Millimeter, centimeter, meter, kilometer • Millimeter, meter, centimeter, kilometer • Centimeter, millimeter, meter, kilometer • Meter, millimeter, centimeter, kilometer

  7. a. Millimeter, centimeter, meter, kilometer

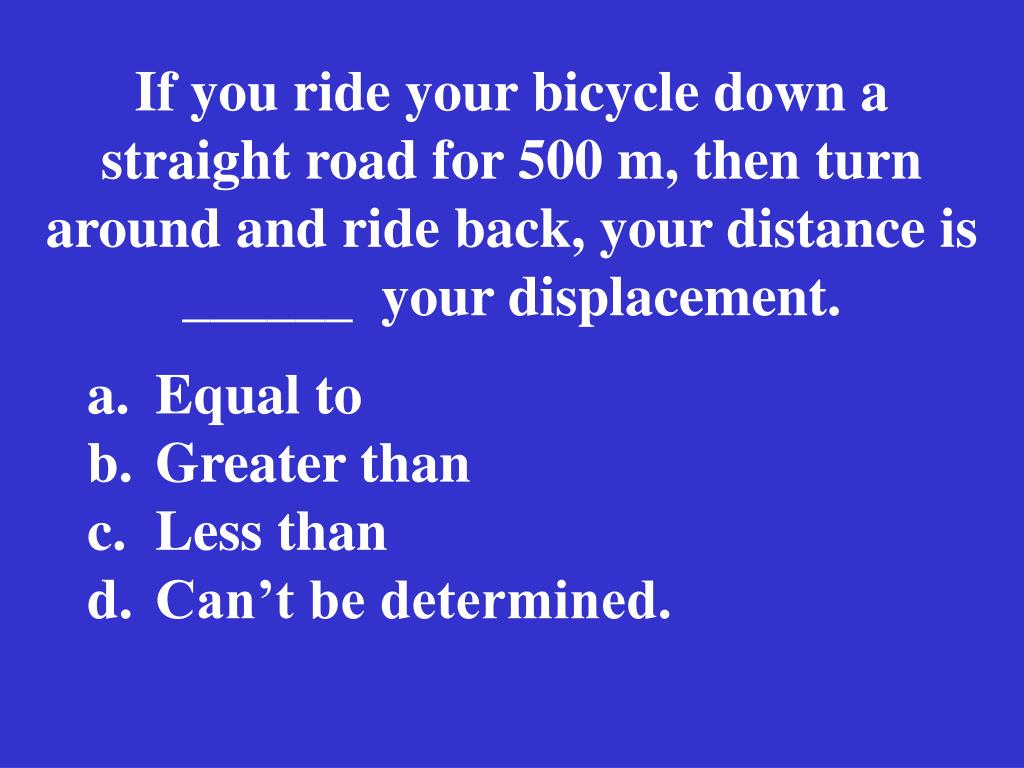

  8. If you ride your bicycle down a straight road for 500 m, then turn around and ride back, your distance is ______ your displacement. Equal to Greater than Less than Can’t be determined.

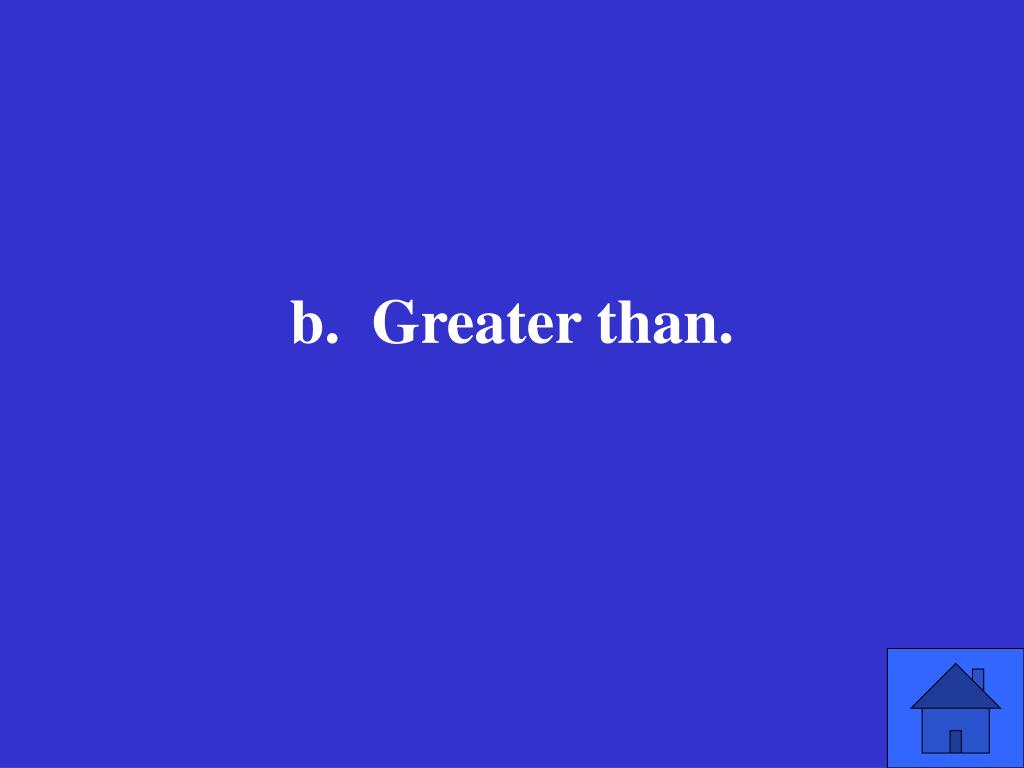

  9. b. Greater than.

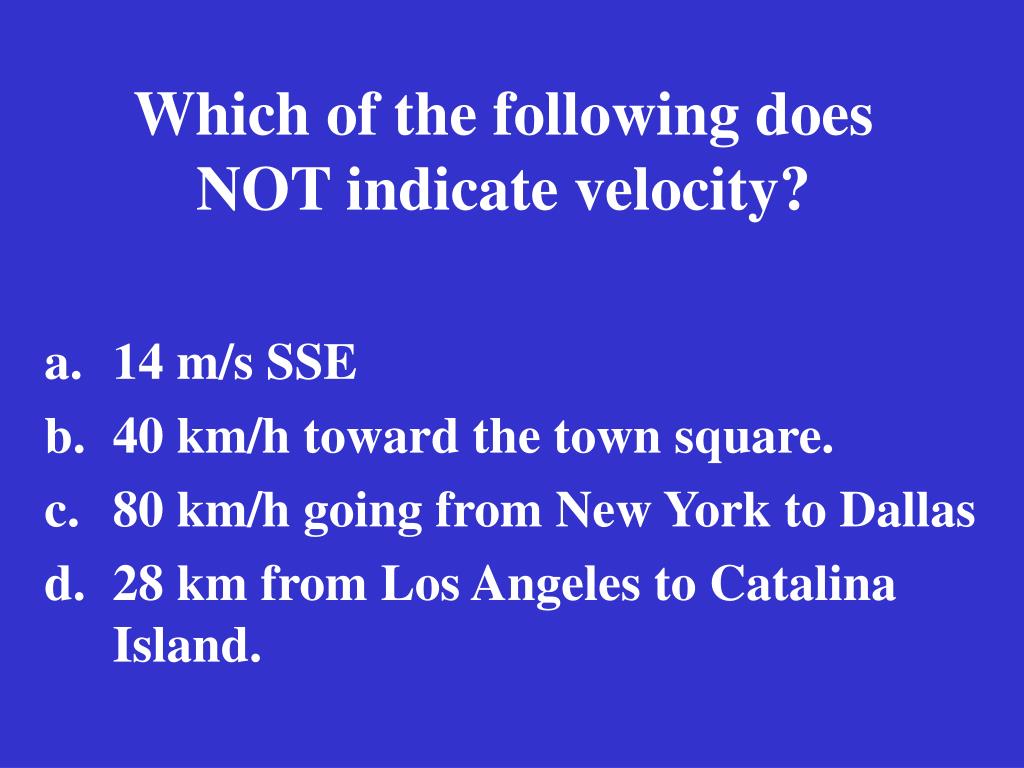

  10. Which of the following does NOT indicate velocity? 14 m/s SSE 40 km/h toward the town square. 80 km/h going from New York to Dallas 28 km from Los Angeles to Catalina Island.

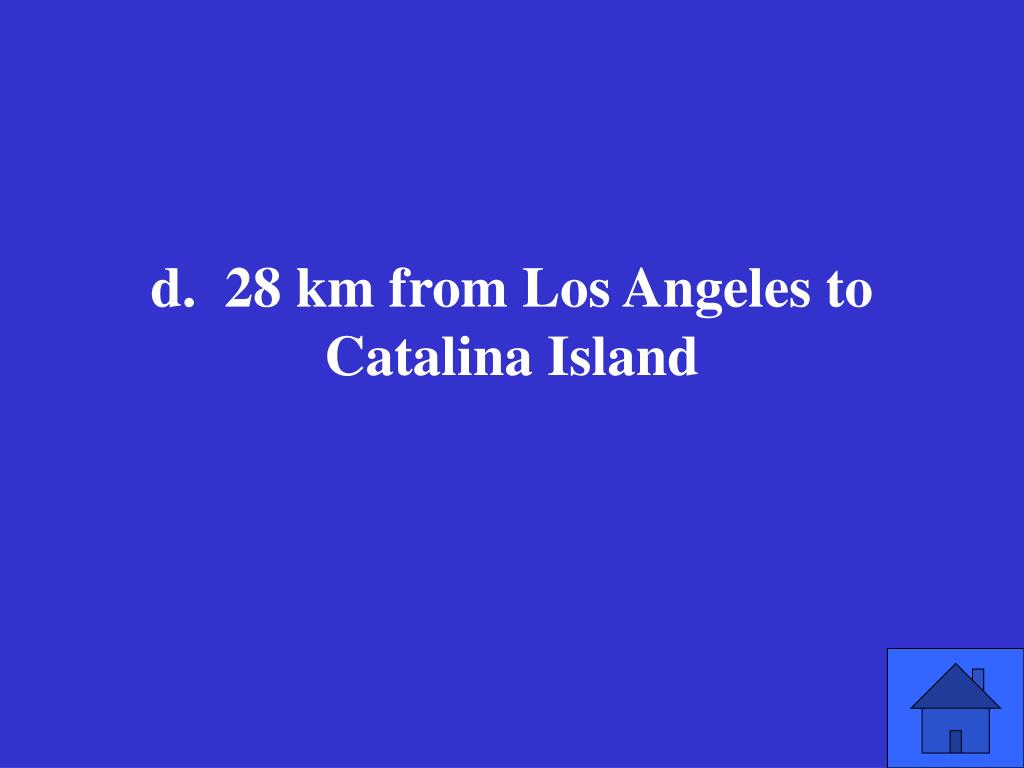

  11. d. 28 km from Los Angeles to Catalina Island

  12. The distance traveled by an object divided by the total time it takes to travel that distance is called — Average velocity. Average speed. Average acceleration. Activity.

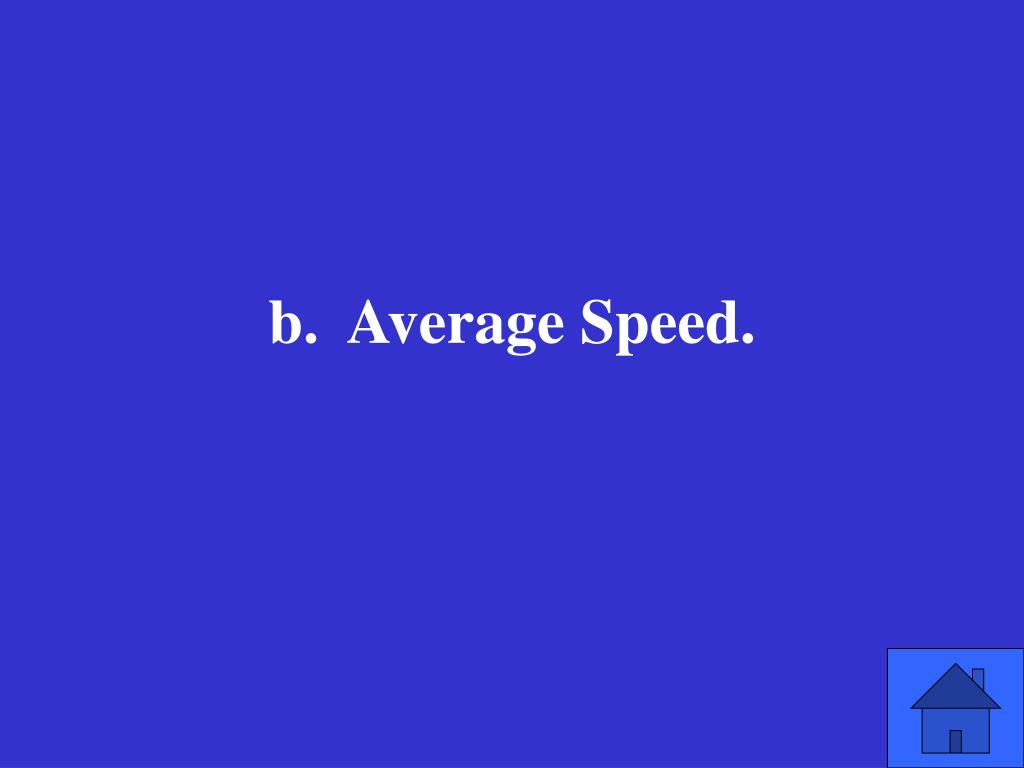

  13. b. Average Speed.

  14. In order to determine speed, you must know — Time. Distance. Both A and B. Neither A nor B.

  15. c. Both A and B.

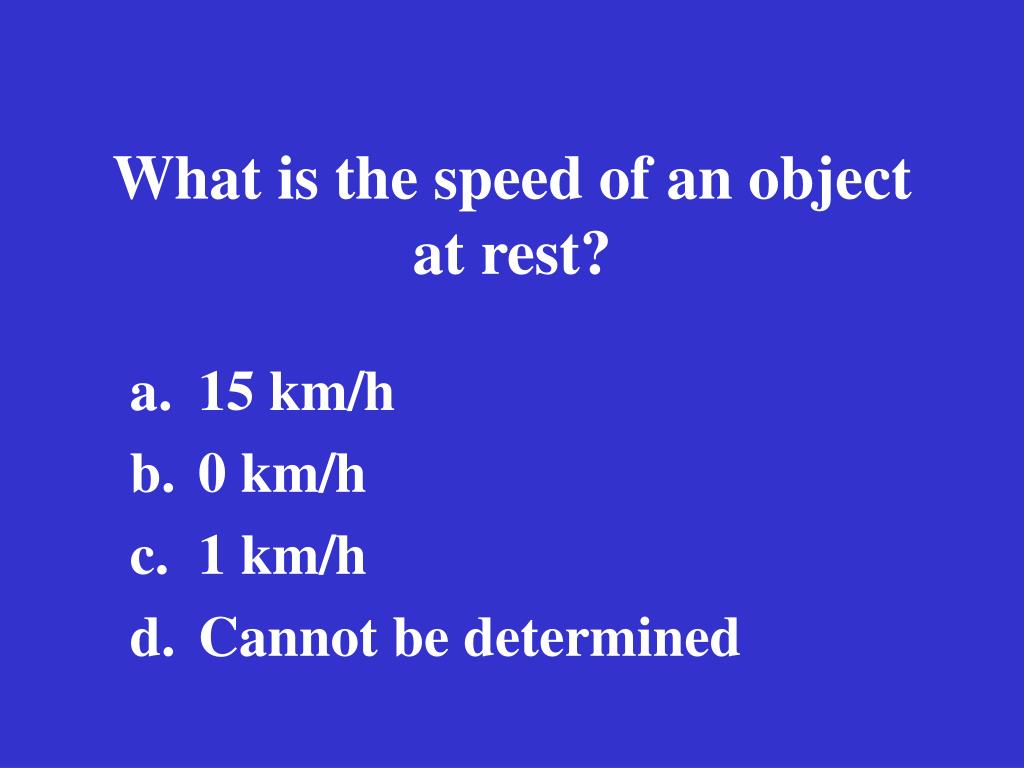

  16. What is the speed of an object at rest? 15 km/h 0 km/h 1 km/h Cannot be determined

  17. b. 0 km/h

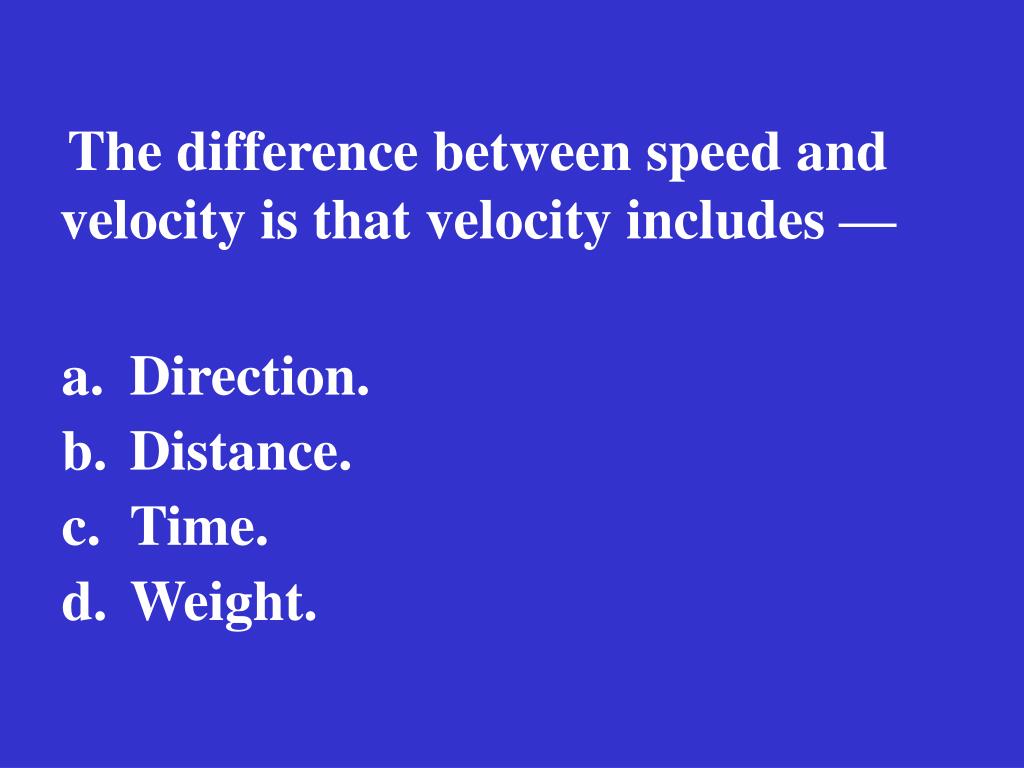

  18. The difference between speed and velocity is that velocity includes — Direction. Distance. Time. Weight.

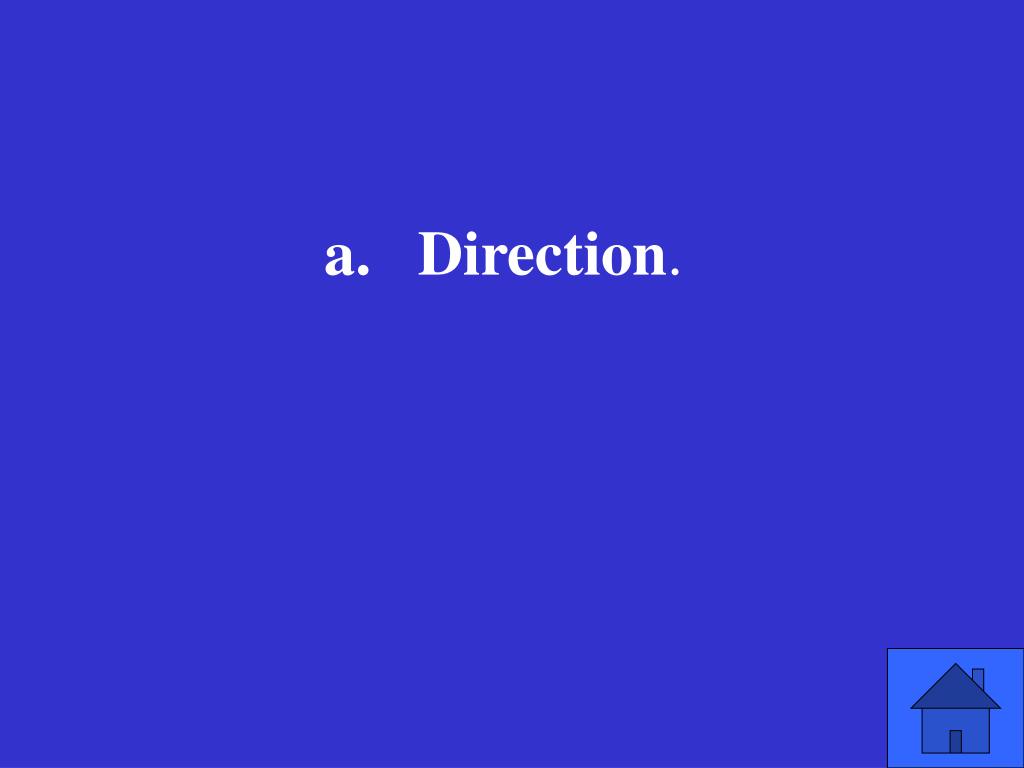

  19. Direction.

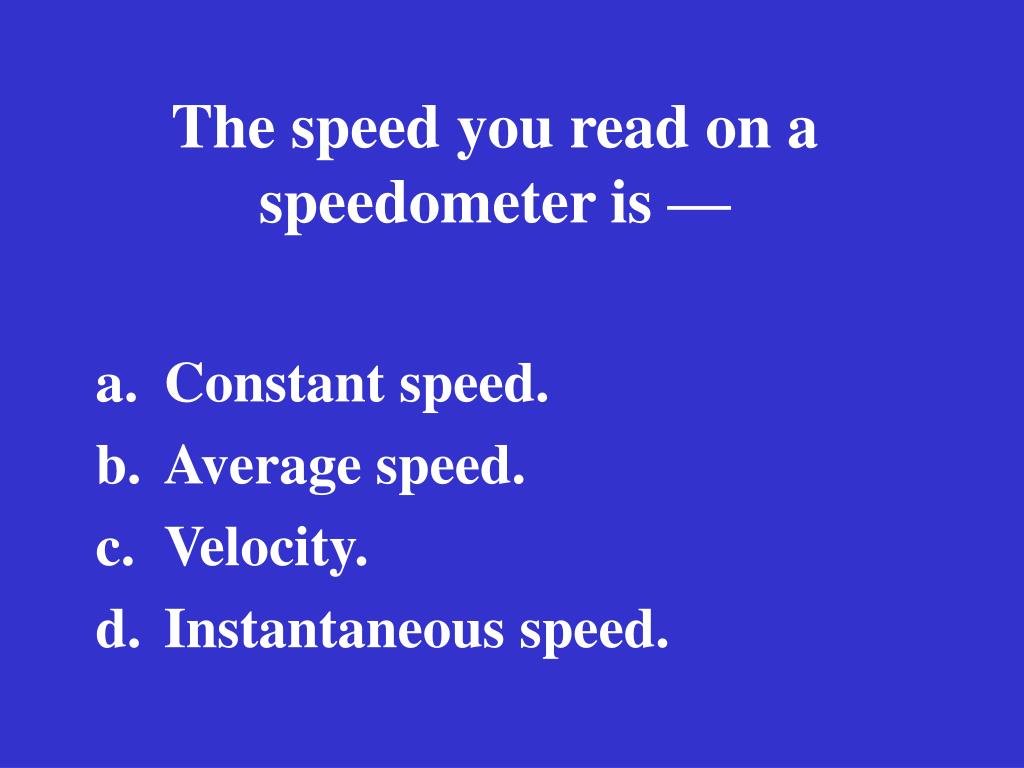

  20. The speed you read on a speedometer is — Constant speed. Average speed. Velocity. Instantaneous speed.

  21. d. Instantaneous speed.

  22. Acceleration is defined as the change in velocity divided by — • Speed. • Final velocity. • Time • Distance.

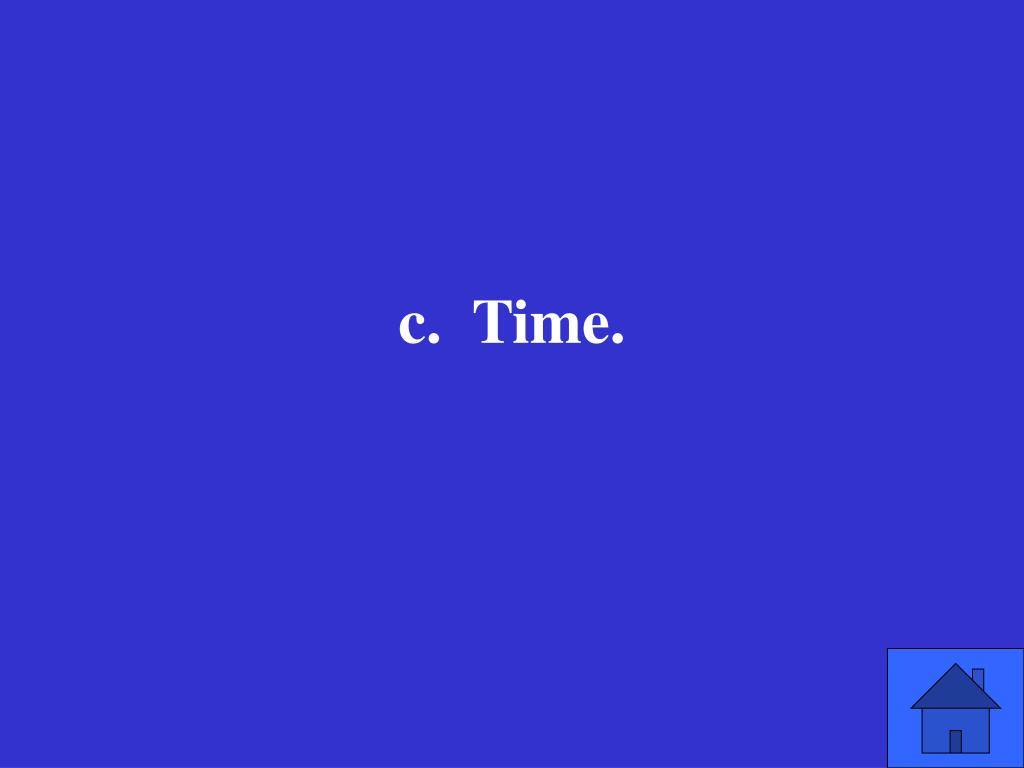

  23. c. Time.

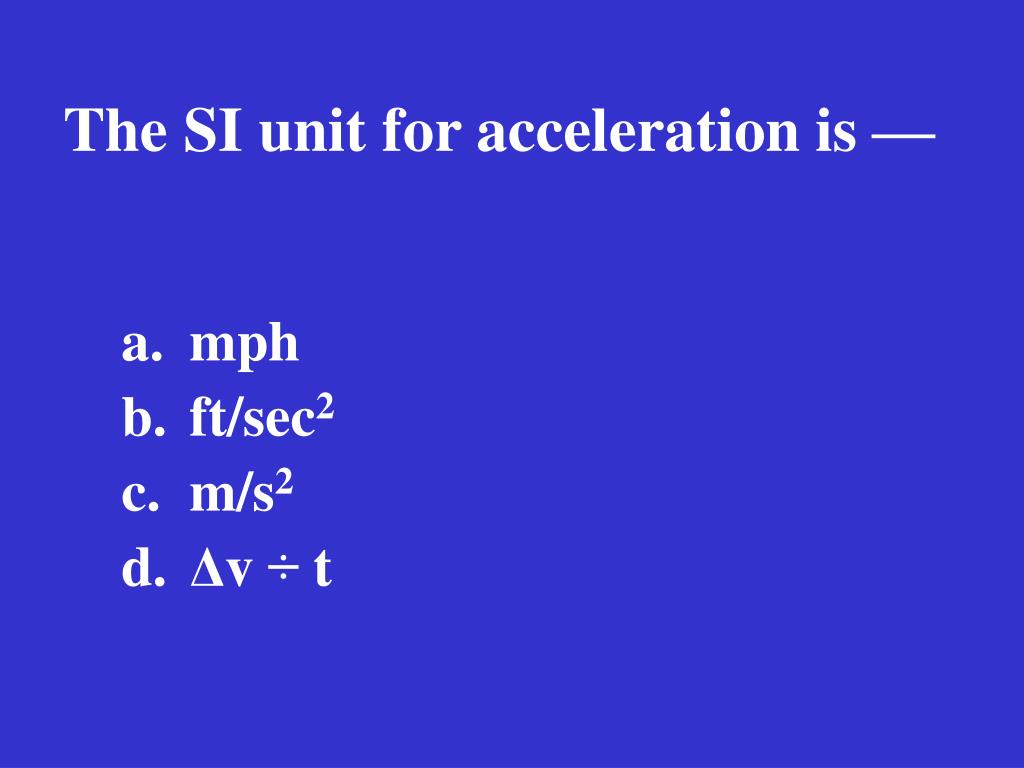

  24. The SI unit for acceleration is — mph ft/sec2 m/s2 Δv ÷ t

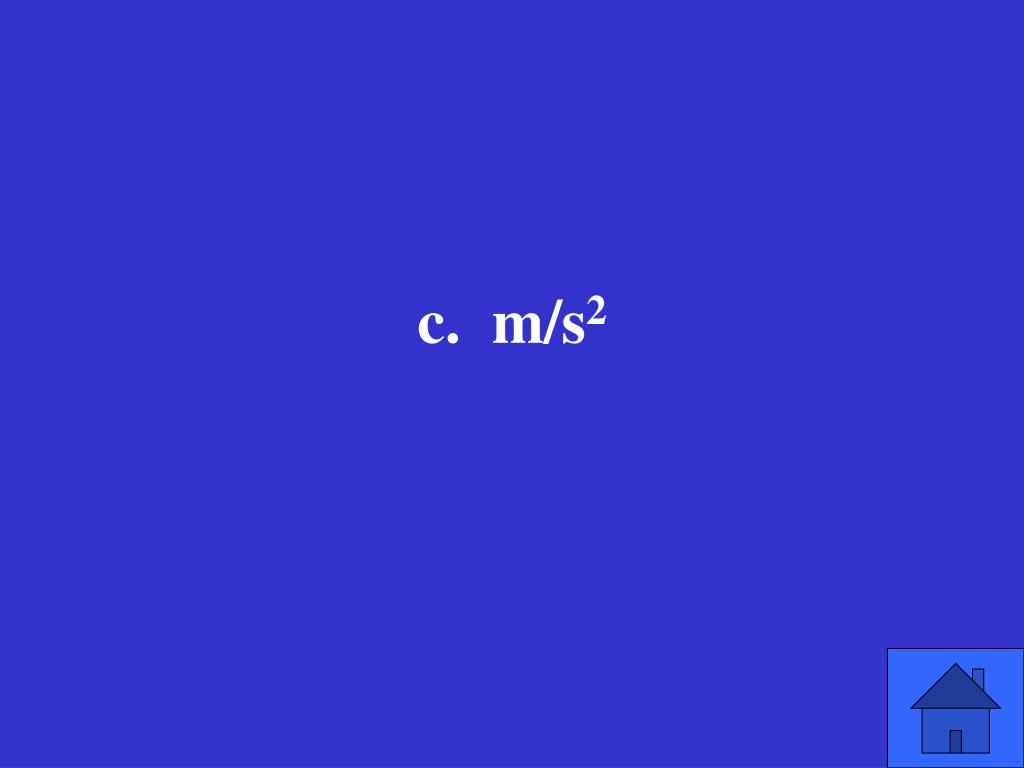

  25. c. m/s2

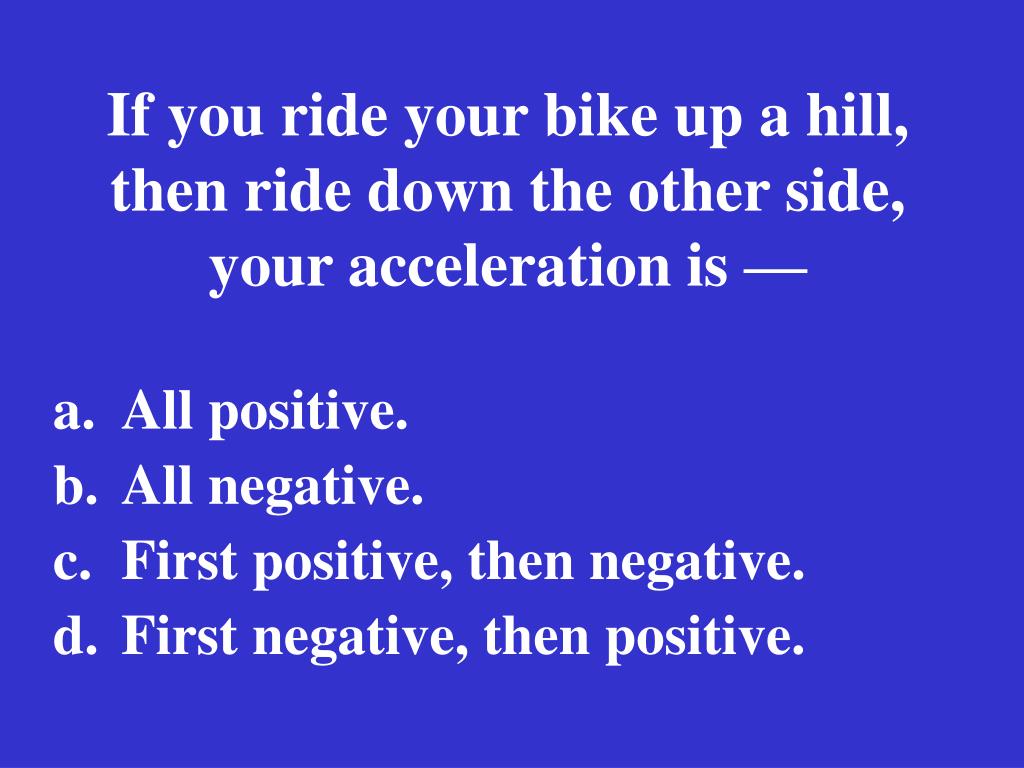

  26. If you ride your bike up a hill, then ride down the other side, your acceleration is — All positive. All negative. First positive, then negative. First negative, then positive.

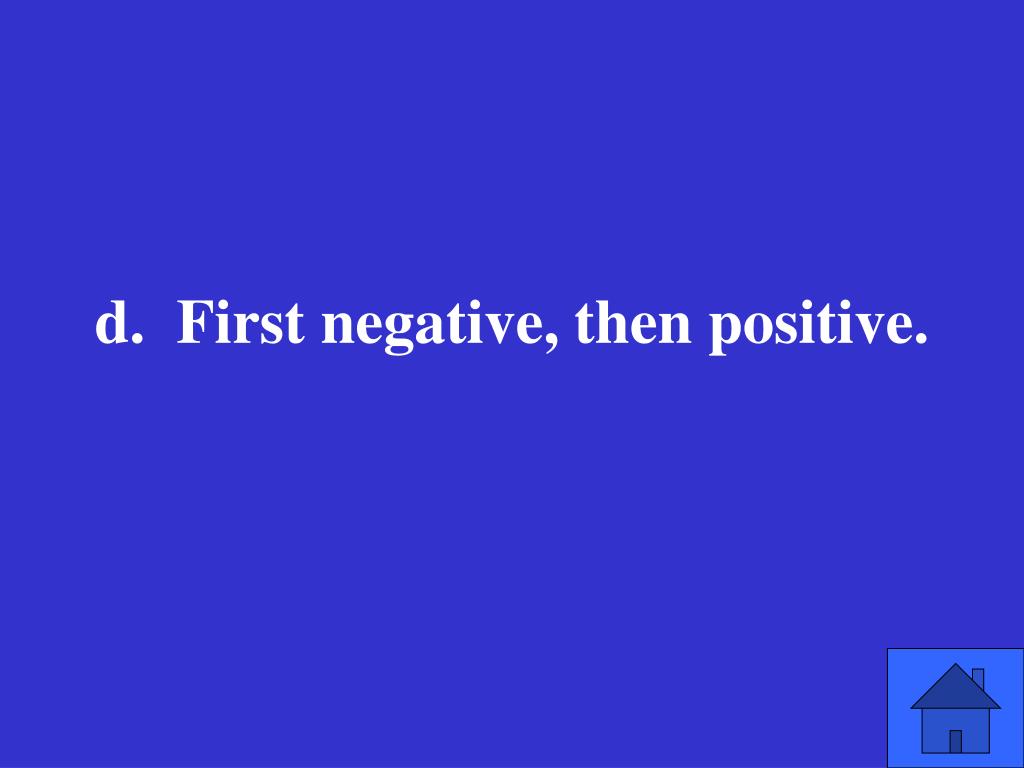

  27. d. First negative, then positive.

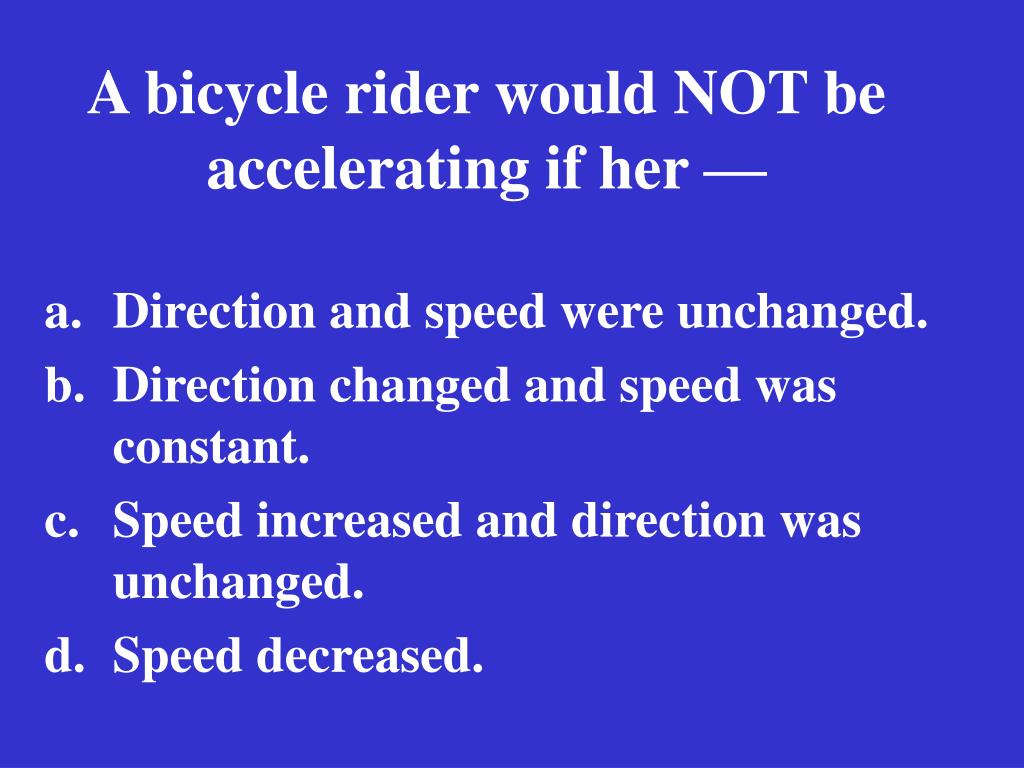

  28. A bicycle rider would NOT be accelerating if her — Direction and speed were unchanged. Direction changed and speed was constant. Speed increased and direction was unchanged. Speed decreased.

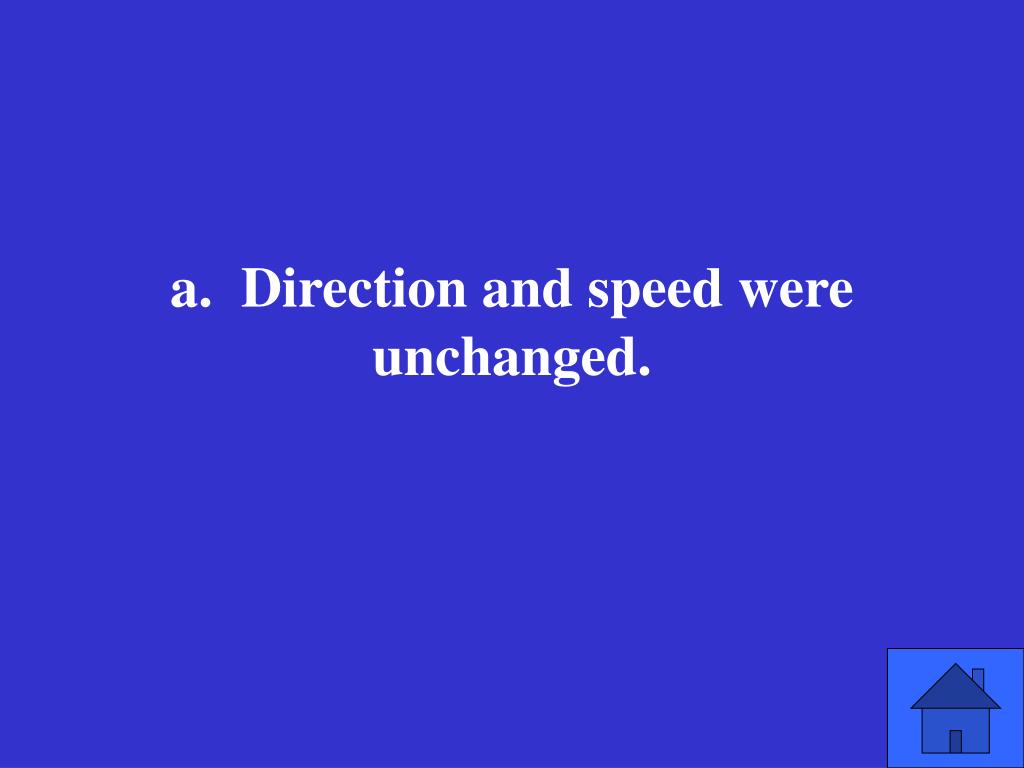

  29. a. Direction and speed were unchanged.

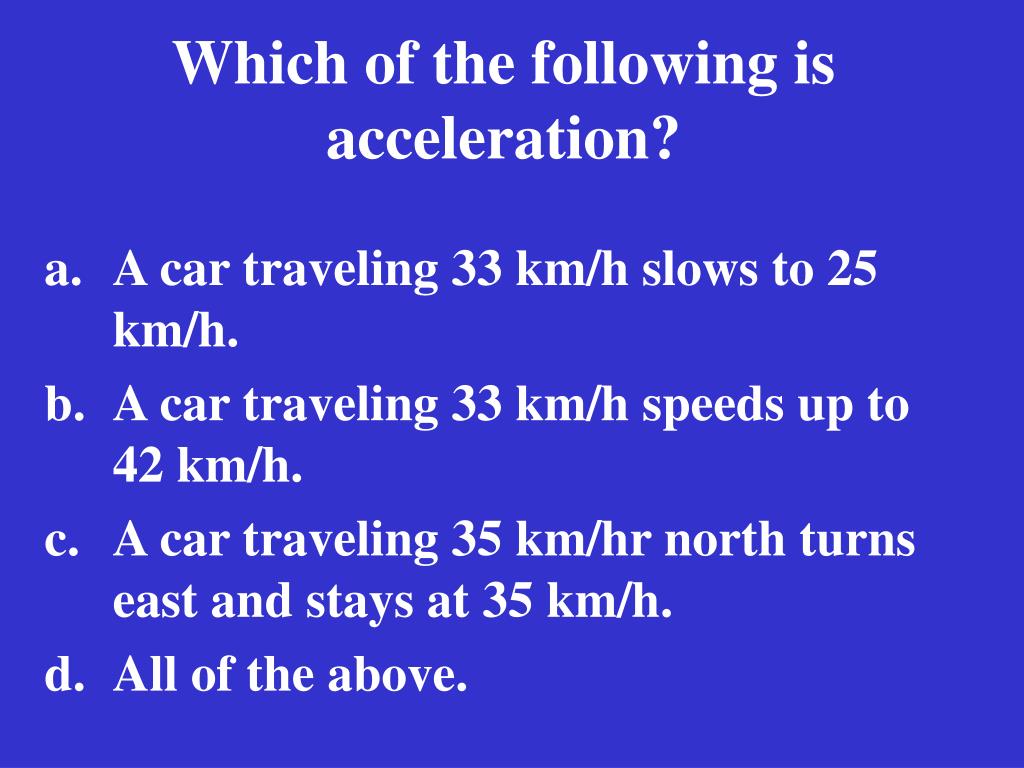

  30. Which of the following is acceleration? A car traveling 33 km/h slows to 25 km/h. A car traveling 33 km/h speeds up to 42 km/h. A car traveling 35 km/hr north turns east and stays at 35 km/h. All of the above.

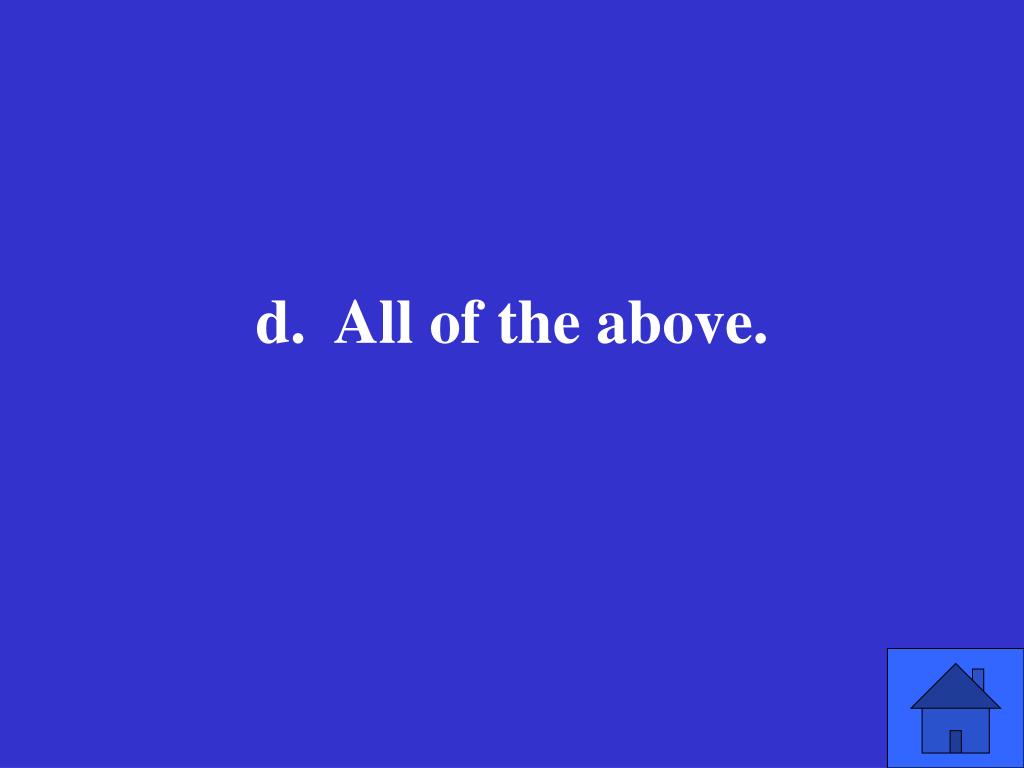

  31. d. All of the above.

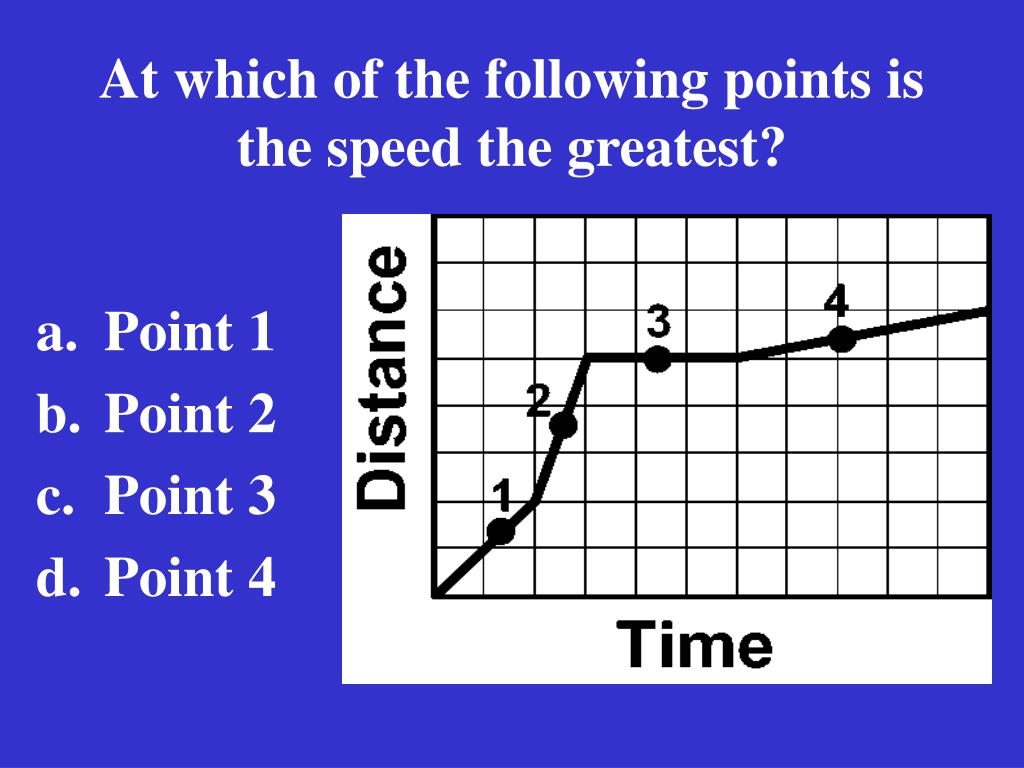

  32. At which of the following points is the speed the greatest? Point 1 Point 2 Point 3 Point 4

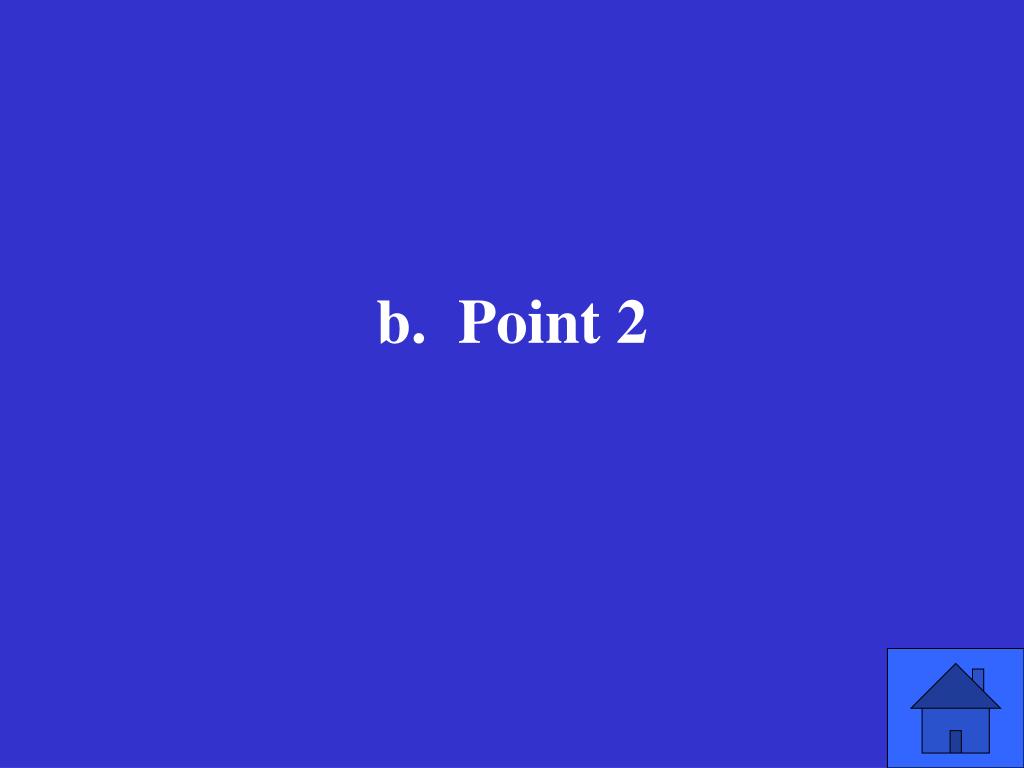

  33. b. Point 2

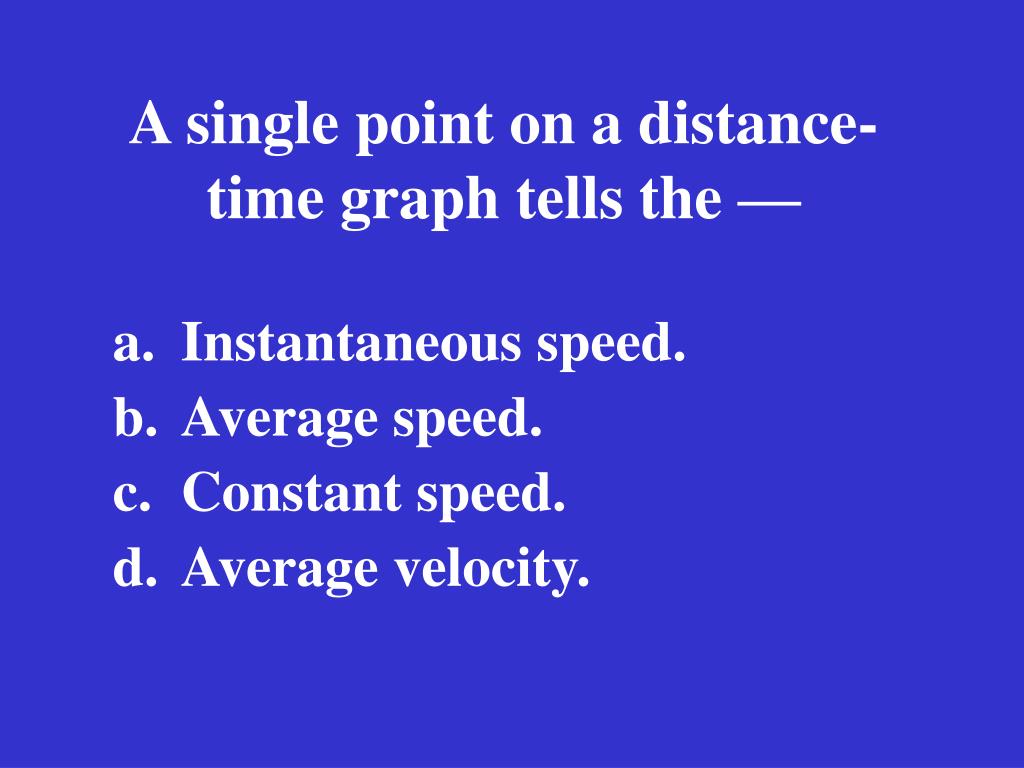

  34. A single point on a distance-time graph tells the — Instantaneous speed. Average speed. Constant speed. Average velocity.

  35. a. Instantaneous speed.

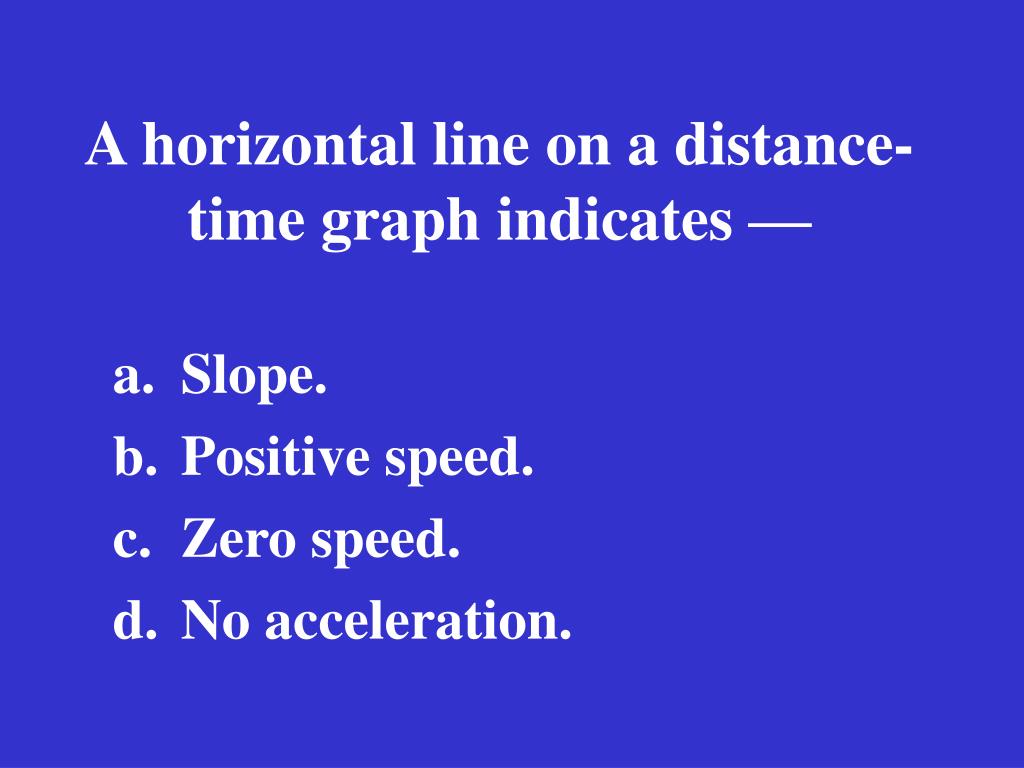

  36. A horizontal line on a distance-time graph indicates — Slope. Positive speed. Zero speed. No acceleration.

  37. c. Zero speed

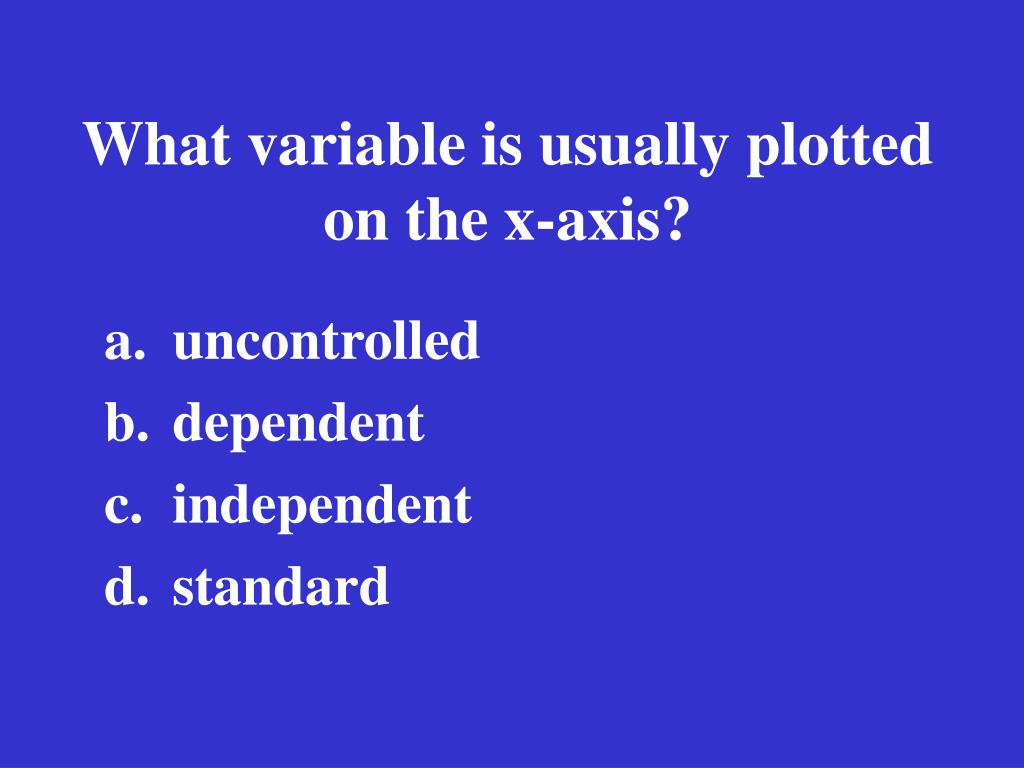

  38. What variable is usually plotted on the x-axis? uncontrolled dependent independent standard

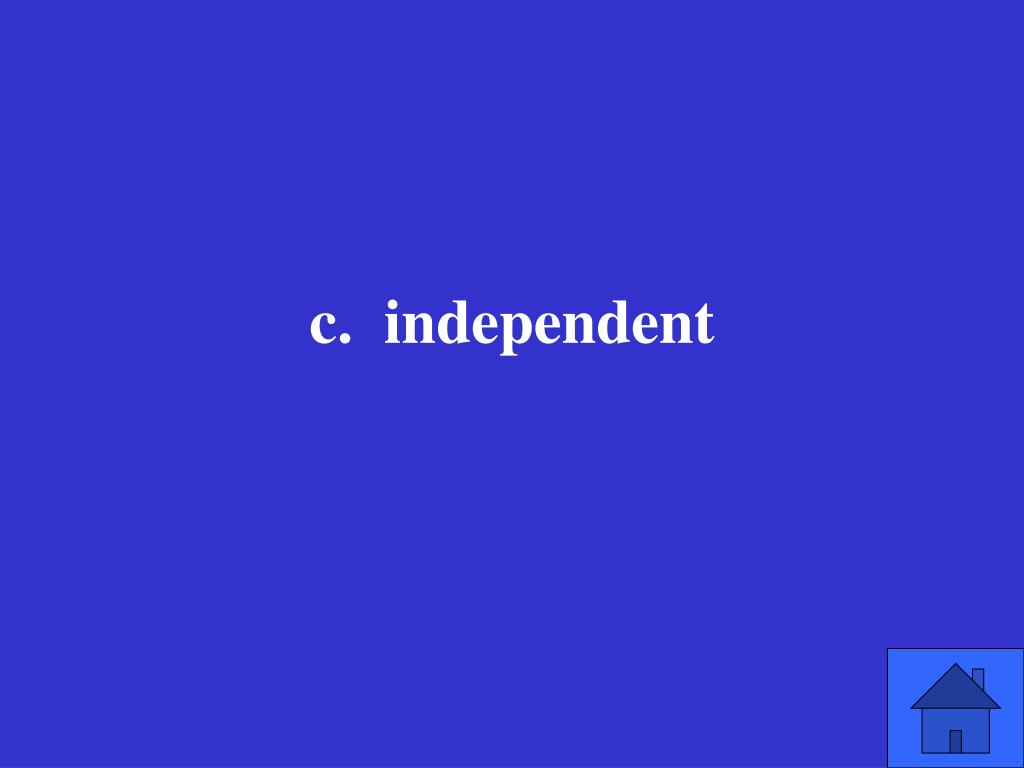

  39. c. independent

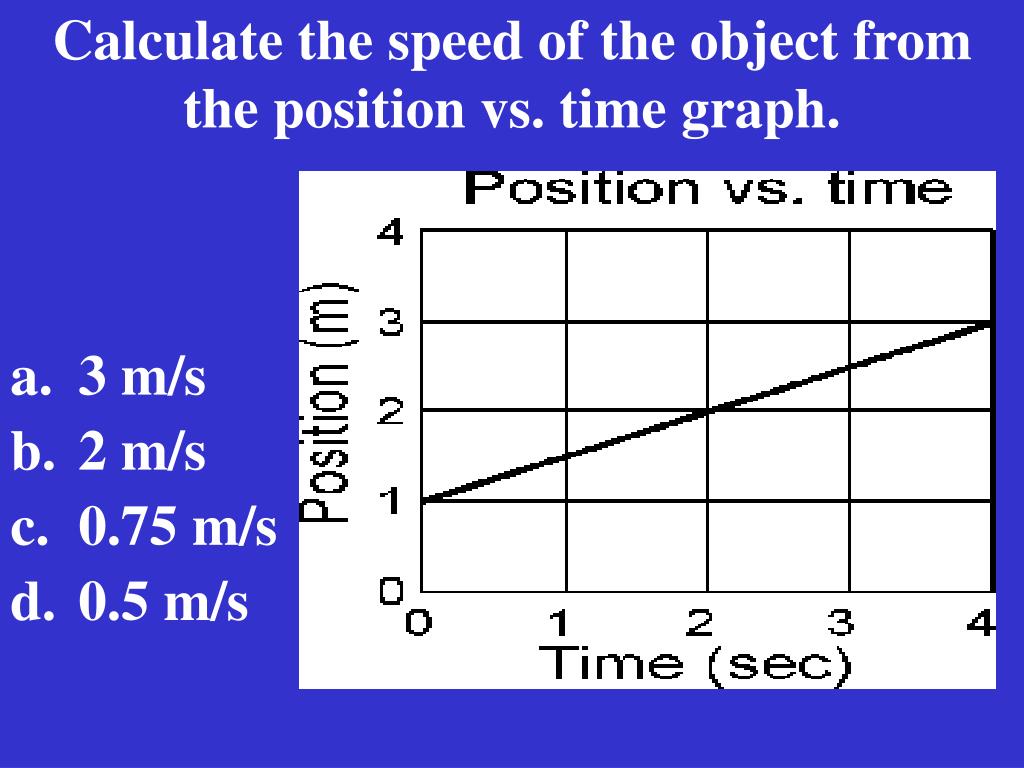

  40. Calculate the speed of the object from the position vs. time graph. 3 m/s 2 m/s 0.75 m/s 0.5 m/s

  41. d. 0.5 m/s

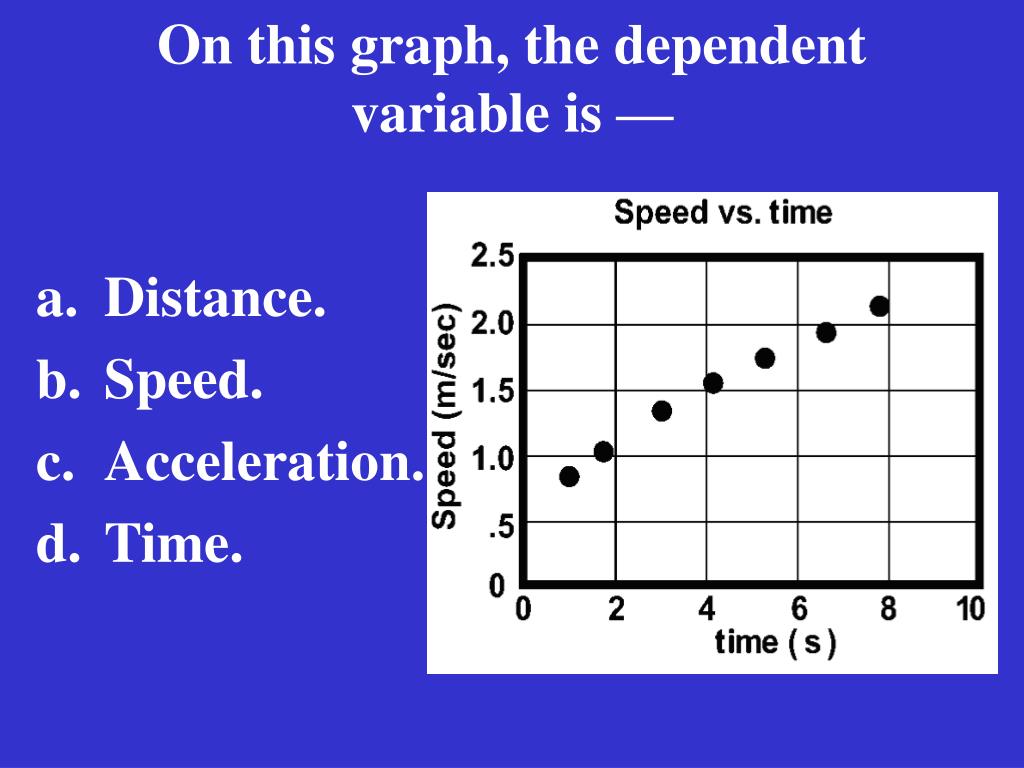

  42. On this graph, the dependent variable is — Distance. Speed. Acceleration. Time.

  43. b. Speed.

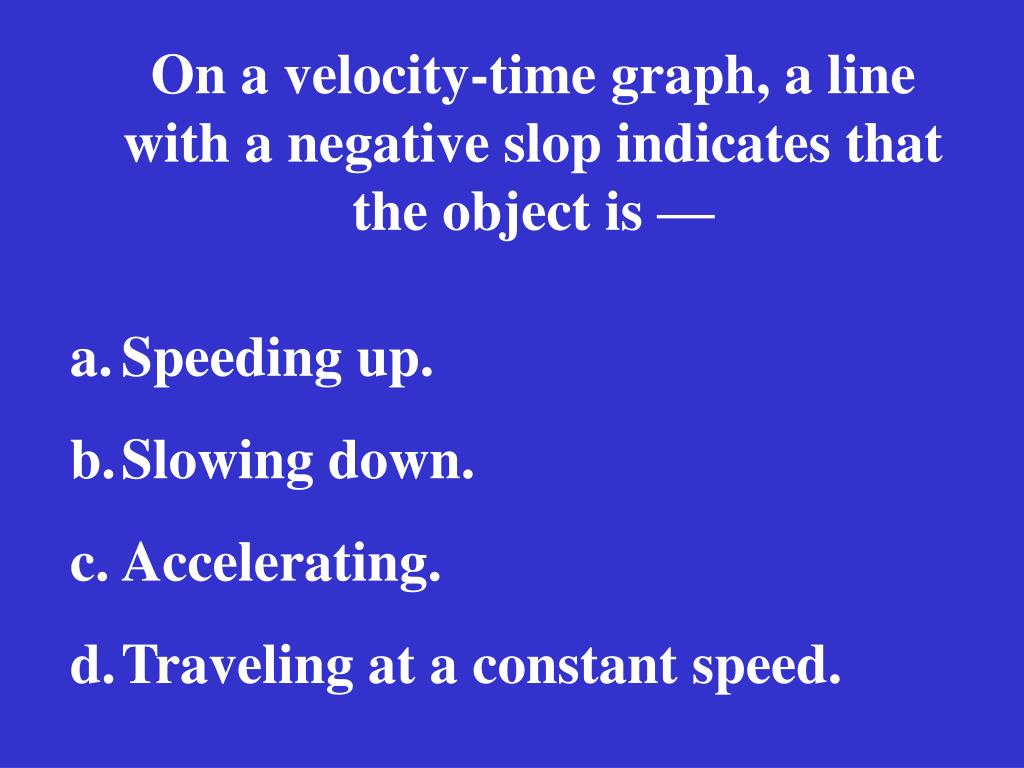

  44. On a velocity-time graph, a line with a negative slop indicates that the object is — • Speeding up. • Slowing down. • Accelerating. • Traveling at a constant speed.

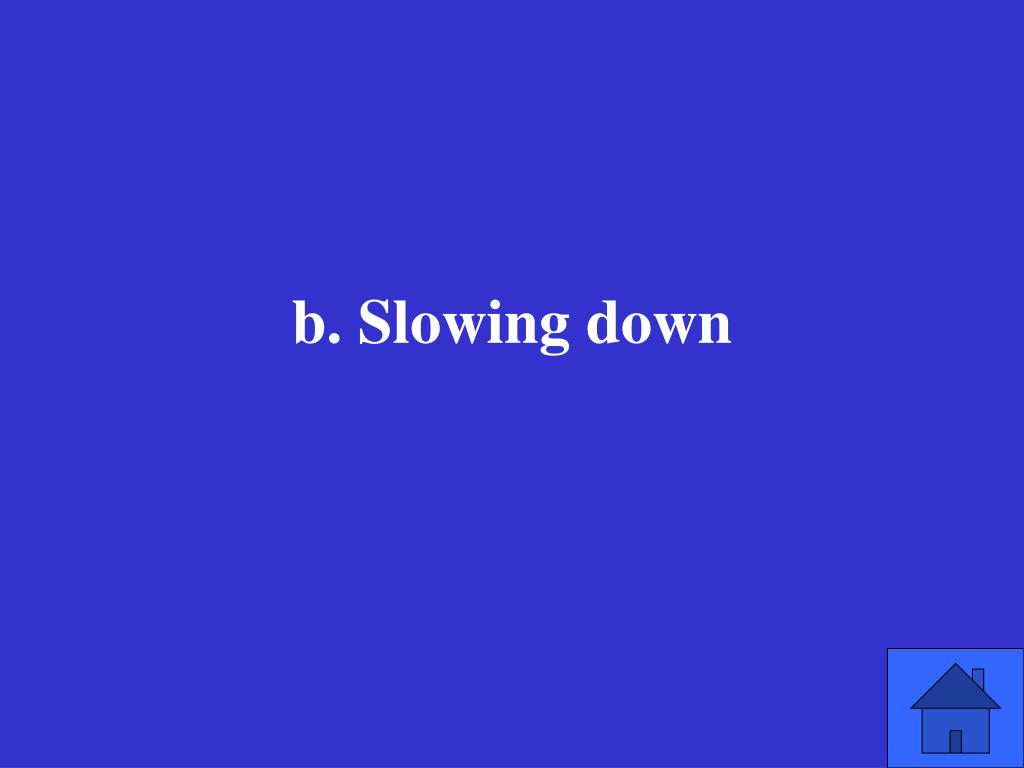

  45. b. Slowing down

  46. In this speed vs. time graph, the object at point C has — positive acceleration. zero acceleration. negative acceleration. Constant speed.

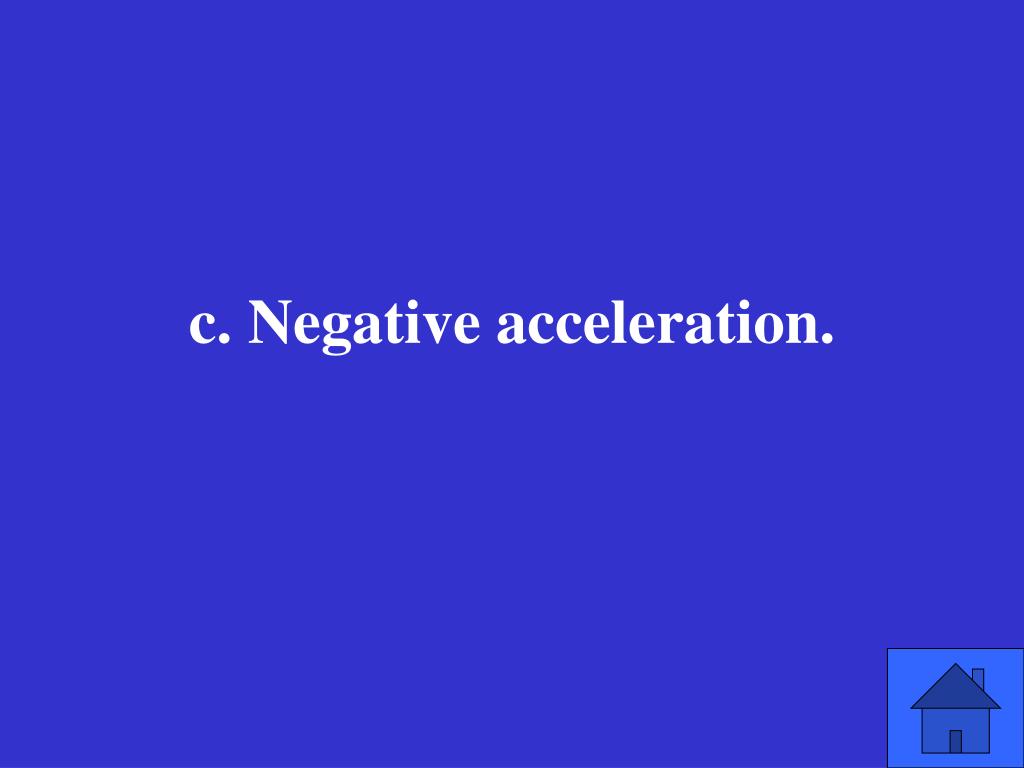

  47. c. Negative acceleration.

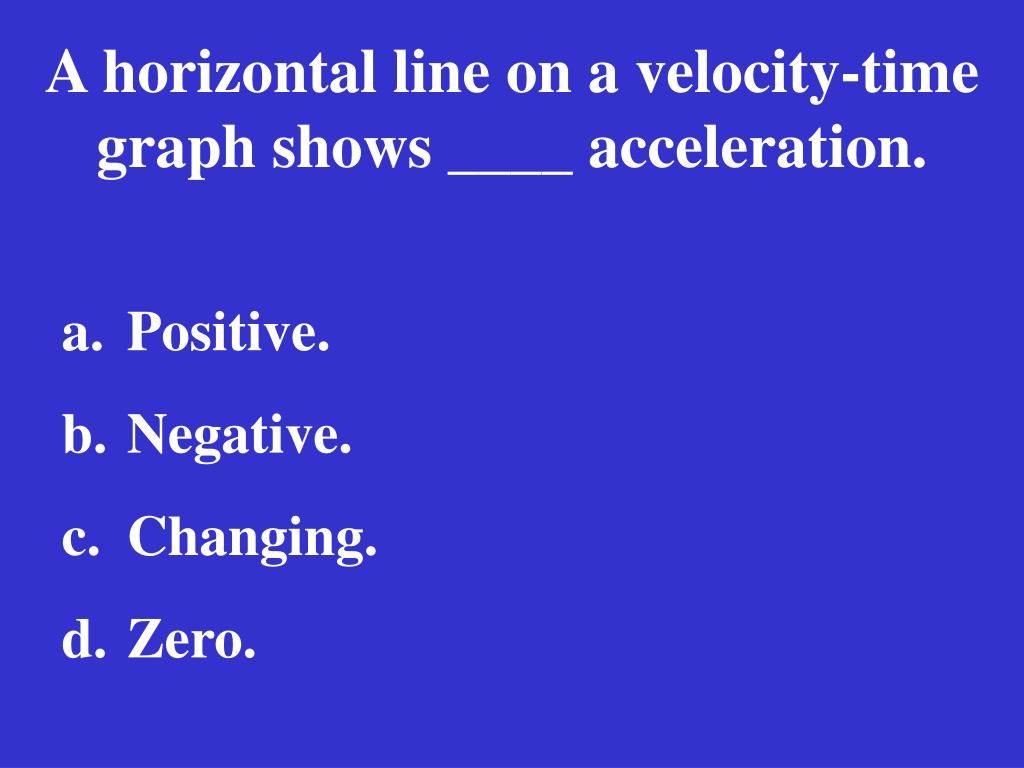

  48. A horizontal line on a velocity-time graph shows ____ acceleration. • Positive. • Negative. • Changing. • Zero.

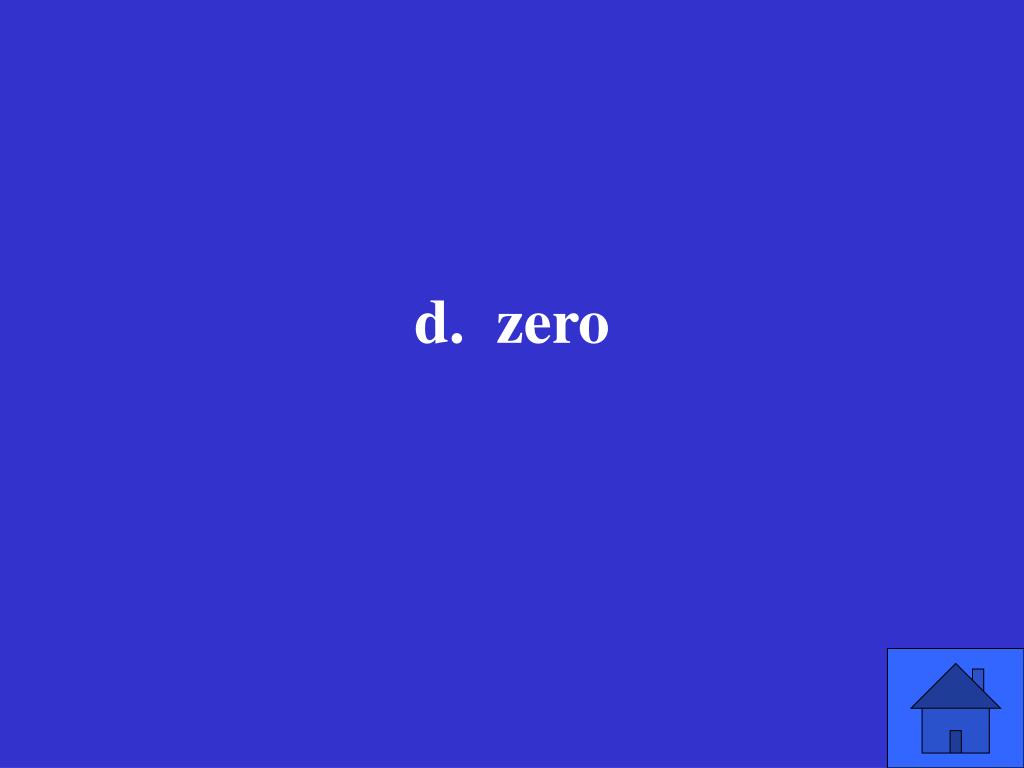

  49. d. zero

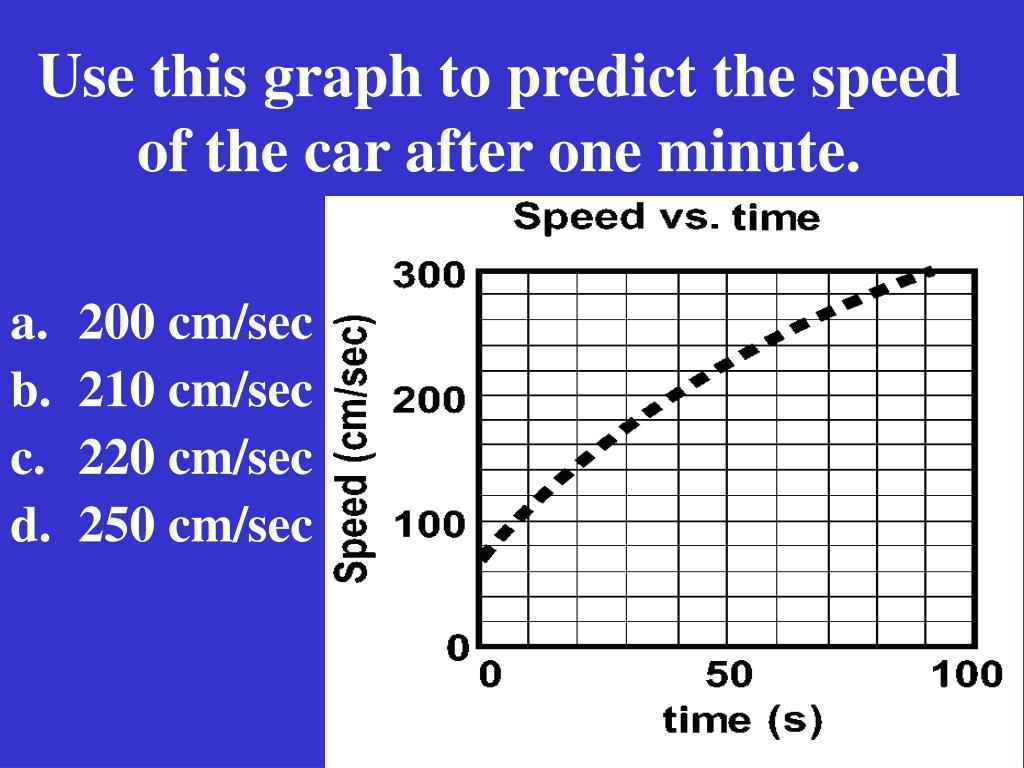

  50. Use this graph to predict the speed of the car after one minute. 200 cm/sec 210 cm/sec 220 cm/sec 250 cm/sec
