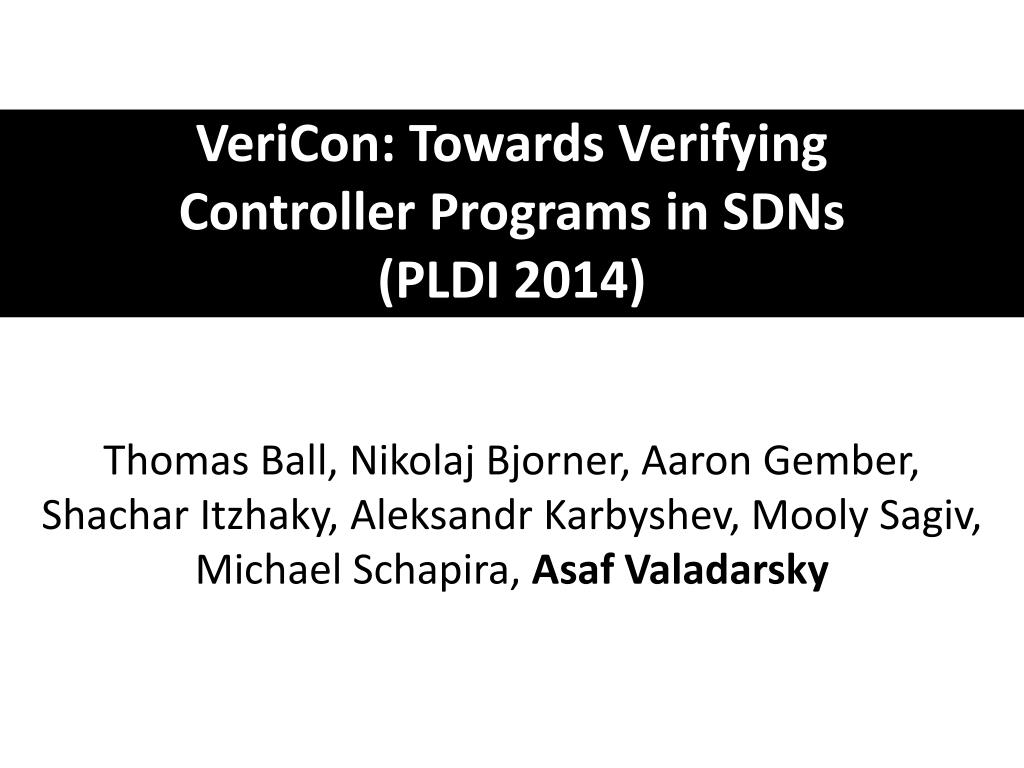

  1. VeriCon: Towards Verifying Controller Programs in SDNs(PLDI 2014) Thomas Ball, NikolajBjorner, Aaron Gember, ShacharItzhaky, AleksandrKarbyshev, MoolySagiv, Michael Schapira,AsafValadarsky

  2. Traditional Computer Networks Control plane: distributed algorithms Data plane: packet streaming

  3. New Paradigm:Software Defined Networking (SDN) logically-centralized control in software smart but slow software API to the data plane (e.g., OpenFlow) dumb but fast hardware switches

  4. Controller: Programmability APP APP APP Controller events from switches topology changes, traffic statistics, arriving packets commands to switches (un)install rules, query statistics

  5. Desired Network Properties • Routing • No forwarding loops, no black holes, … • Security • ACL, firewall, middleboxes, … • Traffic Engineering • Load balancing, VM migration, … • …

  6. How can we guarantee such properties?

  7. Traditional Networks vs. SDN • Guaranteeing these properties in a traditional network is nearly impossible • Switch / Router code is a “black box” • Protocols are distributed across devices. • SDN opens up the possibility of applying formal software verification to networks! • Accessible code • Centralized control

  8. Existing Approaches • Finite-state model checking • E.g., NICE & Verificare • Analyzing network snapshots • E.g., HSA • Run-time checks • E.g., VeriFlow & NetPlumber Might miss bugs! Discover bugs too late & run-timeoverhead

  9. Dream Scenario • Verify network-wide propertiesin compile time • Find violations before they occur! • Provable verification • Prove correctness for correct programs • Find a counterexample for incorrect programs(useful for debugging)

  10. The VeriCon Tool Restrictions on Topology (T) Controller Code (P) Desired Properties  Verification Conditions Generator T P “”  SAT Solver Proof Counterexample

  11. Running Times – Correct Programs

  12. Running Times – Incorrect Programs

  13. VeriCon: Challenges and Solutions • Programmer must specify properties in 1st-order logic • We build a tool that infers formulas for SDN programs • Future research: static analysis • SDN programs must be coded in a specific language (CSDN) • VeriCon can be extended to support Java, Python, etc. • SAT solver might not terminate! • SDN programs considered are in a sub-family of FOL • … solver termination guaranteed! • VeriCon assumes atomicity of events • “Existing” solutions • Future research: verify stronger properties

  14. Summary • SDN opens up the possibility for applying formal verification to networks • VeriCon is the first system to provably verify SDN programs at compile time • for unbounded topology, #packets, etc.
