Refrigerated and Heating Circulator LB-10RHC

Labotronics Refrigerated and Heating Circulator offers fuzzy PID control and a working temperature range of -5u00b0C to 100u00b0C with u00b10.03u00b0C stability. Powered by an eco-friendly R134a refrigerant system, it uses a high-quality compressor for efficient performance.

mariahconner
Download Presentation

Refrigerated and Heating Circulator LB-10RHC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

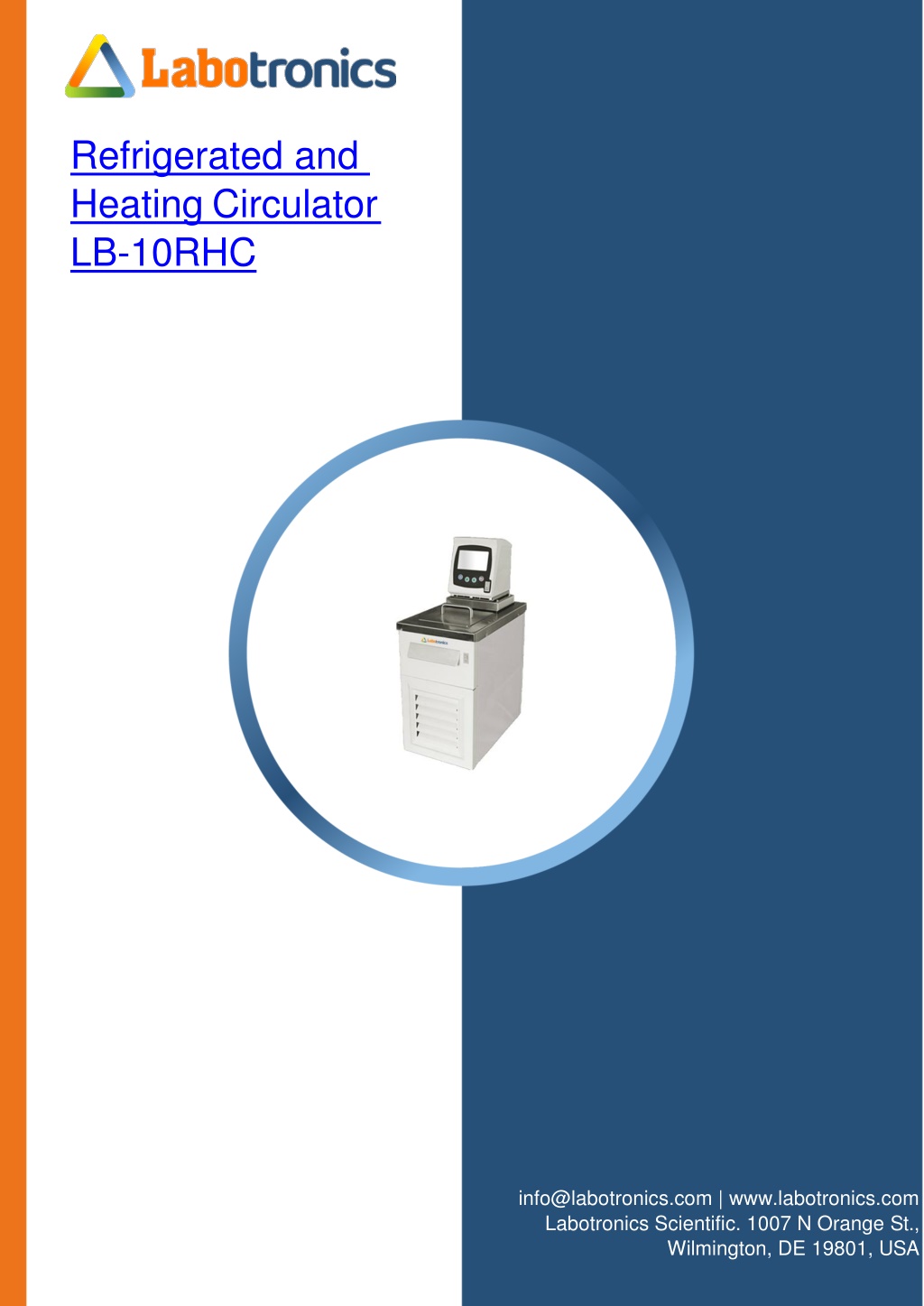

  1. Refrigerated and Heating Circulator LB-10RHC info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

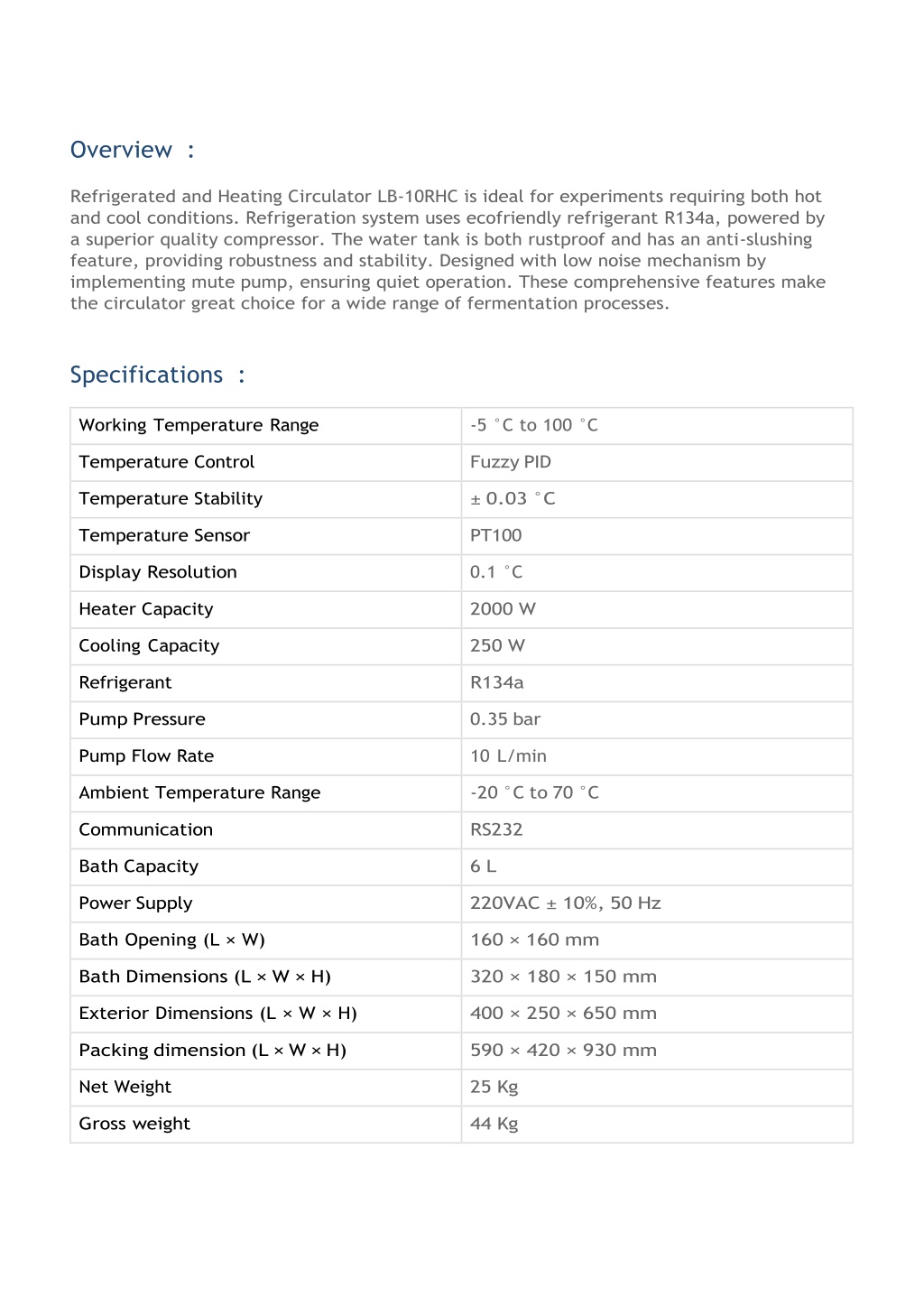

  2. Overview: Refrigerated and Heating Circulator LB-10RHC is ideal for experiments requiring both hot and cool conditions. Refrigeration system uses ecofriendly refrigerant R134a, powered by a superior quality compressor. The water tank is both rustproof and has an anti-slushing feature, providing robustness and stability. Designed with low noise mechanism by implementing mute pump, ensuring quiet operation. These comprehensive features make the circulator great choice for a wide range of fermentation processes. Specifications: Working Temperature Range -5 °C to 100 °C Temperature Control Fuzzy PID Temperature Stability ± 0.03 °C Temperature Sensor PT100 Display Resolution 0.1 °C Heater Capacity 2000 W Cooling Capacity 250 W Refrigerant R134a Pump Pressure 0.35 bar Pump Flow Rate 10 L/min Ambient Temperature Range -20 °C to 70 °C Communication RS232 Bath Capacity 6 L Power Supply 220VAC ± 10%, 50 Hz Bath Opening (L × W) 160 × 160 mm Bath Dimensions (L × W × H) 320 × 180 × 150 mm Exterior Dimensions (L × W × H) 400 × 250 × 650 mm Packing dimension (L × W × H) 590 × 420 × 930 mm Net Weight 25 Kg Gross weight 44 Kg

  3. Features: 1.Refrigerated and Heating Circulator with memory function 2.LCD display for visualization of parameters 3.Temperature correction function improves accuracy 4.Space saving design 5.Removable venting grid ensures simplified cleaning 6.Great cooling performance Applications : Refrigerated and Heating Circulator is used across laboratory temperatures control processes, chemical reactions, fermentation, and environmental testing.
