Cold Trap Bath 7 L.

Labotronics Cold Trap Bath with 7L capacity features a u00bd hp refrigeration compressor and operates at -75u00b0C. Equipped with a Pt 100 u2126 thermocouple for precise temperature control. It operates on AC 230 V, 50/60 Hz, making it ideal for laboratory and industrial applications.

mariahconner
Download Presentation

Cold Trap Bath 7 L.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

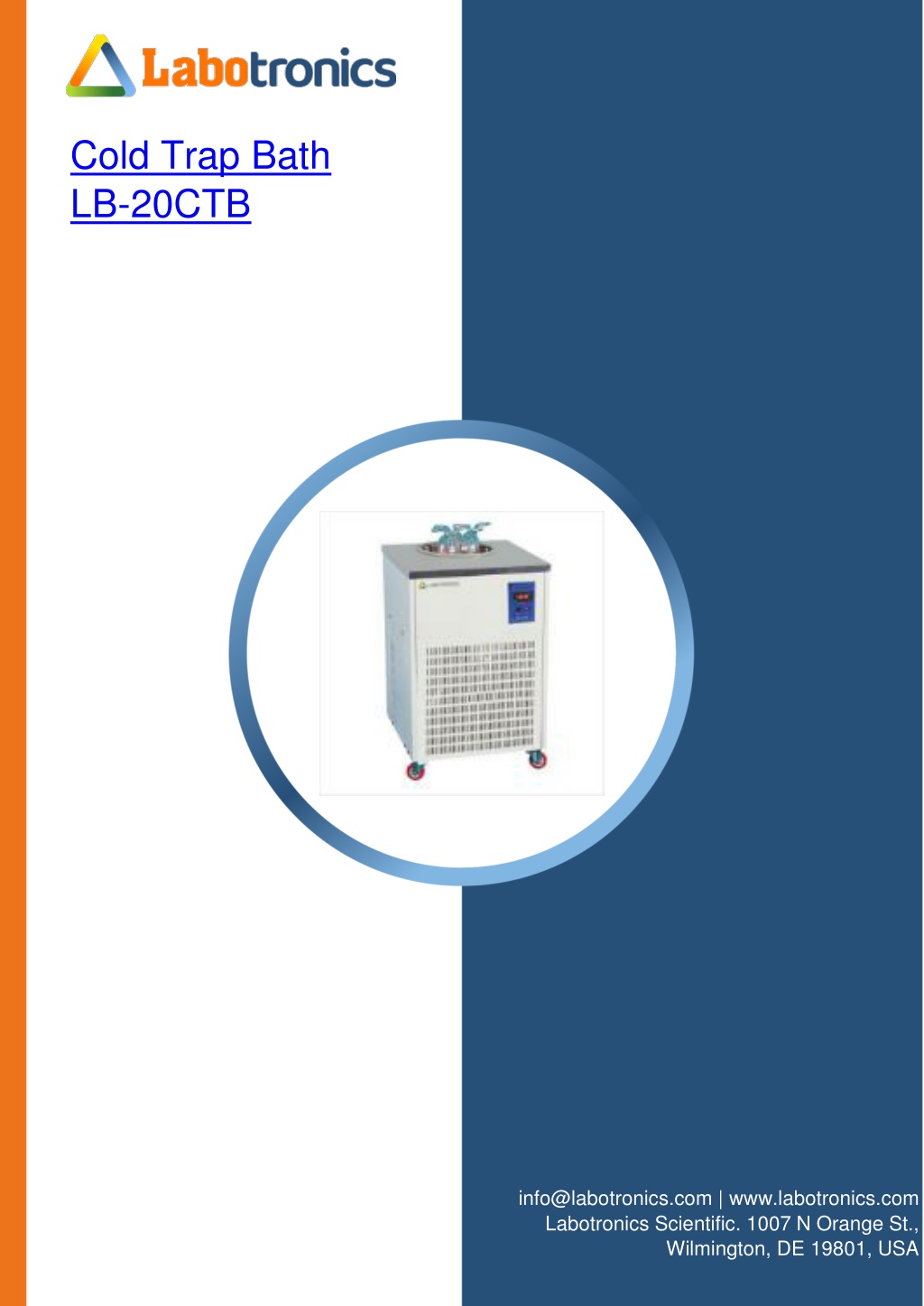

  1. Cold Trap Bath LB-20CTB info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

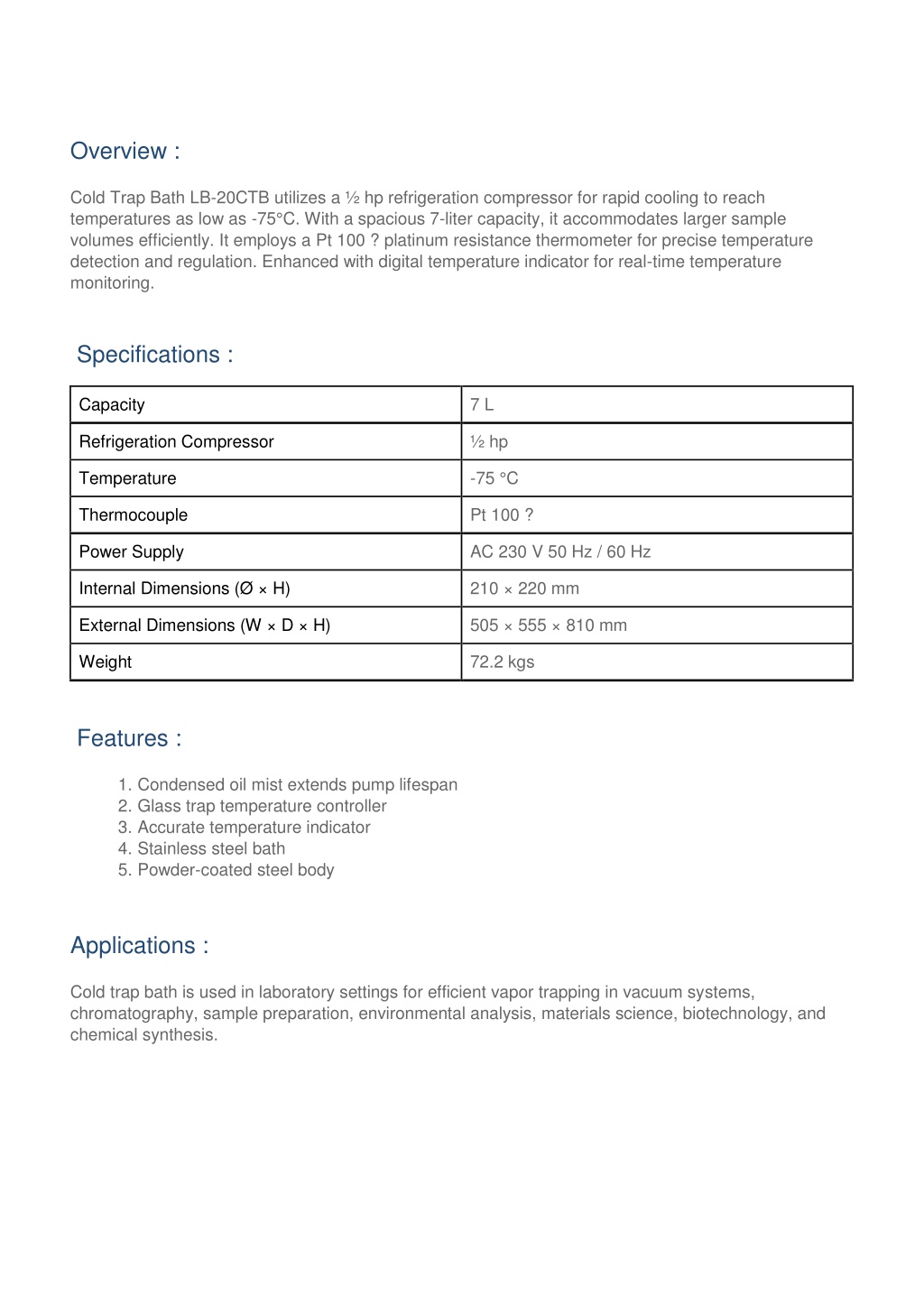

  2. Overview : Cold Trap Bath LB-20CTB utilizes a ½ hp refrigeration compressor for rapid cooling to reach temperatures as low as -75°C. With a spacious 7-liter capacity, it accommodates larger sample volumes efficiently. It employs a Pt 100 ? platinum resistance thermometer for precise temperature detection and regulation. Enhanced with digital temperature indicator for real-time temperature monitoring. Specifications : Capacity 7 L Refrigeration Compressor ½ hp Temperature -75 °C Thermocouple Pt 100 ? Power Supply AC 230 V 50 Hz / 60 Hz Internal Dimensions (Ø × H) 210 × 220 mm External Dimensions (W × D × H) 505 × 555 × 810 mm Weight 72.2 kgs Features : 1. Condensed oil mist extends pump lifespan 2. Glass trap temperature controller 3. Accurate temperature indicator 4. Stainless steel bath 5. Powder-coated steel body Applications : Cold trap bath is used in laboratory settings for efficient vapor trapping in vacuum systems, chromatography, sample preparation, environmental analysis, materials science, biotechnology, and chemical synthesis.
