  1. Kingdon Trap Hande Akbas Kealan Naughton Alexander Fuchs-Fuchs

  2. Kingdon Trap

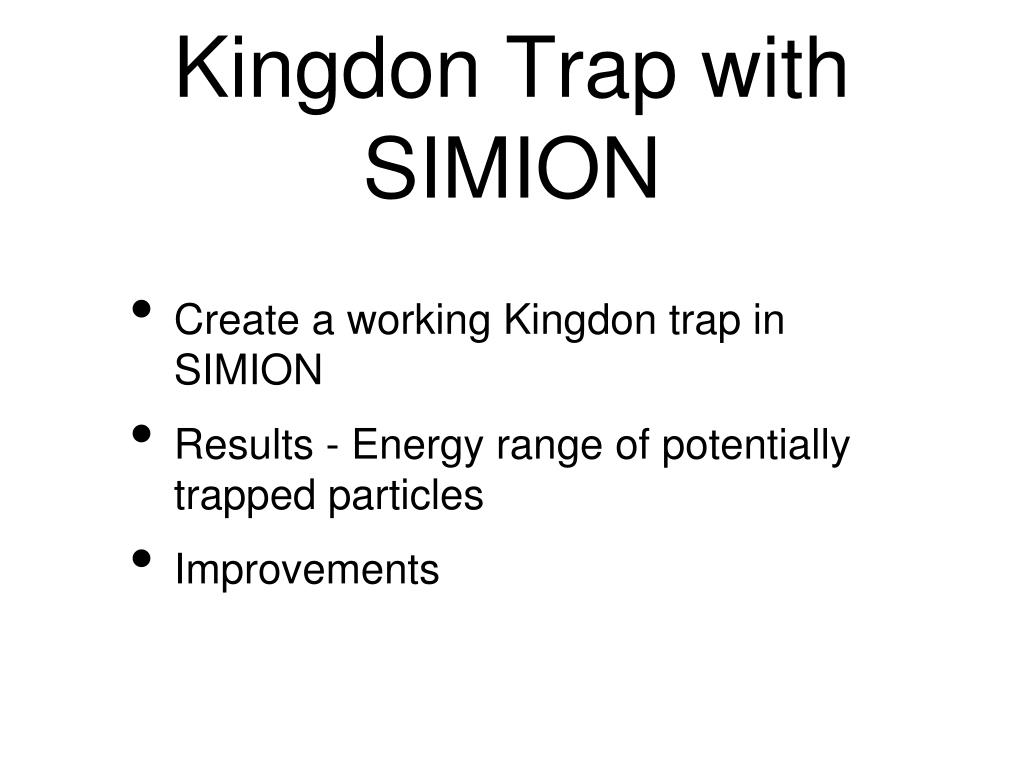

  3. Kingdon Trap with SIMION • Create a working Kingdon trap in SIMION • Results - Energy range of potentially trapped particles • Improvements

  4. What is a Kingdon Trap? • One of the first ion traps • Radial trapping - two concentric cylinders with potential difference • Axial trapping -ends with higher potential • Ions are trapped in stable orbits if they possess the right angular momentum • Static applied voltage results in a radial logarithmic potential between the electrodes • Ions pulled in elliptical orbits

  5. How it works • Static applied voltage results in a radial logarithmic potential between the electrodes • Ions pulled in elliptical orbits

  6. The Kingdon Trap • Symmetrical device • Inner cylinder a wire • Outer cylinder a hollow tube • Put caps on the ends

  7. Theory • Maximum and minimum energies defined by maximum and minimum orbits • Energy Max: 768 eV • Energy Minimum: 43 eV

  8. The Trap • Outer cylinder radius: 50 mm • Length: 300 mm • Inner cylinder: 5mm • The end caps separated by a few mm

  9. SIMION steps • Build the Geometry • Fly the first particles

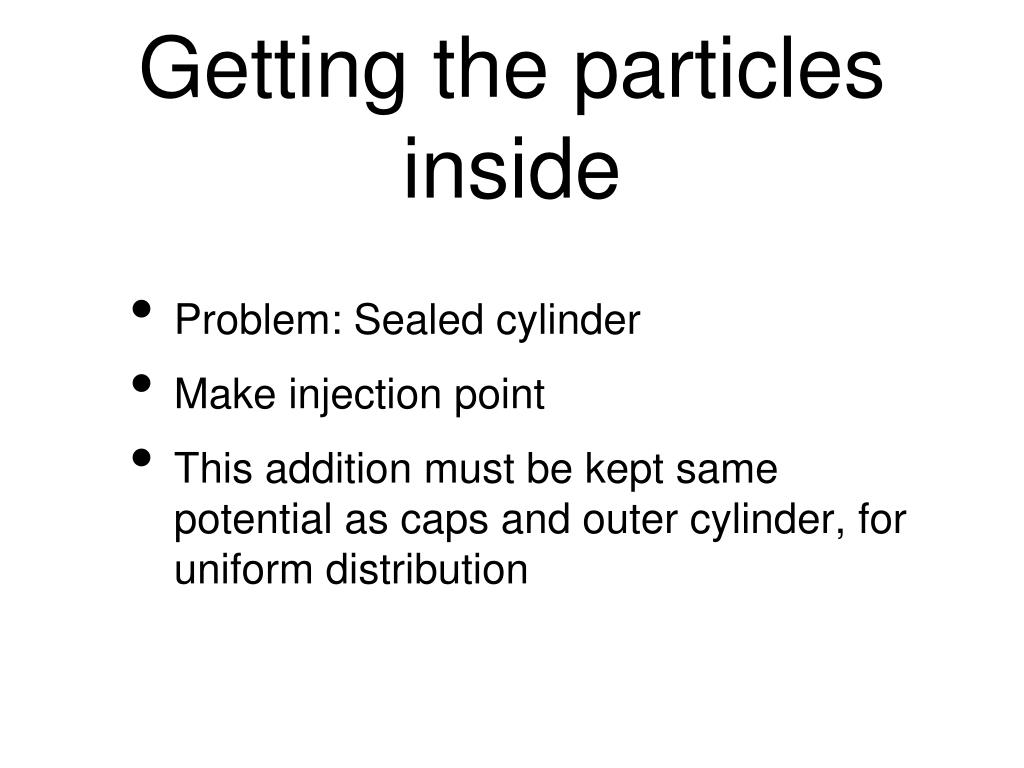

  10. Getting the particles inside • Problem: Sealed cylinder • Make injection point • This addition must be kept same potential as caps and outer cylinder, for uniform distribution

  11. In action Getting the particles inside

  12. Defining the energy range • Energy • Too High: Collide with outer cylinder • Too Low: Collide with inner rod

  13. What we found • Inner rod Potential: -3200 V • Caps and cylinder: 20 V • Minimum energy: 43 eV (38 eV) • Max energy: 580 eV (768 eV) • Mass independent

  14. Improvements • Never been reported to produce mass spectra • Modified version - Orbitrap - used as a mass spectrometer

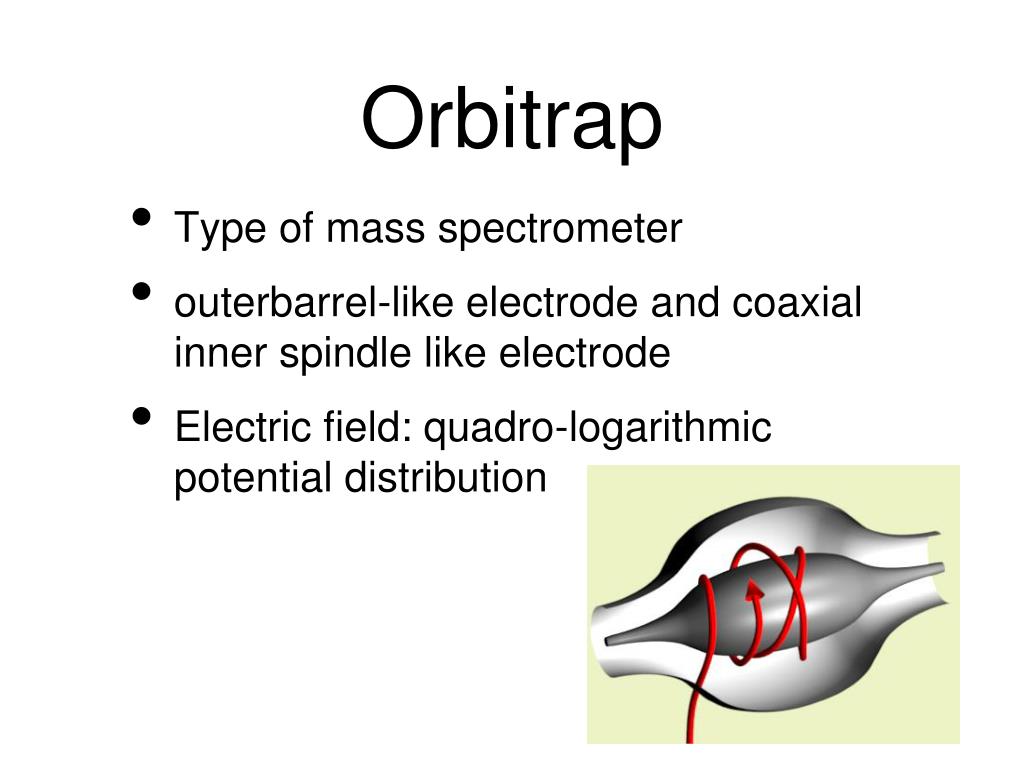

  15. Orbitrap • Type of mass spectrometer • outerbarrel-like electrode and coaxial inner spindle like electrode • Electric field: quadro-logarithmic potential distribution

  16. Orbitrap • Oscillation frequency: independent of ion velocity, Inversely proportional to square root. Characteristic of the mass of the particle • High accuracy: 1-2 ppm • High resolving power: 200,000 • resolving power proportional to the number of harmonic oscillations

  17. Conclusions • Simulation of a working ion trap • Defined energy range agrees with theory • Upgrades can be made into a working mass spectrometer

  18. Don’t get Caught
