Cold Trap Bath.

Labotronics Cold Trap Bath has a 7L capacity and a u00bd hp refrigeration compressor, cooling down to -40u00b0C. It features a Pt 100 u2126 thermocouple for precise temperature measurement and operates on AC 230V, compatible with both 50 Hz and 60 Hz frequencies.

mariahconner
Download Presentation

Cold Trap Bath.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

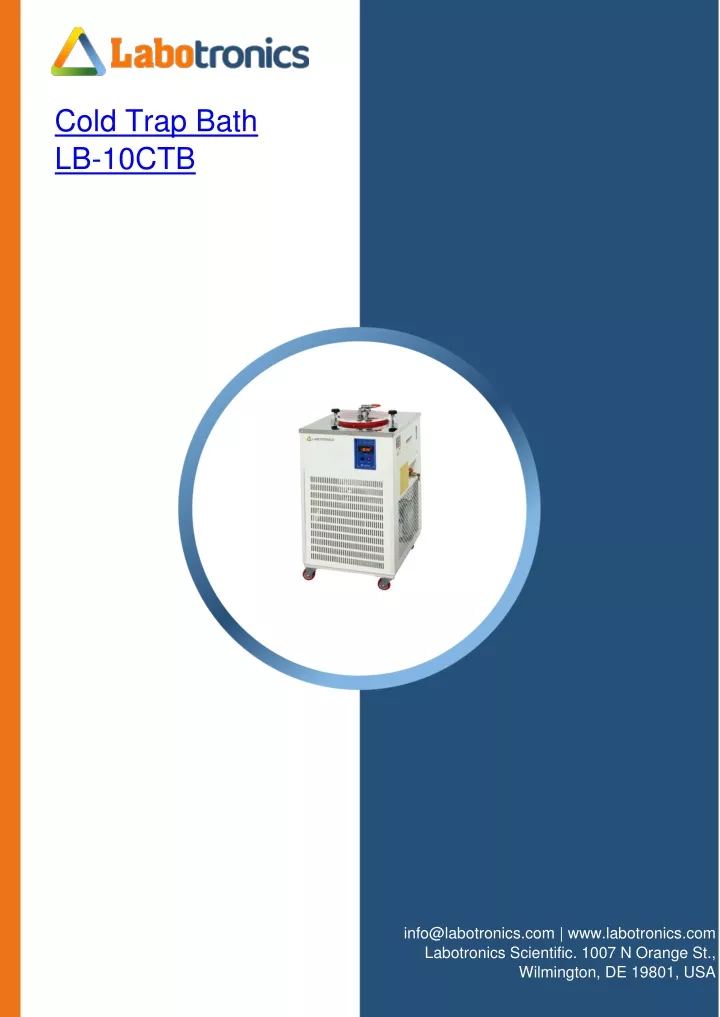

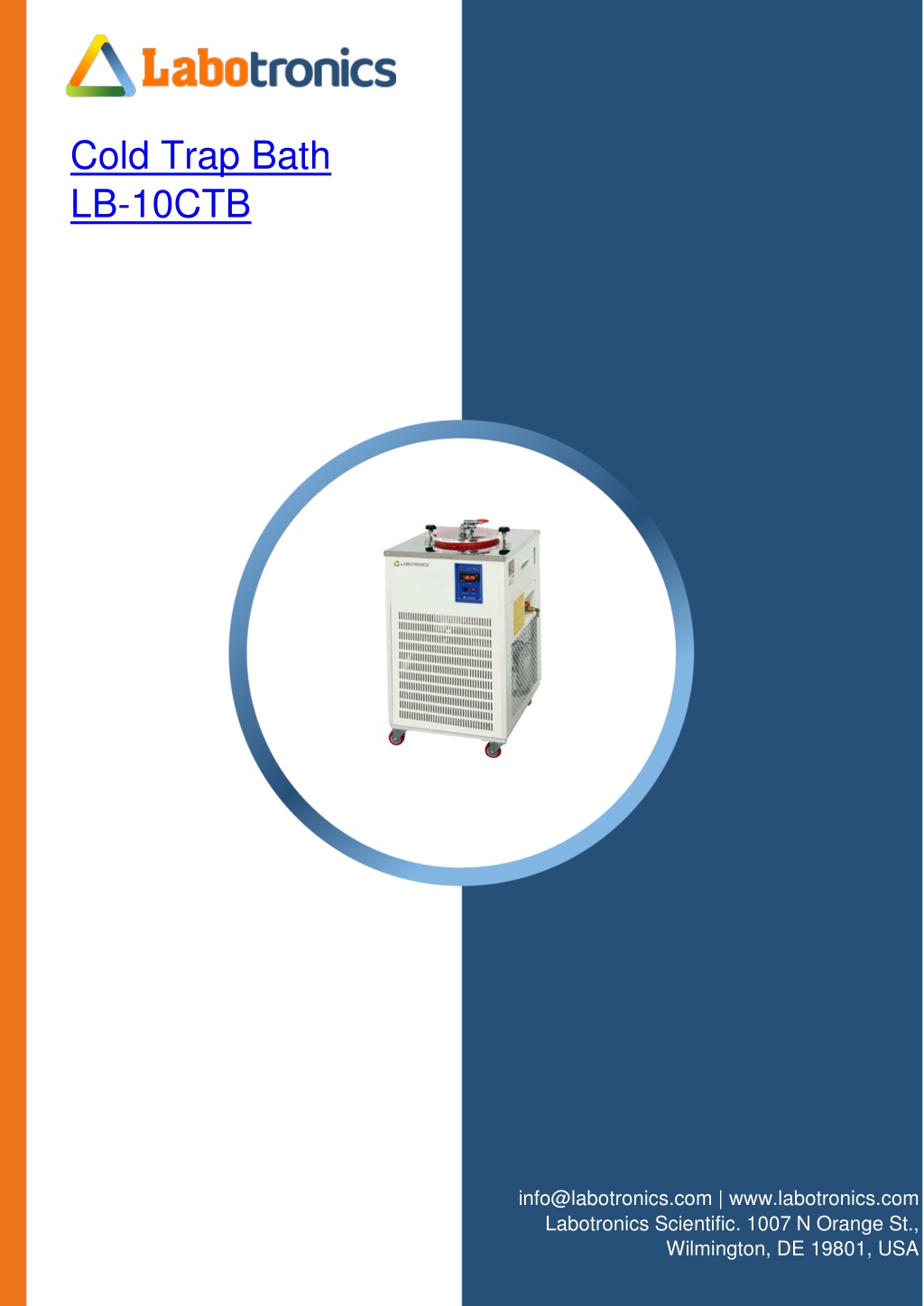

  1. Cold Trap Bath LB-10CTB info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

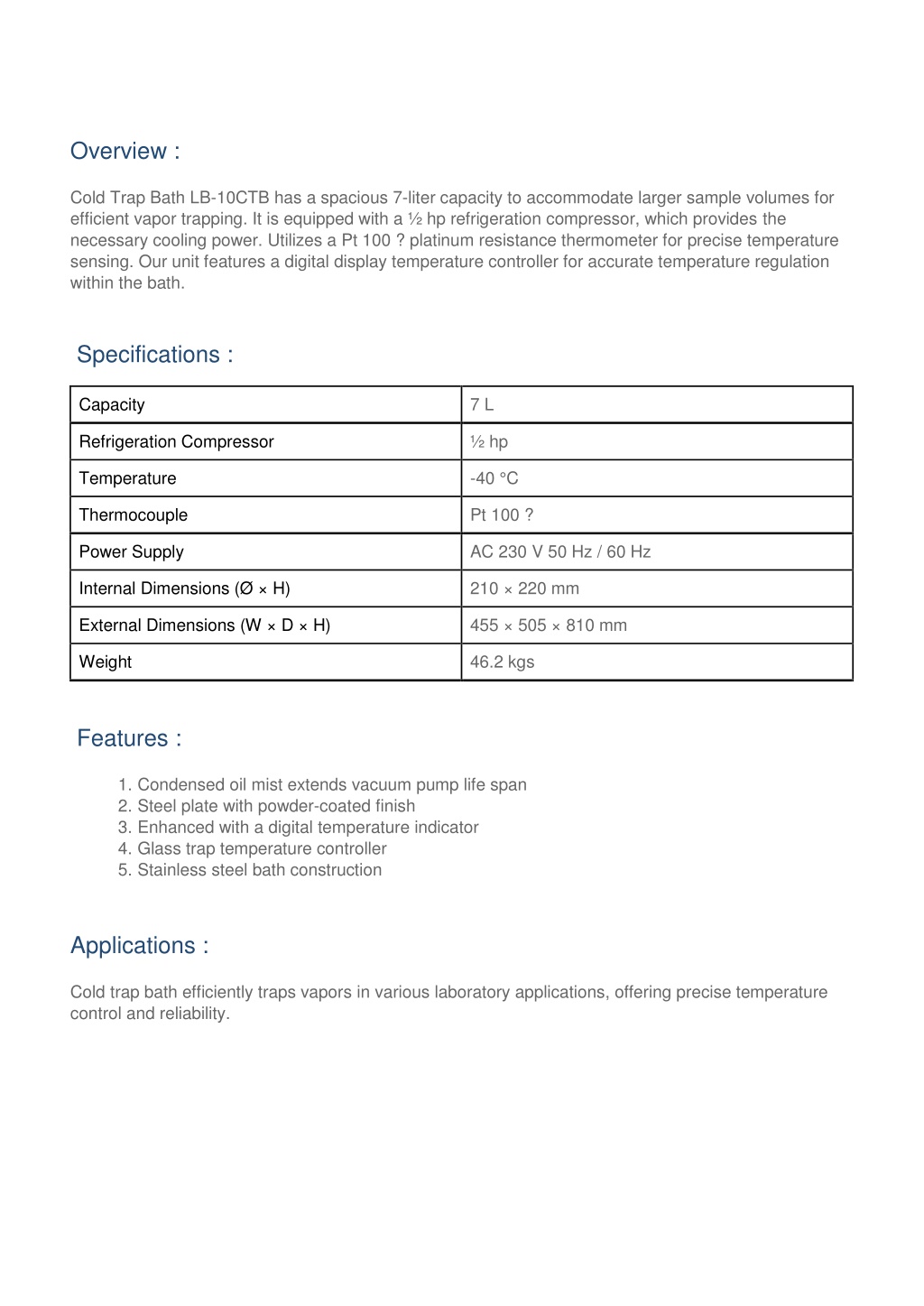

  2. Overview : Cold Trap Bath LB-10CTB has a spacious 7-liter capacity to accommodate larger sample volumes for efficient vapor trapping. It is equipped with a ½ hp refrigeration compressor, which provides the necessary cooling power. Utilizes a Pt 100 ? platinum resistance thermometer for precise temperature sensing. Our unit features a digital display temperature controller for accurate temperature regulation within the bath. Specifications : Capacity 7 L Refrigeration Compressor ½ hp Temperature -40 °C Thermocouple Pt 100 ? Power Supply AC 230 V 50 Hz / 60 Hz Internal Dimensions (Ø × H) 210 × 220 mm External Dimensions (W × D × H) 455 × 505 × 810 mm Weight 46.2 kgs Features : 1. Condensed oil mist extends vacuum pump life span 2. Steel plate with powder-coated finish 3. Enhanced with a digital temperature indicator 4. Glass trap temperature controller 5. Stainless steel bath construction Applications : Cold trap bath efficiently traps vapors in various laboratory applications, offering precise temperature control and reliability.
