Automated NGS Library Preparation System

Labotronics Automated NGS Library Preparation System is a fully automated unit designed for high-throughput workflows. It can handle up to 30 plates simultaneously, with a weight of 300 kg,u00a0 this system minimizes cross-contamination with separate chambers an enhanced with a PCR instrument.

mariahconner
Download Presentation

Automated NGS Library Preparation System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

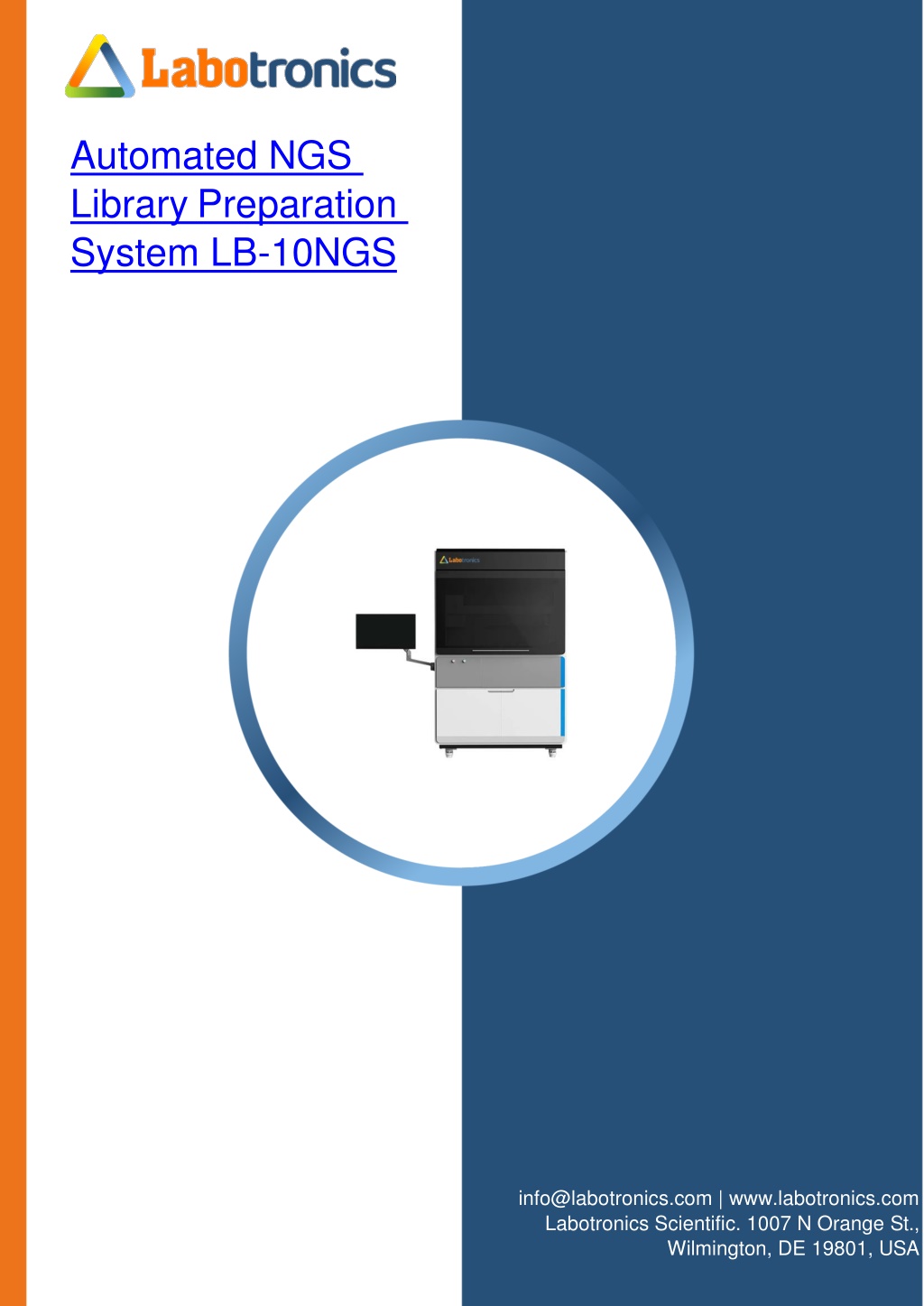

  1. Automated NGS Library Preparation System LB-10NGS info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

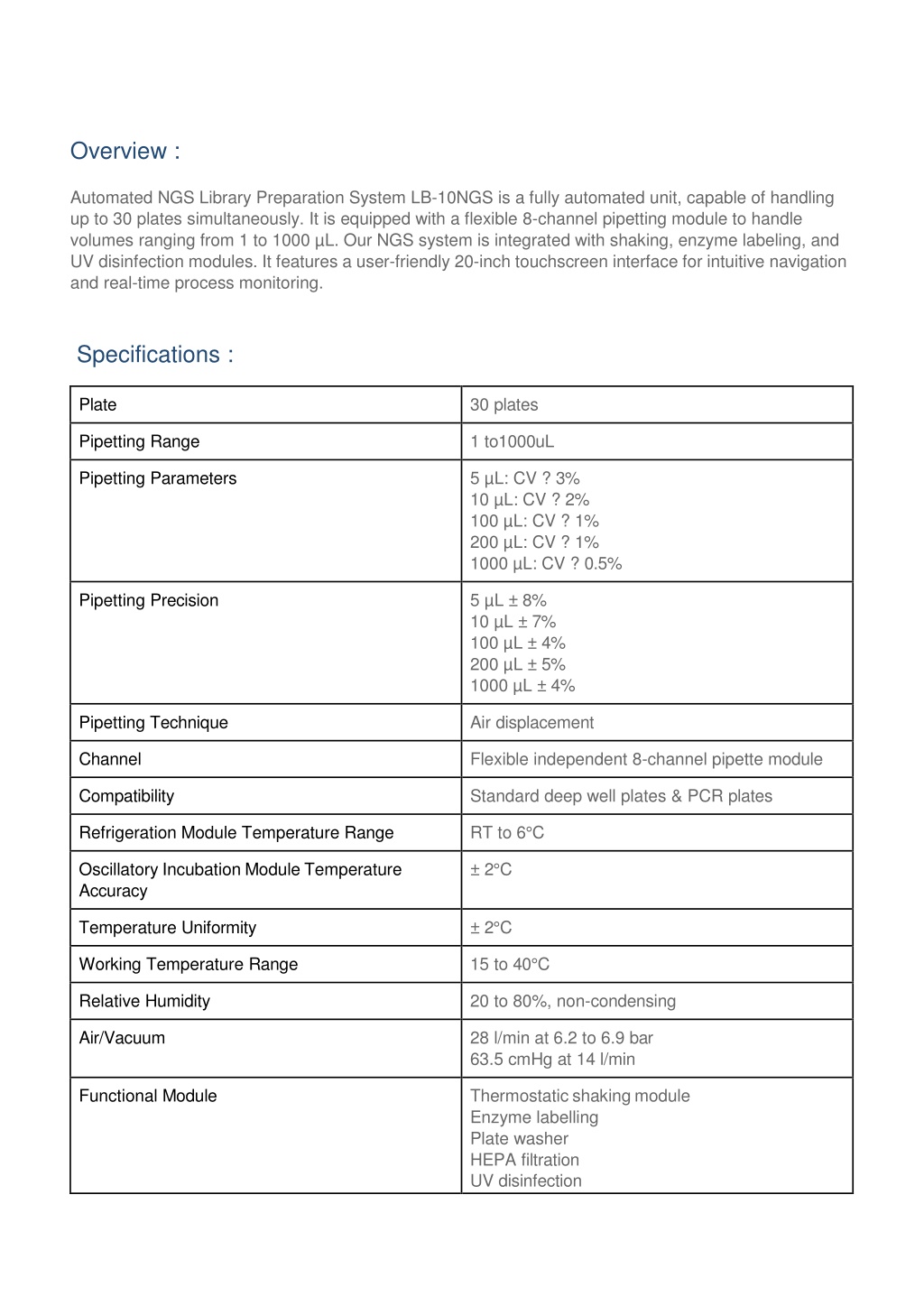

  2. Overview : Automated NGS Library Preparation System LB-10NGS is a fully automated unit, capable of handling up to 30 plates simultaneously. It is equipped with a flexible 8-channel pipetting module to handle volumes ranging from 1 to 1000 µL. Our NGS system is integrated with shaking, enzyme labeling, and UV disinfection modules. It features a user-friendly 20-inch touchscreen interface for intuitive navigation and real-time process monitoring. Specifications : Plate 30 plates Pipetting Range 1 to1000uL Pipetting Parameters 5 µL: CV ? 3% 10 µL: CV ? 2% 100 µL: CV ? 1% 200 µL: CV ? 1% 1000 µL: CV ? 0.5% Pipetting Precision 5 µL ± 8% 10 µL ± 7% 100 µL ± 4% 200 µL ± 5% 1000 µL ± 4% Pipetting Technique Air displacement Channel Flexible independent 8-channel pipette module Compatibility Standard deep well plates & PCR plates Refrigeration Module Temperature Range RT to 6°C Oscillatory Incubation Module Temperature Accuracy ± 2°C Temperature Uniformity ± 2°C Working Temperature Range 15 to 40°C Relative Humidity 20 to 80%, non-condensing Air/Vacuum 28 l/min at 6.2 to 6.9 bar 63.5 cmHg at 14 l/min Functional Module Thermostatic shaking module Enzyme labelling Plate washer HEPA filtration UV disinfection

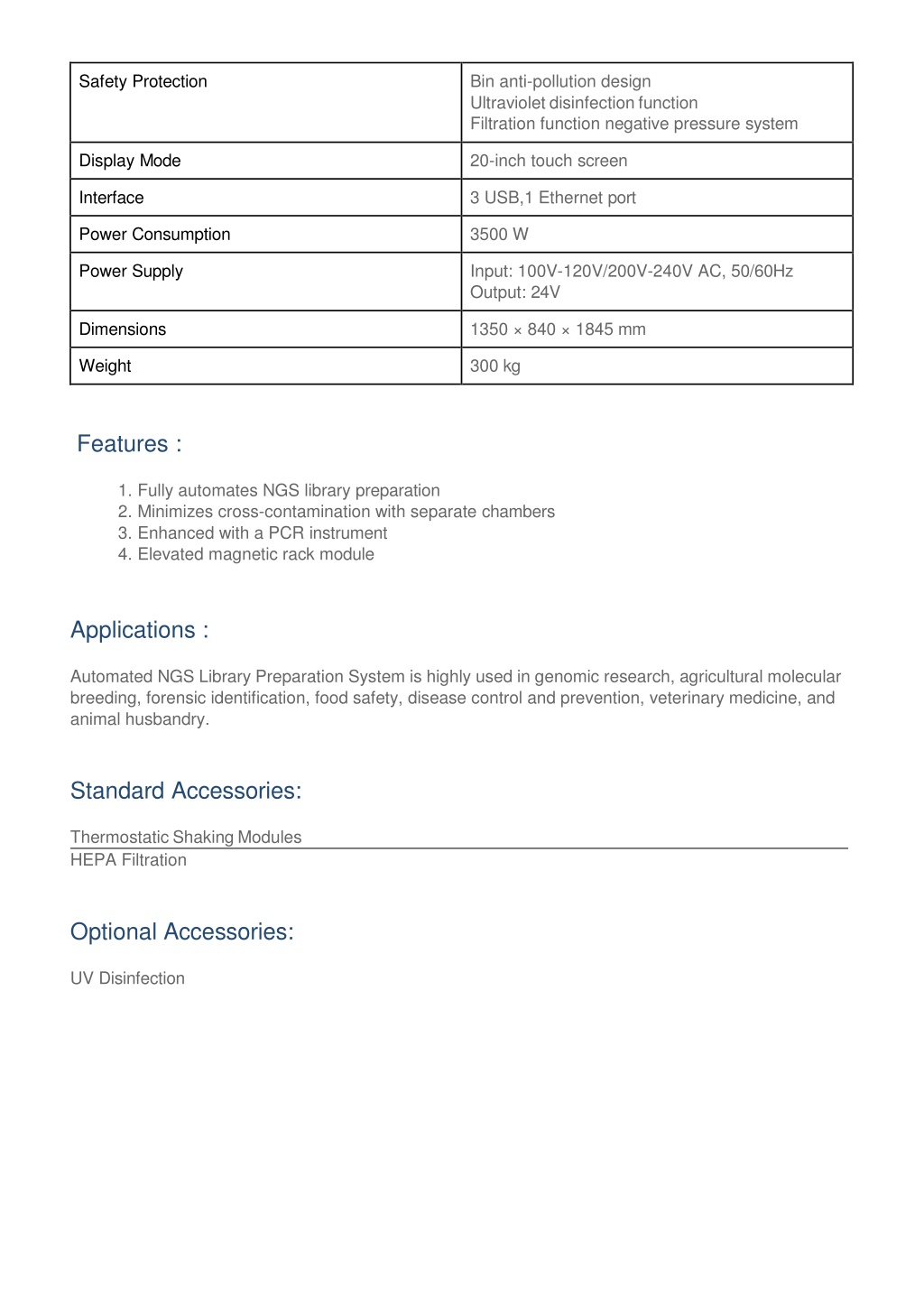

  3. Safety Protection Bin anti-pollution design Ultraviolet disinfection function Filtration function negative pressure system Display Mode 20-inch touch screen Interface 3 USB,1 Ethernet port Power Consumption 3500 W Power Supply Input: 100V-120V/200V-240V AC, 50/60Hz Output: 24V Dimensions 1350 × 840 × 1845 mm Weight 300 kg Features : 1. Fully automates NGS library preparation 2. Minimizes cross-contamination with separate chambers 3. Enhanced with a PCR instrument 4. Elevated magnetic rack module Applications : Automated NGS Library Preparation System is highly used in genomic research, agricultural molecular breeding, forensic identification, food safety, disease control and prevention, veterinary medicine, and animal husbandry. Standard Accessories: Thermostatic Shaking Modules HEPA Filtration Optional Accessories: UV Disinfection
