  1. Computer Architecture 2 Patrick Marshall

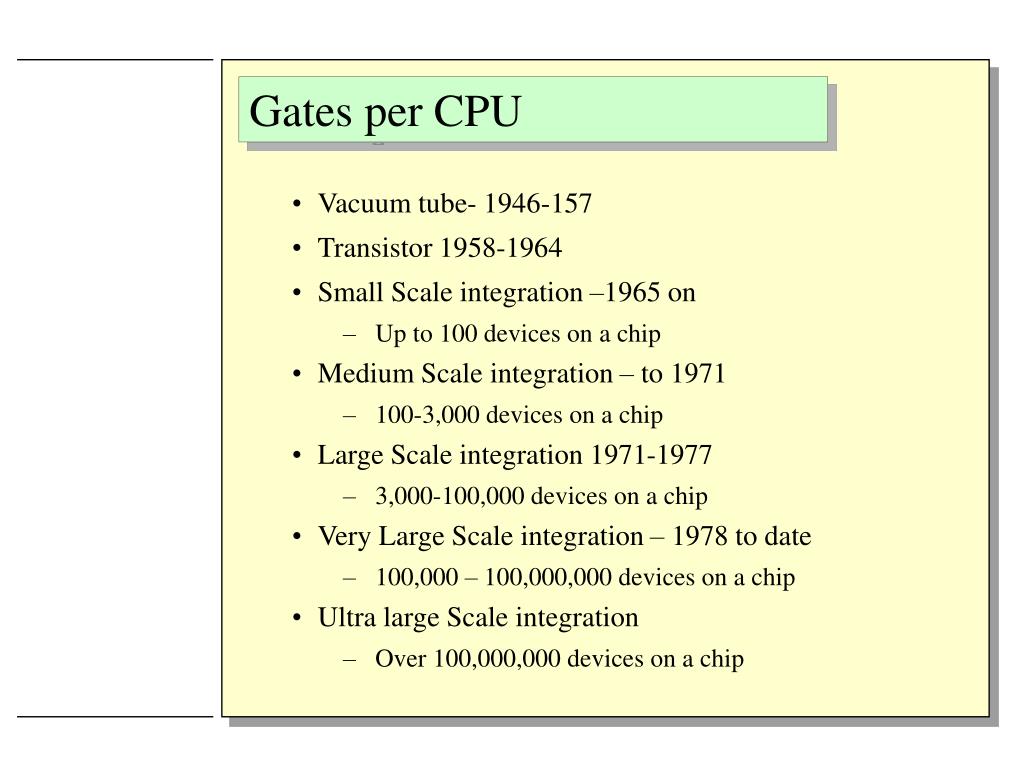

  2. Gates per CPU • Vacuum tube- 1946-157 • Transistor 1958-1964 • Small Scale integration –1965 on • Up to 100 devices on a chip • Medium Scale integration – to 1971 • 100-3,000 devices on a chip • Large Scale integration 1971-1977 • 3,000-100,000 devices on a chip • Very Large Scale integration – 1978 to date • 100,000 – 100,000,000 devices on a chip • Ultra large Scale integration • Over 100,000,000 devices on a chip

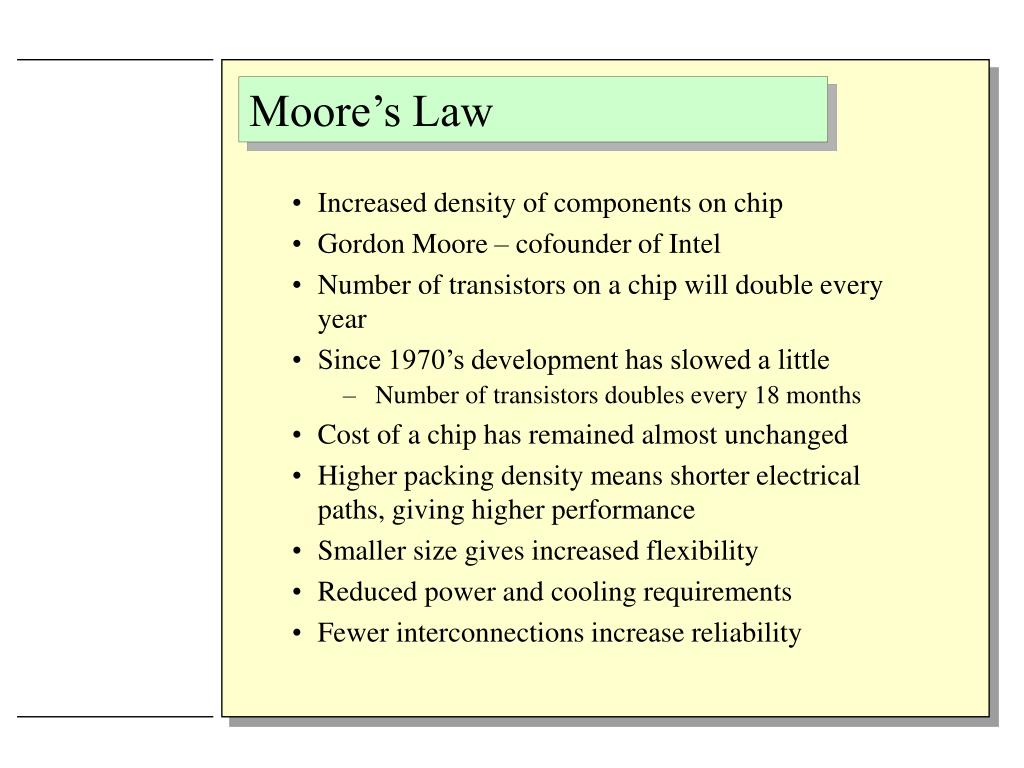

  3. Moore’s Law • Increased density of components on chip • Gordon Moore – cofounder of Intel • Number of transistors on a chip will double every year • Since 1970’s development has slowed a little • Number of transistors doubles every 18 months • Cost of a chip has remained almost unchanged • Higher packing density means shorter electrical paths, giving higher performance • Smaller size gives increased flexibility • Reduced power and cooling requirements • Fewer interconnections increase reliability

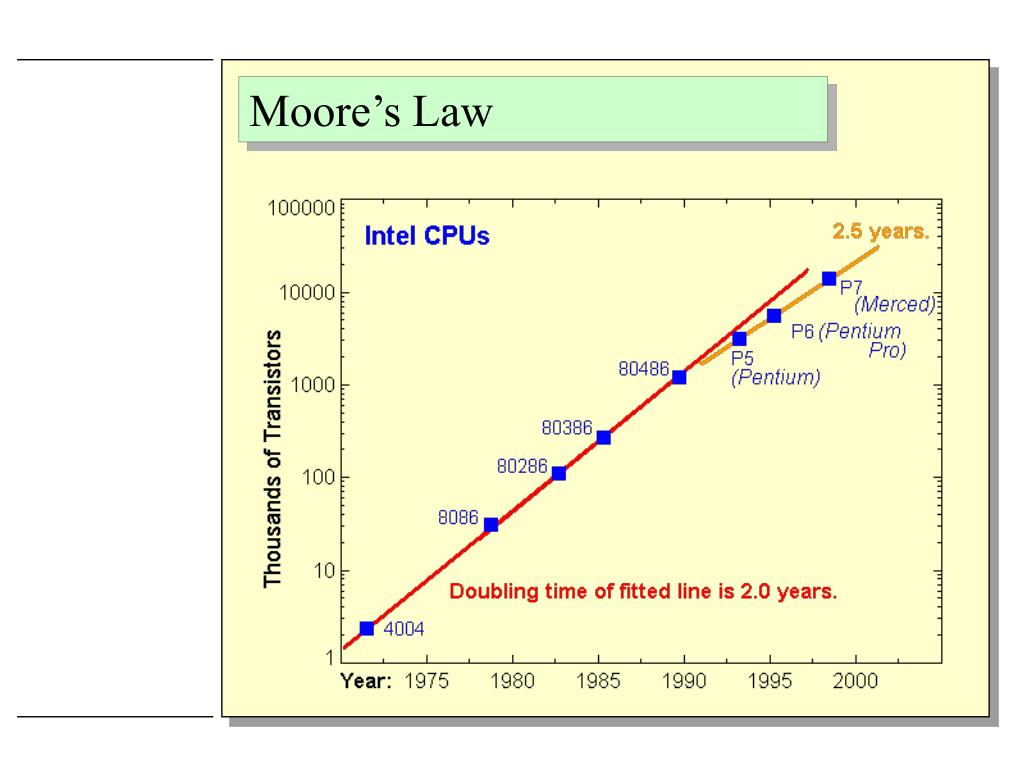

  4. Moore’s Law

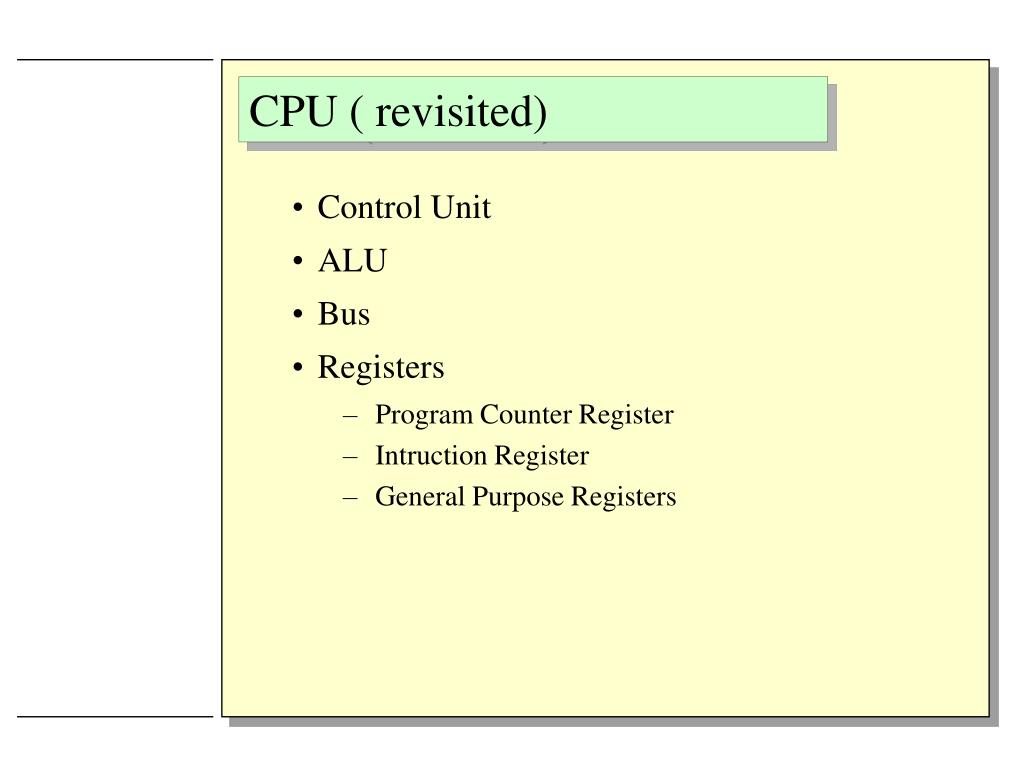

  5. CPU ( revisited) • Control Unit • ALU • Bus • Registers • Program Counter Register • Intruction Register • General Purpose Registers

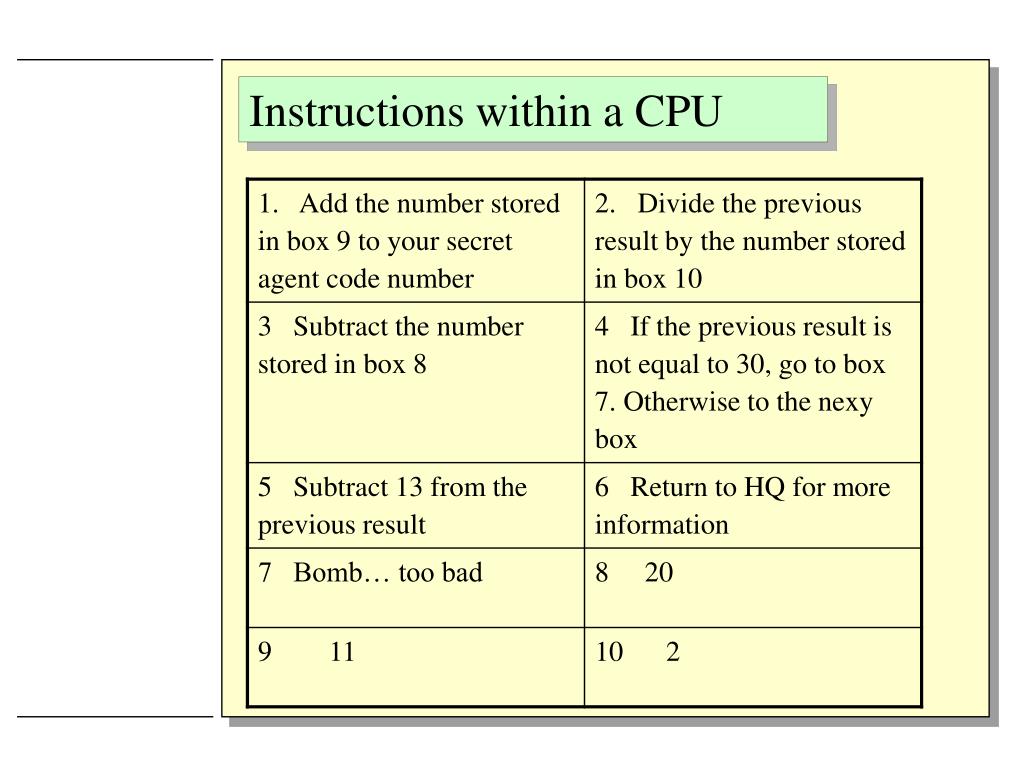

  6. Instructions within a CPU

  7. Instructions within a CPU • Three different classes of instructions • Boxes 1,2,3,5 are arithmetic operations • Box 4 contains a conditional jump or conditional branch • Box 6 contains the return instruction, which is a control instruction which contains no data and refers to no other address • Each arithmetic and conditional jump consists of two parts an operation and an address

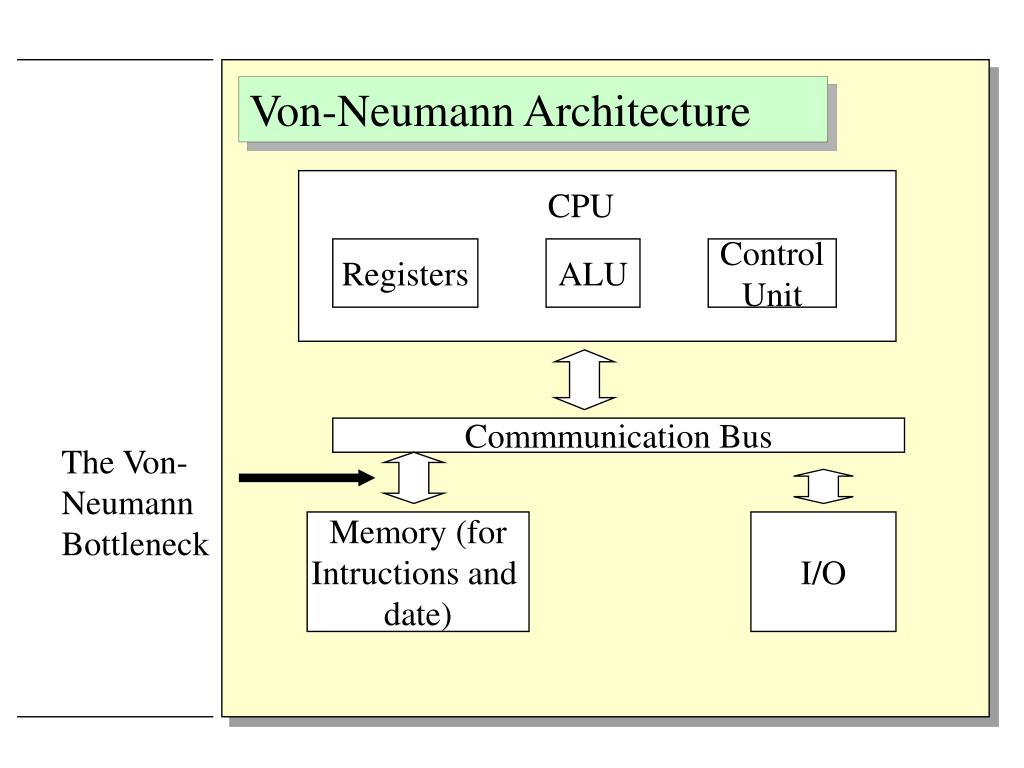

  8. Von-Neumann Architecture CPU Registers ALU Control Unit Commmunication Bus The Von- Neumann Bottleneck Memory (for Intructions and date) I/O

  9. Registers • Not all registers are the same size • Data or Instructions need to be same size as a memory location • In an 8 bit Microprocessoer • Data registers are 8 bit wide • Address registers are 16 bit wide • Giving 64K addressable • Memory Locations need to be large enough to hold the highest memory location • Intel 80806 has 20 bit memory register –Max addressable size was 1024k (1Mb) • Motorola 68000 has 32 bit memory register • Max addressable size should be 232 which is 4096 Mb • But is only 224 which is 16Mb

  10. ALU • ALU • Performs arithmetic and logic operations • Data can come from memory or input devices or registers • Most CPU has 8+ registers, 8 bit CPU’s have 1 register called the accumulator ACC Control Unit Flags (CCR) ALU

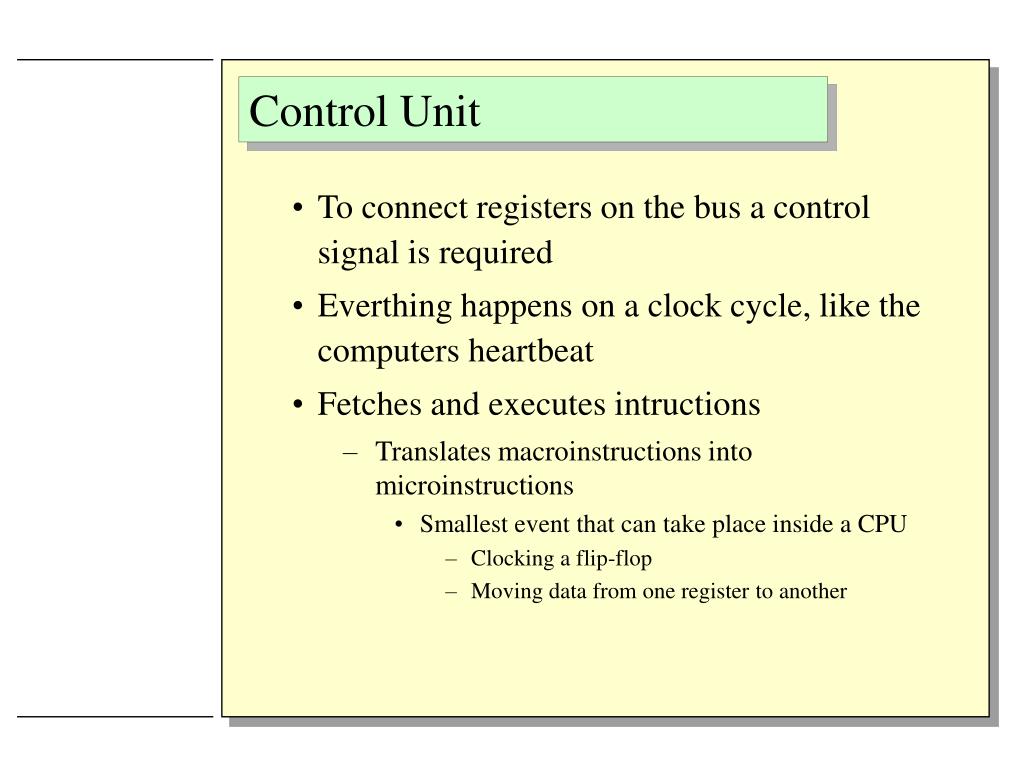

  11. Control Unit • To connect registers on the bus a control signal is required • Everthing happens on a clock cycle, like the computers heartbeat • Fetches and executes intructions • Translates macroinstructions into microinstructions • Smallest event that can take place inside a CPU • Clocking a flip-flop • Moving data from one register to another

  12. Register Transfer Language • A shorthand for expressing what happens inside a CPU. • 1 or more letters followed by numbers indicates registers or memory location • Square brackets means “the contents of” • Left arrow means transfer • MS means the computers memory Main Store MS(X) means the valuein the main store at memory location X • E.G • [MAR] [PC] • [PC] [PC] + 1 • [MS(20)] [PC]

  13. Register Transfer Language • MAR –Memory Address Register • MBR- Memory Buffer Register • MDR – Memory Data Register

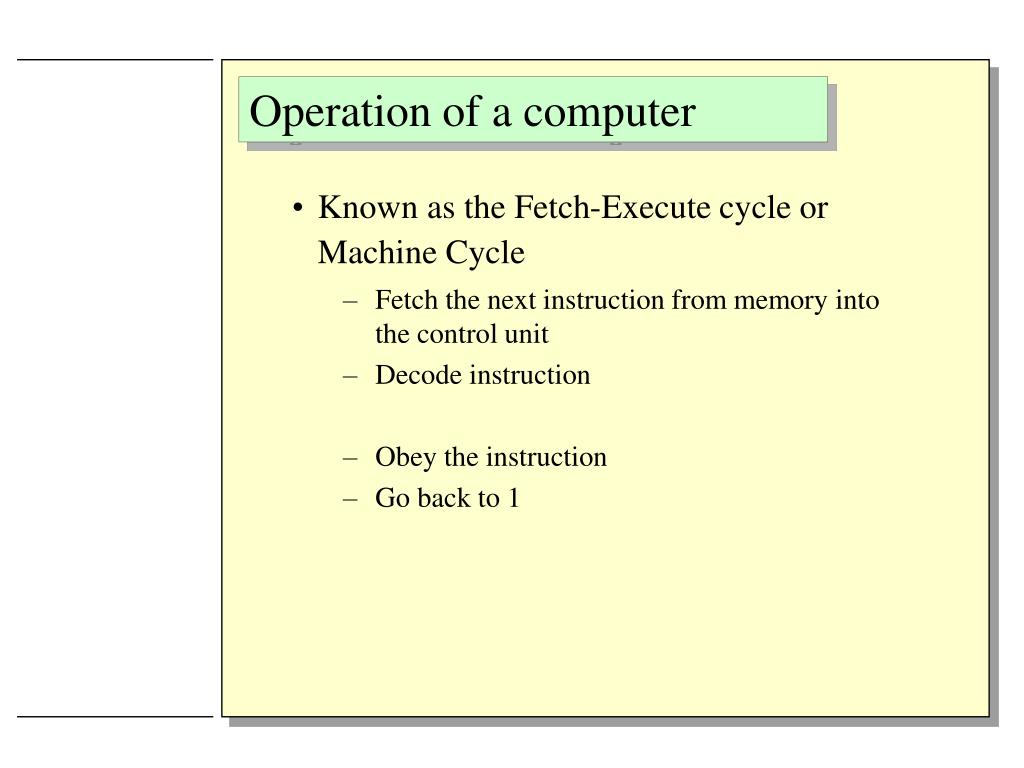

  14. Operation of a computer • Known as the Fetch-Execute cycle or Machine Cycle • Fetch the next instruction from memory into the control unit • Decode instruction • Obey the instruction • Go back to 1

  15. Fetch Execute in Detail • Program counter contains (points to) the address of the next instruction in memory • Step 1: [MAR] [PC] ‘ Contents of PC are moved into the MAR • MAR holds the address of a location in memory into which data is being written or read • MAR now holds the contents of the PC • Step 2: [PC] [PC] + 1 ‘The program is incremented • Step3: [MBR] [MS([MAR]) • MBR takes the value of the memory location held in MAR • MBR is temporary holding place for data received from memory • MBR contains the bit pattern of the instruction to be executed

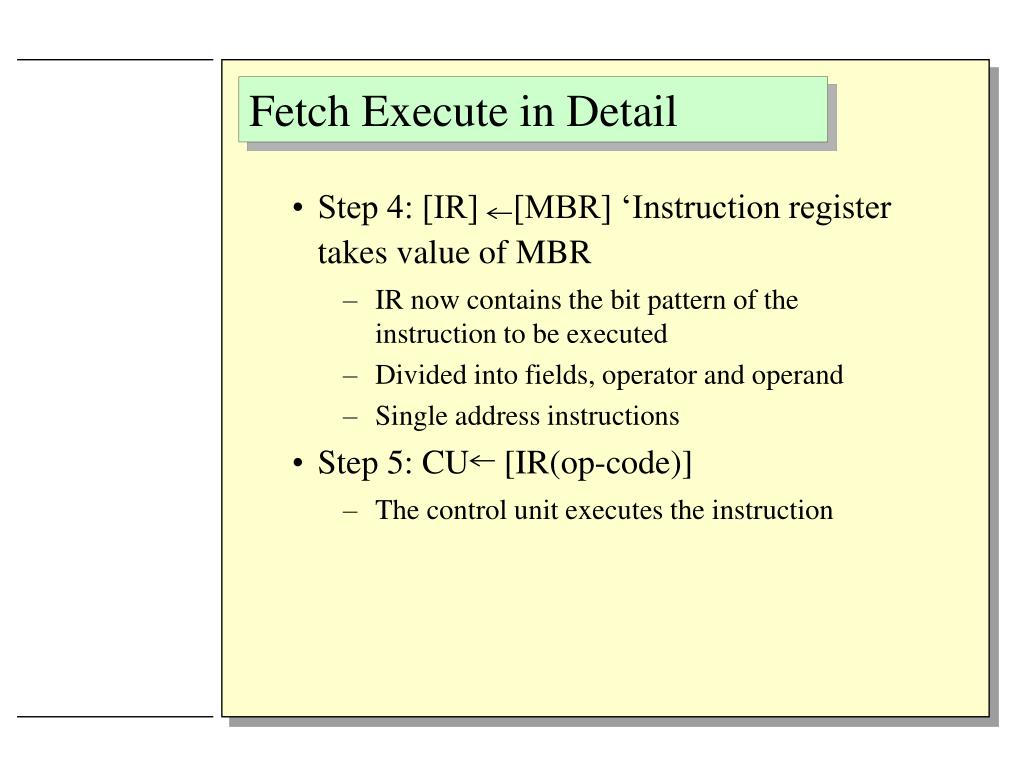

  16. Fetch Execute in Detail • Step 4: [IR] [MBR] ‘Instruction register takes value of MBR • IR now contains the bit pattern of the instruction to be executed • Divided into fields, operator and operand • Single address instructions • Step 5: CU [IR(op-code)] • The control unit executes the instruction

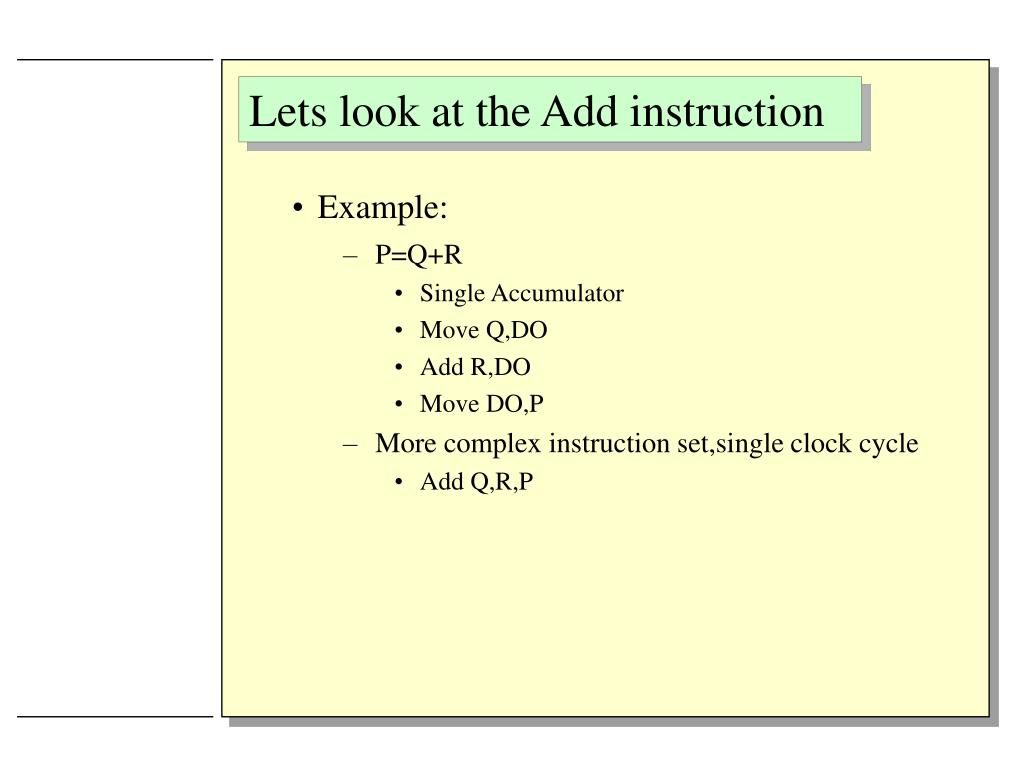

  17. Lets look at the Add instruction • Example: • P=Q+R • Single Accumulator • Move Q,DO • Add R,DO • Move DO,P • More complex instruction set,single clock cycle • Add Q,R,P

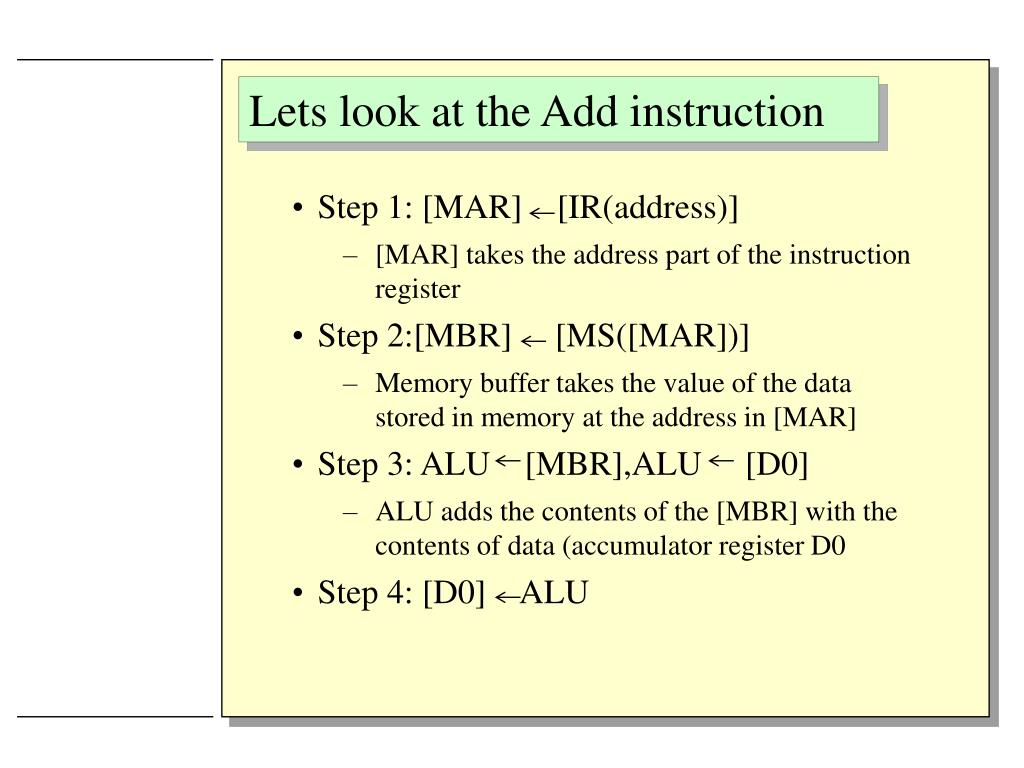

  18. Lets look at the Add instruction • Step 1: [MAR] [IR(address)] • [MAR] takes the address part of the instruction register • Step 2:[MBR] [MS([MAR])] • Memory buffer takes the value of the data stored in memory at the address in [MAR] • Step 3: ALU [MBR],ALU [D0] • ALU adds the contents of the [MBR] with the contents of data (accumulator register D0 • Step 4: [D0] ALU

  19. More on Operation • Fetch cycle is always the same • Different execution cycles depending on the instruction, one per instuction • Instruction Groups • ALU instructions • Move or copy instructions • Transfer of control

  20. Branching/Jumping • Branch forces the CPU to execute instructions out of the normal sequence • Conditional Branch allows high level contructs such as IF THEN ELSE to be executed • Based on values in the CCR • CCR- Condition Code Register • After the CPU executes an instruction, it updates the bits of the CCR • C= Carry Flag • Z=Zero Flag • N=Negative Flag • V= Overflow

  21. CCR- Condition Control Unit • CCR as we saw is connected to the Control Unit • BCC Branch on carry clear C=0 • BCS Branch on carry set C=1 • BEQ Branch on zero result Z=1 • BNE Branch on non-zero result Z=0 • BMI Branch on minus result (two’s comp) N=1 • BPL Branch on positive result (tow’s comp) N=0 • BVC Branch on overflow clear (two’s comp) V=0

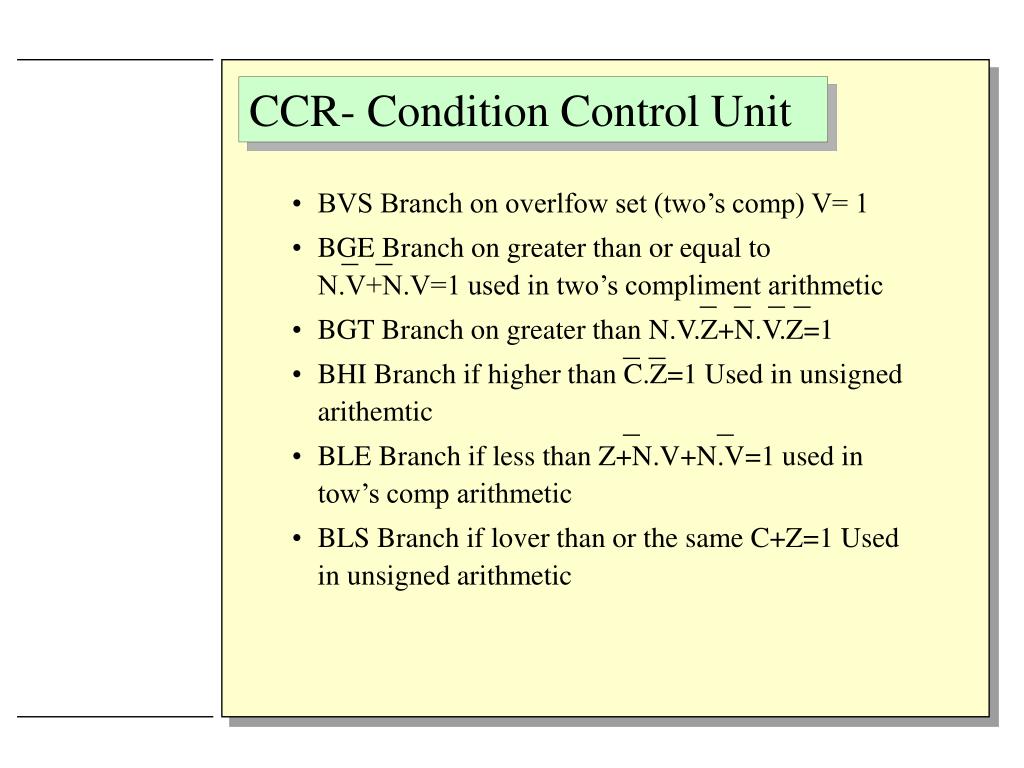

  22. CCR- Condition Control Unit • BVS Branch on overlfow set (two’s comp) V= 1 • BGE Branch on greater than or equal to N.V+N.V=1 used in two’s compliment arithmetic • BGT Branch on greater than N.V.Z+N.V.Z=1 • BHI Branch if higher than C.Z=1 Used in unsigned arithemtic • BLE Branch if less than Z+N.V+N.V=1 used in tow’s comp arithmetic • BLS Branch if lover than or the same C+Z=1 Used in unsigned arithmetic

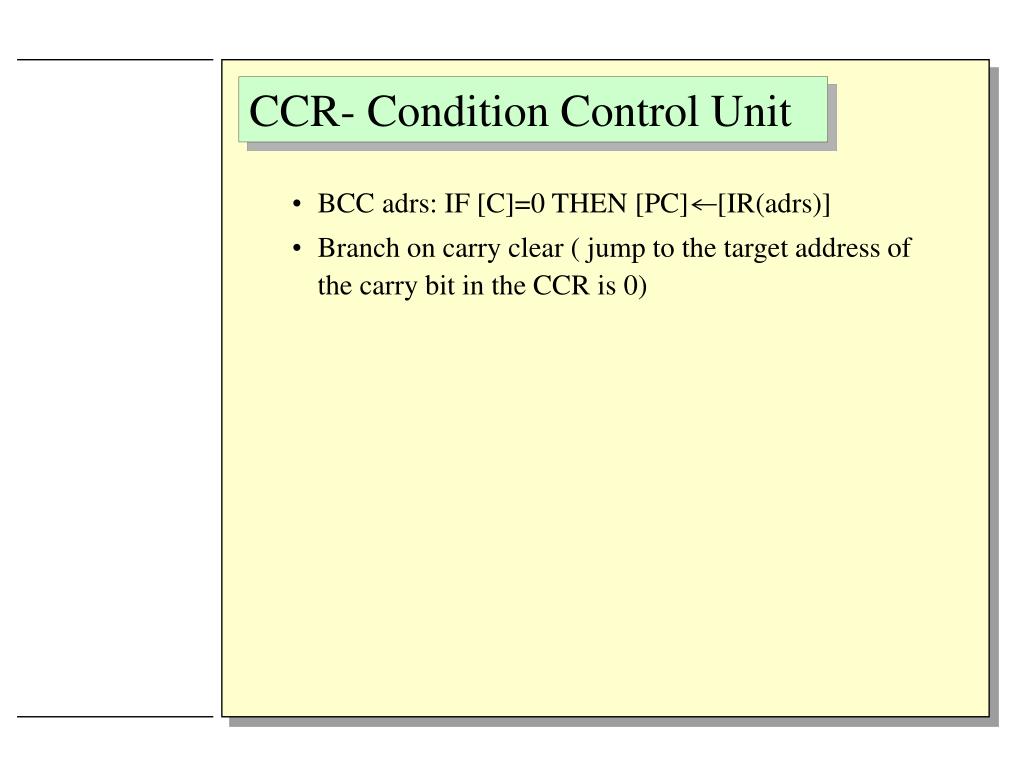

  23. CCR- Condition Control Unit • BCC adrs: IF [C]=0 THEN [PC] [IR(adrs)] • Branch on carry clear ( jump to the target address of the carry bit in the CCR is 0)
