    1. Unit 2 Reviews on Logic Elements Department of Communication Engineering, NCTU

    2. 2.1 Decoders and Encoders Department of Communication Engineering, NCTU

    3. 3-to-8 line decoder • The i th output is 1 if the input binary value is equal to i Department of Communication Engineering, NCTU

    4. 4-to-10 line decoder Department of Communication Engineering, NCTU

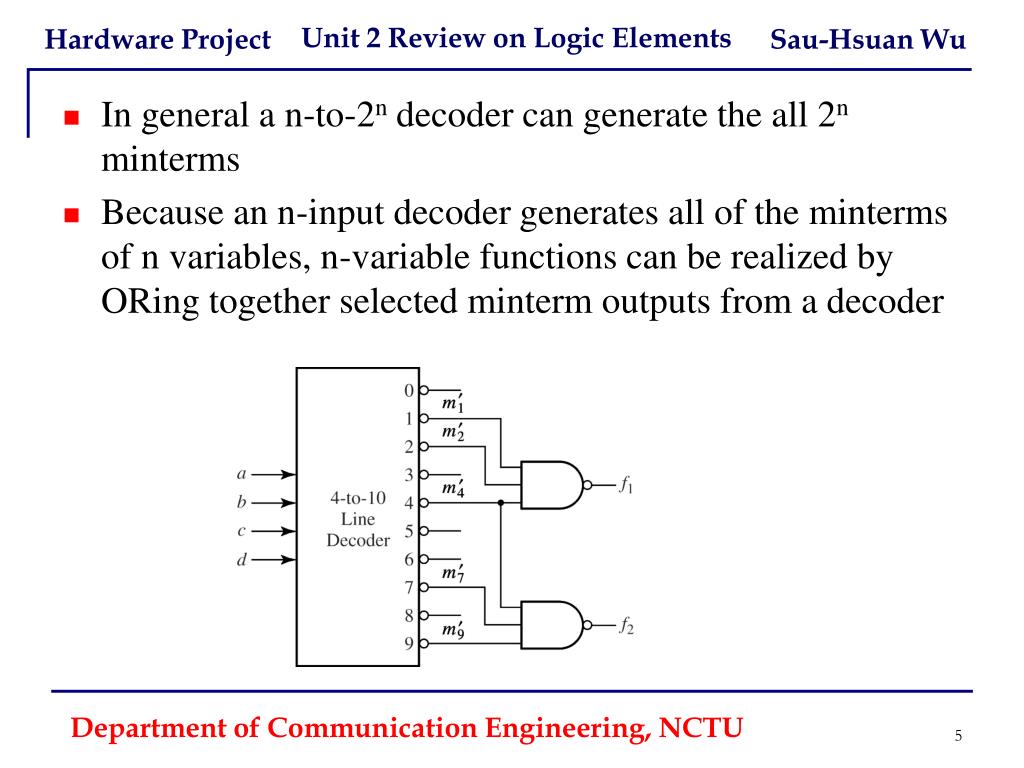

    5. In general a n-to-2n decoder can generate the all 2n minterms • Because an n-input decoder generates all of the minterms of n variables, n-variable functions can be realized by ORing together selected minterm outputs from a decoder Department of Communication Engineering, NCTU

    6. An encoder performs the inverse function of a decoder • E.g. 8-to-3 priority encoder • If more that one input is 1, the highest number determines the output • D is 1 if any input is 1, otherwise d is 0 Department of Communication Engineering, NCTU

    7. 2.2 Register and Register Transfers Department of Communication Engineering, NCTU

    8. A 4-bit register is composed of 4 D-type FFs which share a common clock, clear (Clr) and chip enable (CE) Department of Communication Engineering, NCTU

    9. The symbol notation for a 4-bit register Department of Communication Engineering, NCTU

    10. Data are passed from one register to another. In this case, whether Ai or Bi is sent to Di depends on En Department of Communication Engineering, NCTU

    11. A 8-bit register with tri-state output enable (En), and its corresponding symbol Department of Communication Engineering, NCTU

    12. Registers use output enable (for releasing data) and chip enable (for accepting data) to transfer data on a bus Department of Communication Engineering, NCTU

    13. Accumulator : the output of adder is fed back as one of a addend Department of Communication Engineering, NCTU

    14. 2.3 Shift Registers Department of Communication Engineering, NCTU

    15. A shift register is a register whose data can be shifted right or left • A 4-bit right-shift register Department of Communication Engineering, NCTU

    16. The timing diagram of a 4-bit right shift register Department of Communication Engineering, NCTU

    17. A right-shift register with inverted rotation feedback • Two possible output patterns which depend on the initial state • This is called Johnson counter Department of Communication Engineering, NCTU

    18. 2.4 Design of Binary Counters Department of Communication Engineering, NCTU

    19. A synchronous counter is a counter whose FFs are all driven by a clock. While for a asynchronous counter, the output of FF serves as a driving clock of the next FF • A 3-bit synchronous counter implemented with T-FFs Department of Communication Engineering, NCTU

    20. Design the functions of TC , TB , and TA with a state table and a truth table • First, draw a stable which lists the present state and the next state, then draw the truth table of the functions Department of Communication Engineering, NCTU

    21. Logic minimizations with the Karnaugh map Department of Communication Engineering, NCTU

    22. For D-FFs, DA is equal to the next state of FF A. So we only need a state table for counters designed with D-FFs Department of Communication Engineering, NCTU

    23. An alternative design with D-FFs Department of Communication Engineering, NCTU

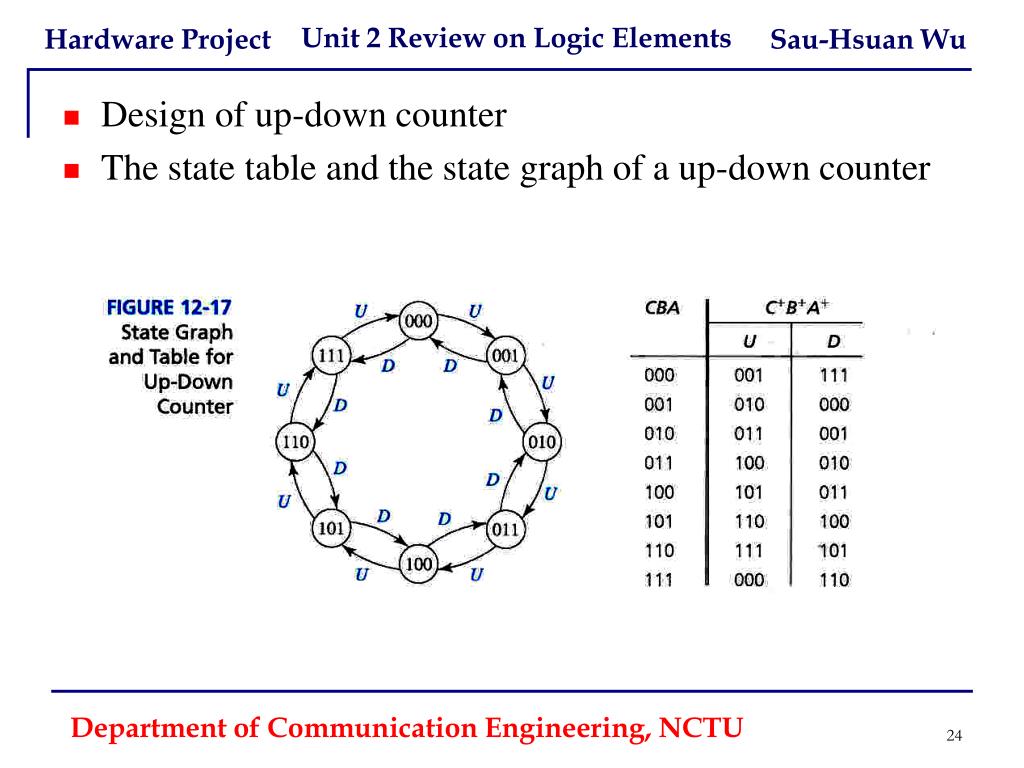

    24. Design of up-down counter • The state table and the state graph of a up-down counter Department of Communication Engineering, NCTU

    25. The logic functions of inputs • One can verify the function by setting U=0 and D=1, or vice versus. For example, U=0 and D=1 Department of Communication Engineering, NCTU

    26. A up-down counter synthesized with D-FFs Department of Communication Engineering, NCTU

    27. Design of loadable counter with count enable Department of Communication Engineering, NCTU

    28. The next-state equations Department of Communication Engineering, NCTU

    29. Design of loadable up-dn counter with count enable? • Realize this counter with GAL 22V10 • Due on the next meet Department of Communication Engineering, NCTU

    30. 2.5 Counter of Other Sequences Department of Communication Engineering, NCTU

    31. A five state counter • Define the next states of three unused states 001、101、110 as unspecified • The counter can be realized with T-FFs • T =present state’next state • List the truth table for the next states of • Use the Karnaugh map Department of Communication Engineering, NCTU

    32. Notice that T = Q+  Q • So, first design Q+ = f (A,B,C) • Use Karnaugh map for Q=0 and Q=1, respectively • For Q=0, have T = Q+ • For Q=1, have T = (Q+ )’ Department of Communication Engineering, NCTU

    33. Department of Communication Engineering, NCTU

    34. After simplification • Notice that even if the next state of 001,101 and110 are not specified at the beginning, they are assigned certain values implicitly while being used as the don’t care conditions for circuit simplifications Department of Communication Engineering, NCTU

    35. Circuit realization Department of Communication Engineering, NCTU

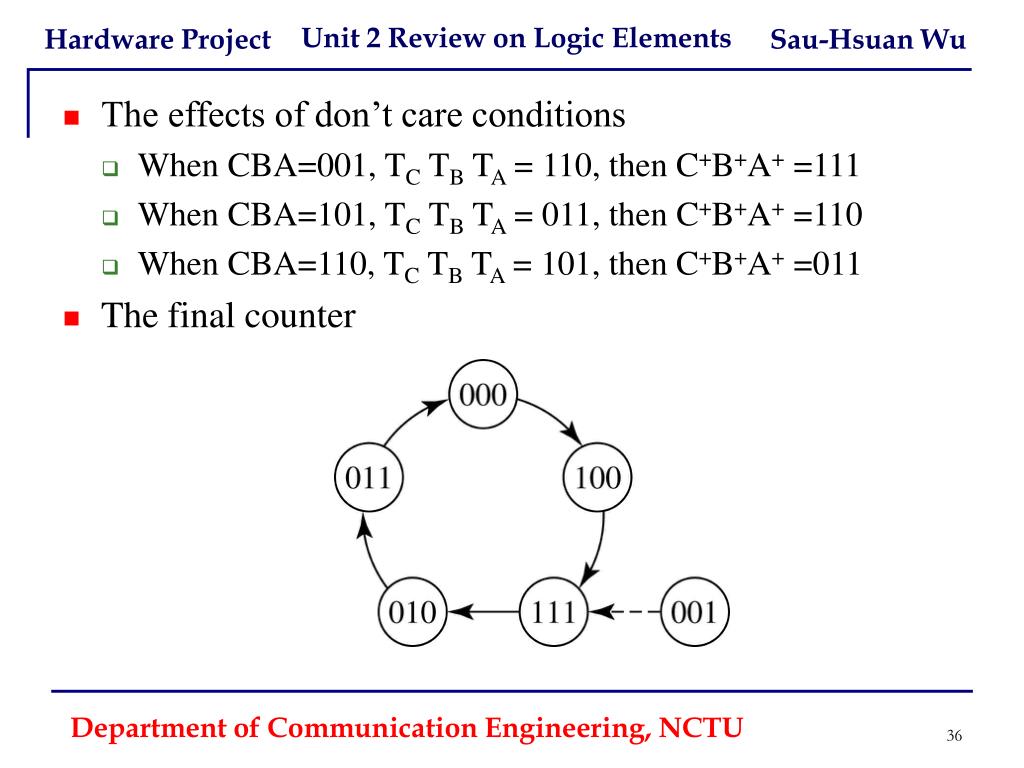

    36. The effects of don’t care conditions • When CBA=001, TC TB TA = 110, then C+B+A+ =111 • When CBA=101, TC TB TA = 011, then C+B+A+ =110 • When CBA=110, TC TB TA = 101, then C+B+A+ =011 • The final counter Department of Communication Engineering, NCTU

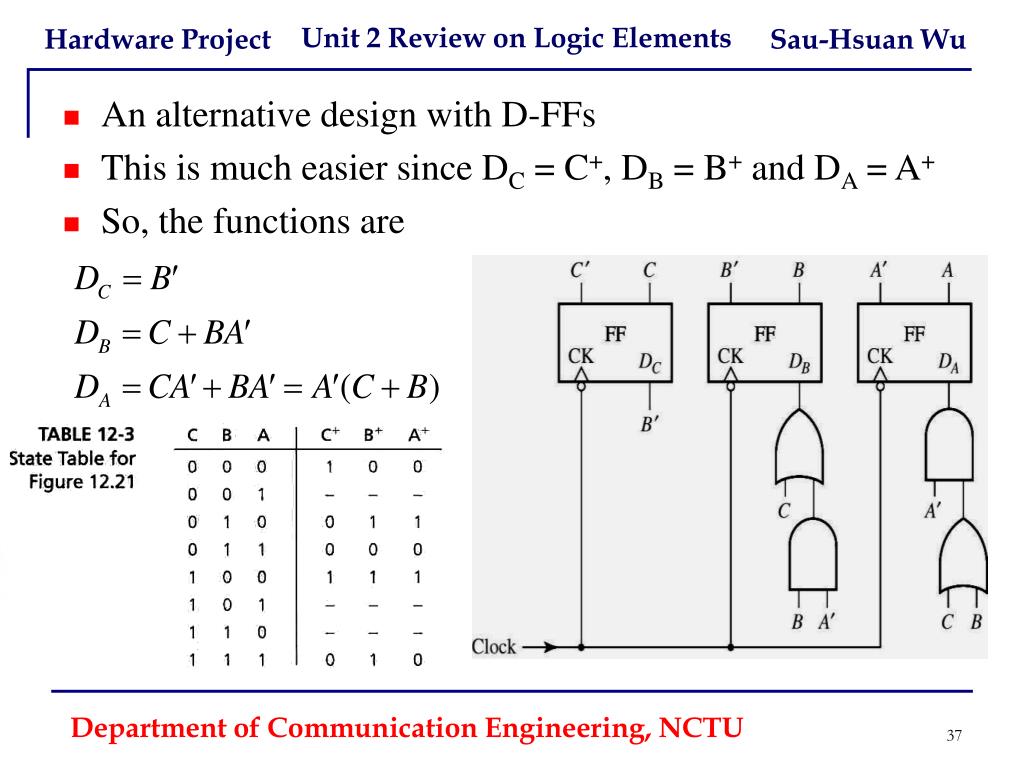

    37. An alternative design with D-FFs • This is much easier since DC = C+, DB = B+ and DA = A+ • So, the functions are Department of Communication Engineering, NCTU

    38. 2.6 Derivation of Flip-Flop Input Equations Department of Communication Engineering, NCTU

    39. In counter design, we mainly derive the input equations of FFs. This can be done either with the true table of the present states and the next states, or with the next-state map Department of Communication Engineering, NCTU

    40. Department of Communication Engineering, NCTU

    41. Department of Communication Engineering, NCTU

    42. 2.7 Programmable Logic Array Department of Communication Engineering, NCTU

    43. A programmable logic array (PLA) with n inputs and m outputs is a device that can realize m functions of n variables by means of sum-of-products. • A PLA consists of an AND array with n input lines and a OR array with m output lines Department of Communication Engineering, NCTU

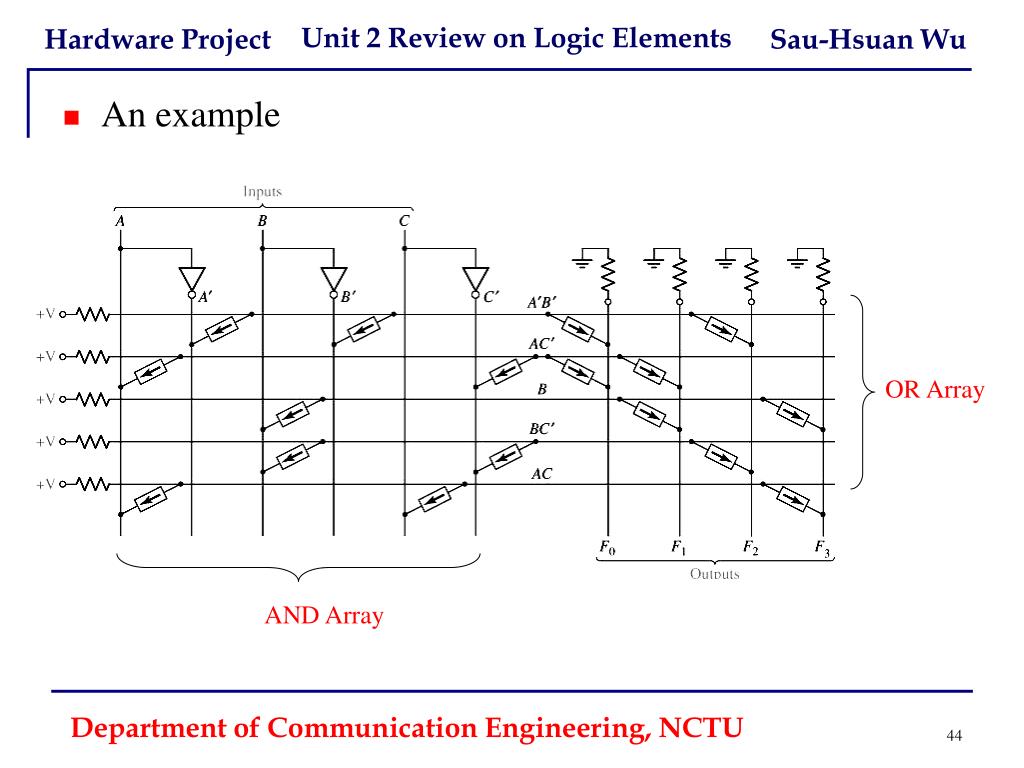

    44. An example OR Array AND Array Department of Communication Engineering, NCTU

    45. 2.8 Programmable Array Logic Department of Communication Engineering, NCTU

    46. Different PLA, the product term of a programmable array logic (PAL) can not be shared by multiple OR gates. • Besides, the number of inputs of the OR is fixed and limited, e.g. Department of Communication Engineering, NCTU

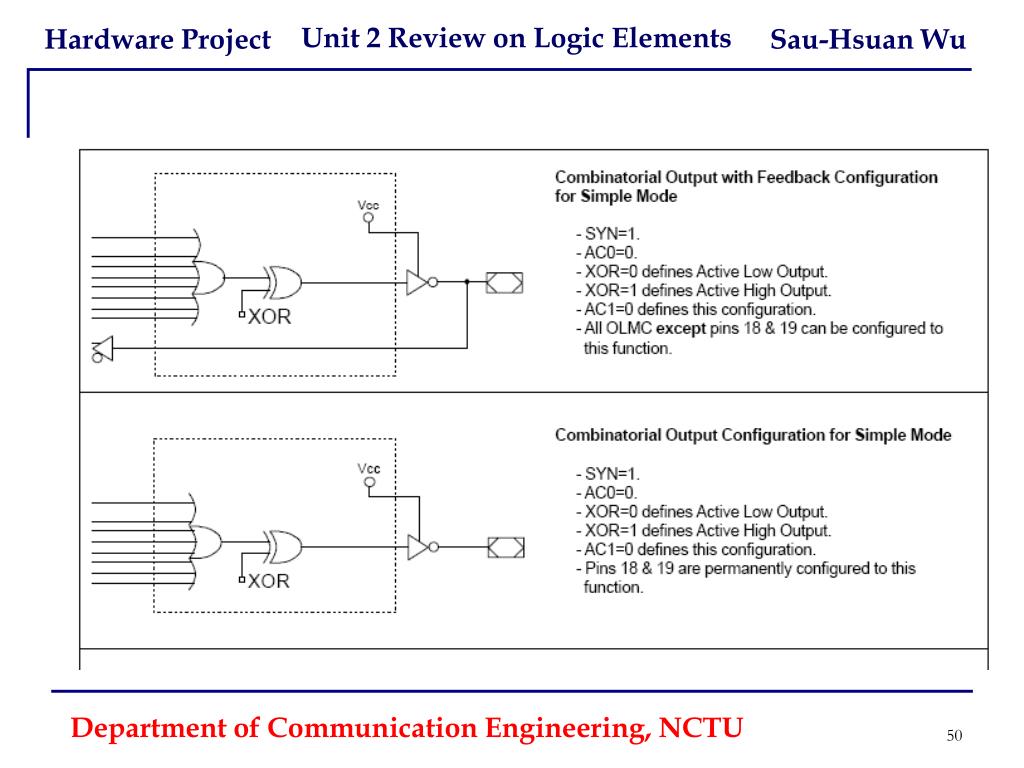

    47. A commercial device : GAL20V8B Department of Communication Engineering, NCTU

    48. Department of Communication Engineering, NCTU

    49. Department of Communication Engineering, NCTU

    50. Department of Communication Engineering, NCTU
