slide1

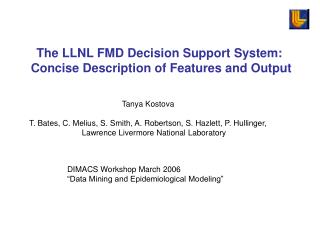

The LLNL FMD Decision Support System:

Concise Description of Features and Output

Tanya Kostova

T. Bates, C. Melius, S. Smith, A. Robertson, S. Hazlett, P. Hullinger, Lawrence Livermore National Laboratory

DIMACS Workshop March 2006

“Data Mining and Epidemiological Modeling”

slide2

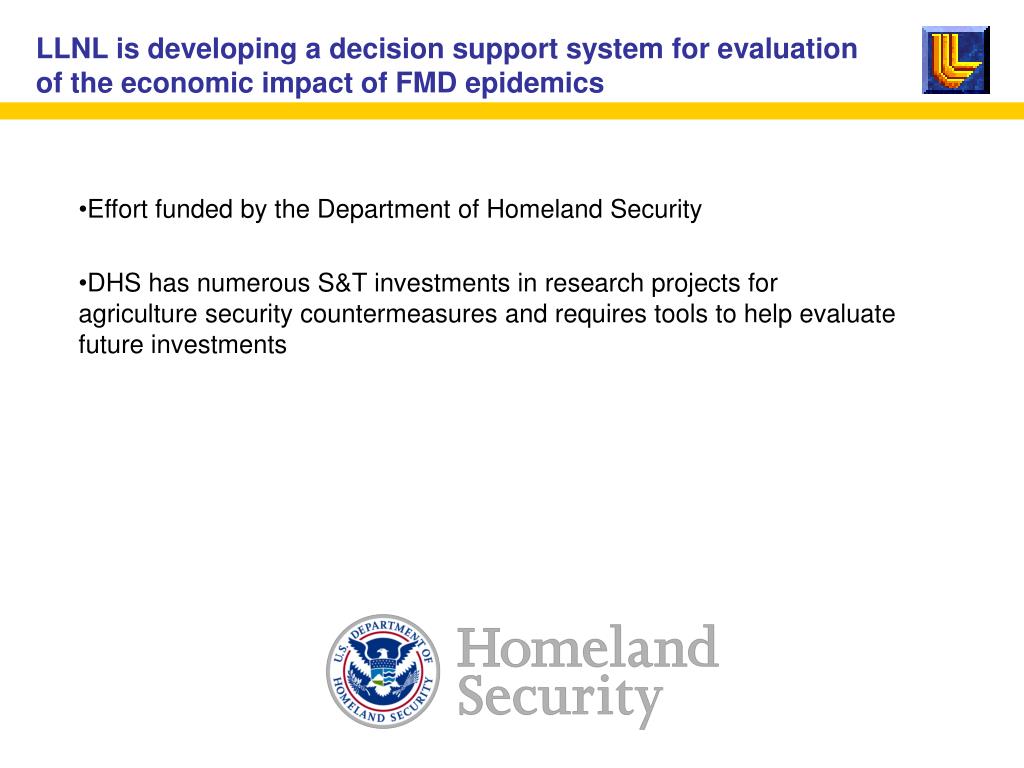

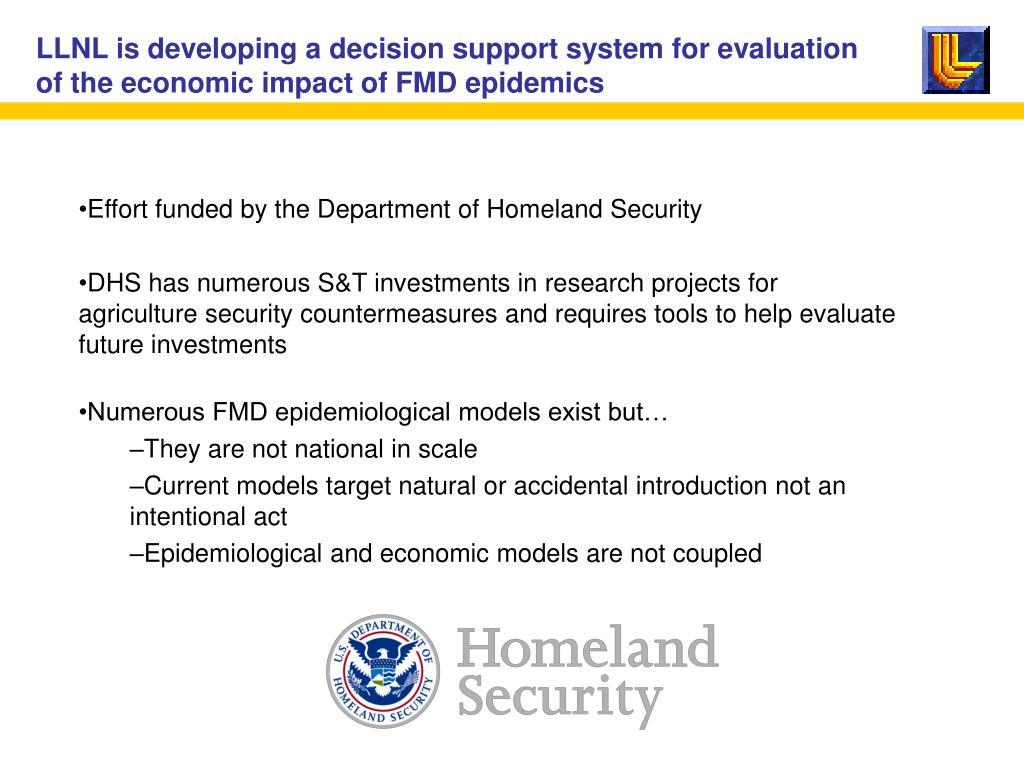

LLNL is developing a decision support system for evaluation of the economic impact of FMD epidemics

  • Effort funded by the Department of Homeland Security
  • DHS has numerous S&T investments in research projects for agriculture security countermeasures and requires tools to help evaluate future investments
slide3

LLNL is developing a decision support system for evaluation of the economic impact of FMD epidemics

  • Effort funded by the Department of Homeland Security
  • DHS has numerous S&T investments in research projects for agriculture security countermeasures and requires tools to help evaluate future investments
  • Numerous FMD epidemiological models exist but…
    • They are not national in scale
    • Current models target natural or accidental introduction not an intentional act
    • Epidemiological and economic models are not coupled
slide4

GENERAL FEATURES OF THE EPIDEMIC MODEL

Agent-based spatially-explicit discrete-time computational model

Time progresses in increments of 1 unit (=1 day)

slide5

GENERAL FEATURES

Agent-based spatially-explicit discrete-time computational model

Time progresses in increments of 1 unit (=1 day)

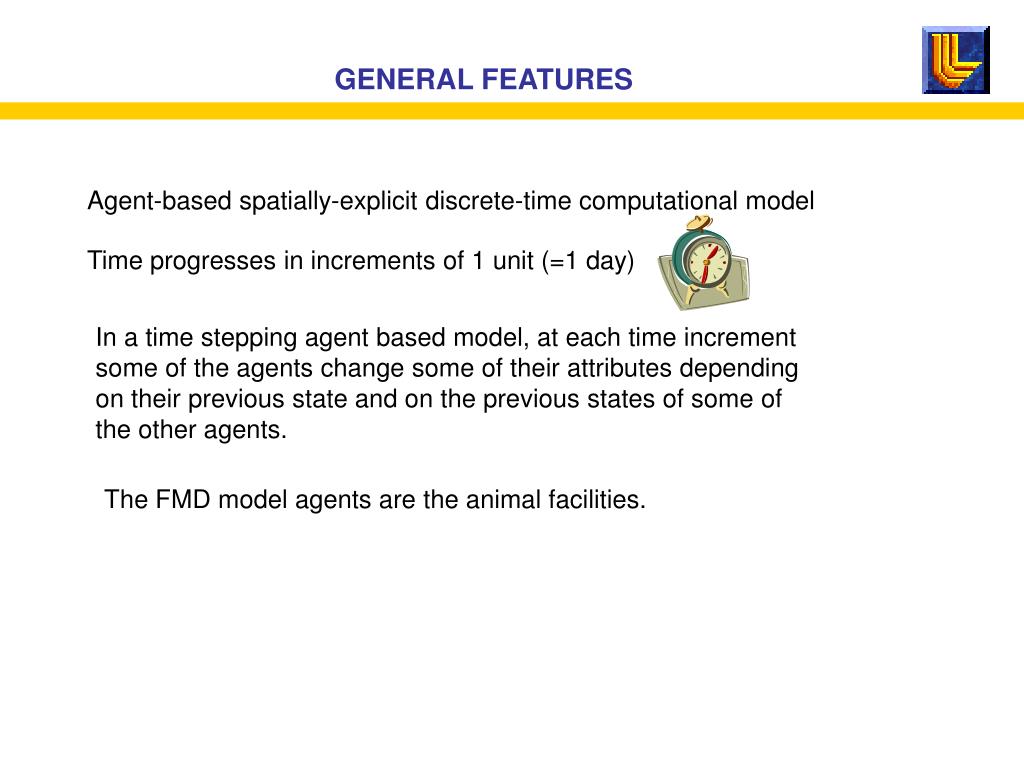

In a time stepping agent based model, at each time increment some of the agents change some of their attributes depending on their previous state and on the previous states of some of the other agents.

slide6

GENERAL FEATURES

Agent-based spatially-explicit discrete-time computational model

Time progresses in increments of 1 unit (=1 day)

In a time stepping agent based model, at each time increment some of the agents change some of their attributes depending on their previous state and on the previous states of some of the other agents.

The FMD model agents are the animal facilities.

slide7

GENERAL FEATURES

Agent-based spatially-explicit discrete-time computational model

Time progresses in increments of 1 unit (=1 day)

In a time stepping agent based model, at each time increment some of the agents change some of their attributes depending on their previous state and on the previous states of some of the other agents.

The FMD model agents are the animal facilities.

Facilities are groups of animals managed in a specific manner.

Farms, Markets, Feedlots, Slaughter houses …

slide8

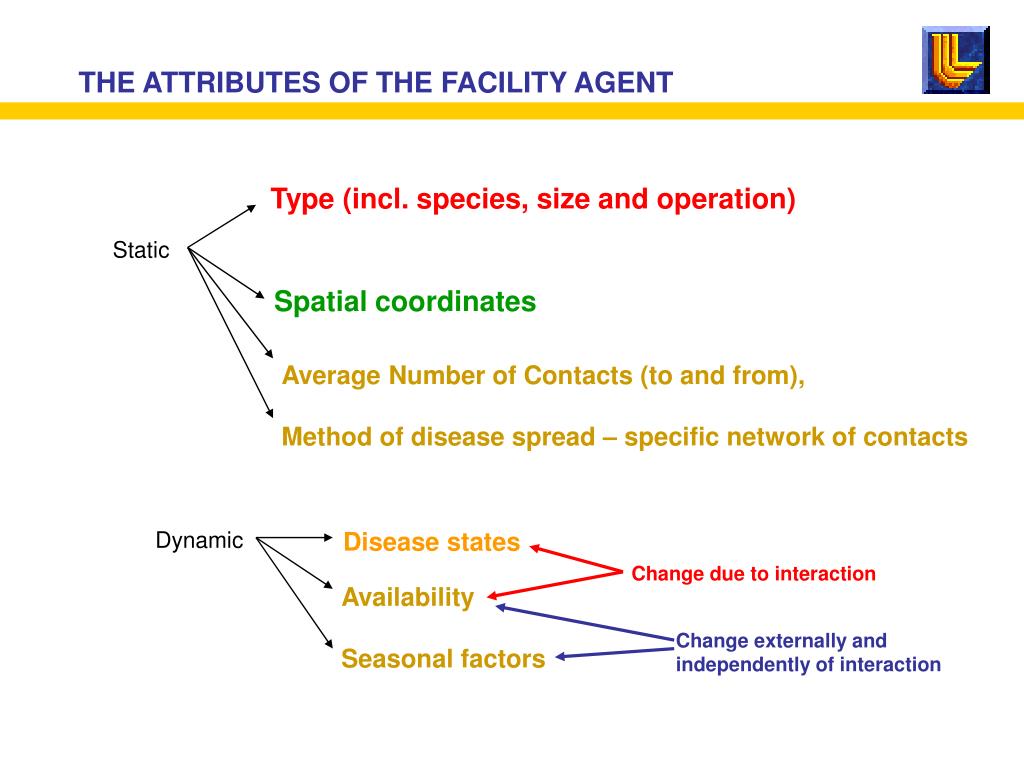

THE ATTRIBUTES OF THE FACILITY AGENT

Type (incl. species, size and operation)

Spatial coordinates

Static

Average Number of Contacts (to and from),

Method of disease spread – specific network of contacts

Dynamic

Disease states

Change due to interaction

Availability

Seasonal factors

Change externally and independently of interaction

slide9

THE ATTRIBUTES OF THE FACILITY AGENT

Type

The current model version deals with 34 types of animal facilities:

Beef(B), Dairy(S), Dairy(M), Dairy(L), Dairy(B), Grazing(S), Grazing(L), Feedlot(S), Feedlot(L), Stocker(S), Stocker(L)

Swine(B), SwineFWean(S), SwineFWean(L), SwineFinish(S), SwineFinish(L), SwineNursery(S),

SwineNursery(L), SwineFFeeder(S), SwineFFeeder(L), SwineFarFin(S), SwineFarFin(L),

Sheep(S), Sheep(L), Sheep(B),

Goats, Goats(B),

Market, Market(Cattle), Market(Swine), Market(Other), Market(L), Market(C-L), DCalfHeifer(L)

slide10

Beef (S)

Swine (S)

Dairy (S)

THE ATTRIBUTES OF THE FACILITY AGENT

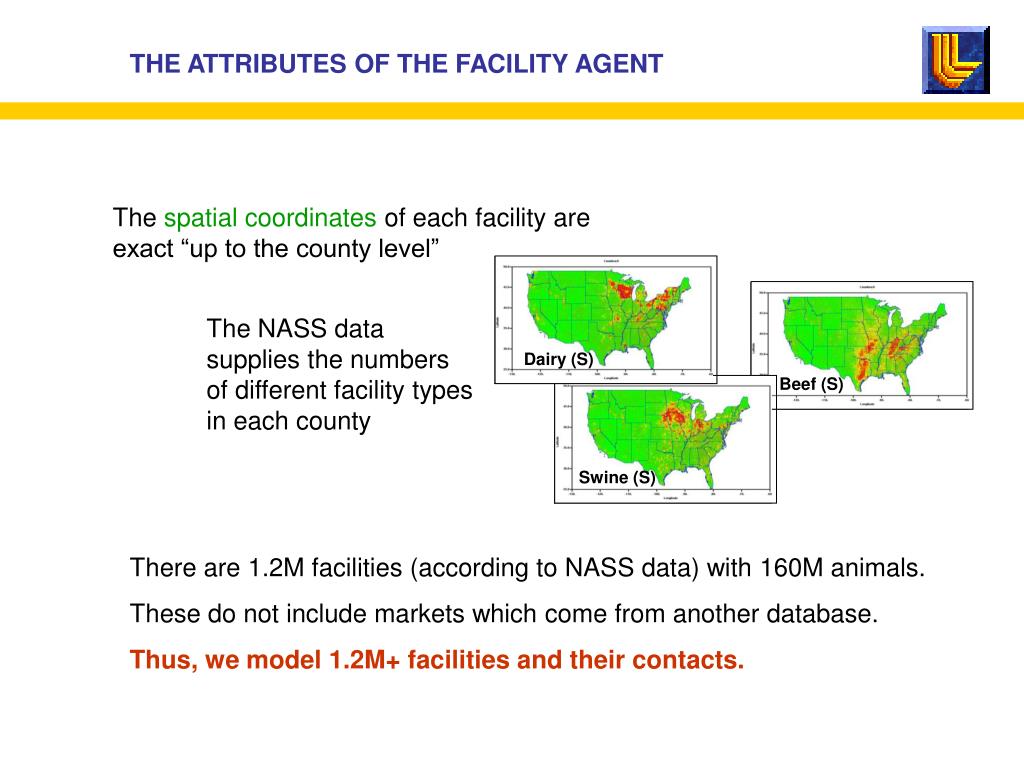

The spatial coordinates of each facility are

exact “up to the county level”

The NASS data

supplies the numbers

of different facility types

in each county

There are 1.2M facilities (according to NASS data) with 160M animals.

These do not include markets which come from another database.

Thus, we model 1.2M+ facilities and their contacts.

slide11

THE ATTRIBUTES OF THE FACILITY AGENT

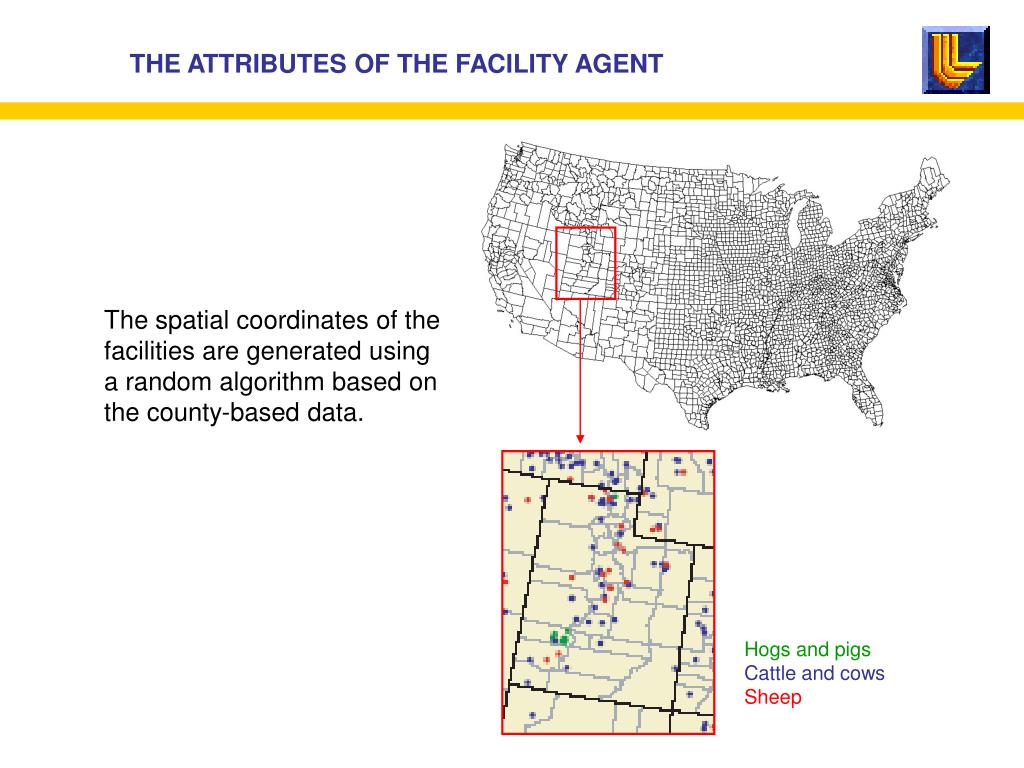

The spatial coordinates of the facilities are generated using a random algorithm based on the county-based data.

Hogs and pigs

Cattle and cows

Sheep

slide12

THE ATTRIBUTES OF THE FACILITY AGENT

Type (incl. species, size and operation)

Spatial coordinates

Static

Average Number of Contacts (to and from),

Method of disease spread – specific network of contacts

Dynamic

Disease states

Change due to interaction

Availability

Seasonal factors

Change externally and independently of interaction

slide13

THE ATTRIBUTES OF THE FACILITY AGENT

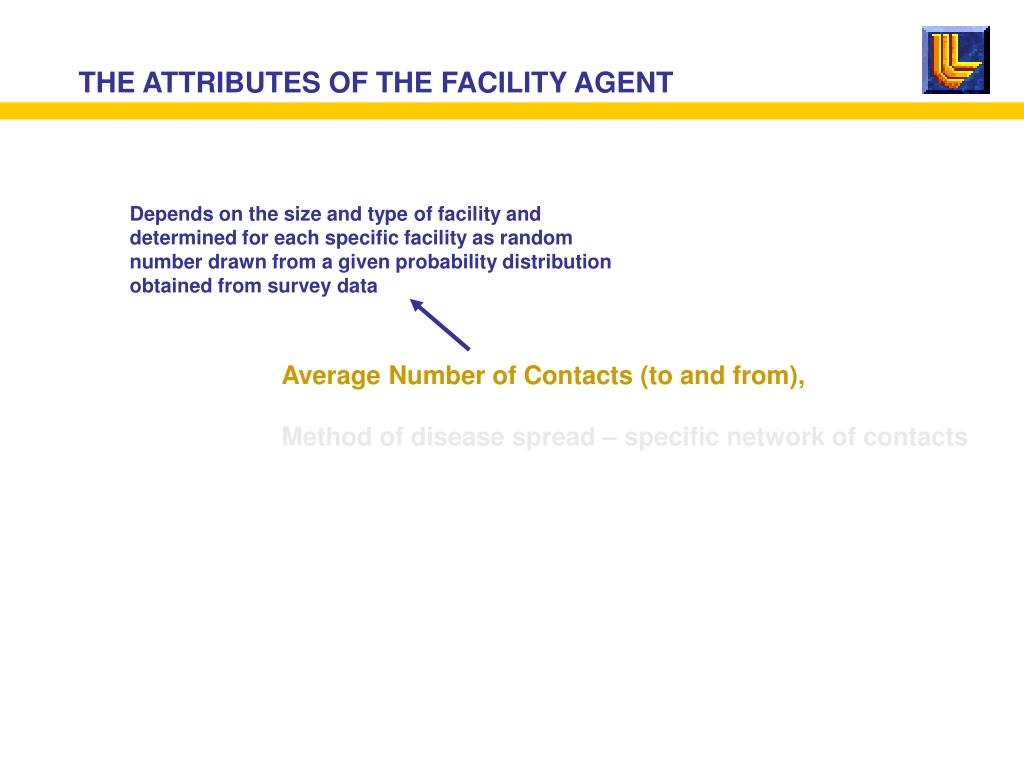

Depends on the size and type of facility and determined for each specific facility as random number drawn from a given probability distribution obtained from survey data

Average Number of Contacts (to and from),

Method of disease spread – specific network of contacts

slide14

THE ATTRIBUTES OF THE FACILITY AGENT

Depends on the size and type of facility and determined for each specific facility as random number drawn from a given probability distribution obtained from survey data

Average Number of Contacts (to and from)

Method of disease spread – specific network of contacts

Direct (regional and inter-state)

Indirect (high risk and low risk)

slide15

THE ATTRIBUTES OF THE FACILITY AGENT

Type (incl. species, size and operation)

Spatial coordinates

Static

Average Number of Contacts (to and from),

Method of disease spread – specific network of contacts

Dynamic

Disease states

Change due to interaction

Availability

Seasonal factors

Change externally and independently of interaction

slide16

THE ATTRIBUTES OF THE FACILITY AGENT

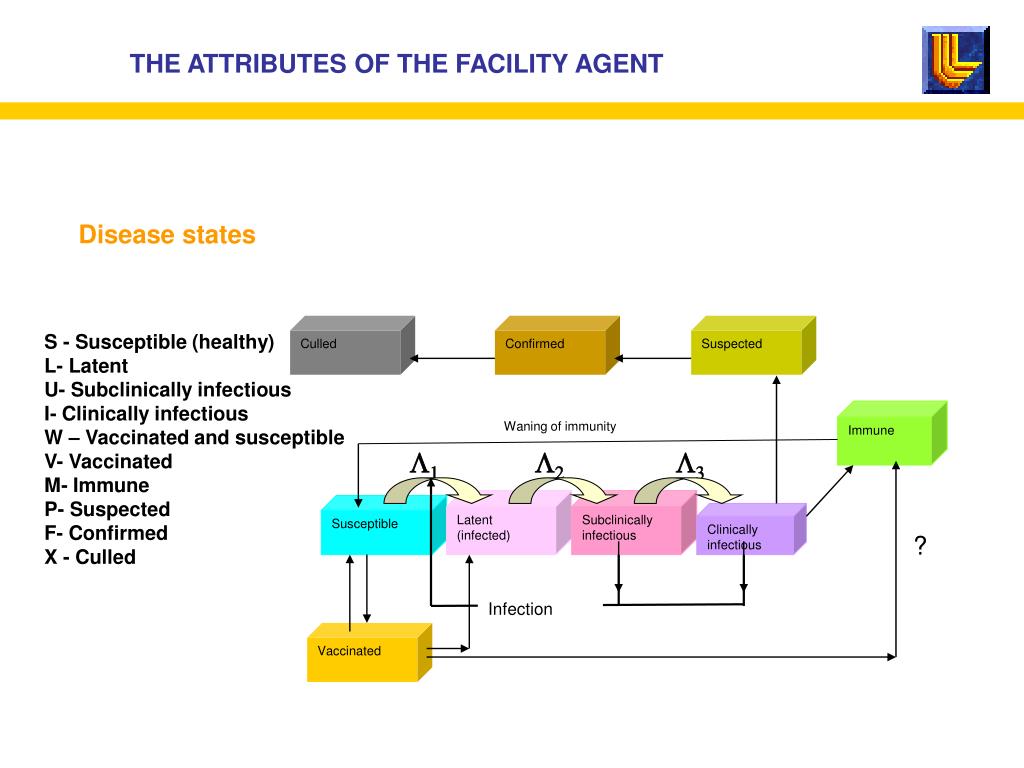

Disease states

Culled

Confirmed

Suspected

S - Susceptible (healthy)

L- Latent

U- Subclinically infectious

I- Clinically infectious

W – Vaccinated and susceptible

V- Vaccinated

M- Immune

P- Suspected

F- Confirmed

X - Culled

Immune

Waning of immunity

L1

L2

L3

L

Latent

(infected)

Subclinically infectious

Susceptible

Clinically infectious

?

Infection

Vaccinated

slide17

THE ATTRIBUTES OF THE FACILITY AGENT

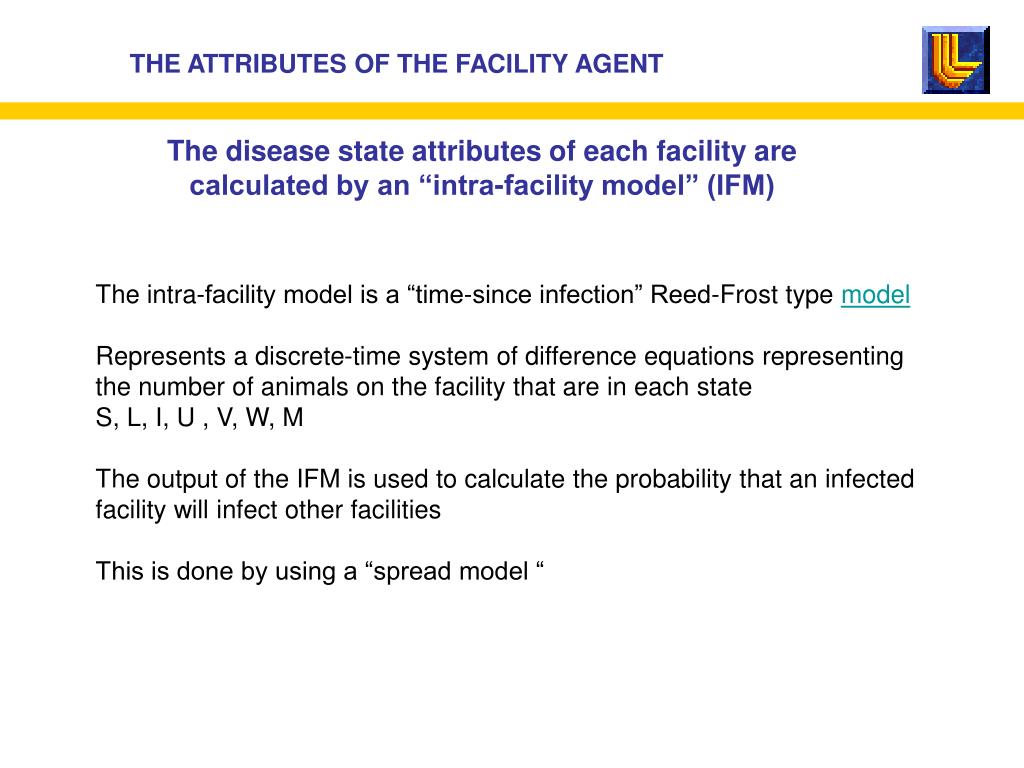

The disease state attributes of each facility are calculated by an “intra-facility model” (IFM)

The intra-facility model is a “time-since infection” Reed-Frost type model

Represents a discrete-time system of difference equations representing the number of animals on the facility that are in each state

S, L, I, U , V, W, M

slide18

THE ATTRIBUTES OF THE FACILITY AGENT

The disease state attributes of each facility are calculated by an “intra-facility model” (IFM)

The intra-facility model is a “time-since infection” Reed-Frost type model

Represents a discrete-time system of difference equations representing the number of animals on the facility that are in each state

S, L, I, U , V, W, M

The output of the IFM is used to calculate the probability that an infected facility will infect other facilities

This is done by using a “spread model “

slide19

THE ATTRIBUTES OF THE FACILITY AGENT

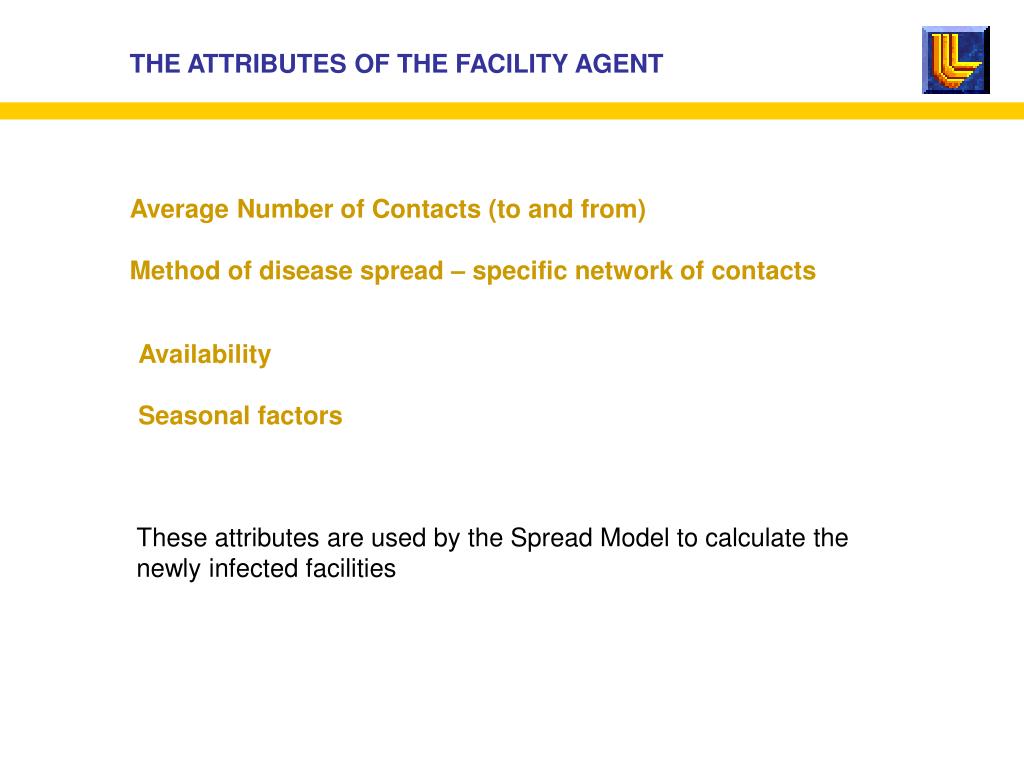

Average Number of Contacts (to and from)

Method of disease spread – specific network of contacts

Availability

Seasonal factors

These attributes are used by the Spread Model to calculate the newly infected facilities

slide20

The Spread Model calculates the newly infected facilities

Infected agents can spread the epidemic via various methods along method-specific networks

Examples of methods

- direct (movement of animals)

- indirect: personnel movements;

- inter-state direct movements

“Truck routes”

network

For each method, the infection can be spread within a predefined set of facilities specific to the method.

Thus, an infected facility will spread the infection to the facilities within the networks to which it belongs.

“Vet routes”

network

not infected

infected

slide21

The epidemic spread is modeled by a random process

Uses information about the Average Number of

adequate Contacts ANC of the infected facility by each

of the methods

The daily number of adequate contactsRANCmiis obtained from a Poisson process with mean ANC

STEP

1

A contact originating from a facility that can cause infection is an adequate contact.

An adequate contact that actually infects a target facility is an effective contact.

For each method of infection m

For each infected facility i:

- A probability density function Pmi(j)

defined on each of the nodes j of the

network Smi of m and i is calculated

- For each node j ofSmi the probability Cmj

is calculated

STEP

2

Pmi(j)is the probability that facility j will get a contact with facility i by method m. Distance dependent

Cmjis the probability that an adequate contact to facility j will cause infection.

Pmi(j) is used in a roulette algorithm to determine which facilities receive an adequate contact

Cmjis used to determine which of the contacted facilities become infected

RANCmi, Pmi(j) and Cmj are used to trace back the cause of infection of j

STEP

3

slide22

The Spread Model involves factors sampled from PDFs

Pmi(j) depends on

- the average number of m-type contacts received by j

- size of the facility j

- seasonal factors

- control measure factors

- distance between i and j

- frequency of contacts between i and j

Cmj depends on

- the fraction of vaccinated animals on the facility

- control measure factors

- probability that a contact of type m would cause infection

Many of these factors are uncertain or involve variability and are

sampled from probability density functions.

slide23

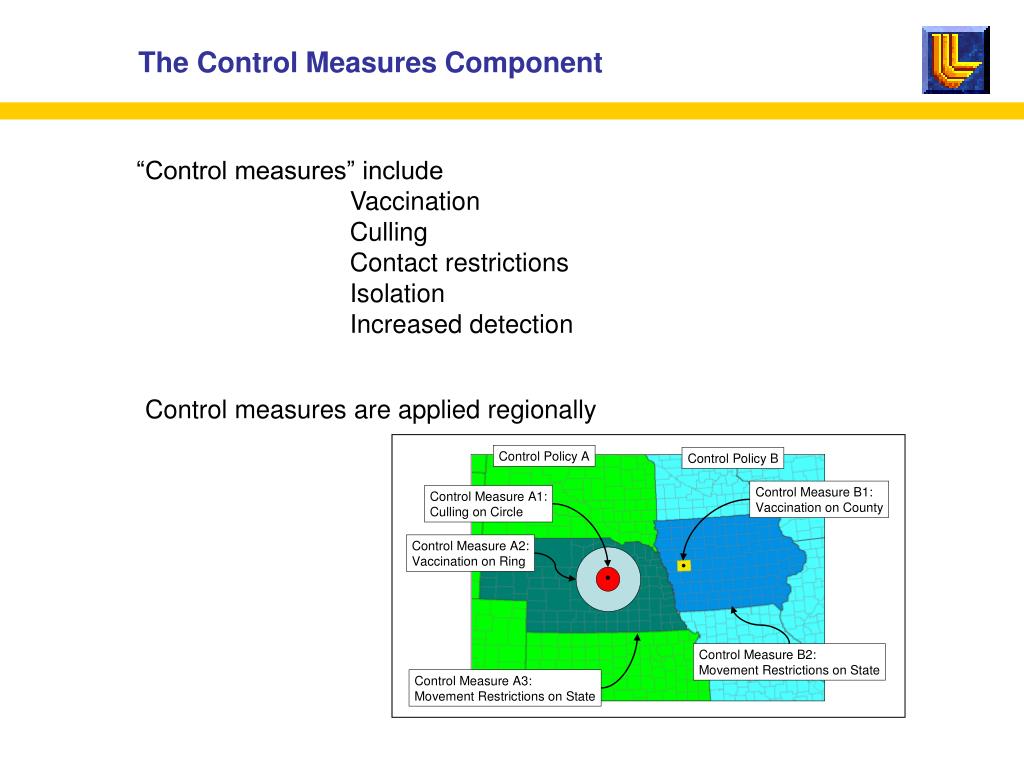

The Control Measures Component

“Control measures” include

Vaccination

Culling

Contact restrictions

Isolation

Increased detection

Control measures are applied regionally

slide25

AGGREGATION ALGORITHMS

Our model is of US - national scale; however to keep calculations to a minimum:

- We do not calculate all facilities at all times.

- Only facilities in infected and their neighboring counties are initialized

- Intra-facility model calculated only for infected facilities

- Counties and states that have not been yet infected are considered as aggregated entities; if a contact happens to in such a county, it gets disaggregated.

slide26

OUTPUTS

A simulation is made of N MC runs

NO(102) - O(103)

slide27

OUTPUTS

A simulation is made of N MC runs

NO(102) - O(103)

A run implements M time steps

MO(102), usually 200-330 days or

until a certain criterion is met (epidemic comes to end)

slide28

OUTPUTS

A simulation is made of N MC runs

NO(102) - O(103)

A run implements M time steps

MO(102), usually 200-330 days or

until a certain criterion is met (epidemic comes to end)

At each time step we keep track of the number P of facilities that are currently

involved in the epidemic (i.e. the ones that are infected or in the neighborhoods of infected facilities.

PO(102) - O(105) ???

slide29

OUTPUTS

A simulation is made of N MC runs

NO(102) - O(103)

A run implements M time steps

MO(102), usually 200-330 days or

until a certain criterion is met (epidemic comes to end)

At each time step we keep track of the number P of facilities that are currently

involved in the epidemic (i.e. the ones that are infected or in the neighborhoods of infected facilities.

PO(102) - O(105) ???

For each facility the important data (current states, costs, trace-back facilities) is O(101)

slide30

OUTPUTS

O(1010)

Thus, the total output of a simulation could be in the range of or more.

Naturally, we do not keep all this output although what we do not keep may be important for the analysis

What do we keep currently?

slide31

OUTPUTS

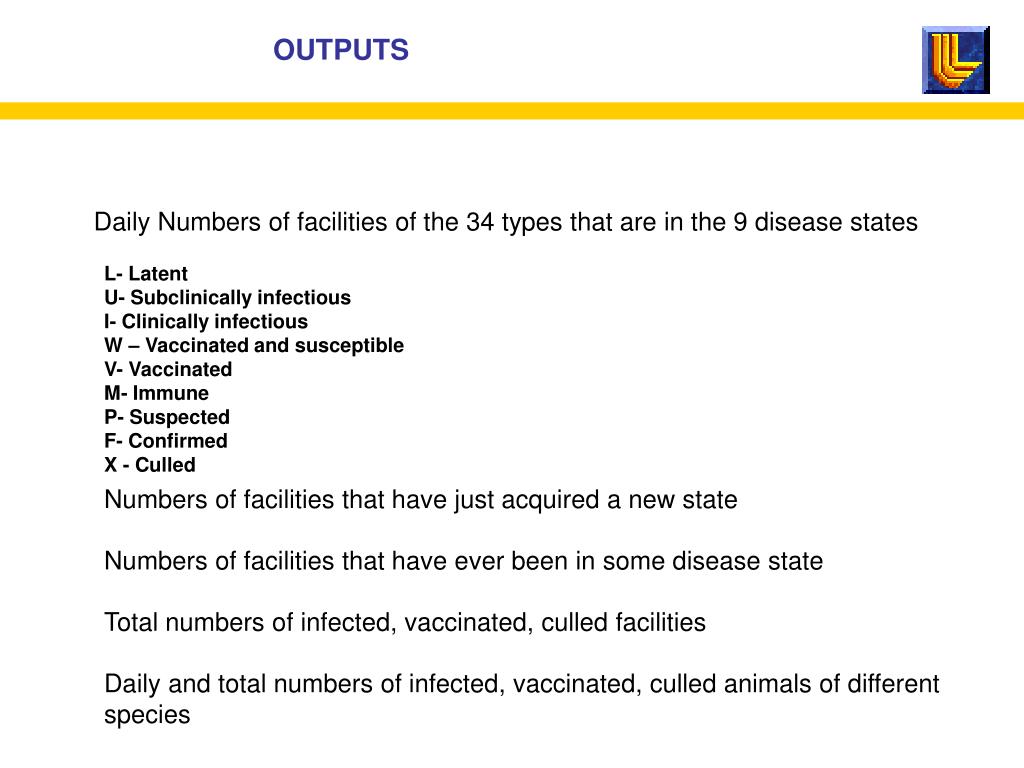

Daily Numbers of facilities of the 34 types that are in the 9 disease states

L- Latent

U- Subclinically infectious

I- Clinically infectious

W – Vaccinated and susceptible

V- Vaccinated

M- Immune

P- Suspected

F- Confirmed

X - Culled

Numbers of facilities that have just acquired a new state

Numbers of facilities that have ever been in some disease state

Total numbers of infected, vaccinated, culled facilities

Daily and total numbers of infected, vaccinated, culled animals of different species

slide32

OUTPUTS

Durations:

Lengths of time for which the 34 types of facilities were in some disease state

Duration of total epidemic

Costs associated with epidemic and control measures

slide33

Duration of epidemic

Cumulative Frequency

Duration

Days after index herd infected

OUTPUTS

Currently, output is in Excel spreadsheet format and is used for visualization

As well as to calculate statistics (means, quantiles, skewness, kurtosis, etc.) of MC output.

slide34

Epidemic model outputs and data mining

Question:

How can modern data mining tools help in the analysis of output data generated by a large-scale epidemic model?

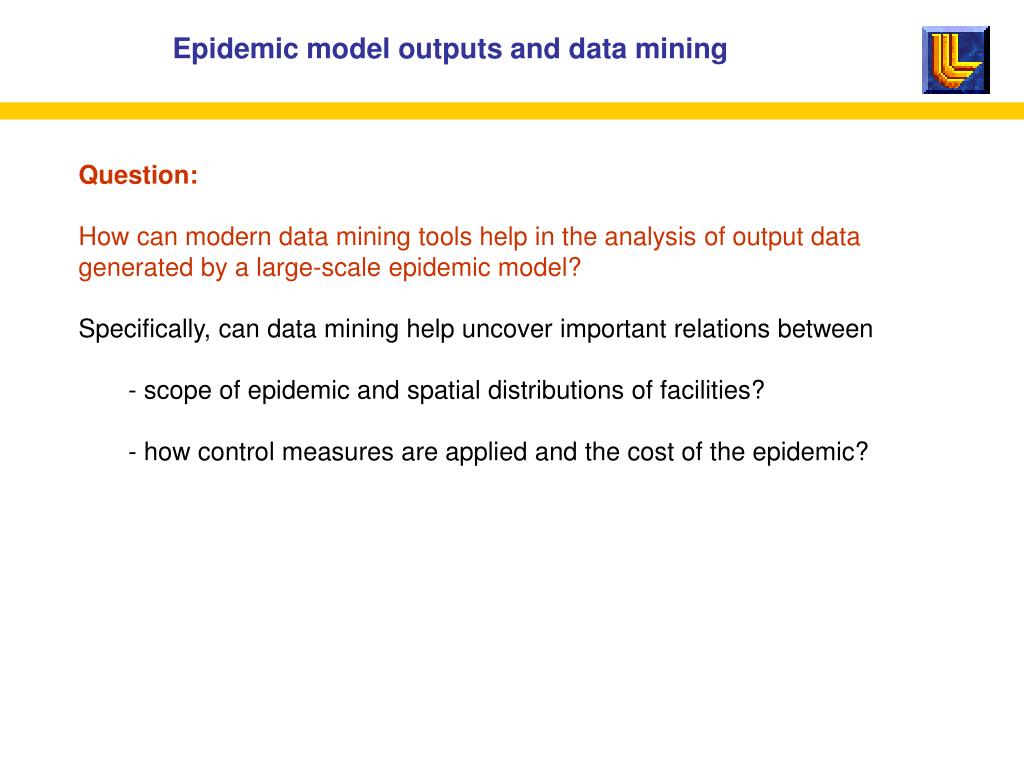

slide35

Epidemic model outputs and data mining

Question:

How can modern data mining tools help in the analysis of output data generated by a large-scale epidemic model?

Specifically, can data mining help uncover important relations between

- scope of epidemic and spatial distributions of facilities?

- how control measures are applied and the cost of the epidemic?

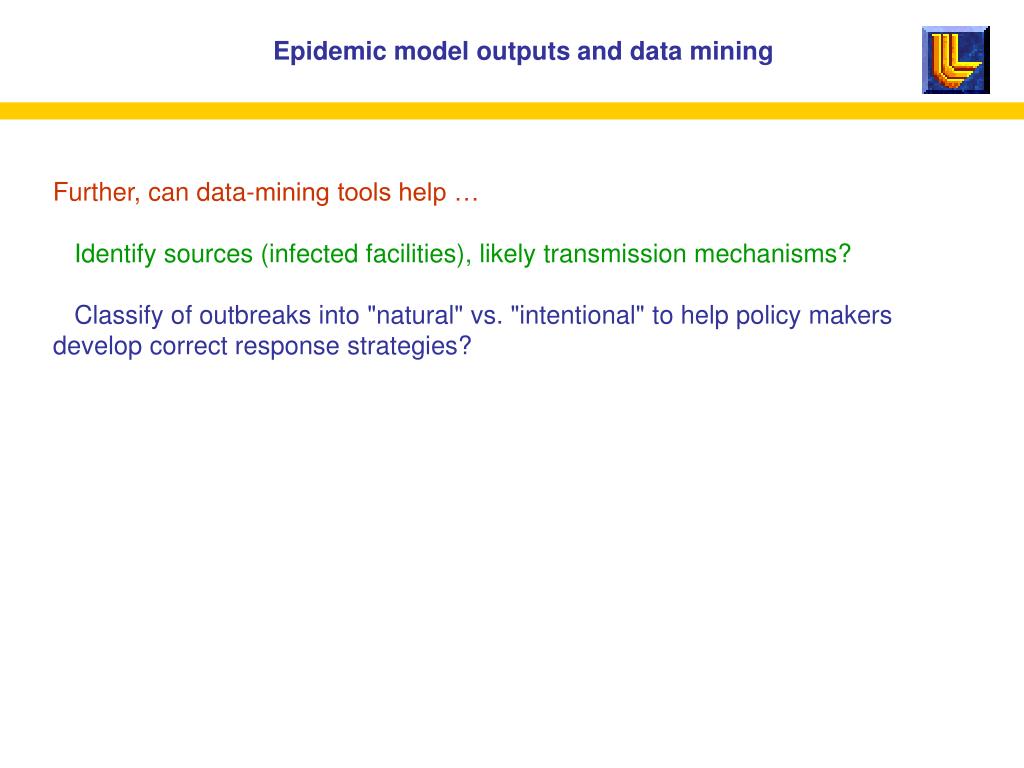

slide36

Epidemic model outputs and data mining

Further, can data-mining tools help …

Identify sources (infected facilities), likely transmission mechanisms?

Classify of outbreaks into "natural" vs. "intentional" to help policy makers develop correct response strategies?

slide37

Epidemic model outputs and data mining

Further, can data-mining tools help …

Identify sources (infected facilities), likely transmission mechanisms?

Classify of outbreaks into "natural" vs. "intentional" to help policy makers develop correct response strategies?

Identify key facilities/locations for surveillance?

Identify which control mechanisms are having the largest impact?

slide38

Epidemic model outputs and data mining

Further, can data-mining tools help …

Identify sources (infected facilities), likely transmission mechanisms?

Classify of outbreaks into "natural" vs. "intentional" to help policy makers develop correct response strategies?

Identify key facilities/locations for surveillance?

Identify which control mechanisms are having the largest impact?

Evaluate new technologies?Evaluate vulnerability of different industries and regions of the country?

slide39

If the answer is “yes” to at least some of our questions, which are the recommended data mining tools?

Are they available?
