support part two

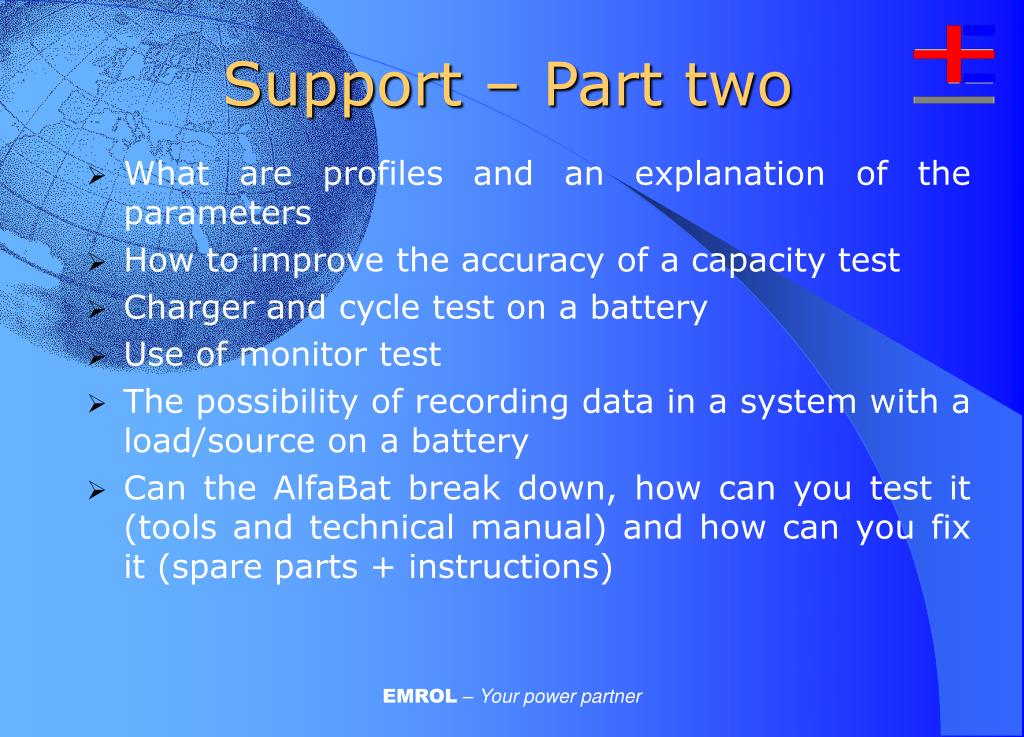

Support – Part two
  • What are profiles and an explanation of the parameters
  • How to improve the accuracy of a capacity test
  • Charger and cycle test on a battery
  • Use of monitor test
  • The possibility of recording data in a system with a load/source on a battery
  • Can the AlfaBat break down, how can you test it (tools and technical manual) and how can you fix it (spare parts + instructions)

EMROL – Your power partner

profiles
Profiles
  • What are profiles? What are parameters?
  • 3 profiles in the AlfaBat, Unlimited on the PC
  • How to use them?
  • Always use the same profile or choose to select one
  • Upload to device

EMROL – Your power partner

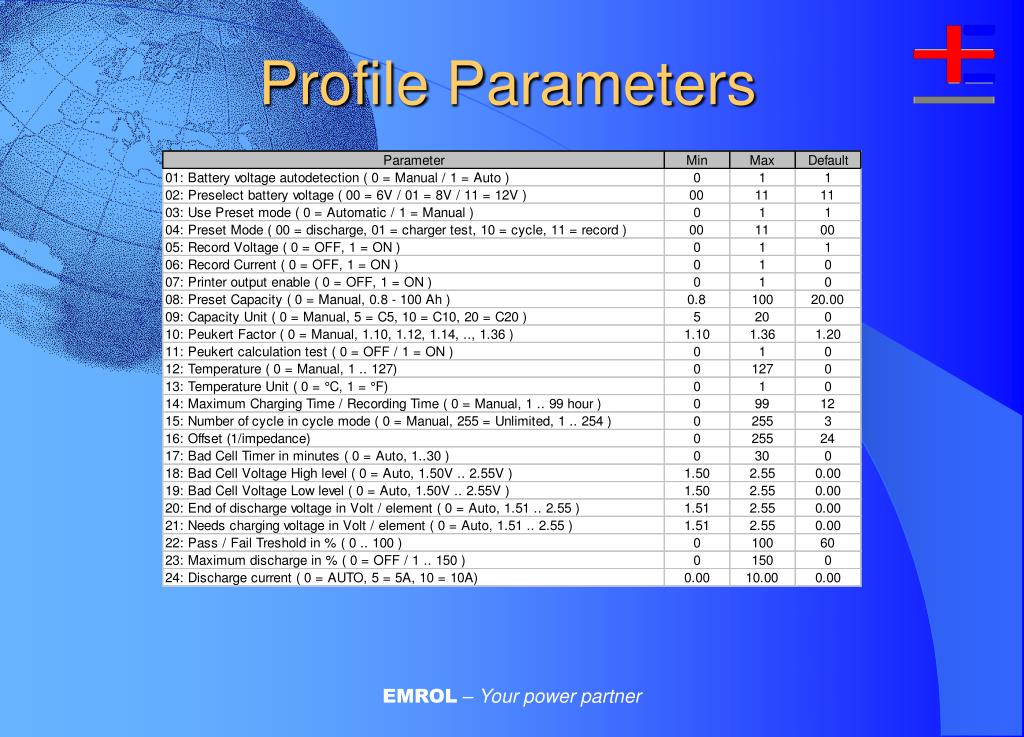

profile parameters
Profile Parameters

EMROL – Your power partner

improv ing the accuracy

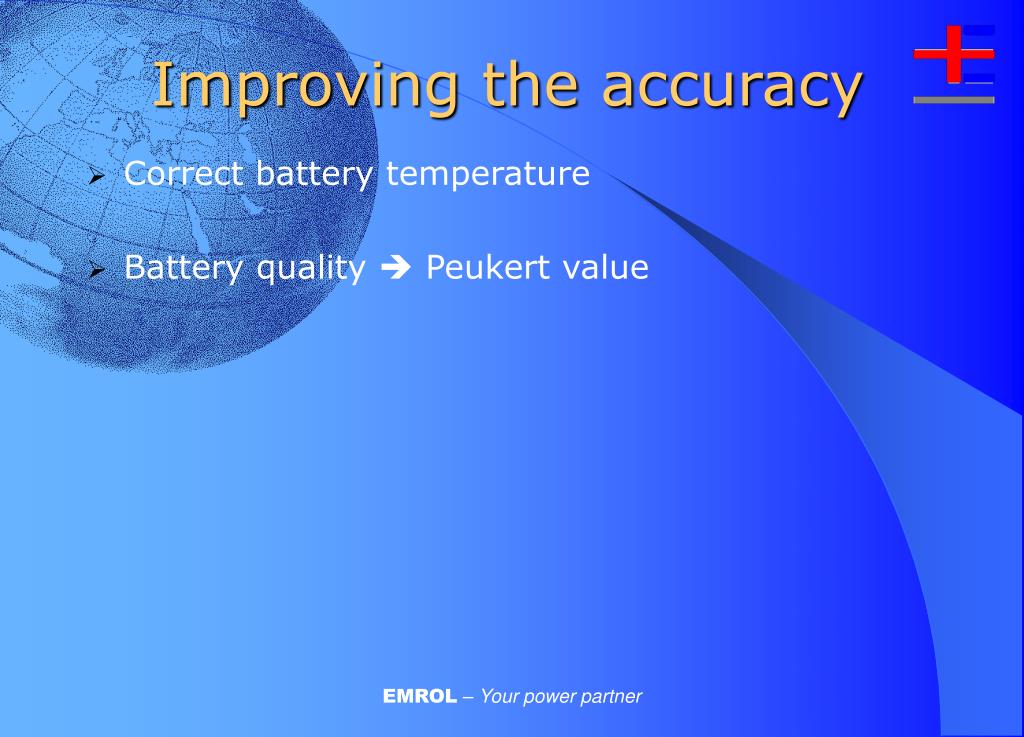

Improving the accuracy
  • Correct battery temperature
  • Battery quality  Peukert value

EMROL – Your power partner

peukert

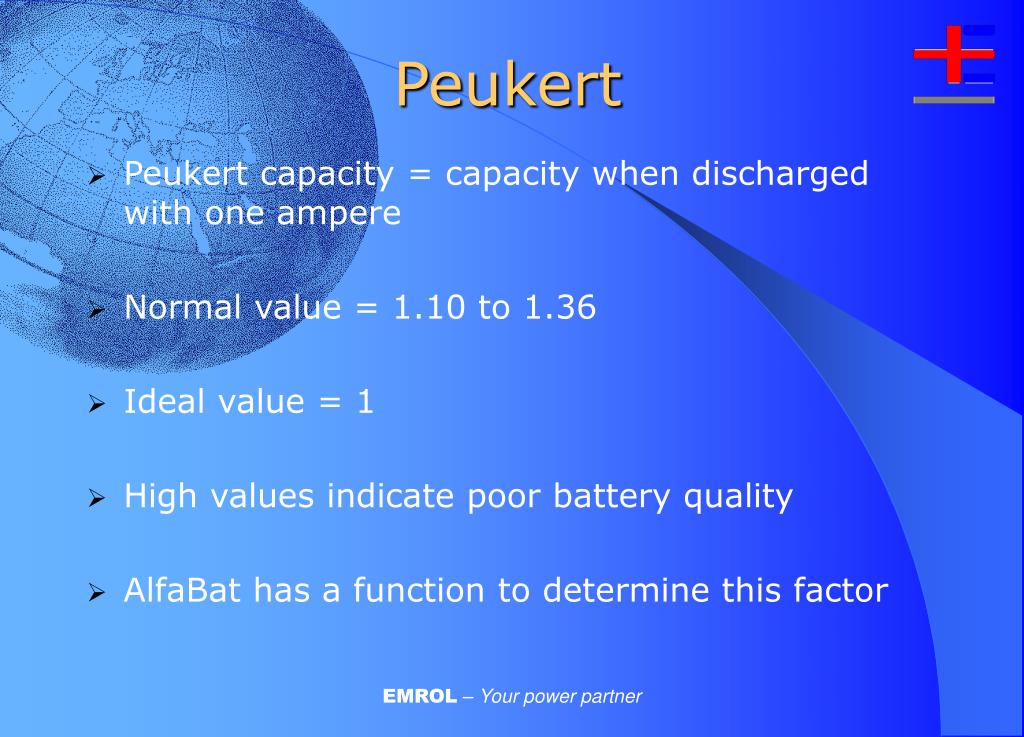

Peukert
  • Peukert capacity = capacity when discharged with one ampere
  • Normal value = 1.10 to 1.36
  • Ideal value = 1
  • High values indicate poor battery quality
  • AlfaBat has a function to determine this factor

EMROL – Your power partner

charger and cycle test on a battery
Charger and cycle test on a battery
  • Select a correct profile
  • Adaptor is required
  • Connect the charger
  • Charger test: result in Ah Usefull to record a charger’s regime.
  • Cycle discharge: result in %
  • Cycle charge: Charge factor

EMROL – Your power partner

charge factor
Charge Factor
  • Relation between the discharged capacity and the charged capacity
  • > 1.10 : to compensate charge losses you need to put more energy in a battery then what was extracted.

EMROL – Your power partner

monitor test

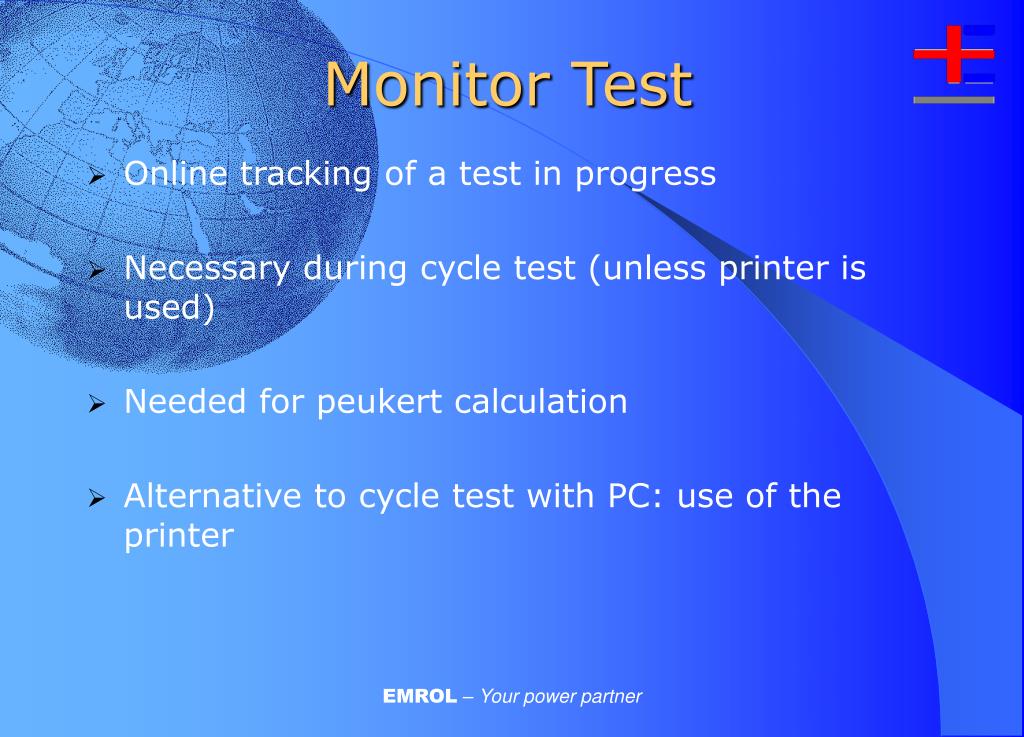

Monitor Test
  • Online tracking of a test in progress
  • Necessary during cycle test (unless printer is used)
  • Needed for peukert calculation
  • Alternative to cycle test with PC: use of the printer

EMROL – Your power partner

cycle test example

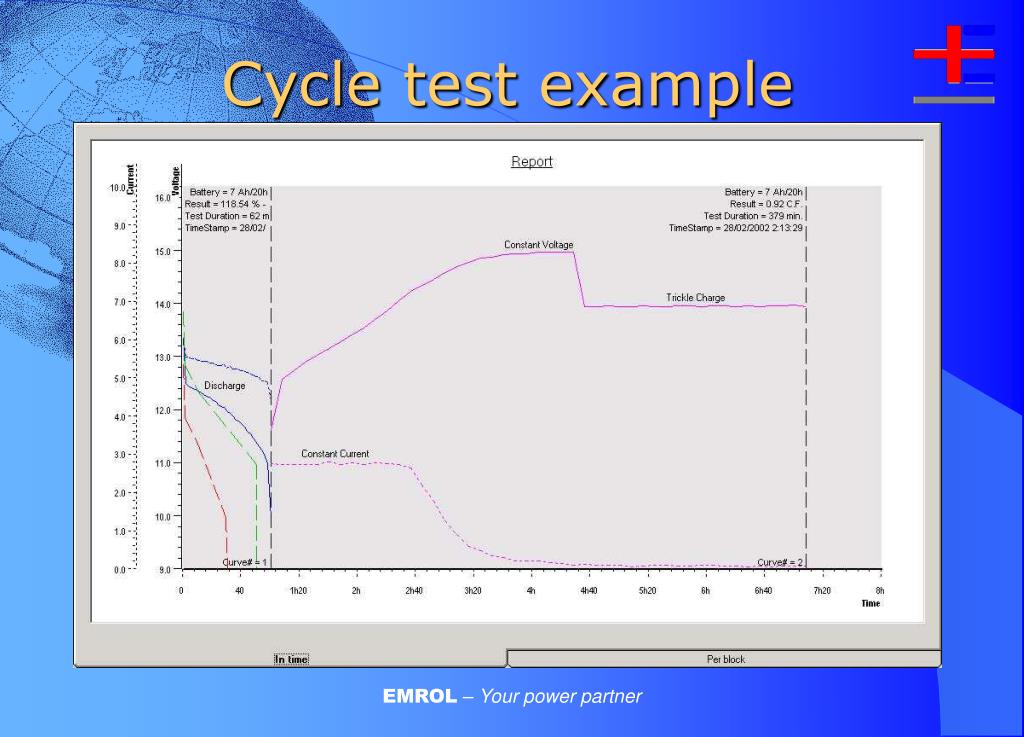

Cycle test example

EMROL – Your power partner

recording data in a system

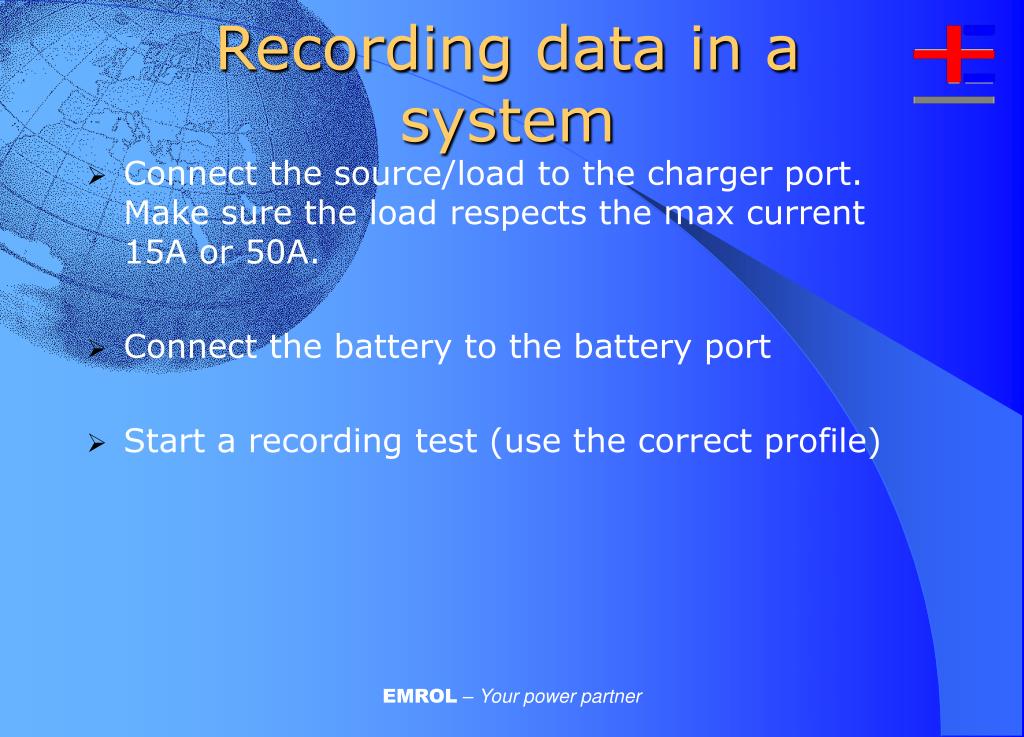

Recording data in a system
  • Connect the source/load to the charger port. Make sure the load respects the max current 15A or 50A.
  • Connect the battery to the battery port
  • Start a recording test (use the correct profile)

EMROL – Your power partner

technical solutions

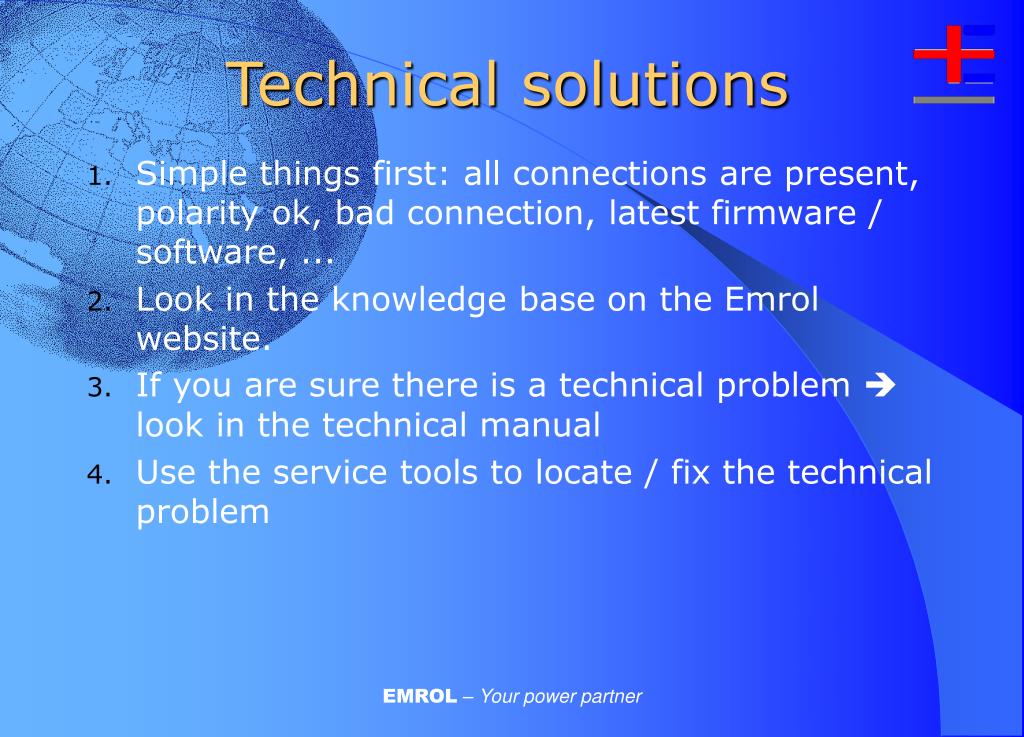

Technical solutions
  • Simple things first: all connections are present, polarity ok, bad connection, latest firmware / software, ...
  • Look in the knowledgebase on the Emrolwebsite.
  • If you are sure there is a technical problem  look in the technical manual
  • Use the service tools to locate / fix the technical problem

EMROL – Your power partner

technical manual
Technical Manual
  • Use ONLY original spare parts (FAN, Fuse, controller board, ...).
  • Use one of the tools for testing the device in combination with the Windows software.

EMROL – Your power partner

alfabat service programming

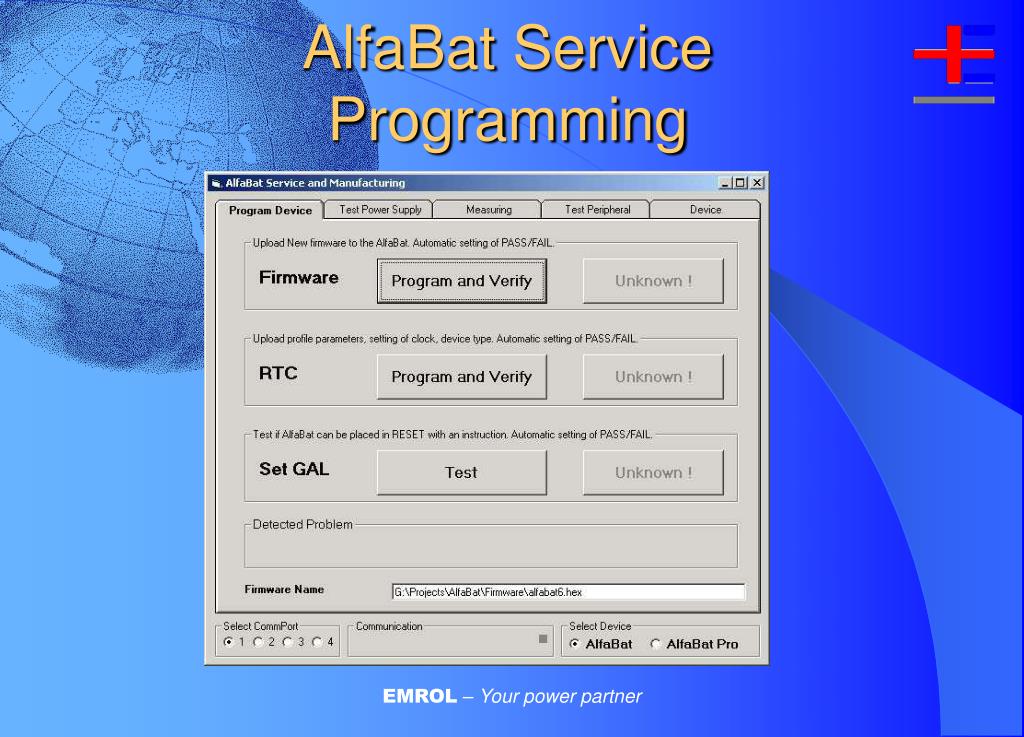

AlfaBat ServiceProgramming

EMROL – Your power partner

alfabat service power supply
AlfaBat ServicePower supply

EMROL – Your power partner

alfabat service measuring
AlfaBat ServiceMeasuring

EMROL – Your power partner

alfabat service test peripheral

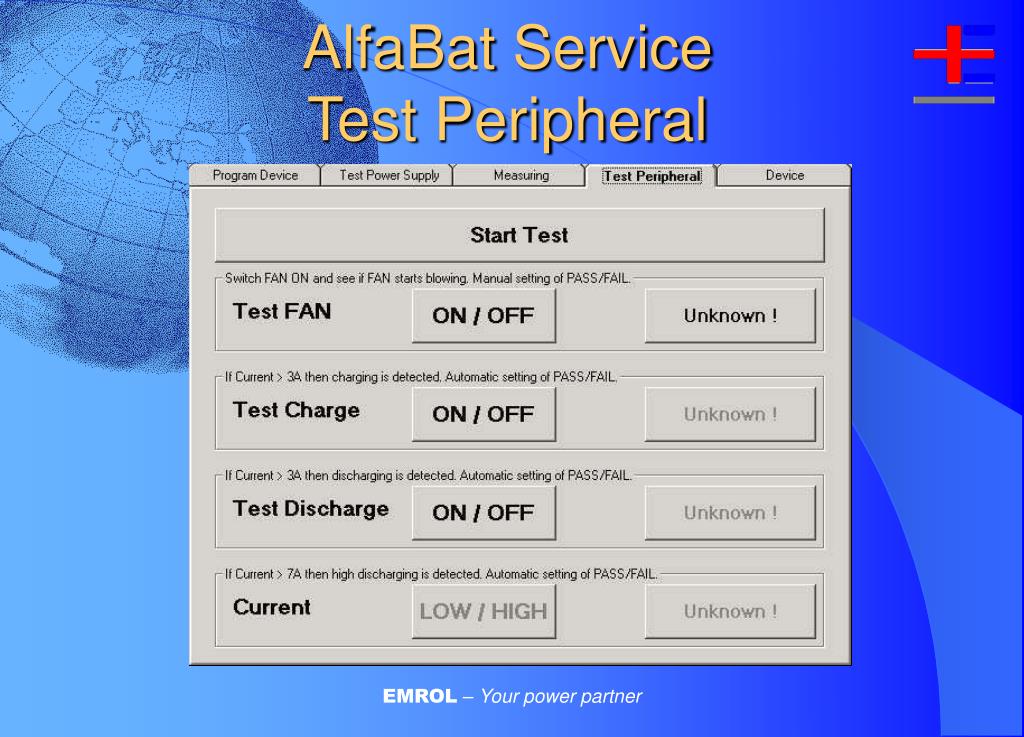

AlfaBat ServiceTest Peripheral

EMROL – Your power partner

alfabat service device

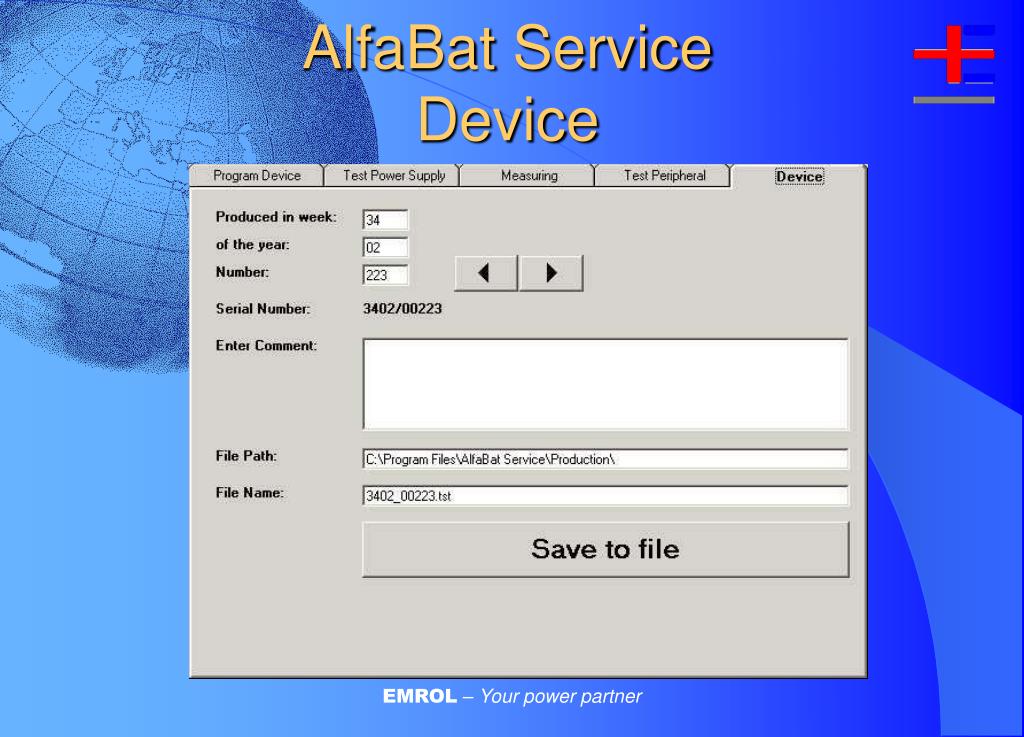

AlfaBat ServiceDevice

EMROL – Your power partner

slide19
Thank you

EMROL – Your power partner
