MoistureMap: Mixed-pixel Retrieval

Ye NanMaster of researchUniversity of Melbourne

Jeffrey Walker, Dongryeol Ryu, Christoph Rüdiger, Robert Gurney, Edward Kim, Yann Kerr

Heterogeneity in smos resolution pixel l.jpg
Heterogeneity in SMOS resolution pixel

  • NAFE’06 Study Area-Kyeamba catchment

Urban area

Bare soil

Standing water






World wide problem l.jpg
World-wide Problem

Xinjiang, China

South Paris, France

Pennsylvania, USA

Effect of mixed pixels l.jpg
Effect of mixed-pixels

The heterogeneity of pixels reduce the accuracy of SMOS soil moisture retrieval

  • “as little as 3% standing water coverage leads to more than 4%v/v error in derived soil moisture – the target accuracy for SMOS soil moisture retrieval“

  • [Walker et al., 2006]

Project target and proposed approach l.jpg
Project target and proposed approach

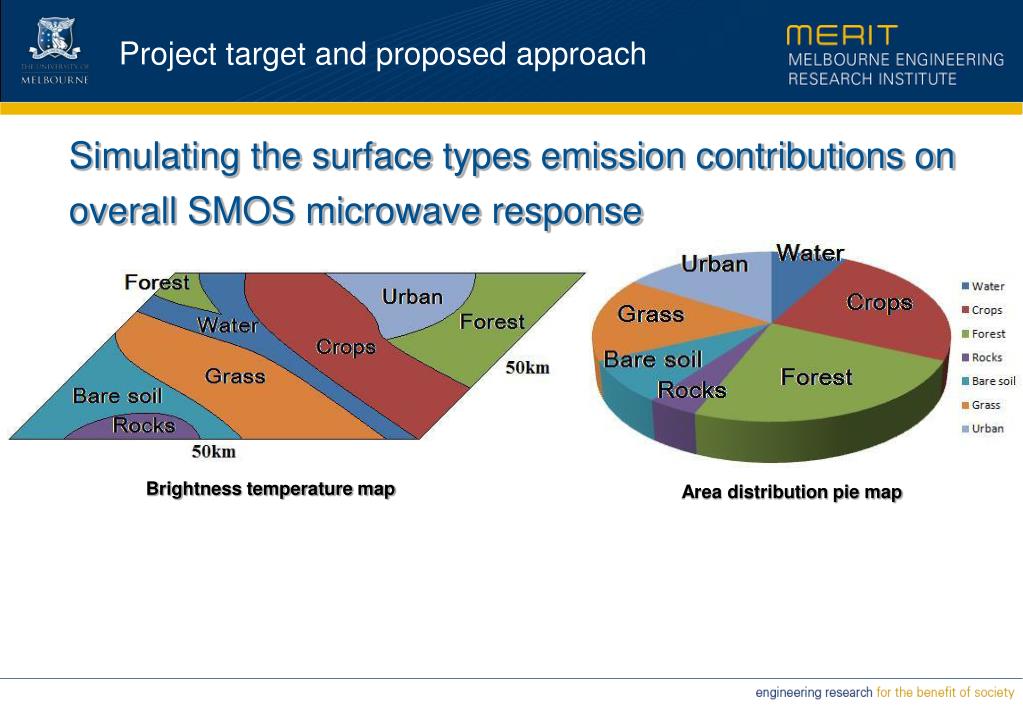

  • Simulating the surface types emission contributions on overall SMOS microwave response

Brightness temperature map

Area distribution pie map

Proposed approaches l.jpg
Proposed Approaches








Tau-Omega model

Klein, Stogryn, Debye

represents different surface

Bare soil, Crops and Grass

Test field l.jpg
Test field

Goulburn River catchment

NAFE’05 data set

Test field8 l.jpg
Test field

Yanco area

NAFE’06 data set

Test field9 l.jpg
Test field

Kyeamba catchment

NAFE’06 data set

Research direction l.jpg
Research direction

  • Develop the approaches to simulate microwave radiation of standing water, rocks and urban area.

  • Evaluate the effect of forest, standing water, rocks and urban area on overall brightness temperature.

  • Establish the mixed-pixel model to retrieve soil moisture from SMOS data.
