  1. Toaster Sample PackageEliyas Yakub Windows NT® DDK Support EngineerDeveloper Support Microsoft Corporation

  2. Agenda • Introduce various components of Toaster Sample Package • Describe how the sample was implemented by highlighting core components

  3. Package Layout • Located under NTDDK\SRC\GENERAL\TOASTER

  4. Objectives Of The Sample • De-mystify Windows® Driver Model • Through the use of sample code demonstrate how to develop: • Bus Driver • Function Driver • Filter Drivers (Class & Device) • Coinstaller DLL • Power Management • WMI • Plug and Play Notification in user-mode and kernel-mode

  5. What Is Toaster Bus • Hypothetical bus for toaster devices • Simulates hot plug-in, unplug, and eject toasters devices • Toasters support power management • Defines a new “Toaster” device class

  6. Bus Driver (BusEnum.sys) • Dual personality driver • Use bus.inf and busf.inf to install through the Add HW Wizard • System root enumerates the bus driver • DriverEntry() • Sets dispatch points • AddDevice() • Creates FDO and attaches it to the PDO provided by the Plug and Play manager

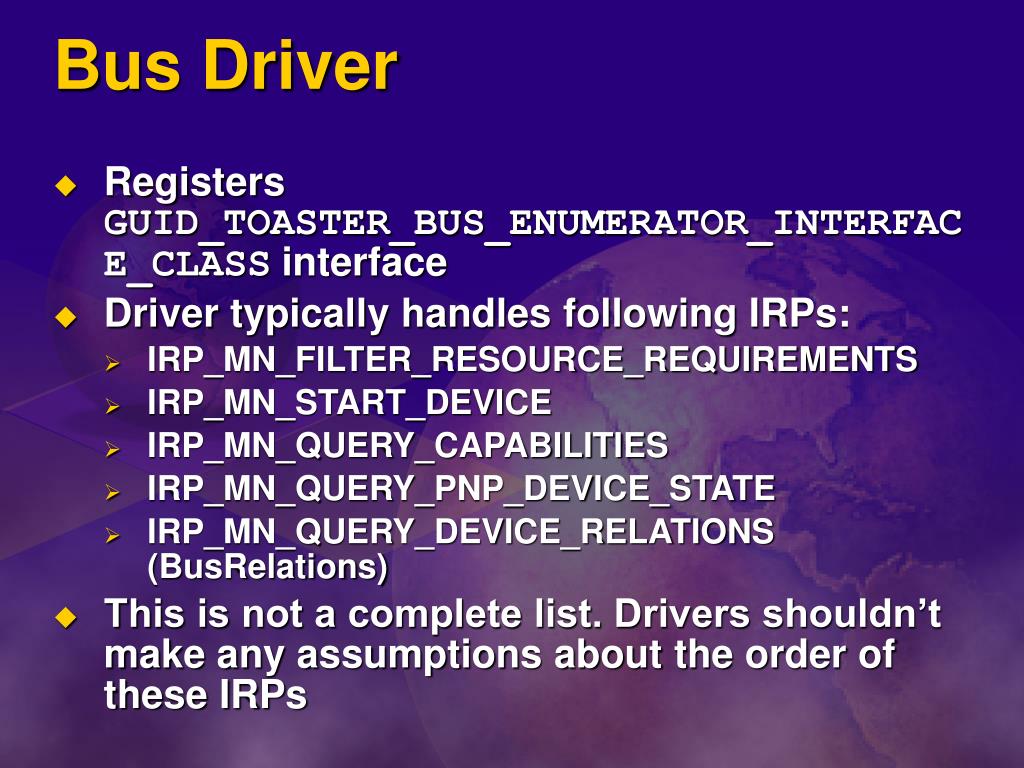

  7. Bus Driver • Registers GUID_TOASTER_BUS_ENUMERATOR_INTERFACE_CLASS interface • Driver typically handles following IRPs: • IRP_MN_FILTER_RESOURCE_REQUIREMENTS • IRP_MN_START_DEVICE • IRP_MN_QUERY_CAPABILITIES • IRP_MN_QUERY_PNP_DEVICE_STATE • IRP_MN_QUERY_DEVICE_RELATIONS (BusRelations) • This is not a complete list. Drivers shouldn’t make any assumptions about the order of these IRPs

  8. Plug In A Device

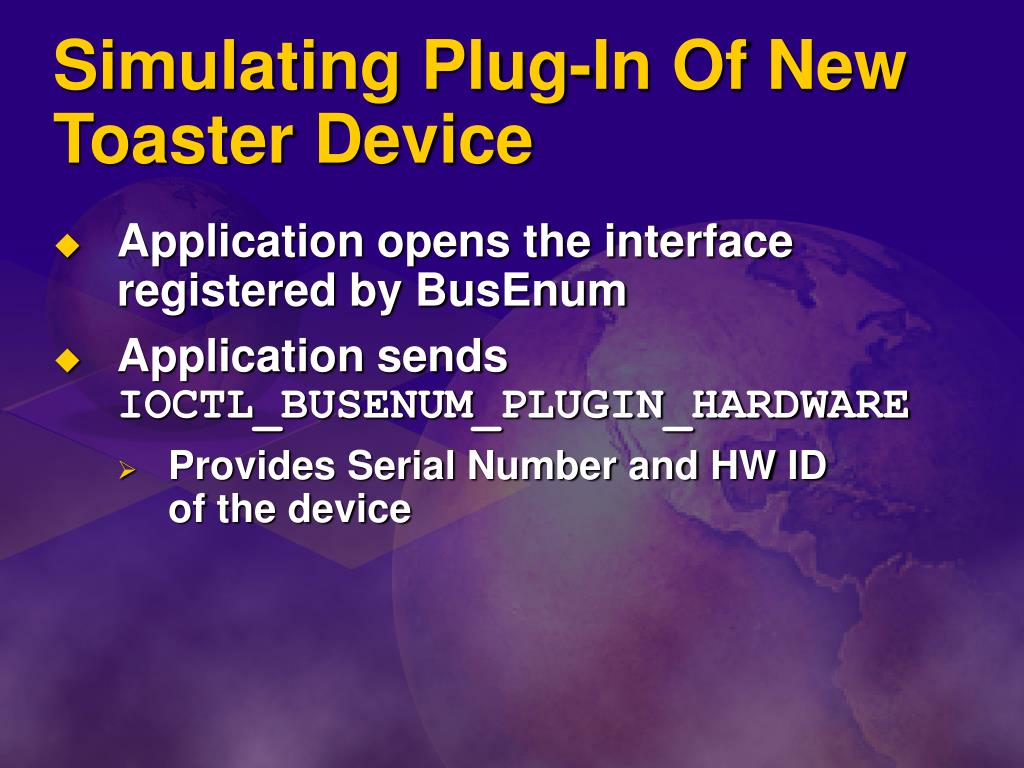

  9. Simulating Plug-In Of New Toaster Device • Application opens the interface registered by BusEnum • Application sends IOCTL_BUSENUM_PLUGIN_HARDWARE • Provides Serial Number and HW ID of the device

  10. Plug-In • BusEnum creates a DeviceObject (PDO) for the new device • Initializes device extension • Present = TRUE; • ReportedMissing = FALSE; • BusEnum notifies Plug and Play manager • Calls IoInvalidateDeviceRelations() with BusRelations parameter

  11. Plug-In • Plug and Play manager sends IRP_MN_QUERY_DEVICE_RELATIONS to BusEnum’s FDO • The BusEnum returns a list of PDO pointers • Plug and Play manager starts enumeration after discovering PDO for the new Toaster device

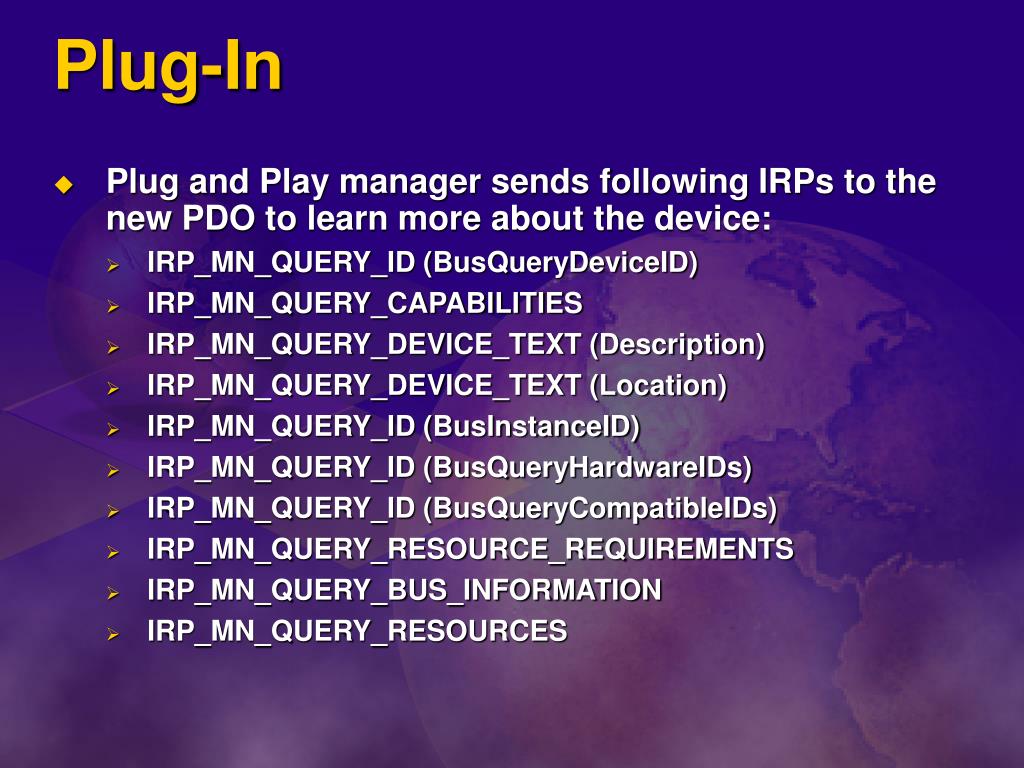

  12. Plug-In • Plug and Play manager sends following IRPs to the new PDO to learn more about the device: • IRP_MN_QUERY_ID (BusQueryDeviceID) • IRP_MN_QUERY_CAPABILITIES • IRP_MN_QUERY_DEVICE_TEXT (Description) • IRP_MN_QUERY_DEVICE_TEXT (Location) • IRP_MN_QUERY_ID (BusInstanceID) • IRP_MN_QUERY_ID (BusQueryHardwareIDs) • IRP_MN_QUERY_ID (BusQueryCompatibleIDs) • IRP_MN_QUERY_RESOURCE_REQUIREMENTS • IRP_MN_QUERY_BUS_INFORMATION • IRP_MN_QUERY_RESOURCES

  13. Plug-In • Plug and Play loads the toaster.sys function driver • Matches the Device ID in toaster.inf • Loads the function Driver (toaster.sys) • Calls AddDevice in toaster.sys • Function driver handles following Plug and Play IRPs: • IRP_MN_FILTER_RESOURCE_REQUIREMENTS • IRP_MN_QUERY_INTERFACE • IRP_MN_START_DEVICE • IRP_MN_QUERY_CAPABILITIES • IRP_MN_QUERY_PNP_DEVICE_STATE

  14. Diagram Of Single Toaster Device Toast.exe Notify.exe Toaster.sys FDO PDO FDO BusEnum.sys . . . . . . . . . PDO FDO Plug and Play Manager PDO

  15. FDO PDO PDO FDO Diagram Of Two Toaster Devices Toast.exe Notify.exe Toaster.sys FDO BusEnum.sys . . . . . . . . . PDO PDO PDO Plug and Play Manager

  16. Unplug A Device • Application sends an IOCTL_BUSENUM_UNPLUG_HARDWARE with the Serial Number • BusEnum marks the device as not present • Present = FALSE; • BusEnum informs Plug and Play manager by calling IoInvalidateDeviceRelations() • Plug and Play manager sends IRP_MN_QUERY_DEVICE_RELATIONS • BusEnum does not include the unplugged PDO in list of PDOs

  17. UnPlug • Set the ReportedMissing to TRUE • ReportedMissing = TRUE; • The Plug and Play manager sends: • IRP_MN_SURPRISE_REMOVAL • IRP_MN_REMOVE_DEVICE • Function driver detaches and deletes its device object • Busenum deletes the PDO after receiving IRP_MN_REMOVE_DEVICE

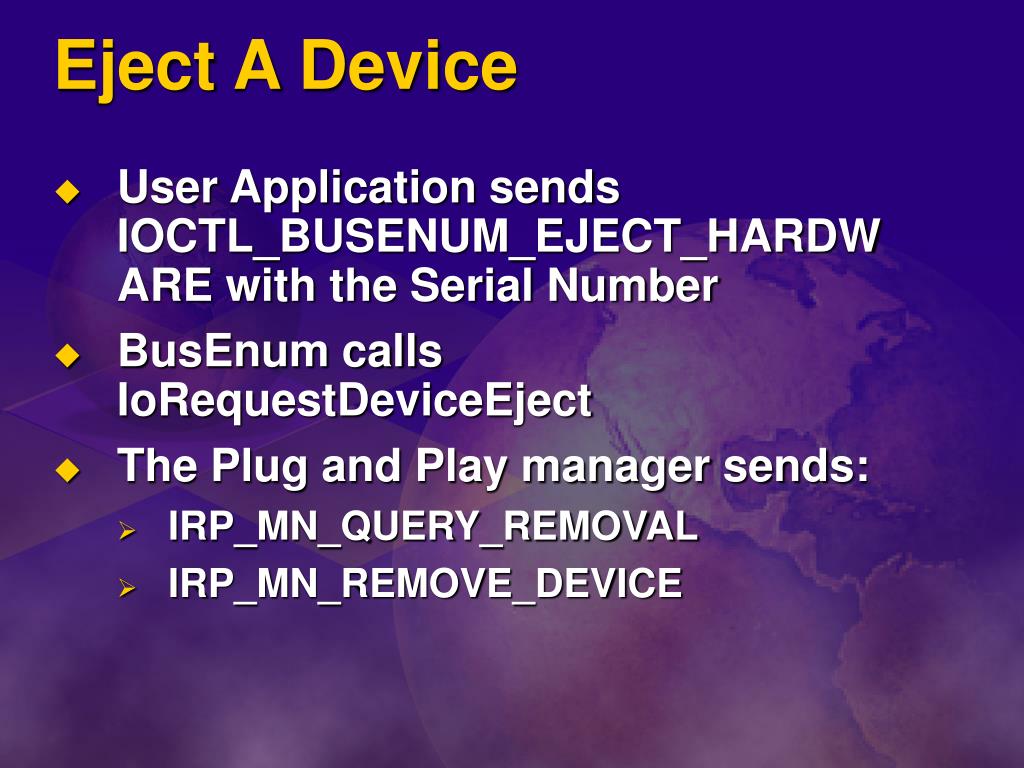

  18. Eject A Device • User Application sends IOCTL_BUSENUM_EJECT_HARDWARE with the Serial Number • BusEnum calls IoRequestDeviceEject • The Plug and Play manager sends: • IRP_MN_QUERY_REMOVAL • IRP_MN_REMOVE_DEVICE

  19. Eject • Plug and Play manager sends • IRP_MN_EJECT set the Present = FALSE; • IRP_MN_QUERY_DEVICE_RELATIONS (BusRelations) set the ReportedMissing = TRUE; • IRP_MN_REMOVE_DEVICE

  20. typedef enum _DEVICE_PNP_STATE { NotStarted = 0, // Not started yet Started, // Device has received the START_DEVICE IRP StopPending, // Device has received the QUERY_STOP IRP Stopped, // Device has received the STOP_DEVICE IRP RemovePending, // Device has received the QUERY_REMOVE IRP SurpriseRemovePending, // Device has received the SURPRISE_REMOVE IRP Deleted // Device has received the REMOVE_DEVICE IRP } DEVICE_PNP_STATE; Notice the use of following macros: INITIALIZE_PNP_STATE SET_NEW_PNP_STATE RESTORE_PREVIOUS_PNP_STATE Device Plug And Play State

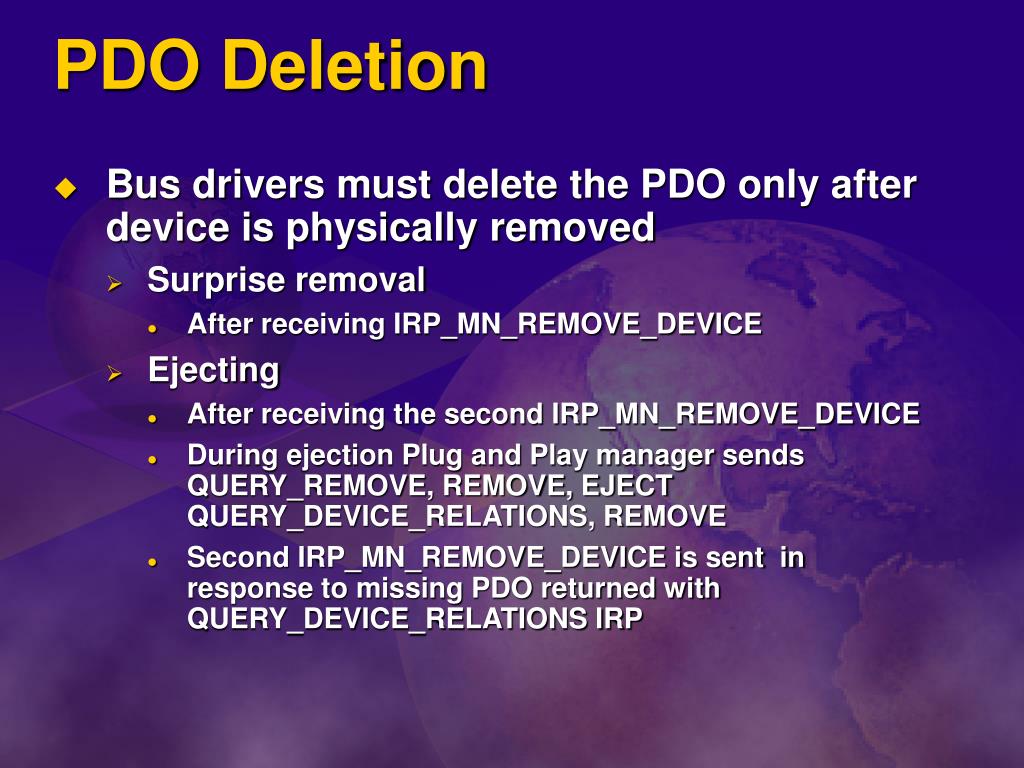

  21. PDO Deletion • Bus drivers must delete the PDO only after device is physically removed • Surprise removal • After receiving IRP_MN_REMOVE_DEVICE • Ejecting • After receiving the second IRP_MN_REMOVE_DEVICE • During ejection Plug and Play manager sends QUERY_REMOVE, REMOVE, EJECT QUERY_DEVICE_RELATIONS, REMOVE • Second IRP_MN_REMOVE_DEVICE is sent in response to missing PDO returned with QUERY_DEVICE_RELATIONS IRP

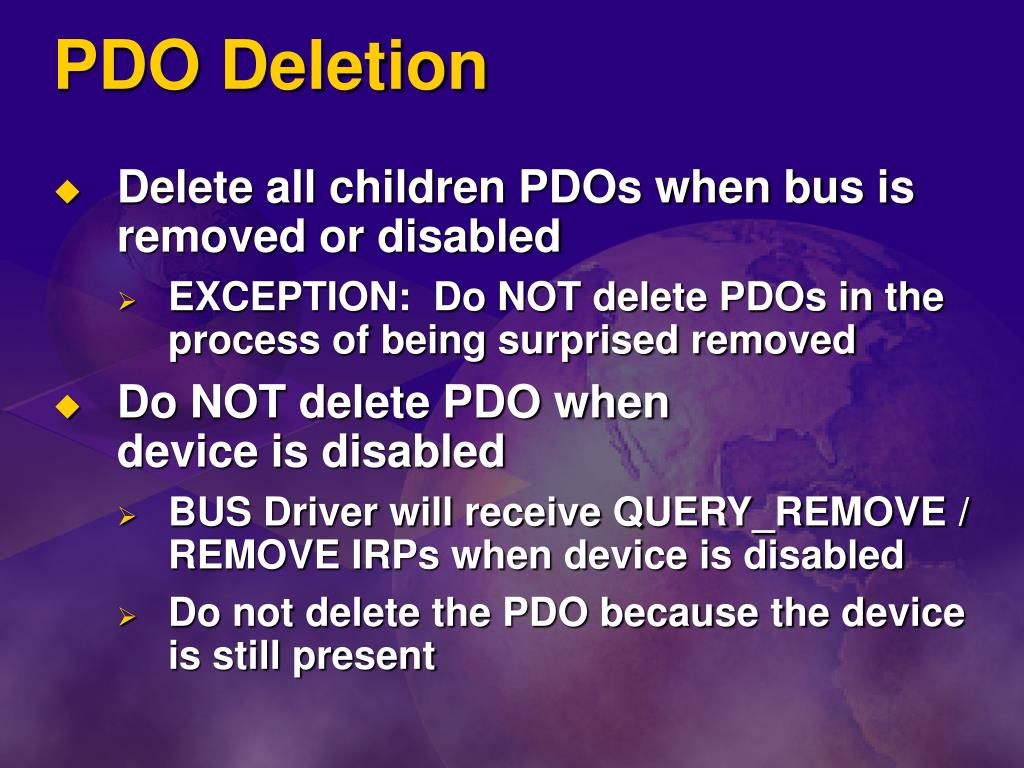

  22. PDO Deletion • Delete all children PDOs when bus is removed or disabled • EXCEPTION: Do NOT delete PDOs in the process of being surprised removed • Do NOT delete PDO when device is disabled • BUS Driver will receive QUERY_REMOVE / REMOVE IRPs when device is disabled • Do not delete the PDO because the device is still present

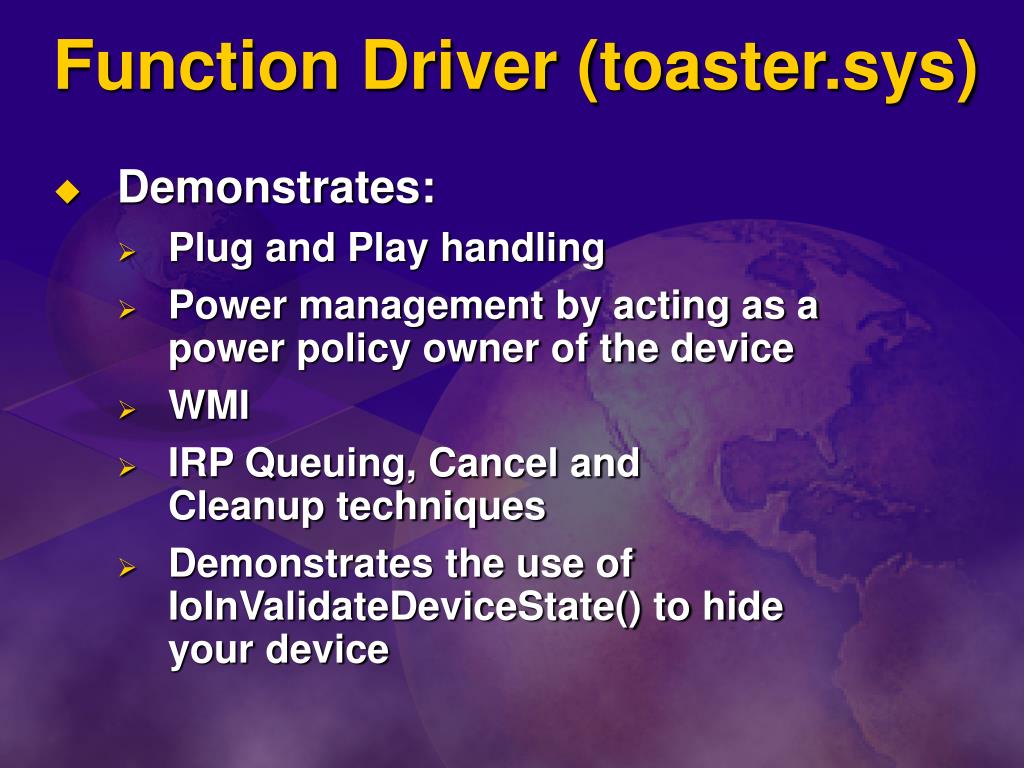

  23. Function Driver (toaster.sys) • Demonstrates: • Plug and Play handling • Power management by acting as a power policy owner of the device • WMI • IRP Queuing, Cancel and Cleanup techniques • Demonstrates the use of IoInValidateDeviceState() to hide your device

  24. INF Files • Bus.inf: For the bus driver • Toaster.inf: For the function driver • Busf.inf: Bus driver with upper and lower device filters • Toasterf.inf: Function driver with lower and upper device and class filters • Toastco.inf: Installs function driver and a coinstaller dll • Filter.inf: Installs a device upper filter for the toaster device using Update Driver

  25. Filter Drivers • A single source file is used to generate six different filter drivers: • Devupper.sys • Devlower.sys • Clasupper.sys • Claslower.sys • BFdoLwr.sys • BFdoUpr.sys • To load all the filters you should use busf.inf to install the enumerator and use toasterf.inf to install device and class filters

  26. Device Filters Installation • Use DDInstall.HW sections in the INF file to install filters • [Toaster_Device.NT.HW.AddReg] • HKR,,"UpperFilters",0x00010000,"devupper" • HKR,,"LowerFilters",0x00010000,"devlower" • These sections adds above registry values under the device hardware key • HKLM\System\CurrentControlSet\Enum\MsToaster\1&1a590e2c&1&01 • UpperFilters:REG_MULTI_SZ:Devupper • LowerFilters:REG_MULTI_SZ:Devlower

  27. Toaster Stack With Device Filters Toast.exe Enum.exe DevUpper.sys FiDO Toaster.sys FDO DevLower.sys FiDO PDO FDO BusEnum.sys FDO PDO PDO Plug and Play Manager

  28. Class Filters • Class filters are specified adding UpperFilters or LowerFilters name value under the class key HKLM\System\CurrentControlSet\Control\Class\{B85B7C50-6A01-11d2-B841-00C04FAD5171} UpperFilters:REG_MULTI_SZ:Clasupper LowerFilters:REG_MULTI_SZ:Claslower

  29. FiDO FiDO FiDO FDO FiDO FiDO FiDO FDO FiDO FiDO PDO PDO FDO PDO PDO Toast.exe Enum.exe ClasUpper.sys DevUpper.sys Toaster.sys ClasLower.sys DevLower.sys BusEnum.sys FDO Plug and Play Manager

  30. Co-Installer • Loaded whenever a toaster device is installed or removed • Shows how to process custom sections in an INF file • Shows how to create a friendly name

  31. Notify Application • Simulates plug in, unplug, and ejection of devices • Demonstrates how applications monitor and process user-mode Plug and Play notifications • Combines the functionality of Enum.exe and toast.exe

  32. Register for Interface Change Notification DEV_BROADCAST_DEVICEINTERFACE filter; filter.dbcc_size = sizeof(filter); filter.dbcc_devicetype = DBT_DEVTYP_DEVICEINTERFACE; filter.dbcc_classguid = InterfaceGuid; hInterfaceNotification = RegisterDeviceNotification(hWnd, &filter, 0); Handles Plug and Play notifications DBT_DEVICEARRIVAL DBT_DEVICEREMOVECOMPLETE Notify Application

  33. Open a toster device and register another notification on the file handle filter.dbch_size = sizeof(filter); filter.dbch_devicetype = DBT_DEVTYP_HANDLE; filter.dbch_handle = DeviceInfo[NumDevices].hDevice; DeviceInfo[NumDevices].hHandleNotification = RegisterDeviceNotification(hWnd, &filter, 0); Handle Device Change Notification DBT_DEVICEQUERYREMOVE DBT_DEVICEREMOVECOMPLETE DBT_DEVICEREMOVEPENDING DBT_DEVICEQUERYREMOVEFAILED Notify Application

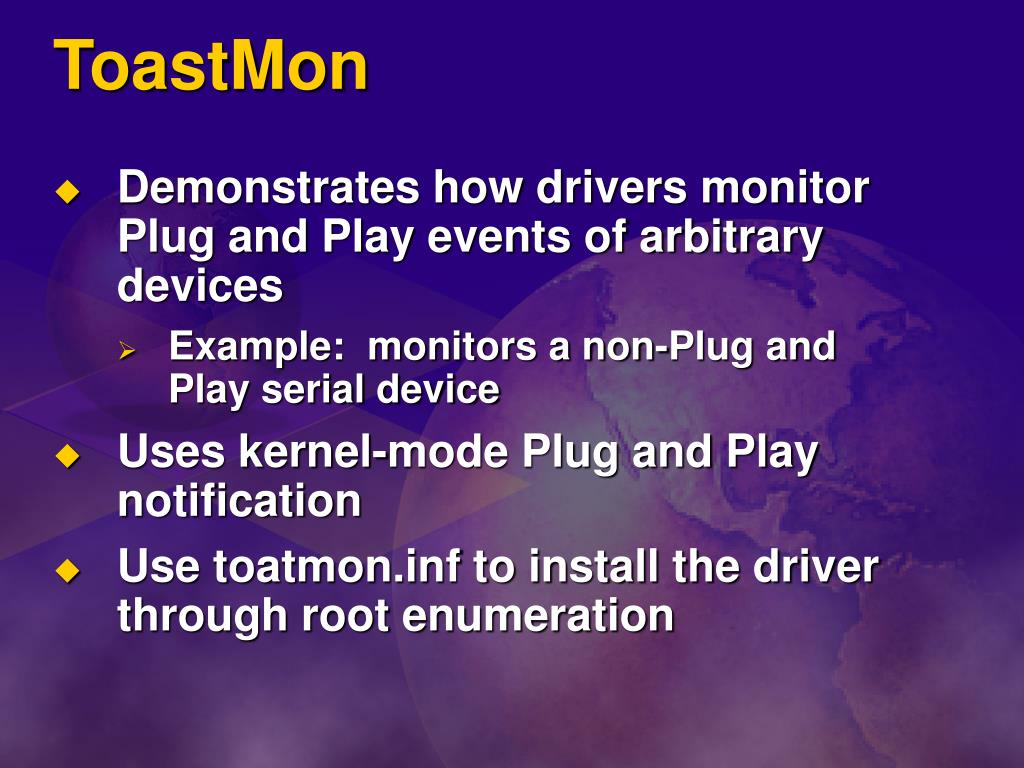

  34. ToastMon • Demonstrates how drivers monitor Plug and Play events of arbitrary devices • Example: monitors a non-Plug and Play serial device • Uses kernel-mode Plug and Play notification • Use toatmon.inf to install the driver through root enumeration

  35. ToastMon • Register for interface arrival notification in AddDevice status = IoRegisterPlugPlayNotification ( EventCategoryDeviceInterfaceChange, PNPNOTIFY_DEVICE_INTERFACE_INCLUDE_EXISTING_ INTERFACES, (PVOID)&GUID_TOASTER_DEVICE_INTERFACE_CLASS DriverObject, (PDRIVER_NOTIFICATION_CALLBACK_ROUTINE) ToastMon_PnpNotifyInterfaceChange, (PVOID)deviceExtension, &deviceExtension->NotificationHandle); • Open the device in response to GUID_TOASTER_DEVICE_INTERFACE_CLASS notification callback

  36. ToastMon • Careful coding required in notification callback • Do NOT open interface that can cause Plug and Play event • Example: SWENUM • Doing so can cause deadlock

  37. ToastMon • Register for Device change notification on the FileObject IoRegisterPlugPlayNotification ( EventCategoryTargetDeviceChange, 0, (PVOID)List->FileObject, List->DeviceExtension-> DeviceObject->DriverObject, (PDRIVER_NOTIFICATION_CALLBACK_ROUTINE) ToastMon_PnpNotifyDeviceChange, (PVOID)List, &List->NotificationHandle); • Handle Notification Callback Events For: GUID_TARGET_DEVICE_QUERY_REMOVE GUID_TARGET_DEVICE_REMOVE_COMPLETE GUID_TARGET_DEVICE_REMOVE_CANCELLED

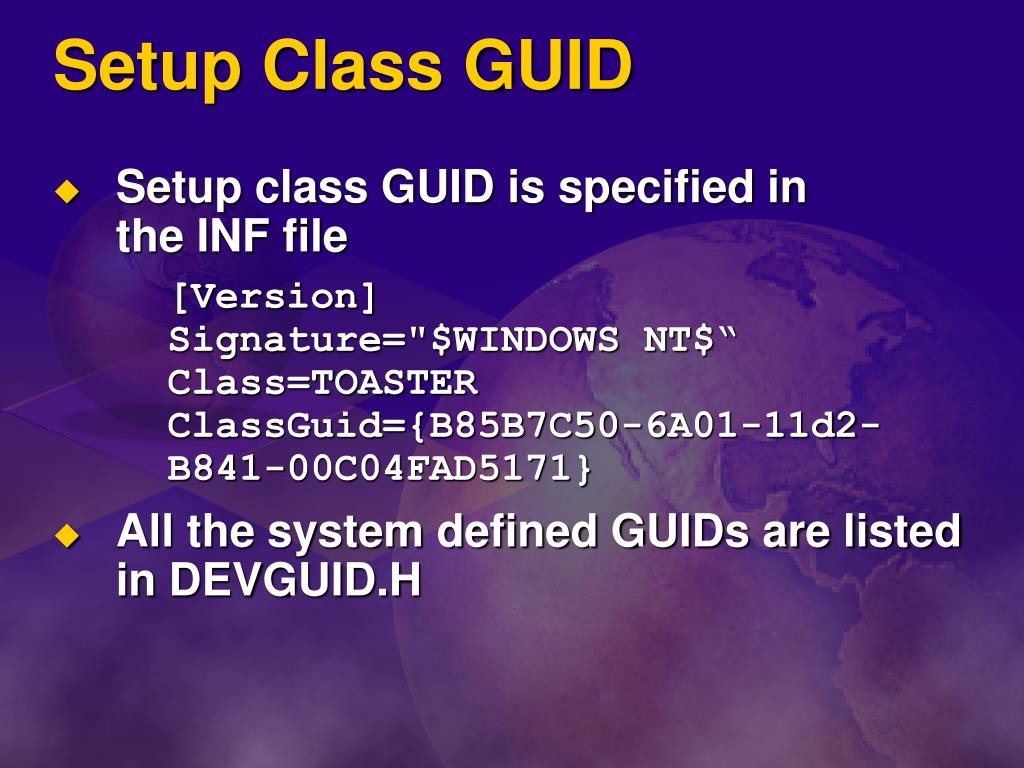

  38. Setup Class GUID • Setup class GUID is specified in the INF file [Version]Signature="$WINDOWS NT$“Class=TOASTERClassGuid={B85B7C50-6A01-11d2-B841-00C04FAD5171} • All the system defined GUIDs are listed in DEVGUID.H

  39. Interface Class GUID • Interface GUIDs are used to interact with the driver • Registered in AddDevice • Enabled during Start • Disabled during Remove • Are defined in device specific header files under the NTDDK\INC directory • Examples:ntdd8042.h, ntddbeep.h, ntddcdrm.h, ntdddisk.h, ntddft.h, ntddft2.h, ntddkbd.h, ntddmou.h, ntddndis.h, ntddpar.h, ntddpcm.h, ntddscsi.h, ntddser.h, ntddstor.h, ntddtdi.h, ntddvol.h

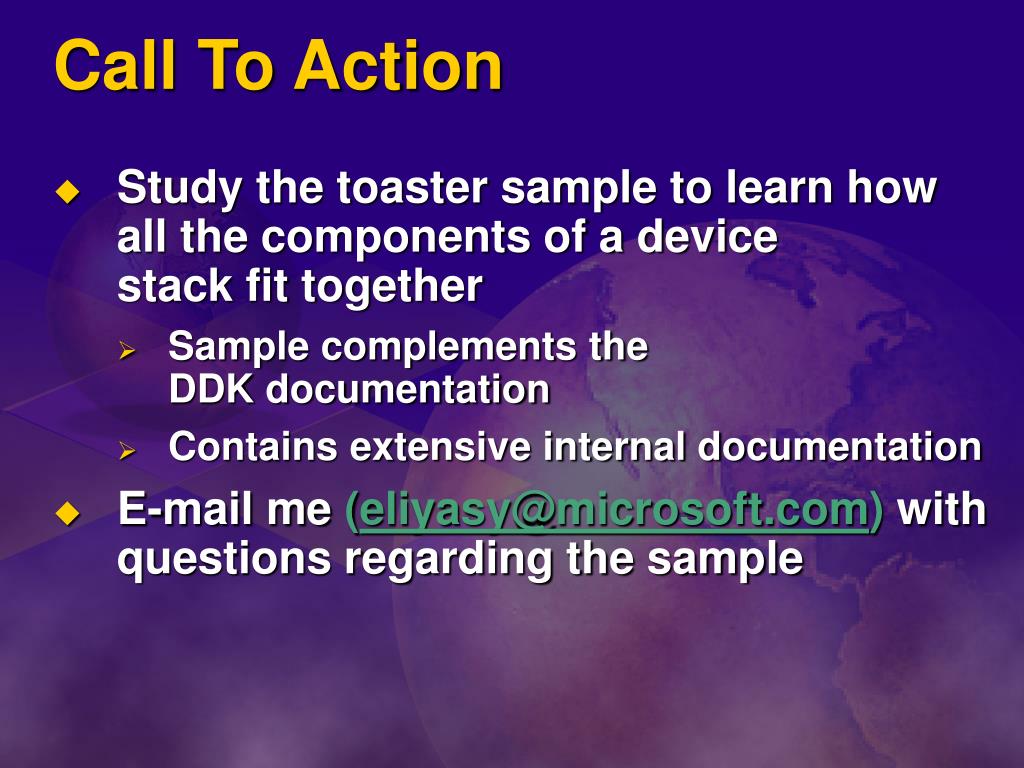

  40. Call To Action • Study the toaster sample to learn how all the components of a device stack fit together • Sample complements the DDK documentation • Contains extensive internal documentation • E-mail me (eliyasy@microsoft.com) with questions regarding the sample

  41. Errata • In Line 63, the driver name should be toastmon.sys instead of genport.sys • In the toaster.c of function driver the line • IoSetCancelRoutine(nextIrp, Null) should be replace by • If(IoSetCancelRoutine(nextIrp, Null) ) • { • KeReleaseSpinlock(); • Continue; • }
