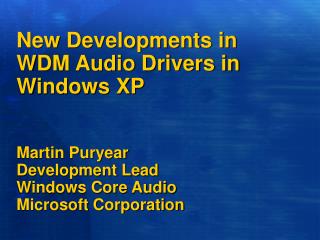

New Developments in WDM Audio Drivers in Windows XP Martin PuryearDevelopment LeadWindows Core AudioMicrosoft Corporation

  • Slides to be posted on WinHEC site
  • New features
  • DDK documentation additions/updates
  • New/updated DDK samples
  • New DDK tools
  • Important OS changes
  • Common problems
  • Resources for WDM audio developers
  • What can you do next?
new features added in windows xp
New FeaturesAdded in Windows XP
  • Improved multi-channel support
    • Support for multi-channel volume/mute KS topology nodes
      • Translates into appropriate mixer controls
      • No Mixer API changes needed
      • (waveOutSetVolume, DirectSound SetPan APIs not yet revised, still stereo only)
      • DDK documentation and relevant sample code (in ac97smpl) to be added post-Beta 2
    • Increased SysAudio numChans 6->24
new features added in windows xp 2
New FeaturesAdded in Windows XP (2)
  • Additional multi-channel support
    • Multi-channel volume property page
      • Invoked from SndVol32 and Sounds CPL (Volume|Speaker Volume…)
      • Manipulates individual volumes of multi-channel controls
    • DirectSound SetSpeakerConfig API and CPL Volume|Advanced|Speakers pane
      • New enums for 7.1 and “No speakers”
      • Revamped bitmaps to better express configs
    • Fixed KMixer SuperMix defaults
new features added in windows xp 3
New FeaturesAdded in Windows XP (3)
  • Extended capabilities
    • Returns GUIDs for MID & PID, ULONGs for driver version & revision, plus GUID to specify a long name stored in registry (MediaCategories) by INF
    • KS property on wave filter
      • KSPROPSETID_General
    • DDK sample: MSVAD\simple
  • 1394 audio class driver (AVCAudio.sys)
  • AC97 controller drivers
    • Intel (ICH2), VIA, ALi, SiS
    • Strong suggestion: new codecs pass all WHQL tests with Windows XP in-box controller drivers
new features added in windows xp 4
New FeaturesAdded in Windows XP (4)
  • 64-bit support
    • All core components and DDK samples ported
    • HW drivers for USBAudio, CS4281, AVCAudio
    • Native 64-bit API support:
      • DirectSound, DirectShow, KsProxy/KSUSER
      • waveOut/In, midiOut/In, mixer, aux, MCI, ACM
      • Not enabled: DirectMusic
    • 32-bit WOW API support:
      • DirectSound (emulation only), DirectShow
      • waveOut/In, midiOut, mixer, aux, MCI, ACM
      • Not enabled: KsProxy/KSUSER, DirectSound (non-emulated), midiIn, DirectMusic
new features added in windows xp 5
New FeaturesAdded in Windows XP (5)
  • Acoustic Echo Cancellation support
    • Noise Suppression and Automatic Gain Control are optionally included
    • Inserted at lowest level (post-mixer)
    • Accessed via DSound8 full duplex object
    • Can be hardware-accelerated
    • MS system-supplied AEC
      • AVStream component
      • 8 kHz-22 kHz, 16-bit mono
      • No clock rate matching for input/output
new features added in windows xp 6
New FeaturesAdded in Windows XP (6)
  • Global Effects Filters (GFX)
    • Recommended for hardware-specific master effects (speaker compensation, mic array filters)
    • Also useful for general audio processing (EQ)
    • Applied to final playback mix or original capture signal for all APIs
    • Hardware-specific effects automatically added
    • Sounds control panel (Audio|Advanced…|Effects) used to add, reorder, manipulate effects
    • Vendor-supplied UI invoked from Sounds CPL
    • Vendor implements effect as AVStream filter
    • Restricted to USB devices on Windows XP
    • Future OS releases will allow application to any audio device with supporting HW driver
new features added in windows me
New FeaturesAdded in Windows Me
  • Secure Audio Path (kernel mode DRM)
    • Now required for Windows XP logo
    • WinME QFE available for MIDI/audio devices
  • Non-PCM output
    • Also in Windows 2000 Service Pack 2
    • Also available in Windows 98 SE QFE
      • Contact Microsoft Product Support Services for this
  • Peakmeter support and supporting SndVol UI
new features added in qfe releases
New FeaturesAdded in QFE Releases
  • QFEs are supersets, backward-inclusive
  • Windows 98 SE QFE – 269601USA8.EXE
    • Non-PCM, Windows 2000 fixes, SoftFM
    • Not included: volume persistence, DSound cloning, waveOutGetPosition (non-PCM), IPortClsVersion
  • Windows Me QFE – 280127USAM.EXE
    • USB MIDI, CD slider, glitch reduction
  • Talk to PSS for redist rights for 9x QFEs
new features added in service pack releases
New FeaturesAdded in Service Pack Releases
  • Windows 2000 Service Pack 1
    • No audio changes
  • Windows 2000 Service Pack 2
    • Non-PCM, volume persistence, DSound cloning, IPortClsVersion
  • No further SP work expected at this time
un features what s not present in windows xp
(Un)FeaturesWhat’s not present in Windows XP
  • HW acceleration of DirectX 8
    • Planned for subsequent release
  • USB2 support
  • Support for tons of 1394 devices (mLan)
  • Very low-latency PCM via DSound/wave
  • Multi-channel peakmeters, SetPan, waveOutSetVolume, supermix API
  • Dynamic changes in topology or format
  • Support for custom mixer line controls
DDK Documentation Additions and Updates(big thanks to Windows DDK doc team, particularly Jerry Van Aken!)
ddk doc changes new material
DDK Doc ChangesNew Material
  • Hardware Events
  • DirectSound HW Acceleration Slider
  • DirectSound speaker configuration settings
  • Supporting non-PCM wave formats
    • From hwdev/audio White Paper
  • Digital Rights Management
    • From Windows 2000 DDK addendum
  • WDM Audio platform differences
ddk doc changes new material 2
DDK Doc ChangesNew Material (2)
  • KMixer driver Sample Rate Conversion and mixing policy
  • Factors governing Wave-output latency
  • DirectSound capture effects
    • Including AEC, AGC, NS
  • Multifunction audio devices
  • Installing and configuring Audio drivers
  • Windows 2000 device-interface limits
ddk doc changes new material 3
DDK Doc ChangesNew Material (3)
  • Extensions to legacy Windows Multimedia APIs
    • Extended capabilities in WDM Audio drivers
    • Accessing the preferred Device ID
  • Media-Class INF Extensions
    • AlsoInstall, Known Files
  • Data-intersection handlers
  • Power management for Audio drivers
  • Version numbering for Audio drivers
ddk doc changes existing information augmented
DDK Doc ChangesExisting information augmented
  • USB Audio/MIDI class driver description
  • Supporting hardware acceleration of DirectSound 2-dimensional mixing
  • Kernel Streaming topology to Audio Mixer API translation
  • Clarified use of:
    • PcNewRegistryKey, NewMasterDmaChannel, PcRegisterPhysicalConnection*, PcAddAdapterDevice, and so on
ddk doc changes new material already added post beta
DDK Doc ChangesNew Material Already Added post-Beta
  • Global Effects filters
  • AEC system filter
  • Media-Class INF Extensions
    • KnownRegEntries, SetupPreferredAudioDevices
  • Control Panel branding by vendors
  • Speaker configuration update
    • Elaboration of driver implementation of DSSPEAKER_SURROUND and DSSPEAKER_DIRECTOUT modes
ddk doc changes new material to be added post beta
DDK Doc ChangesNew Material To Be Added post-Beta
  • Update information about Microsoft’s AEC implementation
  • 64-bit driver and API specifics
  • Detecting different WDM platforms
    • Including how to detect which QFE/SP is installed
  • Differences between WDM audio platforms
    • Including a taxonomy of the different QFEs/SPs
  • Explain MME device limits in Win XP
  • Chart showing non-PCM support among different WDM OSes
  • Additional DRM documentation
ddk doc changes new material to be added post beta 2
DDK Doc ChangesNew Material To Be Added post-Beta (2)
  • Using the migration DLL to retain a 9x WDM driver during upgrade to NTOS
  • Document how a driver exposes multi-channel volume/mute nodes
  • New default settings for sliders in Win XP
    • DirectSound HW acceleration slider
    • SRC quality (used for DSound output only)
  • DSound support for mix of 2D/3D pins
  • Overriding the IDmaChannel interface
  • Info for audio bus drivers
  • “Which sample to start with?” - Overview of the various DDK samples
windows ddk sample driver additions and upgrades24
Windows DDK Sample Driver Additions and Upgrades
  • New:
    • GFX – global effect filter
    • MSVAD – virtual audio device
  • Improved:
    • AC97smpl – Intel ICH2
    • DDKSynth – kernel software synth
    • DMusUART – MPU miniport
    • SB16 – ISA sample
ac97 sample additions and upgrades
AC97 SampleAdditions and Upgrades
  • New interactive INF Viewer tool
    • Contains migration DLL sample code
  • New property page & CPL
  • Speaker configuration property
    • Driver writes to registry upon set
    • Driver reads registry value upon get
      • Also at Miniport::Init
  • Other custom properties - Get (and Set)
ac97 sample additions and upgrades 2
AC97 SampleAdditions and Upgrades (2)
  • WAVEFORMATPCMEX support for multi-channel streams
  • Support for Intel 820 (multi-channel ac97 codecs)
  • Multi-channel volume workarounds for past versions of Windows:
    • How to add additional nodes/connections for surround and center/LFE
      • Send sample rate change requests there, etc.
    • How to add virtual master volume (mono) if 4 or 6 channel present
    • How to change data range depending on number of ac97 codecs detected
    • Multi-channel mute and volume handlers
ac97 sample additions and upgrades 3
AC97 SampleAdditions and Upgrades (3)
  • DRM support
    • Note that it can't detect presence of S/PDIF on non-compliant ac97 codecs, so this is questionable
  • Vastly improved INF
  • Significant DataRangeIntersection handler cleanup
  • Better synchronization
    • MapLock not held during PortStream->GetMapping
ac97 sample additions and upgrades 4
AC97 SampleAdditions and Upgrades (4)
  • Treat D2 exactly like D3 now
  • Disconnect interrupt anytime not in D0 now
  • Note bug fix at minwave.cpp, line 570-72 (Win9x remove/add doesn’t destroy filter descriptor)
  • GetAllocatorFraming FrameSize must be sample block aligned
  • Pin's DataRange.SampleSize should be set to non-zero!
  • Code clean up from Windows 2000
ddksynth sample additions and upgrades
DDKSynth SampleAdditions and Upgrades
  • Vastly improved INF/install
    • Now appropriate for SW devices
  • FP protection
  • Fixes for memory leaks, KS property handling
dmusuart sample additions and upgrades
DMusUART SampleAdditions and Upgrades
  • Added IMusicTechnology, for clients to specify
  • Fixes for KS property handling
  • Added IPowerNotify for proper power management behavior
    • Reset MPU when returning to D0
  • Removed UART sample
global effects sample additions and upgrades
Global Effects SampleAdditions and Upgrades
  • AVStream filter (GFXSwap) that performs global audio processing (in this case, L/R channel swap)
  • Vendor UI property page, including custom KS property (Get and Set)
  • INF for installation, with optional INF lines for hardware-specific installation
virtual audio driver msvad additions and upgrades
Virtual Audio Driver (MSVAD)Additions and Upgrades
  • Simple
    • Baseline miniport driver template
    • Extended caps (MID, PID)
  • AC3
    • AC3-over-SPDIF output pin
    • Non-PCM DataRangeIntersection handler
  • DrmSimp
    • SetContentId implementation for simple IDrmAudioStream
    • Emulates muting of HW with savedata
msvad additions and upgrades 2
MSVADAdditions and Upgrades (2)
  • DrmMult
    • CreateContentMixed, GetContentRights, DestroyContent
    • Like DrmSimp, emulates muting of individual HW streams with savedata
      • Doesn't actually mix
  • ds2dhw
    • Volume, sum, SRC properties and nodes
    • Correct node ordering for DS mixing
  • MultStr
    • > 1 output stream
msvad additions and upgrades 3
MSVADAdditions and Upgrades (3)
  • PcmEx
    • Intersection handler for extensible format
  • DDK sample migration paths:
    • Simple --> AC3, PcmEx, DrmSimp, MultStr
    • MultStr --> ds2dhw, DrmMult
    • (DrmSimp --> DrmMult)
sb16 additions and upgrades
SB16Additions and Upgrades
  • HW event support (volume control callbacks)
    • KSEVENT_CONTROL_CHANGE automation table and event handler AddEventToEventList
    • Then on ISR we GenerateEventList
  • DRM
    • Also better comments in SetContentId
  • IDmaChannel for indirection/buffer tweaking
  • Resume from S4 SR fix
sb16 additions and upgrades 2
SB16Additions and Upgrades (2)
  • Extended caps (MID, PID)
  • INF MediaCategories entry for NameGuid
  • IPortClsVersion
    • Plus comments for how to detect pre-IPortClsVersion QFEs
  • DataRangeIntersection handler cleanup
  • SetNotificationFreq FramingSize must be sample block aligned
  • General code clean up
ddk samples new material to be added post beta
DDK Samples New Material To Be Added post-Beta
  • Migration DLL sample with complete INF
  • MSVAD sample for DSound 3D mixing
  • Inclusion of AddContentHandlers and other DRM calls into MSVAD\DrmMult
new ddk tools39
New DDK Tools
  • KsStudio (Grapher.2)
    • Tons of great new features
  • Interactive INF viewer
  • Multi-channel streaming tool
  • New WHQL tests
    • DRMTest
    • AC3Test
    • DmDrvTst
    • KsDmTst
    • GfxTest
lib and h file changes portcls lib
Lib and .h File ChangesPortCls.lib
  • Removed from PortCls.lib:
    • PcNewIrpStreamPhysical, PcNewIrpStreamVirtual
  • Added to PortCls.lib:
    • PcAddContentHandlers, PcForwardContentToDeviceObject
      • Not in Windows Me
    • PcCompleteIrp, plus five DRM exports
    • PcCreateContentMixed, PcDestroyContent,
    • PcForwardContentToInterface, PcGetContentRights
    • PcForwardContentToFileObject (deprecated)
lib and h file changes portcls h
Lib and .h File ChangesPortCls.h
  • New PortCls interfaces added to PortCls.h:
    • IDrmPort interface declaration and implementation macro
    • IDrmPort2, built on IDrmPort from Windows Me
      • Adds AddContentHandlers & ForwardContentToDeviceObject
    • IPortClsVersion for WDM audio platform detection
    • IDmaOperations for HalAllocateCommonBuffer (since it is obsolete)
      • Could use IDmaChannel
    • IMusicTechnology for non-MPU devices with a UART interface
lib and h file changes portcls h43
Lib and .h File ChangesPortCls.h
  • Removed from PortCls.h:
    • NewIrpStream #defines
    • PcRegisterIrpHandler
  • Other Vtable declaration cleanup for ForwardContentToInterface
  • Managment --> Management
infs setup
  • Dynamic Update
    • Logo’d driver on Windows Update automatically pushed during upgrade if no in-box PNP ID match
  • Windows 9x WDM drivers’ INF files are deleted upon upgrade to NTOS
    • Unless Win 9x INF contains special section and installs Migration DLL
    • Migration DLL entries shown in INF viewer tool
  • Legacy detection removed for Windows XP
  • PreCopySection removed for NT-only INFs
    • Only needed for Windows 9x legacy detection
  • Sample INFs’ 9x vs. NT sections cleaned up
common problems with wdm audio drivers
Common ProblemsWith WDM Audio Drivers
  • Power Management
    • Scatter-gather lists gets scrambled
    • Test aggressively with PMTE & Lullaby
  • Plug and Play
    • Incorrect treatment of child devices
    • Test aggressively with HCT tests
  • FP problems
    • Not saving FP state appropriately
    • Direct CR0 manipulation
  • Interrupt Storms
  • Failures with new Verifier (deadlock, I/O)
common problems with audio devices
Common ProblemsWith Audio Devices
  • Power Management HW issues
    • C3 state issues
    • Repeated power cycles, HW does not awaken
  • Plug and Play HW issues
    • Interactions with on-chip video, modem devices
    • Not separable into MF-compliant subdevices
  • HW cannot be partitioned
    • HW incapable of redirecting final output to host
    • Renderer includes analog processing
  • USB: not providing a low-bandwidth pipe (non-zero, <20%) for bandwidth reservation
resources for wdm audio driver writers
Resources for WDM Audio Driver Writers
  • Windows DDK (of course!)
  • Web resources
      • Good external resource for audio developers
      • Archive is full of lore
  • Numerous books on WDM (Oney, et al)
call to action
Call to Action
  • Take advantage of new audio features of Windows XP to create full-featured drivers
  • Logo your drivers for Windows XP
  • Keep in touch! DDK feedback is appreciated:
    • Are samples/docs unclear or incomplete?
    • What new samples or docs are needed?
    • What features should be added to WDM audio?
    • Send DDK feedback to (program manager for WDM audio drivers)
  • WinHEC is over; go forth and be fruitful
