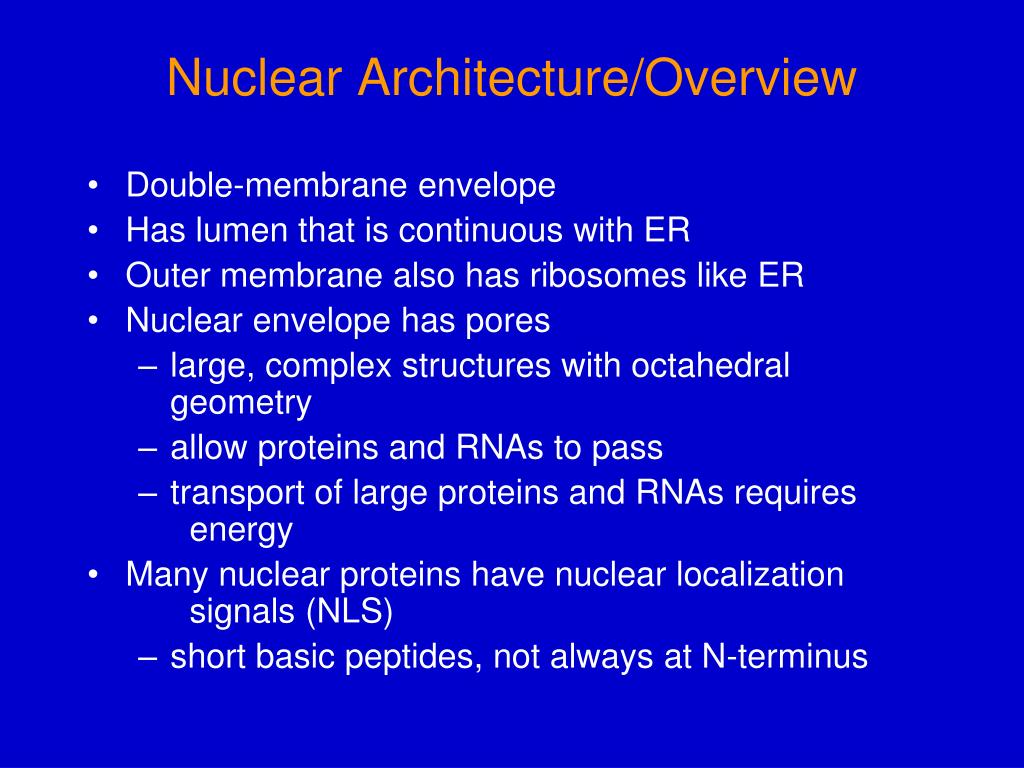

  1. Nuclear Architecture/Overview • Double-membrane envelope • Has lumen that is continuous with ER • Outer membrane also has ribosomes like ER • Nuclear envelope has pores • large, complex structures with octahedral geometry • allow proteins and RNAs to pass • transport of large proteins and RNAs requires energy • Many nuclear proteins have nuclear localization signals (NLS) • short basic peptides, not always at N-terminus

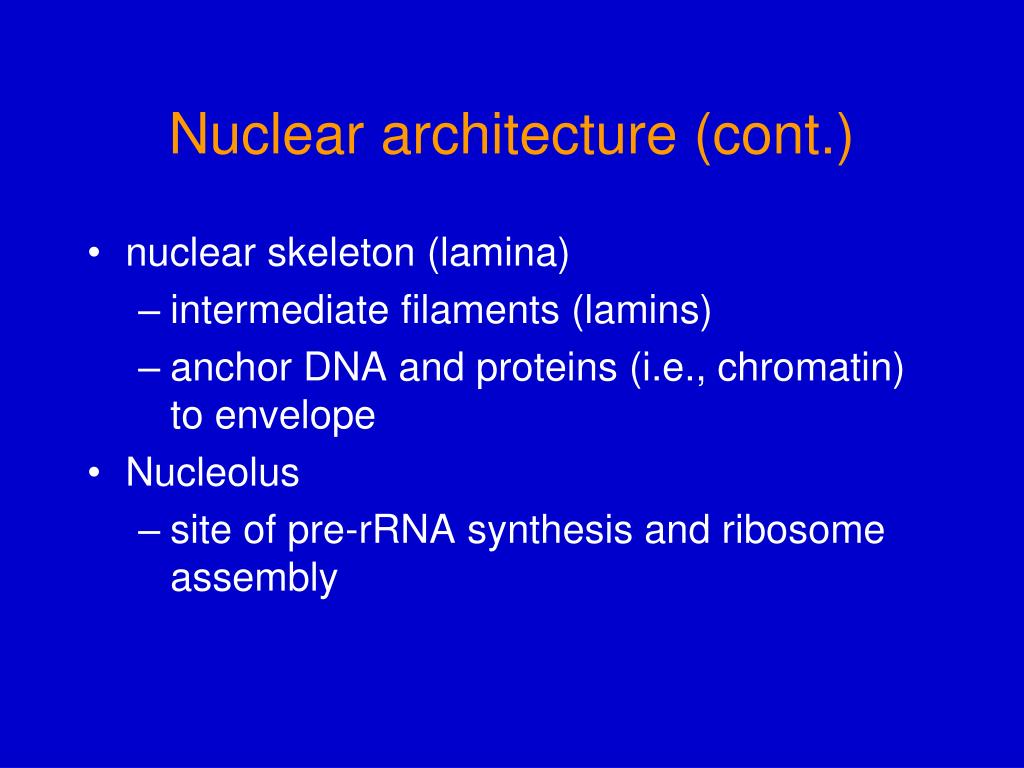

  2. Nuclear architecture (cont.) • nuclear skeleton (lamina) • intermediate filaments (lamins) • anchor DNA and proteins (i.e., chromatin) to envelope • Nucleolus • site of pre-rRNA synthesis and ribosome assembly

  3. Tobacco meristem cell : Nucleus with large Nucleolus, and Euchromatin. Stars indicate heterogeneity in the nucleolus. Euchromatin

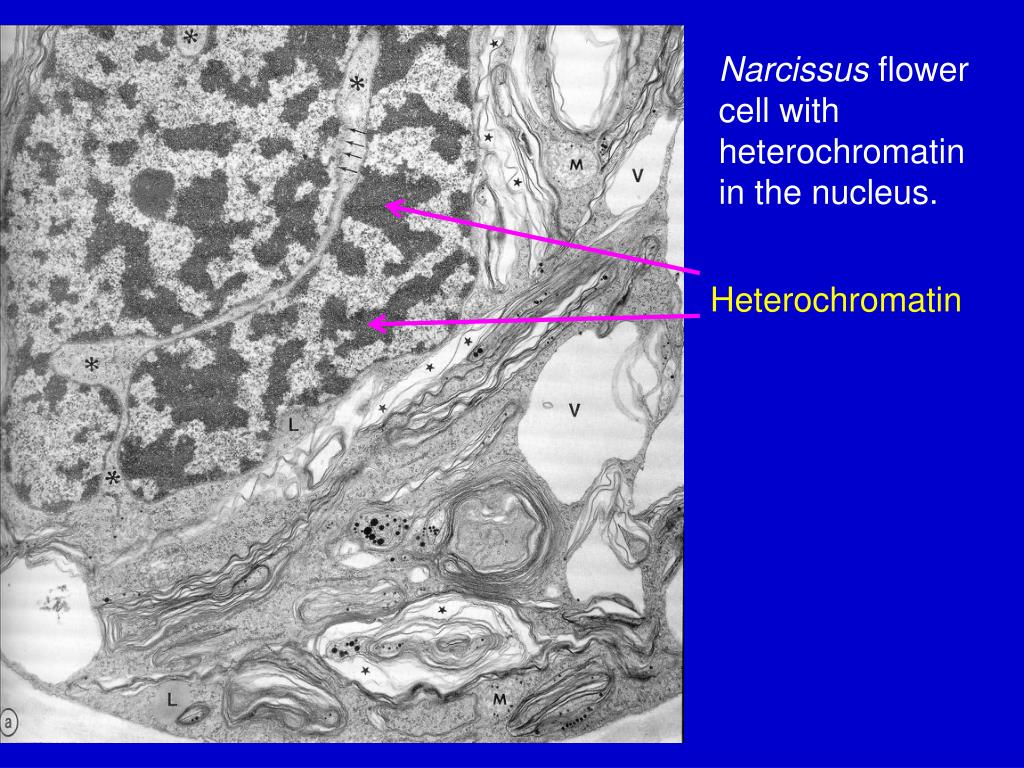

  4. Narcissus flower cell with heterochromatin in the nucleus. Heterochromatin

  5. Freeze fracture EM view  c – pores “face on” view thru tunnel d – partially assembled ribosomes passing through pores (side view)

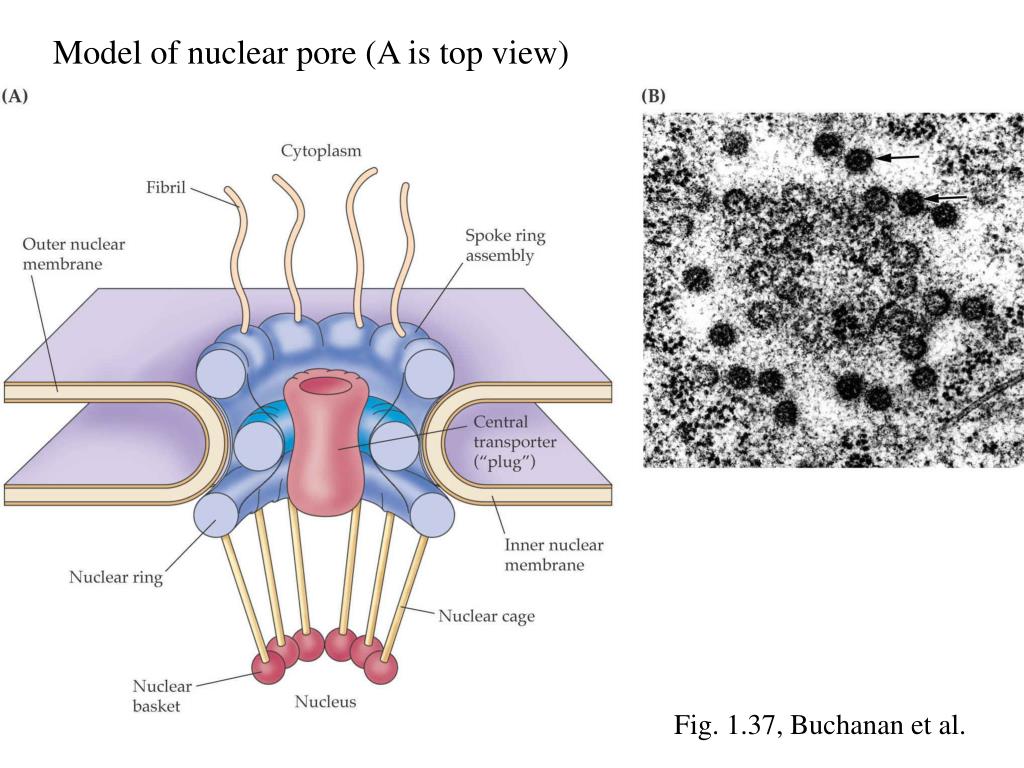

  6. Model of nuclear pore (A is top view) Fig. 1.37, Buchanan et al.

  7. Time-lapse photos of Nucleolus dumping something?? Pre-ribosomes Nucleolus chromatin spread RNA Pol I making pre-rRNAs

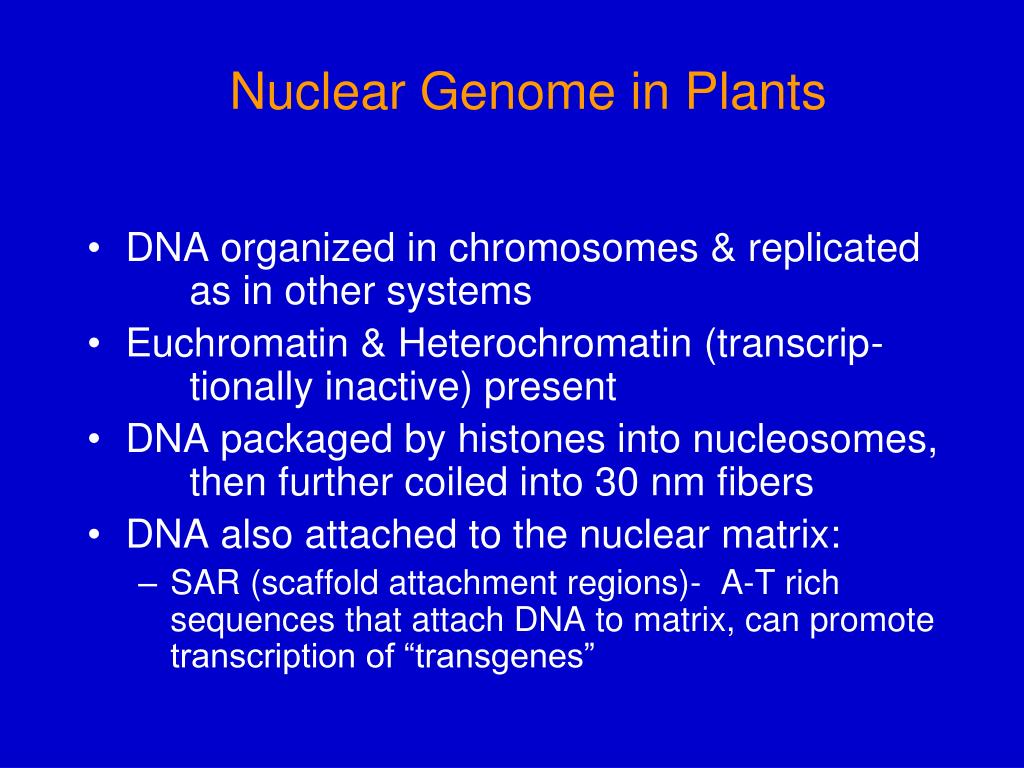

  8. Nuclear Genome in Plants • DNA organized in chromosomes & replicated as in other systems • Euchromatin & Heterochromatin (transcrip- tionally inactive) present • DNA packaged by histones into nucleosomes, then further coiled into 30 nm fibers • DNA also attached to the nuclear matrix: • SAR (scaffold attachment regions)- A-T rich sequences that attach DNA to matrix, can promote transcription of “transgenes”

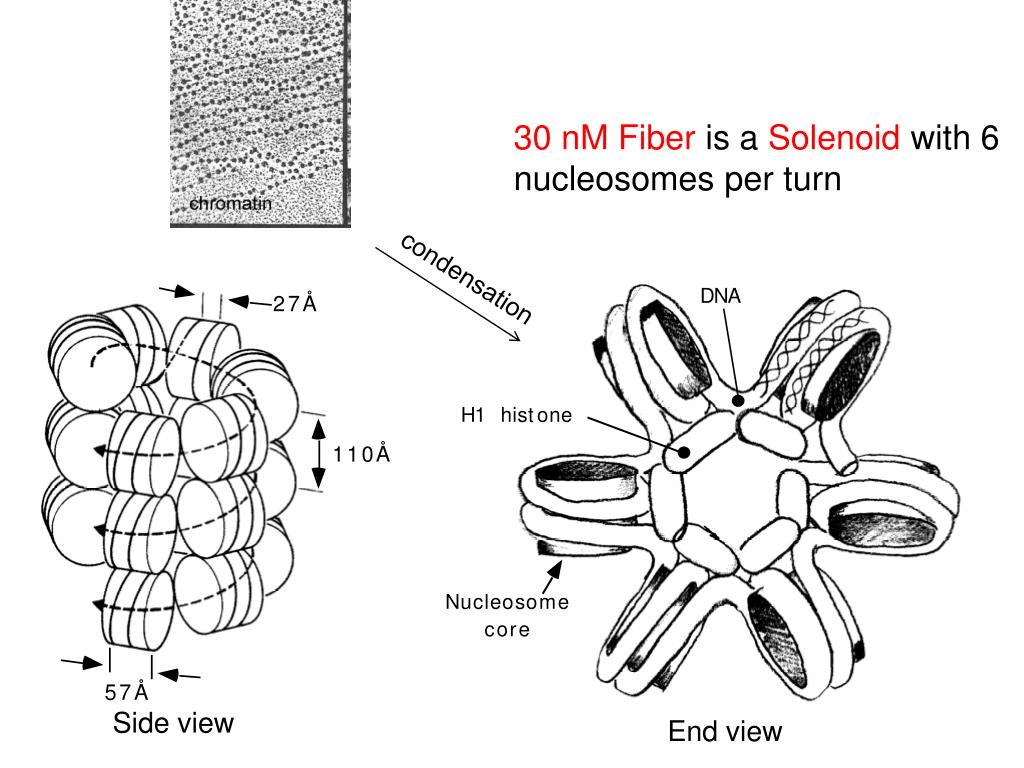

  9. 30 nM Fiber is a Solenoid with 6 nucleosomes per turn condensation Side view End view

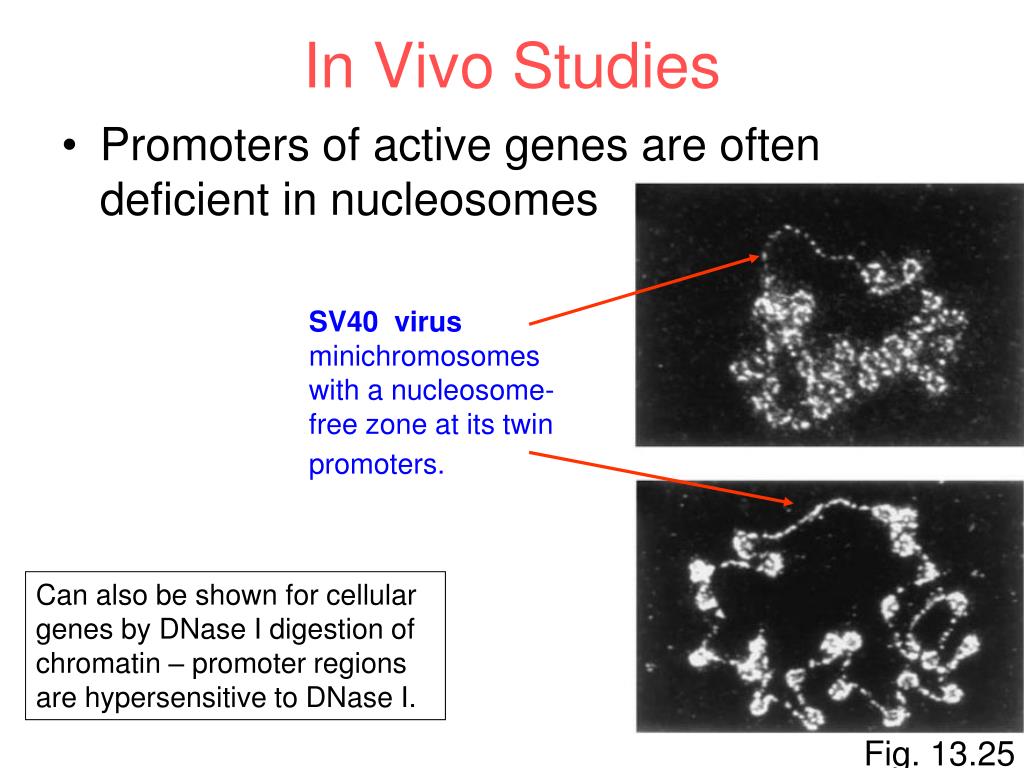

  10. In Vivo Studies • Promoters of active genes are often deficient in nucleosomes SV40 virus minichromosomes with a nucleosome-free zone at its twin promoters. Can also be shown for cellular genes by DNase I digestion of chromatin – promoter regions are hypersensitive to DNase I. Fig. 13.25

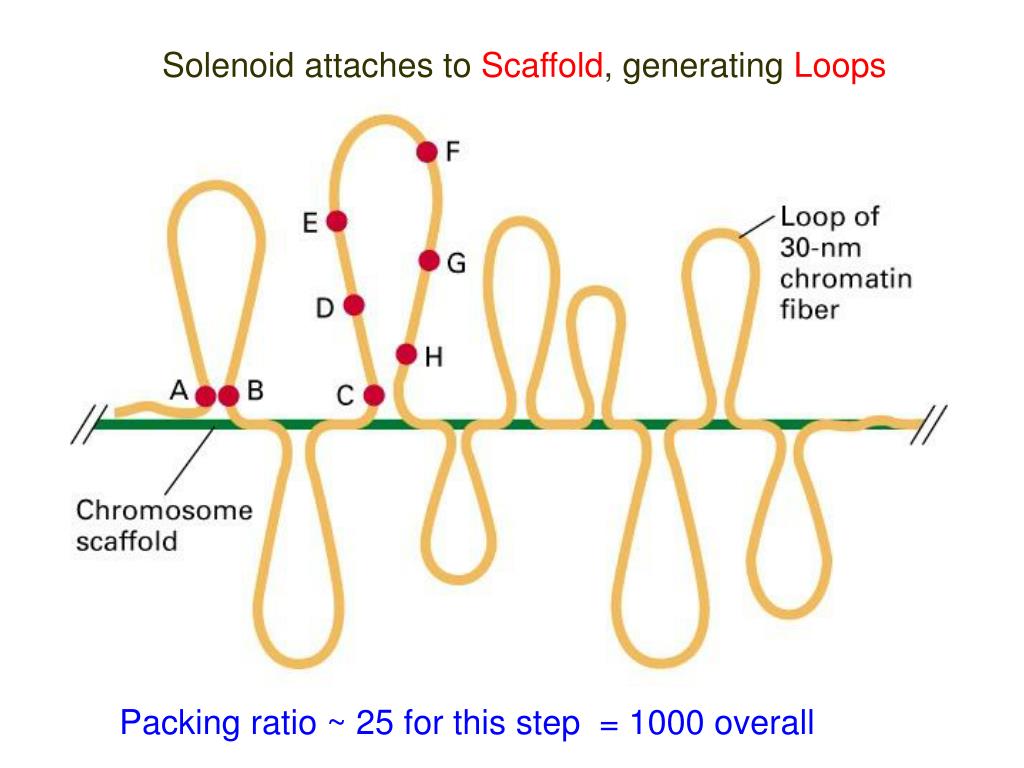

  11. Solenoid attaches to Scaffold, generating Loops Packing ratio ~ 25 for this step = 1000 overall

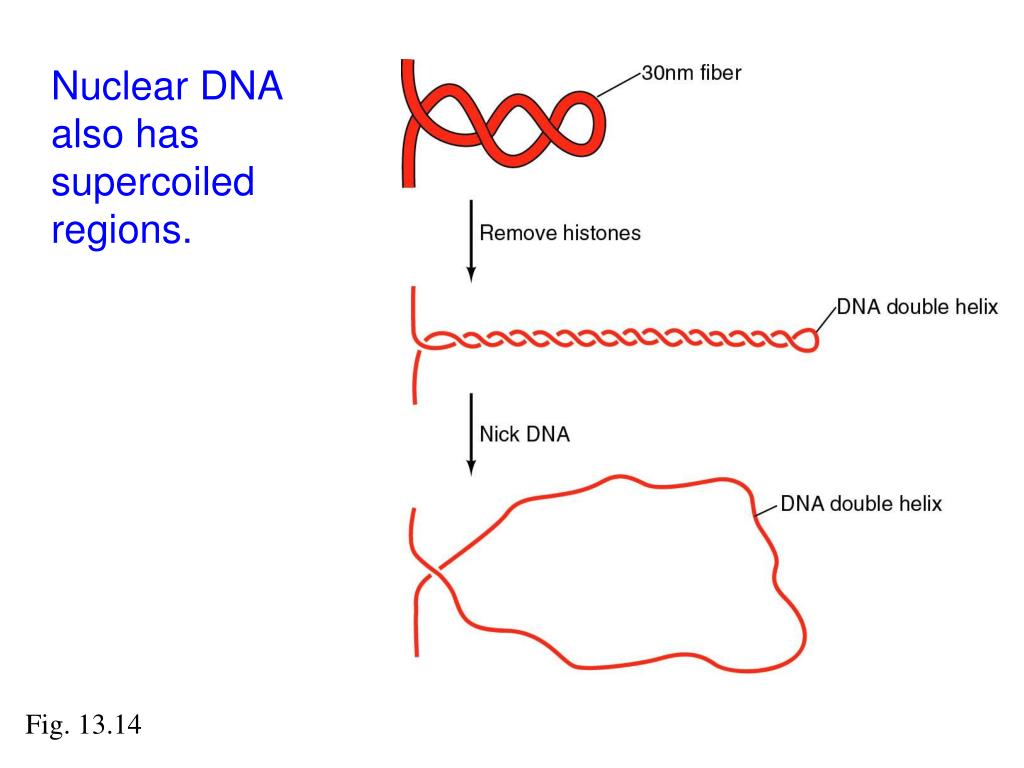

  12. Nuclear DNA also has supercoiled regions. Fig. 13.14

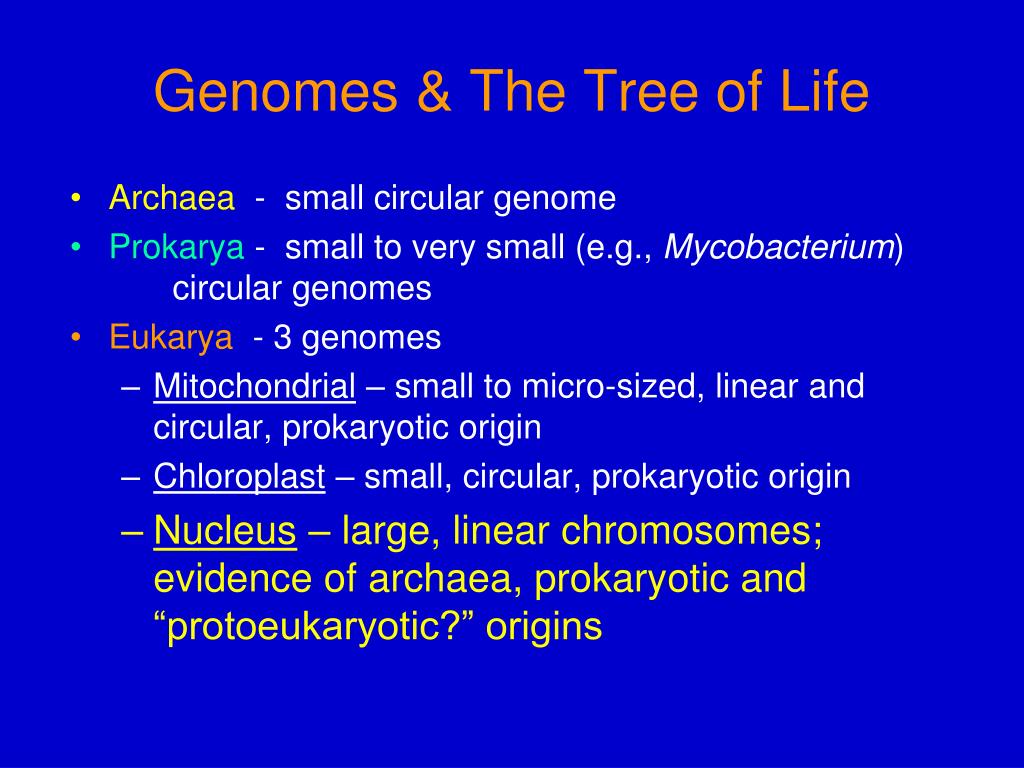

  13. Genomes & The Tree of Life • Archaea - small circular genome • Prokarya - small to very small (e.g., Mycobacterium) circular genomes • Eukarya - 3 genomes • Mitochondrial – small to micro-sized, linear and circular, prokaryotic origin • Chloroplast – small, circular, prokaryotic origin • Nucleus – large, linear chromosomes; evidence of archaea, prokaryotic and “protoeukaryotic?” origins

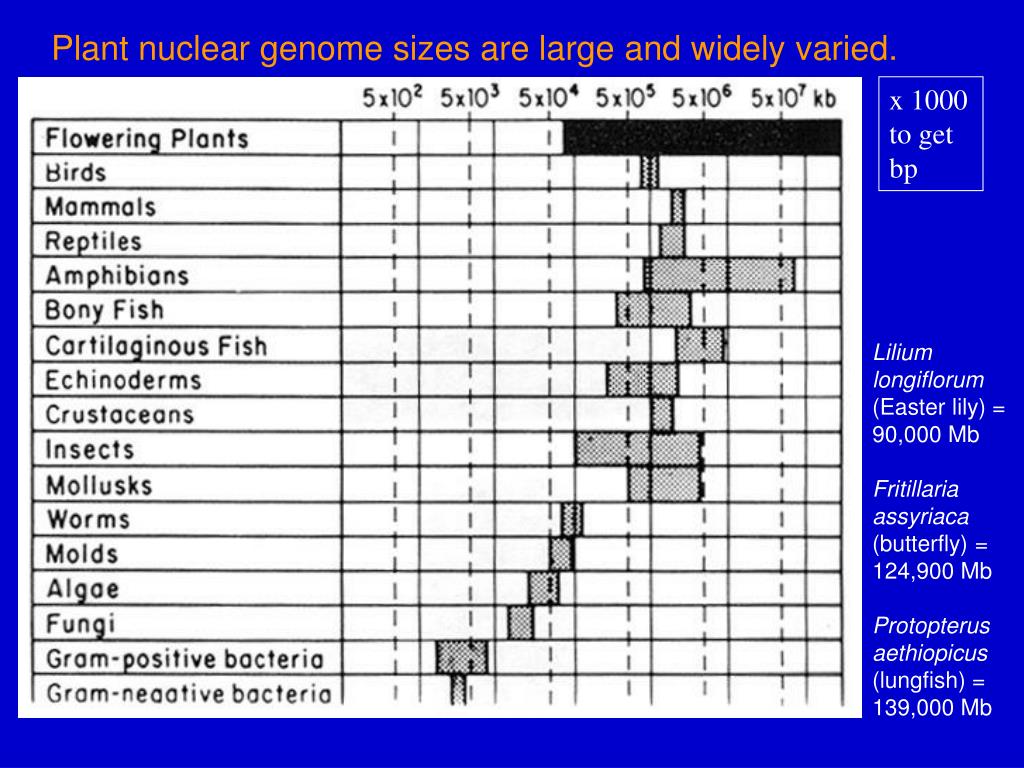

  14. Plant nuclear genome sizes are large and widely varied. x 1000 to get bp Lilium longiflorum (Easter lily) = 90,000 Mb Fritillaria assyriaca (butterfly) = 124,900 Mb Protopterus aethiopicus (lungfish) = 139,000 Mb

  15. What about genome complexity? How many genes do plants have?

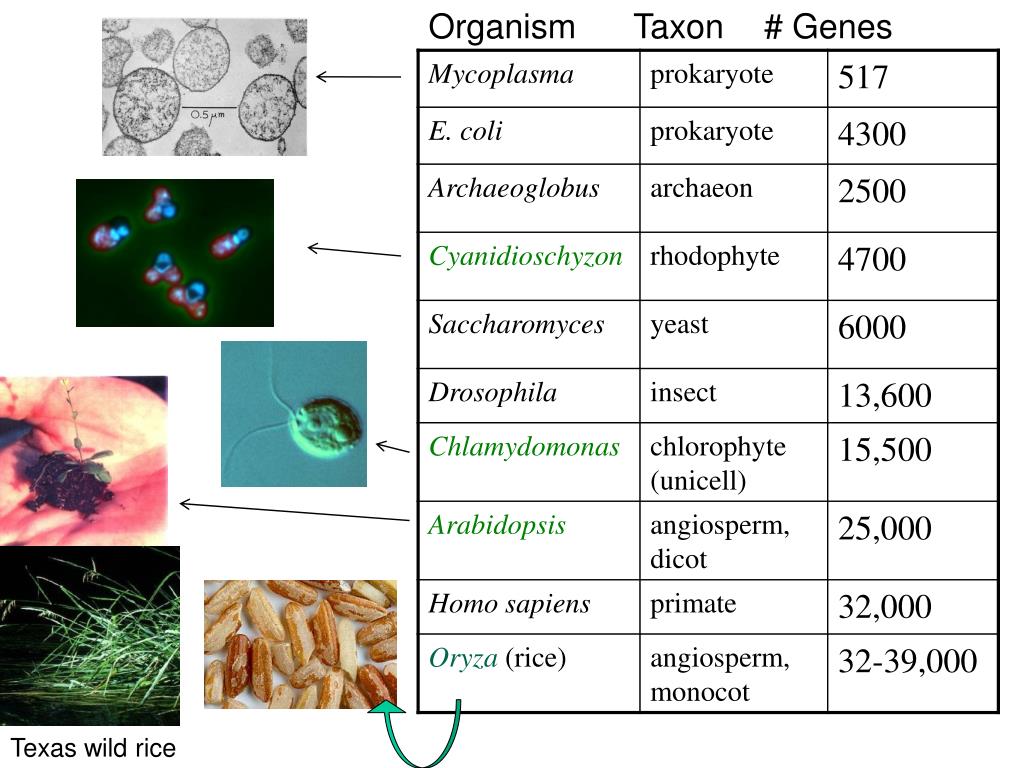

  16. Organism Taxon # Genes Texas wild rice

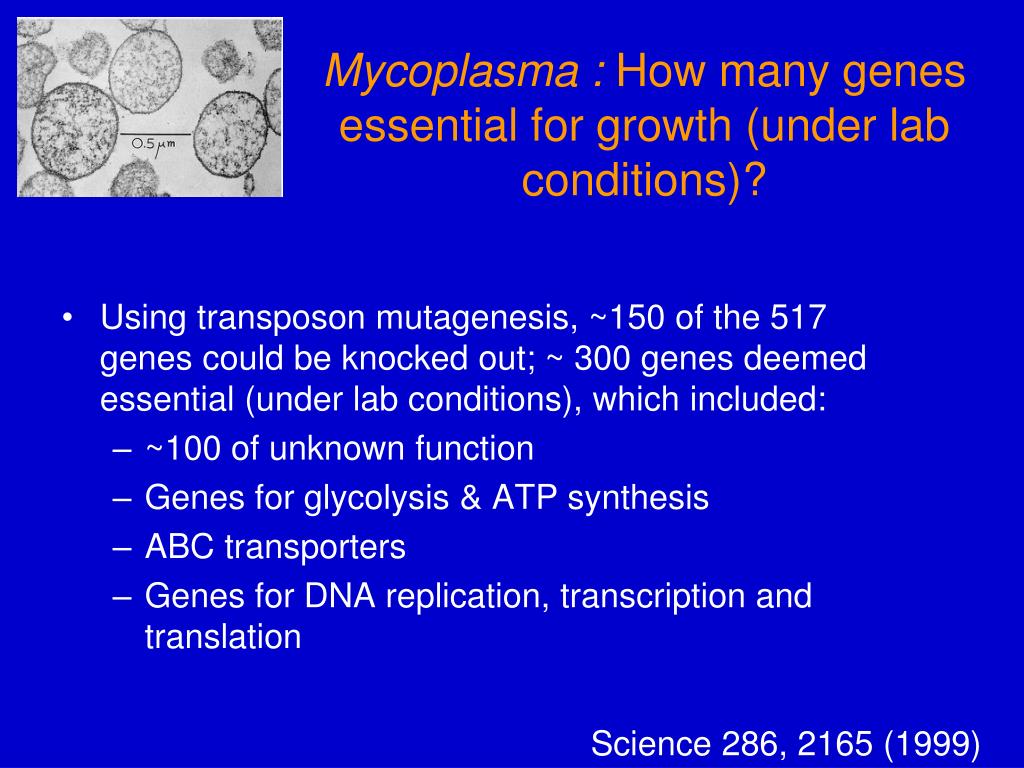

  17. Mycoplasma : How many genes essential for growth (under lab conditions)? • Using transposon mutagenesis, ~150 of the 517 genes could be knocked out; ~ 300 genes deemed essential (under lab conditions), which included: • ~100 of unknown function • Genes for glycolysis & ATP synthesis • ABC transporters • Genes for DNA replication, transcription and translation Science 286, 2165 (1999)

  18. Features that vary & contribute to the wide range of nuclear genome sizes • Amount (or fraction) that is highly repeated • Abundance of "Selfish DNA“ (transposons, etc.) • Frequency and sizes of introns • Humans have large introns • Genetic redundancy

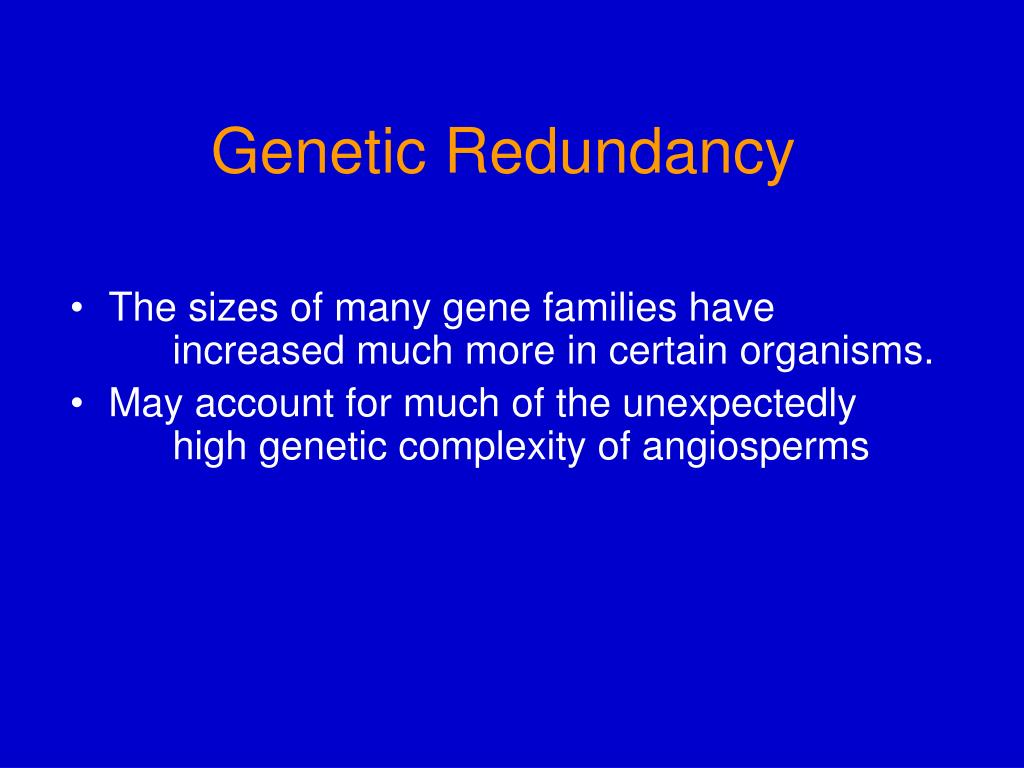

  19. Genetic Redundancy • The sizes of many gene families have increased much more in certain organisms. • May account for much of the unexpectedly high genetic complexity of angiosperms

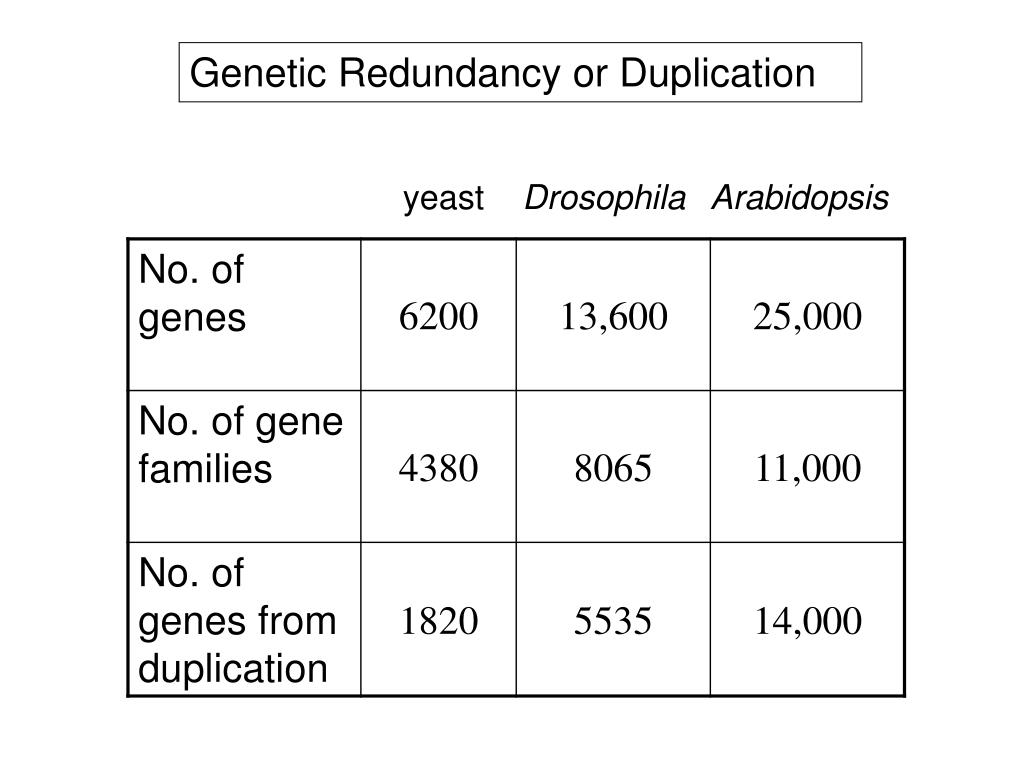

  20. Genetic Redundancy or Duplication yeast Drosophila Arabidopsis

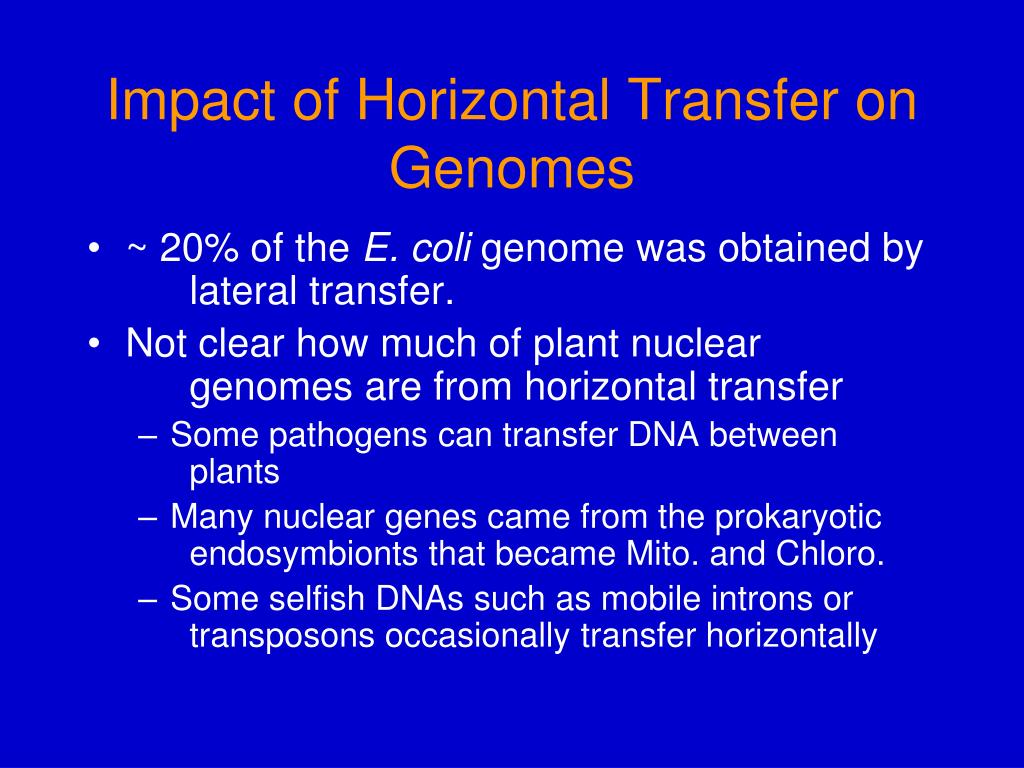

  21. Impact of Horizontal Transfer on Genomes • ~ 20% of the E. coli genome was obtained by lateral transfer. • Not clear how much of plant nuclear genomes are from horizontal transfer • Some pathogens can transfer DNA between plants • Many nuclear genes came from the prokaryotic endosymbionts that became Mito. and Chloro. • Some selfish DNAs such as mobile introns or transposons occasionally transfer horizontally
