overview of parallel architecture

Overview of Parallel Architecture

Yulia Newton

CS 147, Fall 2009

SJSU

what is it
What is it?
  • “Parallel processing is the ability of an entity to carry out multiple operations or tasks simultaneously. The term is used in the contexts of both human cognition and machine computation.” - Wikipedia

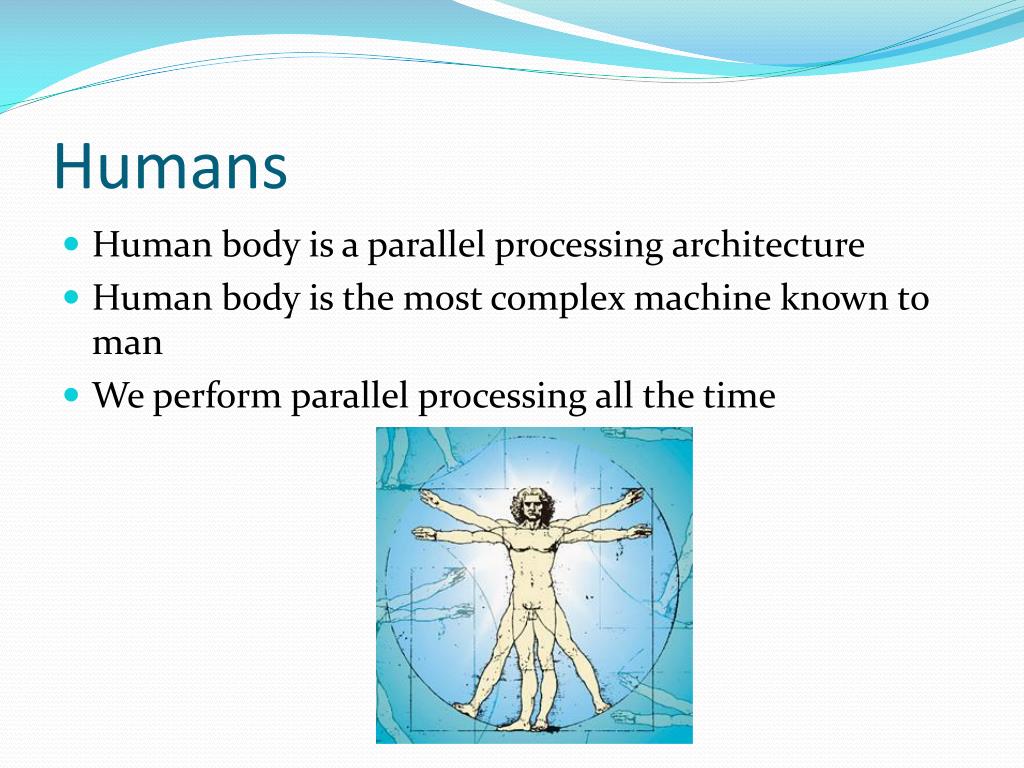

humans
Humans
  • Human body is a parallel processing architecture
  • Human body is the most complex machine known to man
  • We perform parallel processing all the time
slide4
Why?
  • We want to do MORE
  • We want to do it FASTER
limitations of single processor
Limitations of Single Processor
  • Physical
    • Heat
    • Electromagnetic interference
  • Economic
    • Cost

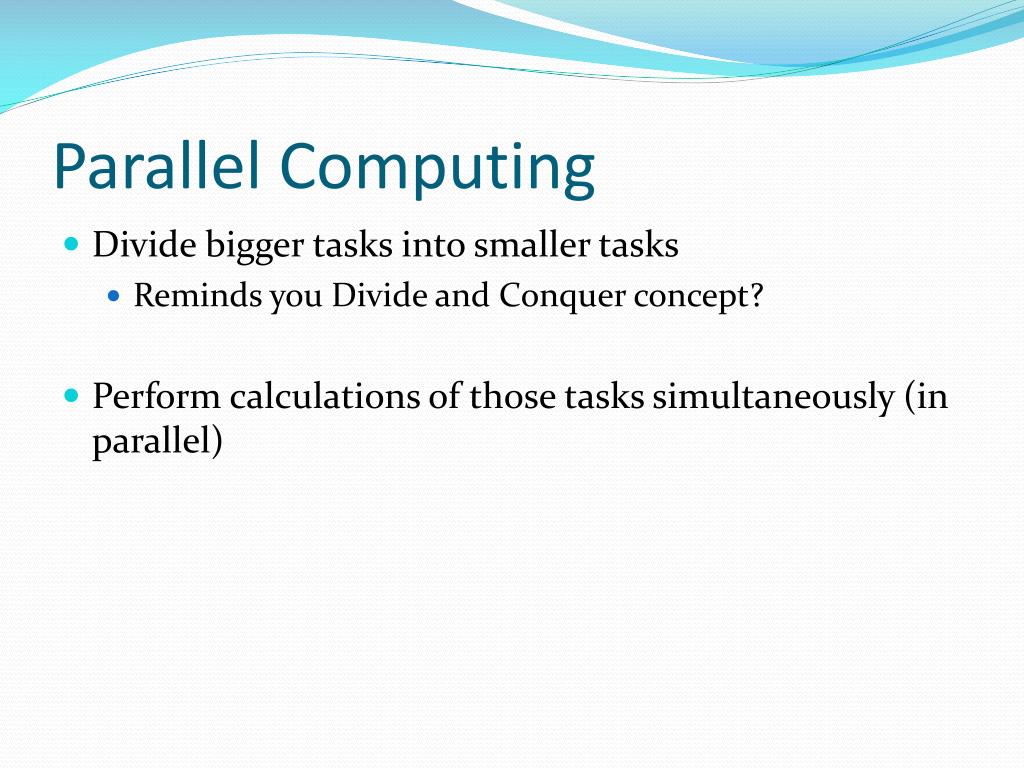

parallel computing
Parallel Computing
  • Divide bigger tasks into smaller tasks
    • Reminds you Divide and Conquer concept?
  • Perform calculations of those tasks simultaneously (in parallel)
with single cpu
With Single CPU
  • Parallel processing is possible with single-CPU, single-core computers
  • Requires very sophisticated software called distributed processing software
  • Most parallel computing is done with multiple CPU’s
speedup from parallelization
Speedup from parallelization
  • More processors = faster computing?
  • Speed-up from parallelization is not linear

Can do single task in a unit of time

Can do twice as many tasks in same the amount of time

Can do four times as many tasks in the same amount of time

speedup
Speedup
  • Definition:

Speedup is how much a parallel algorithm is faster than a corresponding sequential algorithm.

gene myron amdahl
Gene Myron Amdahl
  • Norwegian American computer architect and hi-tech entrepreneur
amdahl s law
Amdahl's Law
  • Formulated in 1960s
  • Gives potential speed-up on parallel computing system

Small portion of components/elements that cannot be parallelized will limit speed-up possible from parallelizable components/elements.

amdahl s law cont d
Amdahl's Law (cont’d)

where :

  • S is the overall speed-up of the system
  • P is the fraction that is parallelizable
amdahl s law alternative form
Amdahl's Law Alternative Form
  • where
    • f – fraction of the program that is enhanced
    • s – speedup of the enhanced portion
amdahl s law example
Amdahl's Law Example

Program

  • Program has four parts

Code 1

Part 1 = 11%

Loop 1

Part 2 = 18%

Loop 2

Part 3 = 23%

Code 2

Part 4 = 48%

amdahl s law example cont d
Amdahl's Law Example (cont’d)
  • Let’s say:
    • P1 is not sped up, so S1 = 1 or 100%
    • P2 is sped up 5×, so S2 = 500%
    • P3 is sped up 20×, so S3 = 2000%
    • P4 is sped up 1.6×, so S4 = 160%
amdahl s law example cont d17
Amdahl's Law Example (cont’d)
  • Using P1/S1 + P2/S2 + P3/S3 + P4/S4:

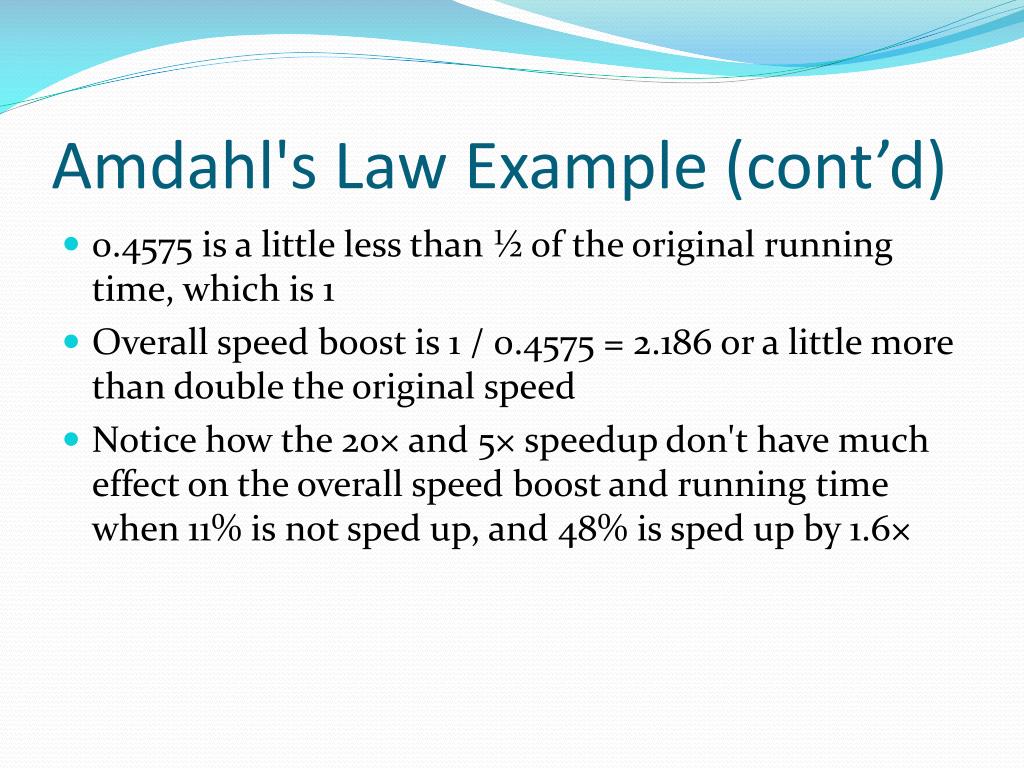

amdahl s law example cont d18
Amdahl's Law Example (cont’d)
  • 0.4575 is a little less than ½ of the original running time, which is 1
  • Overall speed boost is 1 / 0.4575 = 2.186 or a little more than double the original speed
  • Notice how the 20× and 5× speedup don't have much effect on the overall speed boost and running time when 11% is not sped up, and 48% is sped up by 1.6×
amdahl s law limitations
Amdahl's Law Limitations
  • Based on fixed work load or fixed problem size (strong or hard scaling)
  • Implies that machine size is irrelevant
john l gustafson
John L. Gustafson
  • American computer scientist and businessman

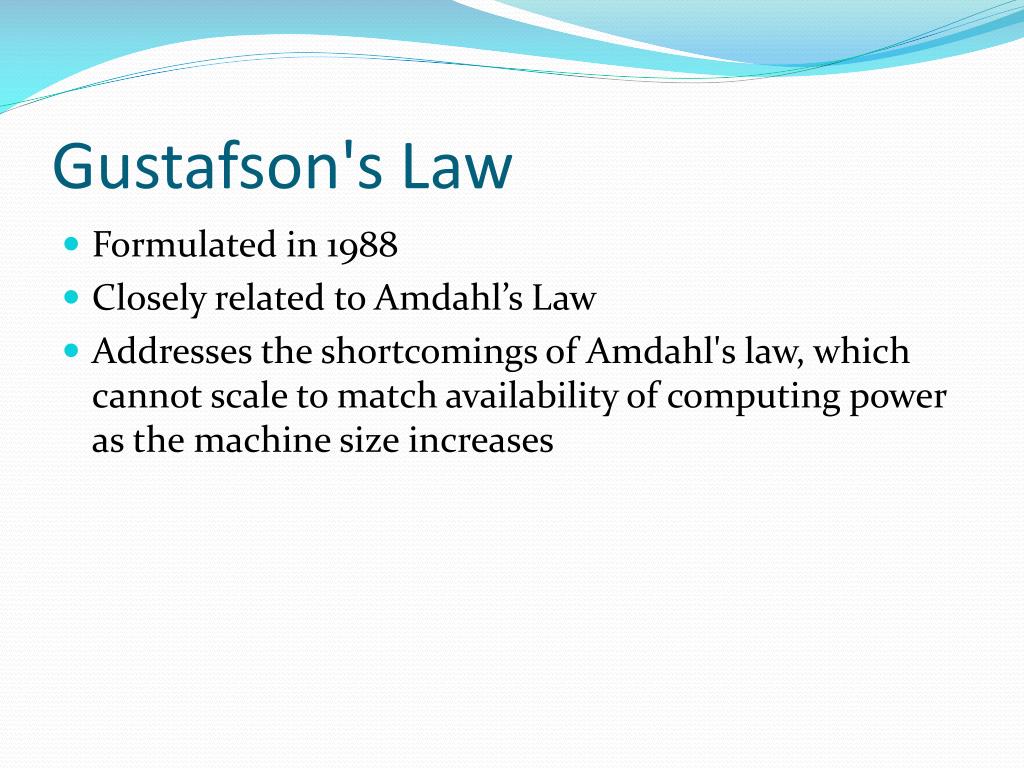

gustafson s law
Gustafson's Law
  • Formulated in 1988
  • Closely related to Amdahl’s Law
  • Addresses the shortcomings of Amdahl's law, which cannot scale to match availability of computing power as the machine size increases
gustafson s law cont d
Gustafson's Law (cont’d)
  • where P is the number of processors, S is the speedup, and α the non-parallelizable part of the process

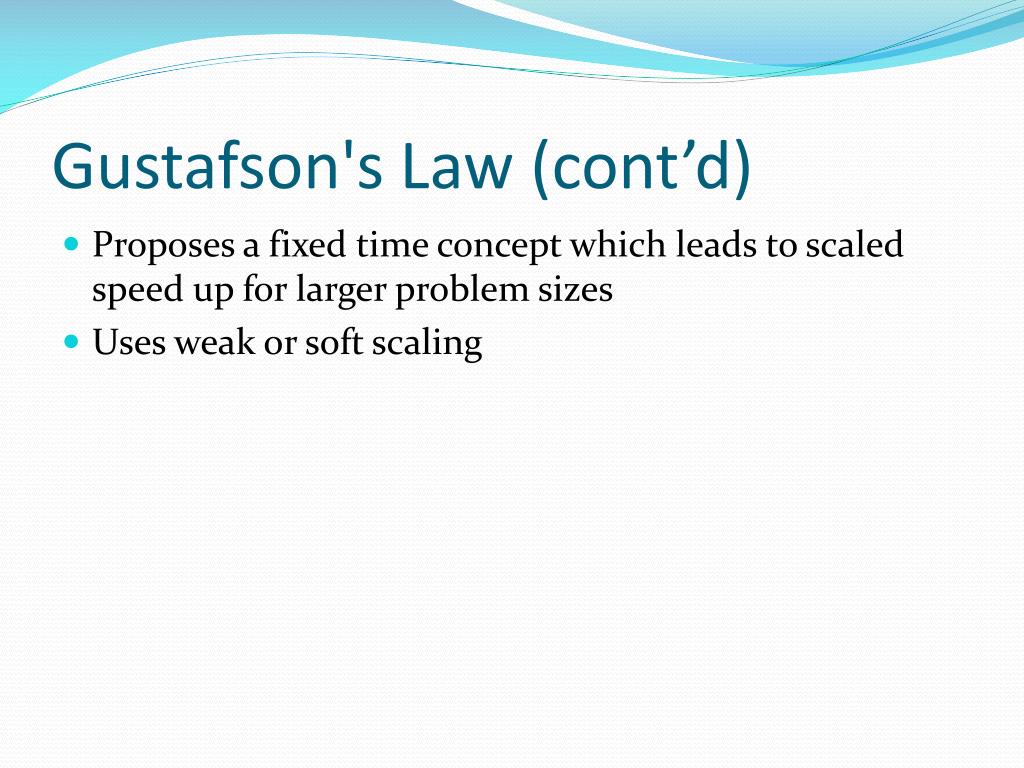

gustafson s law cont d23
Gustafson's Law (cont’d)
  • Proposes a fixed time concept which leads to scaled speed up for larger problem sizes
  • Uses weak or soft scaling
gustafson s law limitations
Gustafson's Law Limitations
  • Some problems do not have fundamentally larger datasets
    • Example: processing one data point per world citizen gets larger at only a few percent per year
  • Nonlinear algorithms may make it hard to take advantage of parallelism "exposed" by Gustafson's law
parallel architectures
Parallel Architectures
  • Superscalar
  • VLIW
  • Vector Processors
  • Interconnection Networks
  • Shared Memory Multiprocessors
  • Distributed Computing
  • Dataflow Computing
  • Neural Networks
  • Systolic Arrays
superscalar architecture
Superscalar Architecture
  • Implements instruction-level parallelism (multiple instructions are executed simultaneously in each cycle)
  • Net effect is the same as pipelining
  • Additional hardware is required
  • Contains specialized instruction fetch unit (retrieves multiple instructions simultaneously from memory)
  • Relies on both hardware and compiler
superscalar architecture27
Superscalar Architecture
  • Analogous to adding a lane to a highway – more physical resources are required but in the end more cars can pass through
superscalar architecture28
Superscalar Architecture
  • Examples:
    • Pentium x86 processors
    • Intel i960CA
    • AMD 29000-series
vliw architecture
VLIW Architecture
  • Stands for Very Long Instruction Word
  • Similar to Superscalar architecture
  • Relies entirely on compiler
  • Pack independent instructions into one long instruction
  • Bigger size of compiled code
vliw architecture30
VLIW Architecture
  • Examples:
    • Intel’s Itanium, IA-64
    • Floating Point Systems' FPS164

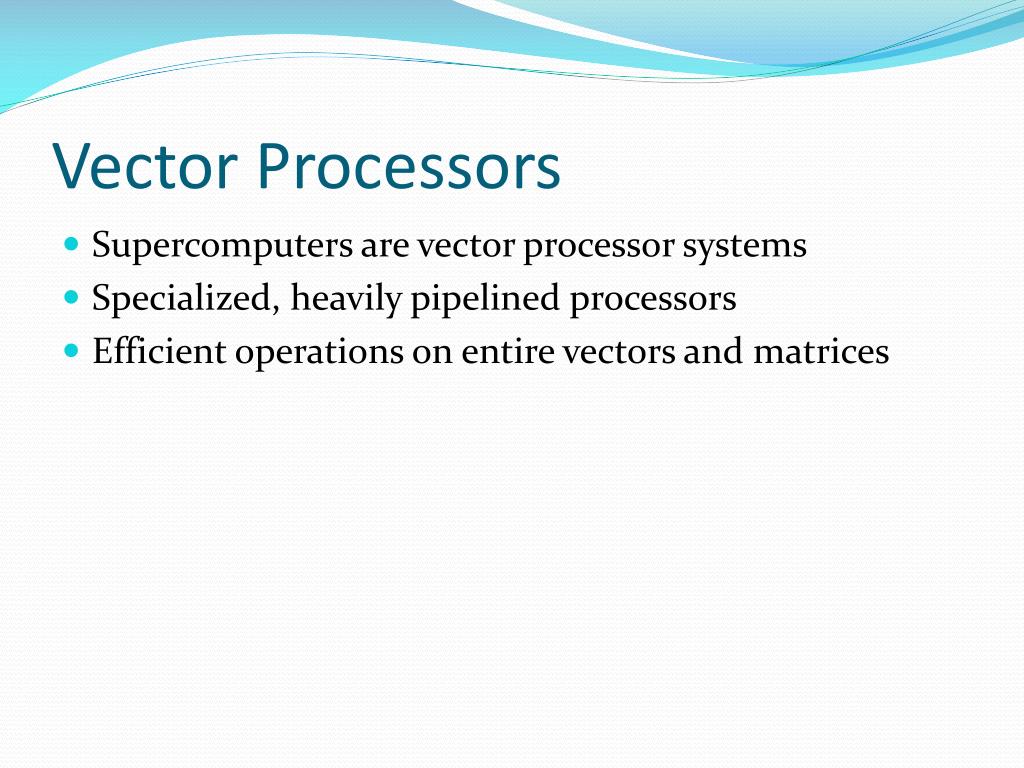

vector processors
Vector Processors
  • Supercomputers are vector processor systems
  • Specialized, heavily pipelined processors
  • Efficient operations on entire vectors and matrices
vector processors32
Vector Processors
  • Heavily pipelined so that arithmetic operations can be overlapped
vector processors example
Vector Processors (example)
  • Instructions on a traditional processor:

For I = 0 to VectorLength

V3[i] = V1[i] + V2[i]

  • Instructions on a vector processor:

LDV V1, R1

LDV V2, R2

ADDV R3, R1, R2

STV R3, V3

vector processors34
Vector Processors
  • Applications:
    • Weather forecasting
    • Medical diagnoses systems
    • Image processing

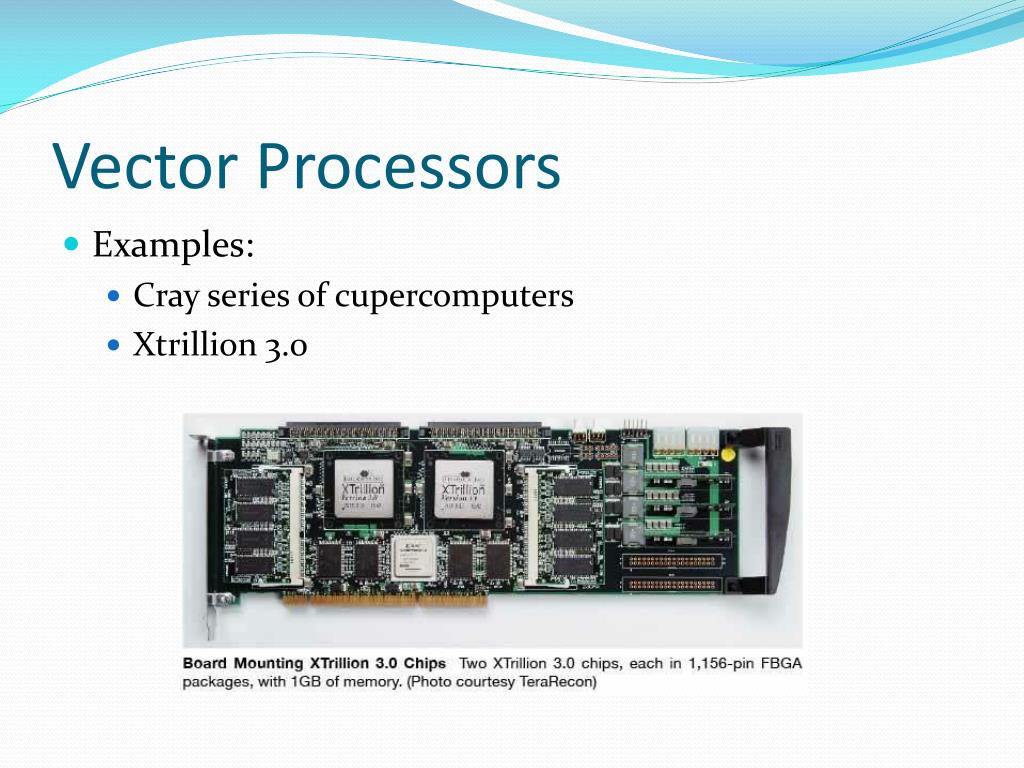

vector processors35
Vector Processors
  • Examples:
    • Cray series of cupercomputers
    • Xtrillion 3.0
interconnection networks
Interconnection Networks
  • MIMD (Multiple instruction stream, multiple data stream) type architecture
  • Each processor has its own memory
  • Processors are allowed to access other processors’ memory via network
interconnection networks37
Interconnection Networks
  • Can be:
    • Dynamic – allow paths between two components to change from one communication to another
    • Static – do not allow a change of path between communications
interconnection networks38
Interconnection Networks
  • Can be:
    • Non-blocking – allow new connections in the presence of another simultaneous connections
    • Blocking – do not allow simultaneous connections

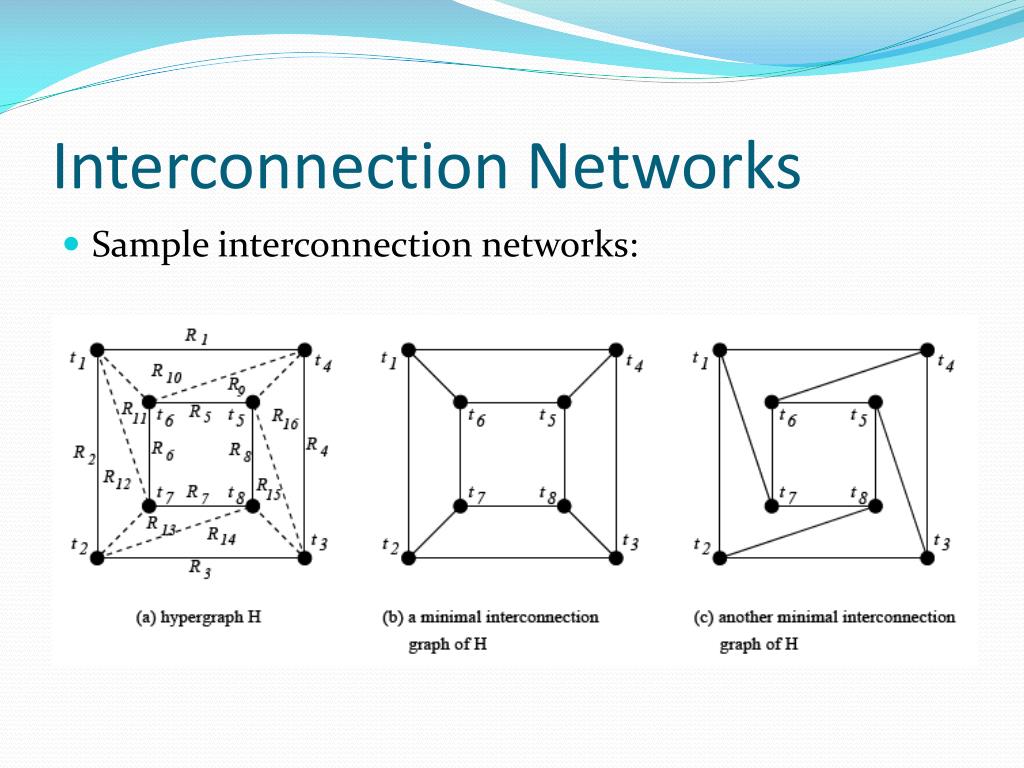

interconnection networks39
Interconnection Networks
  • Sample interconnection networks:
shared memory architecture
Shared Memory Architecture
  • MIMD (Multiple instruction stream, multiple data stream) type architecture
  • Single memory pool accessed by all processors
  • Can be categorized by how the memory access is performed:
    • UMA (Uniform Memory Access) – all processors have equal access to entire memory
    • NUMA (Non-Uniform Memory Access) – each processor has access to its own piece of memory
shared memory architecture41
Shared Memory Architecture
  • Diagram of a Shared Memory system:

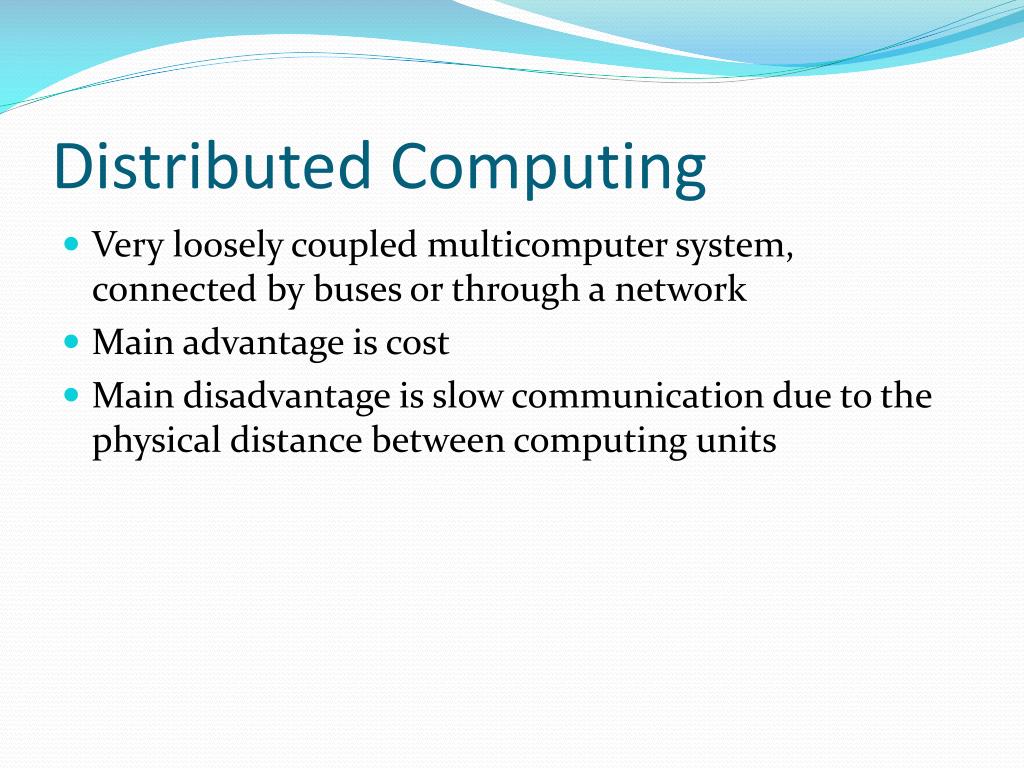

distributed computing
Distributed Computing
  • Very loosely coupled multicomputer system, connected by buses or through a network
  • Main advantage is cost
  • Main disadvantage is slow communication due to the physical distance between computing units
distributed computing43
Distributed Computing
  • Example:
    • SETI (Search for Extra Terrestrial Intelligence) group at UC Berkley analyzes data from radio-telescopes
    • To help this project PC users can install SETI screen saver on their home computer
    • Data will be analyzed during the processor’s idle time
    • Half a million years of CPU time accumulated in about 18 months!
data flow computing
Data Flow Computing
  • Von Neumann machines exhibit sequential control flow; data and instructions are segregated
  • Dataflow computing – control of the program is directly tied to the data
  • Order of the instructions does not matter
  • Each instruction is considered a separate process
  • Tokens are executed rather than instructions

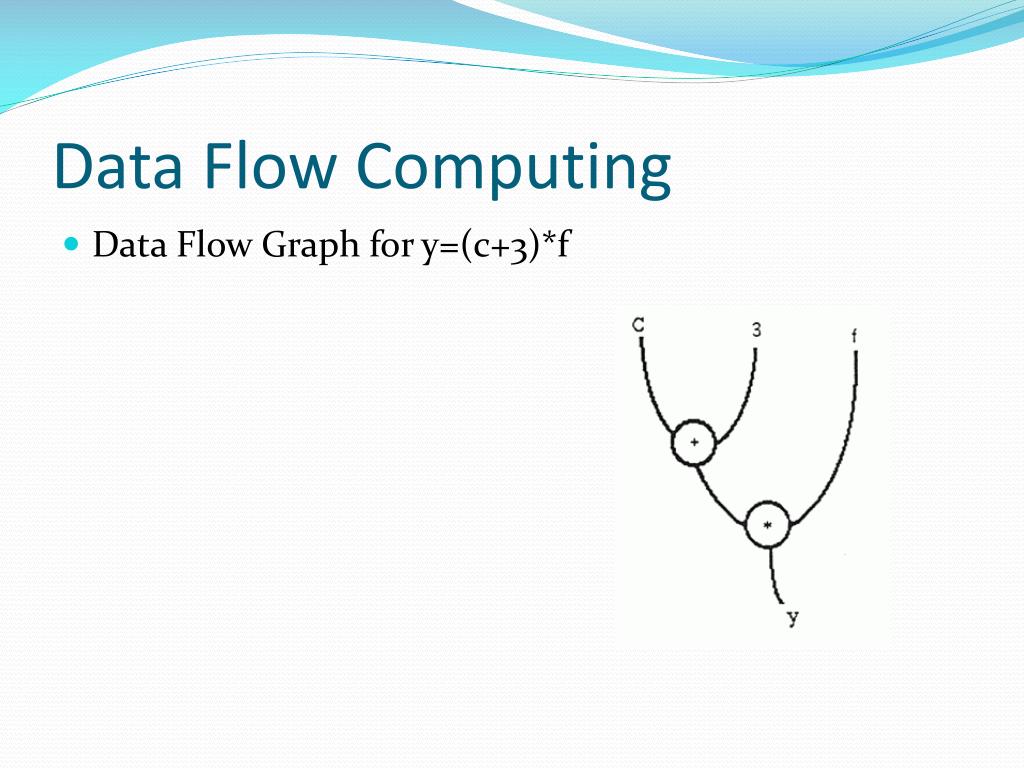

data flow computing45
Data Flow Computing
  • Data Flow Graph for y=(c+3)*f

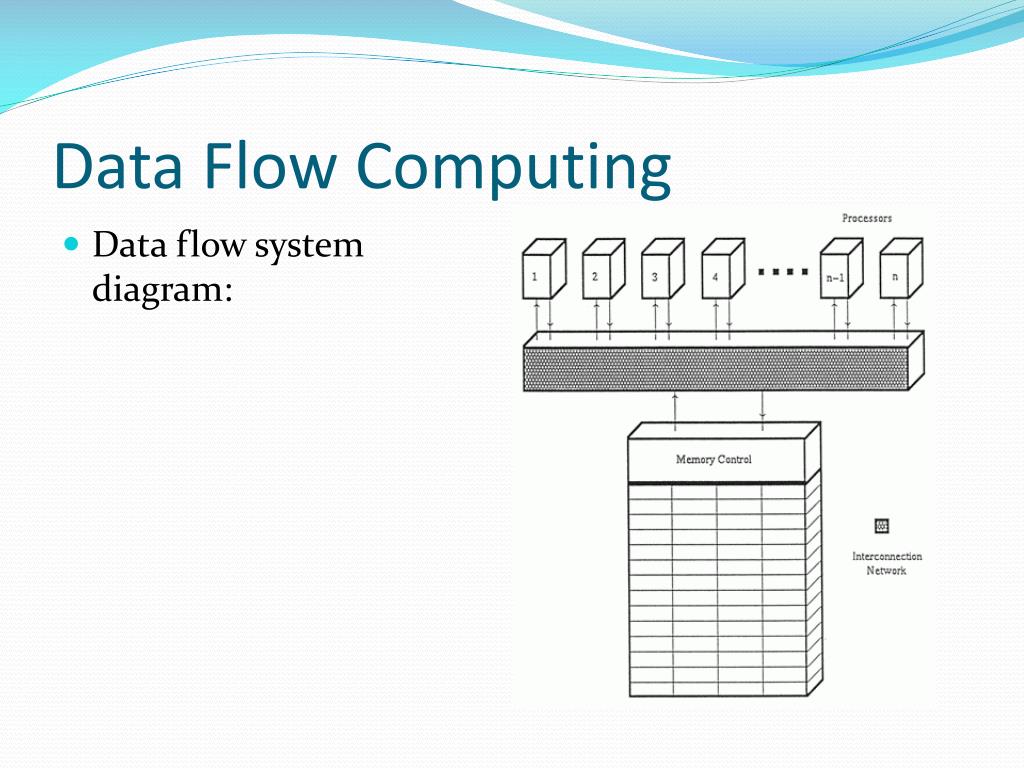

data flow computing46
Data Flow Computing
  • Data flow system diagram:
neural networks
Neural Networks
  • Good for massively parallel applications, fault tolerance and adapting to changing circumstances
  • Based on parallel architecture of human brain
  • Composed of large number of simple processing elements
  • Trainable
neural networks48
Neural Networks
  • Model human brain
  • Perceptron is the simplest example

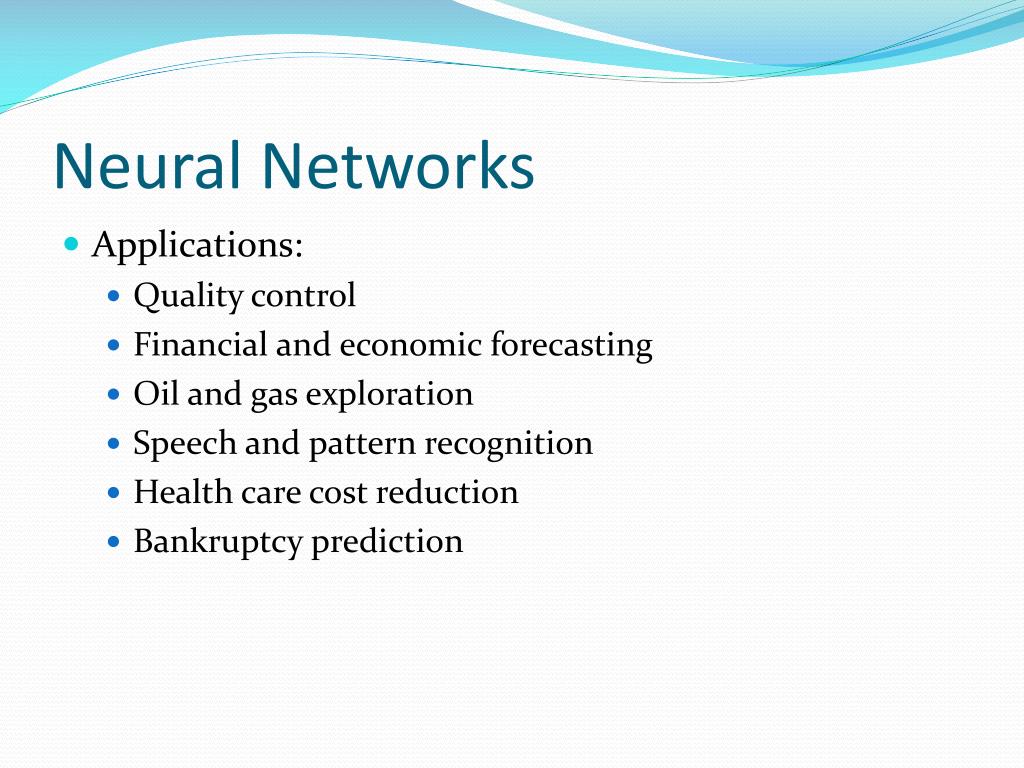

neural networks49
Neural Networks
  • Applications:
    • Quality control
    • Financial and economic forecasting
    • Oil and gas exploration
    • Speech and pattern recognition
    • Health care cost reduction
    • Bankruptcy prediction
systolic arrays
Systolic Arrays
  • Networks of processing elements that rhythmically compute data by circulating it through the system
  • Variations of SIMD architecture
systolic arrays51
Systolic Arrays
  • Chain of processors in a systolic array system:
to recap
To Recap
  • We completed overview of the following parallel processing architectures:
      • Superscalar
      • VLIW
      • Vector Processors
      • Interconnection Networks
      • Shared Memory Multiprocessors
      • Distributed Computing
      • Dataflow Computing
      • Neural Networks
      • Systolic Arrays
references and sources
References and Sources
  • Null, Linda and Julia Lobur. “Computer Organization and Architecture”
  • http://en.wikipedia.org
  • http://www.cs.berkeley.edu/~culler/cs258-s99
  • http://www.cs.iastate.edu/~prabhu
  • http://www.answers.com
  • http://www.gigaflop.demon.co.uk
questions
Questions?

Thank you!
