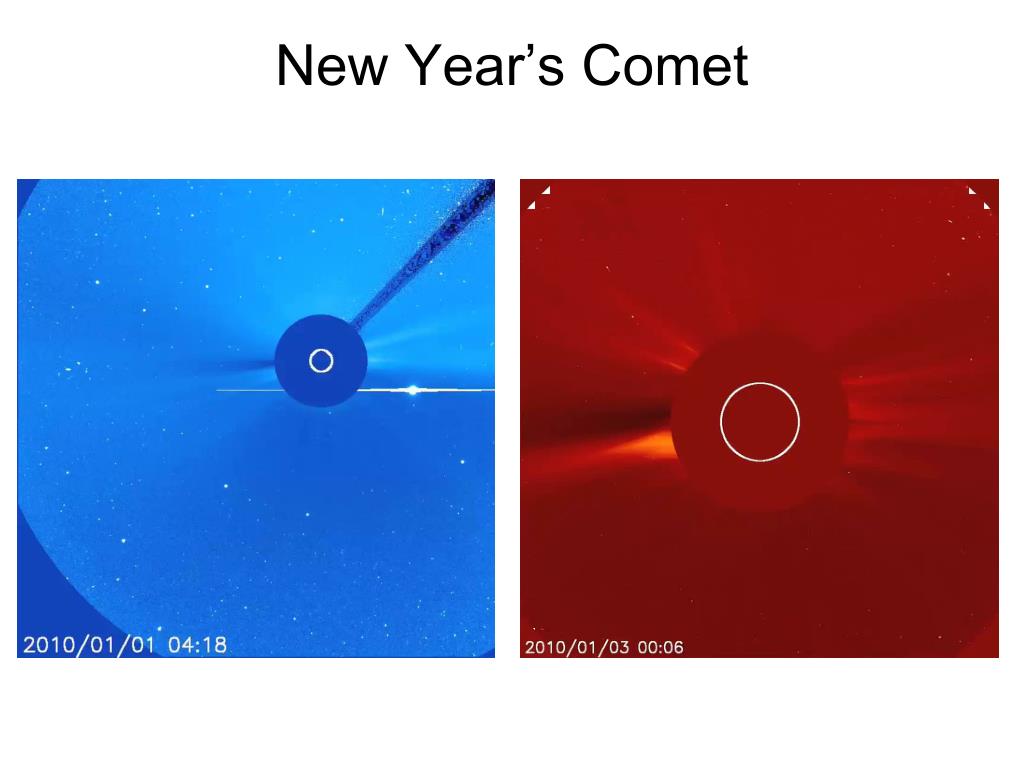

New year s comet
Download
1 / 4

- PowerPoint PPT Presentation


  • 69 Views
  • Uploaded on

New Year’s Comet. Evolution of Magnetic Fields in Convection Zone. Study of the evolution of magnetic fields in the convection zone over cycle 23 from SOHO/MDI oscillation measurements Poloidal field + double-peaked near-surface toroidal field Poloidal : 124 ± 16 G

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about '' - lyn


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

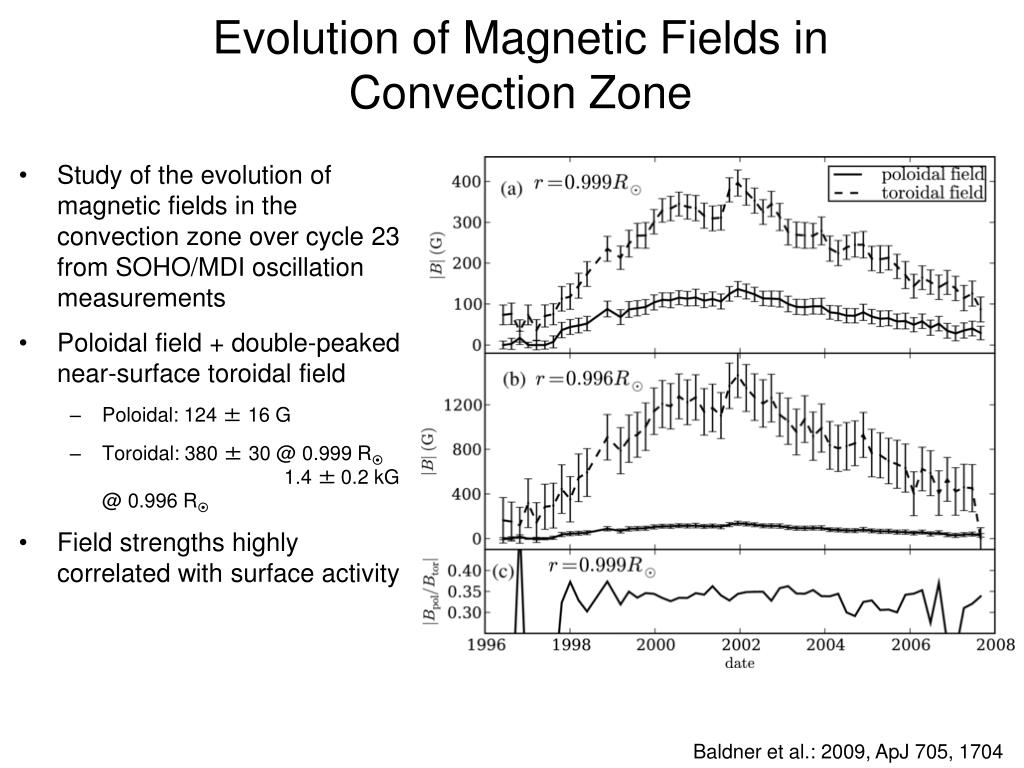

Evolution of magnetic fields in convection zone
Evolution of Magnetic Fields in Convection Zone

  • Study of the evolution of magnetic fields in the convection zone over cycle 23 from SOHO/MDI oscillation measurements

  • Poloidal field + double-peaked near-surface toroidal field

    • Poloidal: 124 ± 16 G

    • Toroidal: 380 ± 30 @ 0.999 R 1.4 ±0.2 kG @ 0.996 R

  • Field strengths highly correlated with surface activity

Baldner et al.: 2009, ApJ 705, 1704

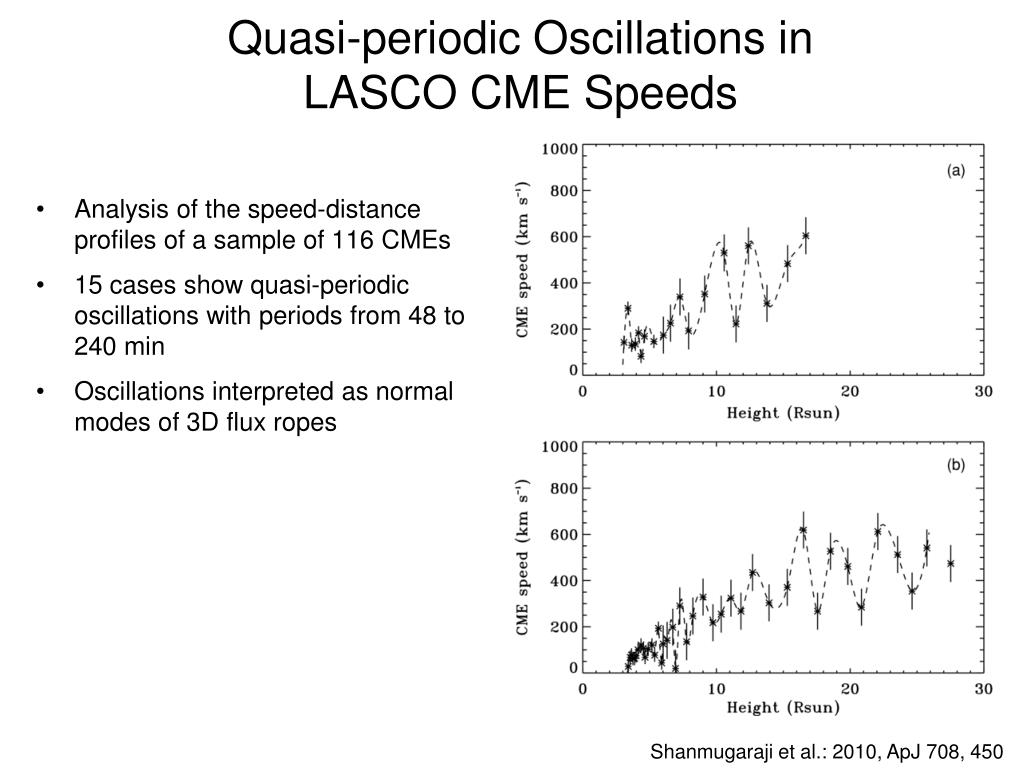

Quasi periodic oscillations in lasco cme speeds
Quasi-periodic Oscillations in LASCO CME Speeds

  • Analysis of the speed-distance profiles of a sample of 116 CMEs

  • 15 cases show quasi-periodic oscillations with periods from 48 to 240 min

  • Oscillations interpreted as normal modes of 3D flux ropes

Shanmugaraji et al.: 2010, ApJ 708, 450


The nascent fast solar wind observed in the corona by hinode eis
The Nascent Fast Solar Wind Observed in the Corona by Hinode/EIS

Temperature / MK

0.63 1 1.3 1.8

  • Origin of fast solar wind one of the most important unresolved problems in space and solar physics

  • Deep exposures in corona hole with EIS reveals first spectroscopic signatures of nascent fast solar wind at coronal temperatures (T > 1 MK)

  • Outflows become stronger with increasing temperature

  • Isolated outflow patches in transition region merge in corona, in agreement with scenario of solar wind outflow being guided by expanding magnetic funnels

Doppler Shift (outflow) Intensity

Tian et al.: 2010, ApJ 709, L88
