Night Vision Transfer of Technology (TOT (. Proposal Description. Proposal Description. S ervices: Supply the knowledge of the Night Vision Equipment Supply full set of manufacturing documents (drawings) Supervise upgrade of current facilities according to plans

luka
Download Presentation

Night Vision Transfer of Technology (TOT (

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

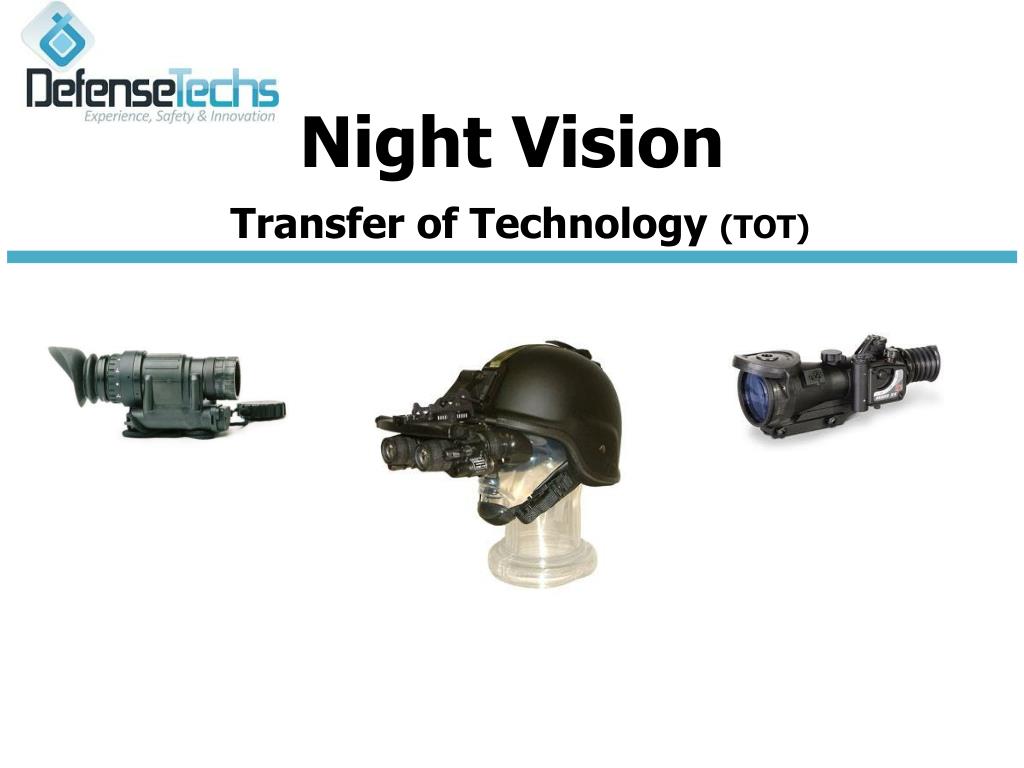

  1. Night VisionTransfer of Technology (TOT(

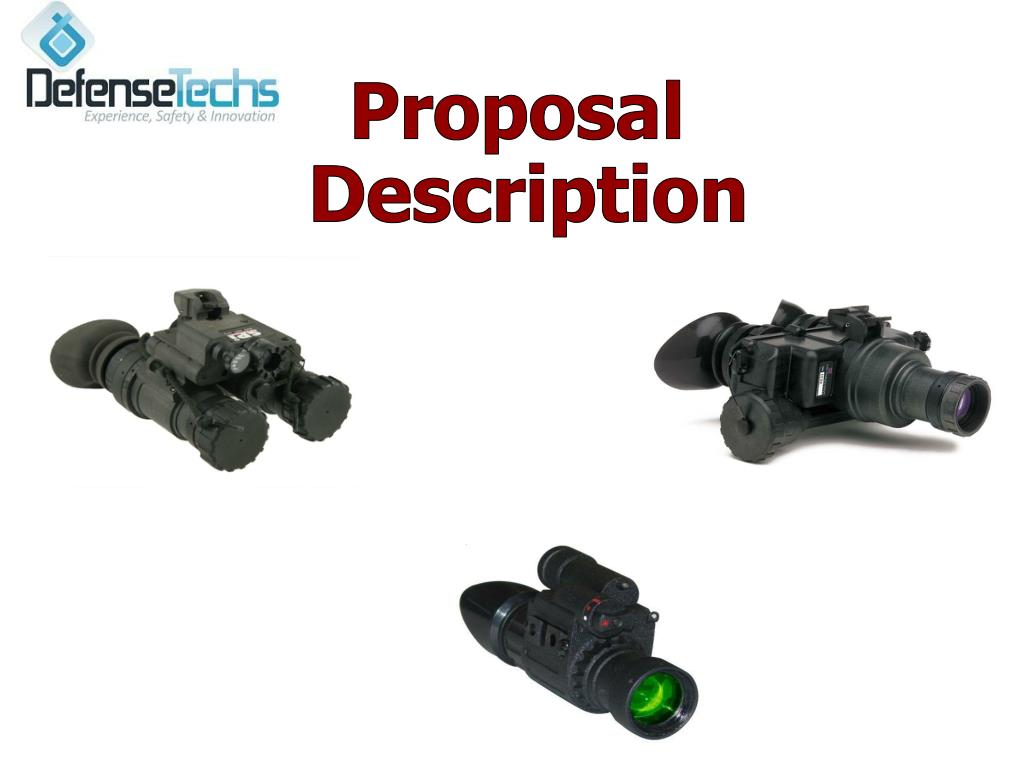

  2. Proposal Description

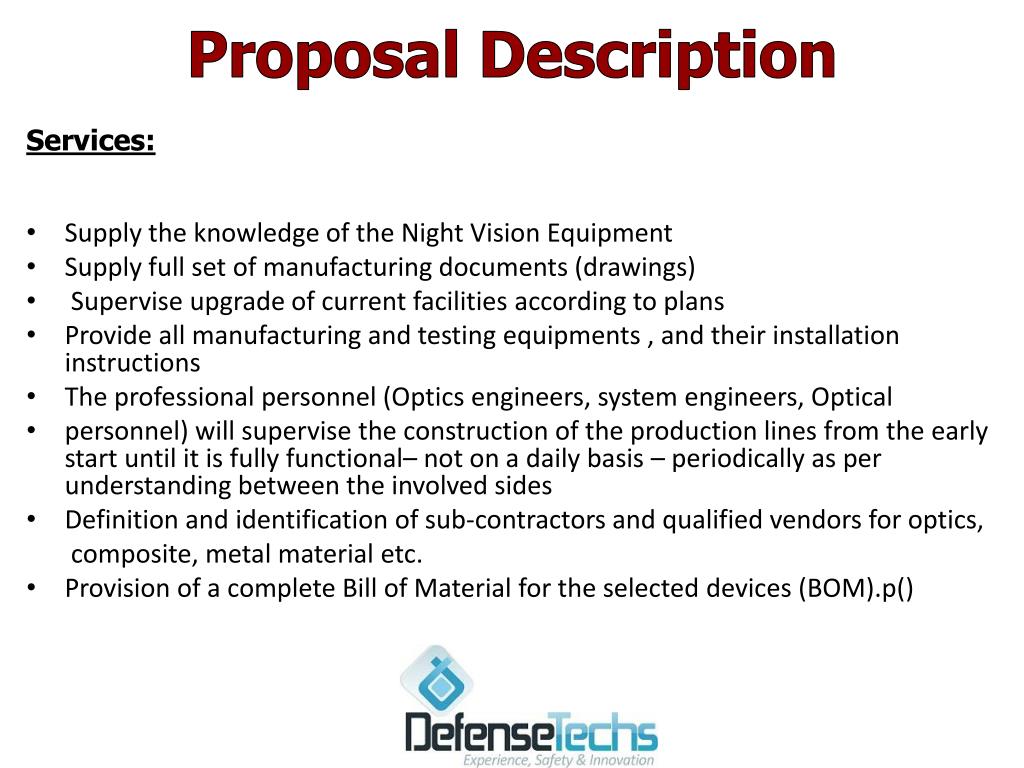

  3. Proposal Description Services: • Supply the knowledge of the Night Vision Equipment • Supply full set of manufacturing documents (drawings) • Supervise upgrade of current facilities according to plans • Provide all manufacturing and testing equipments , and their installation instructions • The professional personnel (Optics engineers, system engineers, Optical • personnel) will supervise the construction of the production lines from the early start until it is fully functional– not on a daily basis – periodically as per understanding between the involved sides • Definition and identification of sub-contractors and qualified vendors for optics, composite, metal material etc. • Provision of a complete Bill of Material for the selected devices (BOM).p()

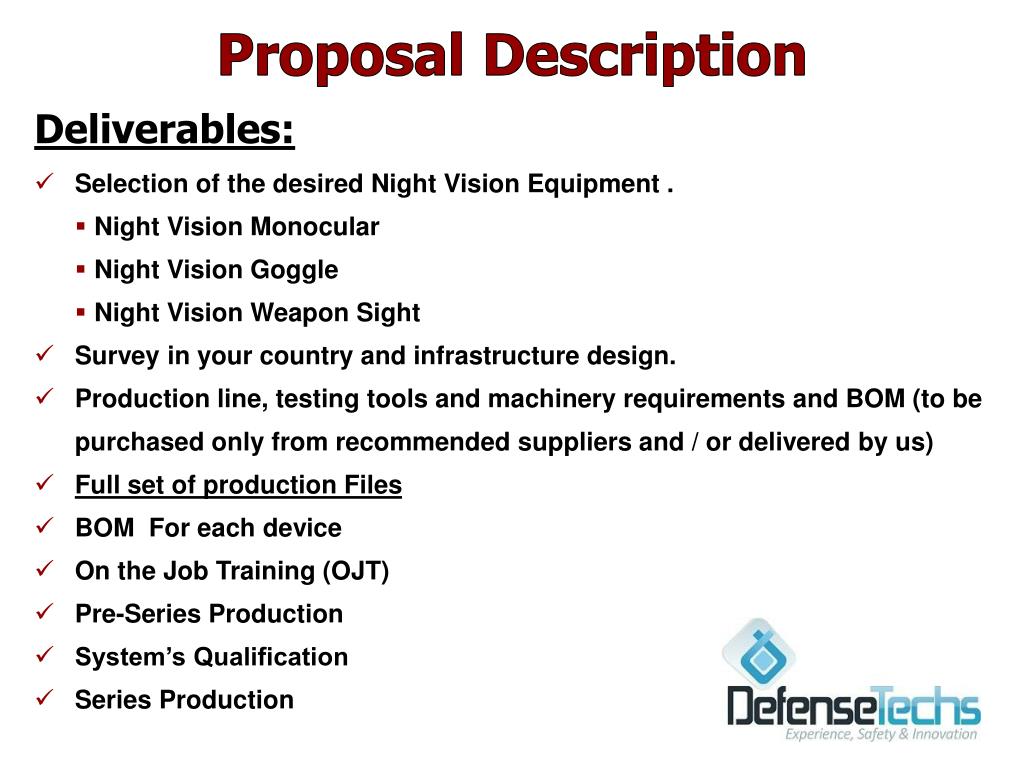

  4. Proposal Description Deliverables: • Selection of the desired Night Vision Equipment . • Night Vision Monocular • Night Vision Goggle • Night Vision Weapon Sight • Survey in your country and infrastructure design. • Production line, testing tools and machinery requirements and BOM (to be purchased only from recommended suppliers and / or delivered by us) • Full set of production Files • BOM For each device • On the Job Training (OJT) • Pre-Series Production • System’s Qualification • Series Production

  5. PVS-14 Advanced Multi- Purpose Scope • Key Features: • Standard US Military System • Hand held spotting scope • Hands free mono-goggle (optional helmet mount) • Day/Night weapon sight (attached to an existing rifle scope with the optional universal adapter) • Surveillance and night-time photography (with the use of the optional camera adapter)

  6. PVS-14 Advanced Multi- Purpose Scope Specifications: There is a variety of scopes. Final selection shall be made jointly

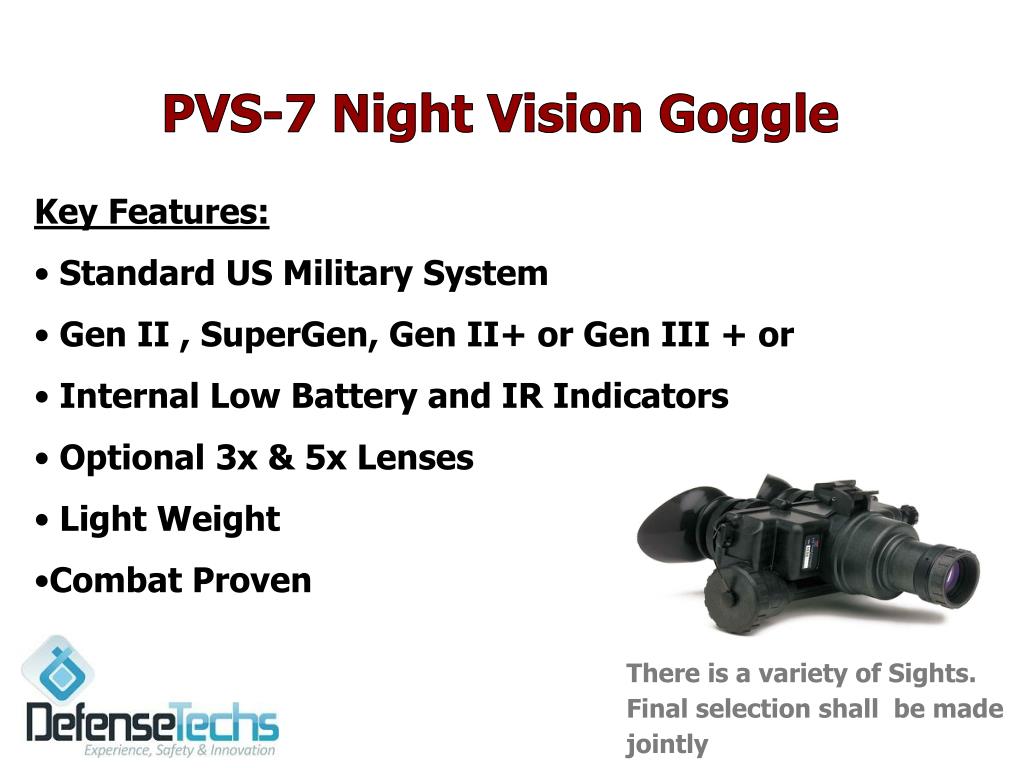

  7. PVS-7 Night Vision Goggle • Key Features: • Standard US Military System • Gen II , SuperGen, Gen II+ or Gen III + or • Internal Low Battery and IR Indicators • Optional 3x & 5x Lenses • Light Weight • Combat Proven There is a variety of Sights. Final selection shall be made jointly

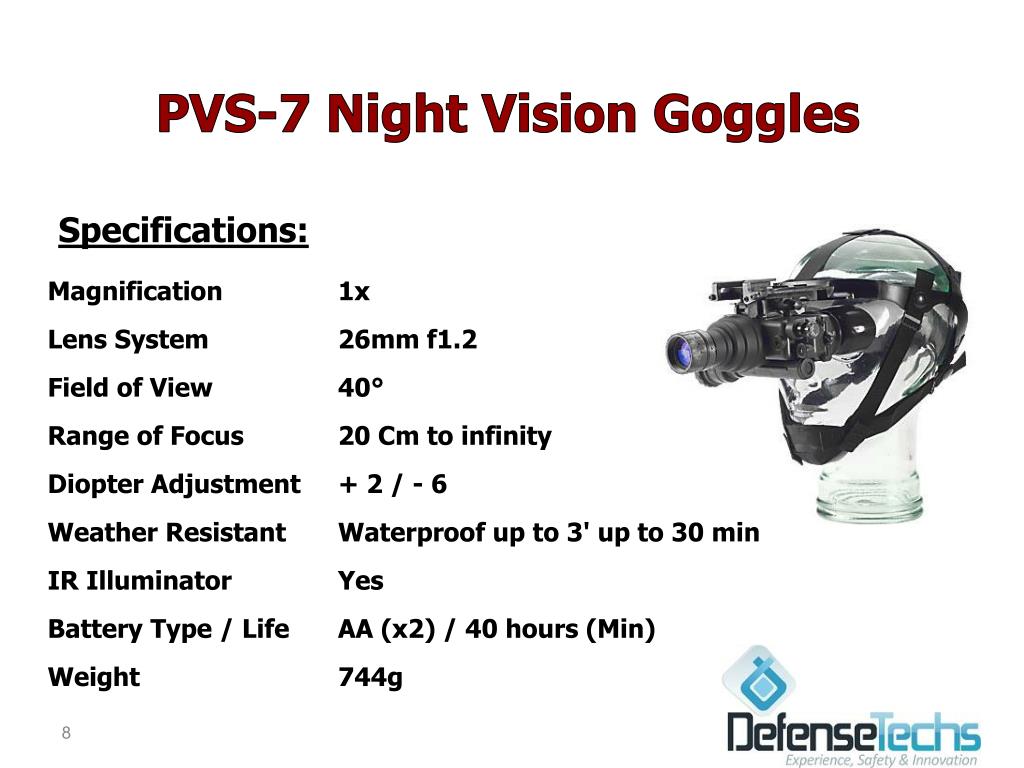

  8. PVS-7 Night Vision Goggles • Specifications:

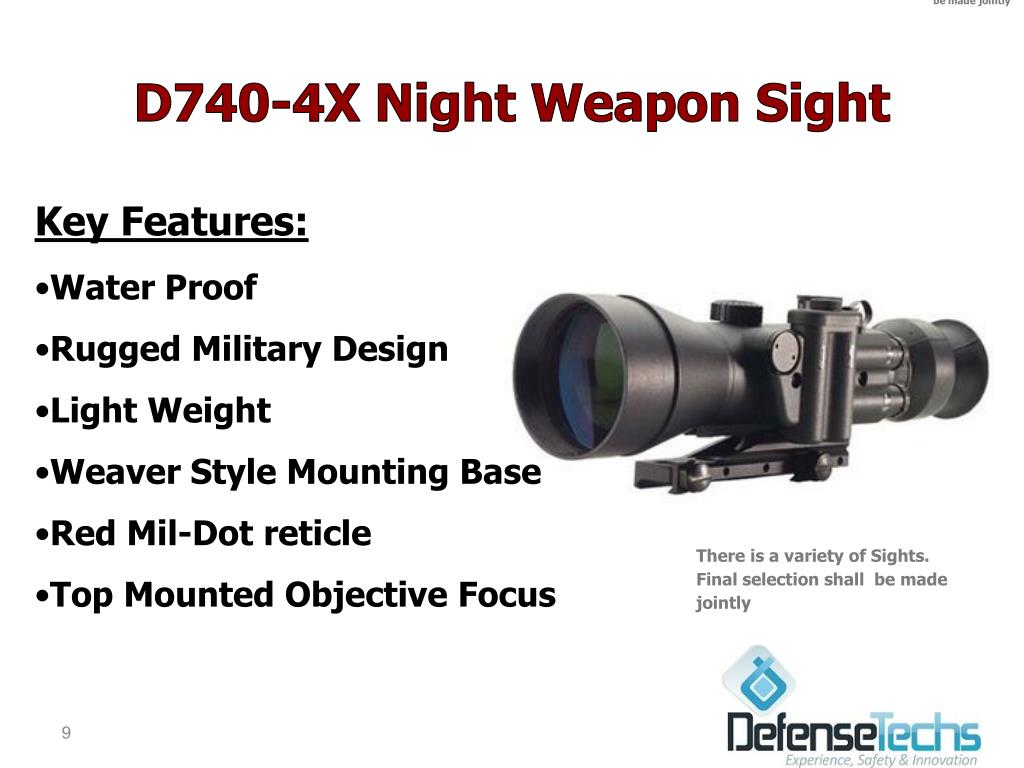

  9. be made jointly D740-4X Night Weapon Sight • Key Features: • Water Proof • Rugged Military Design • Light Weight • Weaver Style Mounting Base • Red Mil-Dot reticle • Top Mounted Objective Focus

  10. D740-4X Night Weapon Sight Specifications: • Magnification - X4 • Field of View - 8.3° • Objective Lens Focus - 25mm to infinity • Eyepiece Focus - +2 to –5 dioptres • Eye Relief - 30mm • Entrance Pupil - 70mm • Exit Pupil - 7.5mm • Reticle Adjustment - +/- 17mrad • Reticle Type - injected Ballistic (design optional) • Power Supply - AA Alkaline batteries (2 x 1.5v) • Battery Life - 40 hours (nominal) at 20°C • 12 hours (nominal) at 0 to -40°C

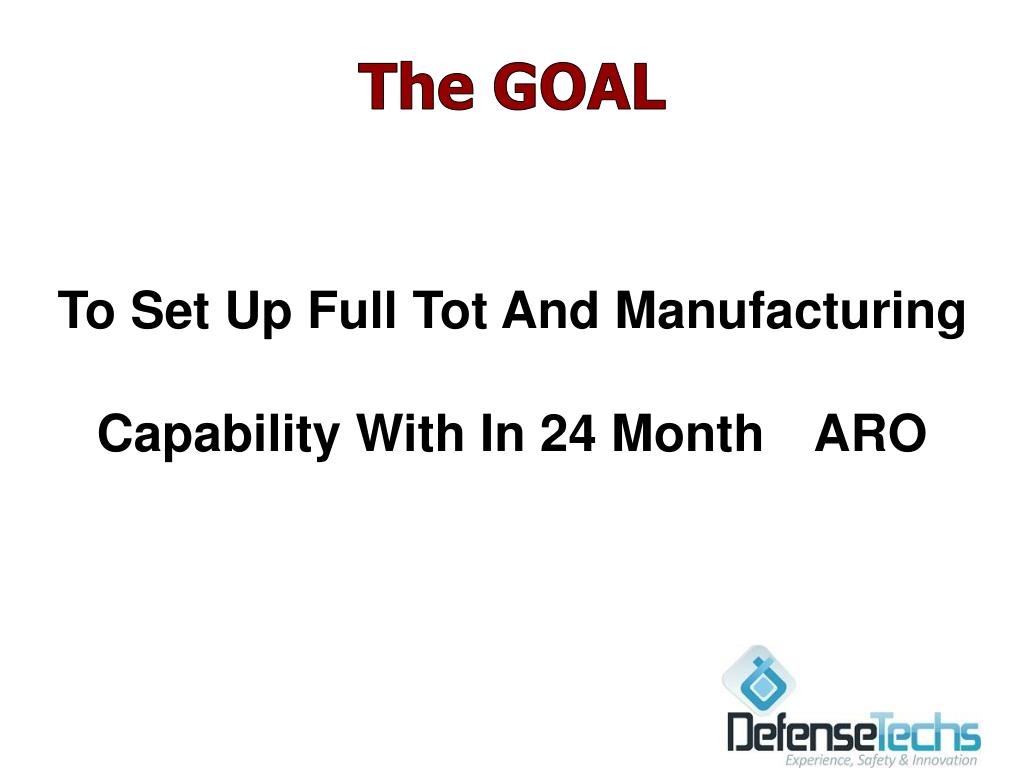

  11. The GOAL To Set Up Full Tot And Manufacturing Capability With In 24 Month ARO

  12. Stage #1 Survey, Design and Planning of the Core Facilities & Capabilities: • In this stage we will produce a full SOW (statement of work) book that will cover all aspect of the projects, will define the work that will need to be carried in your country. • The SOW will include comprehensive Planning of the assembly floor

  13. Stage # 2 New Facility Establishment: • In this stage will prepare the local facility in your country according to our plan and will finish the assembly floor plan. • The basic assembly facility will be installed by us. • We will supply the infrastructure. ** 600 square meter Facility will be able to produce 400-500 devices in a month.

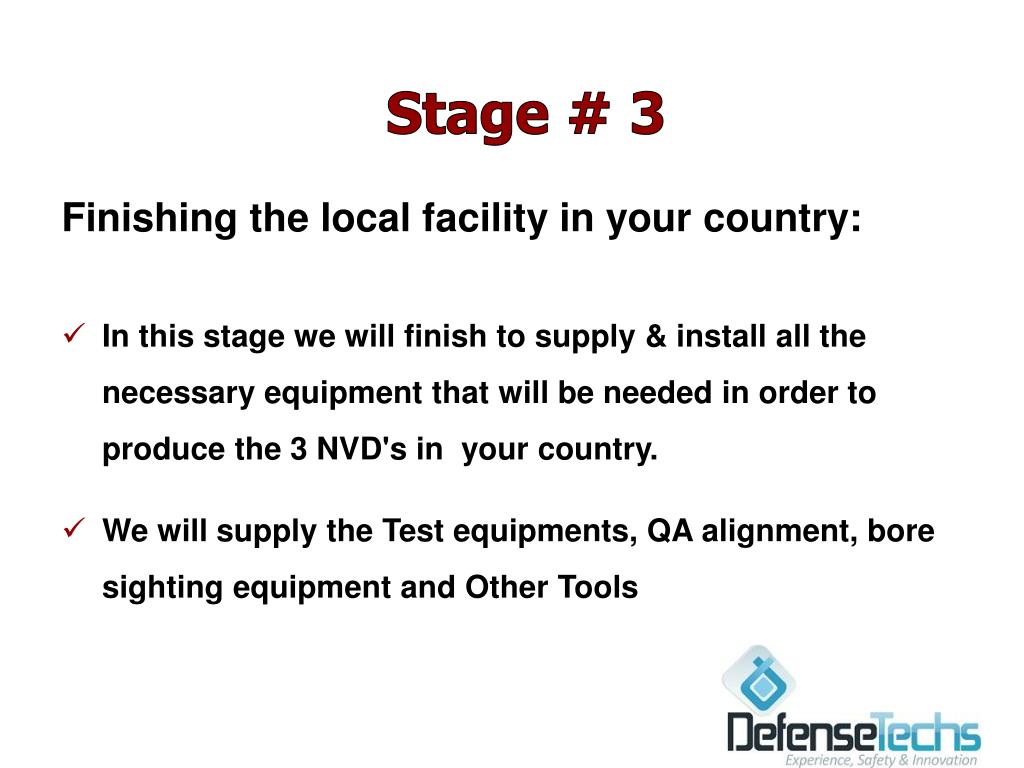

  14. Stage # 3 Finishing the local facility in your country: • In this stage we will finish to supply & install all the necessary equipment that will be needed in order to produce the 3 NVD's in your country. • We will supply the Test equipments, QA alignment, bore sighting equipment and Other Tools

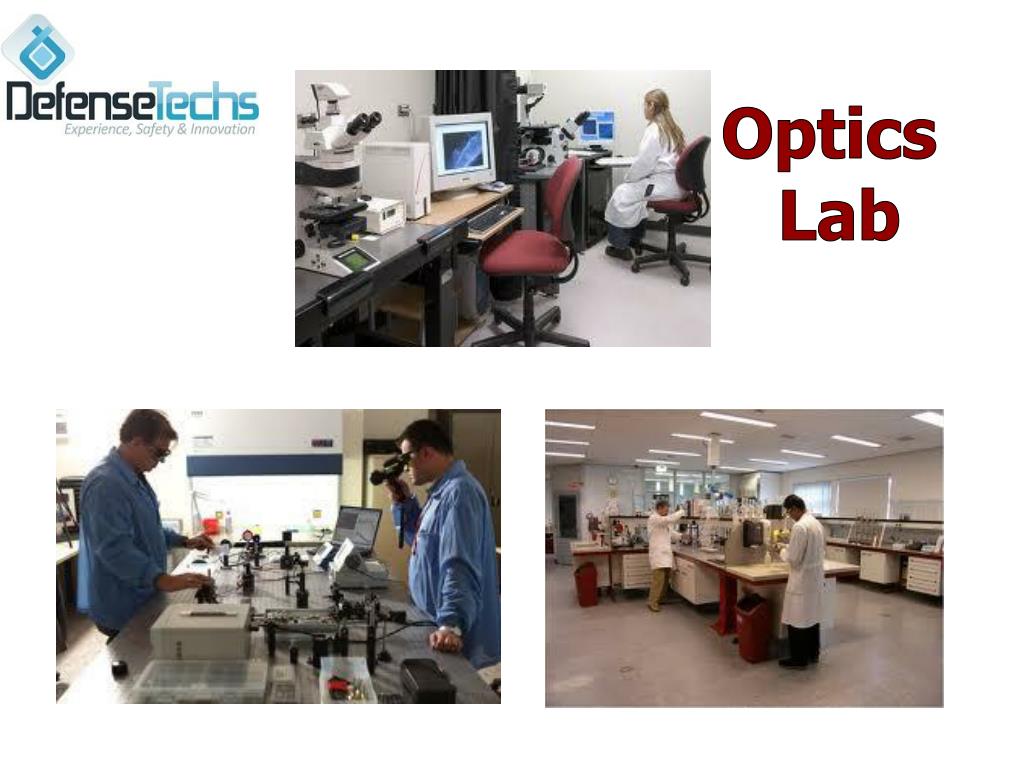

  15. Optics Lab

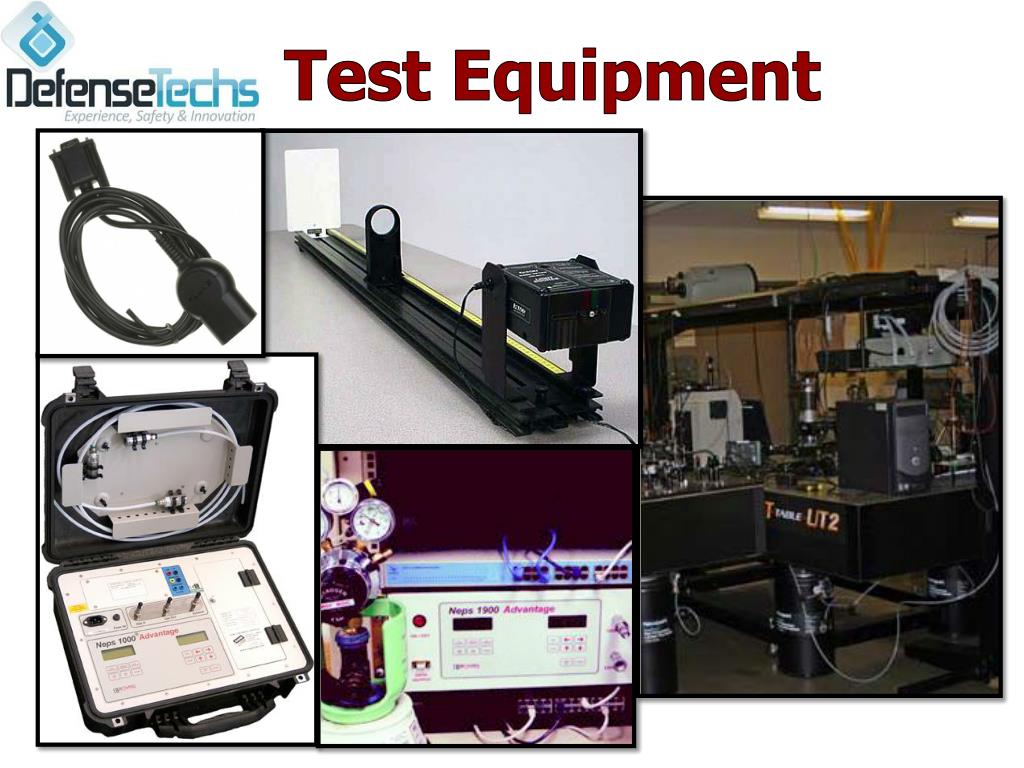

  16. Test Equipment

  17. Electro-Optical Equipment for Night Goggles Resolution Test Electro-Optical Equipment for Night Goggles Amplification Test Electronics and Opto-mechanical   Hot Mock-Up Test Equipment for   Night Vision Binocular

  18. Stage # 4 Complete Production and testing files: • We will complete the production and the testing files Configuration of the specified devices, including breakdown of the designed components • 3D Design • 2D Production DWG • We will provide a full manufacturing book for the three (3) types of NVG Based Devices. • The manufacturing book will include:

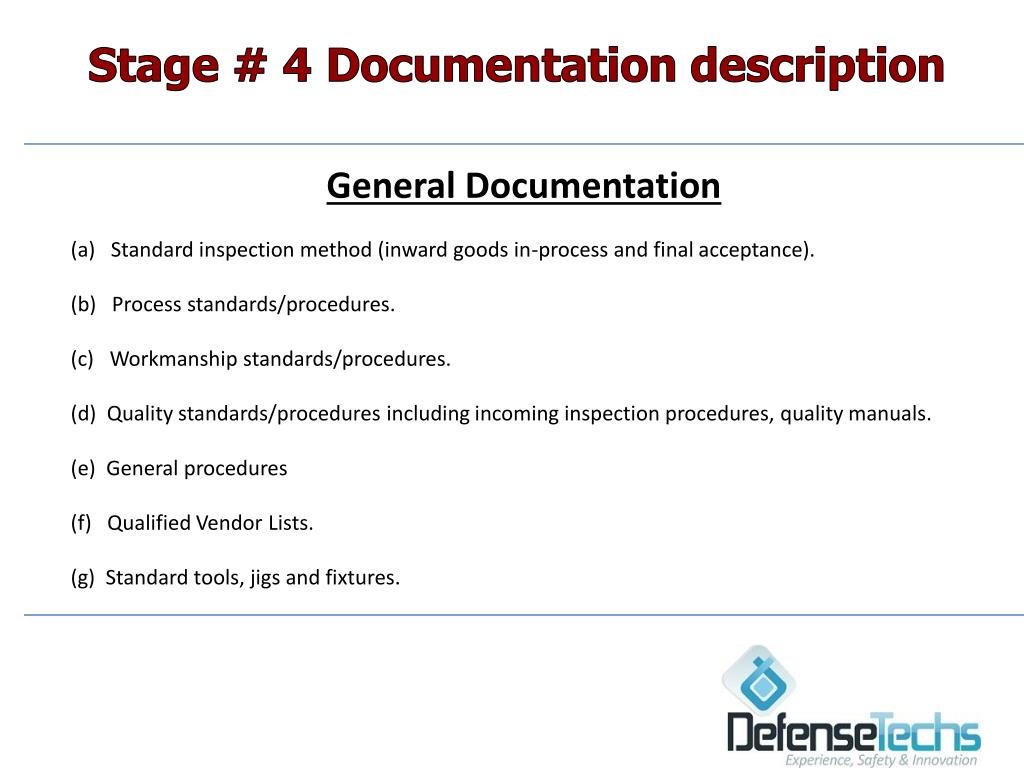

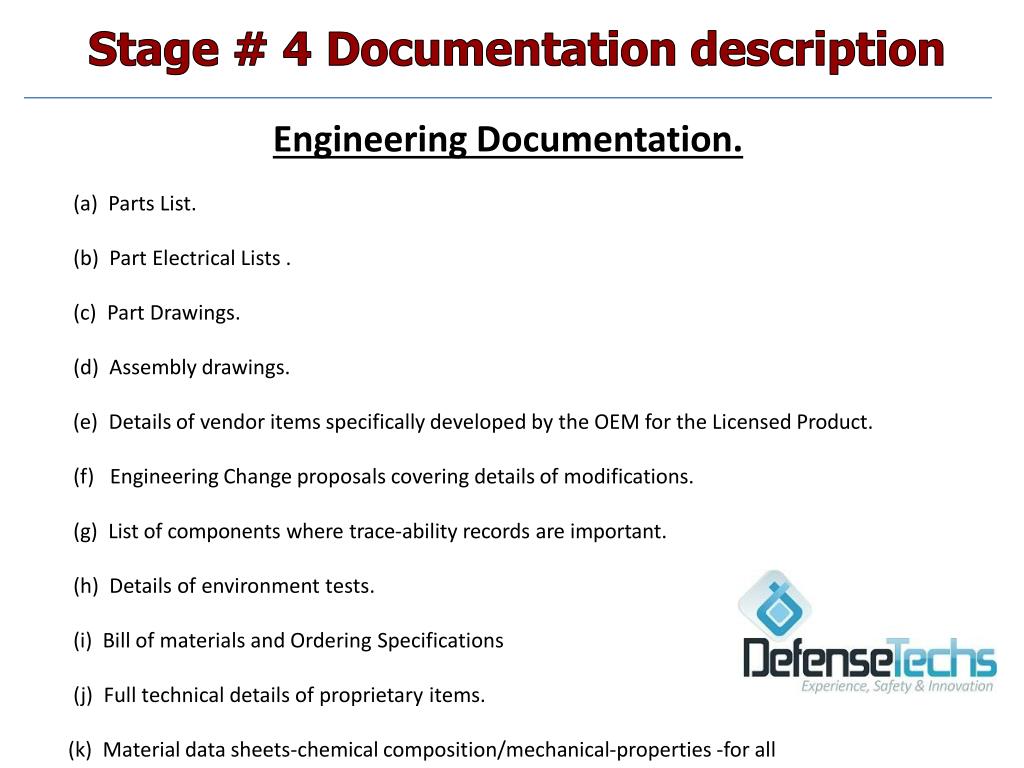

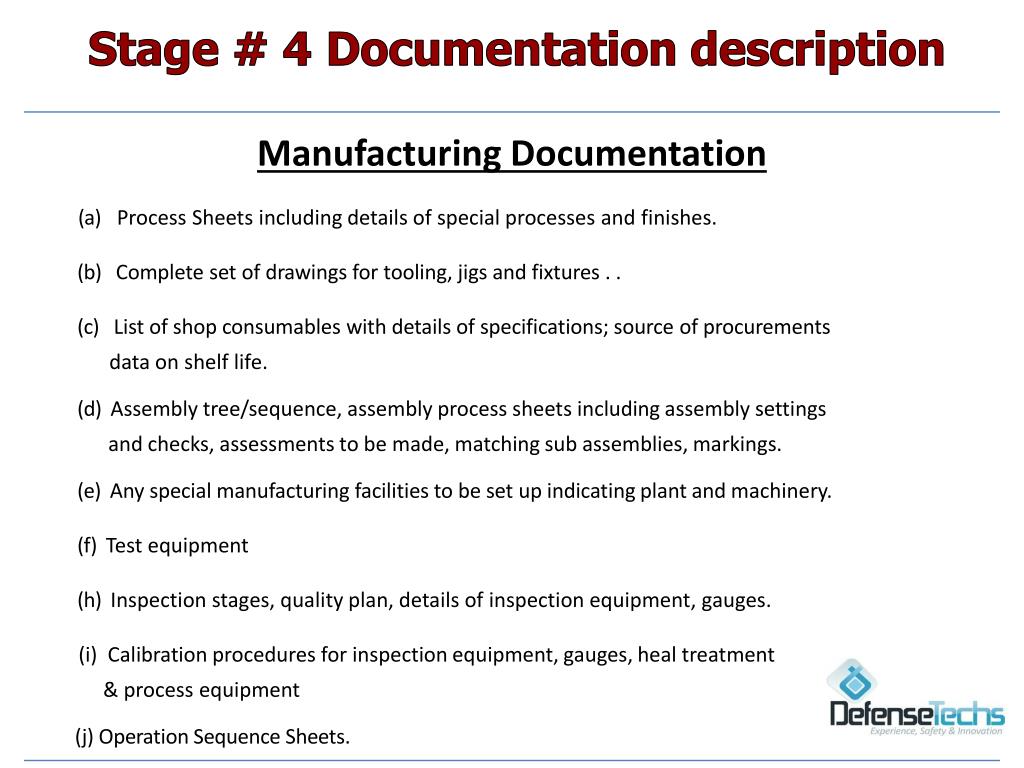

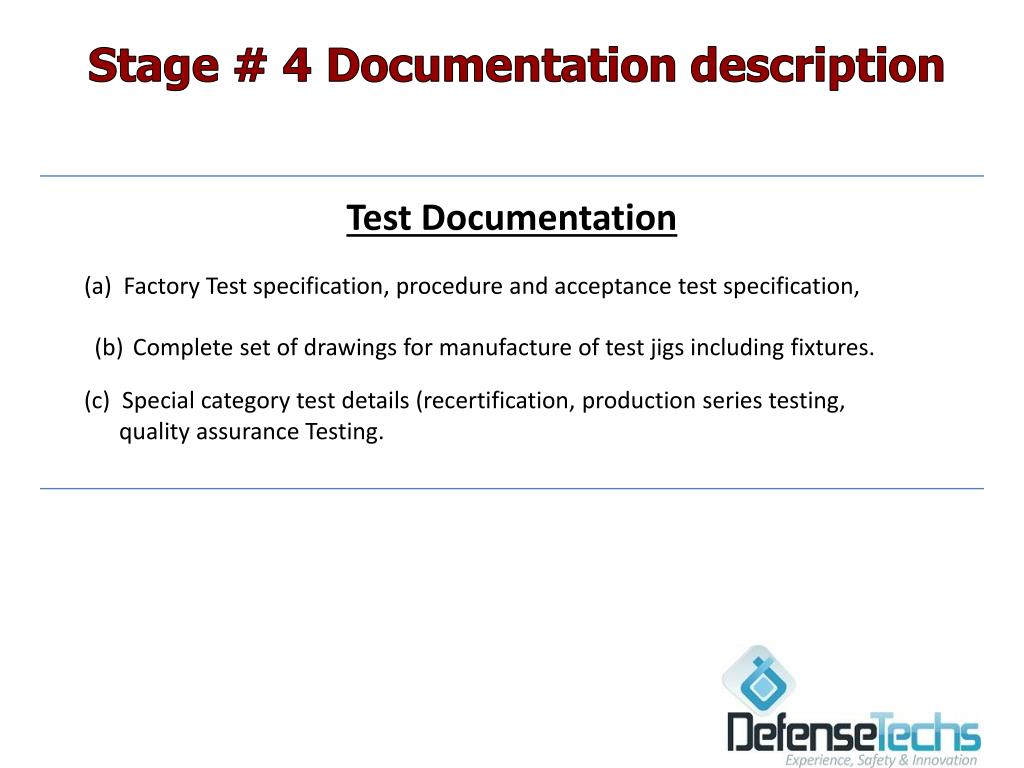

  19. Stage # 4Documentation description

  20. Stage # 4Documentation description

  21. Stage # 4Documentation description

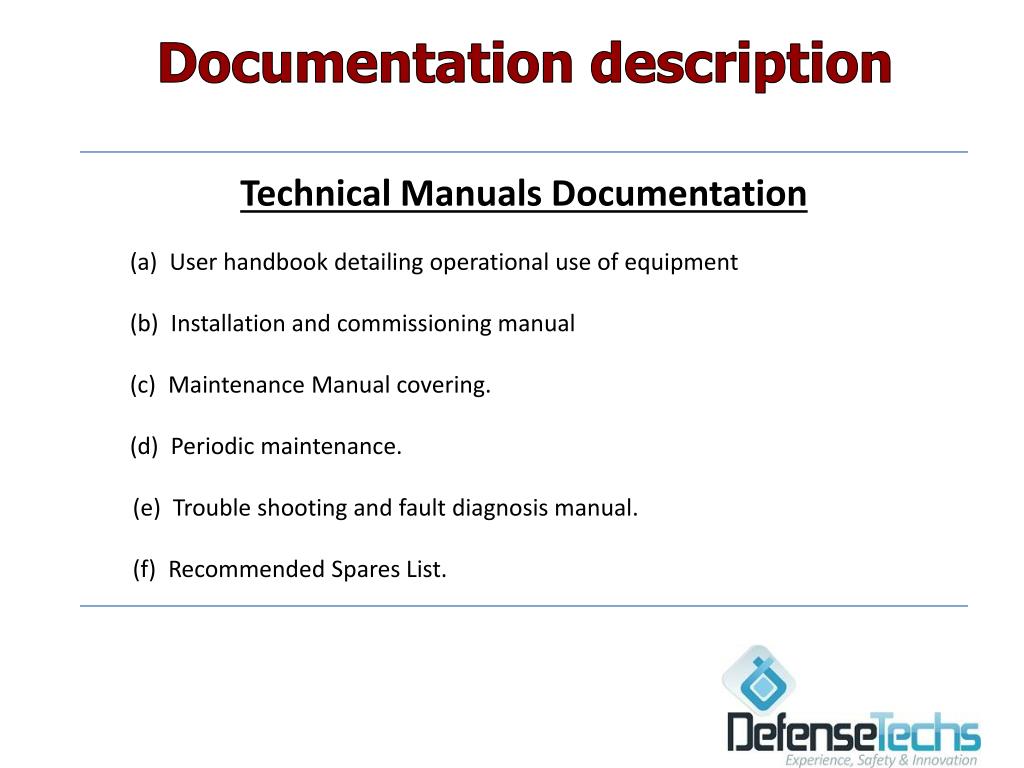

  22. Documentation description

  23. Stage # 4Documentation description

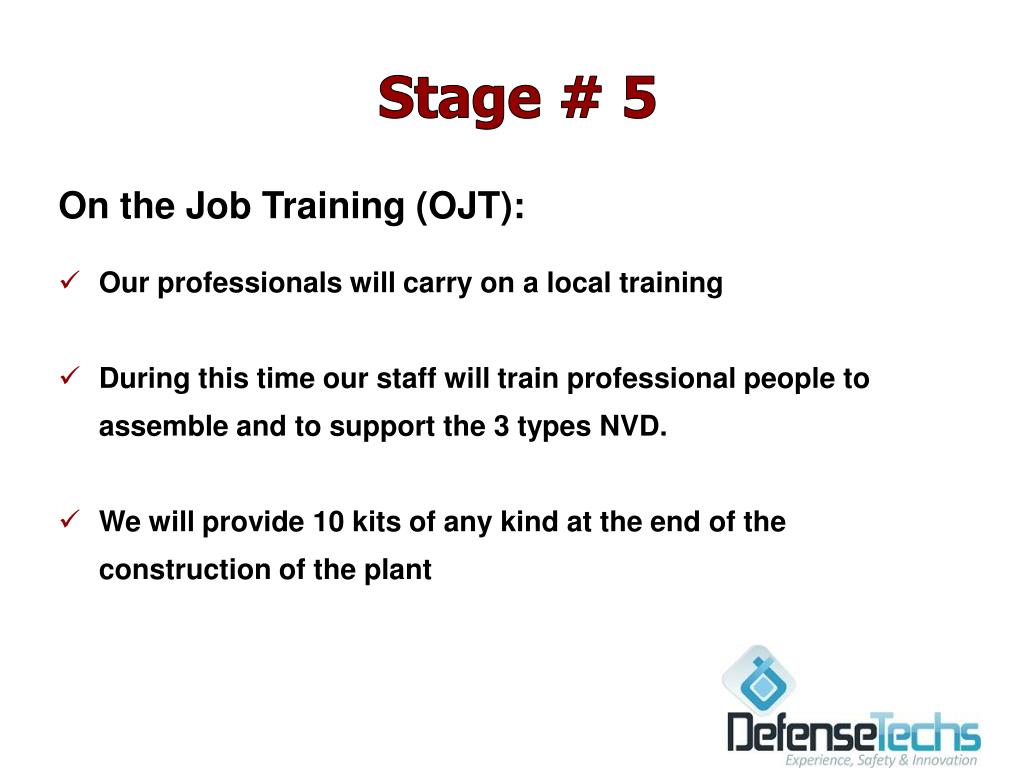

  24. Stage # 5 On the Job Training (OJT): • Our professionals will carry on a local training • During this time our staff will train professional people to assemble and to support the 3 types NVD. • We will provide 10 kits of any kind at the end of the construction of the plant

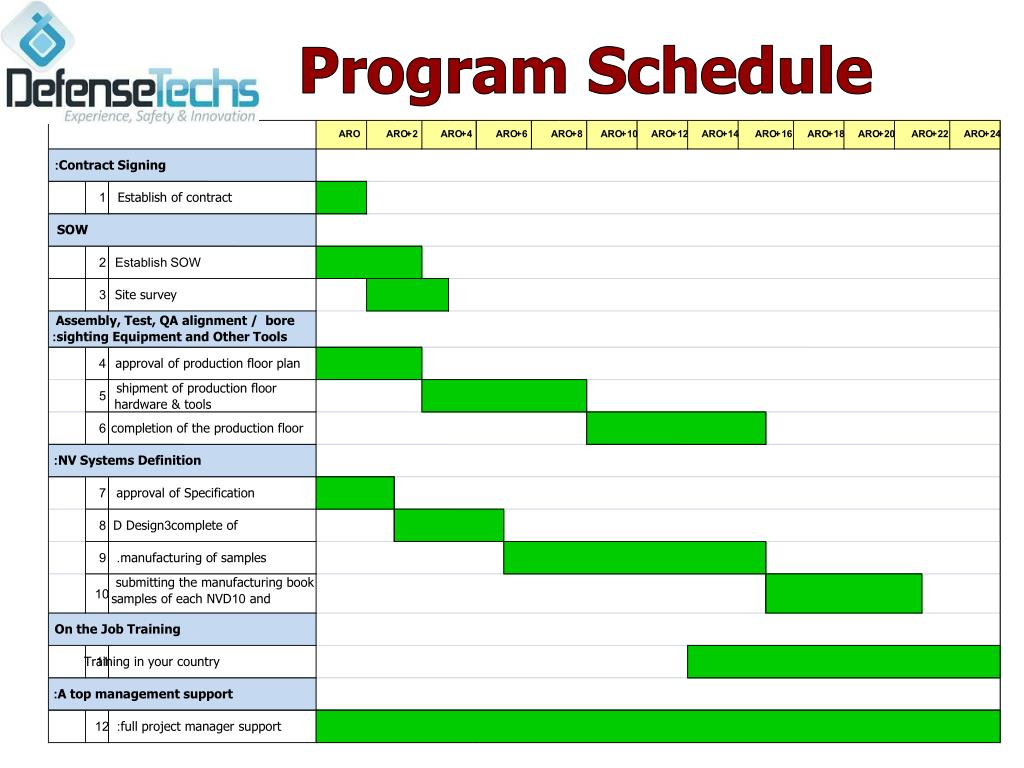

  25. ARO ARO + 2 ARO + 4 ARO + 6 ARO + 8 ARO + 10 ARO + 12 ARO + 14 ARO + 16 ARO + 18 ARO + 20 ARO + 22 ARO + 24 Contract Signing: 1 Establish of contract SOW 2 Establish SOW 3 Site survey Assembly, Test, QA alignment / bore sighting Equipment and Other Tools: 4 approval of production floor plan shipment of production floor 5 hardware & tools 6 completion of the production floor NV Systems Definition: 7 approval of Specification 8 complete of 3D Design 9 manufacturing of samples. submitting the manufacturing book 10 and 10 samples of each NVD On the Job Training Training in your country 11 A top management support: 12 full project manager support: Program Schedule
