Ultimate Guide to Cleanroom Ceiling Panels: Ensuring Optimal Cleanroom

Cleanroom environments demand precision and efficiency, and the ceiling panels play a critical role in maintaining stringent contamination control. At Lucky Deep, we specialize in providing high-quality Cleanroom Ceiling Panels designed to meet the highest industry standards. In this guide, we'll explore the features, technical specifications, and benefits of our state-of-the-art cleanroom ceiling panels.<br>

luckydeepcleanroom
Download Presentation

Ultimate Guide to Cleanroom Ceiling Panels: Ensuring Optimal Cleanroom

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

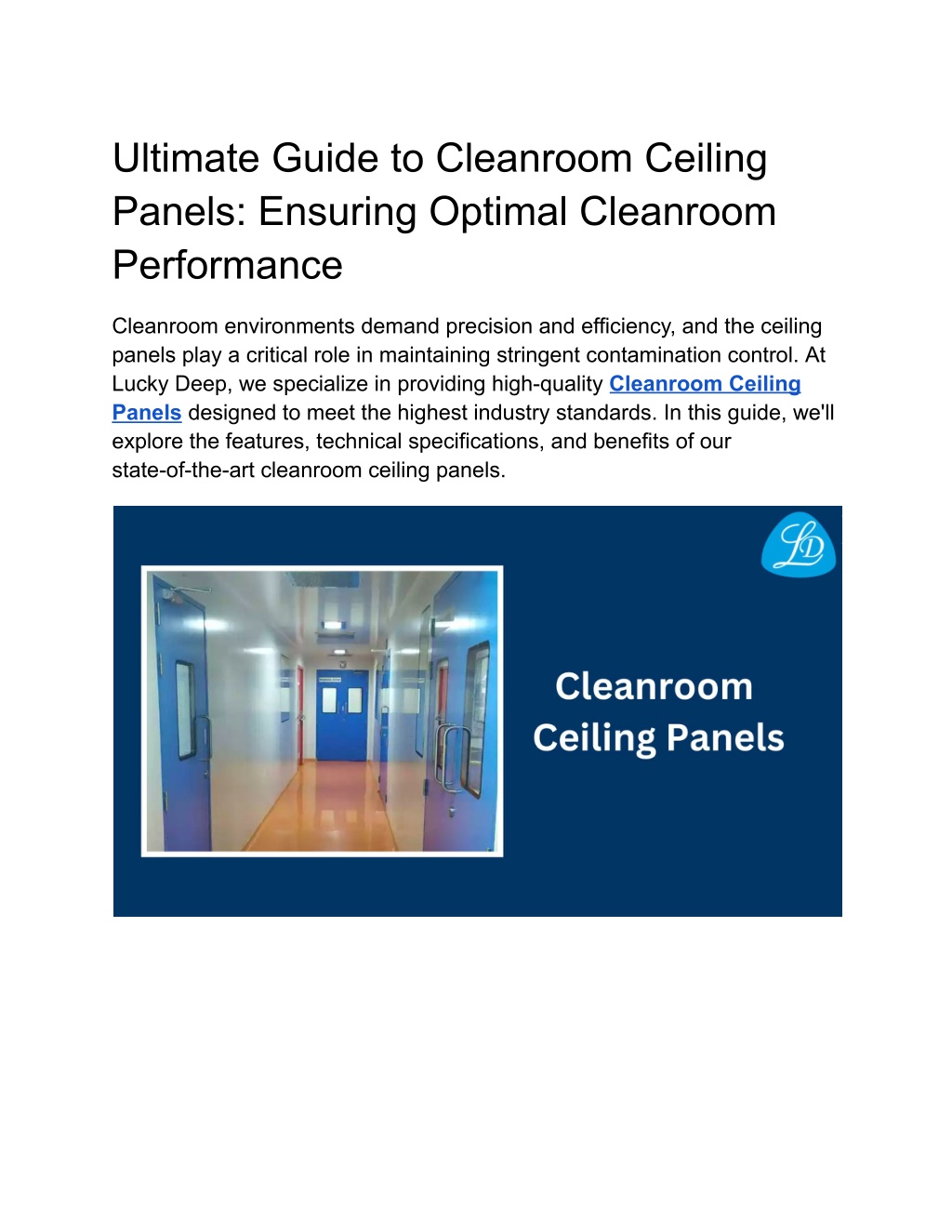

  1. Ultimate Guide to Cleanroom Ceiling Panels: Ensuring Optimal Cleanroom Performance Cleanroom environments demand precision and efficiency, and the ceiling panels play a critical role in maintaining stringent contamination control. At Lucky Deep, we specialize in providing high-quality Cleanroom Ceiling Panels designed to meet the highest industry standards. In this guide, we'll explore the features, technical specifications, and benefits of our state-of-the-art cleanroom ceiling panels.

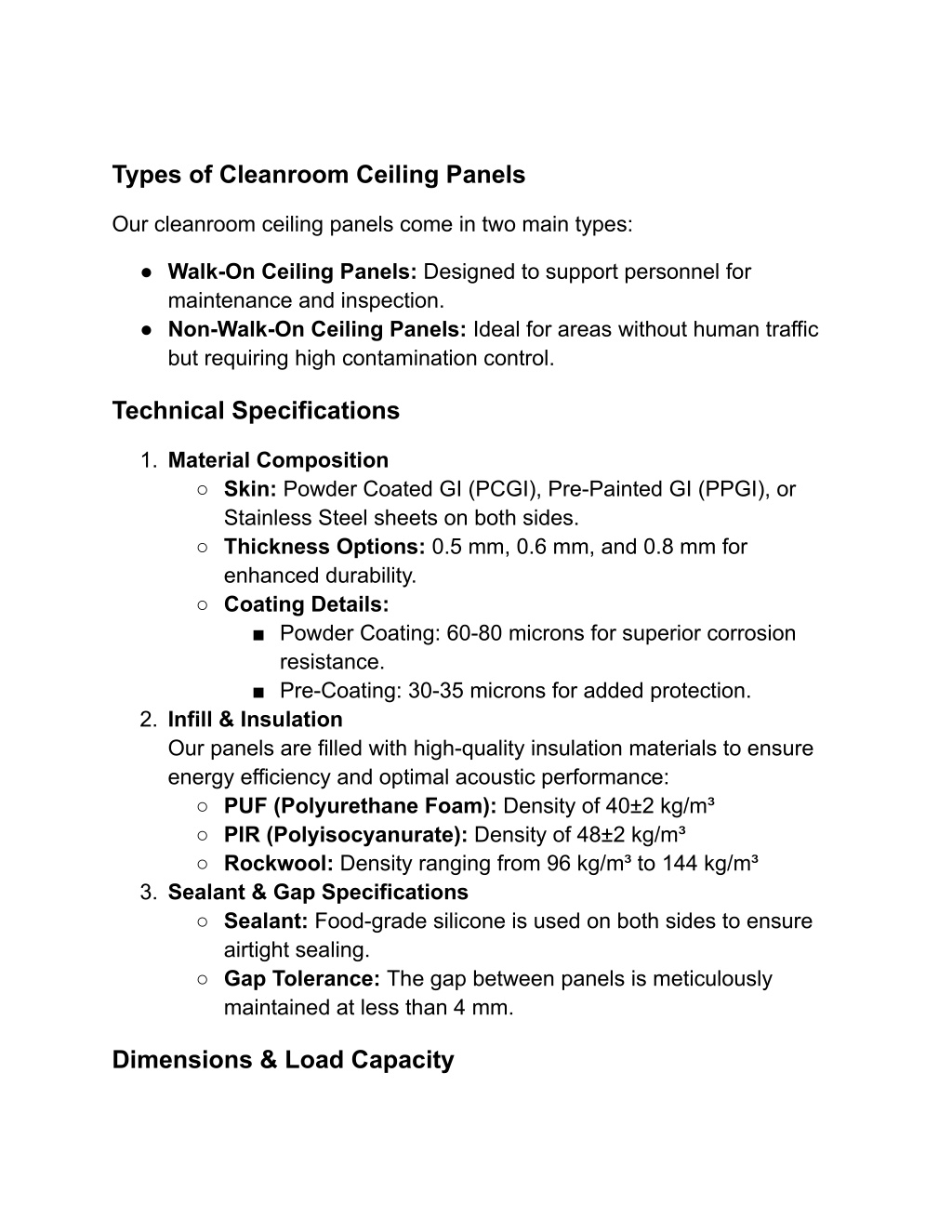

  2. Types of Cleanroom Ceiling Panels Our cleanroom ceiling panels come in two main types: ● Walk-On Ceiling Panels: Designed to support personnel for maintenance and inspection. ● Non-Walk-On Ceiling Panels: Ideal for areas without human traffic but requiring high contamination control. Technical Specifications 1. Material Composition ○ Skin: Powder Coated GI (PCGI), Pre-Painted GI (PPGI), or Stainless Steel sheets on both sides. ○ Thickness Options: 0.5 mm, 0.6 mm, and 0.8 mm for enhanced durability. ○ Coating Details: ■ Powder Coating: 60-80 microns for superior corrosion resistance. ■ Pre-Coating: 30-35 microns for added protection. 2. Infill & Insulation Our panels are filled with high-quality insulation materials to ensure energy efficiency and optimal acoustic performance: ○ PUF (Polyurethane Foam): Density of 40±2 kg/m³ ○ PIR (Polyisocyanurate): Density of 48±2 kg/m³ ○ Rockwool: Density ranging from 96 kg/m³ to 144 kg/m³ 3. Sealant & Gap Specifications ○ Sealant: Food-grade silicone is used on both sides to ensure airtight sealing. ○ Gap Tolerance: The gap between panels is meticulously maintained at less than 4 mm. Dimensions & Load Capacity

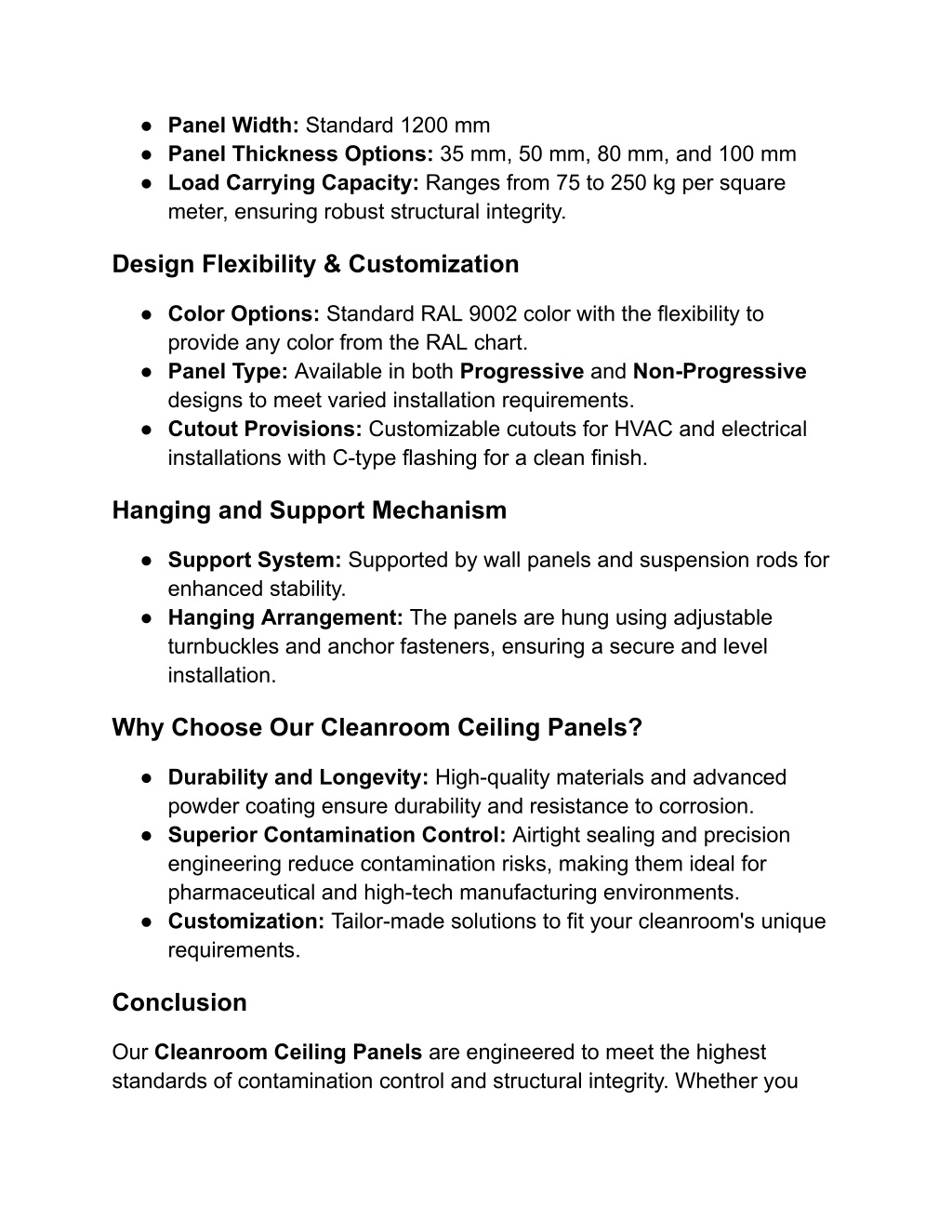

  3. ● Panel Width: Standard 1200 mm ● Panel Thickness Options: 35 mm, 50 mm, 80 mm, and 100 mm ● Load Carrying Capacity: Ranges from 75 to 250 kg per square meter, ensuring robust structural integrity. Design Flexibility & Customization ● Color Options: Standard RAL 9002 color with the flexibility to provide any color from the RAL chart. ● Panel Type: Available in both Progressive and Non-Progressive designs to meet varied installation requirements. ● Cutout Provisions: Customizable cutouts for HVAC and electrical installations with C-type flashing for a clean finish. Hanging and Support Mechanism ● Support System: Supported by wall panels and suspension rods for enhanced stability. ● Hanging Arrangement: The panels are hung using adjustable turnbuckles and anchor fasteners, ensuring a secure and level installation. Why Choose Our Cleanroom Ceiling Panels? ● Durability and Longevity: High-quality materials and advanced powder coating ensure durability and resistance to corrosion. ● Superior Contamination Control: Airtight sealing and precision engineering reduce contamination risks, making them ideal for pharmaceutical and high-tech manufacturing environments. ● Customization: Tailor-made solutions to fit your cleanroom's unique requirements. Conclusion Our Cleanroom Ceiling Panels are engineered to meet the highest standards of contamination control and structural integrity. Whether you

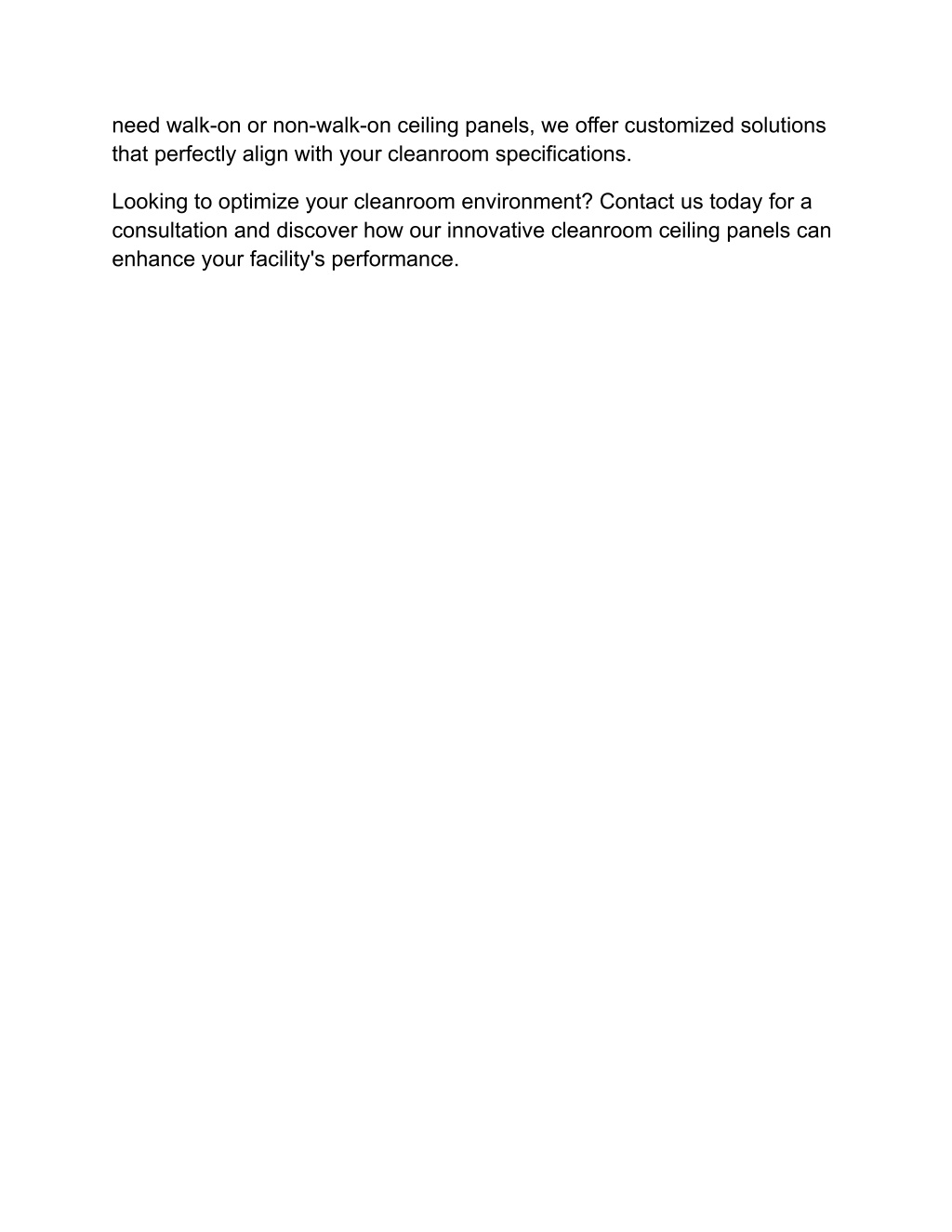

  4. need walk-on or non-walk-on ceiling panels, we offer customized solutions that perfectly align with your cleanroom specifications. Looking to optimize your cleanroom environment? Contact us today for a consultation and discover how our innovative cleanroom ceiling panels can enhance your facility's performance.
