  1. PROJECTS IN SOUTHERN REGION

  2. PROJECTS IN THE SR • GENERATION EVACUATION PROJECTS • SYSTEM STRENGTHENING/ AUGMENTATION PROJECTS • INTER REGIONAL PROJECTS Press Esc

  3. GENERATION EVACUATION SCHEMES KOLAR INTER TRIP SCHEME • KOODANKULAM APPSPS • NEYVELI TS-II EXPANSION • KAIGA STAGE -II

  4. KUDANKULAM TRANSMISSION SYSTEM( 2000MW) • KUDANKULAM-TIRUNELVELI 2 X 400 KV D/C LINES WITH QUAD (108 & 83 Km.) • TIRUNELVELI-UDUMALPET D/C LINE WITH TWIN MOOSE (300Km) • LILO OF BOTH CIRCUITS OF MADURAI-TRIVANDRUM LINE AT TIRUNELVELI ( 2 X 55 Km) • EDAMON-MUVATTUPUZHA D/C LINE QUAD (150Km) • TIRUNELVELI-EDAMON 400KV D/C LINE (110Km). • MUVATTUPUZHA-TRICHUR 400KV D/C LINE WITH QUAD CONDUCTORS (90Km)

  5. KUDANKULAM TRANSMISSION SYSTEM( 2000MW) SUB-STATIONS • NEW 400/220KV SUBSTATIONS AT TIRUNELVELI, MUVATTUPUZHA • AUGMENTATION OF TRANSFORMATION CAPACITY BY ONE TRANSFORMER EACH AT UDUMALPET & TRIVANDRUM S/S SUPPLEMENTARY TRANSMISSION SYSTEM • LILO OF ONE CIRCUIT OF 400KV MADURAI-TRICHY • AT KARAIKUDI ( 60 Km) ALONG WITH SUBSTATION AT • KARAIKUDI (TAMILNADU) • LILO OF ONE CIRCUIT OF TALAGUPPA-NELAMANGALA • 400KV LINE AT HASSAN ( 80 KM) ALONG WITH SUBSTATION AT • HASSAN.(KARNATAKA)

  6. KAIGA 3 & 4 TRANSMISSION SYSTEM • MYSORE-KOZHIKODE D/C LINE • LILO OF KOLAR-SRIPERUMBADUR AT MELAKOTTAIYUR (40KM) • NARENDRA-DAVANGERE D/C LINE SUB-STATION : 2 Nos. New K E R A L A • NEW 400/220KV SUBSTATION AT KOZHIKODE & MELAKOTTAIYUR • 2ND 315MVA TRANSFORMER AT HIRIYUR S/S. • BAY EXTENSION AT NARENDRA, DAVANGERE (KPTCL) & • HIRIYUR.

  7. NLC-TS-II EXPANSION TRANSMISSION SYSTEM • 2 NOS. 400KV S/C LINES FROM NEYVELI-TS-II (EXISTING) TO NLC TS-II (EXPAN) (8 KM). KARNATAKA • NEYVELI-PUGALUR D/C LINE T N • PUGALUR-MADURAI D/C LINE K E R A L A • UDUMALPET-ARASUR D/C LINE • LILO OF NEYVELI-SRIPERUMBU- DUR LINE AT PONDY. SUB-STATION • NEW 400/220KV SUBSTATIONS AT PUGALUR, ARASUR & PONDICHERRY.

  8. SYSTEM STRENGTHENING SCHEMES • 400 KV D/C KAIGA-NARENDRA • 400 KV D/C MADURAI-TRIVANDRUM • 400 KV D/C NELMANGALA-SOMANAHALLI • 400 KV D/C RAICHUR-GOOTY LINE • LILO OF SRISAILAM-NUNNA AT N’SAGAR • LILO OF N’SAGAR-RAICHUR AT MEHBOOBNAGAR • LILO OF NELLORE-MADRAS D/C AT ALMATHI

  9. AP INTER REGIONAL SCHEMES2ND POLE AT GAZUWAKA • ASSOCIATED SCHEMES • PROVIDING 50% SERIES COMPENSATION ON JEYPORE GAZUWAKA LINE AT JEYPORE END • GAZUWAKA-NUNNA D/C LINE WITH 63 MVAR LINE REACTOR AT BOTH ENDS ER JEYPORE GAZUWAKA

  10. KAIGA-NARENDRA D/C LINE TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

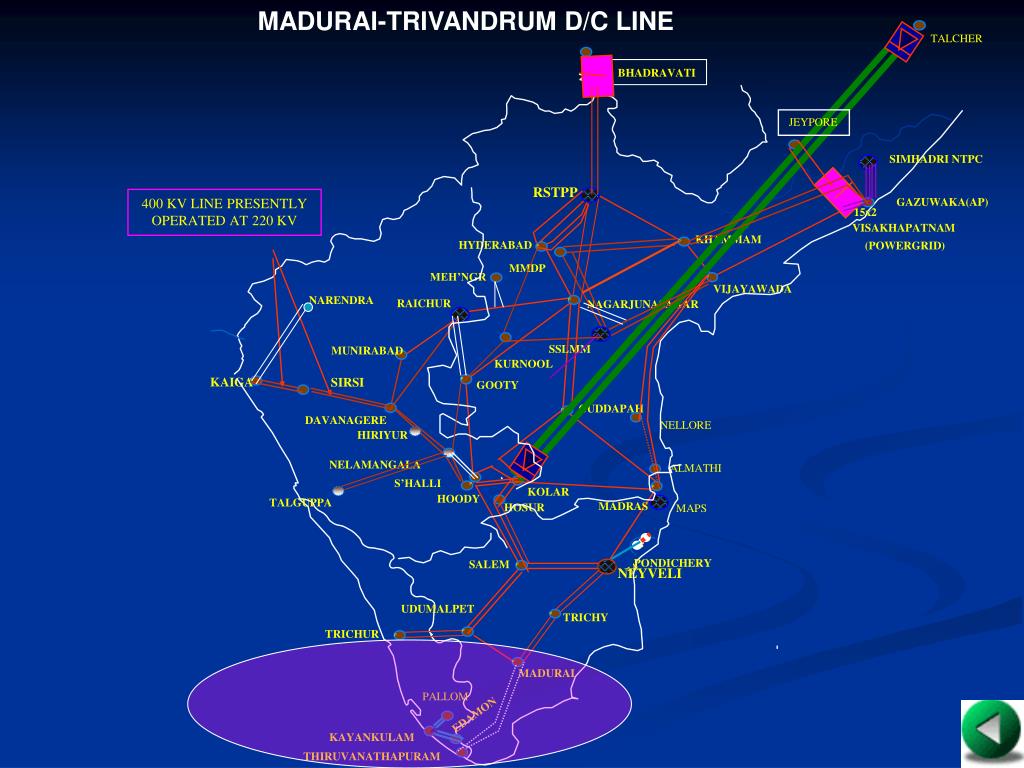

  11. MADURAI-TRIVANDRUM D/C LINE TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  12. NELAMANGALA-SOMANAHALLI D/C LINE TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  13. RAICHUR-GOOTY D/C LINE TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  14. LILO OF SRISAILAM-NUNNA AT N’SAGAR TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  15. LILO OF RAICHUR-N’SAGAR AT MEHBOOB NAGAR TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  16. LILO OF NELLORE-MADRAS D/C AT ALMATHI TALCHER BHADRAVATI JEYPORE SIMHADRI NTPC RSTPP 400 KV LINE PRESENTLY OPERATED AT 220 KV GAZUWAKA(AP) 15x2 P VISAKHAPATNAM (POWERGRID) KHAMMAM HYDERABAD P P P MMDP MEH’NGR P VIJAYAWADA NARENDRA RAICHUR NAGARJUNASAGAR P SSLMM MUNIRABAD P KURNOOL KAIGA SIRSI P N GOOTY CUDDAPAH P DAVANAGERE NELLORE HIRIYUR NELAMANGALA ALMATHI S’HALLI P P KOLAR HOODY TALGUPPA MADRAS HOSUR MAPS PONDICHERY SALEM 54 P NEYVELI UDUMALPET TRICHY P TRICHUR P P P MADURAI PALLOM EDAMON KAYANKULAM THIRUVANATHAPURAM

  17. 400KV GRID MAP OF SOUTHERN REGION ORISSA TALCHER BHADRAVATI MAHARASHTRA JEYPORE RSTPP KALPAKKA AP SIMHADRI KHAMMAM GAZUWAKA HYDERABAD MMDP P VEMAGIRI MAHABOOB NAGAR GMR N’SAGAR GVK VIJAYAWADA KAR RAICHUR KURNOOL MUNIRABAD NARENDRA SSLMM GOOTY KAIGA P GUTTUR P NELLORE KADAPA HIRIYUR TALGUPPA NELAMANGALA HOODY CHITTOOR 1000 MW HVDC BACK TO BACK LINK MADRAS KOLAR BANGALORE MAPS 2000 MW HVDC BIPOLE HOSUR TN 500 KV HVDC LINE NEYVELI 400 KV LINE POWERGRID SALEM NEYVELI TPS – 1 (EXP) 400 KV LINE APTRANSCO 400 KV LINE KPTCL UDUMALPET P TRICHY 400 KV LINE OPERATED AT 220 KV TRICHUR P THERMAL GENERATING STATION MADURAI KER 400KV SUB-STATION NUCLEAR STATION TRIVANDRUM SRLDC, BANGALORE MARCH 2006
