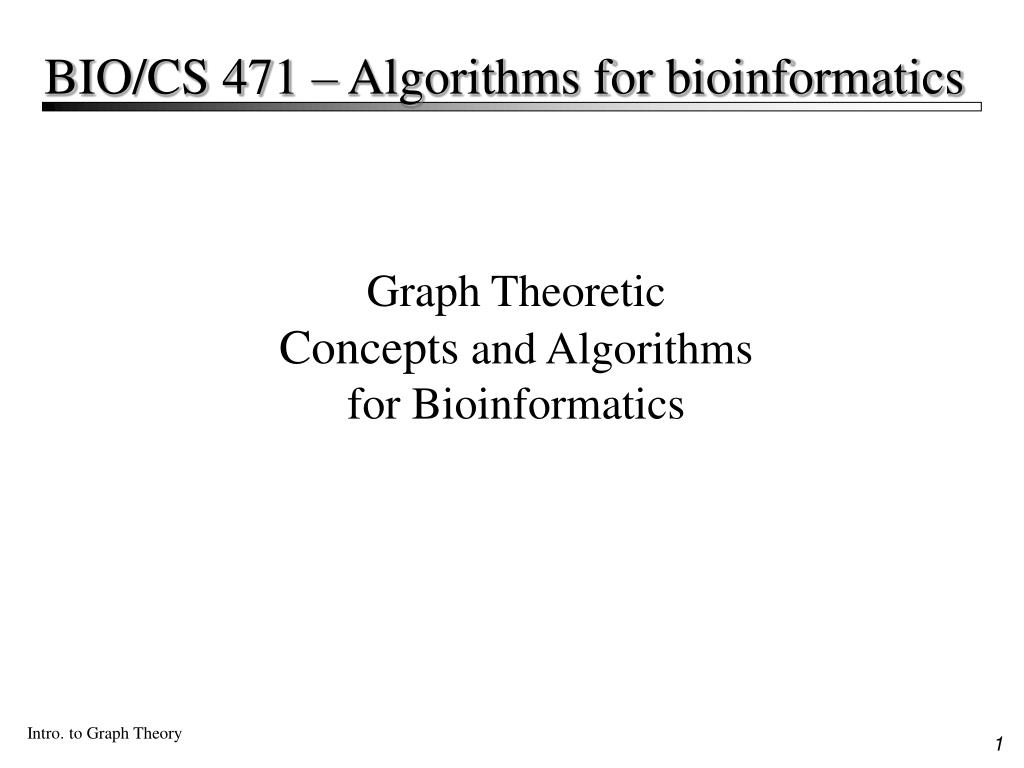

BIO/CS 471 – Algorithms for bioinformatics. Graph Theoretic Concepts and Algorithms for Bioinformatics. a. b. c. a. b. c. What is a “graph”. Formally: A finite graph G ( V , E ) is a pair ( V , E ), where V is a finite set and E is a binary relation on V .

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Graph Theoretic Concepts and Algorithms for Bioinformatics' - luce


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what is a graph

a

b

c

a

b

c

What is a “graph”
  • Formally: A finite graph G(V, E) is a pair (V, E), where V is a finite set and E is a binary relation on V.
    • Recall: A relationR between two sets X and Y is a subset of X x Y.
    • For each selection of two distinct V’s, that pair of V’s is either in set E or not in set E.
  • The elements of the set V are called vertices (or nodes) and those of set E are called edges.
  • Undirected graph: The edges are unordered pairs of V (i.e. the binary relation is symmetric).
    • Ex: undirected G(V,E); V = {a,b,c}, E = {{a,b}, {b,c}}
  • Directed graph (digraph):The edges are ordered pairs of V (i.e. the binary relation is not necessarily symmetric).
    • Ex: digraph G(V,E); V = {a,b,c}, E = {(a,b), (b,c)}
why graphs

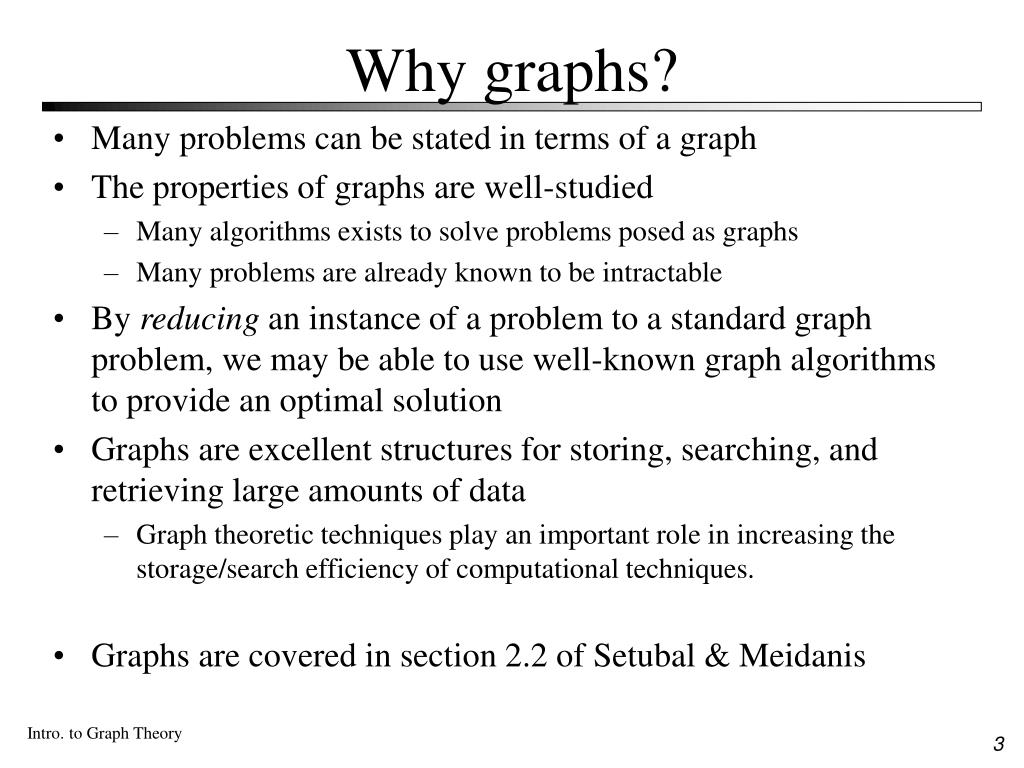

Why graphs?
  • Many problems can be stated in terms of a graph
  • The properties of graphs are well-studied
    • Many algorithms exists to solve problems posed as graphs
    • Many problems are already known to be intractable
  • By reducing an instance of a problem to a standard graph problem, we may be able to use well-known graph algorithms to provide an optimal solution
  • Graphs are excellent structures for storing, searching, and retrieving large amounts of data
    • Graph theoretic techniques play an important role in increasing the storage/search efficiency of computational techniques.
  • Graphs are covered in section 2.2 of Setubal & Meidanis
graphs in bioinformatics

R

Y

L

I

Graphs in bioinformatics
  • Sequences
    • DNA, proteins, etc.

Chemical compounds

Metabolic pathways

graphs in bioinformatics5

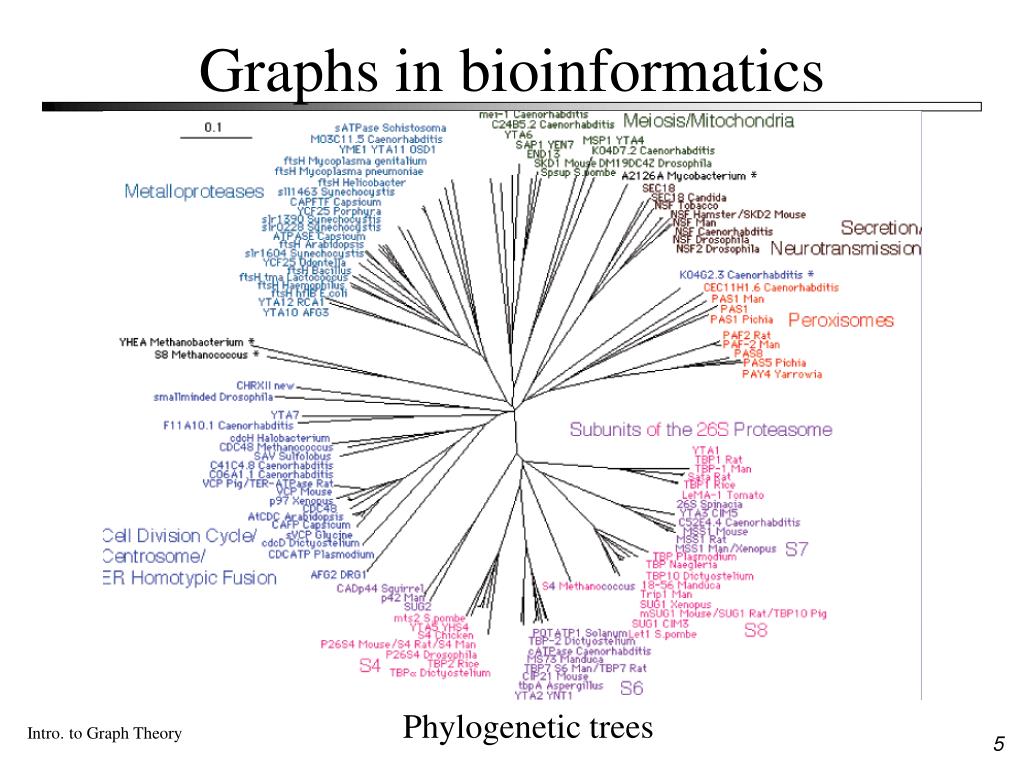

Graphs in bioinformatics

Phylogenetic trees

basic definitions
Basic definitions
  • incidence: an edge (directed or undirected) is incident to a vertex that is one of its end points.
  • degree of a vertex: number of edges incident to it
    • Nodes of a digraph can also be said to have an indegree and an outdegree
  • adjacency: two vertices connected by an edge are adjacent

Undirected graph

Directed graph

loop

loop

G=(V,E)

isolated vertex

adjacent

multiple

edges

slide7

x

y

“Travel” in graphs

a

path: no vertex can be repeated

example path: a-b-c-d-e

trail: no edge can be repeated

example trail: a-b-c-d-e-b-d

walk: no restriction

example walk: a-b-d-a-b-c

closed: if starting vertex is also ending vertex

length: number of edges in the path, trail, or walk

circuit: a closed trail (ex: a-b-c-d-b-e-d-a)

cycle: closed path (ex: a-b-c-d-a)

e

b

d

c

types of graphs

Simple graph

a

e

b

d

a

c

e

b

K5

d

c

Types of graphs
  • simple graph: an undirected graph with no loops or multiple edges between the same two vertices
  • multi-graph: any graph that is not simple
  • connected graph: all vertex pairs are joined by a path
  • disconnected graph: at least one vertex pairs is not joined by a path
  • complete graph: all vertex pairs are adjacent
    • Kn: the completely connected graph with n vertices

Disconnected graph

with two components

types of graphs9

a

b

10

5

c

d

8

-3

2

e

f

6

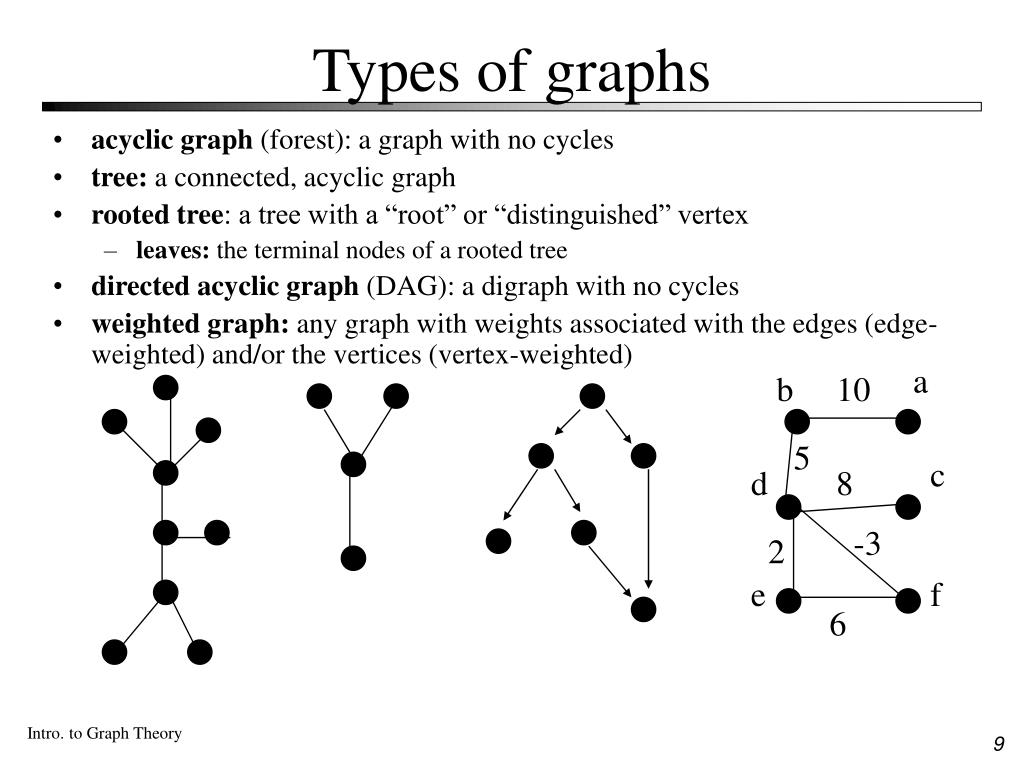

Types of graphs
  • acyclic graph (forest): a graph with no cycles
  • tree: a connected, acyclic graph
  • rooted tree: a tree with a “root” or “distinguished” vertex
    • leaves: the terminal nodes of a rooted tree
  • directed acyclic graph (DAG): a digraph with no cycles
  • weighted graph: any graph with weights associated with the edges (edge-weighted) and/or the vertices (vertex-weighted)
digraph definitions

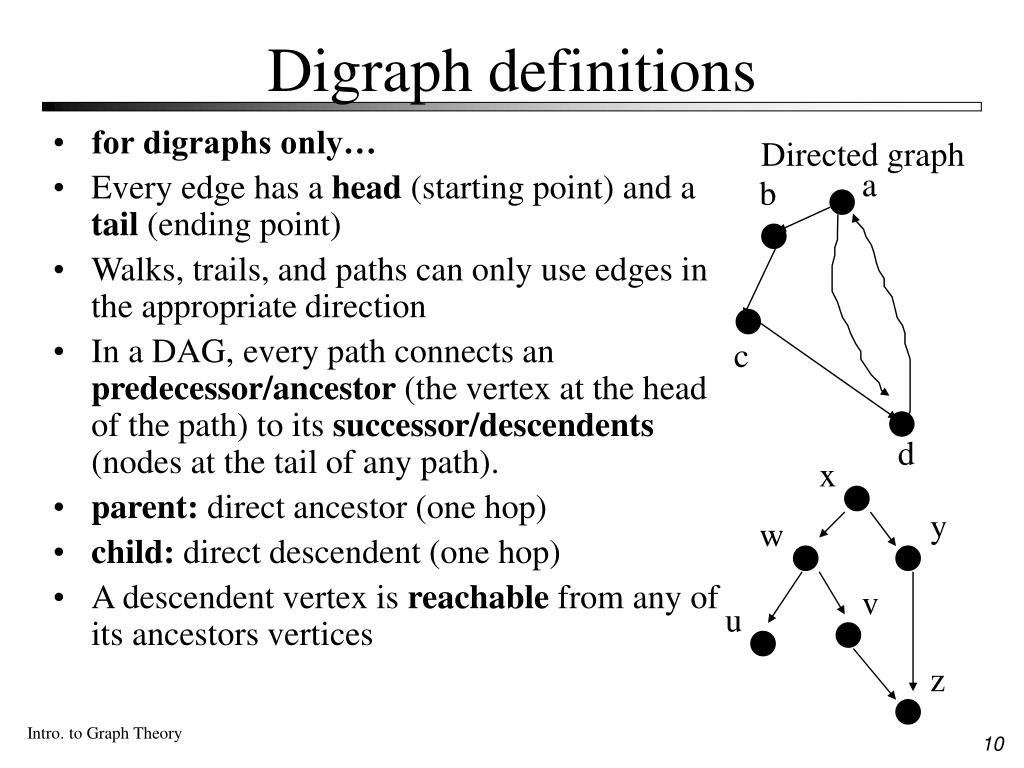

Digraph definitions
  • for digraphs only…
  • Every edge has a head(starting point) and a tail (ending point)
  • Walks, trails, and paths can only use edges in the appropriate direction
  • In a DAG, every path connects an predecessor/ancestor (the vertex at the head of the path) to its successor/descendents (nodes at the tail of any path).
  • parent: direct ancestor (one hop)
  • child: direct descendent (one hop)
  • A descendent vertex is reachablefrom any of its ancestors vertices

Directed graph

a

b

c

d

x

y

w

v

u

z

computer representation

6

c

b

2

8

10

4

a

d

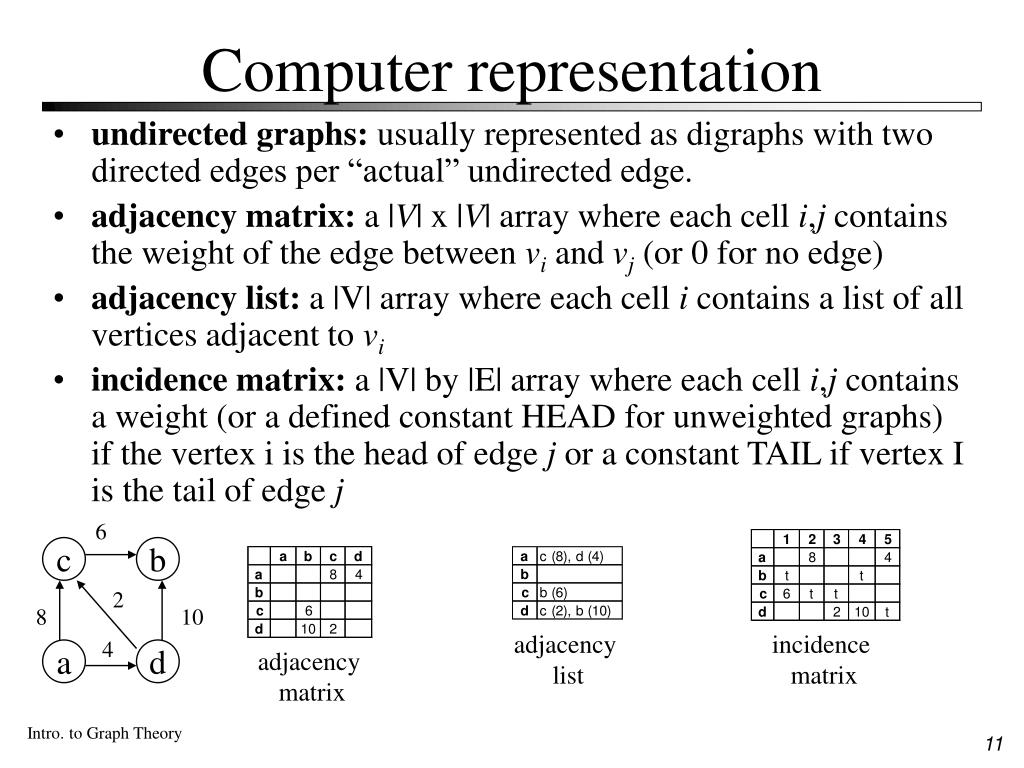

Computer representation
  • undirected graphs: usually represented as digraphs with two directed edges per “actual” undirected edge.
  • adjacency matrix: a |V| x |V| array where each cell i,j contains the weight of the edge between vi and vj (or 0 for no edge)
  • adjacency list: a |V| array where each cell i contains a list of all vertices adjacent to vi
  • incidence matrix: a |V| by |E| array where each cell i,j contains a weight (or a defined constant HEAD for unweighted graphs) if the vertex i is the head of edge j or a constant TAIL if vertex I is the tail of edge j

adjacency

list

incidence

matrix

adjacency

matrix

computer representation12

Class Node:

label = NIL;

parents = []; # list of nodes coming into this node

children = []; # list of nodes coming out of this node

childEdgeWeights = []; # ordered list of edged weights

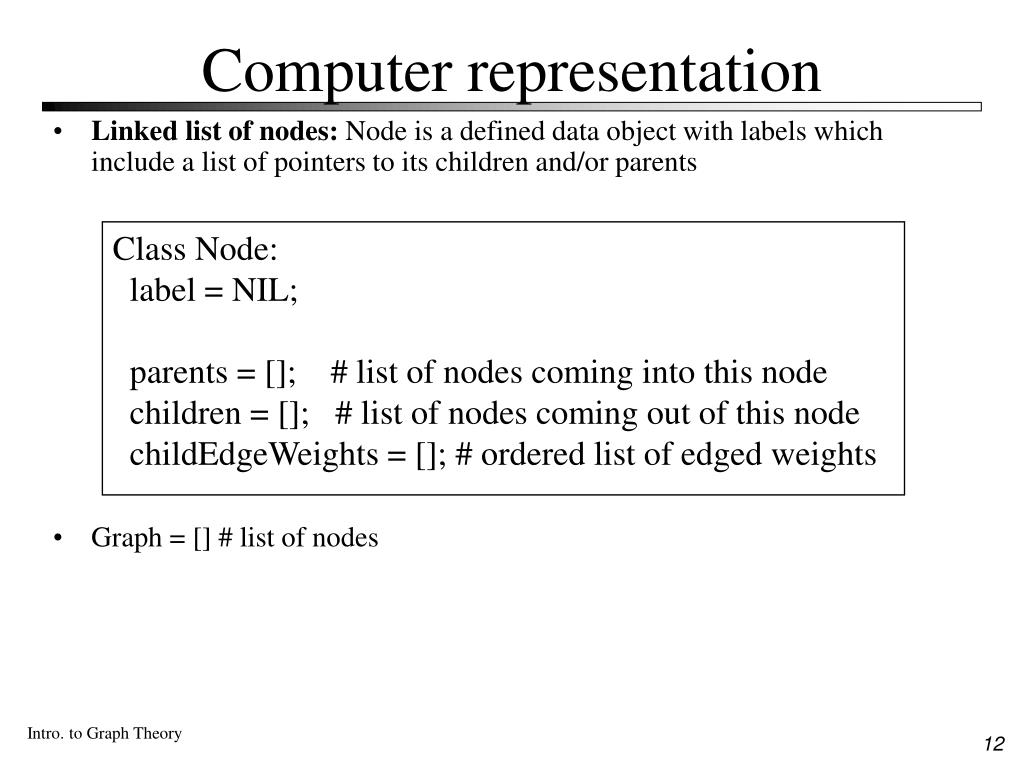

Computer representation
  • Linked list of nodes: Node is a defined data object with labels which include a list of pointers to its children and/or parents
  • Graph = [] # list of nodes
subgraphs

a

e

b

e

b

d

c

d

c

Subgraphs
  • G’(V’,E’) is a subgraph of G(V,E) if V’ V and E’ E.
  • induced subgraph: a subgraph that contains all possible edges in E that have end points of the vertices of the selected V’

a

d

c

Induced subgraph of

G with V’ = {b,c,d,e}

G(V,E)

G’({a,c,d},{{c,d}})

complement of a graph

a

G G

e

b

a

e

b

d

c

d

c

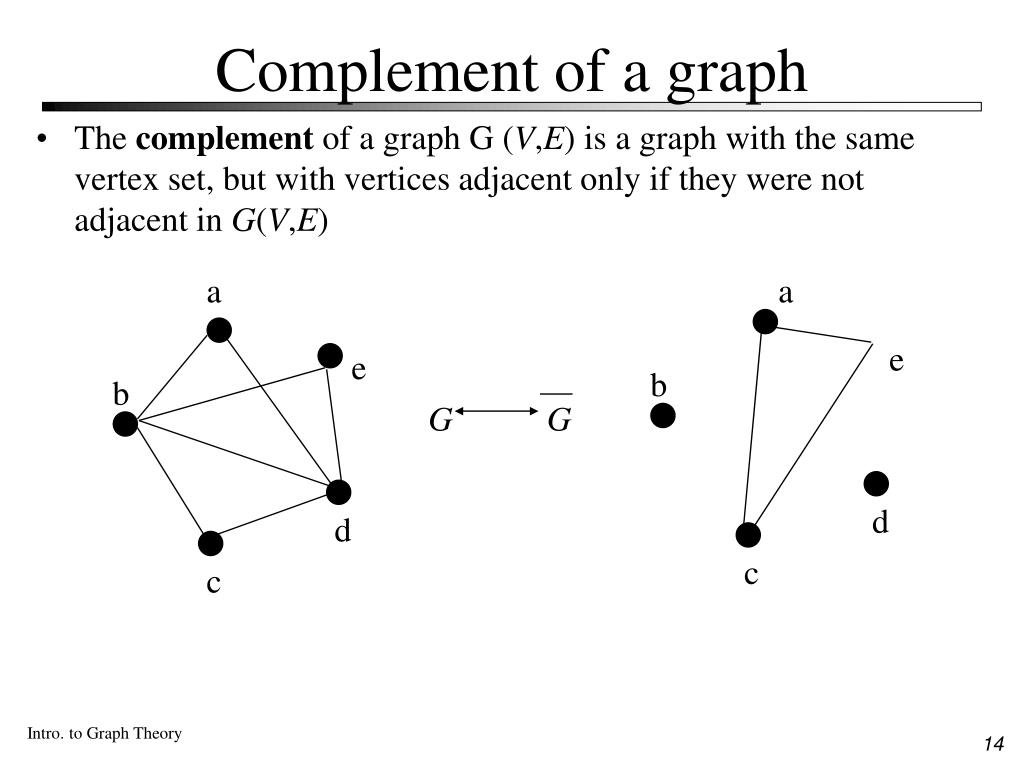

Complement of a graph
  • The complement of a graph G (V,E) is a graph with the same vertex set, but with vertices adjacent only if they were not adjacent in G(V,E)
famous problems shortest path

6

c

b

2

8

10

4

a

d

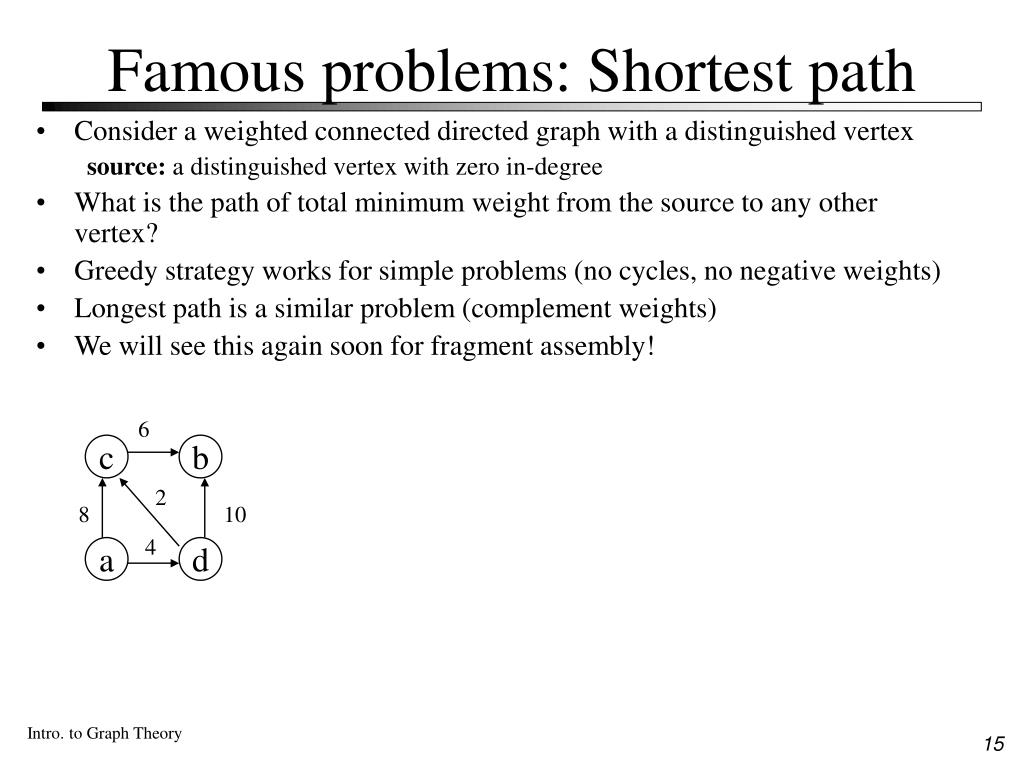

Famous problems: Shortest path
  • Consider a weighted connected directed graph with a distinguished vertex

source: a distinguished vertex with zero in-degree

  • What is the path of total minimum weight from the source to any other vertex?
  • Greedy strategy works for simple problems (no cycles, no negative weights)
  • Longest path is a similar problem (complement weights)
  • We will see this again soon for fragment assembly!
dijkstra s algorithm
Dijkstra’s Algorithm
  • D(x) = distance from s to x (initially all )
  • Select the closest vertex to s, according to the current estimate (call it c)
  • Recompute the estimate for every other vertex, x, as the MINIMUM of:
    • The current distance, or
    • The distance from s to c , plus the distance from c to x – D(c) + W(c, x)
famous problems isomorphism

1

a

2

3

e

b

4

5

d

c

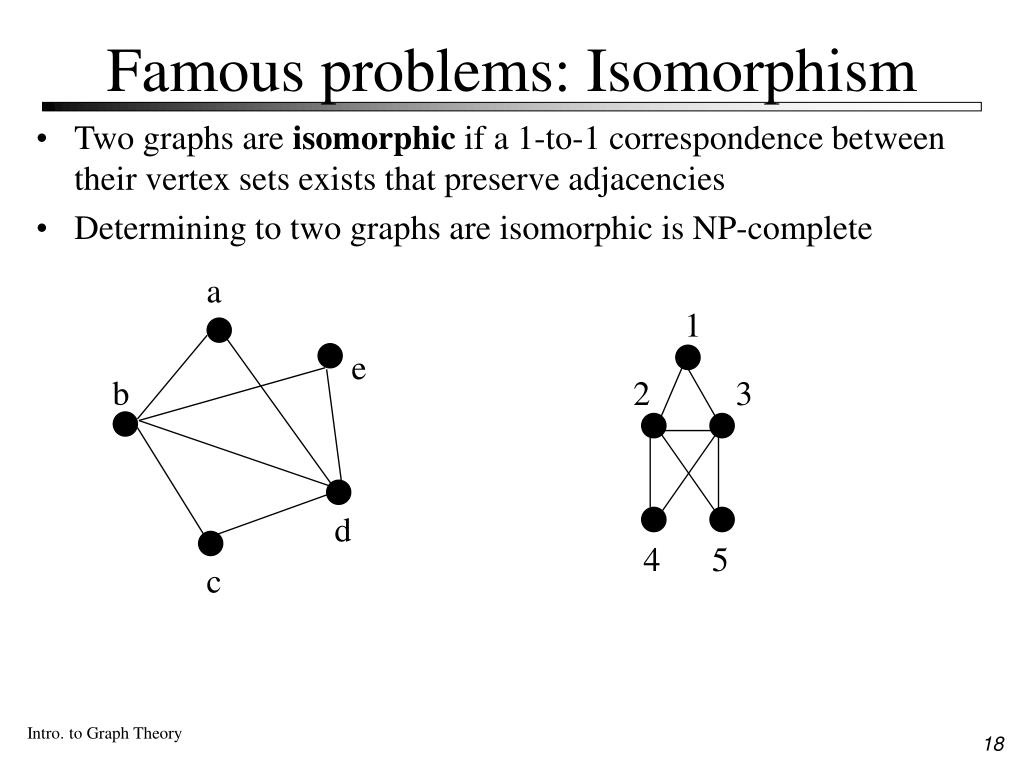

Famous problems: Isomorphism
  • Two graphs are isomorphic if a 1-to-1 correspondence between their vertex sets exists that preserve adjacencies
  • Determining to two graphs are isomorphic is NP-complete
famous problems maximal clique

1

2

4

3

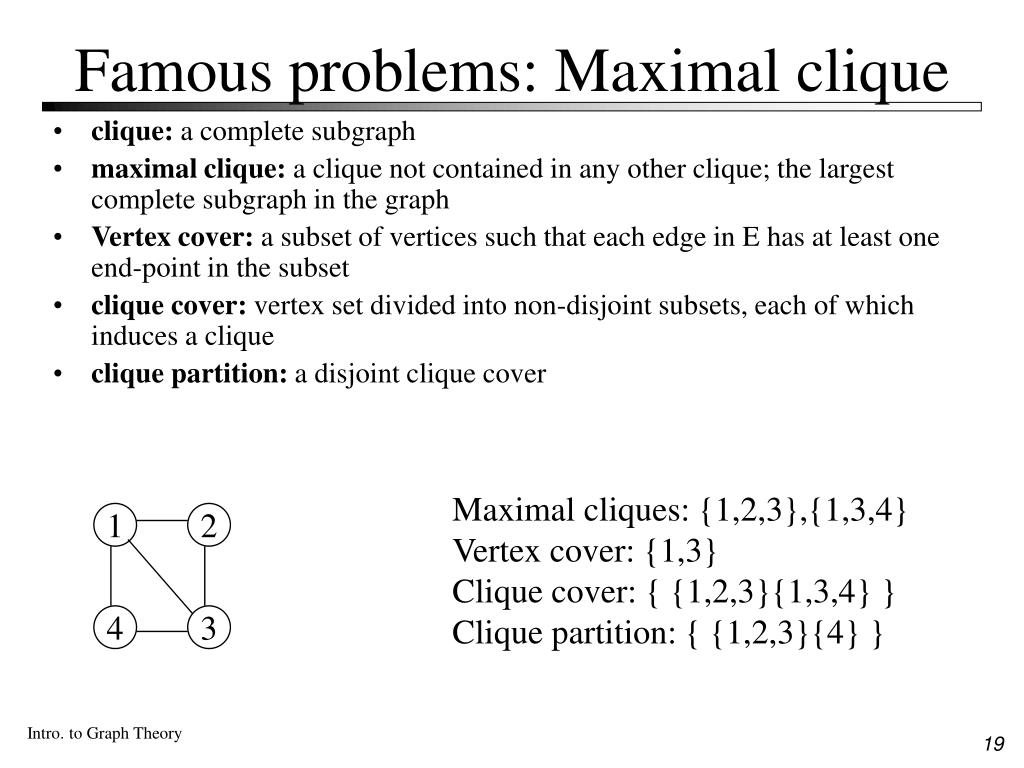

Famous problems: Maximal clique
  • clique: a complete subgraph
  • maximal clique: a clique not contained in any other clique; the largest complete subgraph in the graph
  • Vertex cover: a subset of vertices such that each edge in E has at least one end-point in the subset
  • clique cover: vertex set divided into non-disjoint subsets, each of which induces a clique
  • clique partition: a disjoint clique cover

Maximal cliques: {1,2,3},{1,3,4}

Vertex cover: {1,3}

Clique cover: { {1,2,3}{1,3,4} }

Clique partition: { {1,2,3}{4} }

famous problems coloring

1

2

4

3

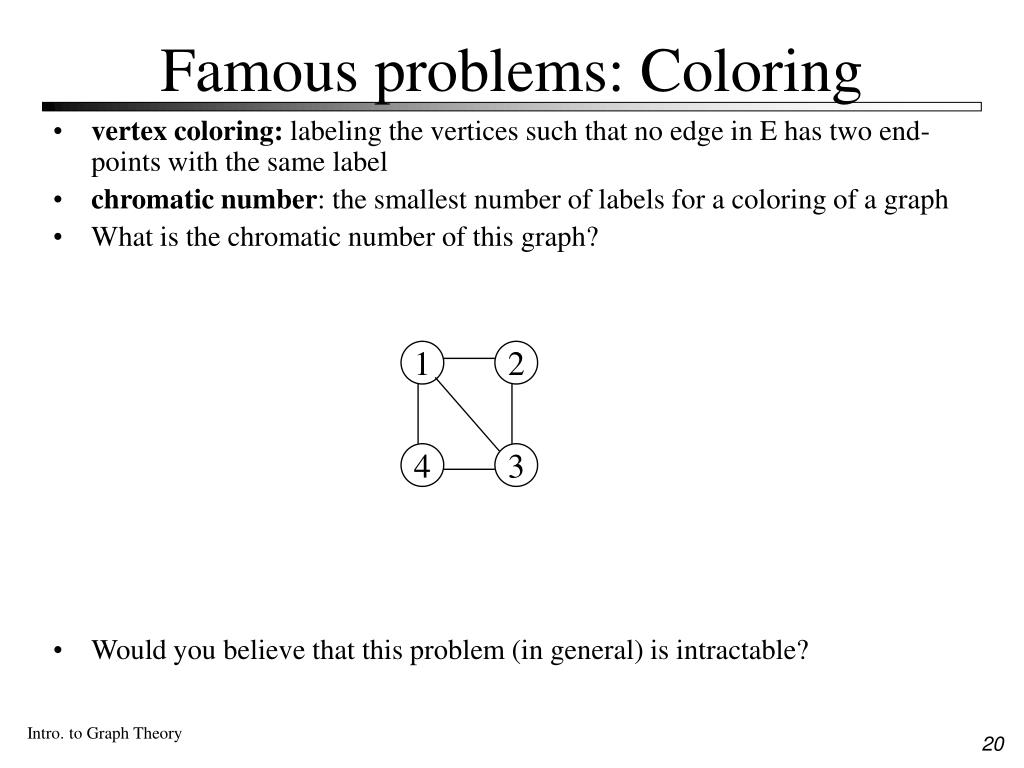

Famous problems: Coloring
  • vertex coloring: labeling the vertices such that no edge in E has two end-points with the same label
  • chromatic number: the smallest number of labels for a coloring of a graph
  • What is the chromatic number of this graph?
  • Would you believe that this problem (in general) is intractable?
famous problems hamilton tsp

a

3

e

1

b

3

2

4

3

d

5

4

2

c

c

a

b

e

d

f

h

g

i

Famous problems: Hamilton & TSP
  • Hamiltonian path: a path through a graph which contains every vertex exactly once
  • Finding a Hamiltonian path is another NP-complete problem…
  • Traveling Salesmen Problem (TSP): find a Hamiltonian path of minimum cost
famous problems bipartite graphs

K4,4

Famous problems: Bipartite graphs
  • Bipartite: any graph whose vertices can be partitioned into two distinct sets so that every edge has one endpoint in each set.
  • How colorable is a bipartite graph?
  • Can you come up with an algorithm to determine if a graph is bipartite or not?
  • Is this problem tractable or intractable?
famous problems minimal cut set

e

b

d

f

a

h

1

2

c

g

4

3

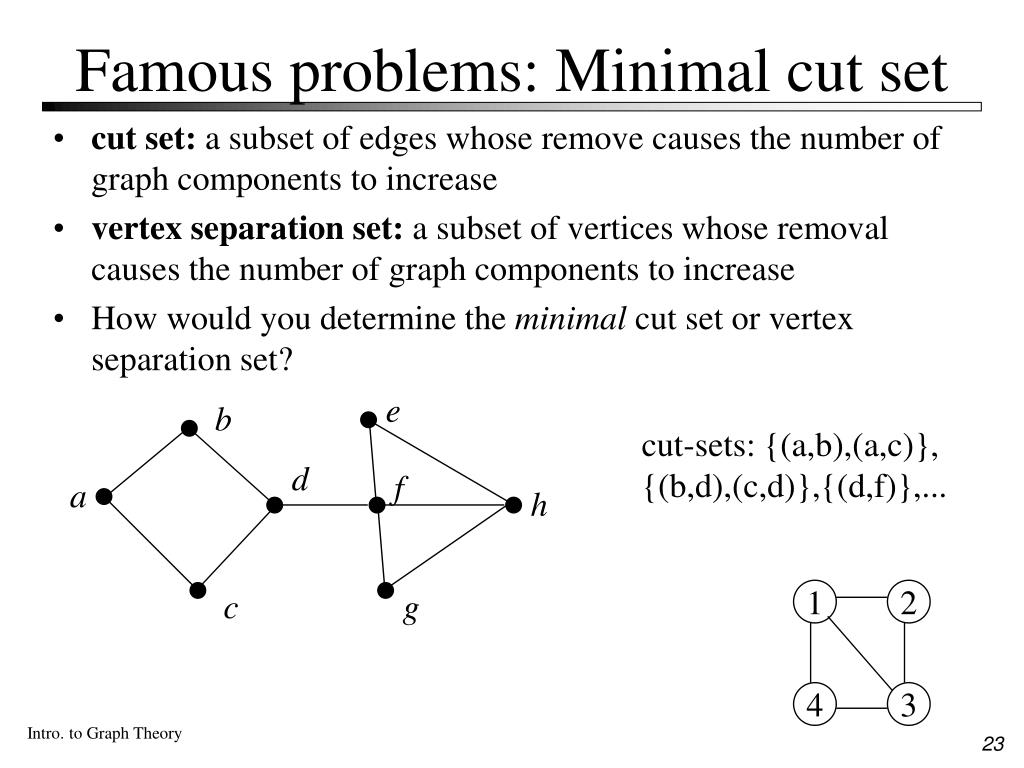

Famous problems: Minimal cut set
  • cut set: a subset of edges whose remove causes the number of graph components to increase
  • vertex separation set: a subset of vertices whose removal causes the number of graph components to increase
  • How would you determine the minimal cut set or vertex separation set?

cut-sets: {(a,b),(a,c)},

{(b,d),(c,d)},{(d,f)},...

famous problem conflict graphs

a

b

c

d

e

f

Famous problem: Conflict graphs
  • Conflict graph: a graph where each vertex represents a concept or resource and an edge between two vertices represents a conflict between these two concepts
  • When the vertices represents intervals on the real line (such as time) the conflict graph is sometimes called an interval graph
  • A coloring of an interval graph produces a schedule that shows how to best resolve the conflicts… a minimal coloring is the “best” schedule”
  • This concept is used to solve problems in the physical mapping of DNA

Colors?

famous problems spanning tree

e

b

d

f

a

2

2

h

6

4

8

2

4

c

g

4

1

2

Famous problems: Spanning tree
  • spanning tree: A subset of edges that are sufficient to keep a graph connected if all other edges are removed
  • minimum spanning tree: A spanning tree where the sum of the edge weights is minimum

e

b

2

2

6

d

8

f

a

2

h

4

4

1

2

c

g

famous problems euler circuit

area b

area d

area c

a

b

d

c

Famous problems: Euler circuit
  • G is said to have a Euler circuit if there is a circuit in G that traverses every edge in the graph exactly once
  • The seven bridges of Konigsberg: Find a way to walk about the city so as to cross each bridge exactly once and then return to the starting point.

This one is in P!

famous problems dictionary

a

a

a

a

a

a

b

b

b

b

b

b

c

c

c

c

c

c

y

y

y

y

y

y

z

z

z

z

z

z

Famous problems: Dictionary
  • How can we organize a dictionary for fast lookup?

26-ary “trie”

“CAB”

graph traversal

1

a

3

c

b

2

6

4

5

7

f

e

d

Graph traversal
  • There are many strategies for solving graph problems… for many problems, the efficiency and accuracy of the solution boil down to how you “search” the graph.
  • We will consider a “travel” problem for example:
  • Given the graph below, find a path from vertex a to vertex d. Shorter paths (in terms of edge weight sums) are desirable.
a greedy approach

1

a

3

c

b

2

6

4

5

7

f

e

d

A greedy approach
  • greedy traversal: Starting with the “root” node, take the edge with smallest weight. Mark the edge so that you never attempt to use it again. If you get to the end, great! If you get to a dead end, back up one decision and try the next best edge.
  • Advantages: Fast! Drawbacks: Answer is usually non-optimal
  • For some problems, greedy approaches are optimal, for others the answer may usually be close to the best answers, for yet other problems, the greedy strategy is a poor choice.

Start node: a

End node: d

Traversal order: a, c, f, e, b, d

exhaustive search breadth first

1

a

3

c

b

2

6

4

5

7

f

e

d

Exhaustive search: Breadth-first
  • For the current node, do any necessary work
    • In this case, calculate the cost to get to the node by the current path; if the cost is better than any previous path, update the “best path” and “lowest cost”.
  • Place all adjacent unused edges in a queue (FIFO)
  • Take an edge from the queue, mark it as used, and follow it to the new current node

Traversal order: a, b, c, d, e, f

exhaustive search depth first

1

a

3

c

b

2

6

4

5

7

f

e

d

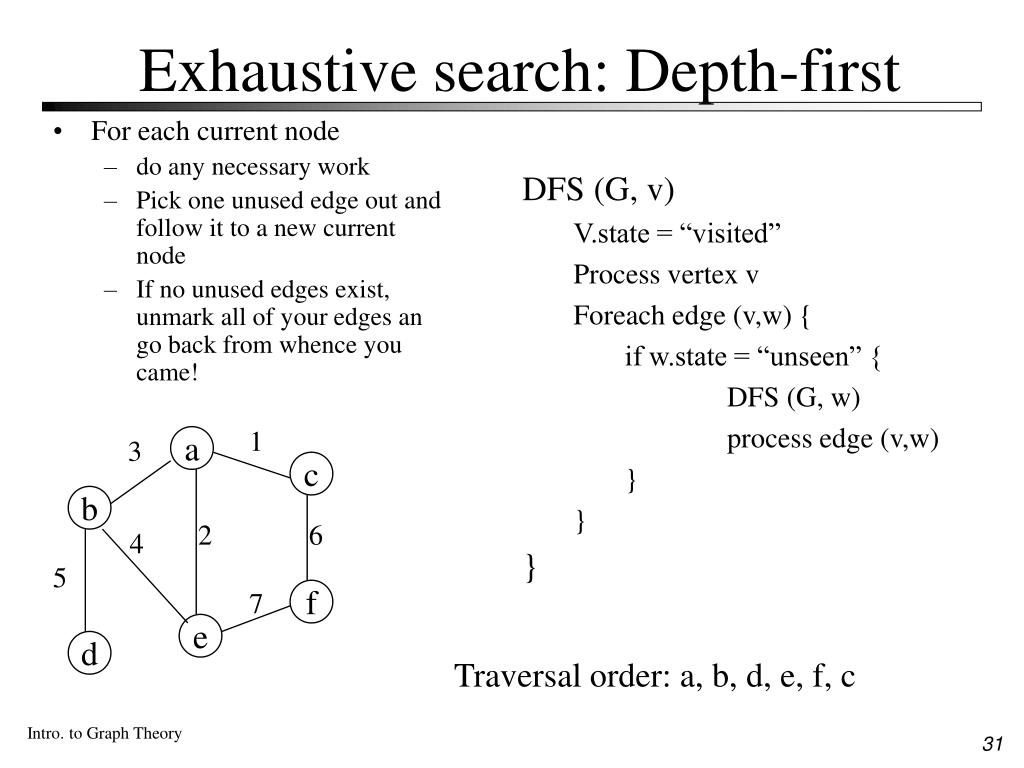

Exhaustive search: Depth-first
  • For each current node
    • do any necessary work
    • Pick one unused edge out and follow it to a new current node
    • If no unused edges exist, unmark all of your edges an go back from whence you came!
  • DFS (G, v)
    • V.state = “visited”
    • Process vertex v
    • Foreach edge (v,w) {
    • if w.state = “unseen” {
    • DFS (G, w)
    • process edge (v,w)
    • }
    • }
  • }

Traversal order: a, b, d, e, f, c

branch and bound

1

a

3

c

b

2

6

4

5

7

f

e

d

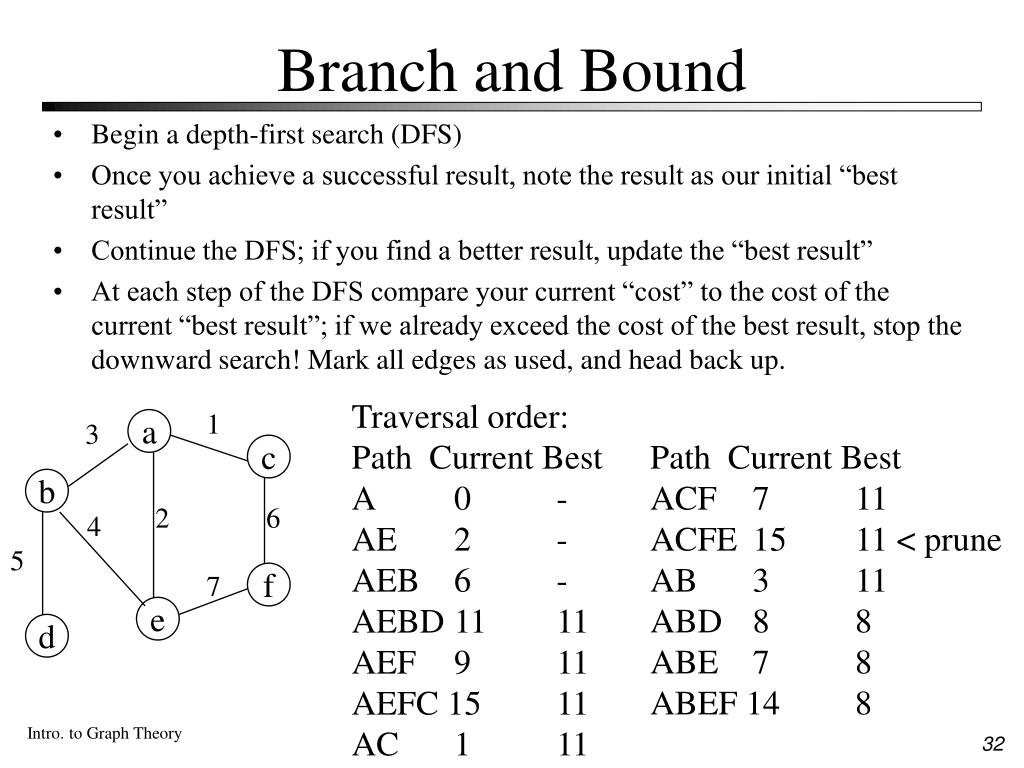

Branch and Bound
  • Begin a depth-first search (DFS)
  • Once you achieve a successful result, note the result as our initial “best result”
  • Continue the DFS; if you find a better result, update the “best result”
  • At each step of the DFS compare your current “cost” to the cost of the current “best result”; if we already exceed the cost of the best result, stop the downward search! Mark all edges as used, and head back up.

Traversal order:

Path Current Best

A 0 -

AE 2 -

AEB 6 -

AEBD 11 11

AEF 9 11

AEFC 15 11

AC 1 11

Path Current Best

ACF 7 11

ACFE 15 11 < prune

AB 3 11

ABD 8 8

ABE 7 8

ABEF 14 8

binary search trees

5

8

3

9

2

4

6

10

1

7

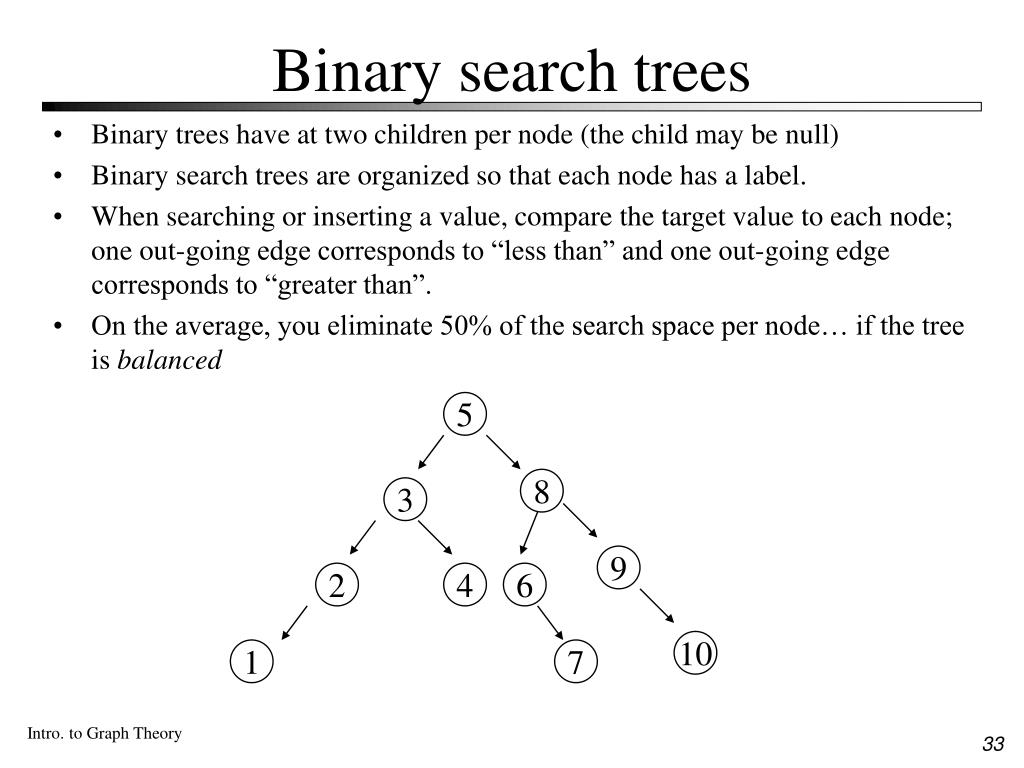

Binary search trees
  • Binary trees have at two children per node (the child may be null)
  • Binary search trees are organized so that each node has a label.
  • When searching or inserting a value, compare the target value to each node; one out-going edge corresponds to “less than” and one out-going edge corresponds to “greater than”.
  • On the average, you eliminate 50% of the search space per node… if the tree is balanced
